Description

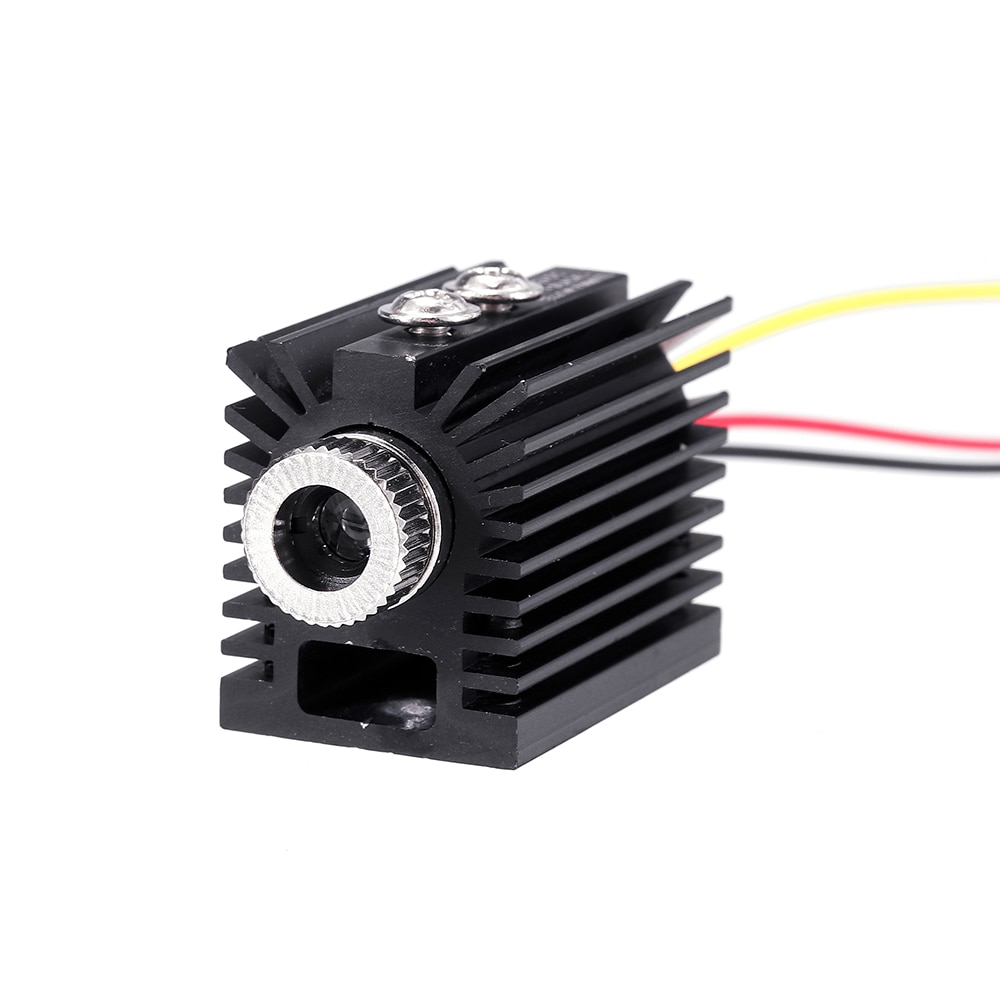

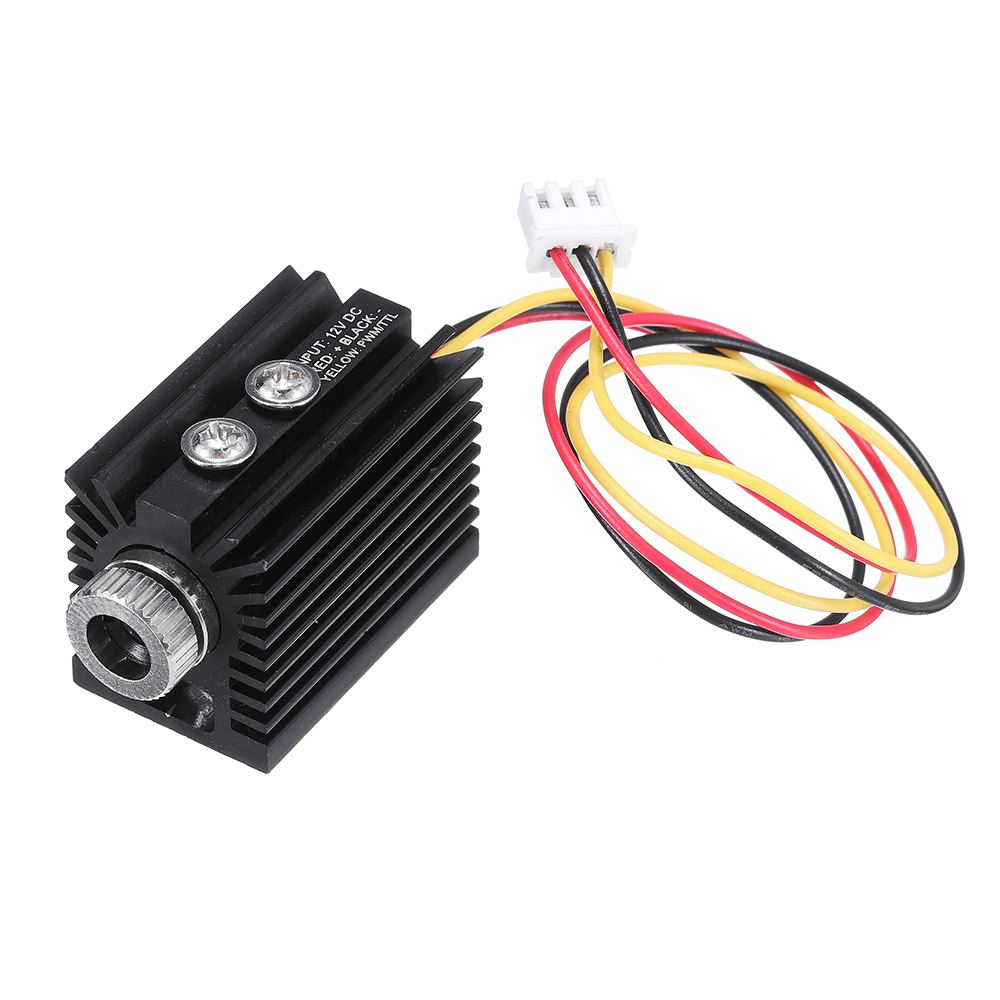

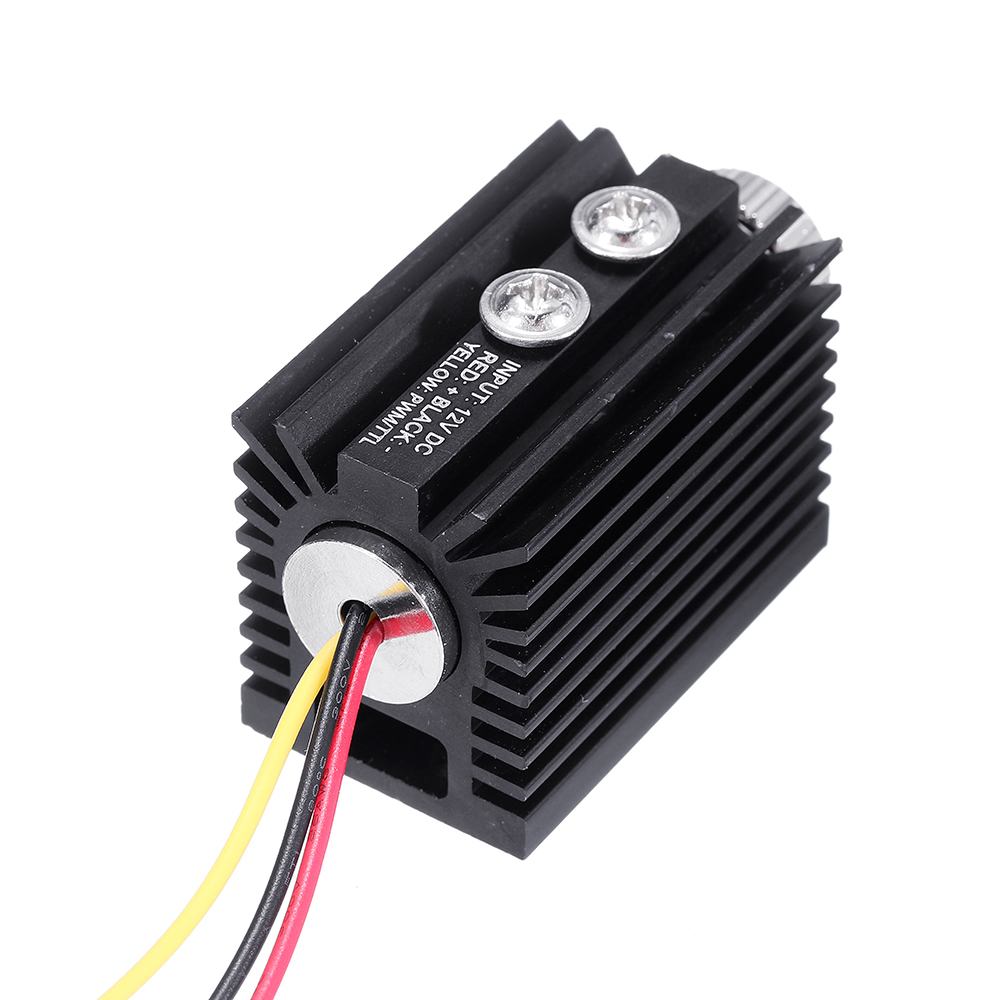

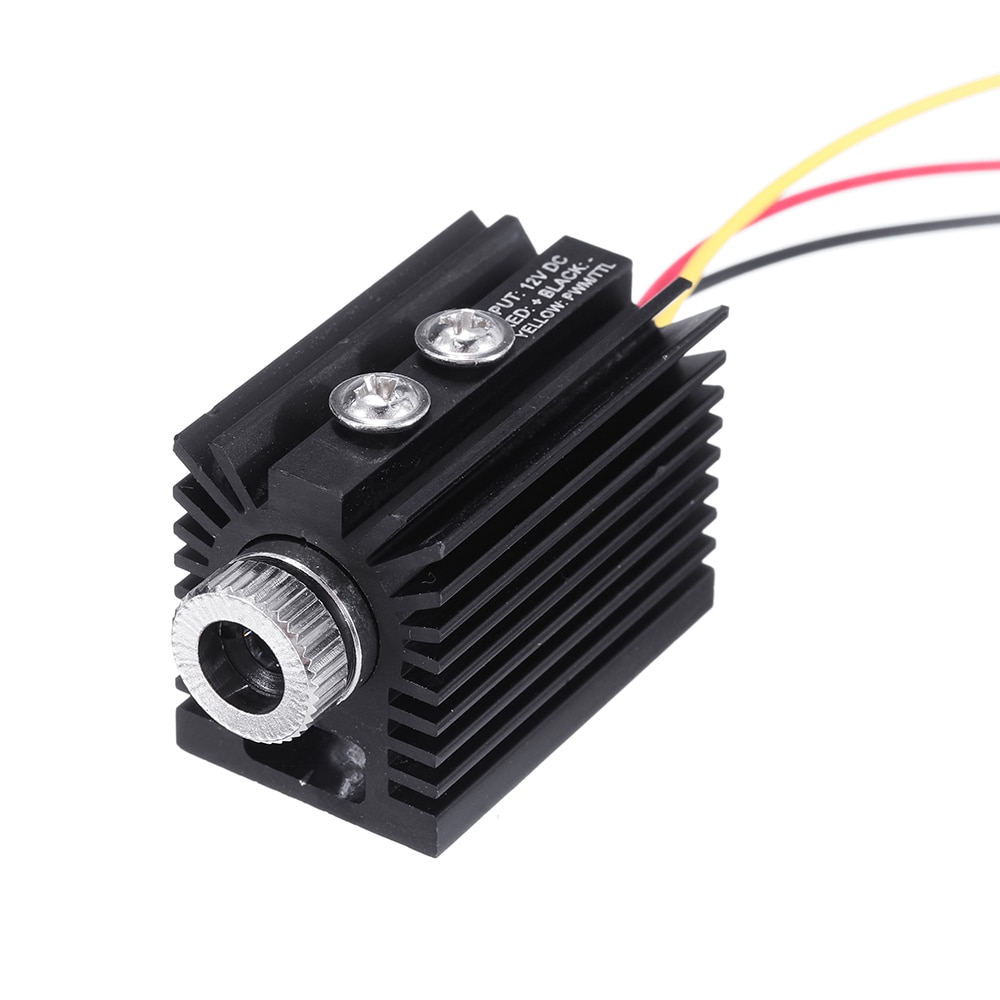

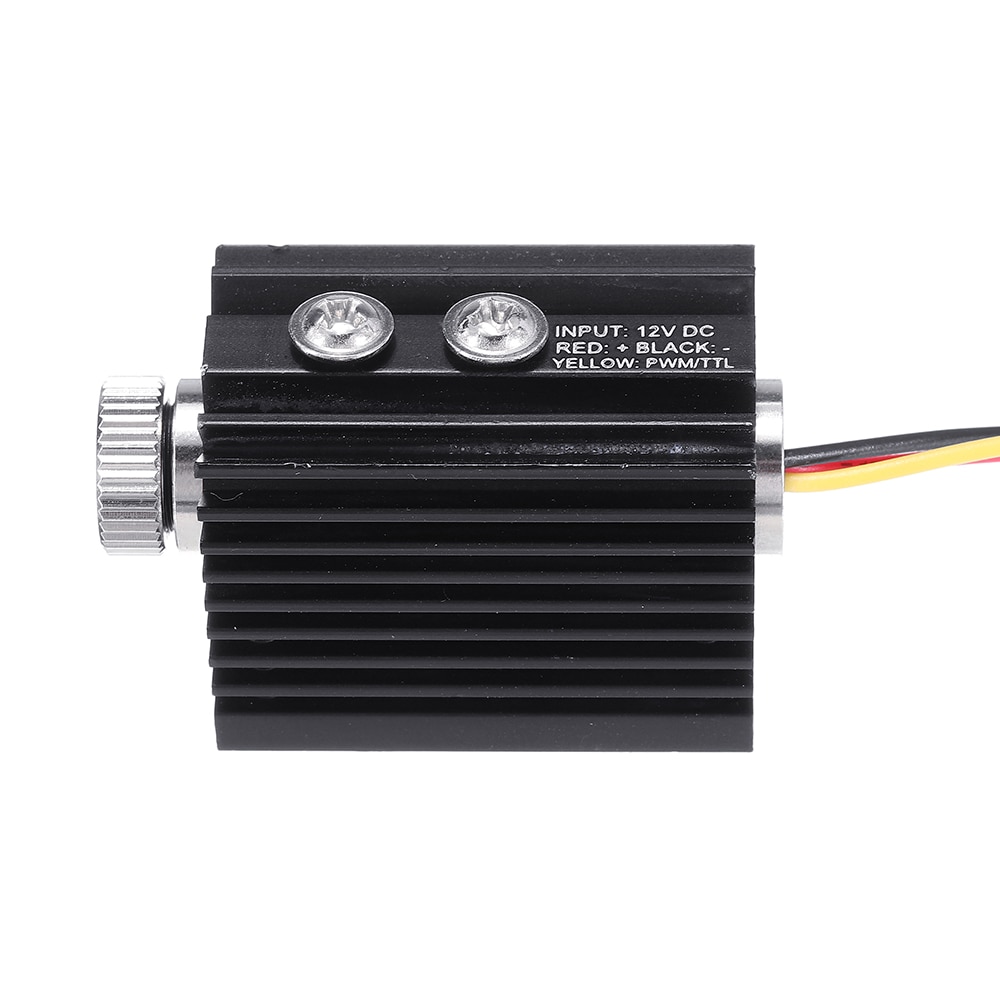

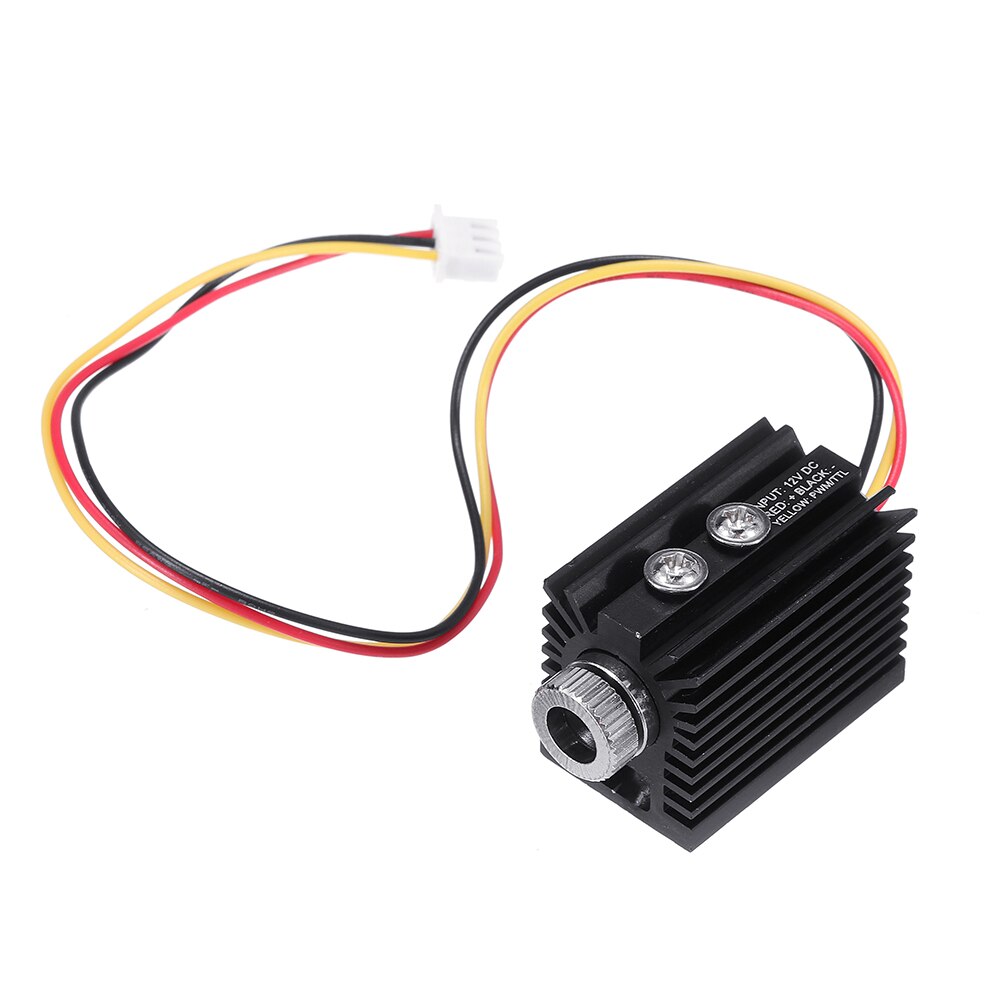

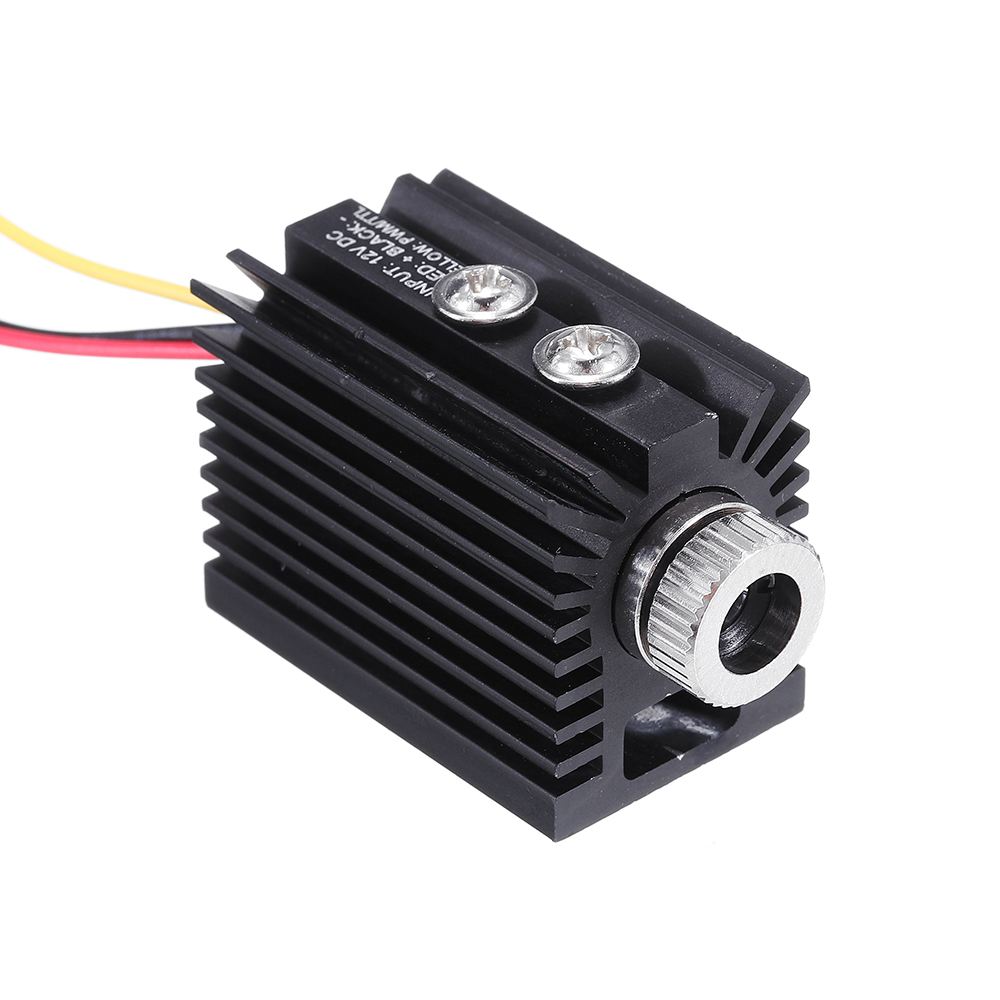

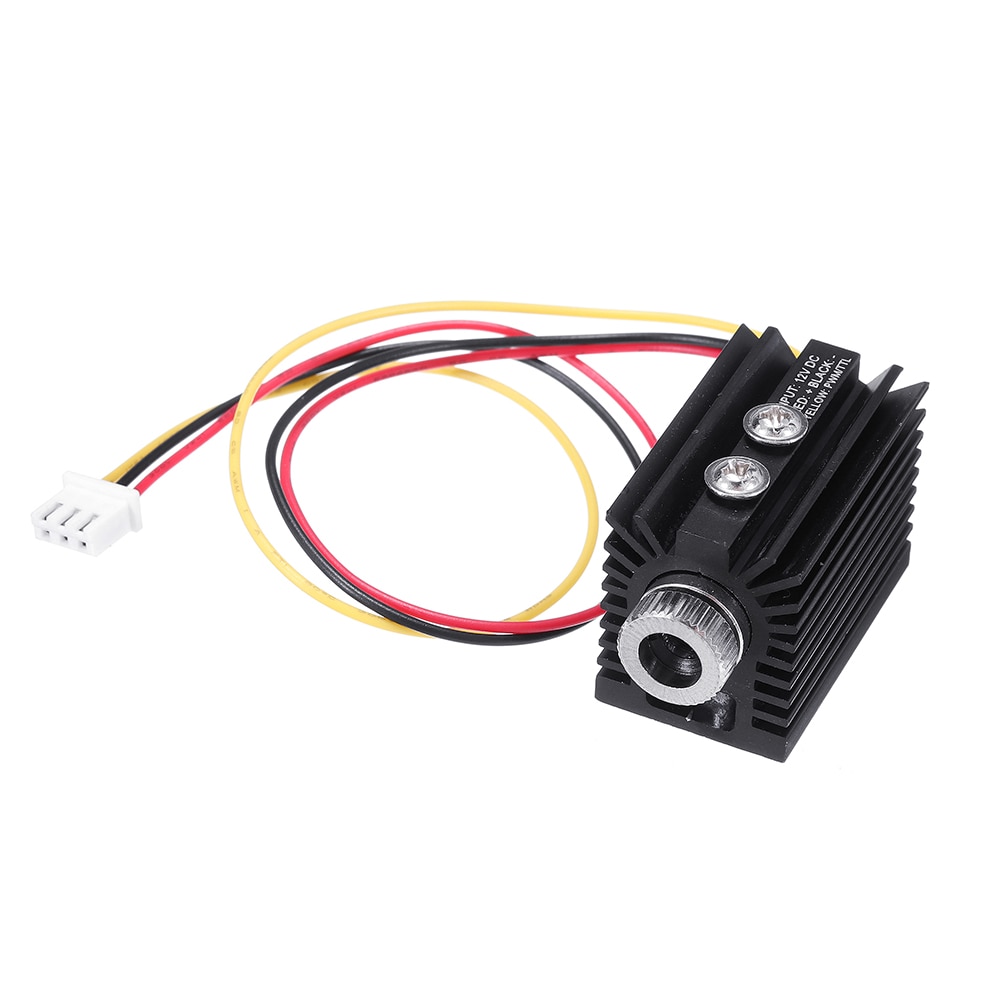

Blue Violet Dot Laser Module 405nm 100/180/300mW Variable Focus TTL/PWM Modulation w/ Heat Sink 2.54-3P for DIY Laser Engraver



Specification:
Material:Aluminum + Brass
Laser Lens Material:100mW Laser Module:PMA Lens (Acrylic)
180mW Laser Module:PMA Lens ( Acrylic)
300mW Laser Module:Glass Coated with High Permeability Film
Laser Wavelength:405nm (Blue Violet0
Bead Shape:Dot (Variable Focus)
Working Voltage:12VDC (8-15V)
Optical Power:100mW, 180mW, 300mW
TTL/PWM Modulation:YES
Input Interface:XH2.54-3P
Cooling Method:Natural Convection

Optical Power	Working Current	Rated Power
100mW	80mA	0.96W
180mW	125mA	2.16W
300mW	300mA	2.4W

Feature:
1.Made of high quality hard aluminum and brass material, the surface is by anodized and sandblasting , not easy rust, very durable.
2.With heat dissipation fan, make it with longer service life.
3.Output optical power is stable, suitable for industrial equipment usage.
4.3 Pins plug, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
This module can be compatible with TTL or PWM modulation, (But it can just select either function at a time.) while TTL can control the switch on/off and PWM can control the adjustment of laser power.
5. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper
6. Can Not Engrave: Anodized Aluminum/Ceramics/Stone/Stainless steel/Metal/Glass/PCB/Reflective Material/Transparent Material

Note:
1. This laser module has high output power, please wear goggles when testing or using.
2. Do not touch the laser light directly in case-that hurt the body and skin.
3. Keep children and pets away from the laser module when it working.

Package Included:
1 x Laser Module
