Description
- Certification: NONE
- Origin: CN(Origin)

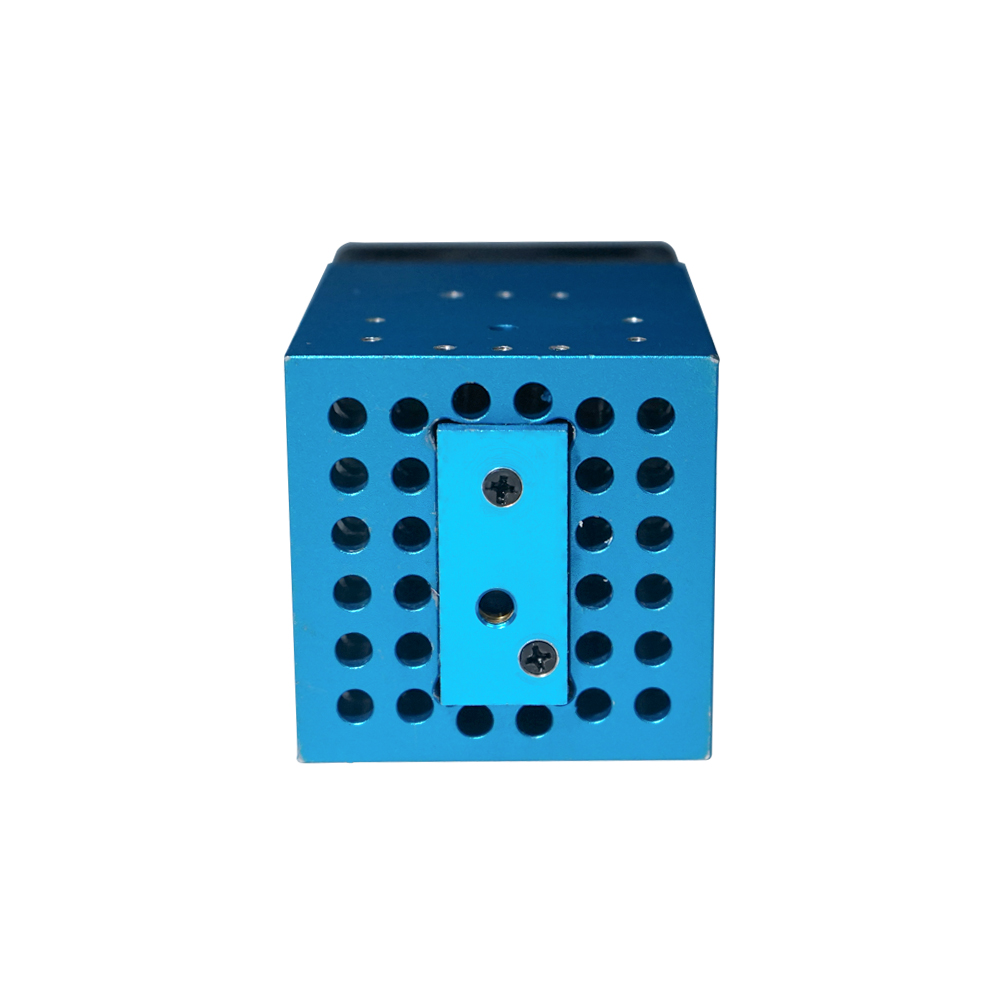

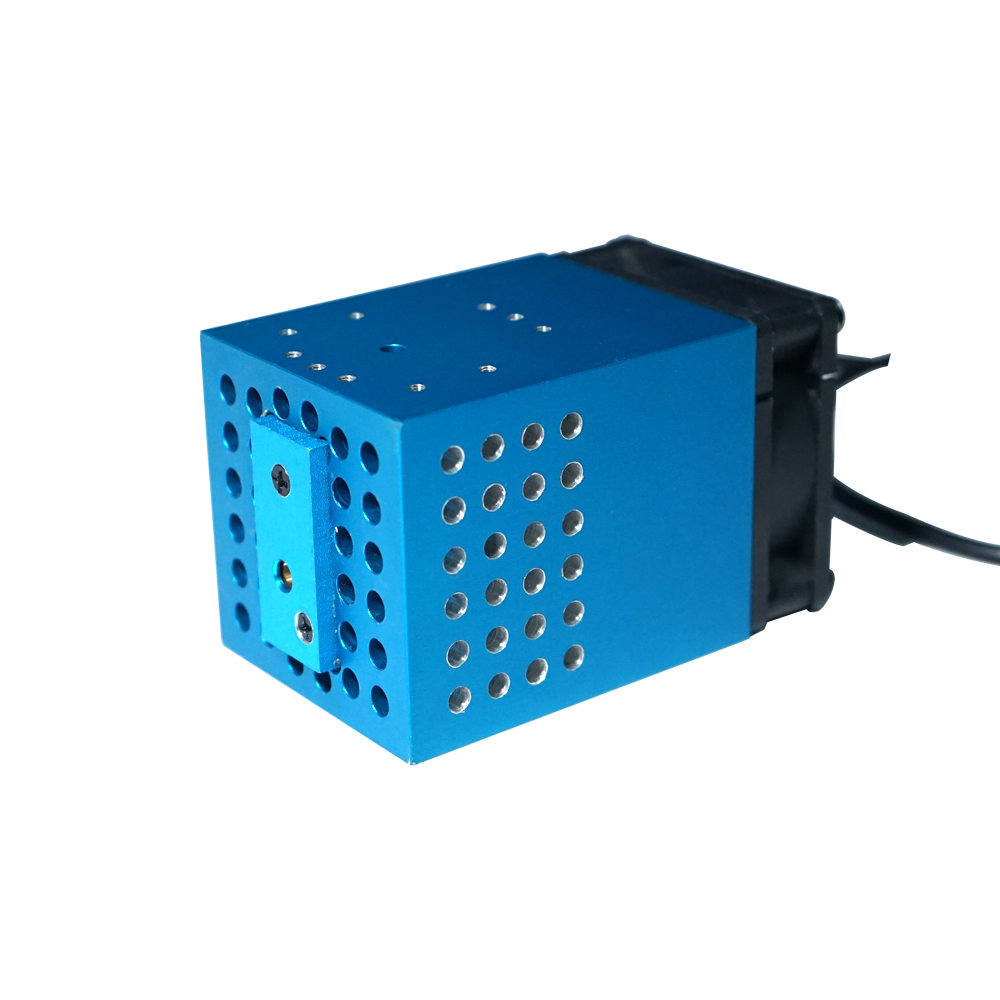

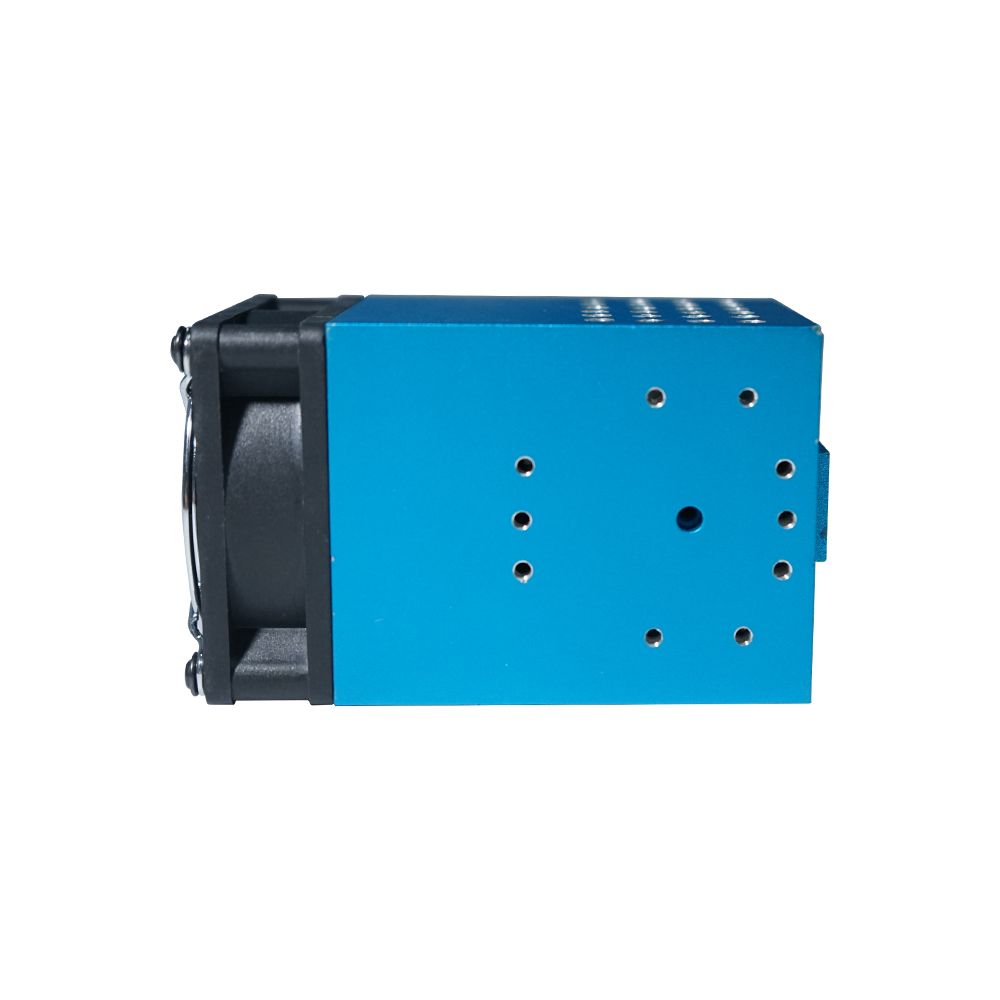

Blue-violet dual laser module 80w laser head
Function:
Designed for laser engraving machines.
10W light power, cutting 3mm acrylic (speed 100)
Safer, built-in protective glass to protect eyes! Even if you don’t wear protective glasses, the operation is more convenient.
Specification:

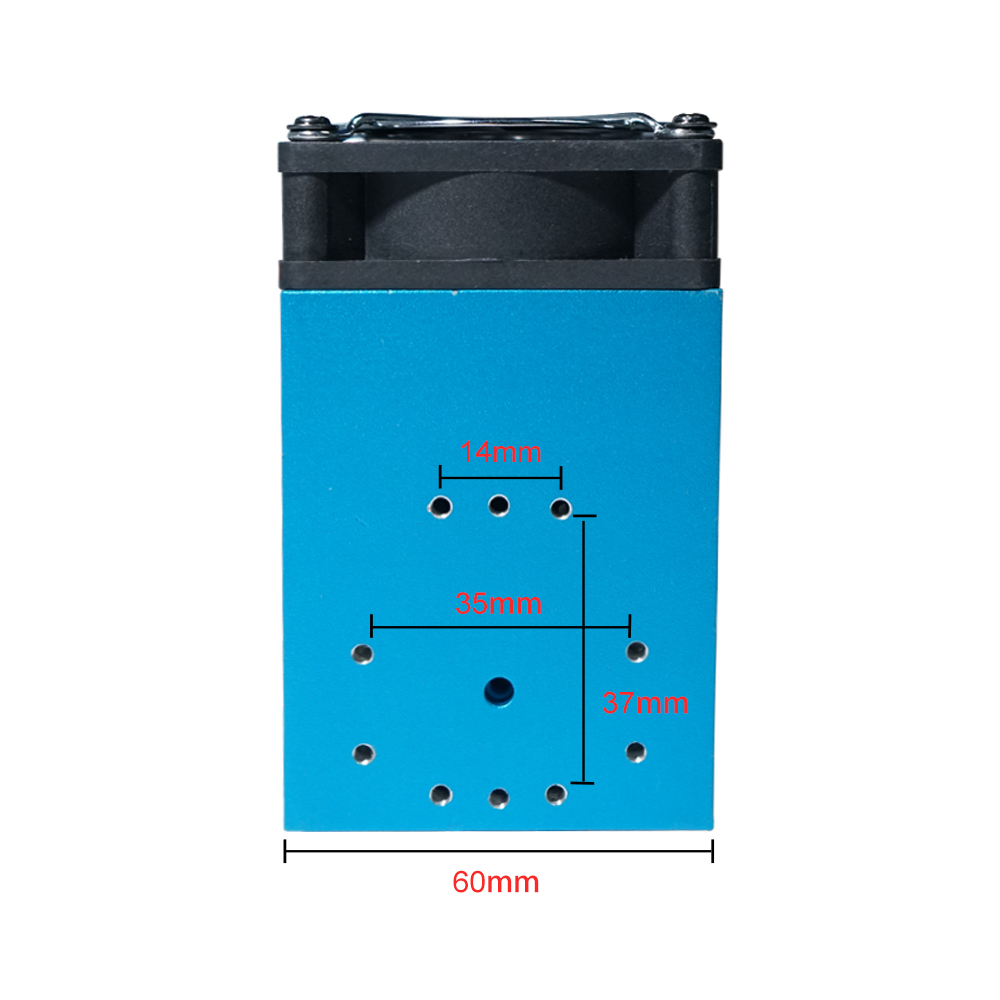

Diameter: 60mm
Wavelength: 450nm
Drive mode: external ACC constant current drive
Average power: 10w
Control method: TTL/PWM (0-5v)
Working voltage: DC = 12V
Working current: I <3A
Focal length: fixed focus 2cm
Spot size: 0.08mm
Beam shape: point
Life: 10000 hours
Engravable: MDF/light wood/paper/wood/fabric/plastic/leather/plywood/foam paper/anodized aluminum
Cannot engrave: metal/glass/stone/ceramic/PCB/stainless steel/reflective material/transparent material

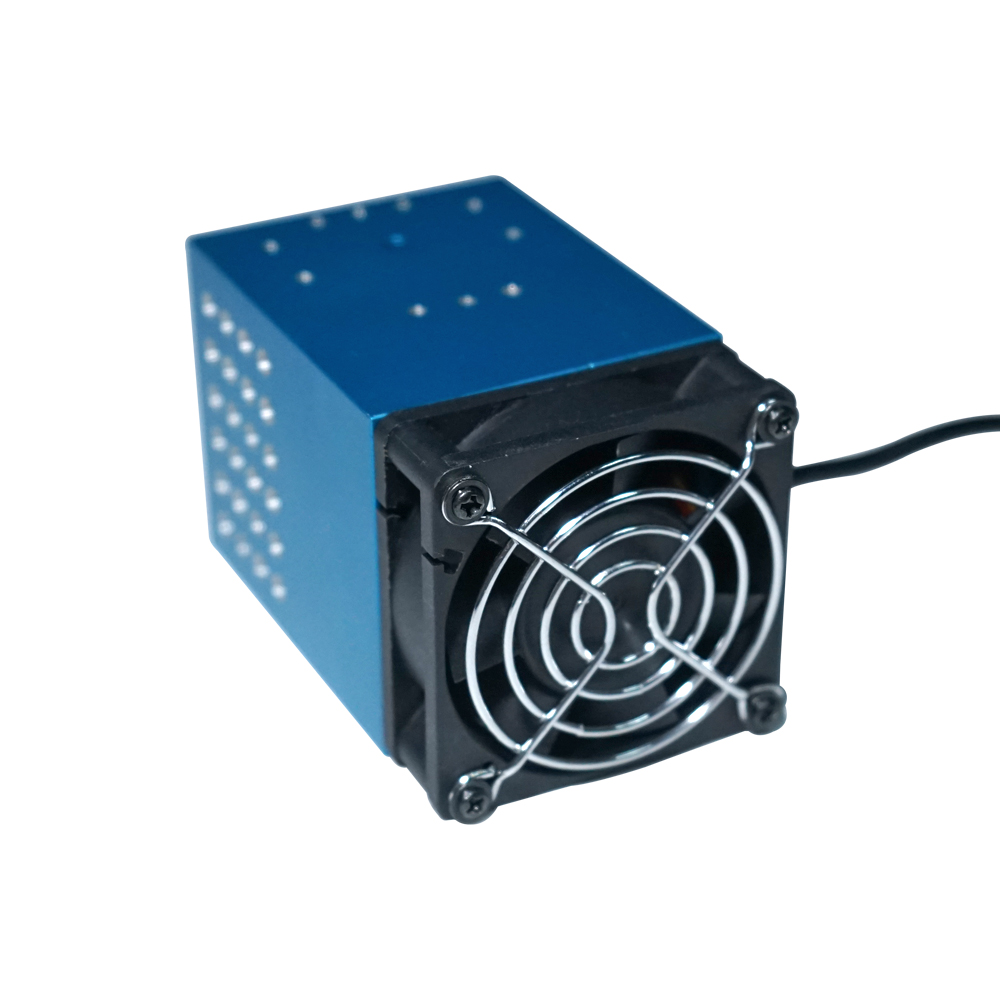

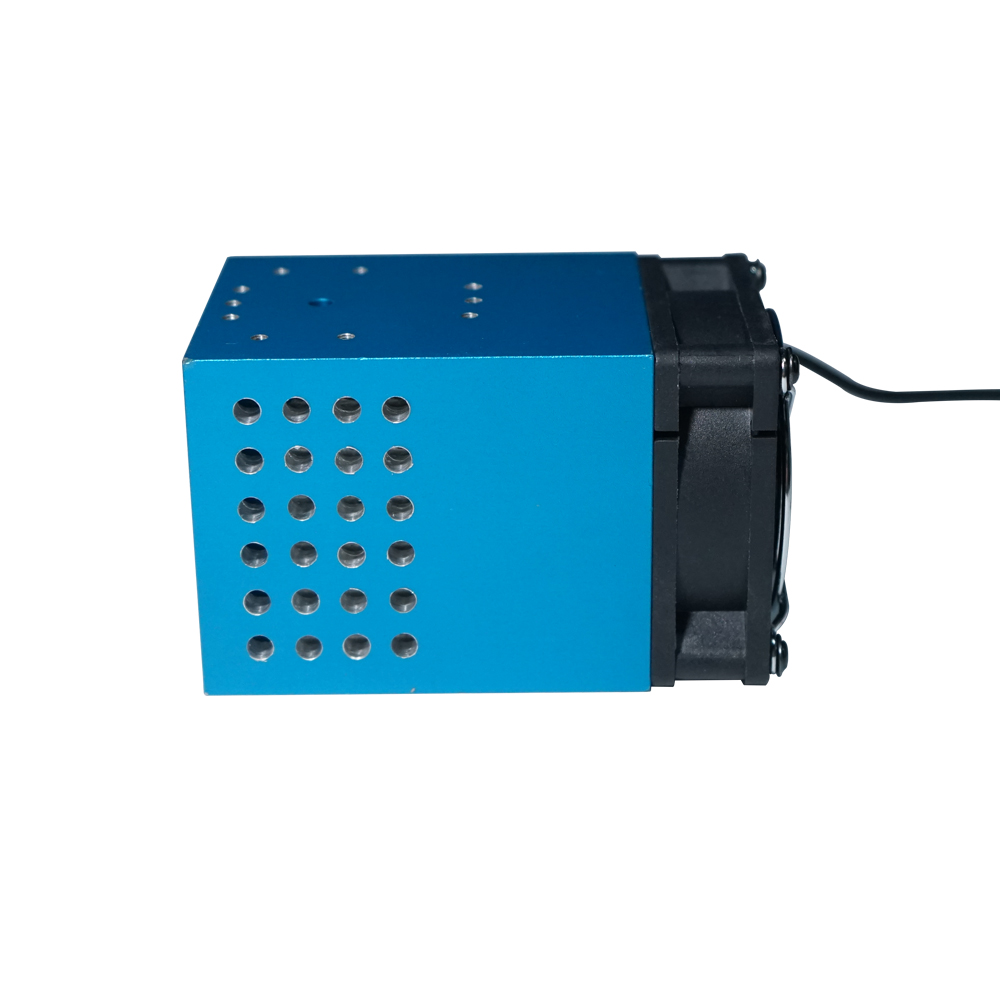

The super-large fan has better heat dissipation effect,

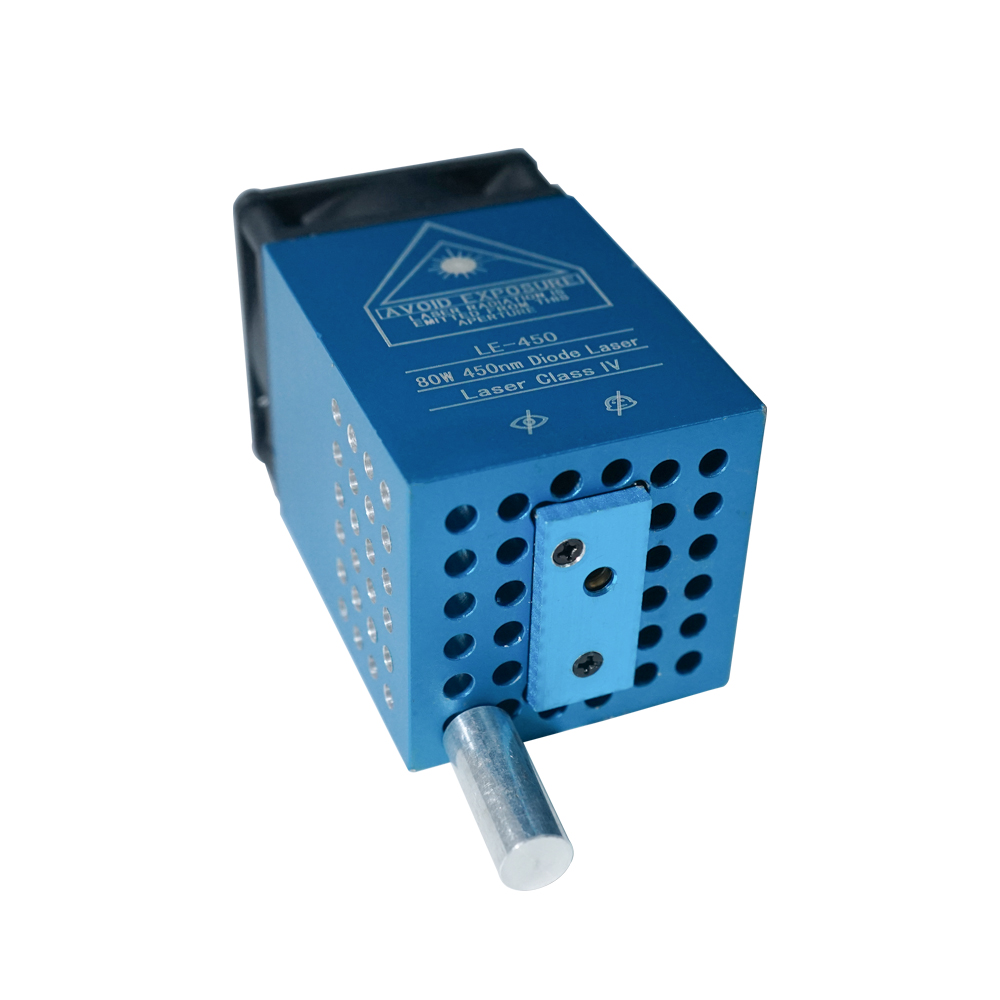

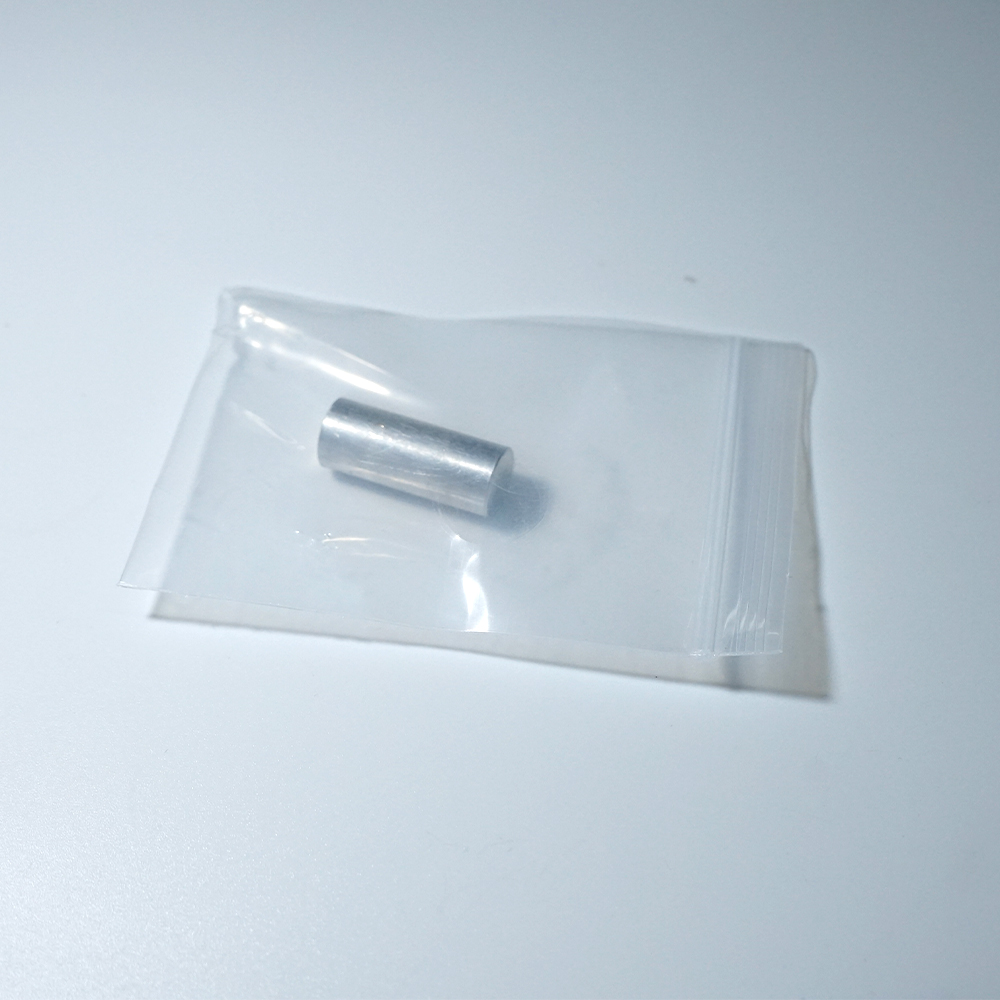

PS: There are two modes for the laser head. The fixed focus column is placed on the edge, which is the cutting mode. Placed in the raised position in the middle is the engraving mode
Package
1x blue-violet dual laser module 80w laser head
