Blue Laser Driver 24V boost to 36V 3A constant current voltage / LED Laser Diode w/ TTL/ PWM Modulation NUBM08/0A/07/NUGM01

$25.17

200 in stock

SKU: 4000004197542 Category:

Description

  • Brand Name: NoEnName_Null
  • Condition: New
  • Type: Voltage Regulator
  • Package: SMD
  • Dissipation Power: W
  • Model Number: A
  • Application: Computer
  • Operating Temperature: C
  • Supply Voltage: V
  • Circuit control: ,: 24V boost circuit
  • Frequency control:: 0-20Khz
  • Modulation voltage:: 0-5V (0V off, 5V on)
  • Output Specifications:: Max 4A

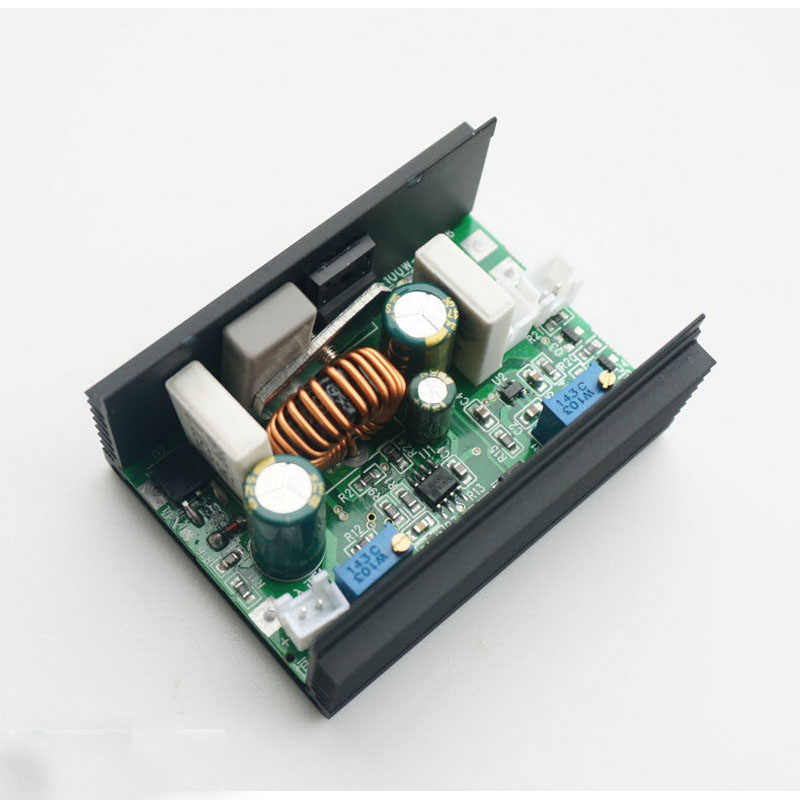

NUB(G)M01/02/03T/0A/08 blue green light circuit 24V boost 36V 3A constant current constant voltage drive



　

 Description:
  • Features:
    This circuit uses  boost circuit  input  24V universal power.
    Very good adaptation to the power supply, which is an advantage over the buck circuit.
    The default driver NUBM08 module (8 groups),
    Simple wiring. Input and output are two CABLE OK.

    Other applications:

    If you want to drive 3 NUBM08 diodes, you can change the input voltage to 12V input, and the output voltage is adjusted to 13.5V 3A;

    If you want to drive 4 NUBM08 diodes, you can change the input voltage to 12V input and the output voltage to 18V 3A.


    Specification Description:

    Circuit control: 24V boost circuit, constant current constant voltage input

    Output Specifications: Max 4A

    Scope of application: 445/450/455/465/520/525nm green and blue laser module drive circuit

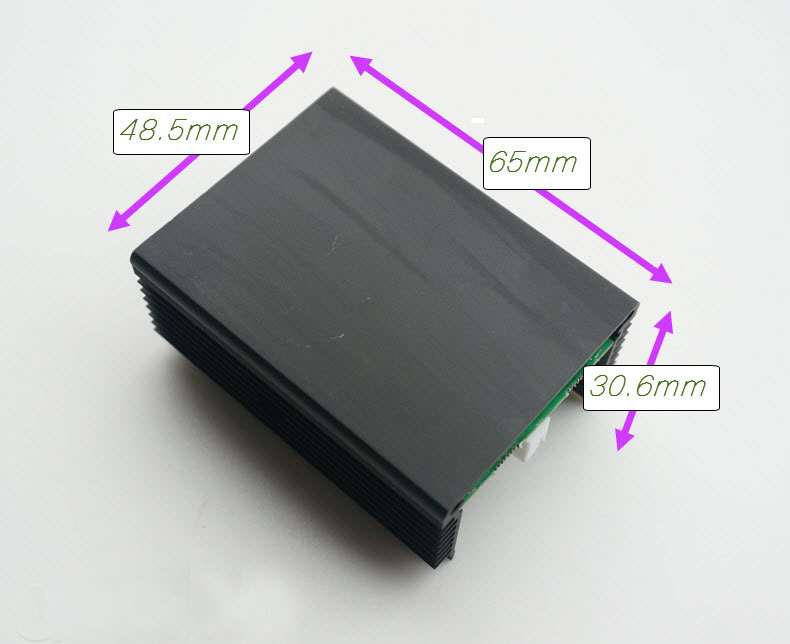

    Dimensions: 65*48.5*30.5mm (length * width * height)

    Frequency control: 0-20Khz

    Modulation voltage: 0-5V (0V off, 5V on)

    Input voltage: 24V (18-26V)

    TTL modulation description: 0-5V voltage signal

    Package Contents

    100% Brand New
    1x Module
