Description
- Brand Name: Ziqqucu
- Condition: New
- Origin: CN(Origin)
- Technology: Wirewound
- Type: Rotary Potentiometer
- is_customized: Yes
- Max. Operating Voltage: 160V
- Model Number: WXD3-13-2W
- Rated Power: 2W
Feature:
1. the use of environmental conditions :
Ambient temperature : -55 to +100°C
Relative temperature: +40 °,98%
Atmospheric pressure: 107 ~ 4.4Kpa
Vibration: vibration frequency is 10 ~ 500HZ , acceleration 49m/s2
Collision : the frequency of 40 to 80 beats / min , acceleration 147m/s2 ;
Centrifugal : acceleration 147m/s2 .
2. the main technical characteristics
Dielectric strength: to withstand 750V (50HZ AC RMS ) for 1 minute , without breakdown , flying fox phenomenon ;
Rated power:2W
Impedance:Min 100Ω;Max 100KΩ
3. Rotational Torque : 50 ~ 500gf.cm , torque ratio of 1:3.
4. Constant hot flashes : 40 ± 2°, relative humidity of 93 ± 3 % ,ΔR / R does not exceed ± 1% after 96 hours.
5. Electric load : ΔR / R after 48 hours of rated power load does not exceed 1%.
Package Included:

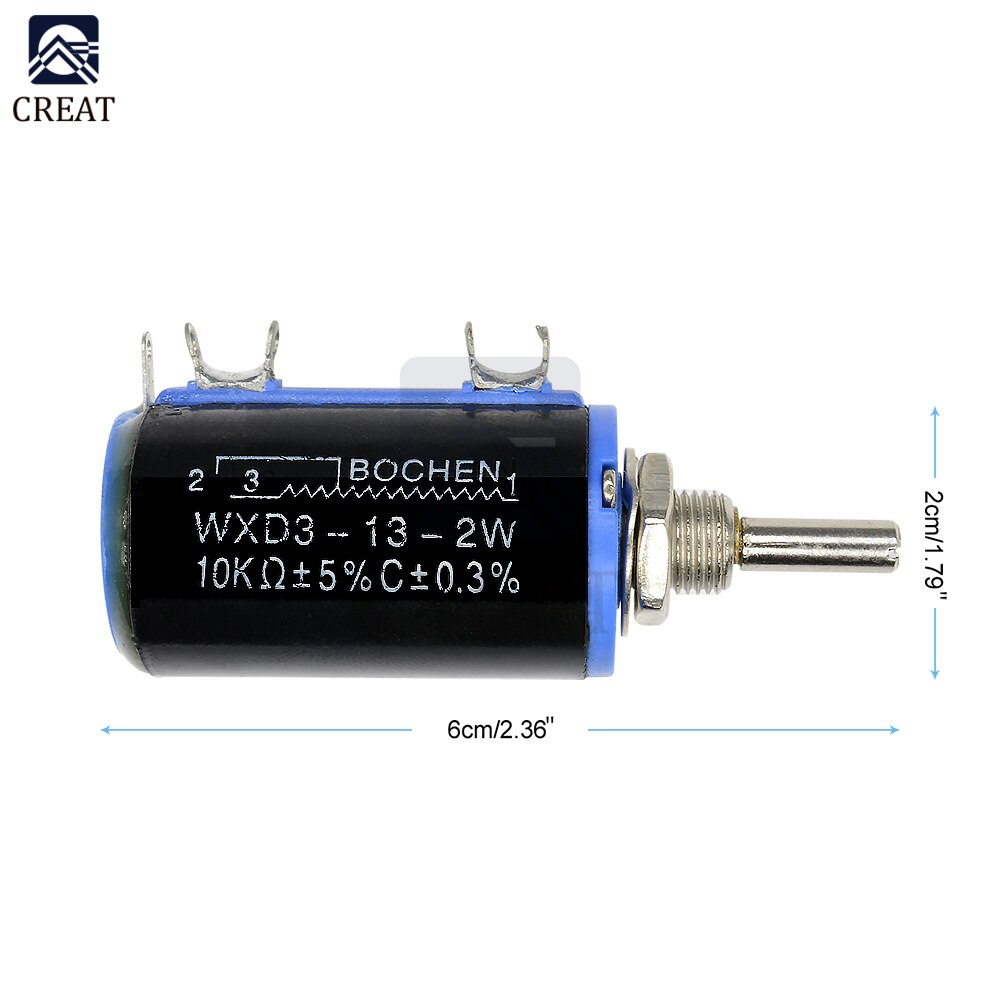

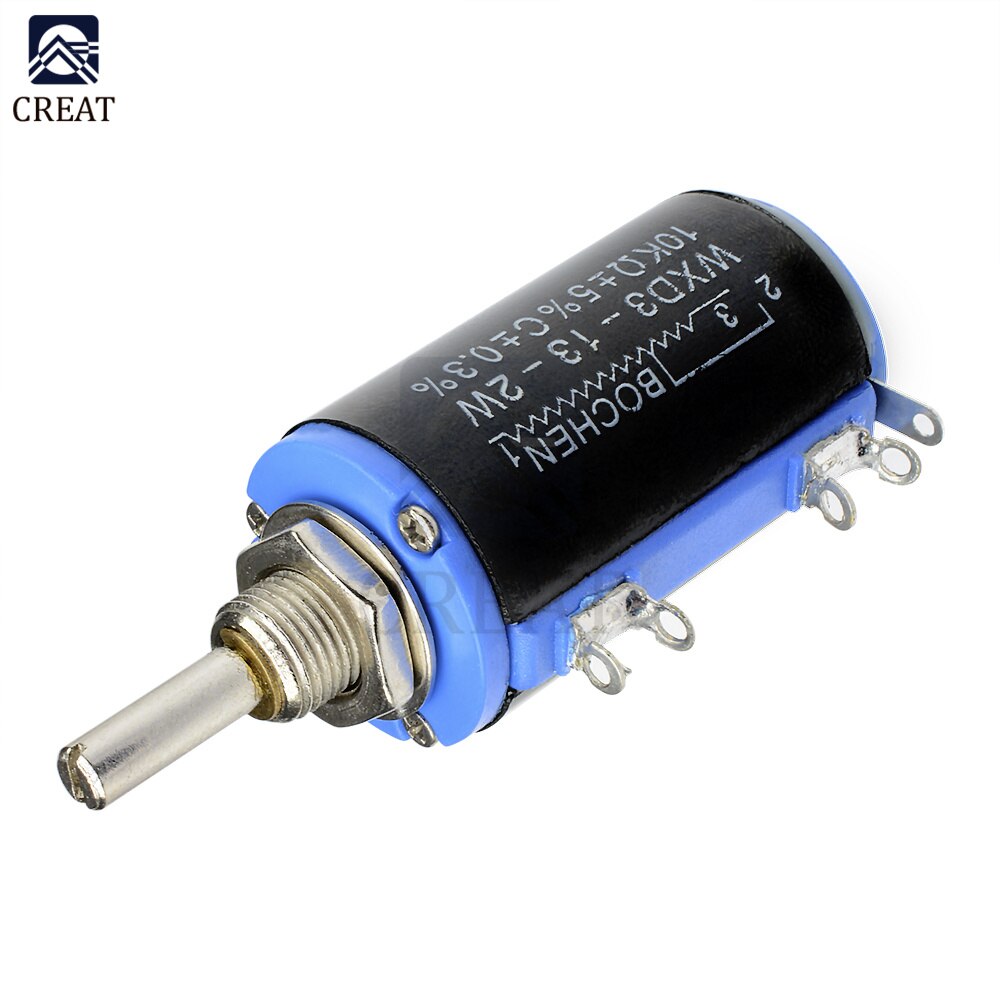

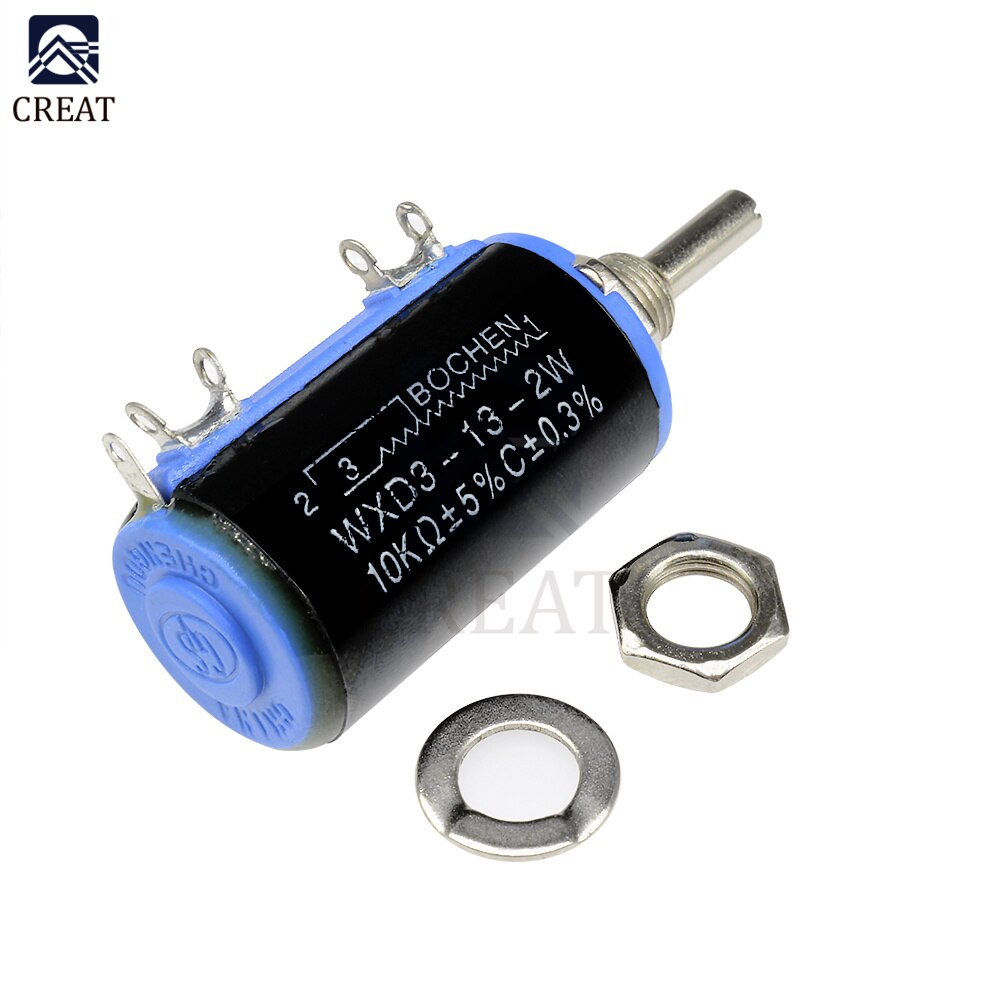

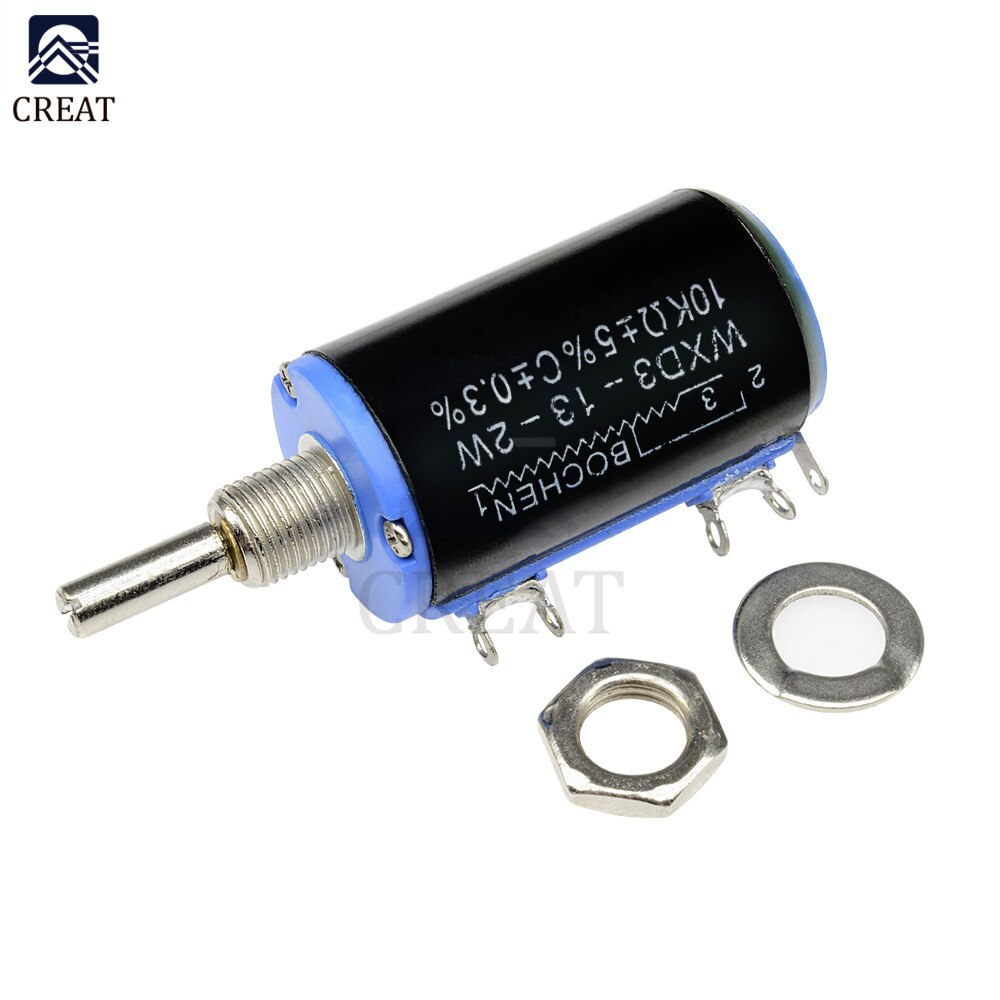

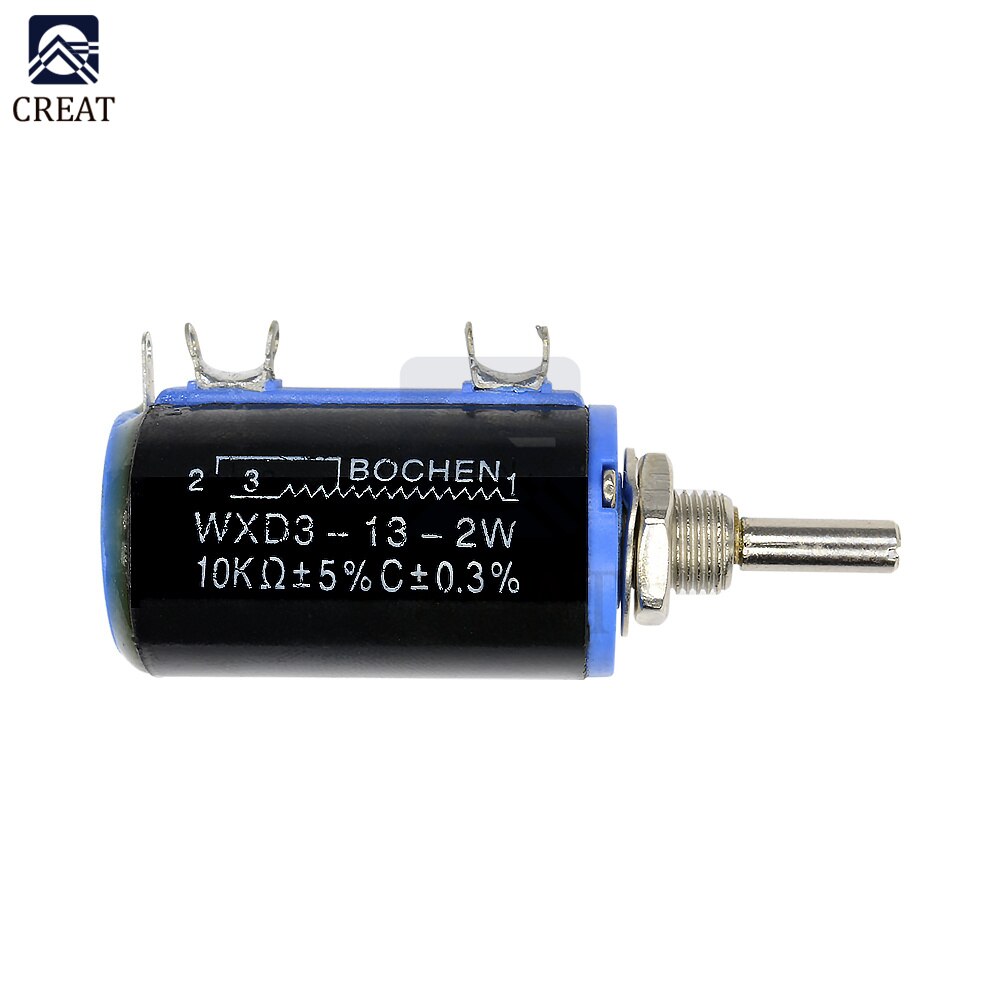

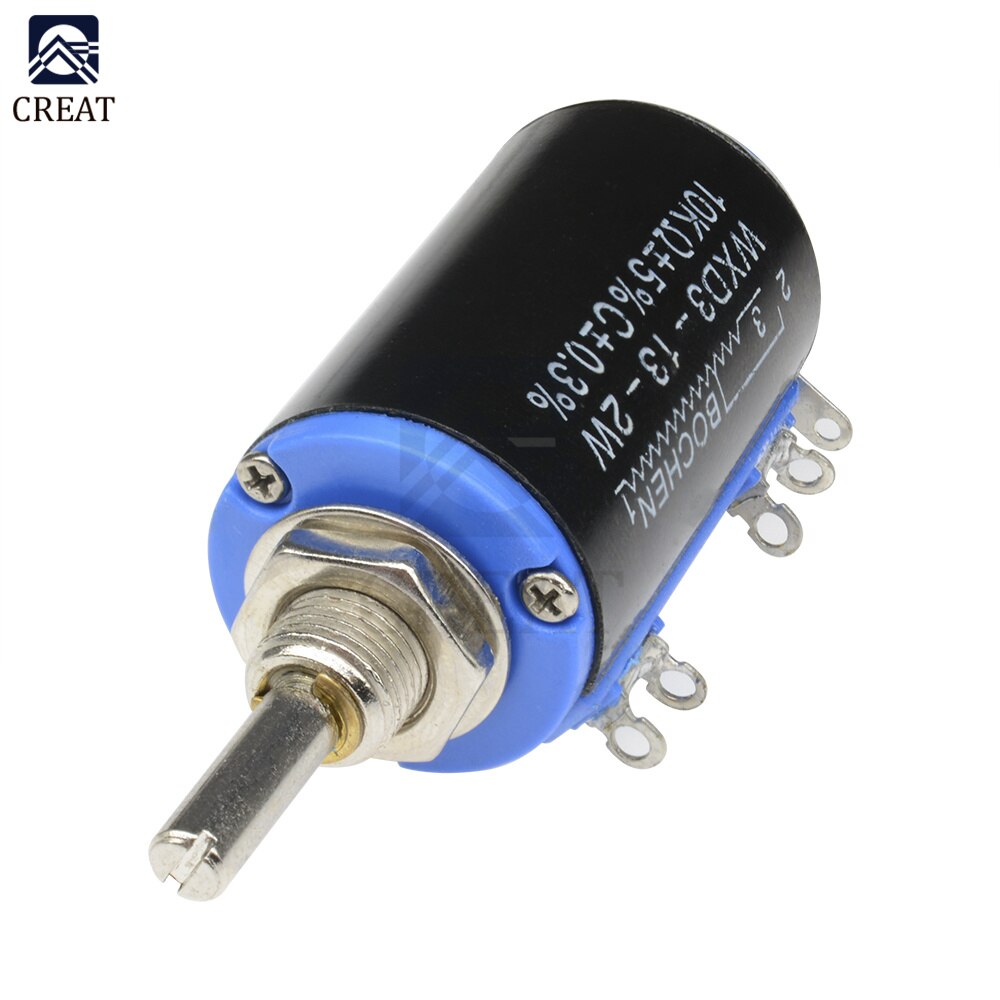

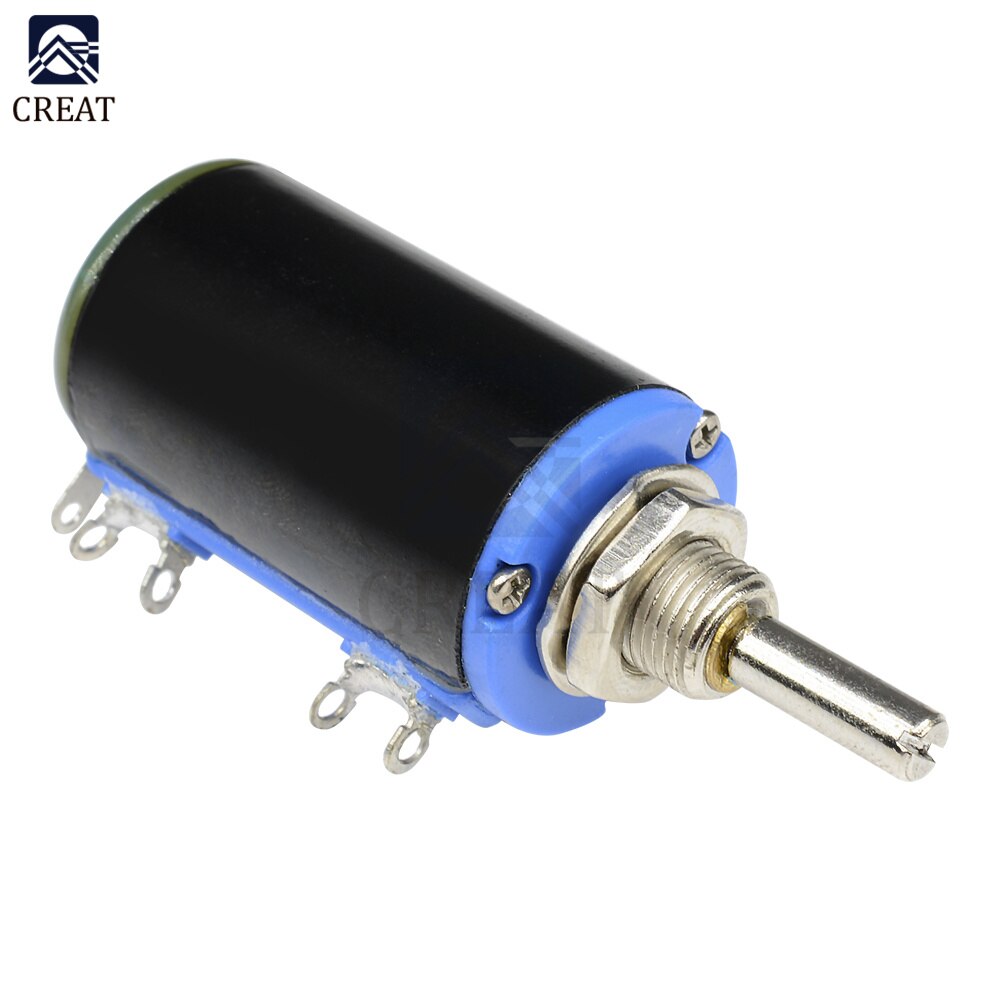

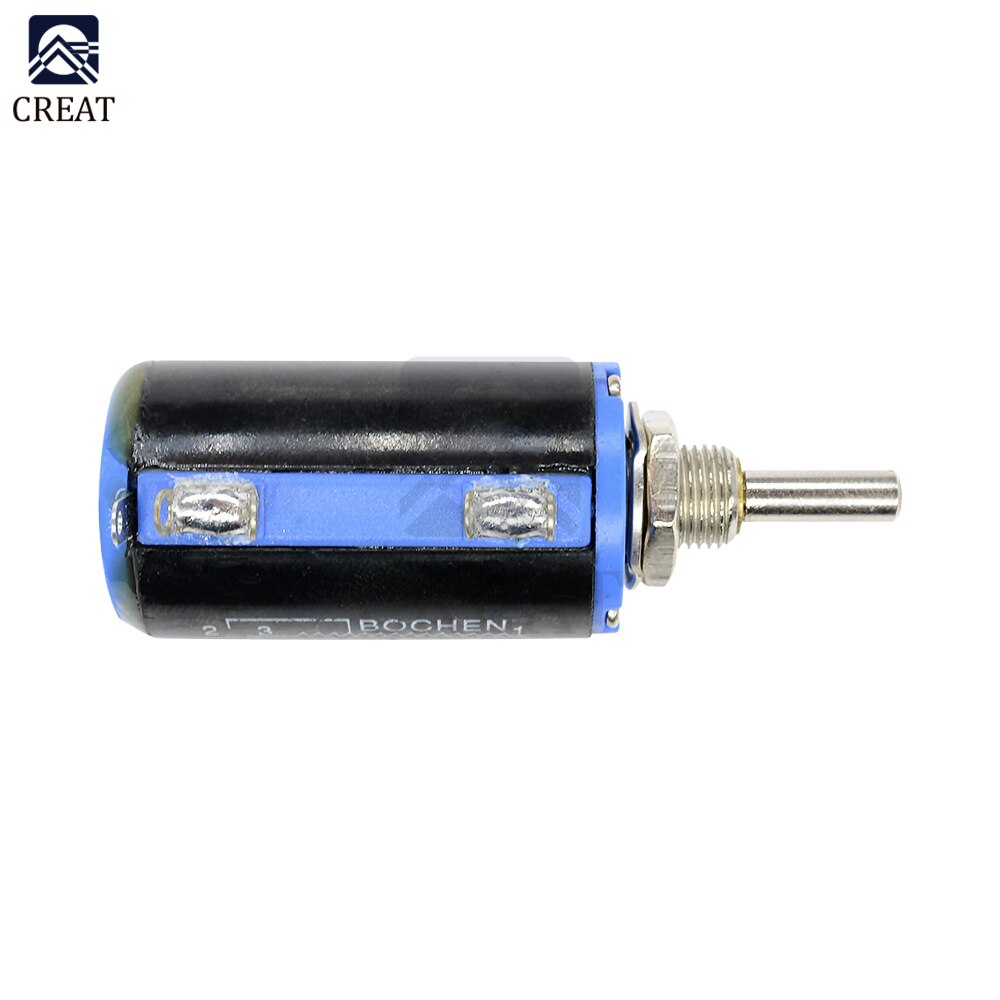

1 x WXD3-13-2W 10K ohm Rotary Multiturn Wirewound Potentiometer
