Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Shandong, China
- Brand Name: Biobase
- Model Number: BK-UV1900
- Size: 620*500*370
- Weight: 18
- Focal Length: none
- Wavelength Range: 190~1100nm, 190~1100nm

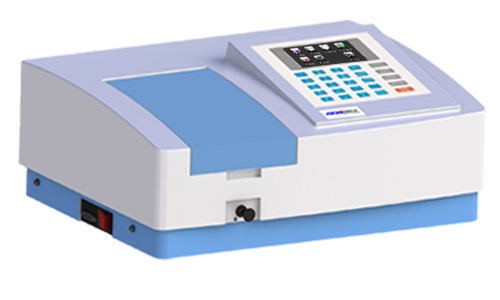

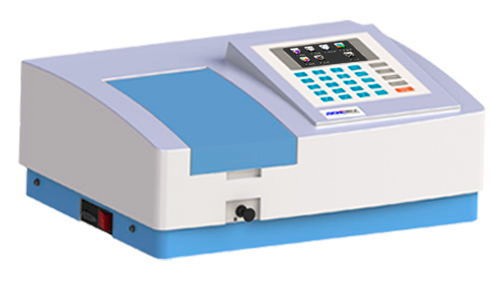

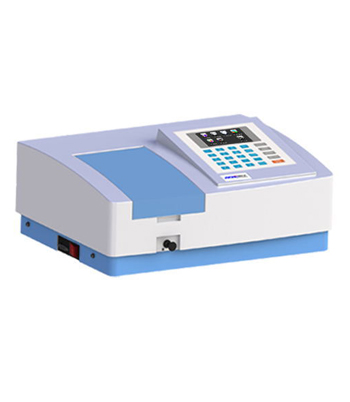

- Product name: Spectrometer
- Model: BK-UV1900
- Optical System: Single Beam, Grating 1200 lines/mm
- Spectral Bandwidth: 2nm
- Wavelength Accuracy: ± 0.5nm
- Wavelength Repeatability: ≤ 0.3nm
- Photometric Accuracy: ± 0.002A (0~0.5Abs), ± 0.004A (0.5~1.0Abs), ± 0.5% T (0~100% T)
- Photometric Repeatability: 0.001Abs (0~0.5Abs), 0.002Abs (0.5~1.0Abs), ≤ 0.2% T (0~100% T)
- Stray Light: ≤ 0.05% T @ 360nm; 220nm
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:16px}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:503.27951564076693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:503.27951564076693px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:814.119170984456px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:814.119170984456px}#detail_decorate_root .magic-15{overflow:hidden;width:247.33333333333334px;height:136.49379432624116px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:247px;height:136px}#detail_decorate_root .magic-17{overflow:hidden;width:247.33333333333334px;height:136.18353576248316px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-18{margin-top:-95.12820512820514px;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:378px;height:136px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:282.3337531486146px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:12px;width:352px;height:266px}#detail_decorate_root .magic-22{overflow:hidden;width:373px;height:282px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-23{margin-top:27px;margin-left:-23px;width:411px;height:226px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:595px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:2px;margin-left:0;width:750px;height:595px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:1419.491525423729px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:1419.491525423729px}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:350px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:750px;height:350px}
Product Description
Features:
⊙ Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
⊙ Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
⊙Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
⊙With GLP self-check function, check the wavelength accuracy and Photometry accuracy
⊙Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
⊙With Si02 coating optical mirror, reducing the pollution from outside fully
Basic Functions:
1, Photometry
Test Abs., Transmittance and Energy by fixed wavelength
2, Quantitative
Linear fit and Linear fit through zero two modes
a.Coefficient, Standard Sample input and Standard Sample read three modes to establish standard curve
1. Establish A=K1*C+K0, can search original data, graph curve, parameters settings
2. Can save 240 group curves, can test 240 data in each curve
3. Double wavelength, Triple wavelength test functions
3, Kinetics
Used for time course scanning or reaction rate calculations△A/t, can search all data.
4, Multi-Wavelength
Can test Transmittance and Abs. with 8 different wavelengths at most
5, Scanning
User can set the scan range from 190nm to 1100nm to test the max. Abs. peak value, can do derivation,
arithmetical operationsto the graph.
6, Biology
6 methods: DNA/Protein, UV, Lowry, BCA,CBB and Biuret

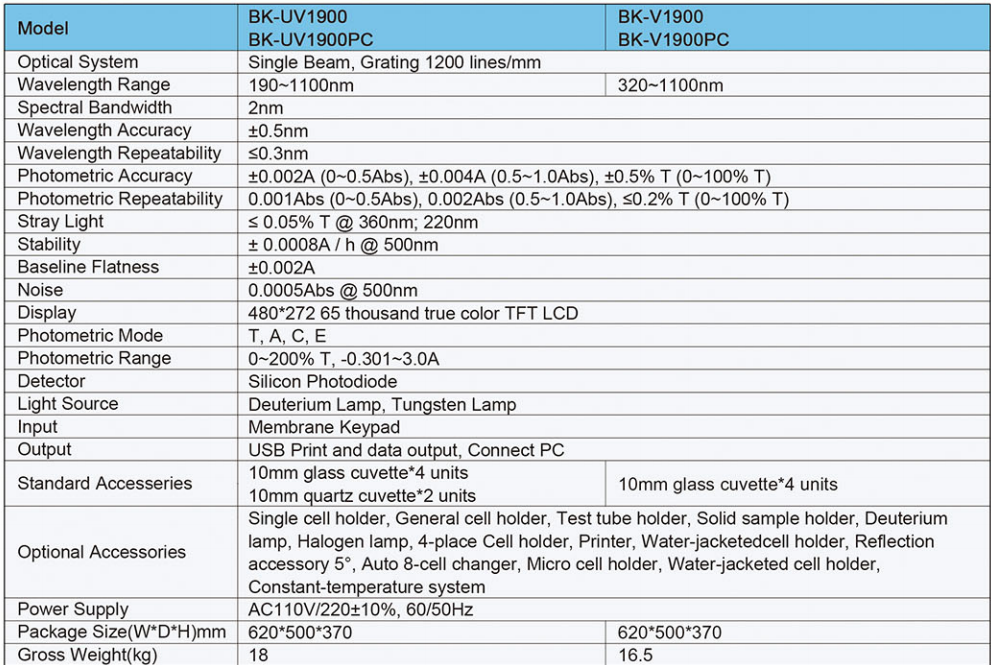

Specification
Packing & Delivery
Packaging -Cartons packaging -Customized packaging can be available.
Shipping – International Express such as DHL, TNT, EMS, FedEX and so on . – Sea Transportation. – Air Transportation. -Choose your own shipping agent is welcomed.
Company Profile

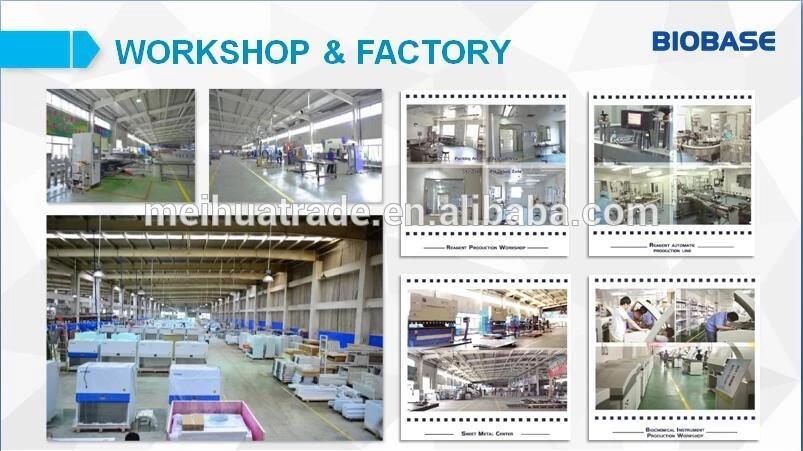

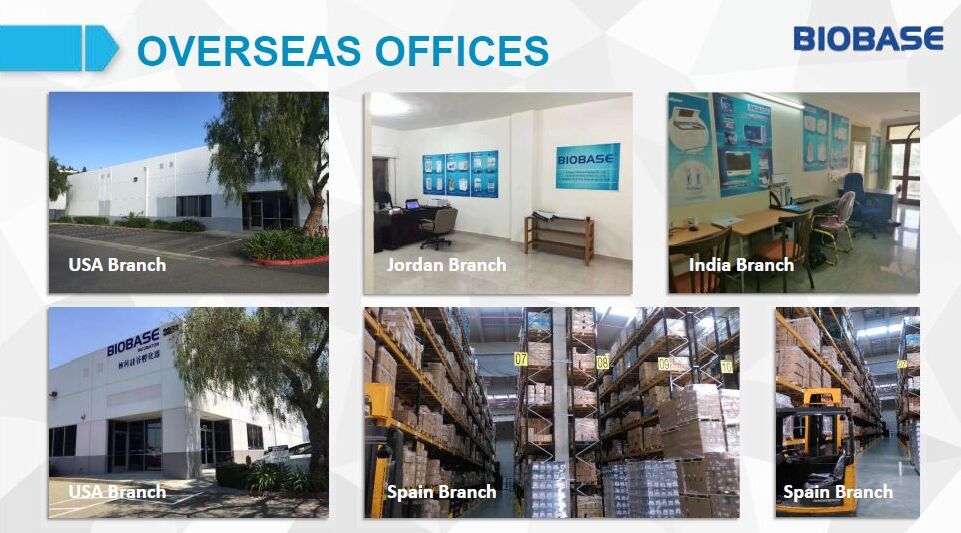

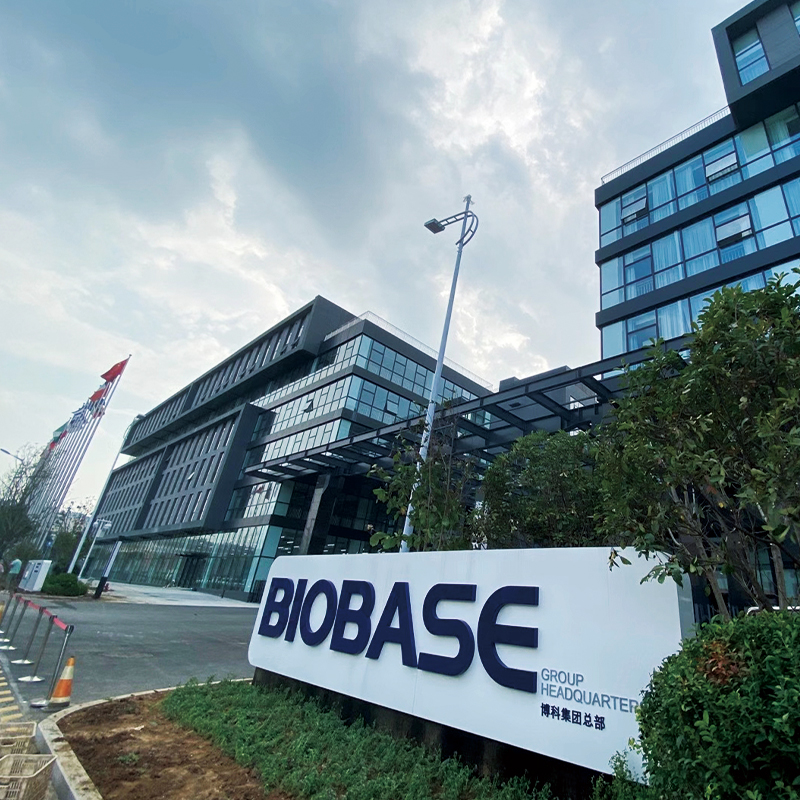

We have completed the construction of BIOBASE first industrial park in Zhangqiu, which covers an area of 81325 square meters. Second industrial park is located at Tangye new district, covers an area of 166650 square meters. BIOBASE US incubator, located at Silicon valley and covering an area of 2000 square meters, is now under construction.We have set up branch offices in 24 provinces and cities in China, and has good oversea cooperation partners in more than 150 countries and regions.
Our service:
* Inquiry and consulting support.
* Quick response with detailed quotation
* Confirm price, quantity, shipment, lead time and payment terms.
* Make order and sealed PI. (Trade assurance order is recommended to new clients for securing payment safety)
*Welcome to view our factory *OEM is welcomed.
