Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK6090C
- CNC or Not: CNC
- Product name: Big area fiber laser marking fiber engraving machine
- Laser power: 20W /30w/ 50w(Optional)
- Working area: 600*900 mm
- Laser wavelength: 1064nm
- Marking speed: 0-7000mm/s
- Marking depth: 0.01-1mm
- Power supply: AC220V 10% / 50HZ
Product Description
Big Area Fiber Laser Marking Machine 20w Raycus Source

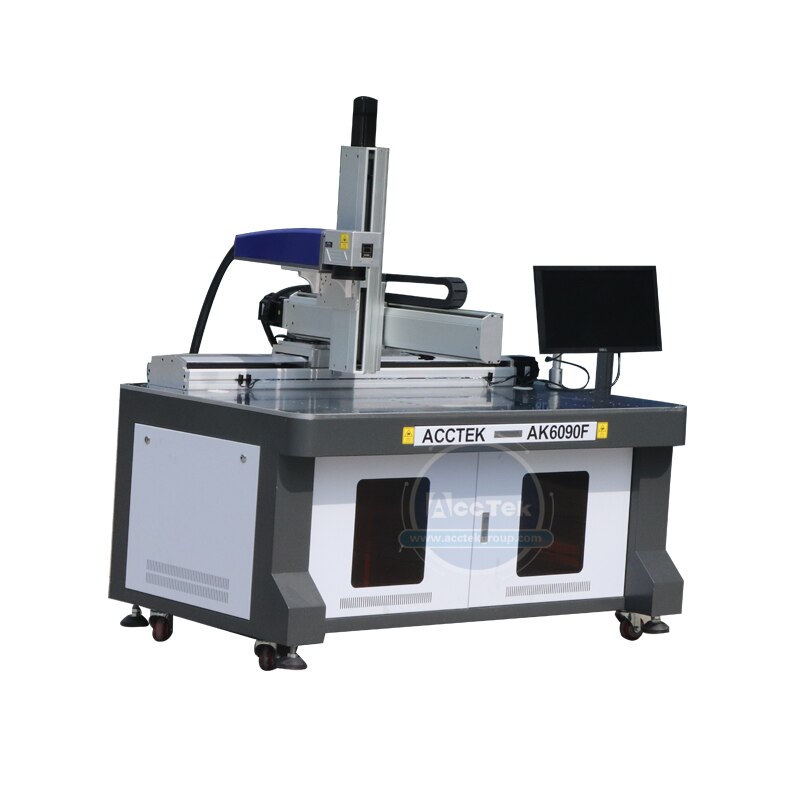

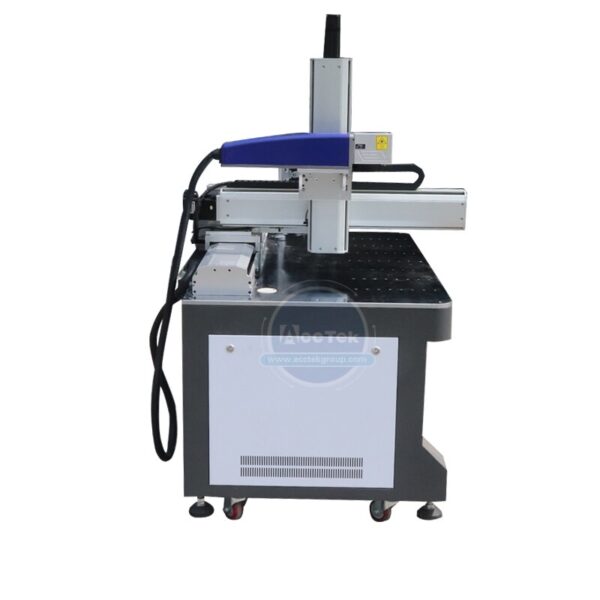

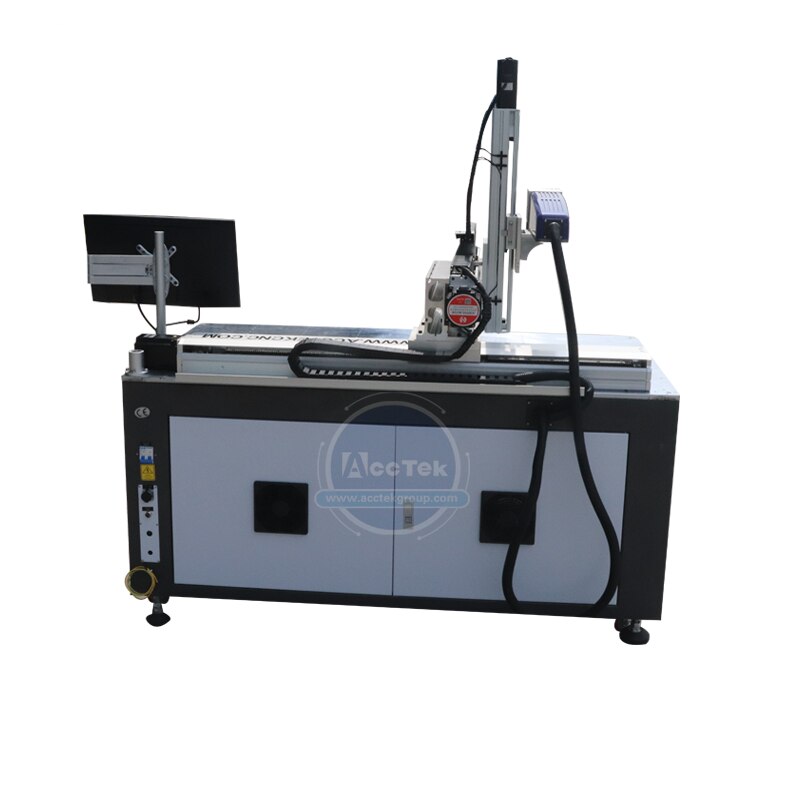

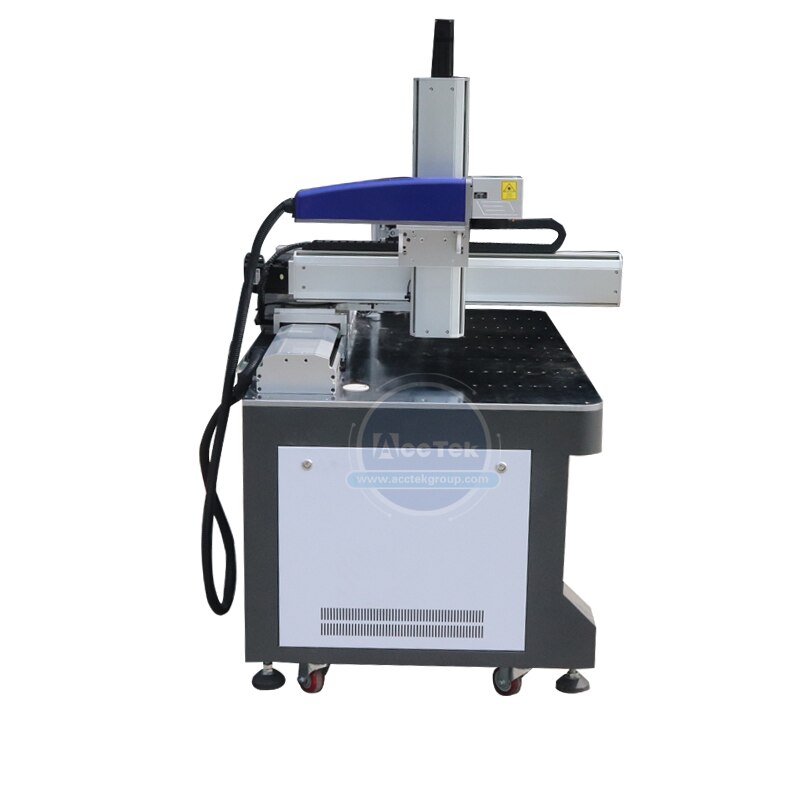

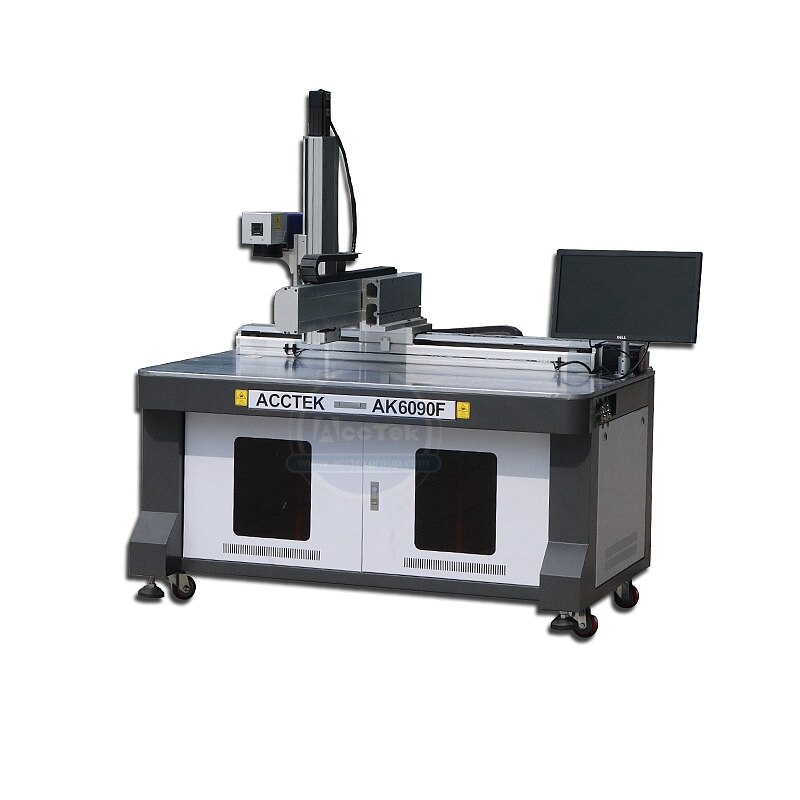

Detailed Images
Technical Parameters
|
Description
|
Parameter
|
|
Model
|
AK6090F
|
|
Laser Power
|
20W 30W 50W optional
|
|
Making Range
|
600*900mm
|
|
Laser Wavelength
|
1064nm
|
|
Fiber laser generator
|
Raycus
|
|
Minimum Line Width
|
10 micron
|
|
Minimum Character
|
0.15mm
|
|
Marking Depth
|
0 ~0.5mm
|
|
Engraving Line Speed
|
≤7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|
Beam Quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date, Batchnumber, Serialnumber, Frequency,etc. |
|
Graphic Format Supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
Working Voltage
|
110v/220V±10%/50Hz/4 60hz
|
|
Unit Power
|
≤0.5KW
|
|
Use of the Environment
|
Clean and Dust Free or Dust less
|
|
Working Condition:Humidity
|
5%-75%,Free of Condensed Water
|
|
Laser Module Life
|
>100000 hours
|
|
Package
|
Plywood box
|
|
N/G weight
|
550/650kg
|
Some Samples
After Sales Service
Pre-sale services of Big Area Fiber Laser Marking Machine 20w Raycus Source
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
3) According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4) Welcome to visit our factory. Services during the sales of Big Area Fiber Laser Marking Machine 20w Raycus Source
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator. After sale services of Big Area Fiber Laser Marking Machine 20w Raycus Source
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.
1) Provide the free consultation of the equipment.
2) Provide the standard device and the flow chart.
3) According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
4) Welcome to visit our factory. Services during the sales of Big Area Fiber Laser Marking Machine 20w Raycus Source
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator. After sale services of Big Area Fiber Laser Marking Machine 20w Raycus Source
1) 24 hours online service.
2) Provide the VIDEO with Install and debug the equipment.
3) Provide technical exchanging.
