Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Beijing, China
- Condition: New
- Warranty: 1 Year
- Spare Parts Type: laser bar 808
- Video outgoing-inspection: Provided
- Machinery Test Report: Provided
- Marketing Type: Ordinary Product
- Brand Name: Oriental Laser
- Key Selling Points: Long Service Life
- Showroom Location: Canada, Turkey, Italy, Brazil
- Applicable Industries: Hotels, Construction works , Energy & Mining, Advertising Company
- Weight (KG): 0.5 KG
- Application 1: diode laser bars 808 stack from germany for sale
- Power: 100W
- Wavelength: 808nm ±2.5nm
- Heat sink: Micro channel cooler
- Expected lifetime: >10000 hours
- Maximum Operating Voltage: 2V
- Flow Rate: 0.3L/min ±10% / bar
- Application: Pumping of solid-state lasers and fiber lasers
- Function: diode laser for hair removal
- After Warranty Service: Video technical support
#detail_decorate_root .magic-0{border-bottom-style:dotted;border-bottom-color:#eccaf1;font-family:Tahoma;font-size:24px;color:#fff;background-color:#8d91ff;text-align:center;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:28px;padding:5px 10px;width:161px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:28px;padding:5px 10px;width:203px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-4{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:168px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:539px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{text-align:center}#detail_decorate_root .magic-8{display:none}#detail_decorate_root .magic-9{min-height:28px;padding:5px 10px;width:169px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{width:446px}#detail_decorate_root .magic-12{overflow:hidden;width:446px;height:390.46474074074075px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:-49.952px;margin-left:-1.1893333333333334px;width:446px;height:446px}#detail_decorate_root .magic-14{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-15{box-sizing:border-box;margin:0;padding:0;font-style:normal;font-variant:normal;letter-spacing:normal;line-height:14px;text-align:start;text-indent:0;text-transform:none;white-space:normal;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff}#detail_decorate_root .magic-16{font-size:18px}#detail_decorate_root .magic-17{font-weight:normal;box-sizing:border-box;margin:0 0 10px;padding:0;list-style:none}#detail_decorate_root .magic-18{box-sizing:border-box;margin:0;padding:0;line-height:20px}#detail_decorate_root .magic-19{font-size:18px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal}#detail_decorate_root .magic-20{color:#333;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;float:none;display:inline !important}#detail_decorate_root .magic-21{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-22{margin-bottom:0}#detail_decorate_root .magic-23{position:relative;width:100%}#detail_decorate_root .magic-24{vertical-align:top}#detail_decorate_root .magic-25{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-26{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-27{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-28{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-29{font-size:16px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:535px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:535px}#detail_decorate_root .magic-32{font-size:20px;color:#2196ed}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:524px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:524px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:516px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:516px}#detail_decorate_root .magic-37{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-39{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:750px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:526px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:526px}#detail_decorate_root .magic-44{text-align:left}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:2850px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:2850px}#detail_decorate_root .magic-47{font-size:32px}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:94px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:610px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{background-color:#ccd0ff}#detail_decorate_root .magic-53{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-54{font-size:24px}#detail_decorate_root .magic-55{overflow:hidden;width:750px;height:380px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-56{margin-top:0;margin-left:0;width:750px;height:380px}
2. Laser power from 300W-1200W
3. Over 10000hours life time
4. No water quality required
5. Hard soldering and soft soldering optional
6. Customized installation size
Product Paramenters
|
Output Power
|
300W
|
500W
|
1000W
|
||
|
Wavelength
|
808nm(800-810nm)
|
|
|
||
|
Number of bars
|
1-20Pcs
|
|
|
||
|
Solder type
|
Hard solder or soft solder
|
|
|
||
|
Typical Pulse Width
|
10ms~200ms
|
|
|
||
|
Repetition Rate
|
0~10Hz
|
|
|
||
|
Max Duty Circle
|
20%
|
|
|
||
|
Operation Current
|
40A
|
40A
|
40A
|
||
|
Operation Voltage
|
<12V
|
<20V
|
<40V
|
||
|
Cooling Requirement
|
1. Flow Rate: >4.5L/min
|
|
|
||
|
|
2. Water quality: Industrial grade, anti-freeze possible, particle filter<100µm
|
|
|
||
|
|
3. Chiller water Temperature: 15°C-25°C.
|
|
|
||
Product Description
MA Diode Laser Stack Quick Details
1. Diode laser bar from Germany
2. Laser power from 300W-1200W
3. Over 10000hours life time
4. No water quality required
5. Hard soldering and soft soldering optional
6. Customized installation size

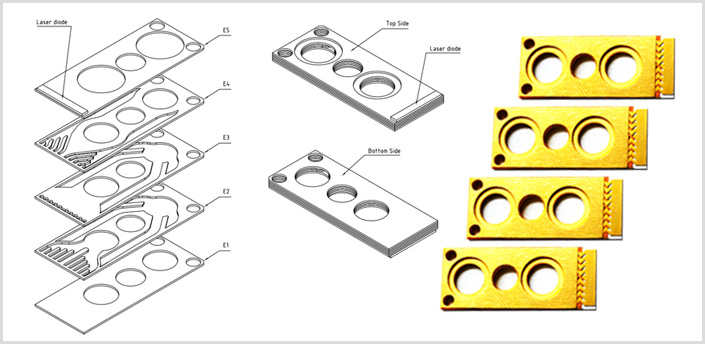

MA Diode Laser Stack Product Outline
Macro channel laser diode stacks are good for both quality and price. The structure of packaging is flexible and it has no special need for water. Oriental-laser have studied the laser diode stacks for 5 years. We deliberate on diode laser packaging and the design of laser stack. Finally we find the method to overcome macro channel laser diode stacks’ chip burning and we developed the high reliability laser diode stacks for hair removal.
MA Diode Laser Stack Working Principle
The process of diode laser’s working is the change from electric energy to light and heat energy.When the chip which is inside the macro channel is working, the cooling water flow inside the laser stack and bring the extra heat and make sure the chip going well.
Our Advantages
We can repair variety brand diode laser stack and lase handle
This diode stack is Alma Soprano 12 bar black side plate & right-angled electrode diode stack.It is used for Alma Soprano handle piece repairing and replacement.Oriental-laser ed on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power.
Packing&Shipping
Company Introduction
Oriental-laser is the professional manufacturer of aesthetic & medical laser machine . It is the beauty equipment manufacturer which owns specialty on diode laser cosmetic technique and the unique independent diode laser chip packaging technology in the world. Oriental-laser pay more attention on R&D and keep strict manufacture management continuously. we have a facility of 500 square feet of class 10K clean room & class 1000 local clean zone (according to Federal Standards 209E). After using our product and solution, Oriental- laser’s customer won the rich profits and praise and this is why Oriental-laser accumulated a stable customer base around the world. In the future, we continue to insist on “Through using our excellent quality and outstanding performance product to help our customers to gain maximum profit”and pay more efforts to provide quality products and service for more customers
FAQ
|
Warranty
|
1 year or 10 million shots of lifetime.
|
|
|
During the period, if any problems of machine, please contact us. We will do our best at the earliest time.
|
|
Payment
|
T/T, Western Union, MoneyGram, PayPal etc.
|
|
|
100% in advance,please pay transfer fee in your side.
|
|
Delivery
|
By express (DHL, EMS, UPS, TNT, Fedex etc.), by air express to airport, by sea.
|
|
|
Delivery time is 3- 7 days after payment.
|
|
Certificate
|
Our products have acquired CE Certificate and ISO 9001 Certificate.
|
|
OEM & ODM
|
We are professional diode laser beauty machine manufacturer.
|
|
|
We can offer OEM&ODM service.
|
