Description: TFmini Plus, based on TFmini, is a single-point short-range LiDAR sensor. Inherited characters of low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved its performance — increasing the measurement frequency, reducing blind zone, improving accuracy and stability. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which has greatly expanded its application fields and scenarios.

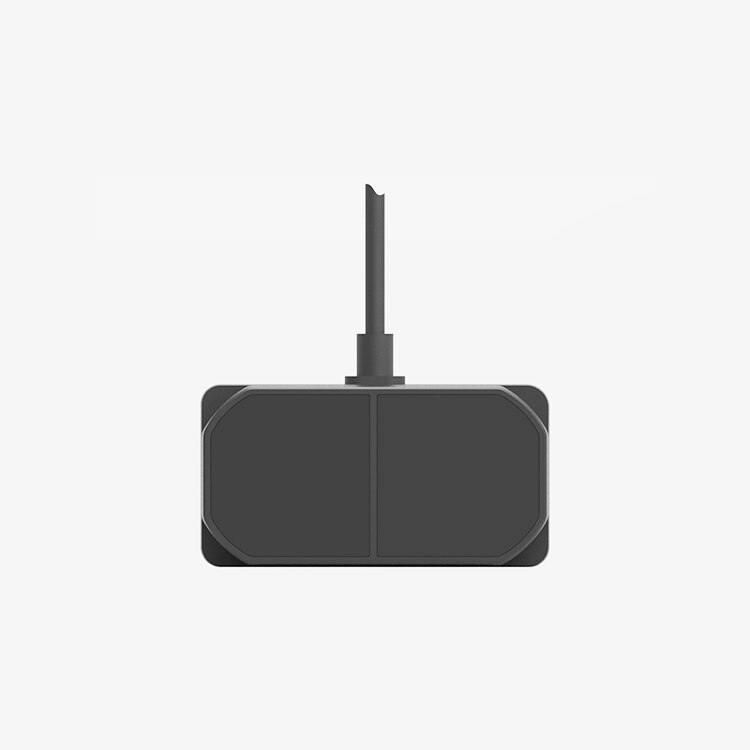

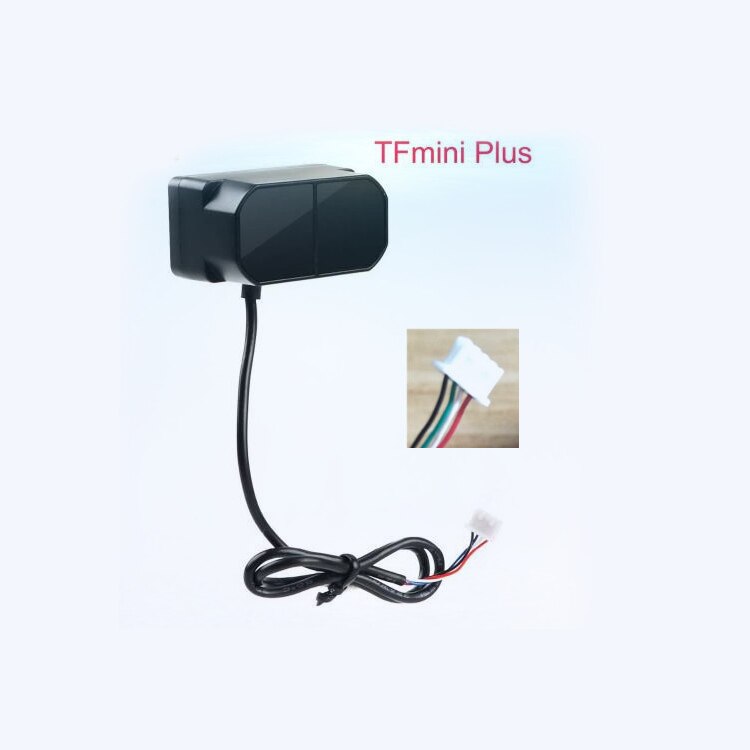

TFmin Plus 12m IP65 distance sensor

Smaller Blind Zone, Higher Frame Rate, Enclosure Rate IP65

TFmini Plus, based on TFmini, is a single-point short-range LiDAR. Inherited low cost, small size and low power consumption from TFmini, TFmini Plus has greatly improved the overall performance — increasing frame rate, narrowing blind zone and improving accuracy. Meanwhile, TFmini Plus introduces IP65 enclosures and optimizes various compensation algorithms, which will greatly expand its application fields and scenarios.

Small yet Powerful

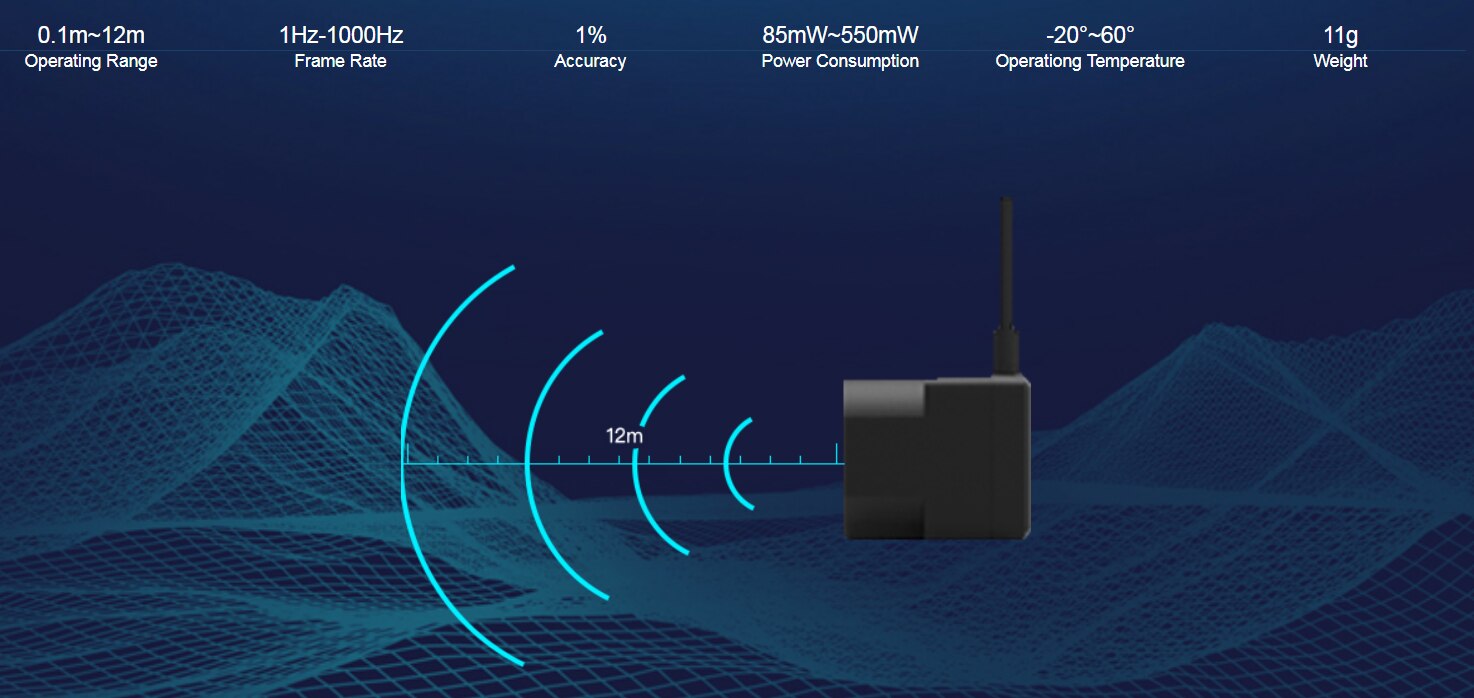

Inherited TFmini’s design concept – ‘Small Yet Powerful’, TFmini Plus, as large as a man’s thumb, has greatly improved the overall performance. Frame rate can reach 1000Hz. Blind zone narrows down to 10cm. And the lowest power consumption is 85mW.

Safe & Stable

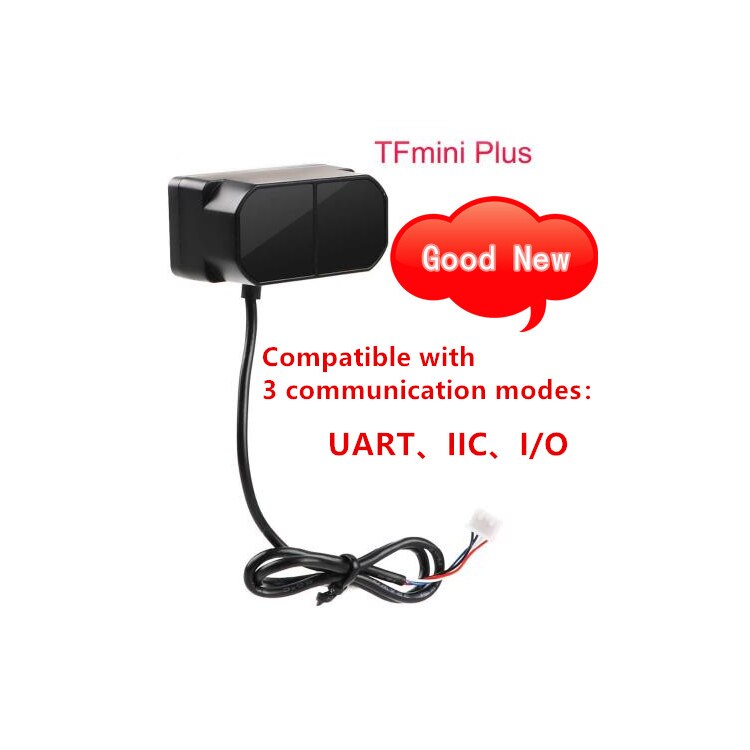

Distinguished from TFmini — Open form module, TFmini Plus has been designed with IP65 enclosures, and also passed the vibration test of drone level, which will greatly expand its application range. To improve applicability, TFmini Plus supports Pix and customization output format, and provides common communication interfaces — UART, I/O and I2C.

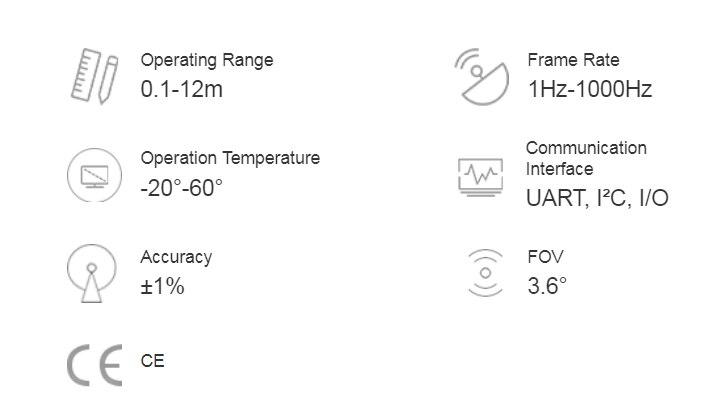

SPECIFICATION

Patameters		UART	I 2 C
Performance	Operating Range	0.1m~12m@90%Reflectivity;0.1~4m@10% Reflectivity0.1m~12m@90% Reflectivity (70Klux)0.1~4m@10% Reflectivity (70Klux)
	Accuracy	±5cm@(0.1-5m)  ;±1%@(5m-12m)
	Distance resolution	1cm
	Frame rate	1-1000Hz(adjustable)	1-100Hz(adjustable)
	Repetitive Accuracy	1σ:<3cm(@100Hz)	1σ:<4cm(@100Hz)
	Ambient light immunity	70klux
	Operating Temperature	-20℃~60℃
	Enclosure Rating	IP65
Optical parameters	Light source	LED
	Central wavelength	850nm
	Photobiological safety	Exemption level (EN62471)
	FOV	3.6°
Electrical parameters	Supply voltage	5V±0.5V
	Average current	≤110mA
	Power consumption	550mW(Low Power Consumption Mode:<=100mW)
	Peak current	140mA
	Communication level	LVTTL(3.3V)
	Communication interface	UART,I/O	I 2 C

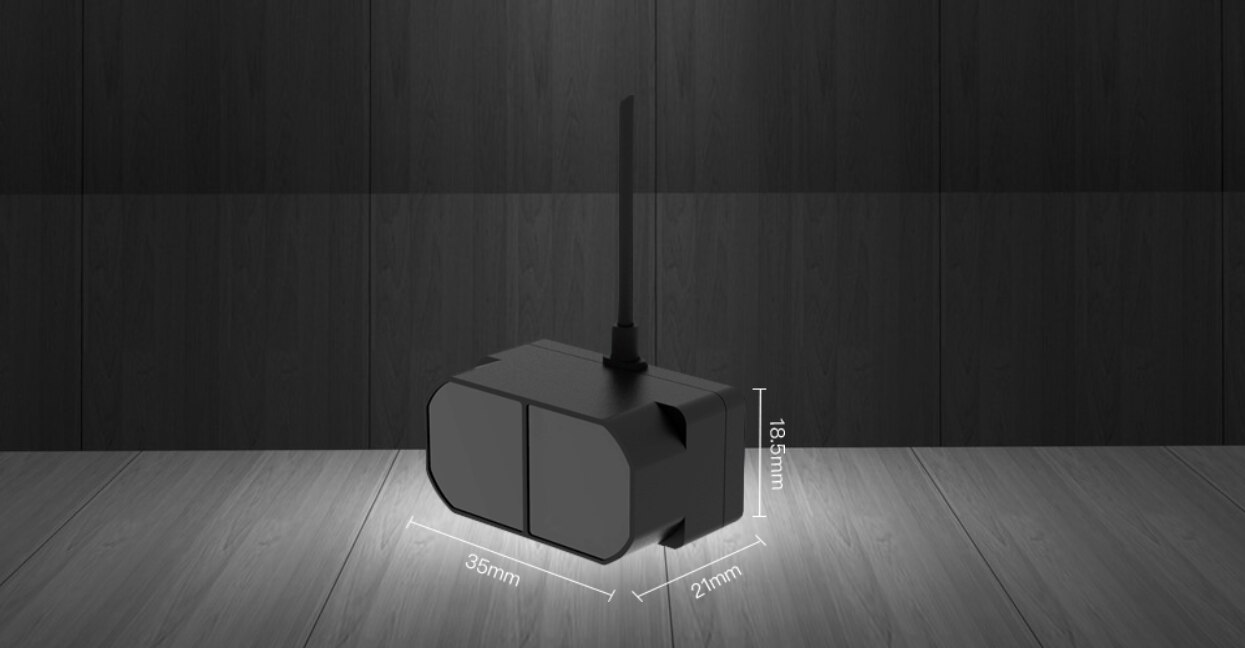

Miscellaneous	Size	35mm*18.5mm*21mm
	Housing material	ABS+PC
	Storage temperature	-20℃~75℃
	Weight	12g±1g
	Cable length	30cm

APPLICATION

Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?

A: We are factory and trading company.

Q: HOW LONG IS YOUR DELIVERY TIME?

A: Generally it is 5-10 days , it is according to the quantity of the mock up parts .

Q: WHAT IS YOUR TERMS OF PAYMENT ?

A: Payment=1000USD, 30%-50% T/T in advance ,balance before shippment.

If you have any other questions, please feel free to contact 24-hour online customer service.
