Description





Description: TF03-100 is a industrial high-speed LiDAR, Its ranging distance is 180m. TF03-100 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.





Features

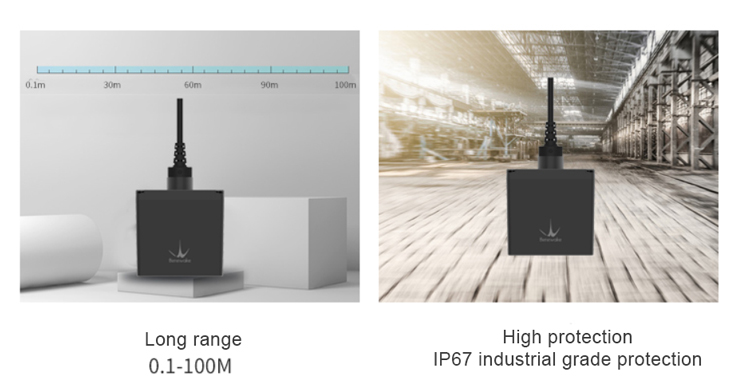

 Industrial Level, Detection Range up to 100m



TF03-100 is a industrial high-speed LiDAR, Its ranging distance is 100m. TF03-100 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need. The product is applicable to the terrain following of drones, the collision avoidance of cars, intelligent transportation and industrial safety warning.

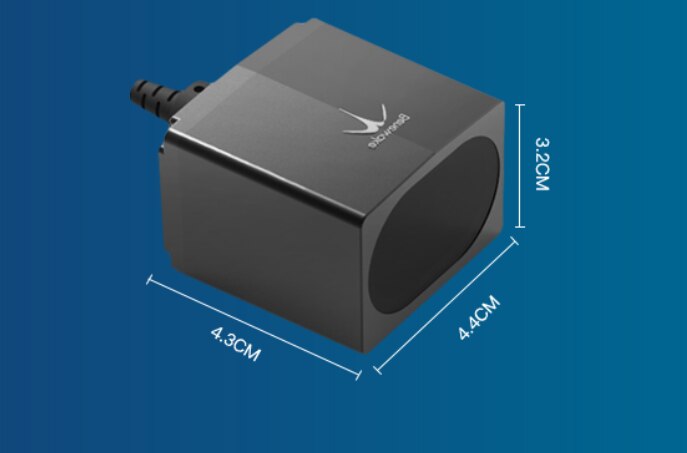

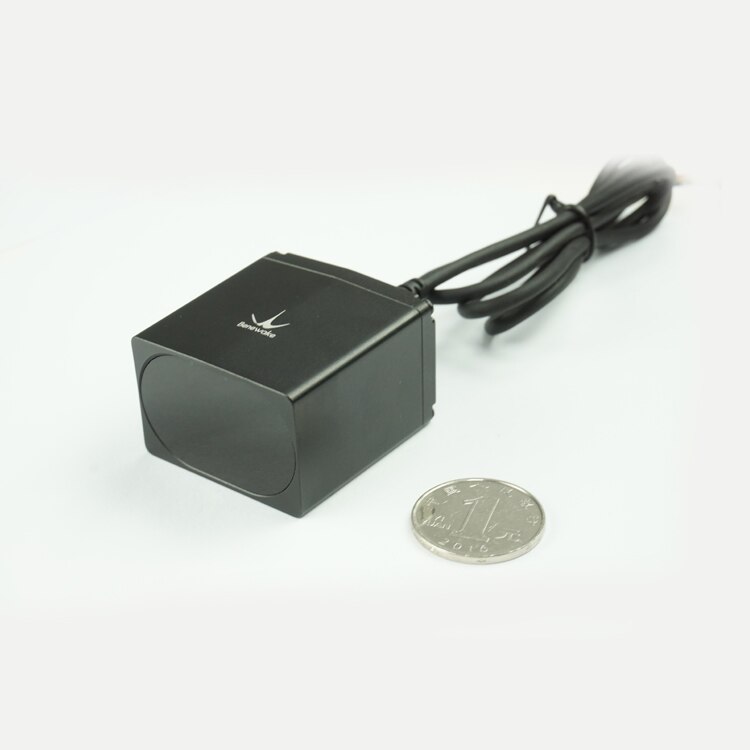

Excellent Performance, Compact Size



TF03-100 adopts the pulsed time-of-flight principle. The unique design of the optical system and the signal processing circuit improved the detecting performance in a compact size. In addition to increasing the range to more than 100 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability and detection frequency.









High Enclosure Rate, Multiple Interfaces

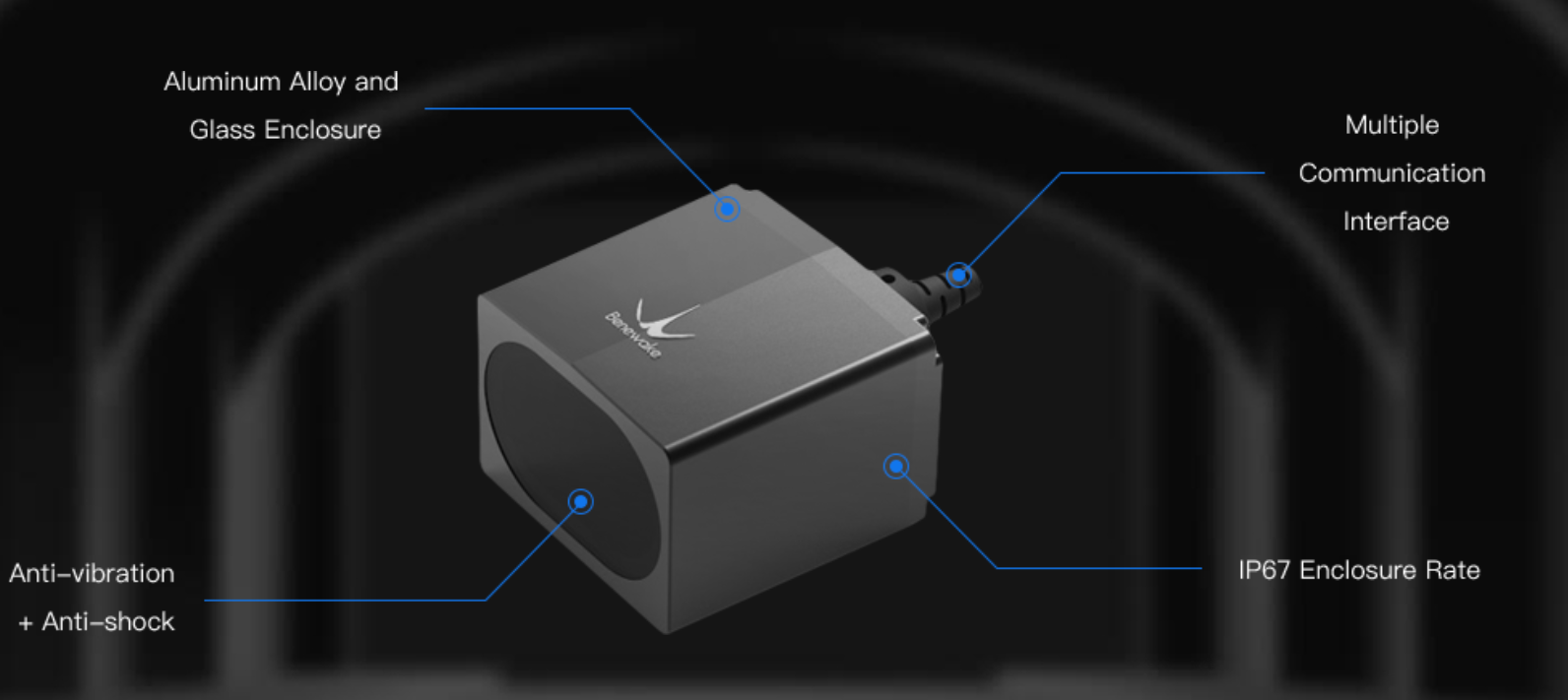

The shell of TF03-100 is made of aluminum alloy and infrared band-pass glass to improve the overall strength. The enclosure rate is IP67, which can be applied in various extreme environments.

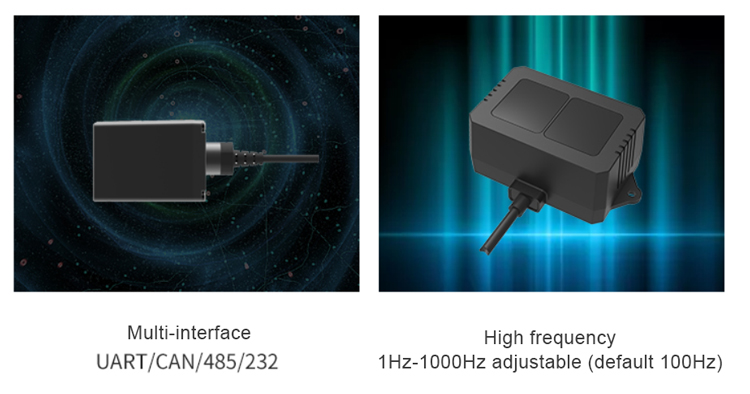

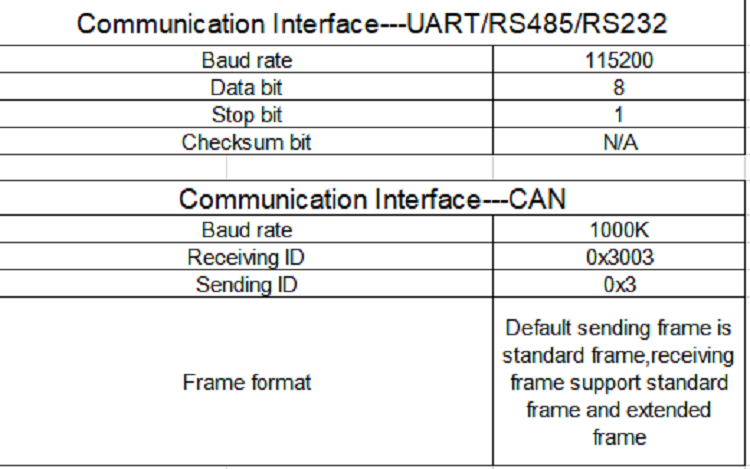

The TF03-100 supports multiple interfaces, including UART, CAN, RS232 and RS485, which can satisfy different applications.











Customized Parameters

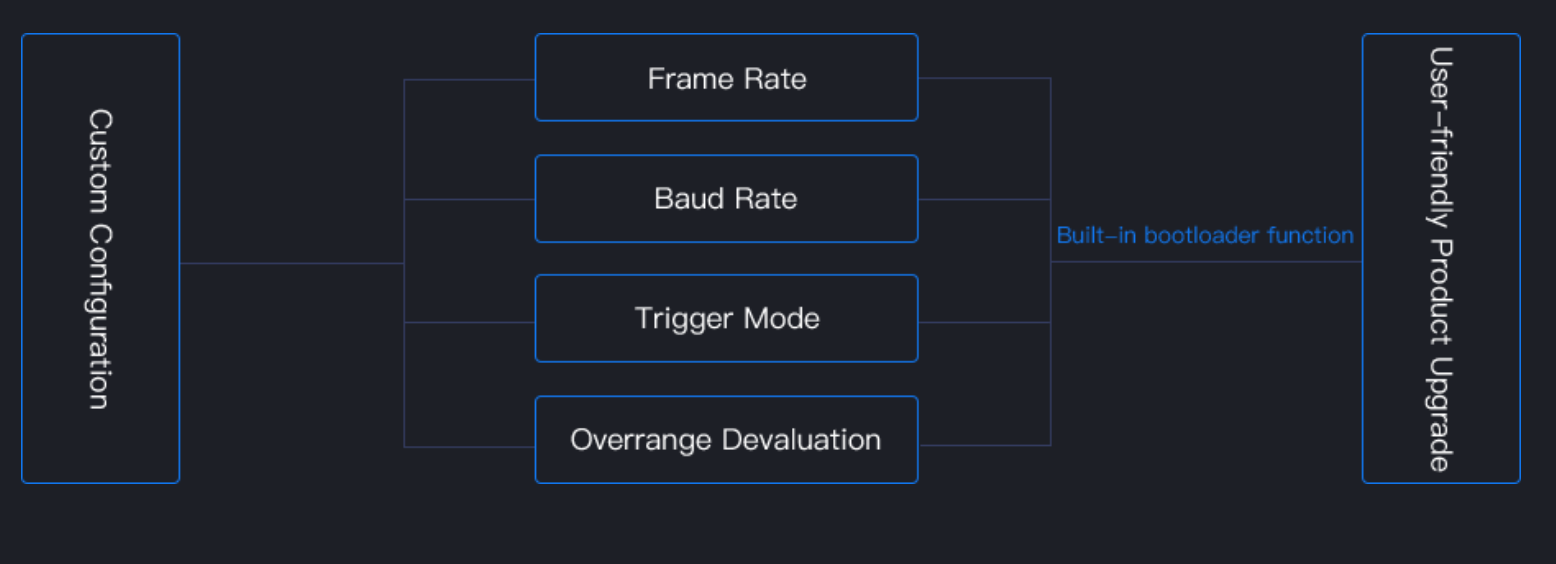

Multiple parameters of TF03 can be configured by customers, including the measuring frequency, baud rate, trigger mode, over-range assignment, etc. TF03 is also equipped BootLoader function, enabling users to upgrade product firmware locally.

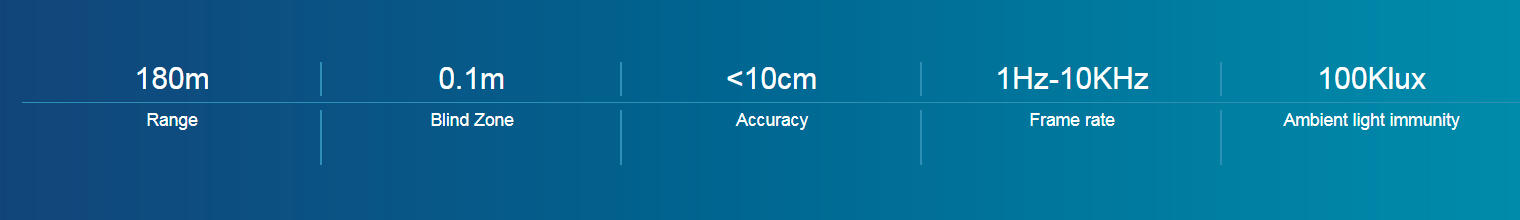

Specifications



Description		Parameter value
Product performance	Operating range	0.1m-180m@90% reflectivity 0.1m-70m@10% reflectivity 0.1m-130m@90% reflectivity&100Klux 0.1m-50m@10% reflectivity&100Klux
	Accuracy	±10cm (within 10m), 1% (10m and further)
	Distance resolution	1cm
	Frame rate	1Hz~1000Hz adjustable (default 100Hz)
	Ambient light immunity	100Klux
	Operation temperature	-25~60℃
	Enclose rating	IP67
Optical parameters	Light source	LD
	Central wavelength	905nm
	Photobiological safety	CLASS1(EN60825)
	FOV	0.5°
Electrical parameters	Supply voltage	5V
	Average current	≤180mA
	Power consumption	≤0.9W
	Communication level	LVTTL(3.3V)
	Communication interface	UART/CAN/IO





Application









 Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory and trading company.

Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days , it is according to the quantity of the mock up parts .

Q: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%-50% T/T in advance ,balance before shippment.
If you have any other questions, please feel free to contact 24-hour online customer service.
