Description
- Brand Name: BENEWAKE
- Origin: Mainland China

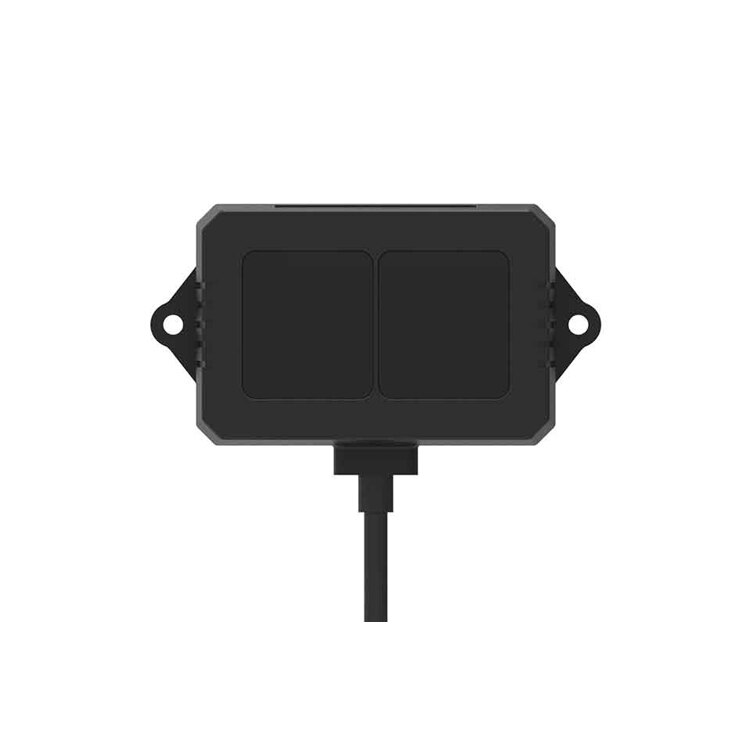

Description: TF02-pro is greatly upgraded and optimized based on TF02, ranging performance up to 40m, more efficient optical system, better circuit design, while ensuring higher ranging performance, blind zone and power consumption have excellent performance. With the optimization of the algorithm, the error performance in different environments is also improved significantly.
Features: The range performance of TF02-Pro can be up to 40m,blind zone is as low as 10cm,it supports the maximum frequency of 1000Hz, the optimized and upgraded algorithm makes it more accurate.

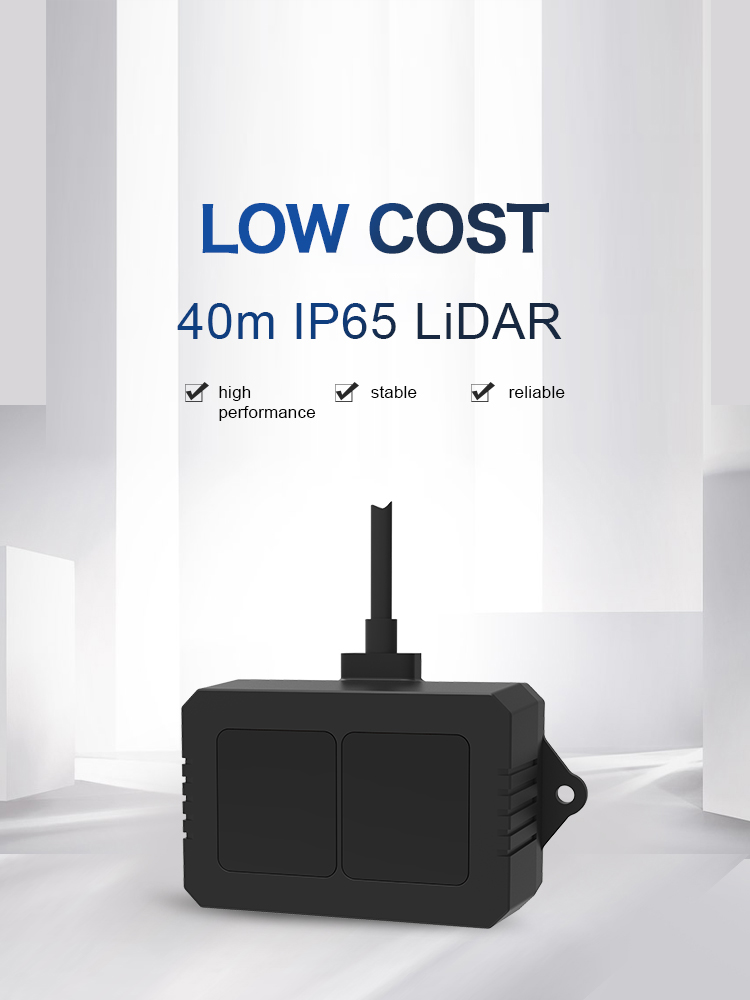

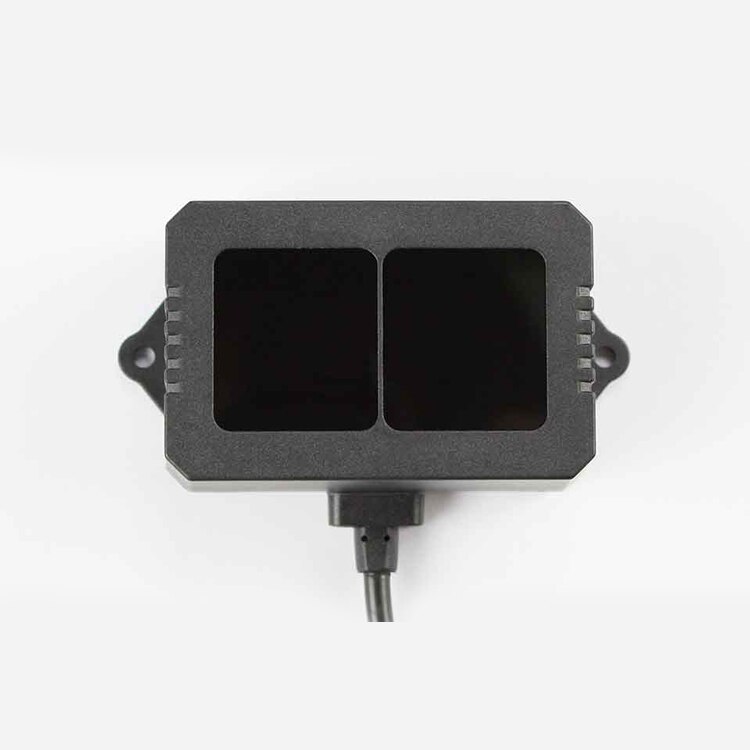

40m IP65 LiDAR
TF02-pro is greatly upgraded and optimized based on TF02, ranging performance up to 40m, more efficient optical system, better circuit design, while ensuring higher ranging performance, blind zone and power consumption have excellent performance. With the optimization of the algorithm, the error performance in different environments is also improved significantly.

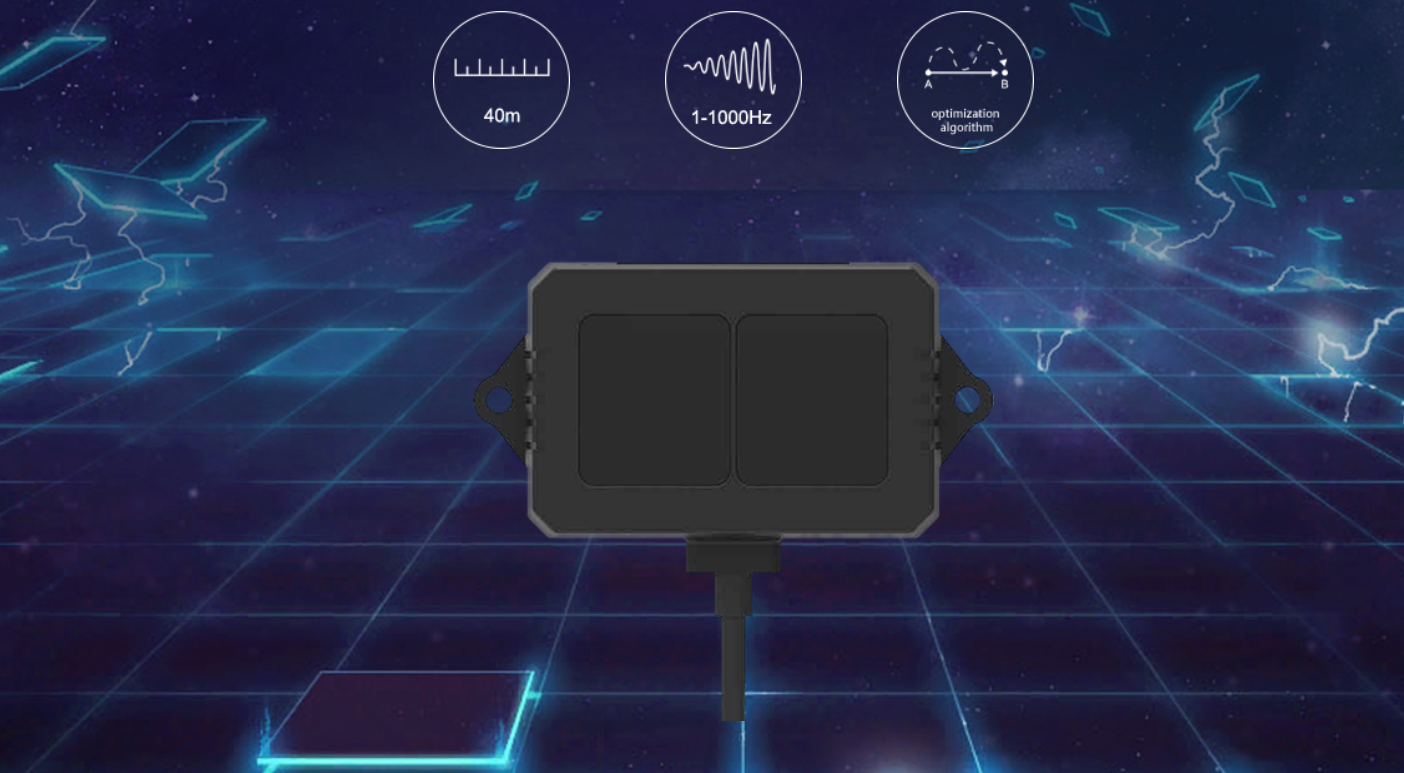

Longer,Stable,Reliable
The range performance of TF02-Pro can be up to 40m,blind zone is as low as 10cm,it supports the maximum frequency of 1000Hz, the optimized and upgraded algorithm makes it more accurate.

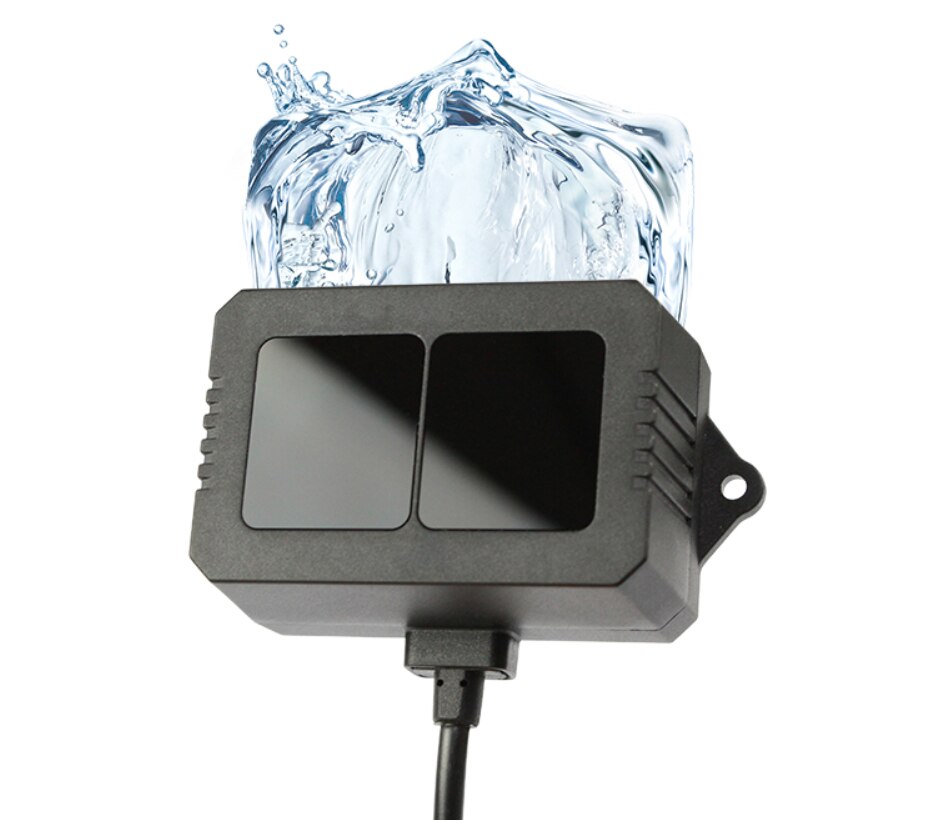

High Strength Housing
The innovative production process and hardware optimizations make its enclosure level reach IP65. The integrated structure makes its body more powerful and unbreakable.
Fusion Algorithm and High Reliability
Based on the ToF (Time of Flight) principle, the product can work under 100k Lux high light outdoors. With our special optical system design and fusion algorithm, the product can resist disturbance from ambient light, airflow, and electrons, resulting high data reliability.
Specification
| Description | Parameter value | |
| Product performance | Operating range |
0.05~40m@90%reflectivity;
0.05~13.5m@10%reflectivity |
| Accuracy |
±5cm@(0.05m-5m) ±1%@(5m-40m) |
|
| Distance resolution | 1cm | |
| Frame rate | 100Hz | |
| Ambient light immunity | 100Klux | |
| Operation temperature | -20℃~60℃ | |
| Protection Level | IP65 | |
|
Optical parameters |
Light source | VCSEL |
| Central wavelength | 850nm | |
| Photobiological safety | Class1 (EN60825) | |
| FOV | 3° | |
|
Electrical parameters |
Supply voltage | 5V |
| Average current | ≤400mA | |
| Power consumption | ≤2W | |
| Peak current | 1.6A | |
| Communication level | LVTTL(3.3V) | |
| Communication interface | UART or CAN | |
| Others | Dimension | 69mm*46mm*26mm (L*W*H) |
| Cable length | 80cm | |
| Storage temperature | -20℃~80℃ | |
| Weight | 60g | |
Application
Packing
