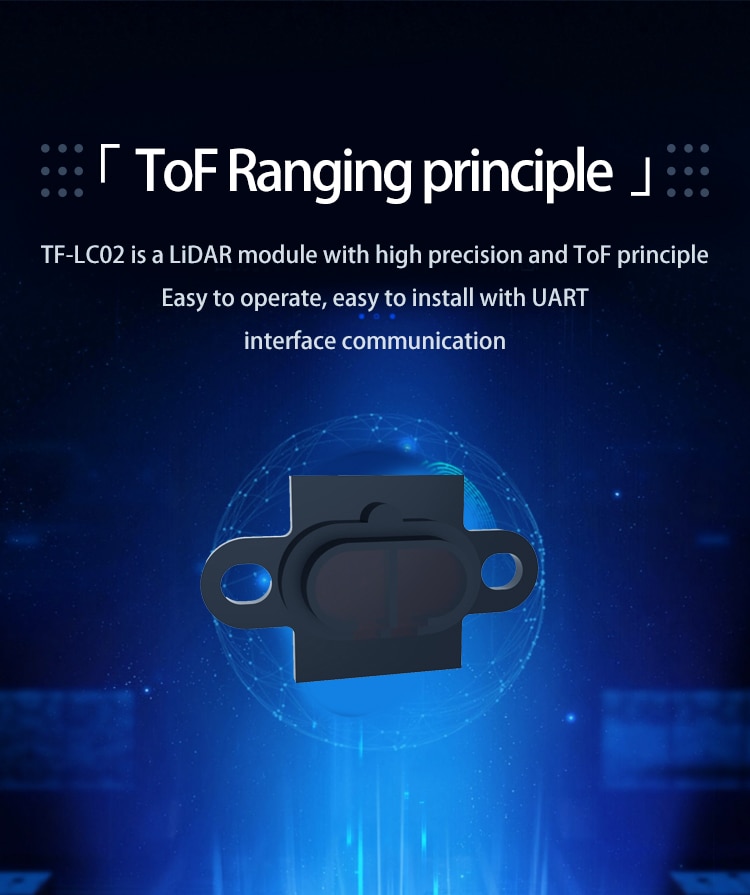

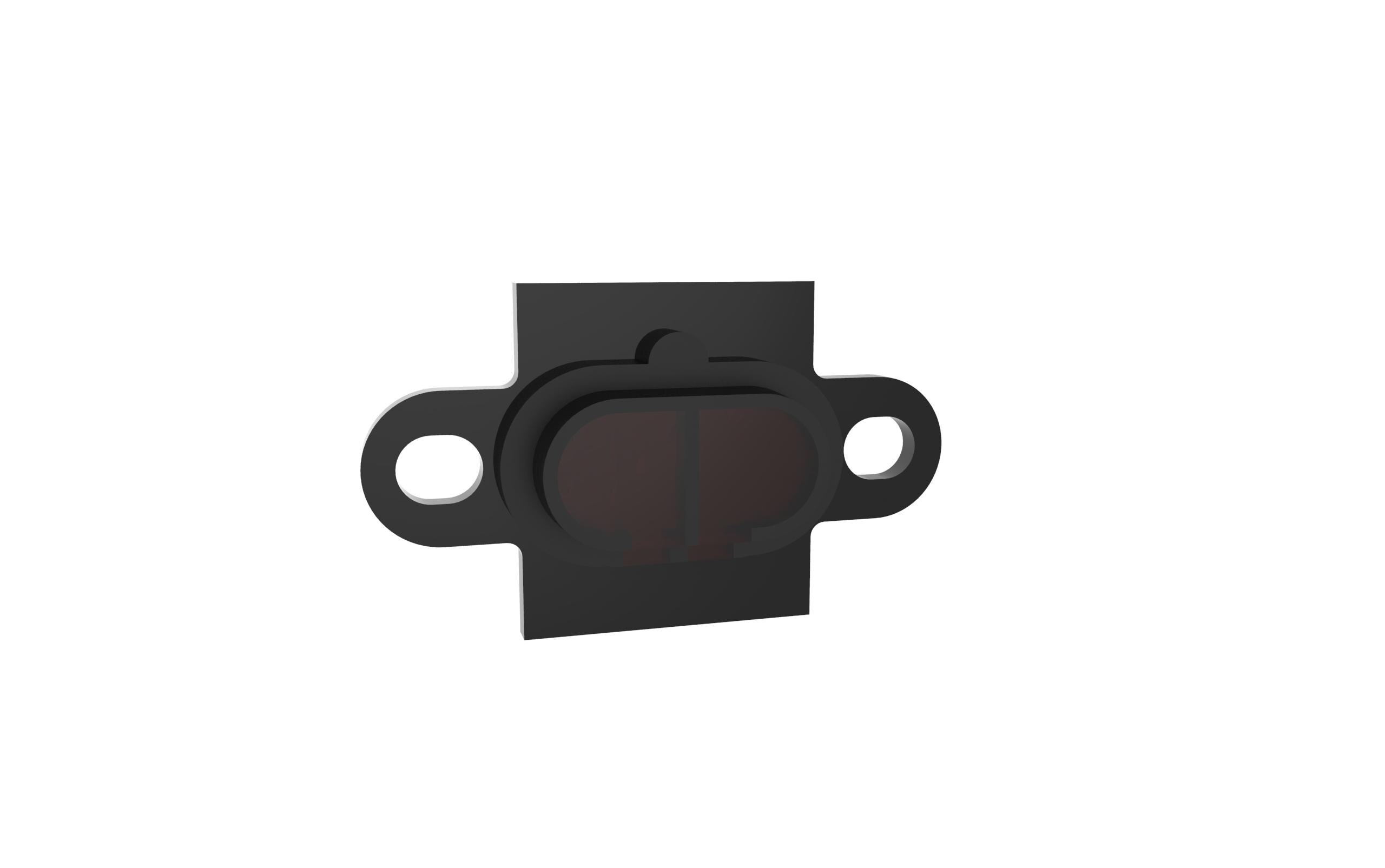

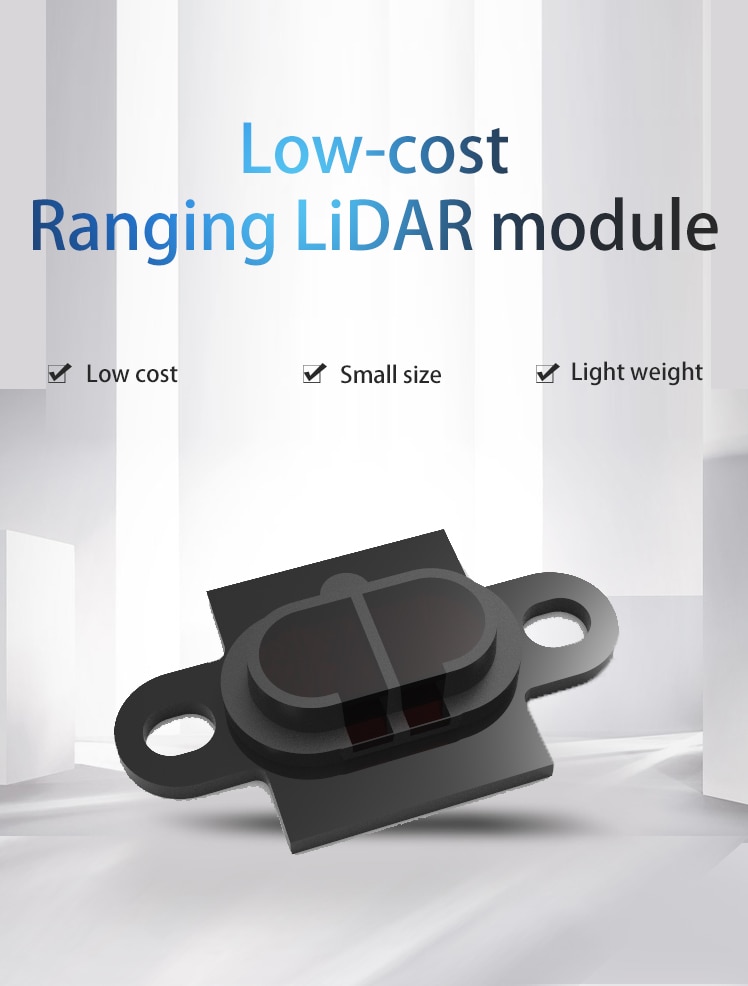

Benewake TF-LC02 Lidar Ranging Module

Description:

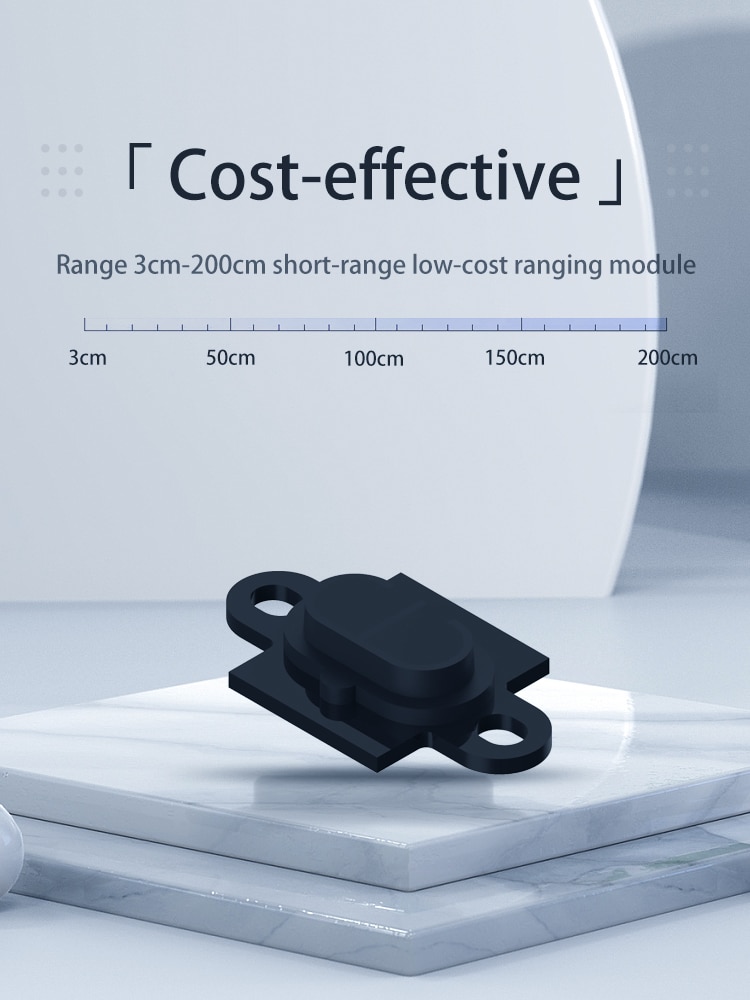

Measuring range: 3cm~200cm @ 90% reflectivity

Detection speed: 33msec

Accuracy:±2cm @ (3cm~100cm); ±5% @ (100~200cm)

Storage temperature: -20~85°C

Working temperature: -20~70°C

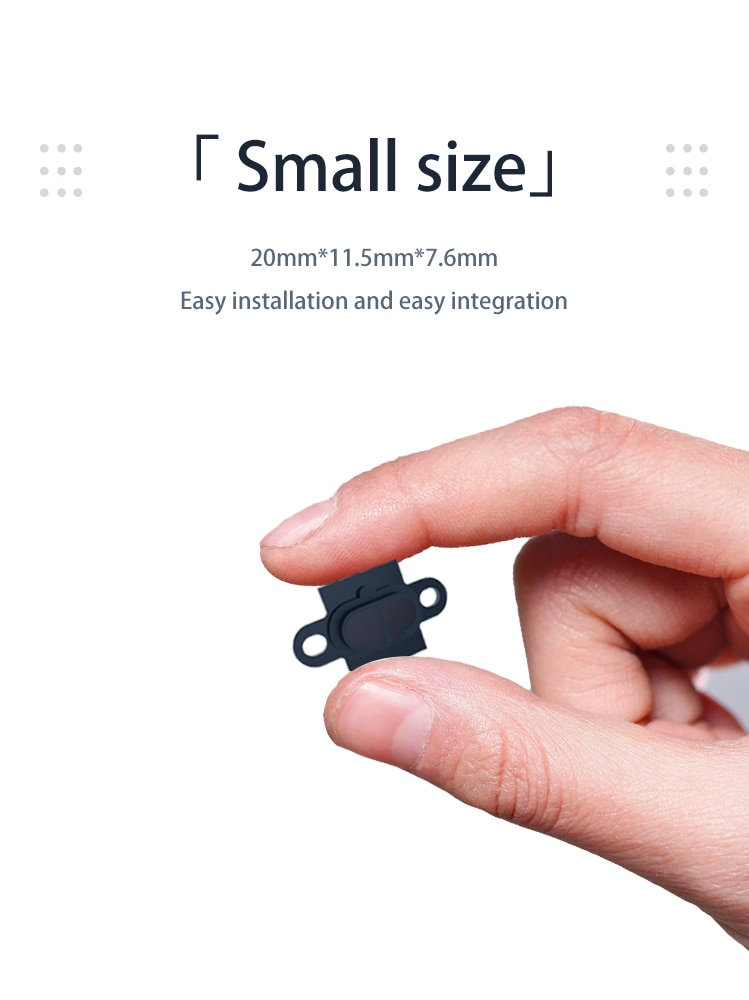

Size: 20mm* 11.5mm*7.6mm

Light source: VCSEL

Supply voltage: 3~3.6V

Center wavelength: 940nm

Average current: ≤15mA

Eye safety: Class1 (IEC60825- 1:2400)

Power consumption: ≤50mW

Field of view: ±9° (9° on the left and right of the optical central axis; 18° in total) 3

Communication level: LVTTL (3.3V)

Connector: 1.0mm 6P

Cable Length: 10cm(including connector)

Installation and use:

1. When installing, please ensure that the installation environment is sanitary and clean to prevent large particles of dust from adhering to
the lens;

2. Avoid touching the circuit board directly with your hands, wear anti-static gloves or an anti-static wristband to operate;

3. There should be no obstruction between the lens part of the module and the mounting surface to prevent the optical path from being blocked and affecting performance;

4. When installing, the screws of the two mounting holes must be tightened, and the module must not slide left and right, and the lens of
the module must be kept level.-Low side);

5. The surface of the lens of the product should be kept clean during use. If there is dust or dirt or water droplets, it should be cleaned with cotton cloth immediately.

6 in 1 CP2102 Serial Module USB to TTL 485 3.3V 5V
Description:
Core chip: CP2102
Small size：3.1 X 1,8CM
Compatible with 3.3V and 5V
Power suppy output
Overcurrent protection
TTL level interface
RS232 level interface
RS485 level interface
Four level can exchange freely
High-speed communication
DTR,RTS signal
