Package:

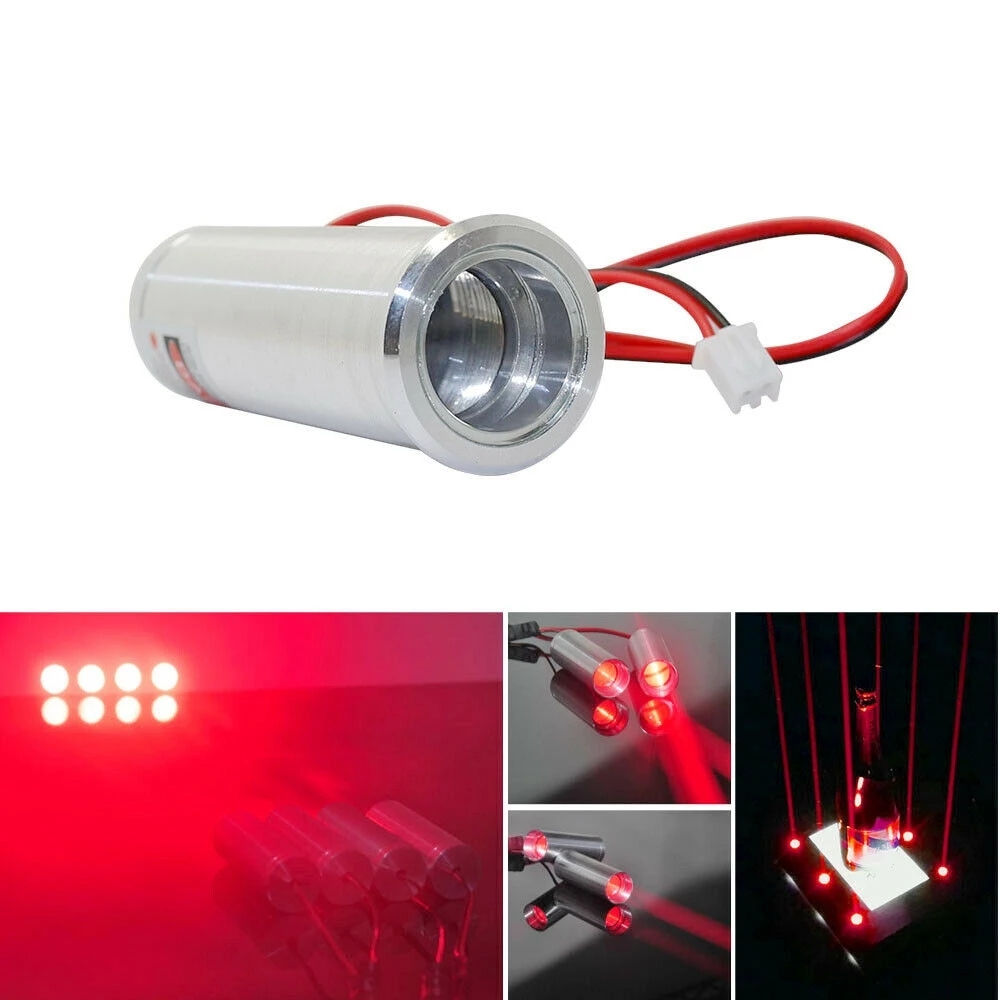

1pc Coarse beam 650nm 660nm 130mW Red Laser Module for KTV BarLighting

NOTE:

All Coarse beam lasers normally used in fog or smoke area, so that in those areas, the beam can be seen. if you use it in open and bright area, you man cannot find the laser beam

Under the environment of the bar or KTV room, the light spot is gorgeous, the light-emitting mirror is waterproof, and it cannot work for a long time

Main uses：

Bar supplies, wine display racks, laser wine seats, stage laser effects, escape rooms, etc., are widely used

Features：

Wavelength 660nm

Output power 130mW can work continuously for 2 hours

Supply voltage 3.7-5V can use a single 18650 or other 3.7V lithium battery

Spot diameter dotted 14-16mm rough light

Storage temperature ± 50 ℃

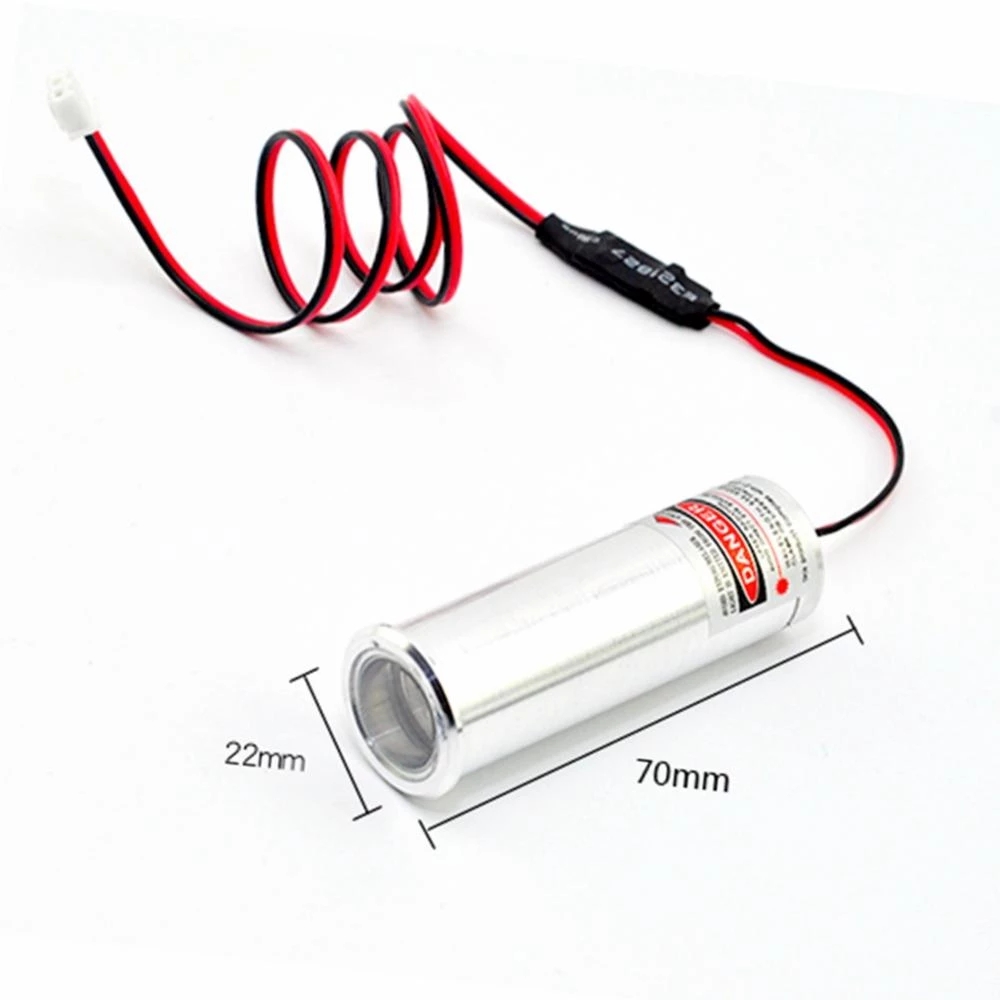

Dimensions 22mm * 70mm installation opening 22mm mirror waterproof

Working current 300mA such as: 4 lamps 4 * 300mA, power consumption per hour 1200mA 2400mA battery available for 2 hours

Laser Class 3B Note: Spot light with a power above 50mW cannot be directed at the naked eye

Working life 8000 hours

Material Aluminum

Main uses Bar supplies, wine display racks, laser wine seats, stage laser effects, escape in the back room, etc.

Main features In sprinkling bar or KTV room environment, the light spot is gorgeous, the mirror surface is waterproof, and it can work for a long time.

Circuit characteristics: the industry’s unique single-chip microcomputer control circuit, with anti-surge, power-off protection, secondary purification, LDO technology, etc.
