Description
Products Description
|
Power rating
|
4000W-6000W
|
|
Collimator focal length
|
100mm
|
|
Focus lens focal length
|
150/200mm
|
|
Fiber interface
|
QBH/QD
|
|
Collimation protective window
|
Ф38mm*1.5mm
|
|
Focus protective window
|
Ф37mm*7mm
|
|
Same optical aperture
|
35mm
|
|
Auxiliary gas pressure
|
<30bar
|
|
weight
|
5.6kg
|
Application

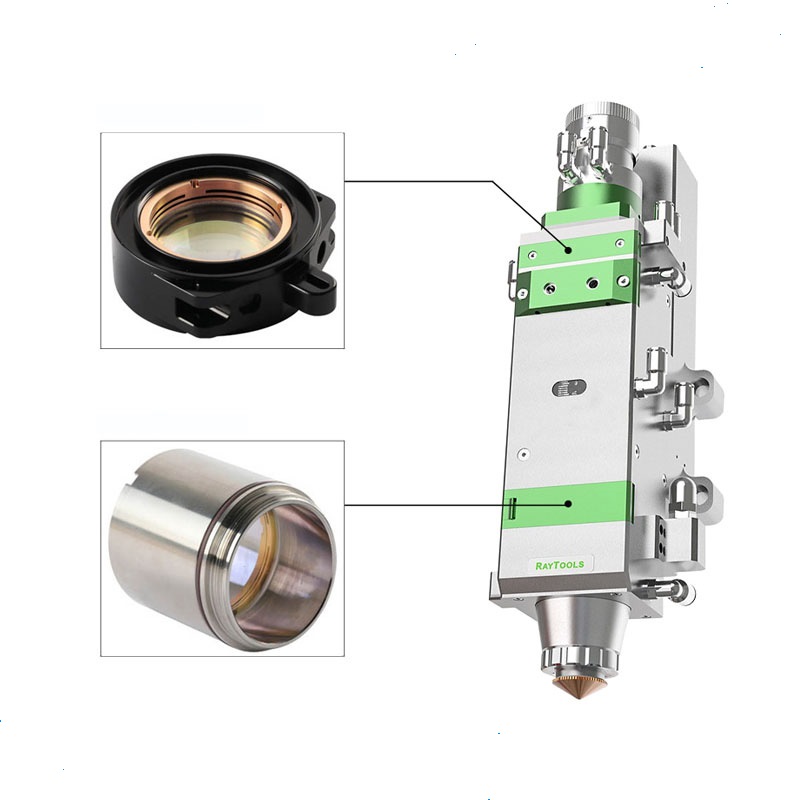

Detailed Images

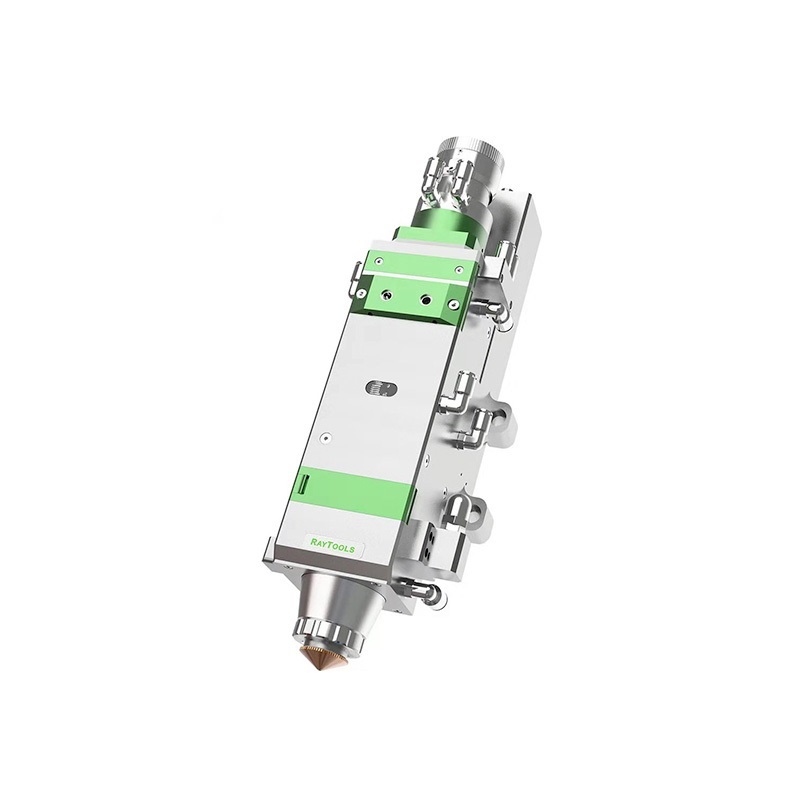

MB114S Auto-focusing 2D Cutting Head Power Rating 4000-6000W
High Efficiency Cooling
Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle,
Effectively protect the nozzle and ceramic part and the lifetime
Auto-focusing
Auto-focusing to reducing human intervention. MAX focusing speed 10m/Min, Repeat accuracy 50 μm
High-Speed Piercing & Cutting
Pierces up to 25mm mild steel in 3 sec @3000W
Large Clear Aperture
35mm clear aperture, effectively reducing stray light interference, guarantee cutting quality and service life.
High Power Rating
Rated to 6.0 KW optical power at 1μm, with D37 lens group, and more strength to cut thick plate
Portable and durable
5.6KG, compact structure, reduce the mechanical requirements.
Collimation and focusing lenses are both water cooled. Increase air flow cooling for nozzle,
Effectively protect the nozzle and ceramic part and the lifetime
Auto-focusing
Auto-focusing to reducing human intervention. MAX focusing speed 10m/Min, Repeat accuracy 50 μm
High-Speed Piercing & Cutting
Pierces up to 25mm mild steel in 3 sec @3000W
Large Clear Aperture
35mm clear aperture, effectively reducing stray light interference, guarantee cutting quality and service life.
High Power Rating
Rated to 6.0 KW optical power at 1μm, with D37 lens group, and more strength to cut thick plate
Portable and durable
5.6KG, compact structure, reduce the mechanical requirements.
