Description
- Brand Name: OEMG
- Origin: Mainland China
- Certification: ce
- Model Number: Raycus Fiber Laser Marking Machine
- Certification: CE
- Model: Raycus Fiber Laser Marking Machine
- LASER brand: Raycus
- Power: 20W/30W/50W
- Frequency of pulse: 20-100 KHz,20-100 KHz
- Marking Speed: 8000 mm/s
- Control Software: EZCAD ENGLISH Control Software
- Repeatability Accuracy: ±0.002 mm
- Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
- Marking Content: Text, pattern, date, bar code, etc
- Auto focus function: Optional

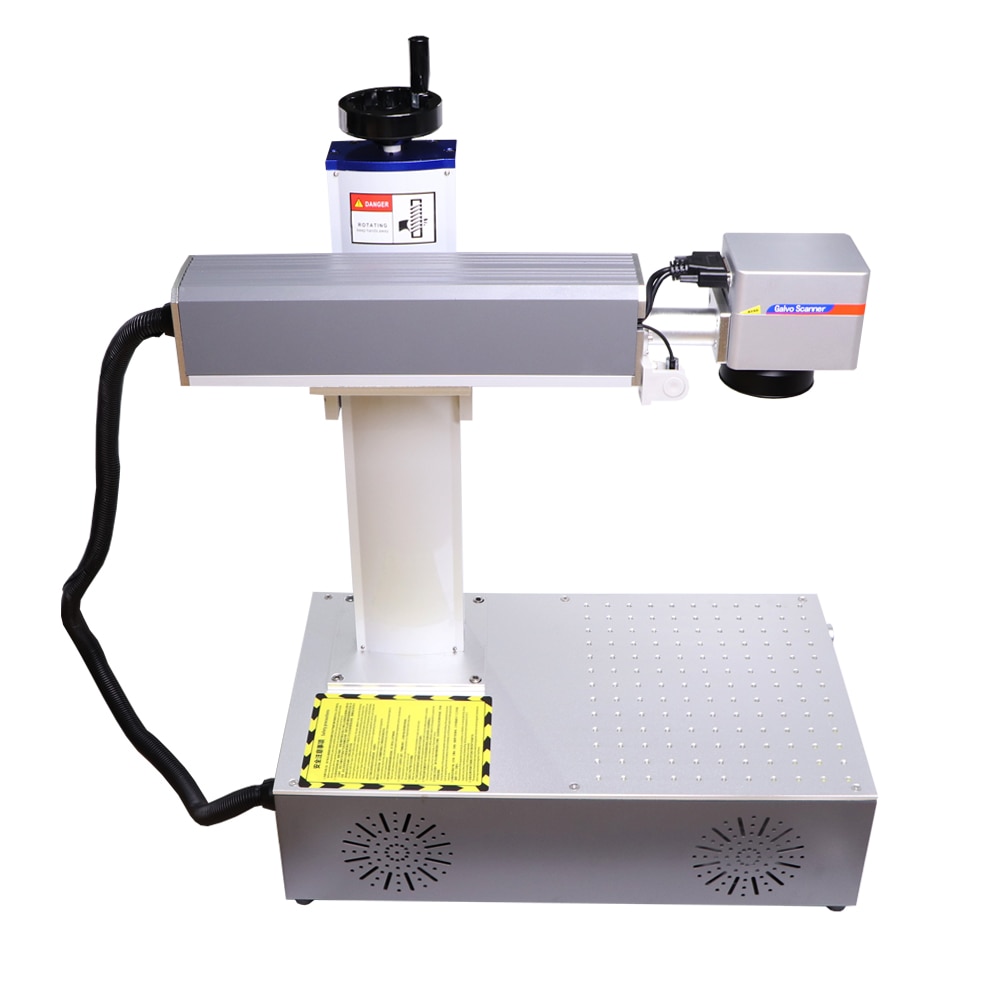

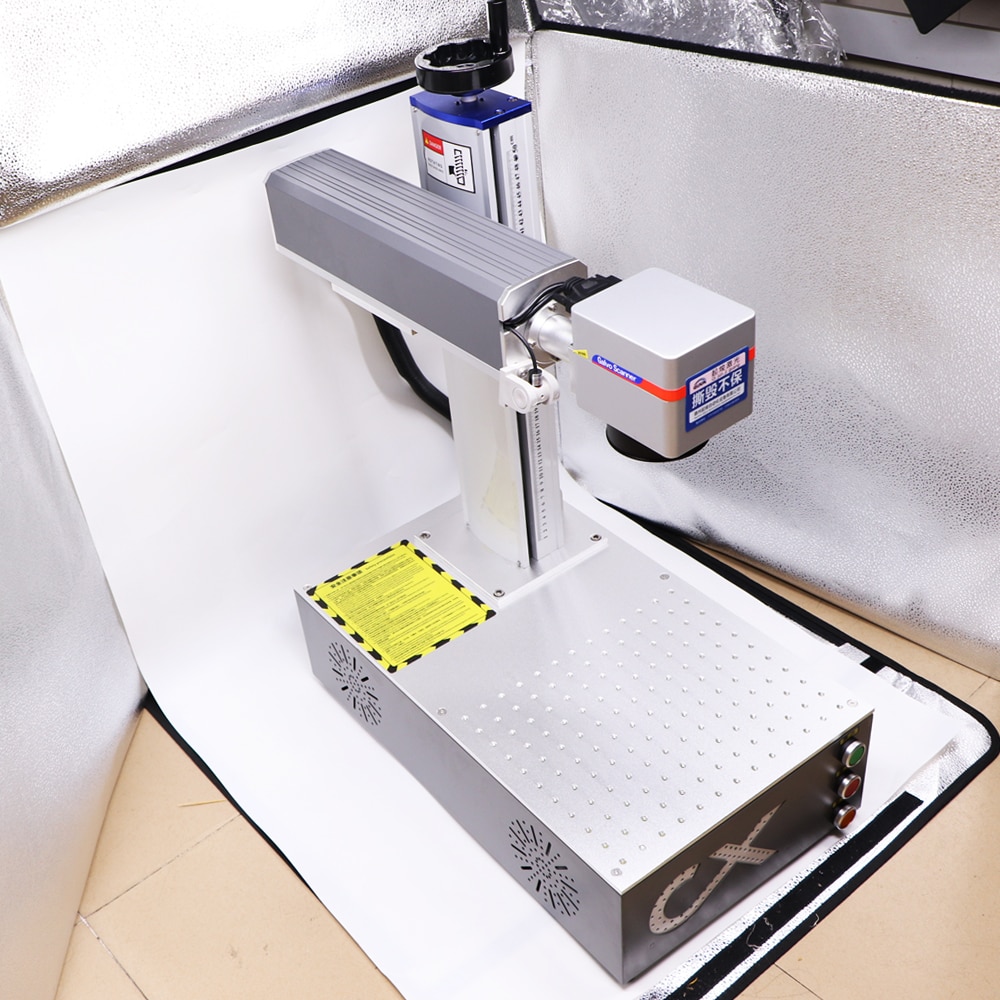

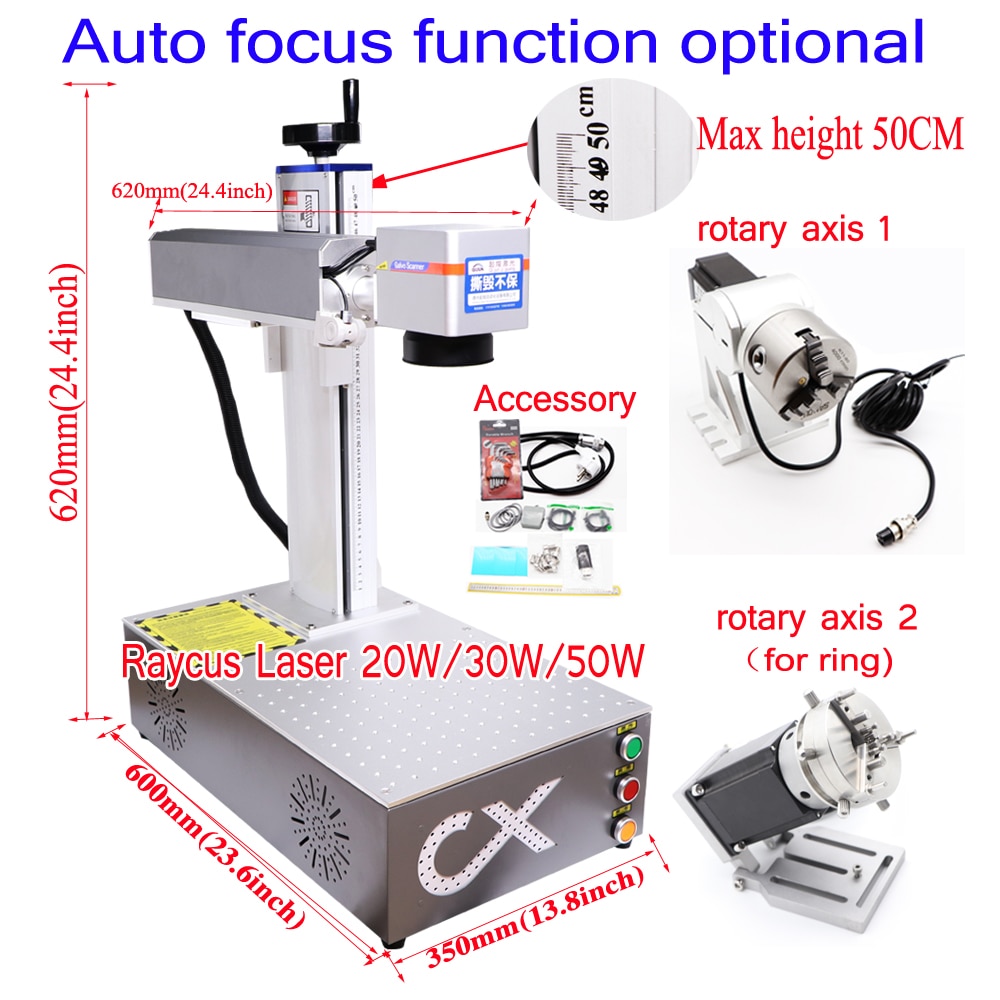

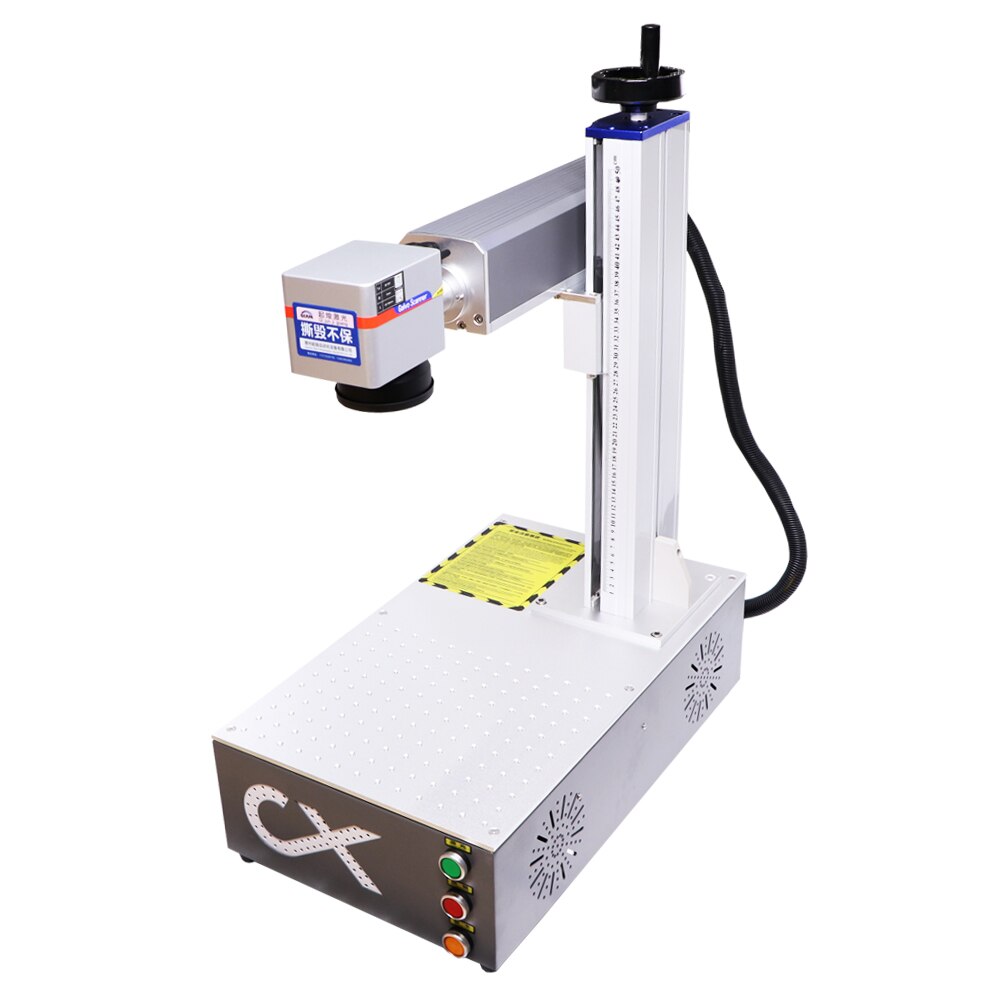

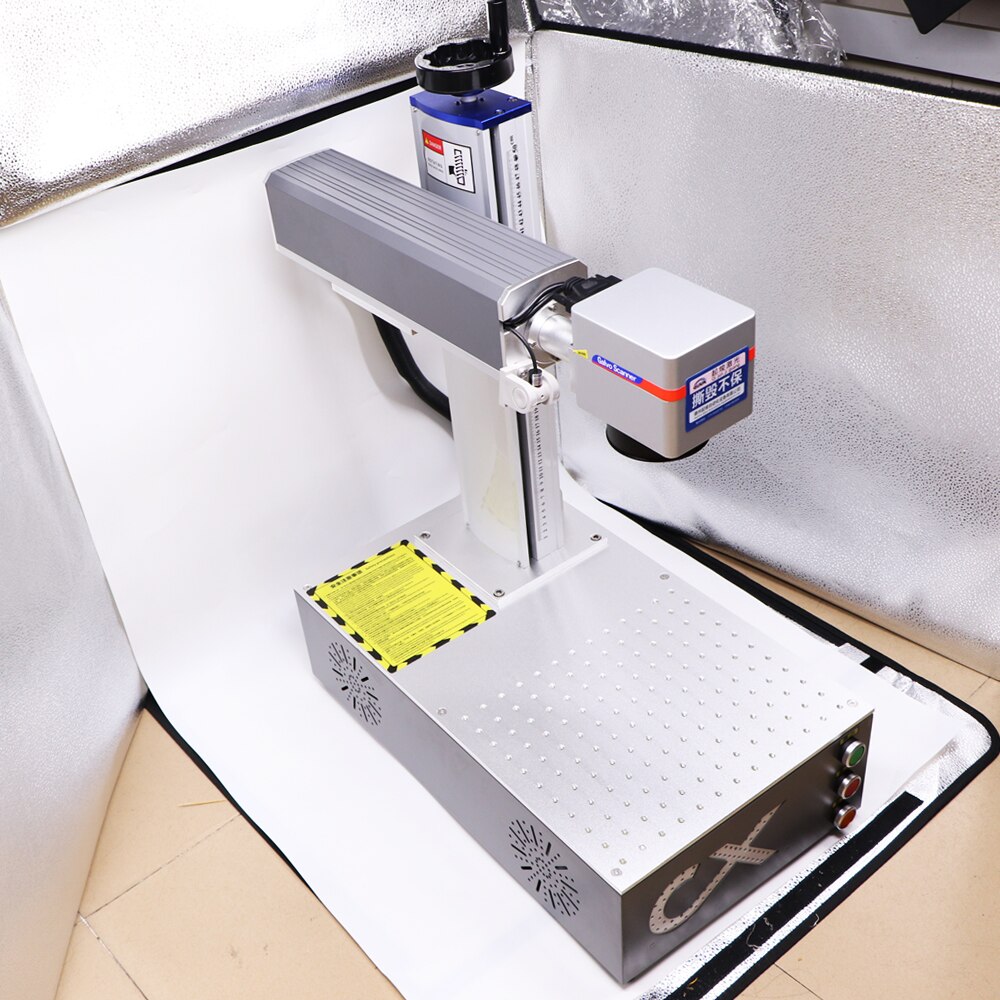

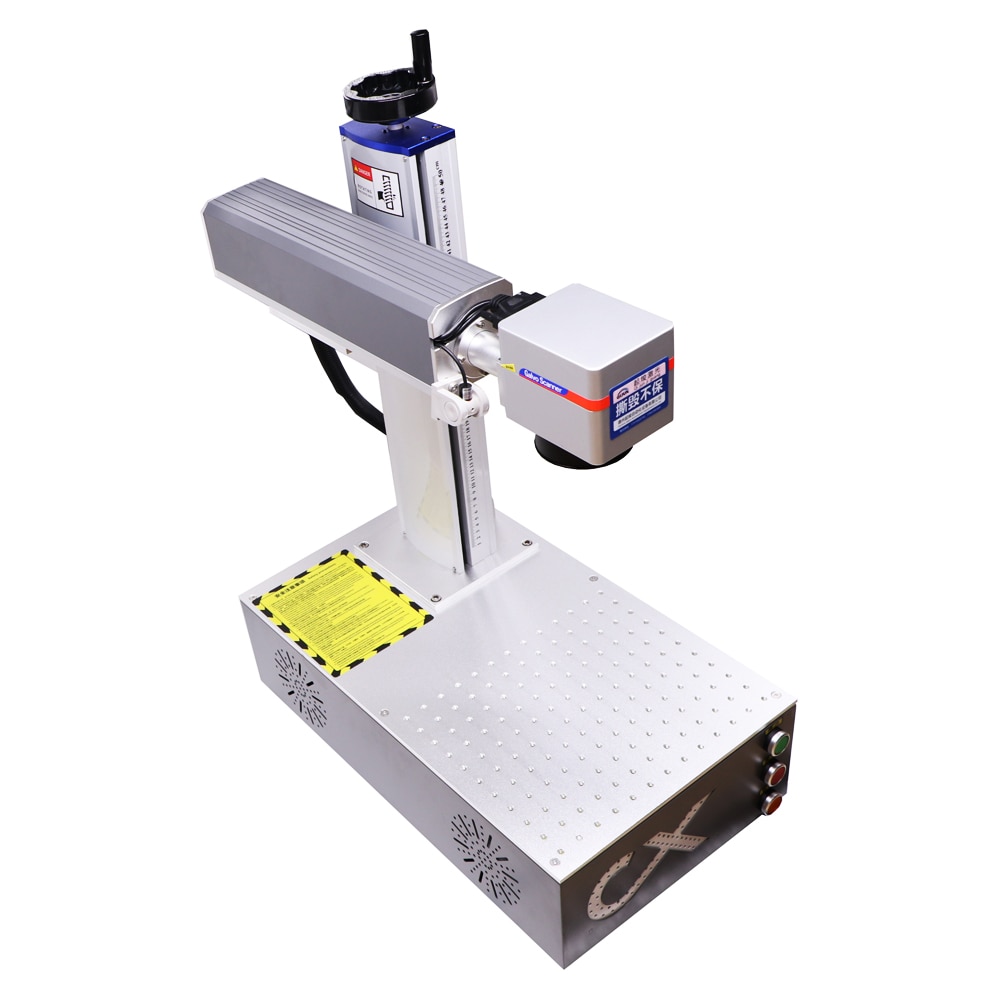

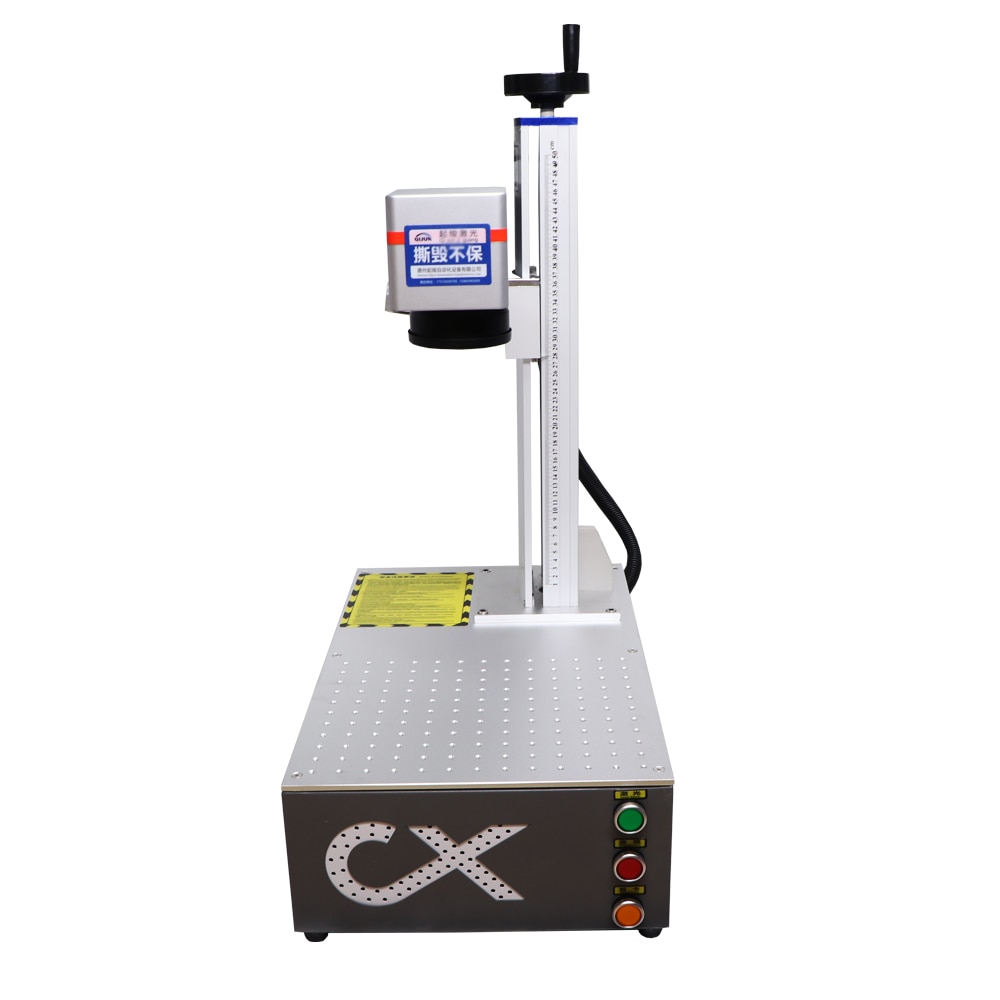

Auto Focus 50W Raycus Fiber Laser Marking Machine 30W 20W Metal Engraver Nameplate Engraving Carving with Galvo Scanner Align
Why choose us?
1. We are factory directly sales, we can customize the pattern you want on the machine
2. 3 year warranty, Lifelong after sales
3. Warehouse Stock, ship fast to your door

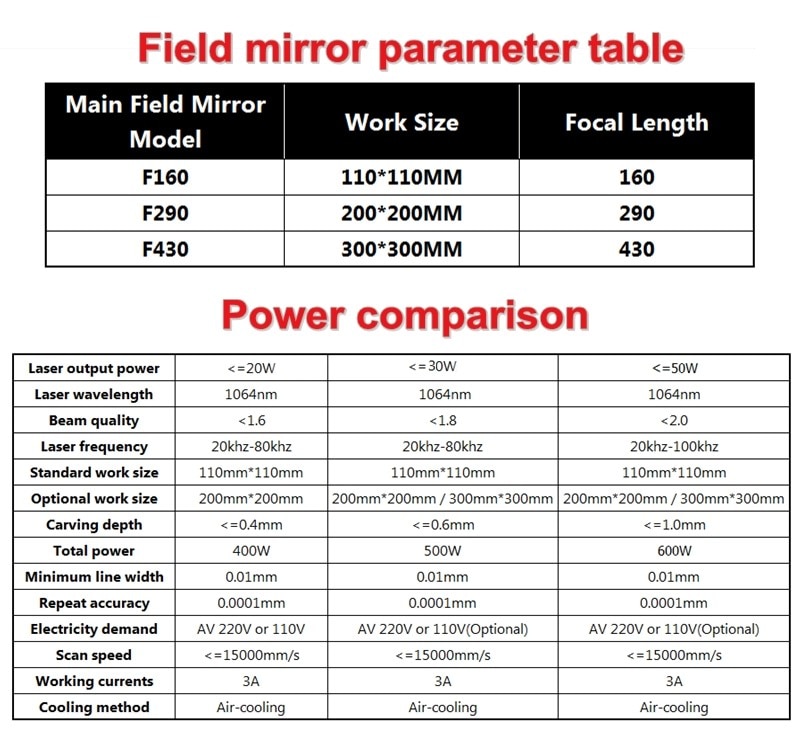

Specification
|
Laser Brand |
RAYCUS |
|
Laser power |
20W/30W/50W |
|
WorkingArea |
Optional 20W Laser with 50x50mm/70x70mm/110x110mm/150x150mm/175x175mm 30W Laser with 50x50mm/70x70mm/110x110mm/150x150mm/175x175mm/200x200mm 50W Laser with 50x50mm/70x70mm/110x110mm/150x150mm/175x175mm/ 200x200mm/ 220x220mm/300x300mm) |
|
Cooling Mode |
Air Cooling |
|
Laser Wavelength |
10.64 um |
|
Frequency of pulse |
20-100 KHz |
|
Marking Depth |
≤0.3 mm |
|
Marking Speed |
≤4000 mm/s RC1001 (If needSG7110galvanometer,please contact with seller to add more $100 ) |
|
Marking Lines |
1-10 lines |
|
Minimum Line Width |
0.01 mm |
|
Minimum Character |
0.15 mm |
|
Repeatability Accuracy |
±0.002 mm |
|
Resolution Ratio |
0.1 mm |
|
Marking Content |
Text, pattern, date, bar code, etc |
|
Operation System |
Microsoft Windows XP or Windows 2000 WIN 7 WIN8 WIN 10 |
|
Control Software |
EZCAD ENGLISH Control Software |
|
Graphic Format Supported |
BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
|
Unit Power |
≤0.9 KW |
|
Operation Temperature |
5°C-40°C |
|
Relative Moisture |
≤ 90%, no fog |
|
Dimensions(L*W*H) |
95 x 78 x 55 cm |
|

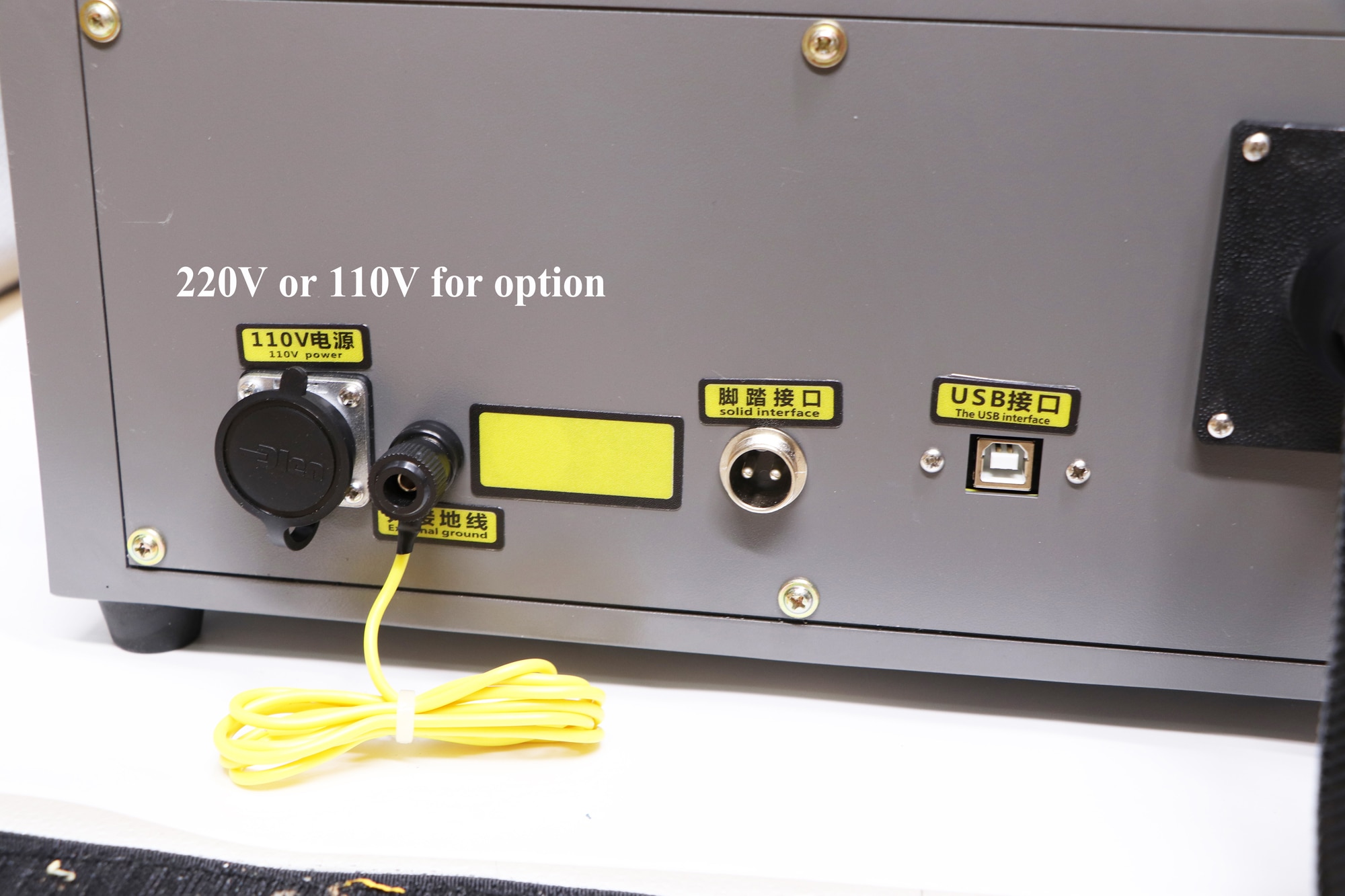

Power supply requirements |
220 V or 110V |
|
Weight |
40KG |
|
Warranty |
24 months |

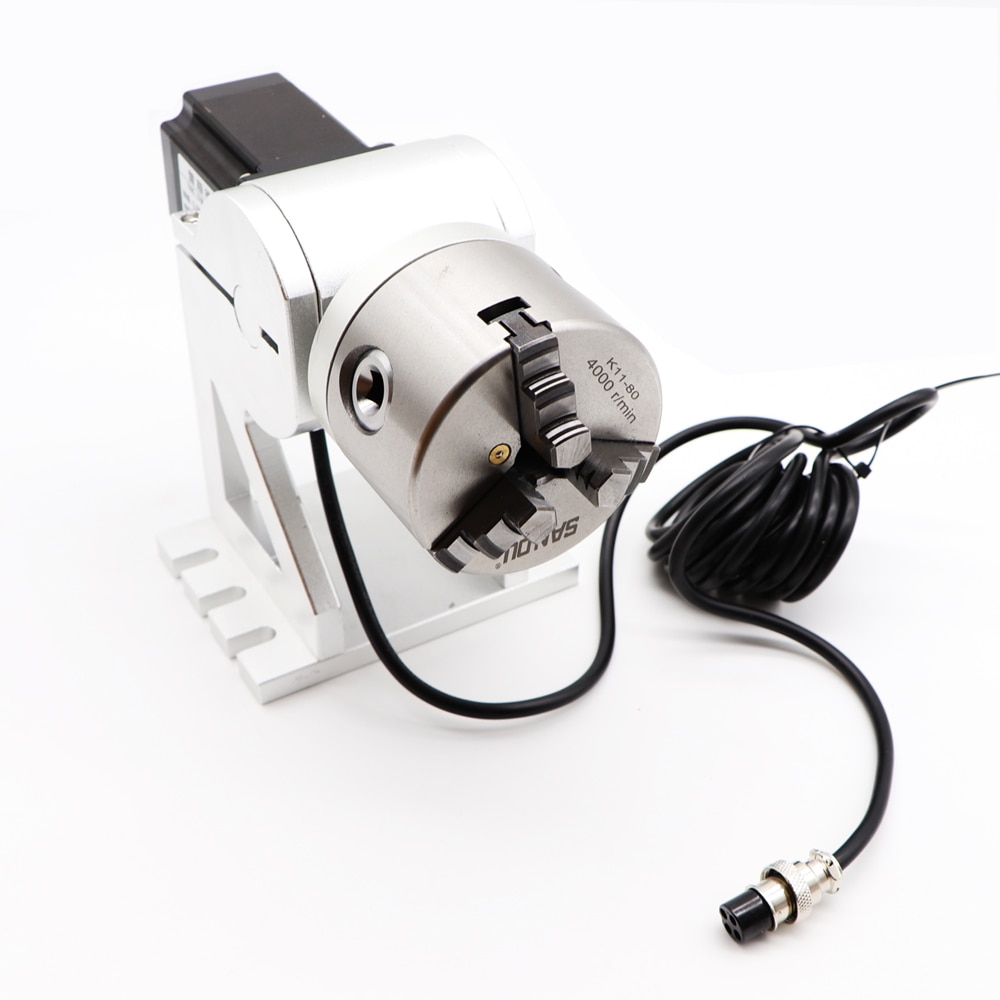

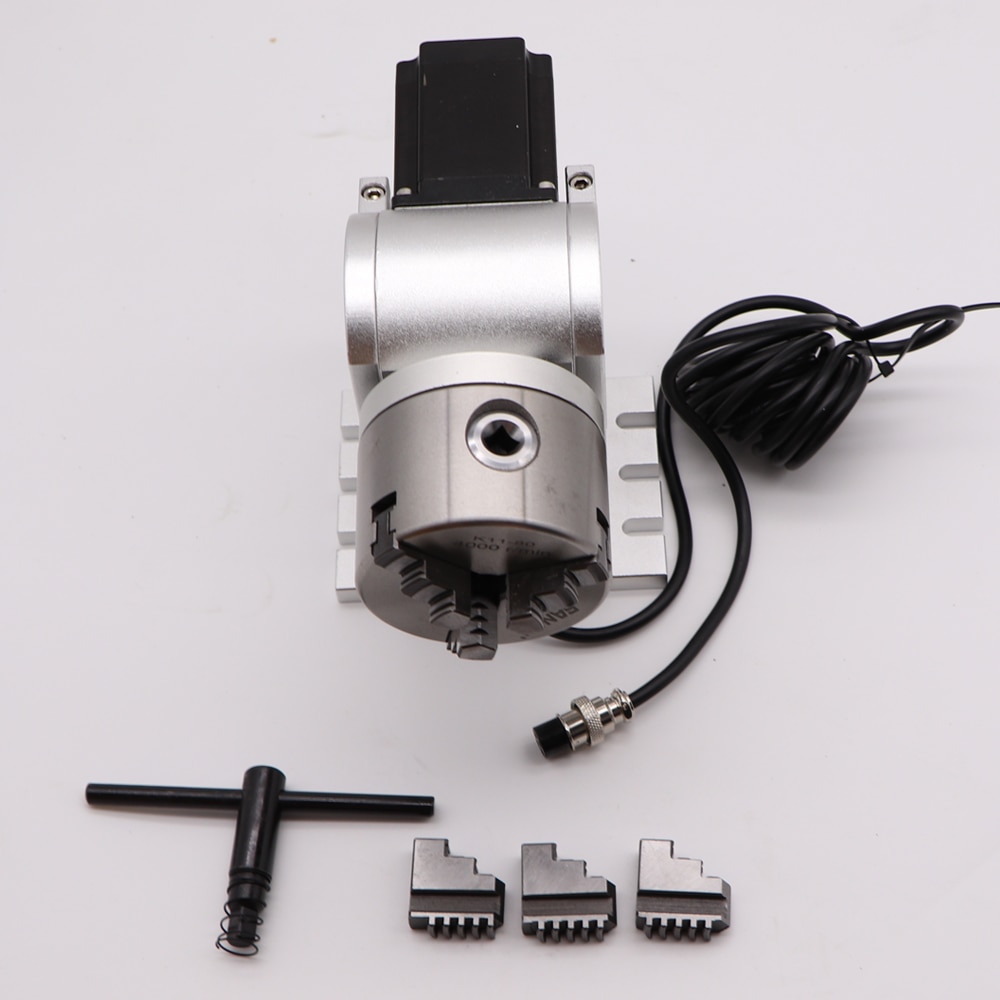

Rotary Axis 1
Clamp Diameter: 80mm
Claw quantity: 3
Version: Short / High
Motor: 57*76mm(SNOWIT) With 2 Meter wire

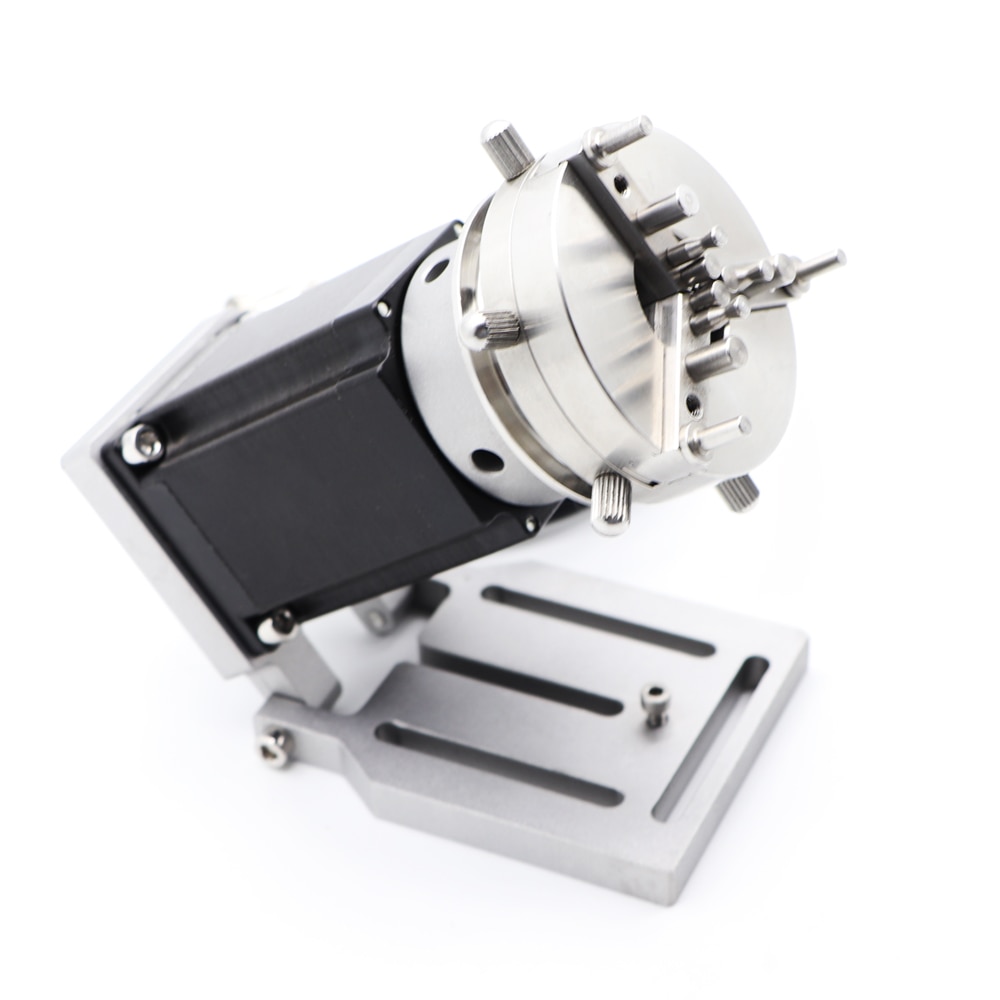

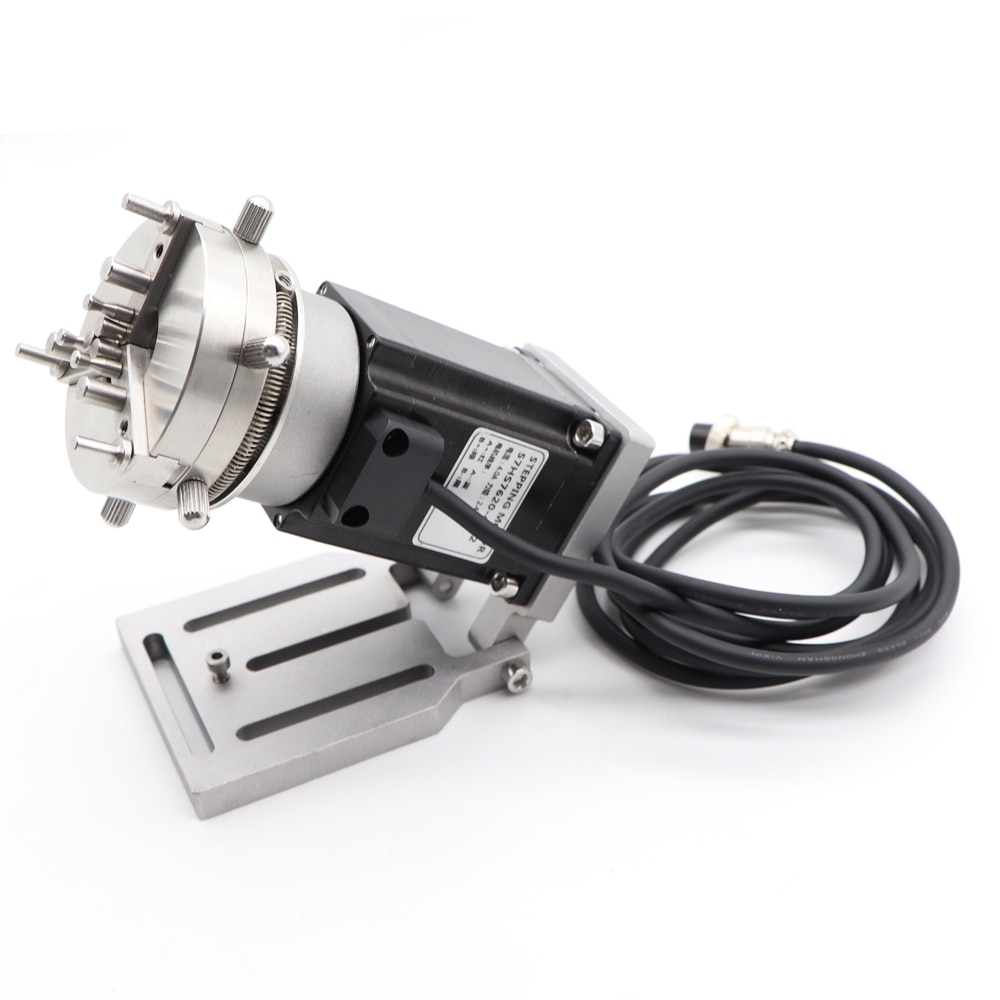

Rotary Axis 2
Ring jewelry rotary axis

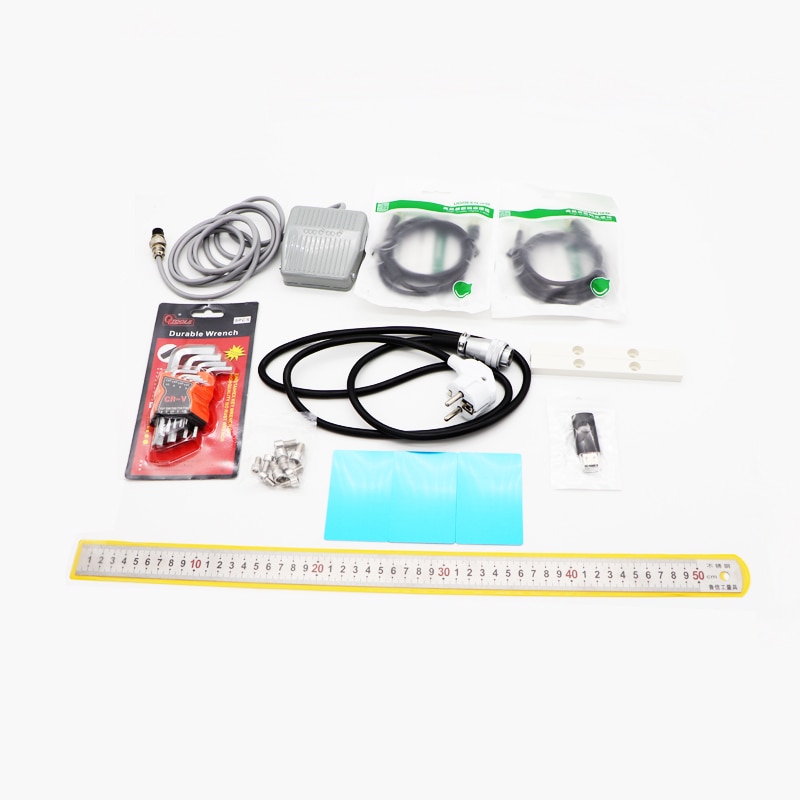

Machine Accessory

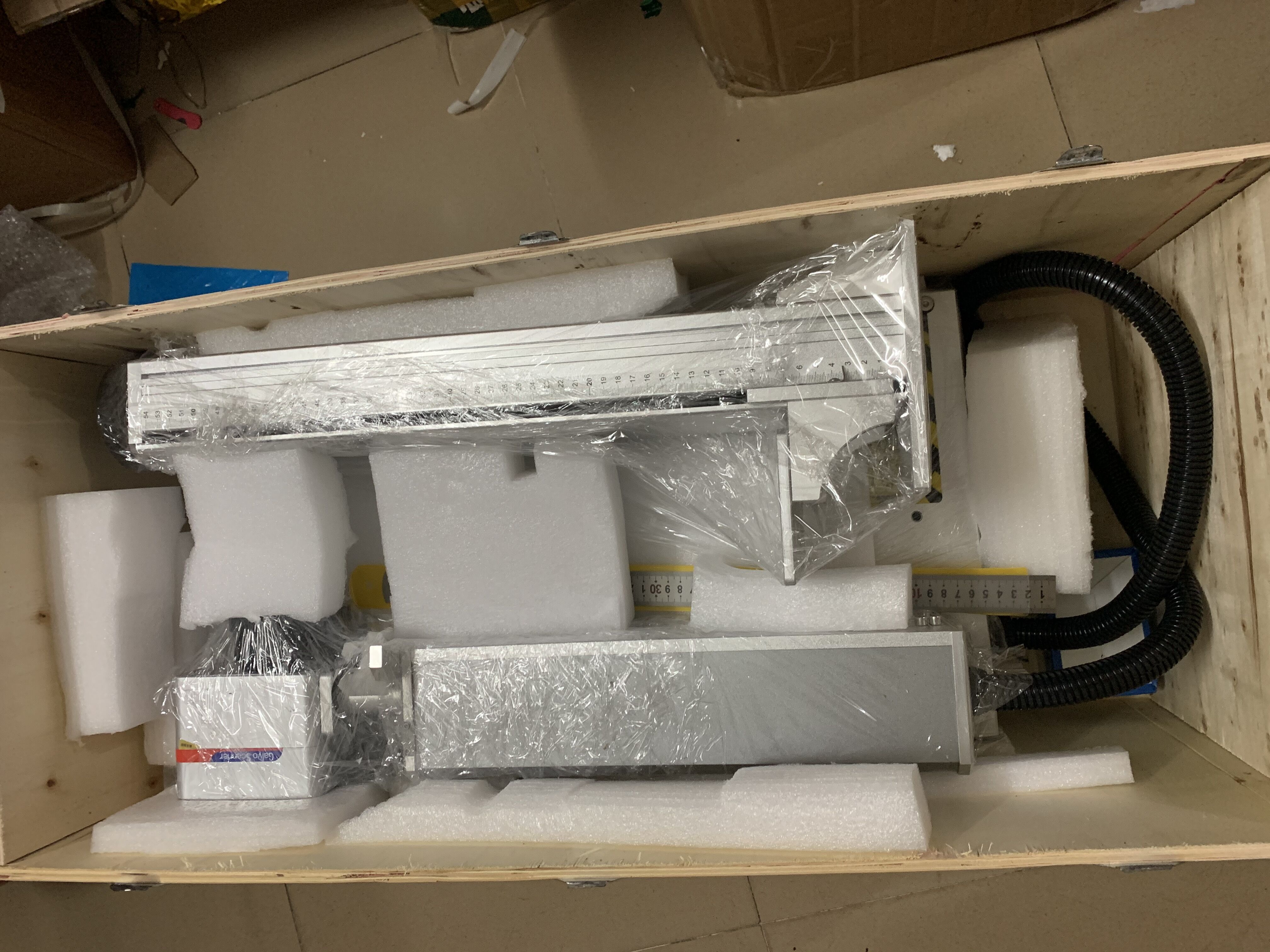

Wooden box safety packaging
