Aufero High Power Laser Module CNC Laser Engraving Machine Wood MDF Cutting Tool Engrave LU2-4 SF With Air Assist Device



Aufero High Power Laser Module CNC Laser Engraving Machine Wood MDF Cutting Tool Engrave LU2-4 SF With Air Assist Device

Welcome to Aufero Online Store, please note:

a. Freeshipping does not include the customs fees to pay. AND NOT included the remote area charge too

b. Seller’s shipping methods are shipping by express company, such as DHL/FedEx/ UPS/ TNT;

c. Tax free to EU countries, please choose “seller’s shipping method” and add note “slow DDP method” when place order, but please note it need 10-45 days to delivery.

d. Brazil is shipped via EMS. The Package can be received faster. Customs clearance is easier.



LU2-2 Fixed Focus Laser Module

It has a smaller Luminous Cavity, so it’s lower power but high cost-effective, also has a smaller Focal Spot.

Optical Power: 1,000-1,600mW

Voltage: 5-6V

Electric Current: 1.1-1.35A

Wavelength: 445±10NM

Focal Spot: About 0.05*0. MM

TIPS: 1. LU2-2 is good at engraving high-precision pattern, but speed couldn’t be set too high.

2. It’s not good at cutting.

3. It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

4. The competitors may falsely promote the power of similar laser modules as 10W or even 20W, please take care.

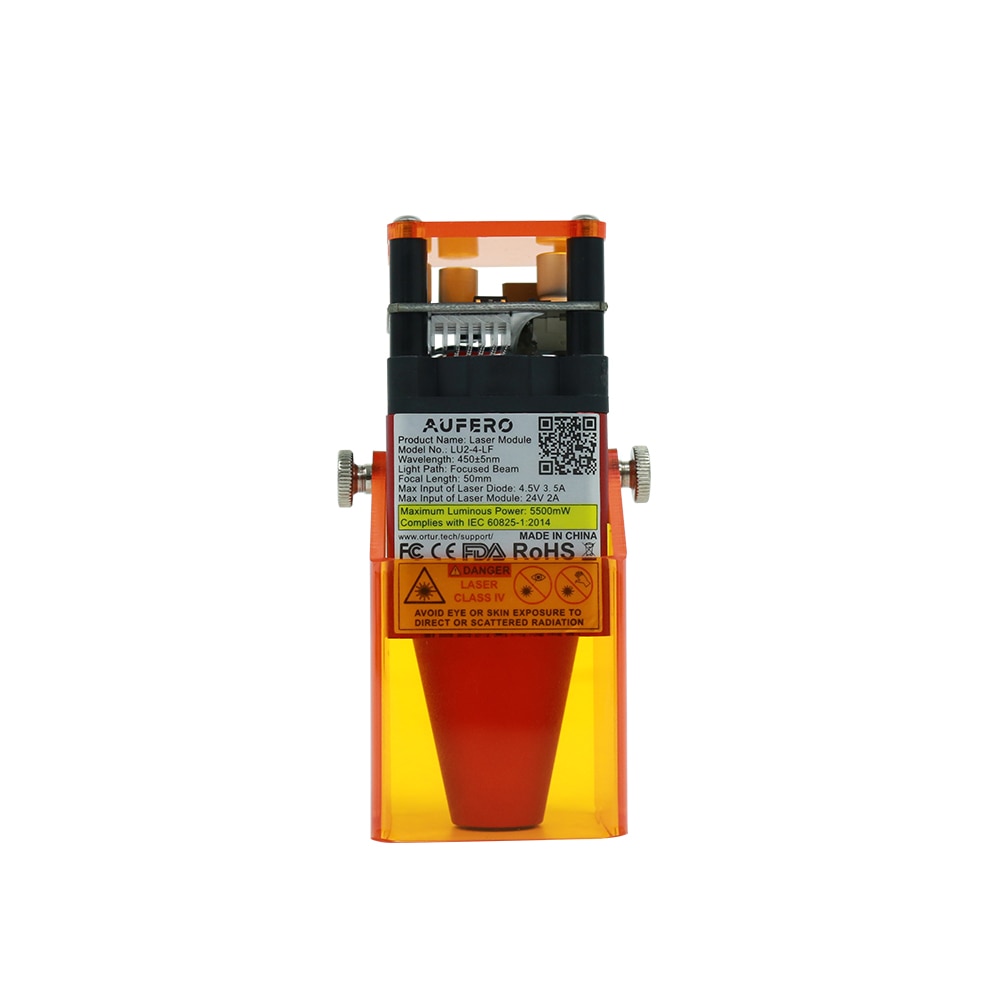

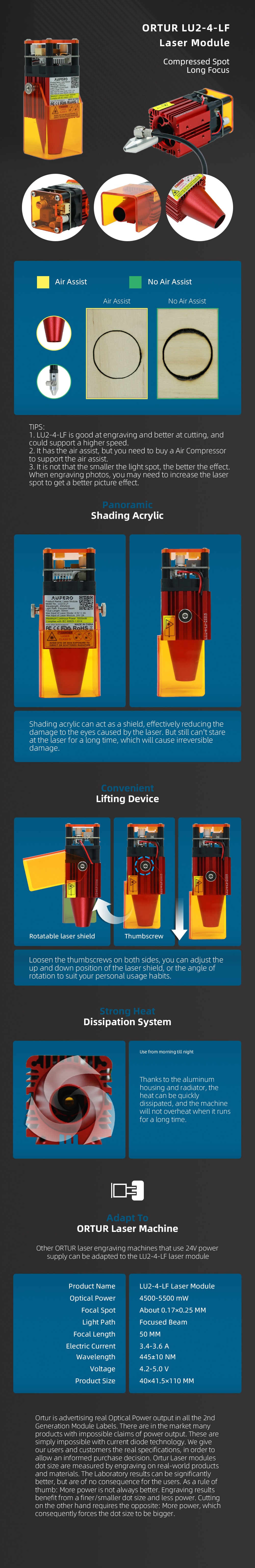

LU2-4-LF Optically Compressed Laser Module

It has a longer Focal Length, so it has a longer Depth of Field, but a bigger Focal Spot.

Optical Power: 4,500-5,500mW

Voltage: 4.2-5.0V

Electric Current: 3.4-3.6A

Wavelength: 445±10NM

Focal Spot: About 0.15*0. MM

TIPS: 1. LU2-4-LF is good at engraving and better at cutting, and could support a higher speed.

2. It has the air assist, but you need to buy a Air Compressor to support the air assist.

3. It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

4. The competitors may falsely promote the power of similar laser modules as 40W or even 60W, please take care.

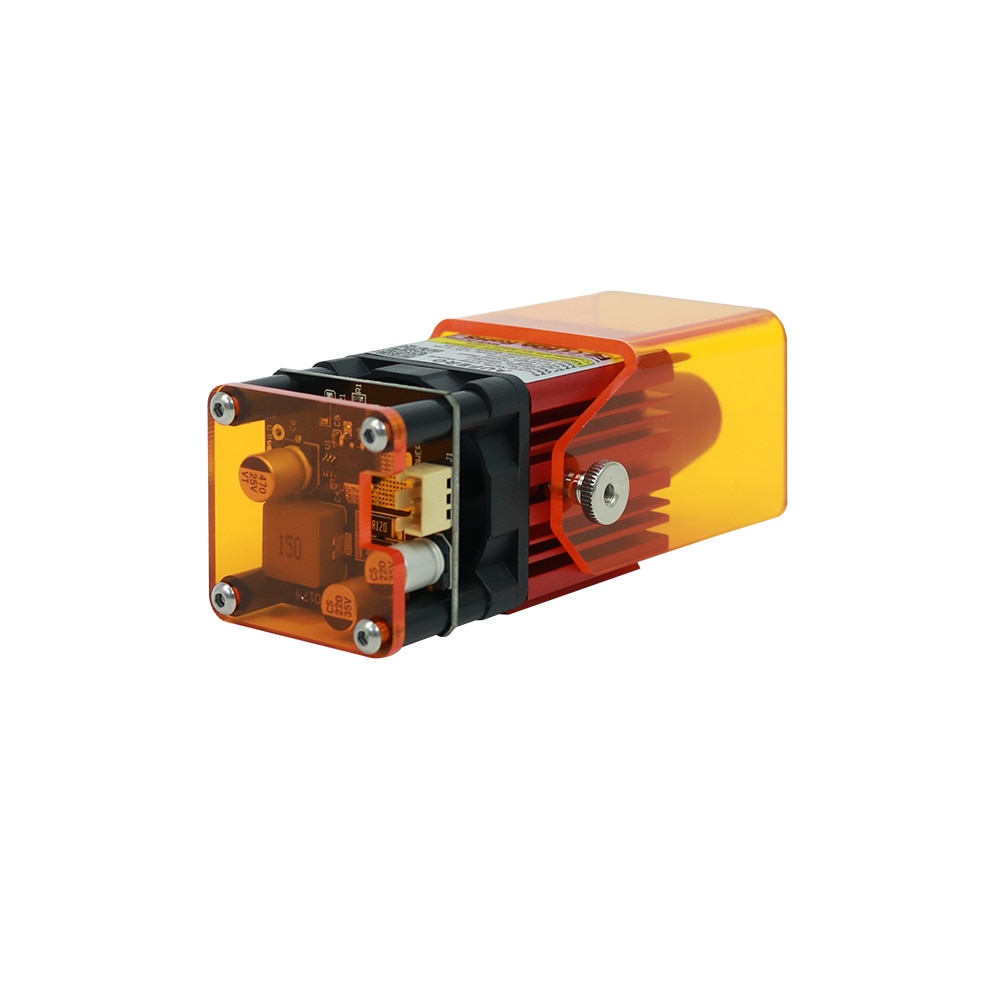

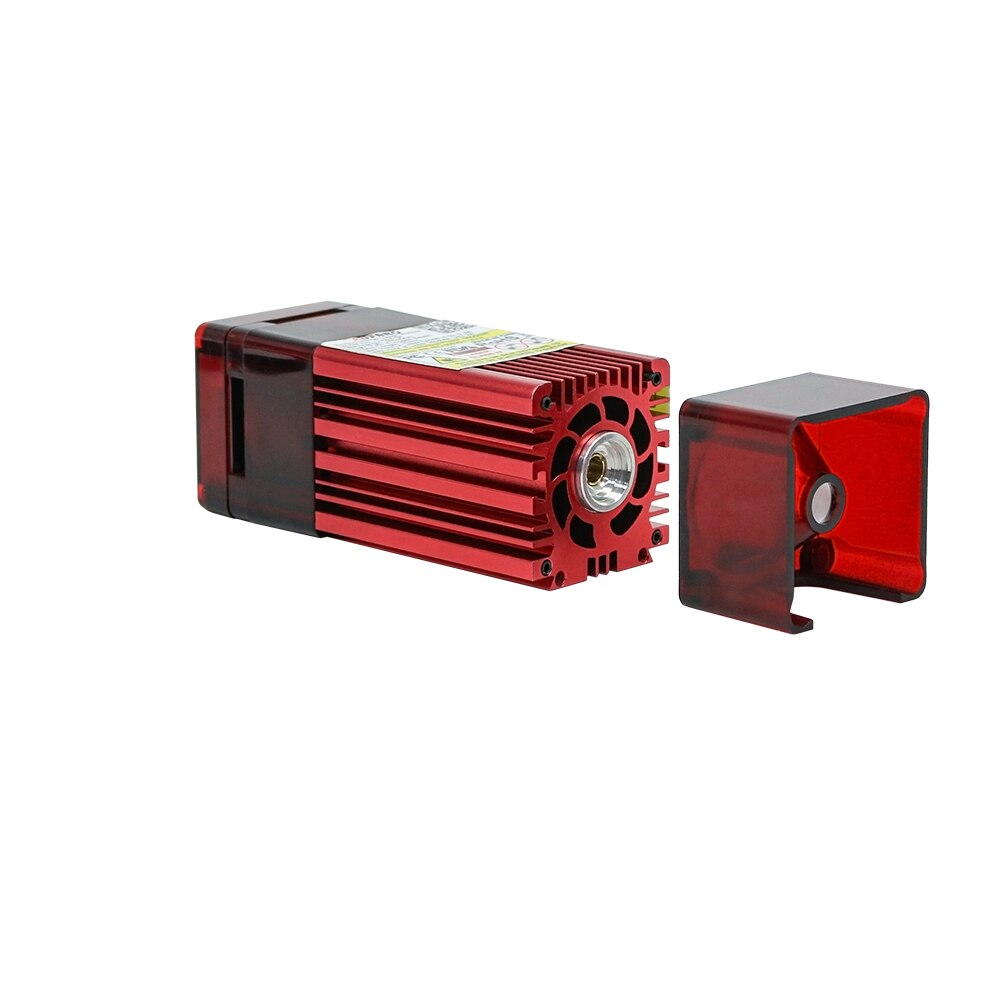

LU2-4-SF Optically Compressed Laser Module

It has a shorter Focal Length, so it has a smaller Focal Spot, but shorter Depth of Field.

Optical Power: 4,500-5,500mW

Voltage: 4.2-5.0V

Electric Current: 3.6-3.8A

Wavelength: 445±10NM

Focal Spot: About 0.08*0. MM

TIPS: 1. LU2-4-LF is good at cutting and better at engraving harder materials (such as stainless steel and other hard materials), and could support a higher speed..

2. It is not that the smaller the light spot, the better the effect. When engraving photos, you may need to increase the laser spot to get a better picture effect.

3. The competitors may falsely promote the power of similar laser modules as 40W or even 60W, please take care.
