50W Dual-Laser Engraver Aluminum Alloy Machine 10W Offline Control Engraving Metal Cutting Wood CNC Router DIY

ATOMSTACK S10 Pro Comprehensive Product Upgrade Dual-Laser Technology Double The A5 Pro 150W CO₂ Laser Effect Support Offline Engraving Super Control Motherboard



Welcome To ATOMSTACK Online Store, Please Note:

a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too

b. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT;

c. Tax Breaks to EU MEMBER countries（Shipment From China Warehouse

）,Please contact our customer service, but need 20-40 days to delivery.

Any question, please contact with us!





ATOMSTACK S10 Pro Feature

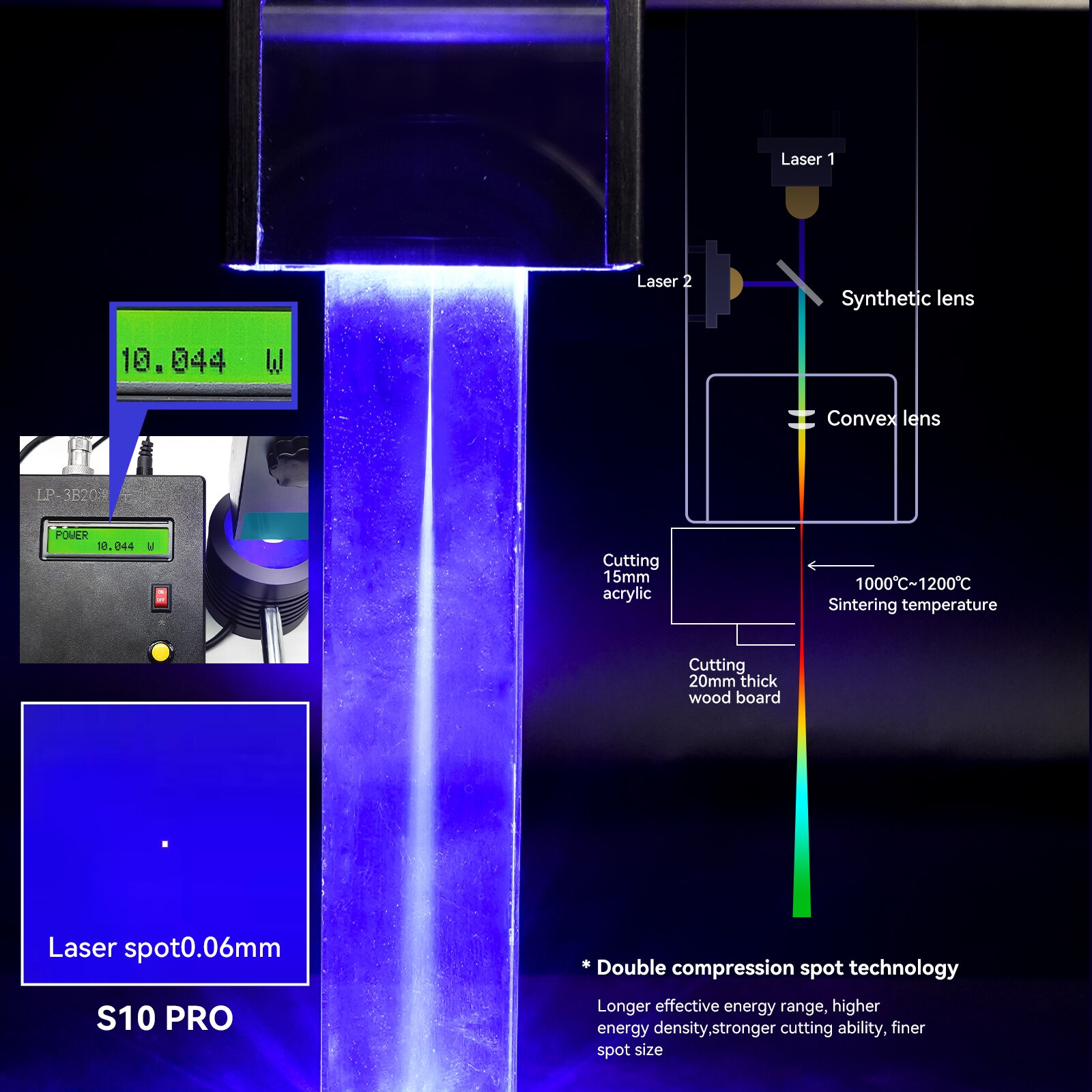

Upgraded dual compression spot coupling technology：

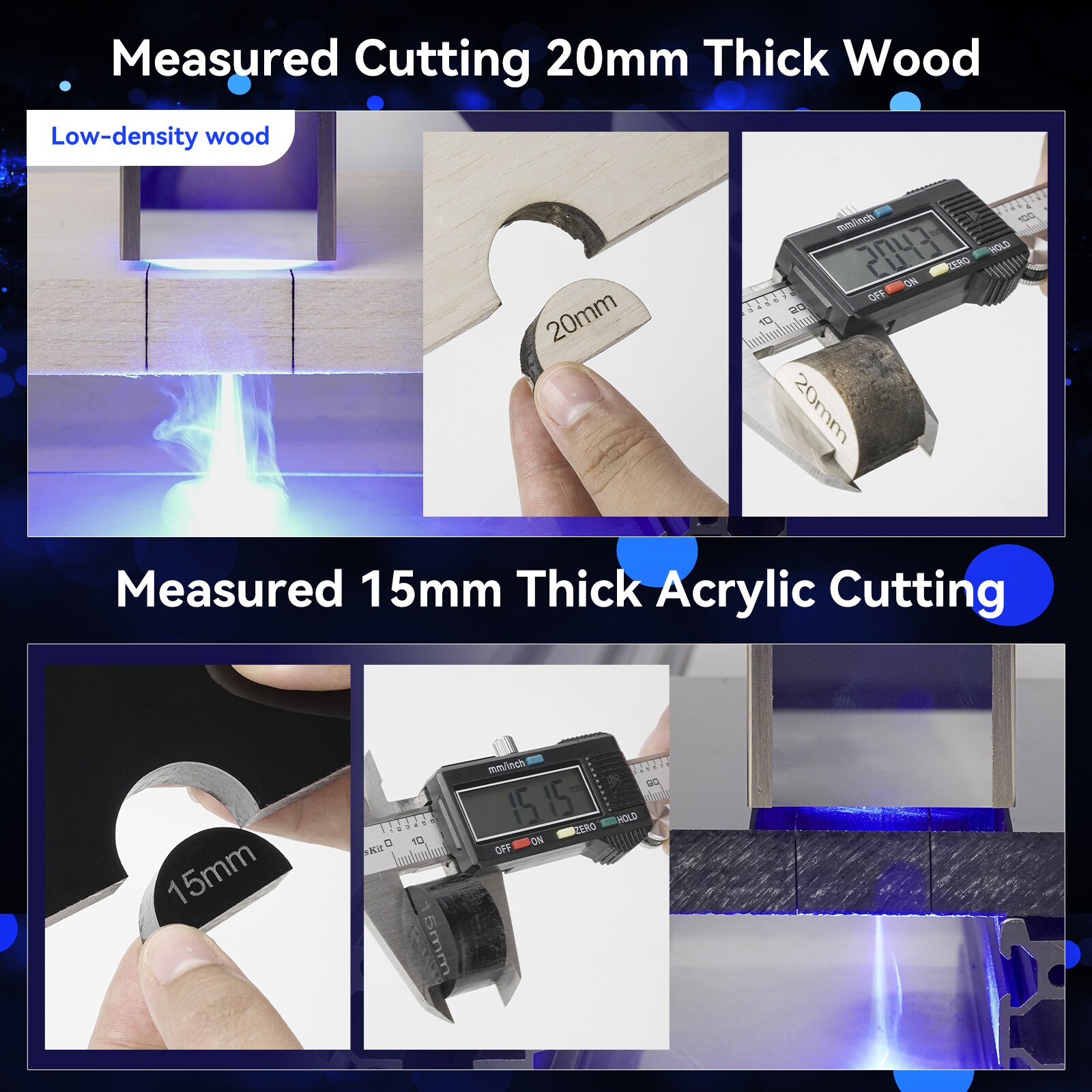

Ultra-fine laser focus area is reduced to 0.08*0.08mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂laser engraving machine.The laser sintering temperature is up to 1200℃

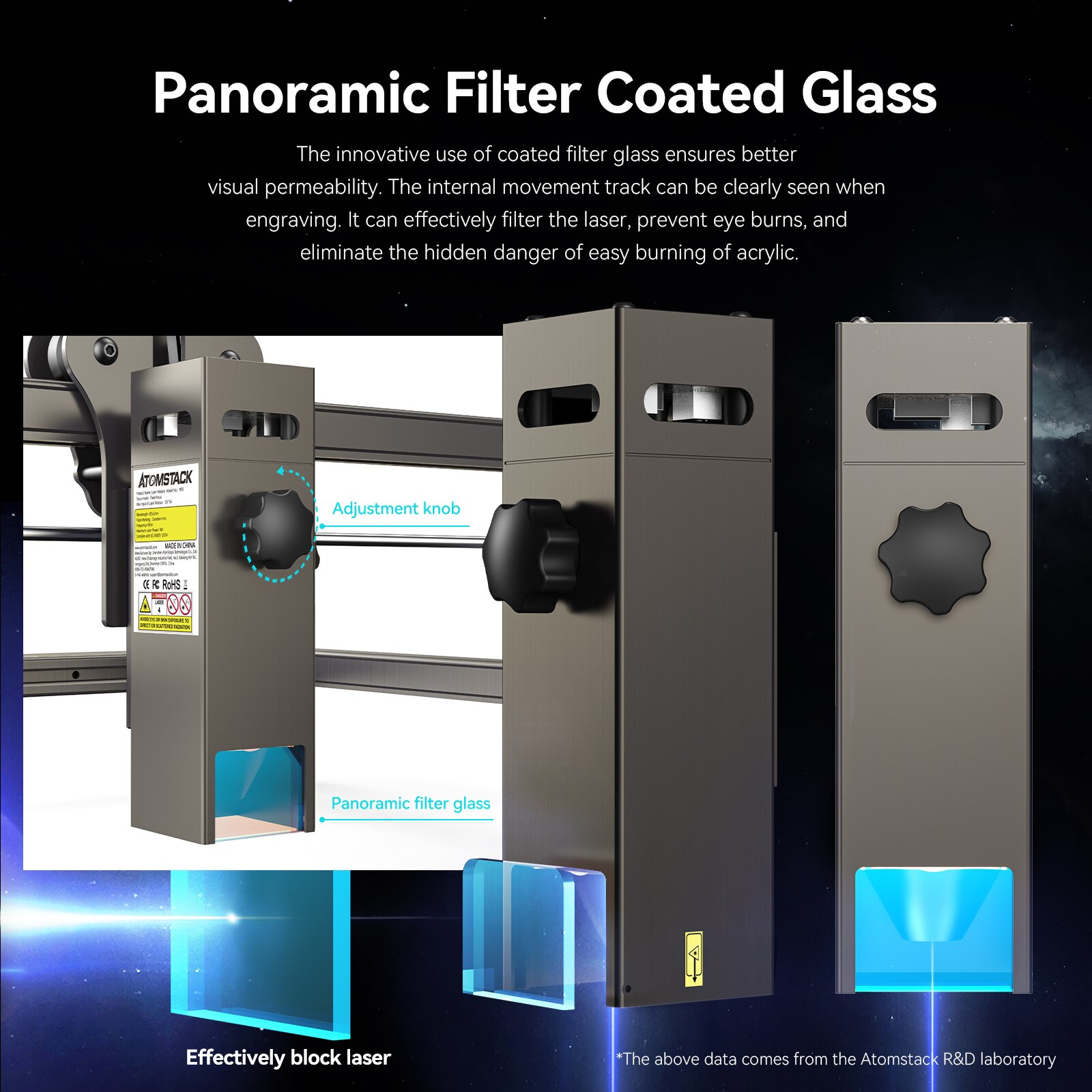

Eye-Protection Flame-retardant Filter Panoramic Glass：

The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.

Solid And Easy Installation Structure Design：

The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

Upgraded High-performance Fixed-focus Laser:

No need to adjust the focus before engraving; the new laser focal spotis 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide Compatibility:

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

Precise Scale Lines Axis:

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Integral Screw Rod:

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New Laser With Knob:

It is more convenient and quick to adjust the height of the laser

Support Offline Engraving：

S10 PRO configures the terminal 32bit control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

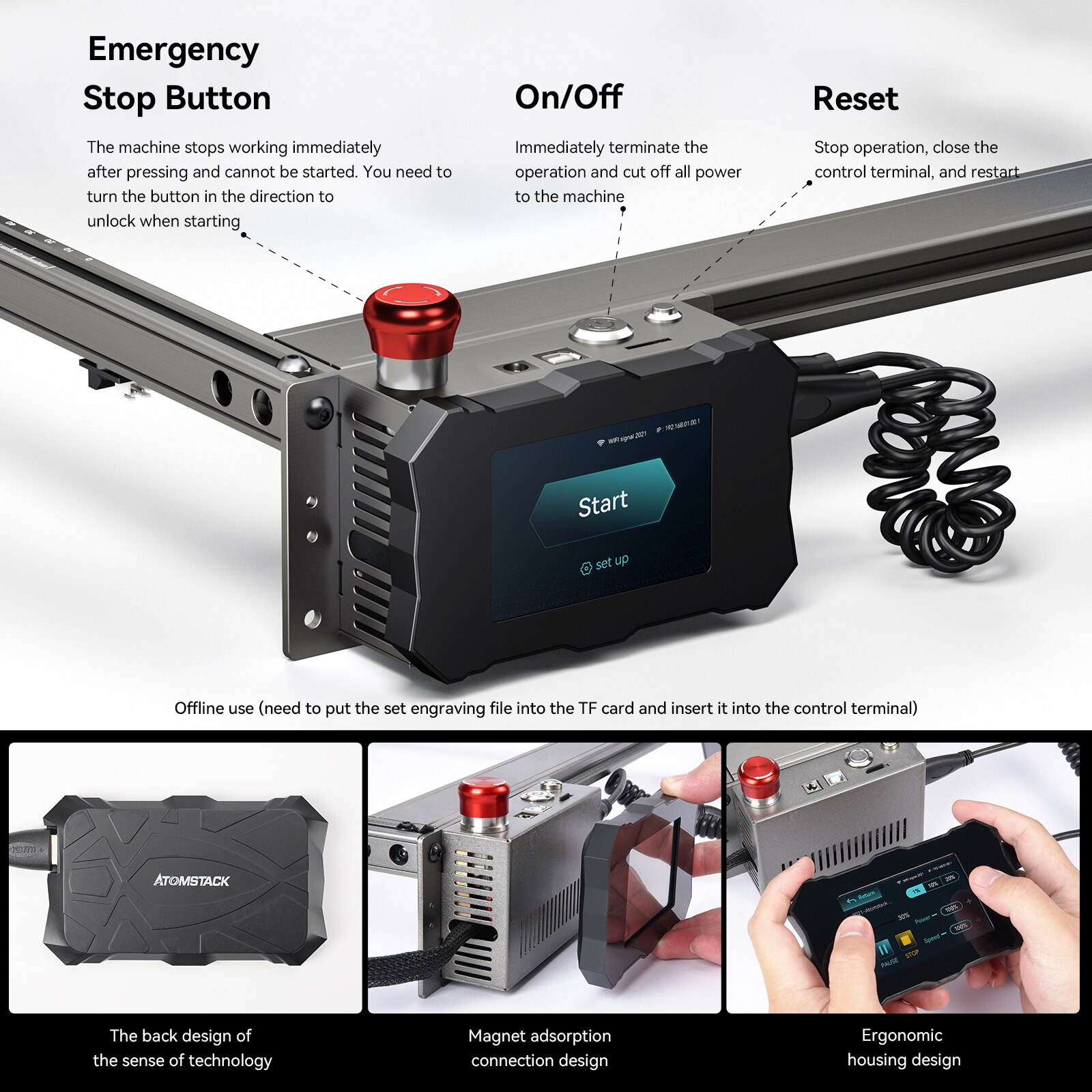

Emergency Stop Button：

In the event of an unexpected situation, stop the machine at any time to make the engraving safer

Stopper：YES

Reset switch：YES

Expandable Engraving Size：

Modular design of the body mechanism,only need to buy the frame components,you can get 410*850mm super large engraving size



Product Parameters
Model	ATOMSTACK S10 Pro
Material	Aluminium Alloy
Equipment Size	570*600*270mm
Equipment Weight	3.42 kg
Package Weight	5.07 kg
Engraving Accuracy	0.01mm
Working Size	410*400mm
Carving Objects	WoodBambooCardboardPlasticLeather PCB boardAluminum oxideNon-reflective Electroplating layer and paint surface layer metal304 mirror stainless steelGlassCeramicsCotton ClothSlate.etc
Cutting Objects	CardboardNon-woven fabric20mm Wood board15mm AcrylicSome thin plastic boardSponge.etc（once cut）
Focusing Method	Fixed Focus Laser
Laser Protective Cover	YES
Data Transmission Method	USB ConnectionControl Panel
Operating Software	LaserGRBLLightBurn.etc
Support Systerm	Win XP / Win 7 / Win 8 / XP / Win 10 /MacOSX system
Support Input Format	NC BMP JPG PNG DXF,etc
Technical Parameter
Laser Power	50W
Laser Output power	10-11W
Wave Length	445 ± 5nm
Laser Spot	0.08mm*0.08mm
Input Voltage	AC100-240V,50/60Hz
Output Voltage	DC12V5A
Certification	CE FCC RoHS FDA PSE



Detail Display

S10 Pro Laser Engraver Package
1 x	Mounting screw
1 x	Tool kit
4 x	Foot pad foam
1 x	Film
3 x	Acrylic sheet
3 x	Wood chips
10 x	Wire tie
1 x	Desiccant
1 x	Brush
1 x	Clean cloth
1 x	Card reader
1 x	TF Card
1 x	Power adapter
1 x	Instruction
1 x	Data line
1 x	Touch Screen Components
1 x	HDMI Cable
1 x	Dual-Laser Module
1 x	Cutting pad
1 x	X axis assembly
1 x	Y axis left profile
1 x	Y axis right profile
1 x	Profile on the base
1 x	Under the base profile
3 x	Foot bracket
