Description
- Brand Name: ATOMSTACK
- Origin: CN(Origin)
- Certification: ce
- Model Number: P7 M40 laser engraver
- Certification: CE
- Is Smart Device: NO
- Product name: laser engraving machine
- Working area: 20*20cm
- Software: LaserGRBL, LightBurn
- Application material: wood/plastic/paper/bamboo/leather/acrylic/fabric/stainless steel
- Shipping fee: free shipping
- Keyword: laser cutter Printer
- Style: protable mini desktop laser engraver
- Aplication: Laser engraving/cutting/carving
- Software&instruction video: Yes
- Voltage: 110-220v input 12v output
- Motherboard axis: Y X
- Warranty: 1 year
- Material: Aluminum alloy
Russia Customers Please Note : due to there no dhl ,fedex ,tnt,ups to Russia ,so will shipping via China-Russia Line to door, shipping time is 18-30 days.
Certifications：
Have CE ,FCC,ROHS,FDA certifications, High quality guarantee, purchase without any worries

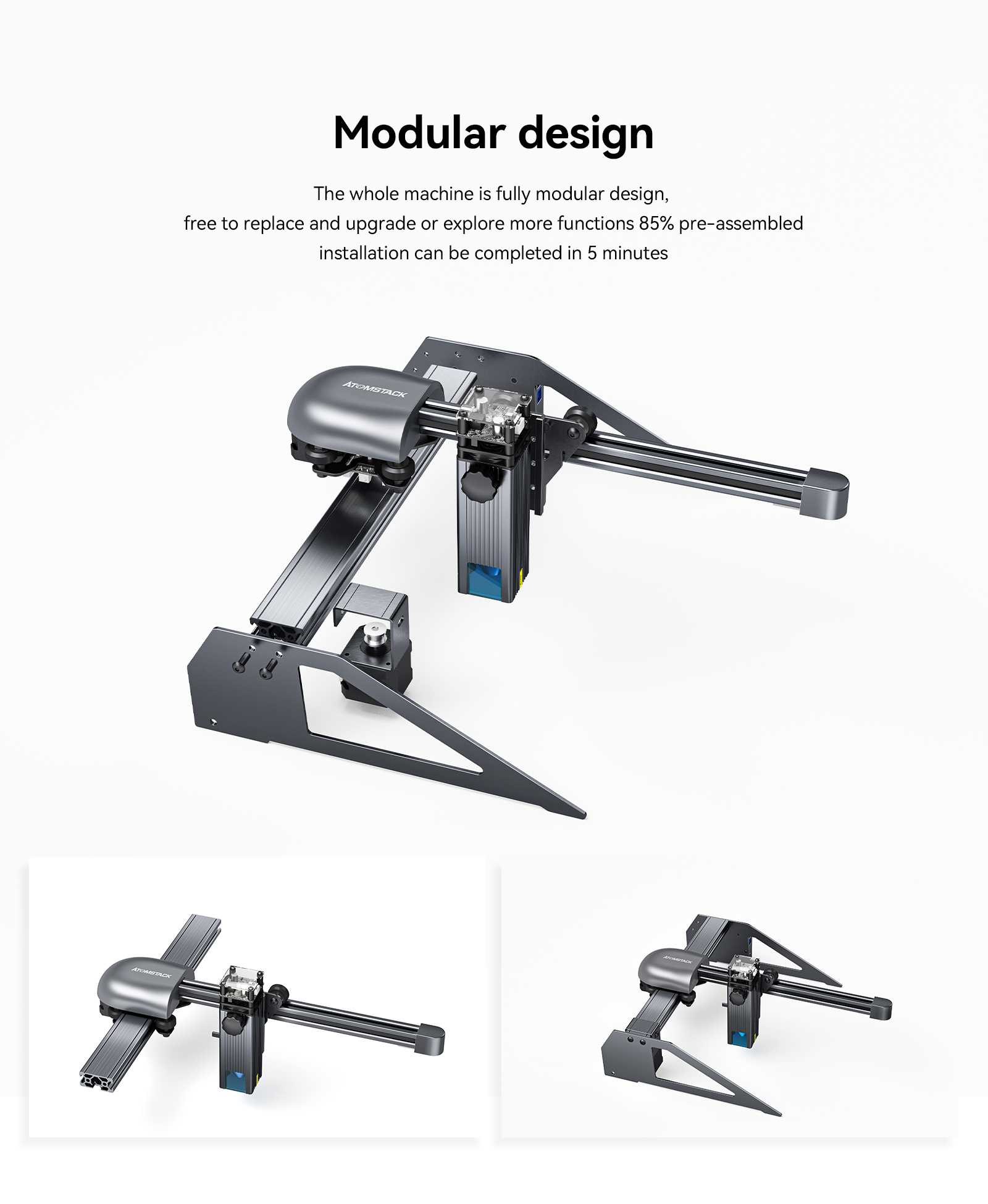

2. Robust and easy-to-install structure design: The all-aluminum alloy anodized structure design makes the machine more durable and improves the accuracy of engraving. The portable all-metal structure, 85% pre-assembly, can be installed in 5 minutes.
3. Upgraded version of high-performance fixed-focus laser: Engraving can be done without adjusting the focal length; the newly upgraded compressed spot increases the energy concentration by 200%, and the spot size is only 0.02mm², which can take into account both precision engraving and high-energy cutting. At the same time, the laser power of fixed-focus laser is more stable than that of zoom laser.
4. Wide compatibility:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
5. Precise scale lines axis: There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement.
200*200mm large area engraving interval can meet your various engraving needs.
6. Newly upgraded ultra-fine compression laser: the laser adopts 4-fold lens group collimation and focus technology, the optical power is 4.5~5.5W, the laser focus area is reduced to 0.02mm², the high-density laser can easily cut 10mm thick wood boards and 6-8mm black acrylic; Can directly engrave mirror stainless steel metal and ceramics.
7. Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
8. New laser with knob: It is more convenient and quick to adjust the height of the laser.
9. The new laser is equipped with a horizontal gyroscope: it stops working immediately when it is tilted to ensure your safety
10. Colorful gift box packaging: more beautiful and more convenient to give gifts

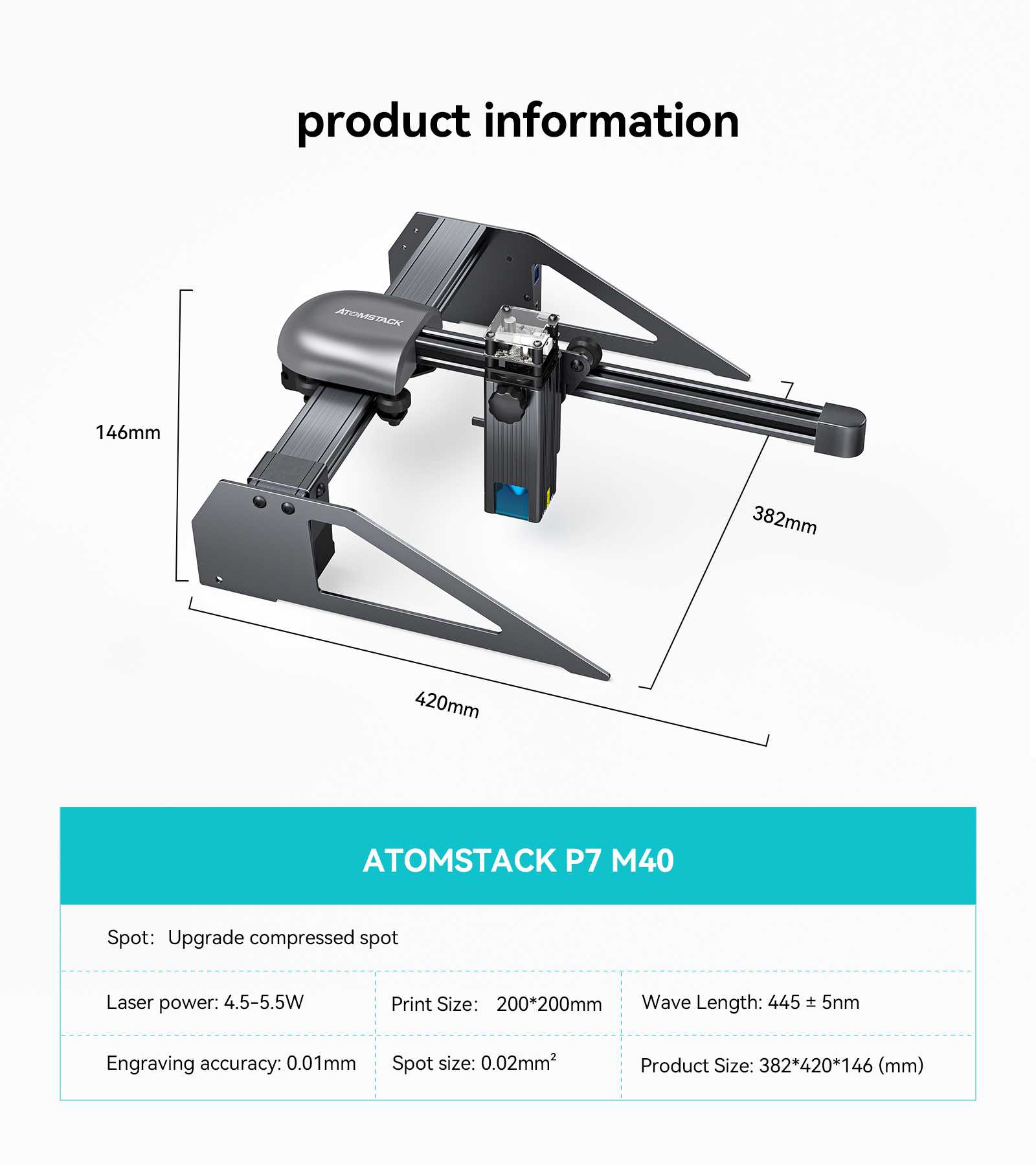

Product Parameters:
Item model number: ATOMSTACK P7 M40
Print Size: Recommend Print Size 200*200mm
Engraving materials: wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel;
Cutting material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather;
Electric power output: 40W
Laser power output: 4.5-5.5W
Wave Length: 445 ± 5nm
Engraving accuracy: 0.01mm

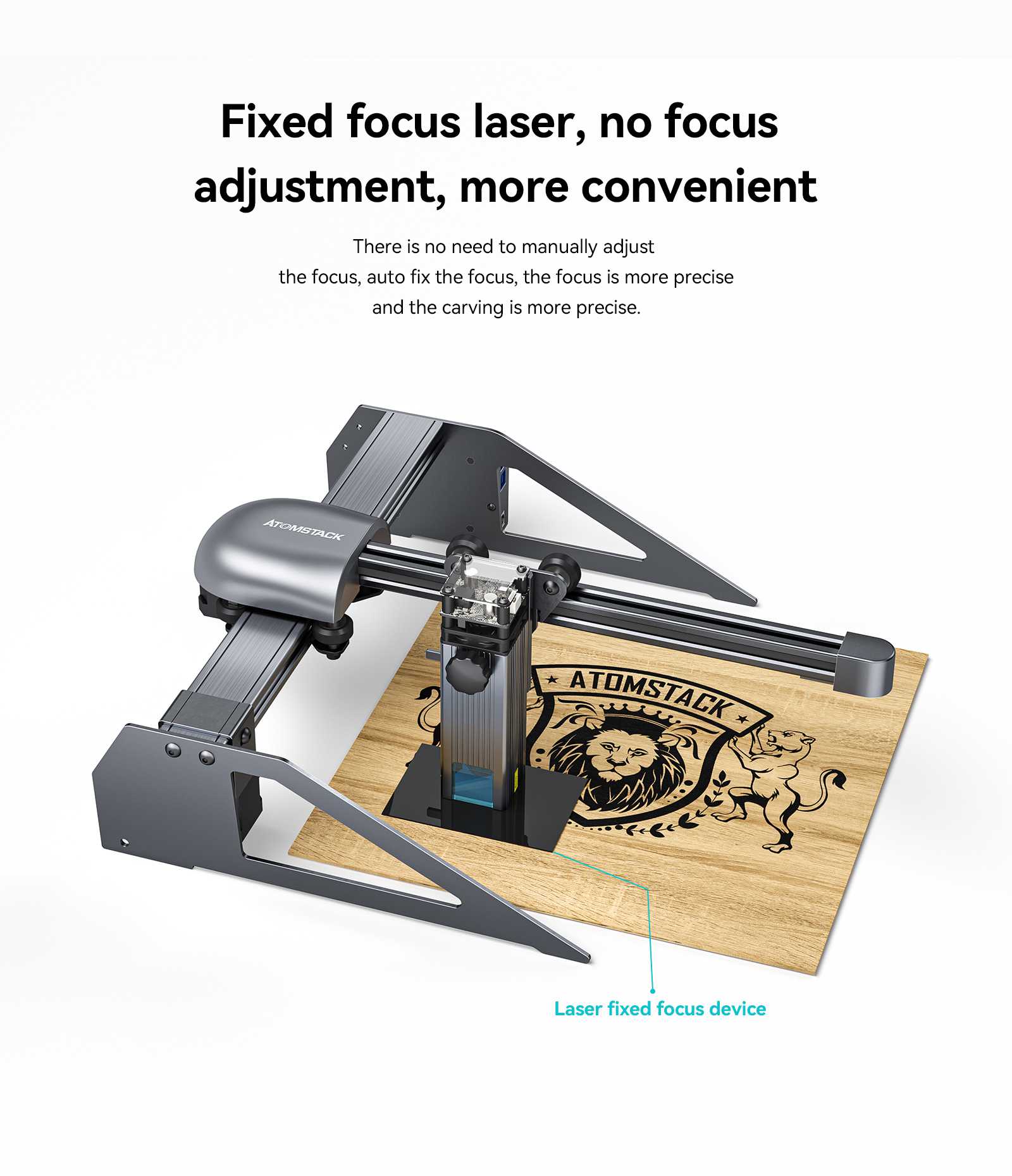

Focusing method: fixed focus laser, no need to focus
Laser protective cover: Protect the user’s eyes and prevent pets from grabbing the laser spot.
Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data transmission method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Certification: CE FCC RoHS FDA PSE
Q&A
Q: Does this machine need to be assembled when I received it?
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
Q:hello, can we have a user manual to use this machine ? what software to install and where to find it?
A:you can find a user manual and a table with suggestions of settings for cutting and engraving in the official page of atomstack. atomstack3d.com there are also links for downloading the softwares lasergrbl and lightburn
Q: What’s the laser’s lifetime?
A: The laser module have over 10000 hours lifetime.
Q: Can I regulate the laser power or the laser power is adjustable?
A: yes, can adjustable
Q:what is the maximum thickness of acrylic it can cut?
A :The results we have tested so far: the thickest 12mm, black acrylic sheet, can be cut and penetrated
Q:New ATOMSTACK P7 M40 40W Laser in the description informs 4.5-5.5W, wouldn’t it be 40W?
A :The total power of the machine is 40W, and the laser power is 5-5.5W
Q:Can this be used to cut leather , if yes how many passes for each thickness ?
A :Leather can be cut, and the thickness within 2mm can be cut and penetrated at one time.
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then install the software and the driver, power supply the machine, that’s all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free fast shipping, such as DHL,Fedex,TNT or UPS etc, about 5-10 days to door .
Q: How long time for warranty ?
A: We promise you 1 year warranty , kindly contact us if any quality problem when you receive the parcel, we will refund or resend you a new replacement.
Note:
– When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
– Please do not touch the laser emitter with your hand, or it may burn your hand.
– Please avoid strong impact on the machine.
– Children under 14 are not allowed to use this product and children over 14 need adult supervision.
– The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
Reviews
There are no reviews yet.
