Description

50W Metal CNC Router DIY Kit Accessories Dual-Laser Compressed Spot Laser Engraver Module Cutting Wood Engraving



Welcome To ATOMSTACK Online Store, Please Note:

a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too

b. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT;

c. Tax Breaks to EU MEMBER countries（Shipment From China Warehouse

）,Please contact our customer service, but need 20-40 days to delivery.

Any question, please contact with us!



Items	Parameter	Items	Parameter

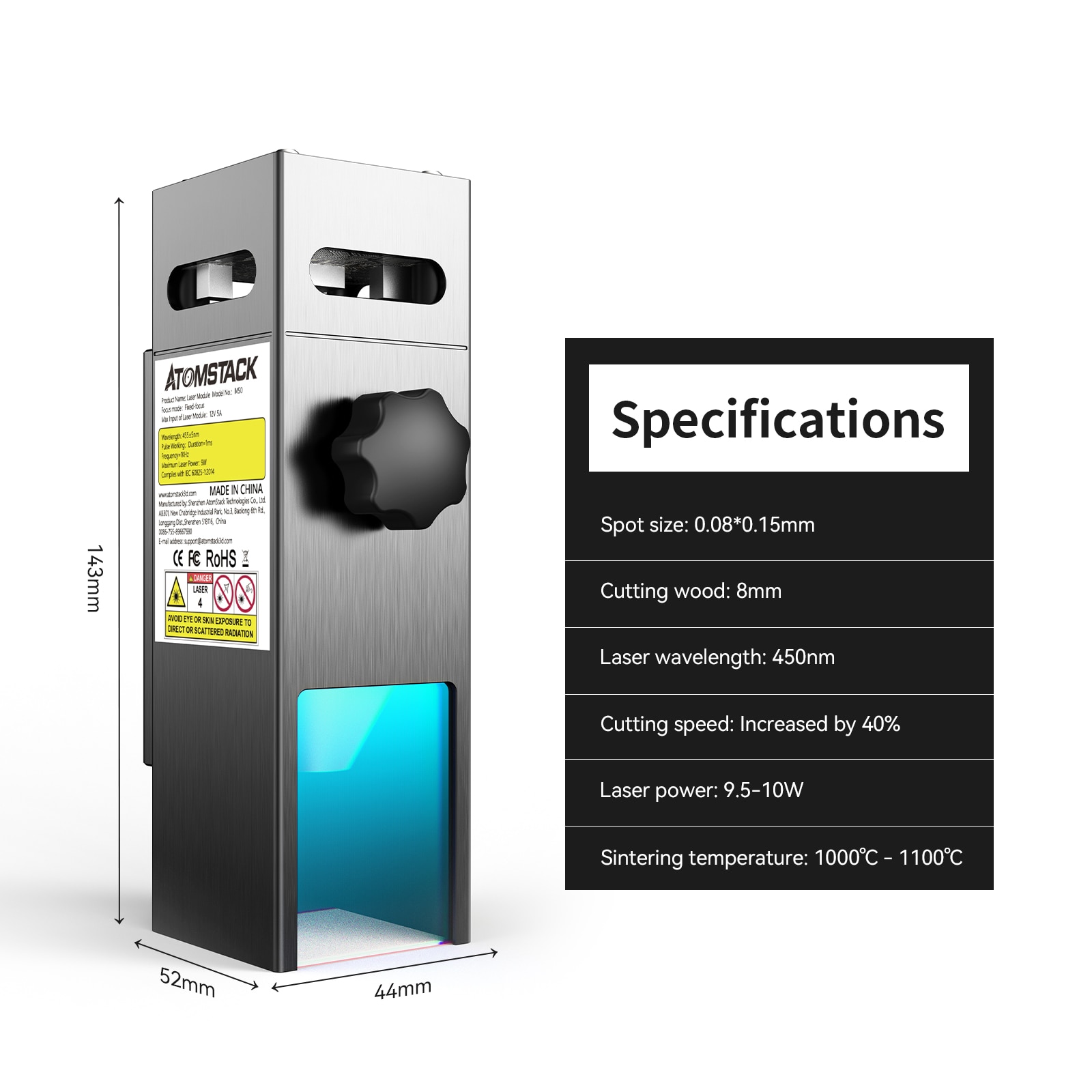

Housing size	44*52*50mm	Optical Lens	φ6/glass
Circuit Board Size	44*52mm	Fan	12V
Circuit Board	12V/PWM modulation board	Product Material	Aluminum 6061 anode
Wire Rod	22# 2P2.54 terminal reverse wire 80mm	Product Net Weight	260g



OPTICAL PARAMETERS
Items	Symbol	Min	Typ	Max	Unit	Condition

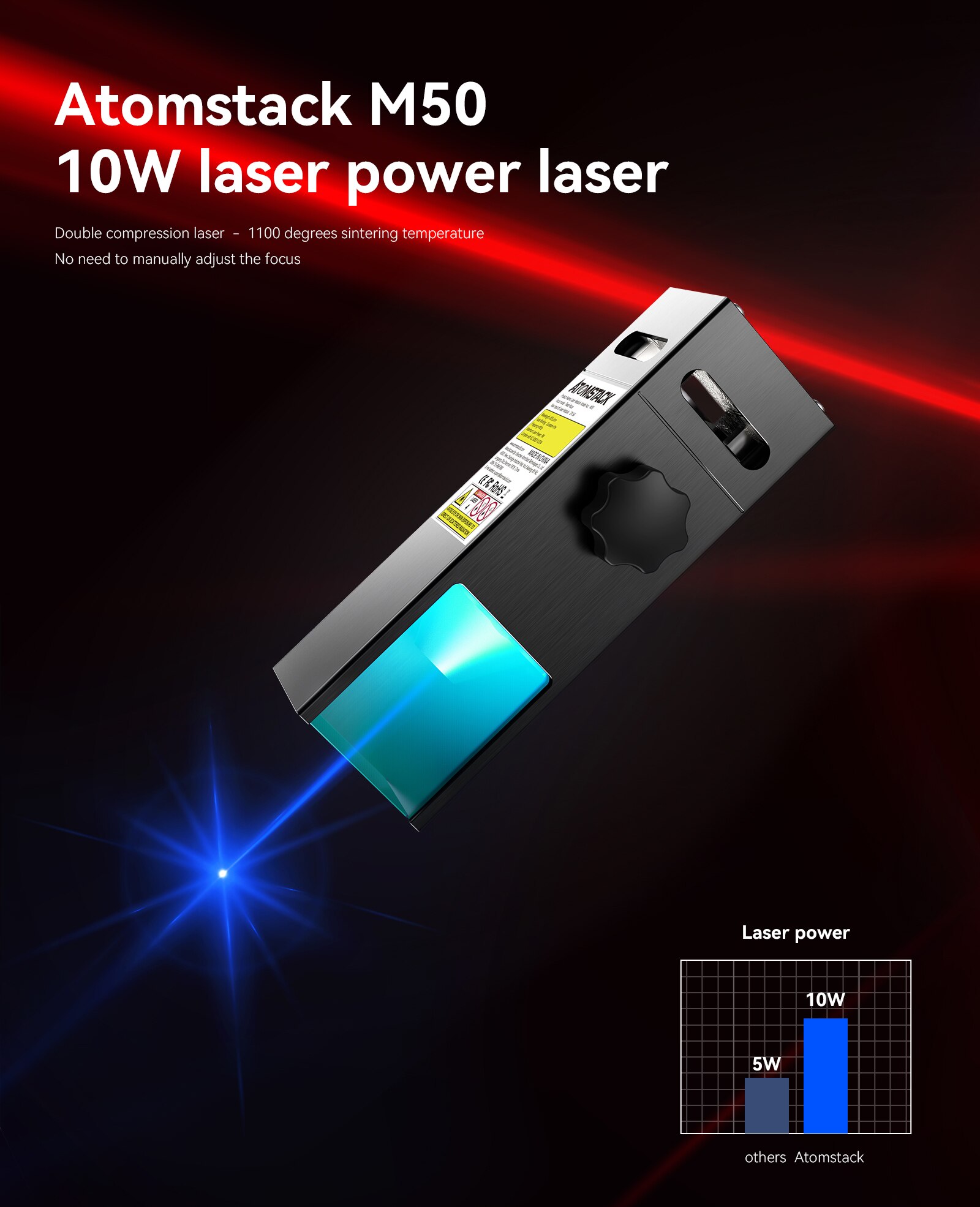

Optical Output Power	Po		9.5	10	W
Working current	Iop	/	2.9	3.2	A	12V Power
Operating Voltage	Vop	/	12	/	v
Laser Wavelength	λp		455	460	nm
Electric Power	Wl	/	34.8	38.4	W



Laser Beam Mode	Spot	Working Mode	Pulse work
Lightspot Size	0.08*0.15mm	Working Temperature	0℃~70℃
Divergence Angle	/	Storage Temperature	一40℃~85℃
Working Time	20000H	Sintering temperature	1000~1200℃



Feature:

1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

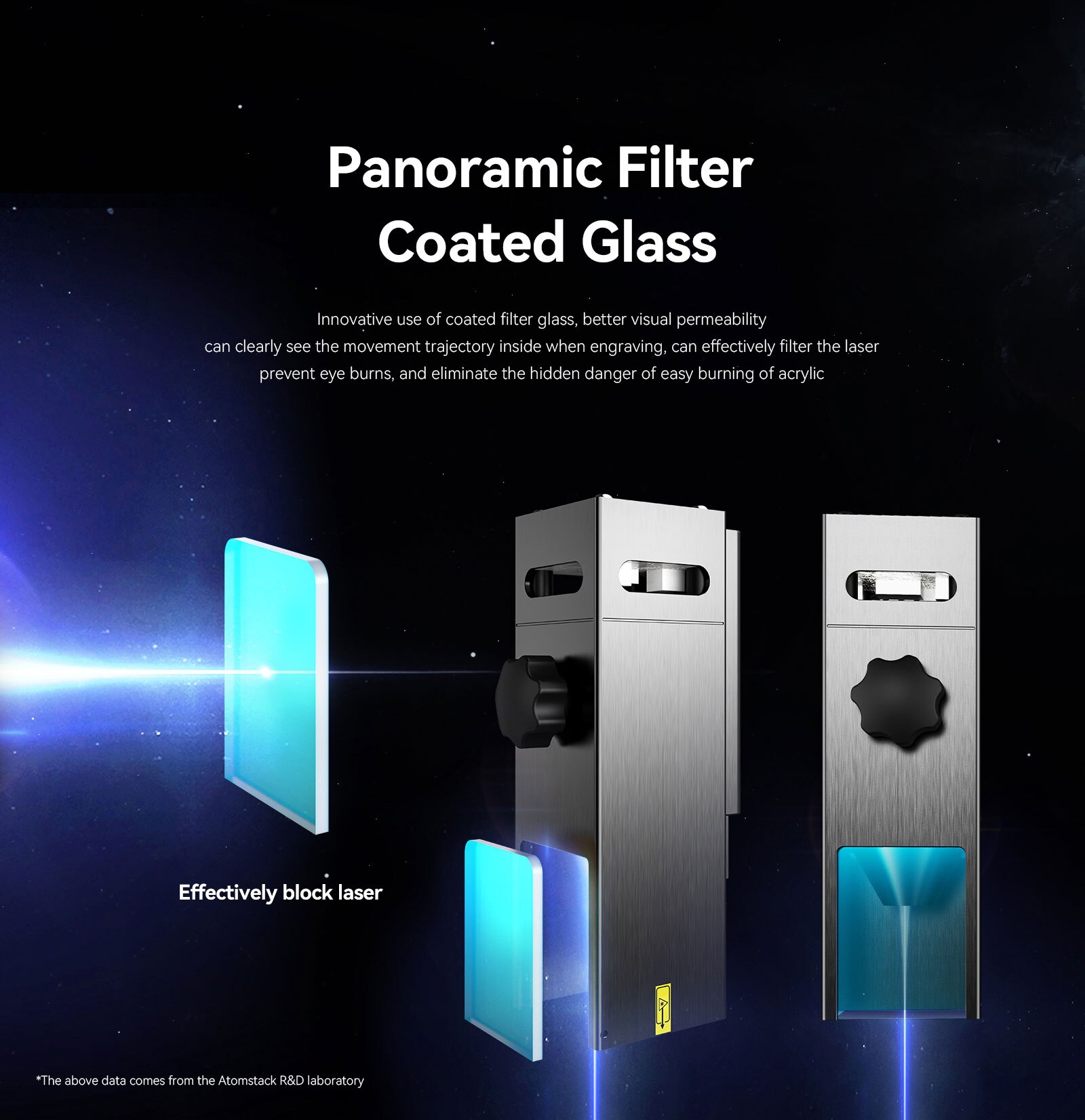

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.

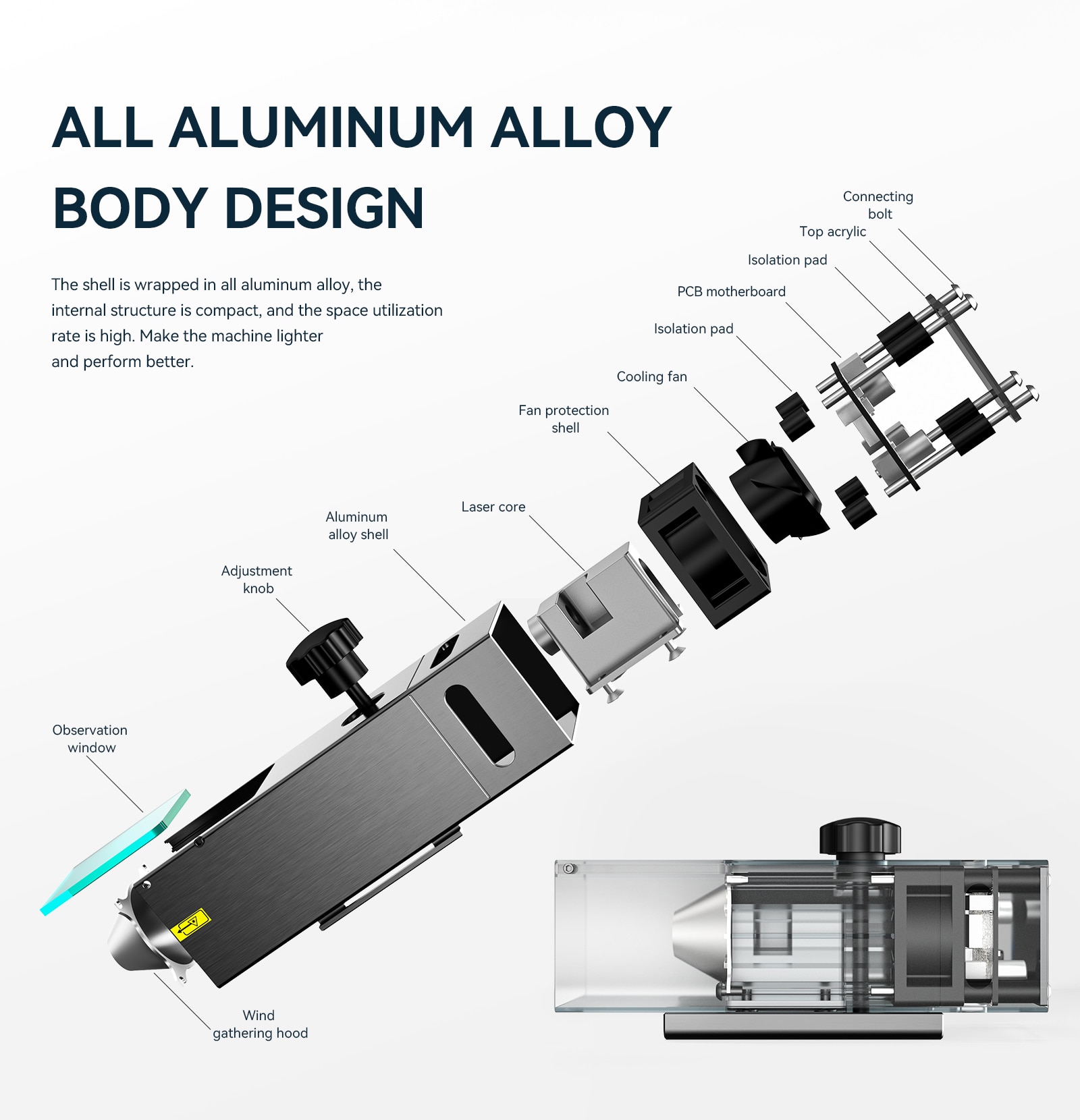

3. Made of aluminum, strong and durable.

4.Upgraded high quality fixed-focus laser, no need to focus.

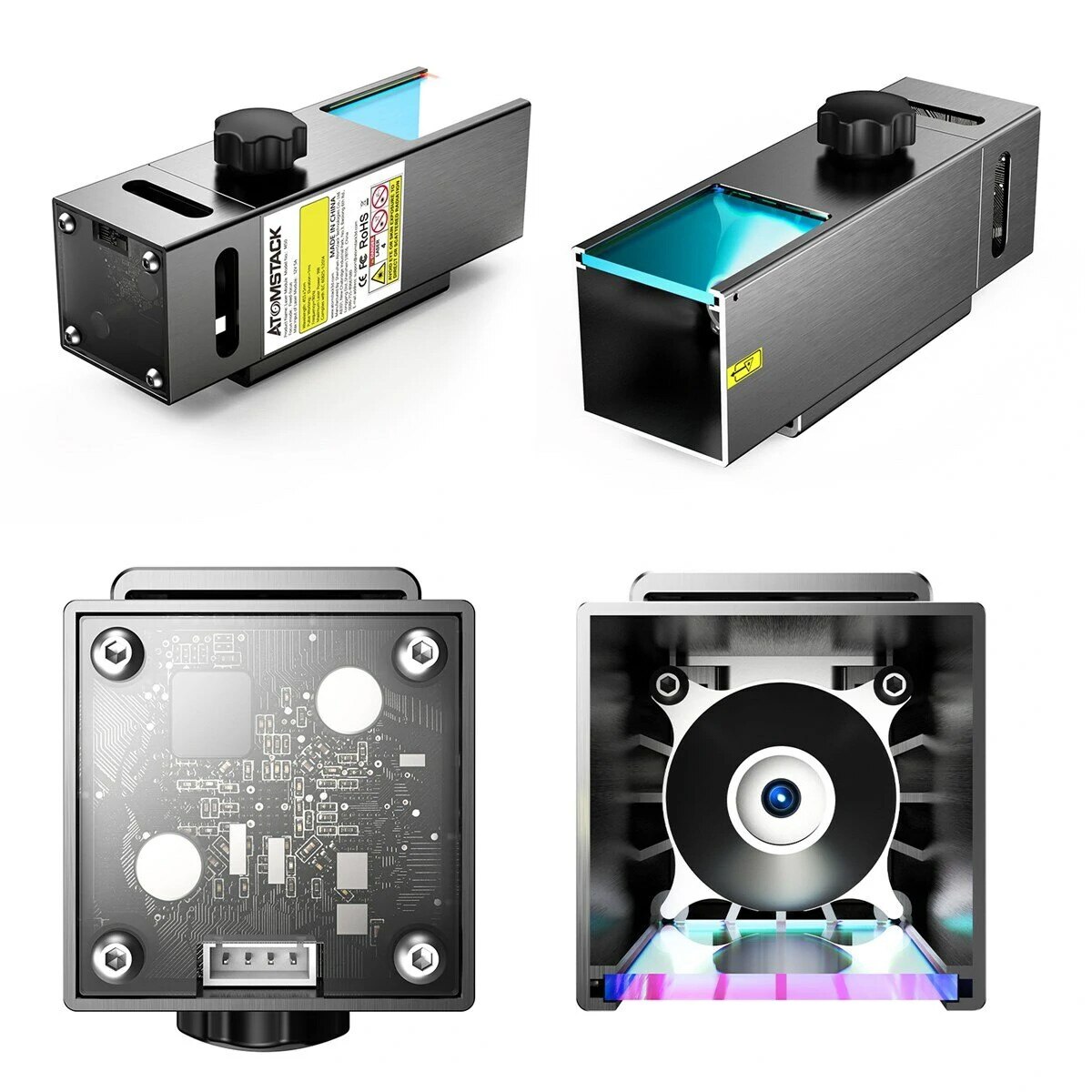

5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.

7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

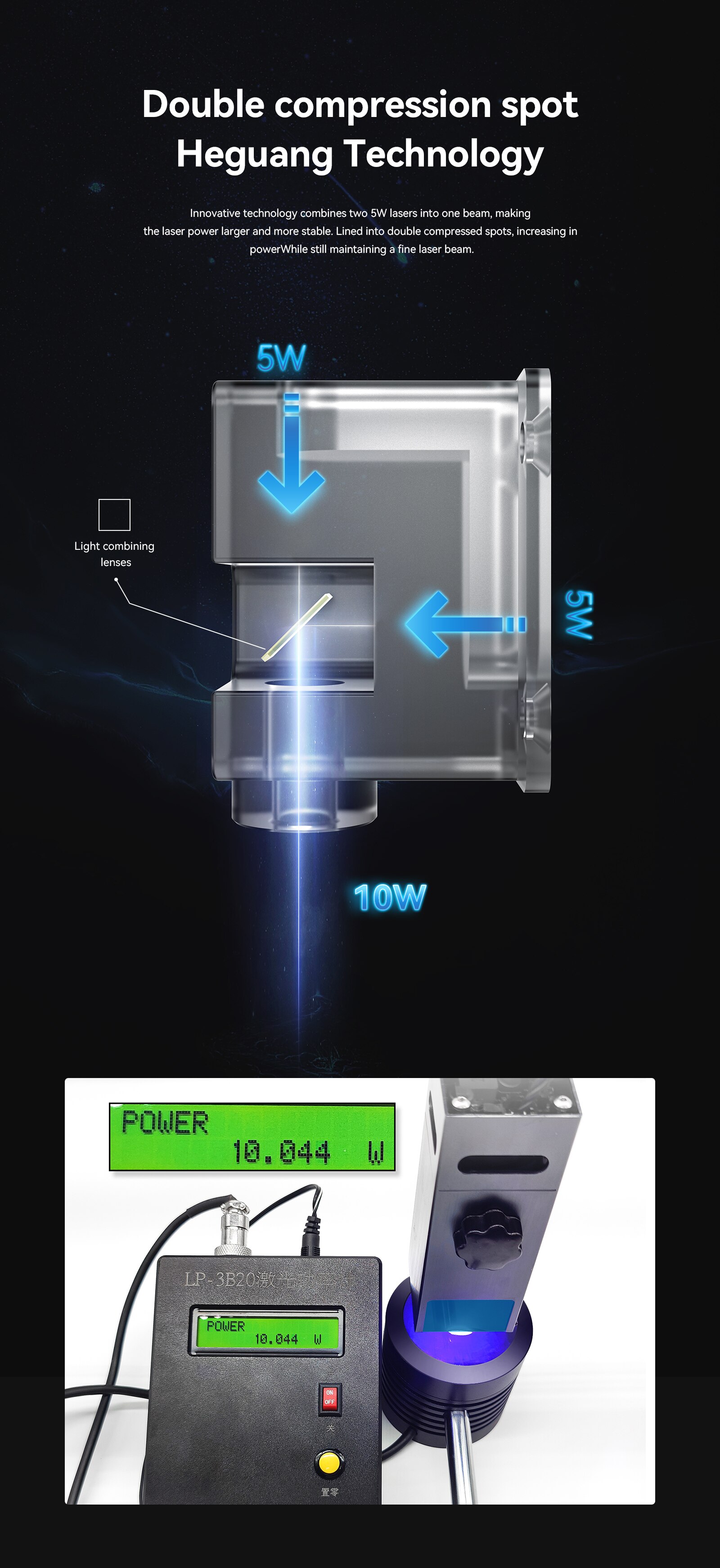

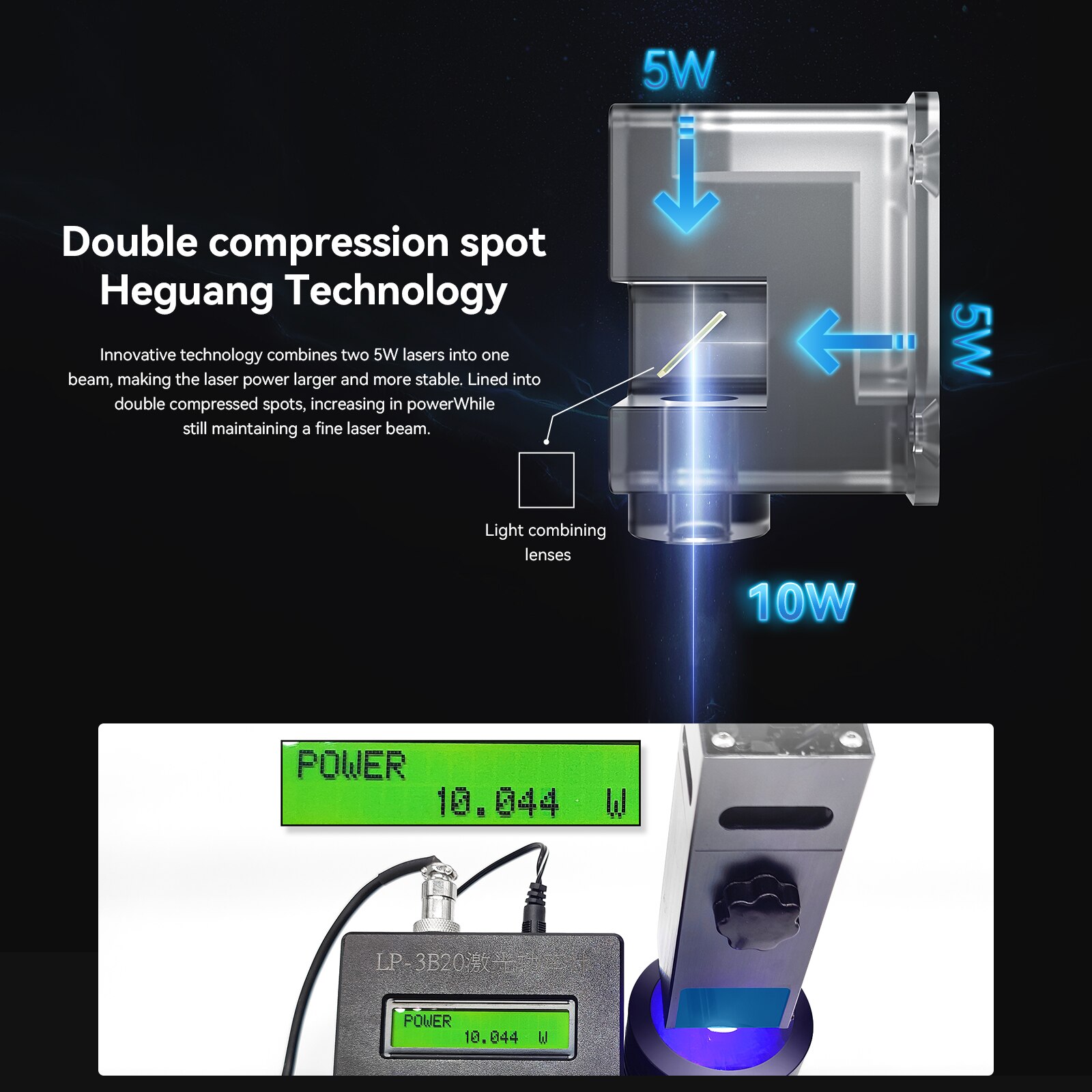

8.0.08*0.15mm double compression spot light coupling technology makes engraving more powerful

and precise .

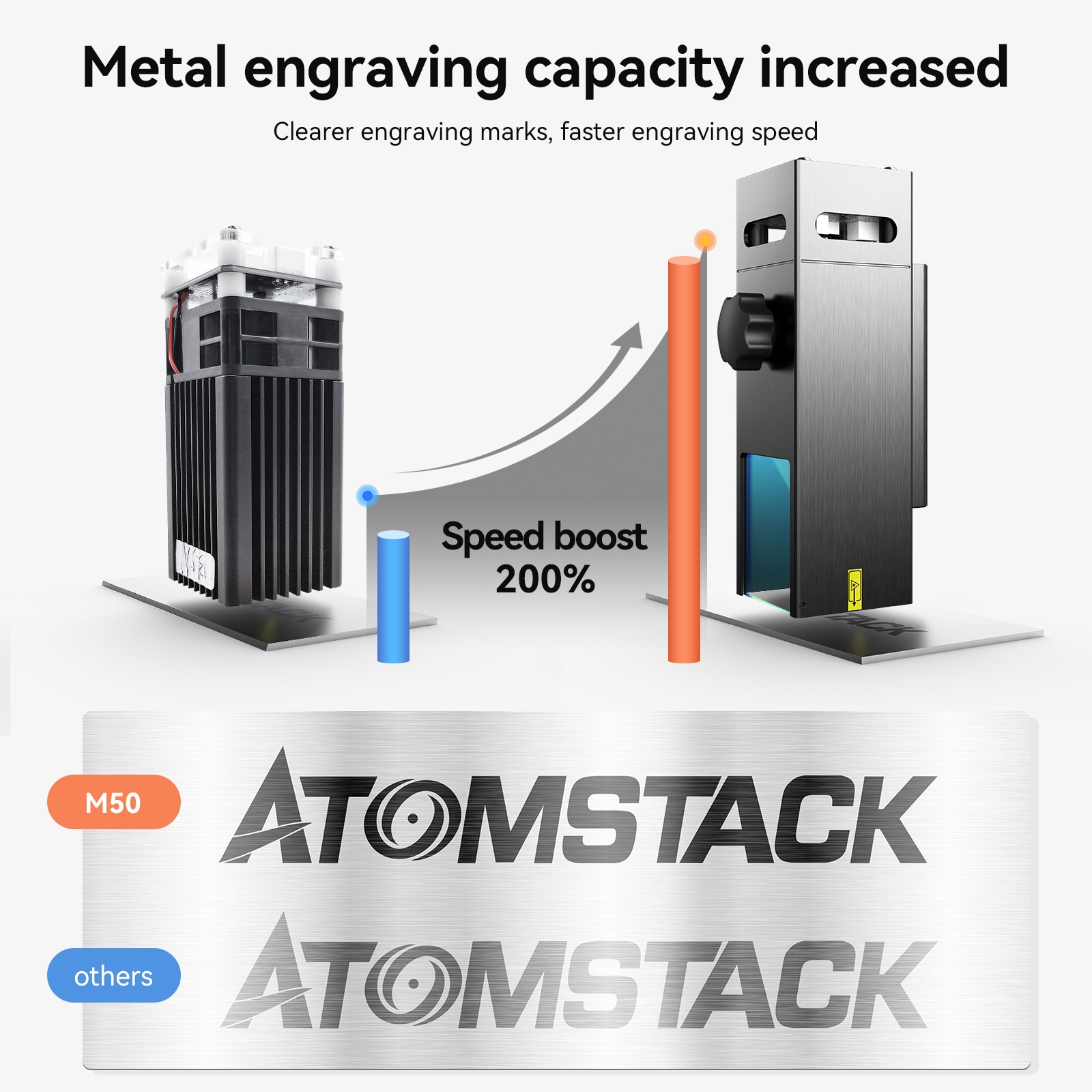

9.Engraving speed is 200% higher than other 5W lasers.

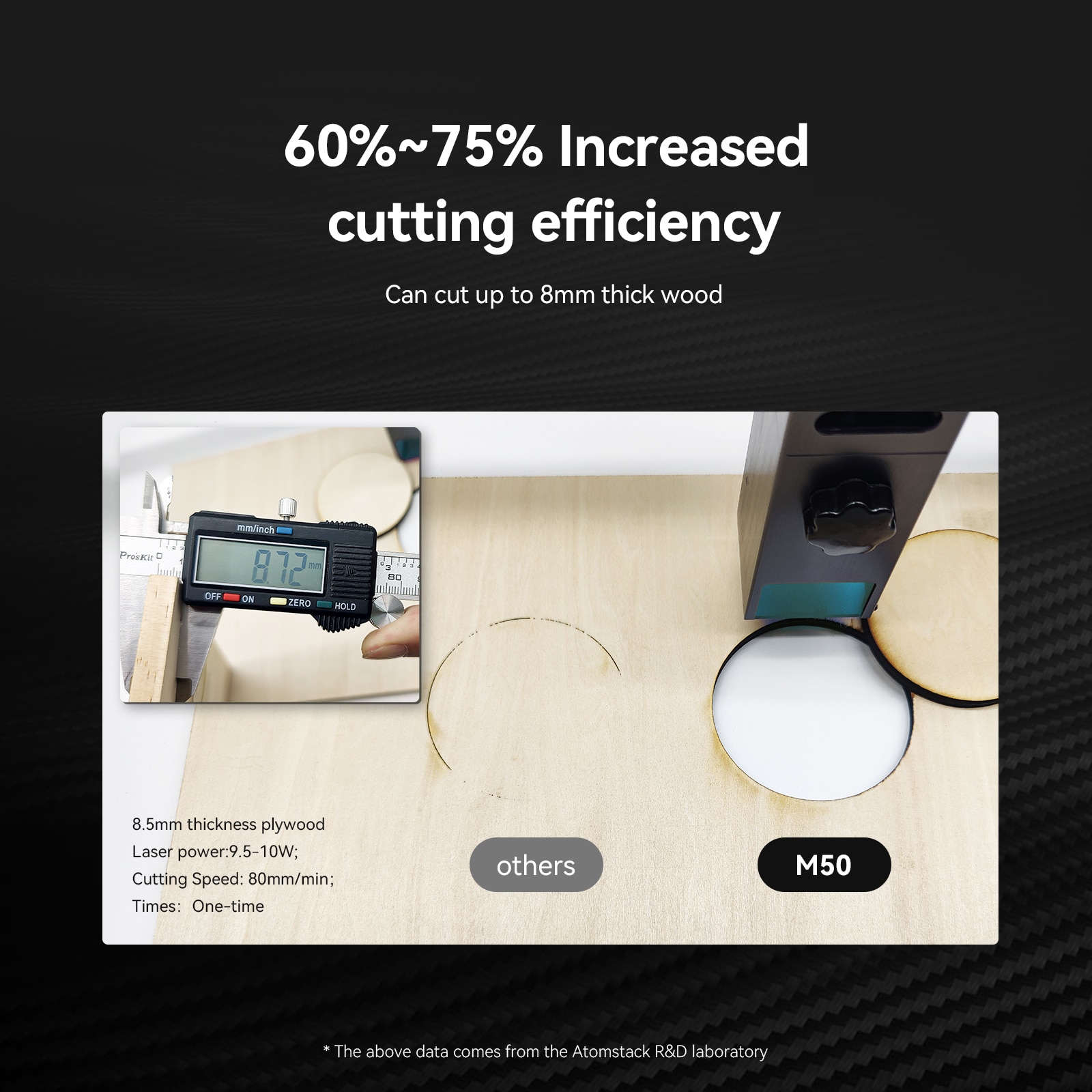

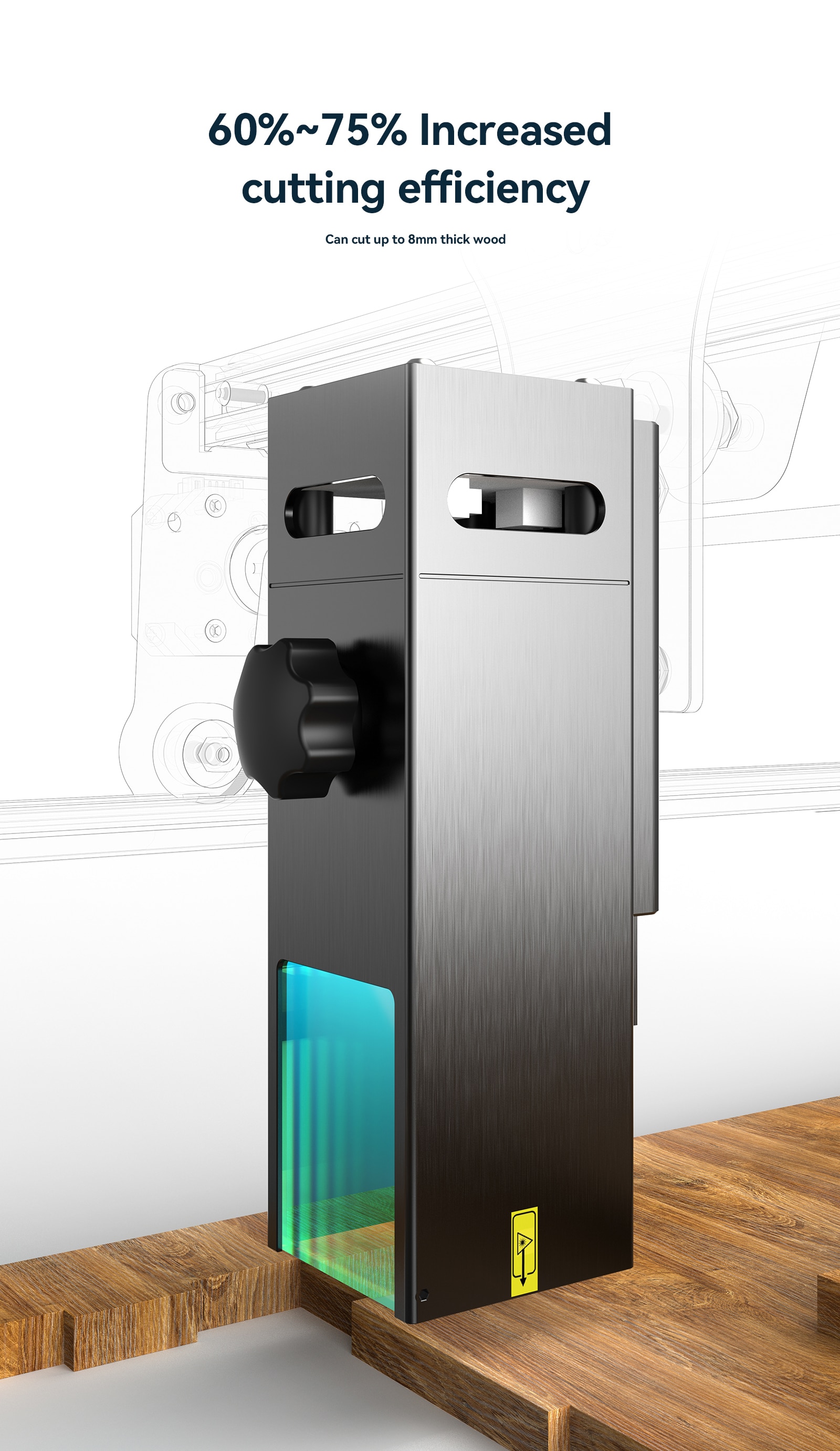

10.High energy can cut 8.5mm thickness plates at one time.

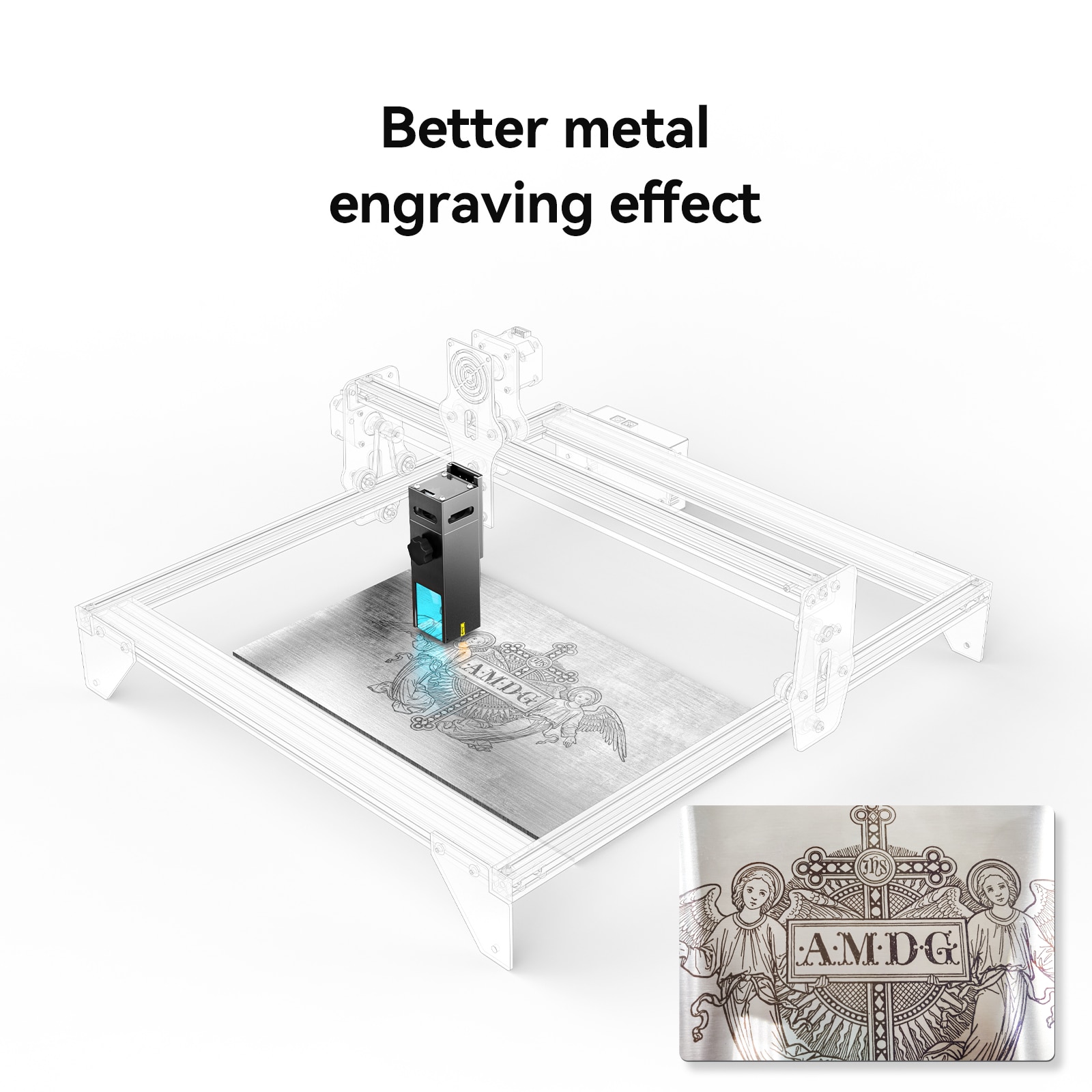

11.The laser sintering temperature is 1100 degrees, the effect of engraving metal is better.

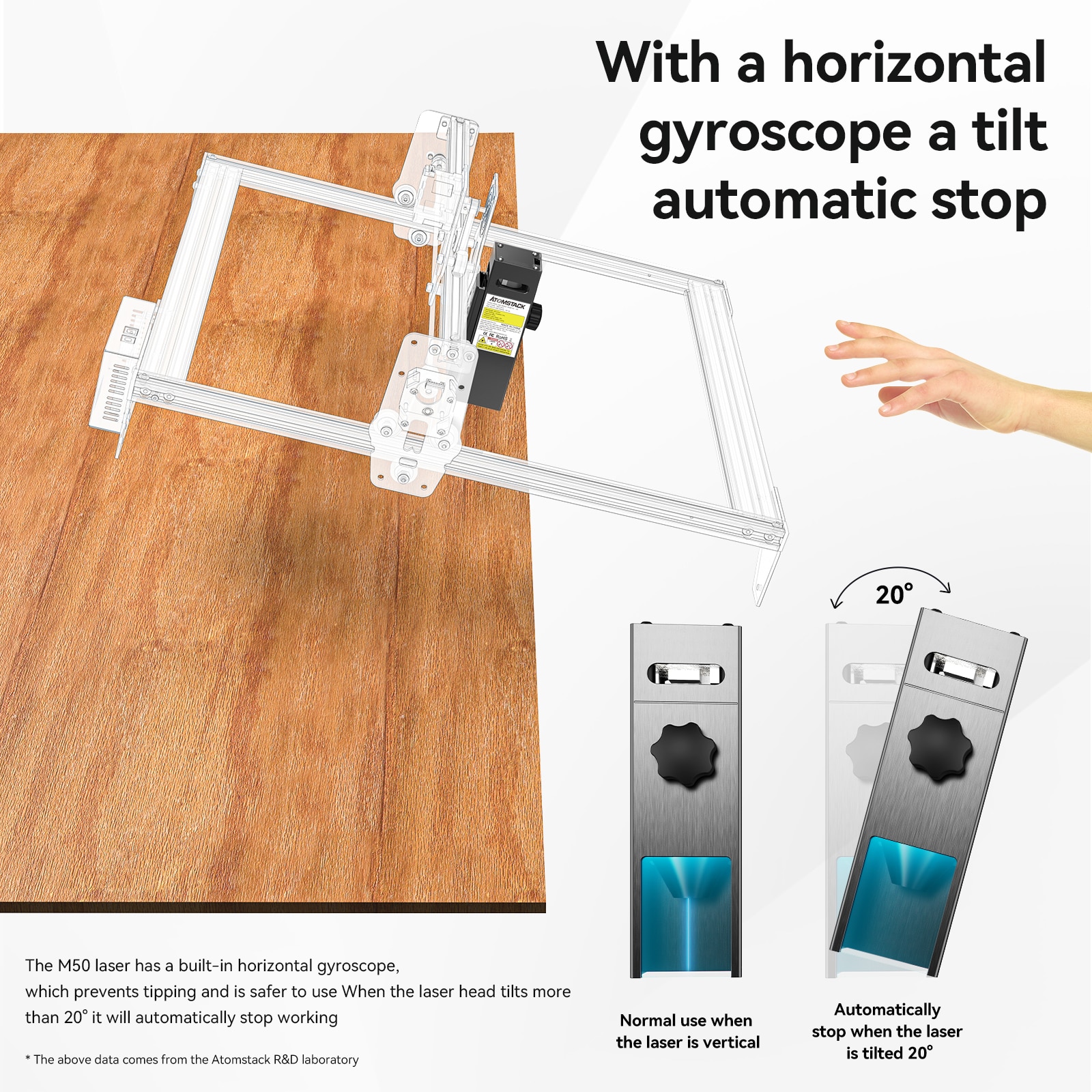

12.The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when

the tilt angle is 20°.

13.The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser

energy attenuation.

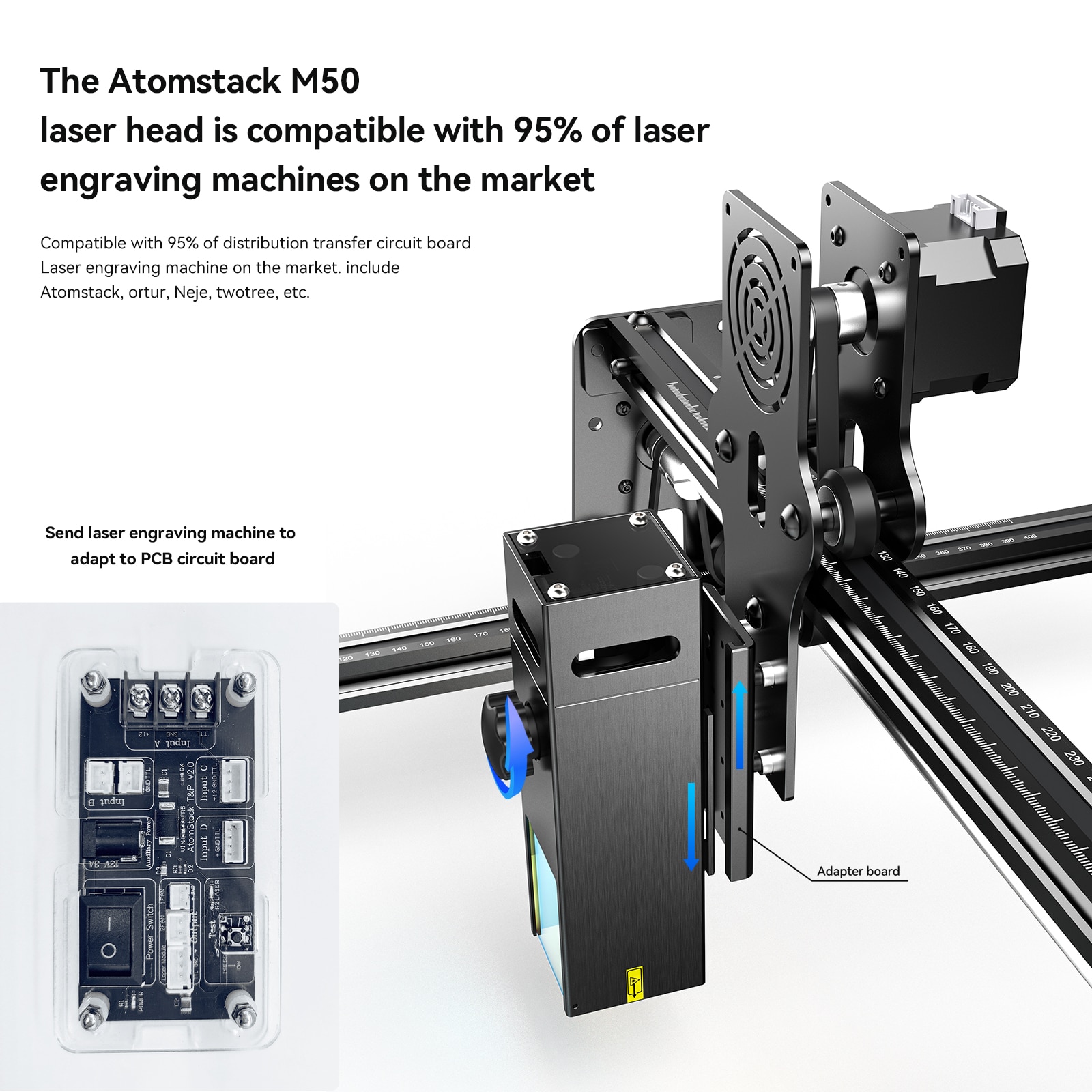

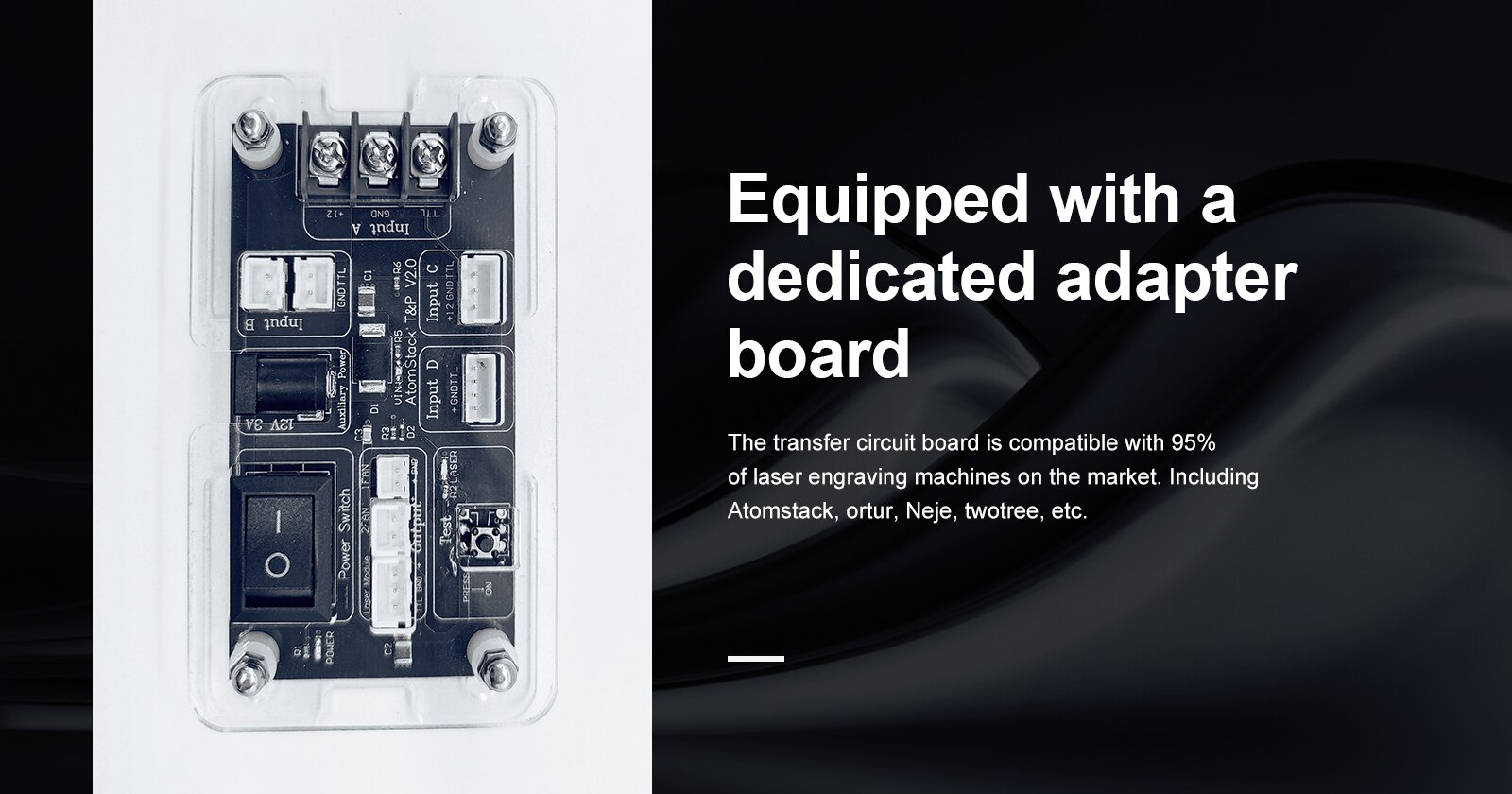

14.The transfer circuit board is compatible with 95% of laser engraving machines on the market，

IncludingAtomstack, ortur, Neje, twotree, etc.

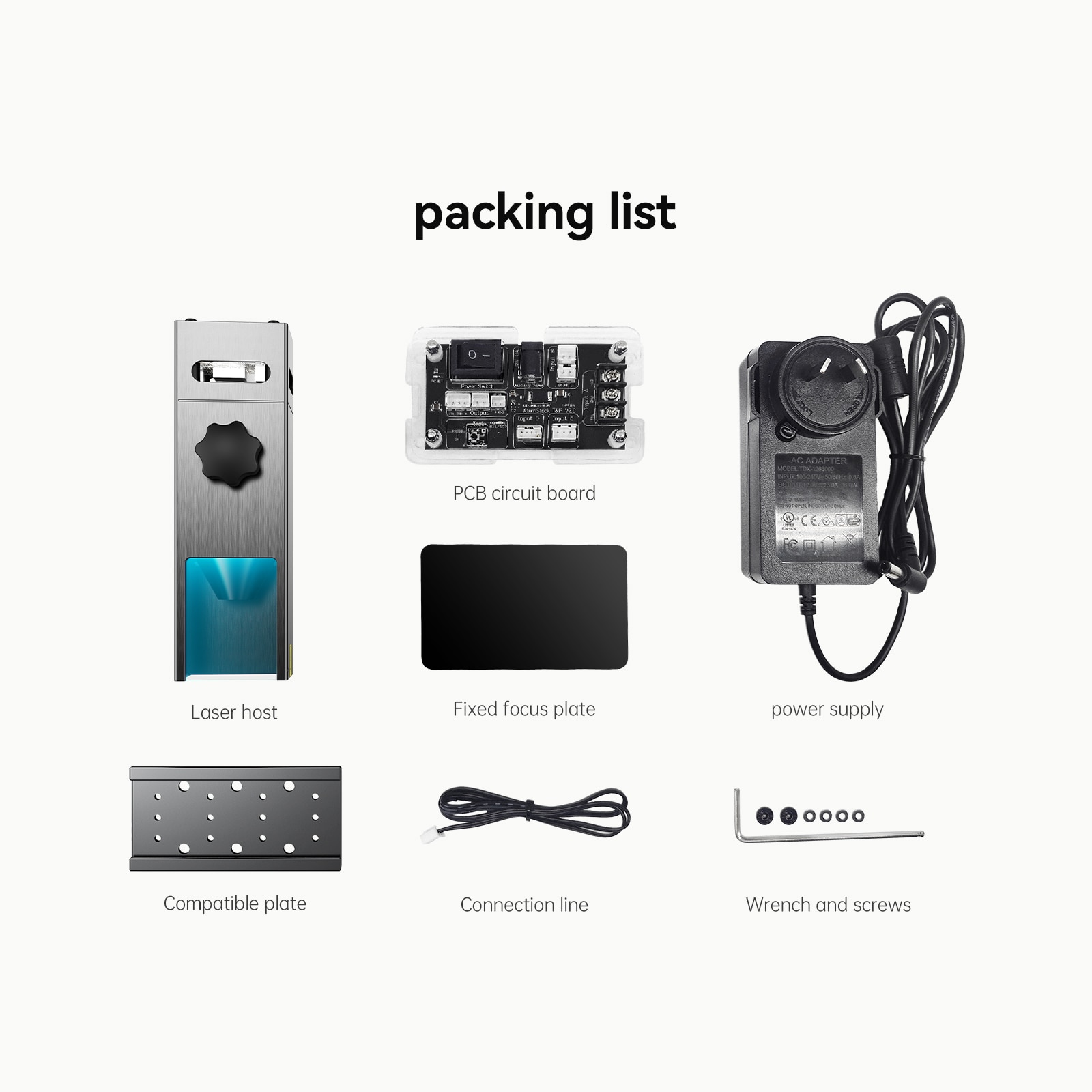

Packing List:
1 x Laser
1 x Plate
1 x PCB Circuit Board
1 x Fixed Focus Plate
1 x Connect Line
1 x Power Supply
1 x Wrench and Screws Kit

•
