Description
- Brand Name: ATOMSTACK
- Origin: Mainland China
- Model Number: ATOMSTACK M50
- Certification: NONE
- Is Smart Device: NO
- Certification: NONE
- Material: Aluminum 6061 Anode
- Spot Size: 0.08 x 0.06mm
- Cutting Wood: 15mm
- Laser Wave Length: 450nm
- Cutting Speed: Increased by 40%,80mm/min
- Optical Output Power: 9.5-10W
- Engraving Speed: 11000mm/min
- Cutting Depth: 15mm

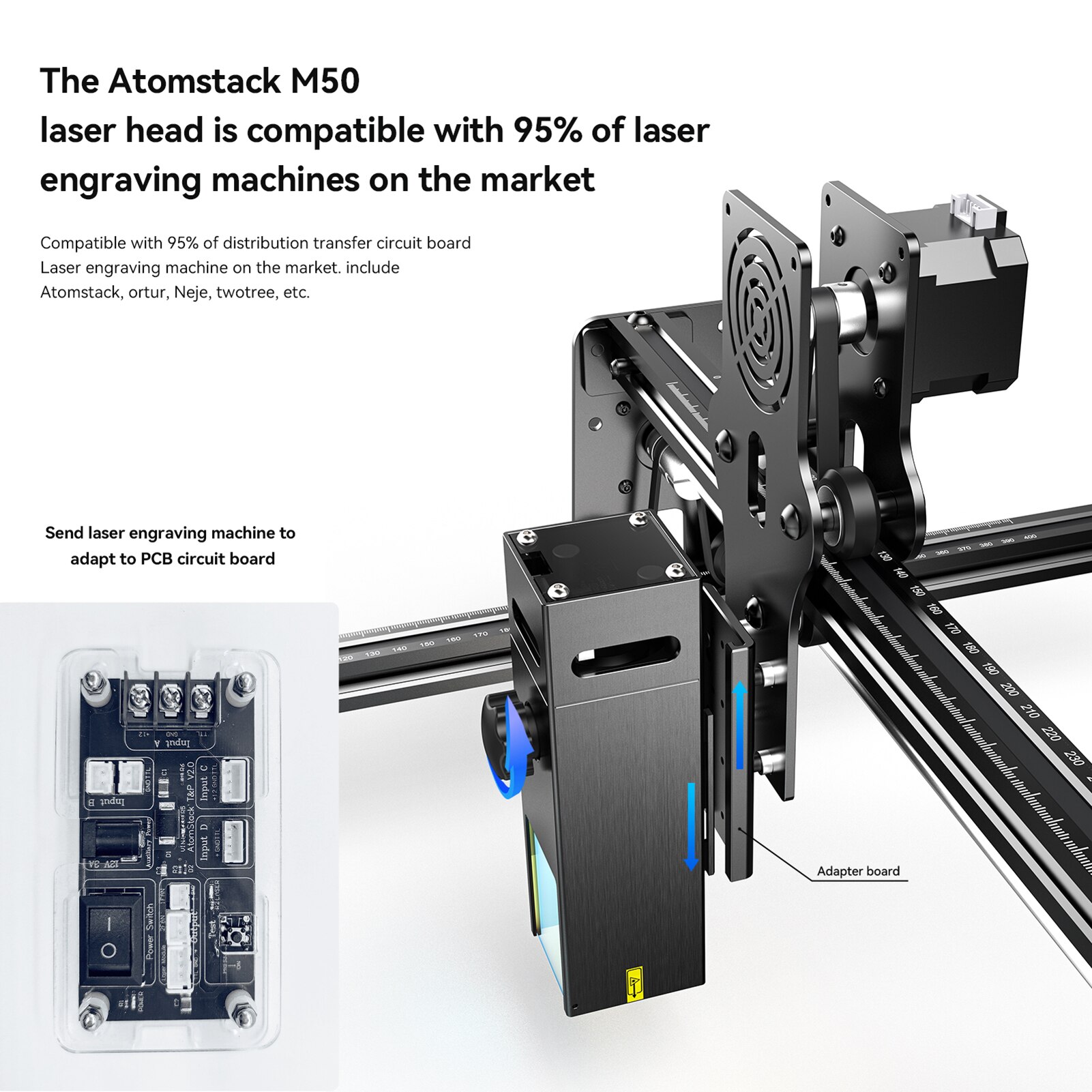

Features: It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser. Upgraded high quality fixed-focus laser, no need to focus.

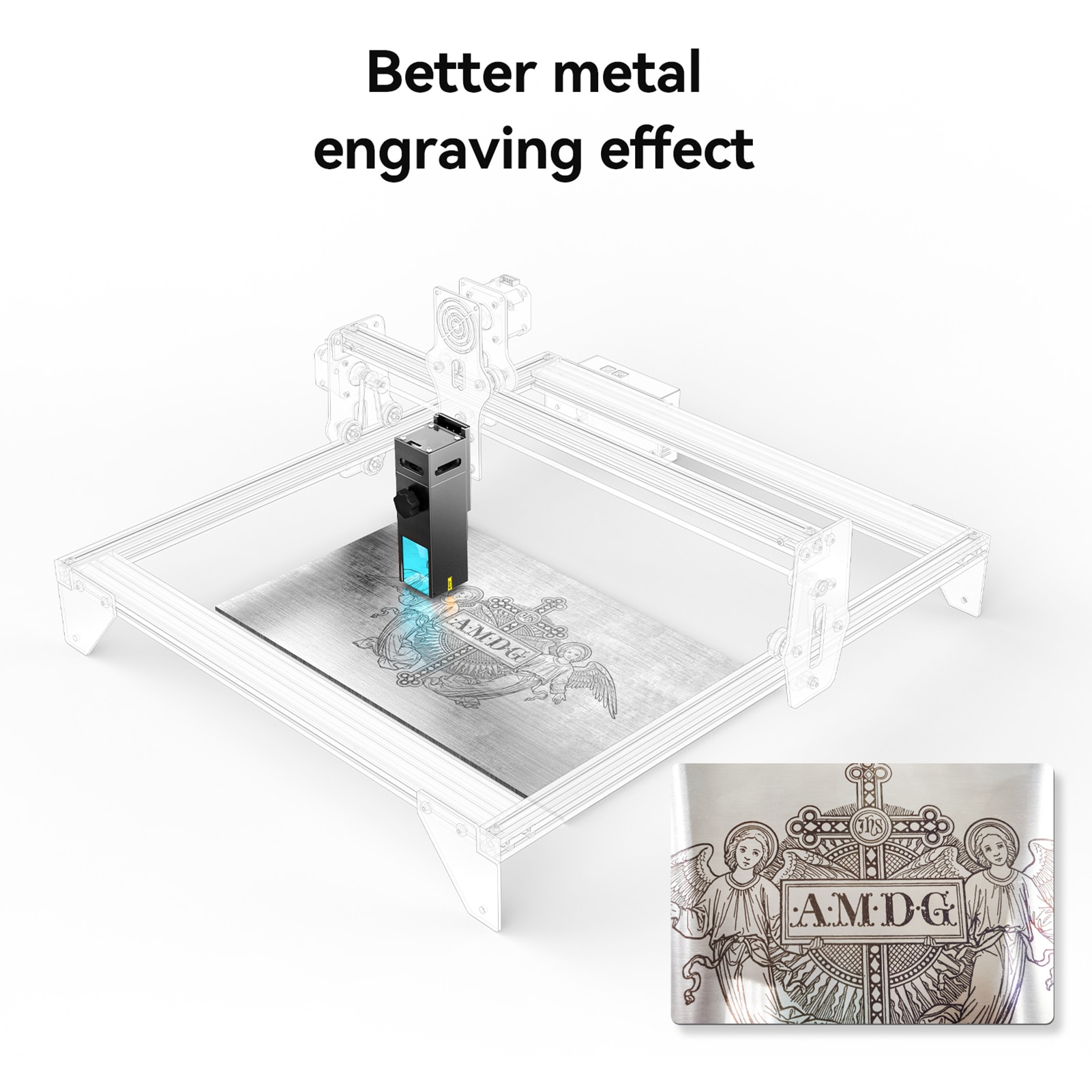

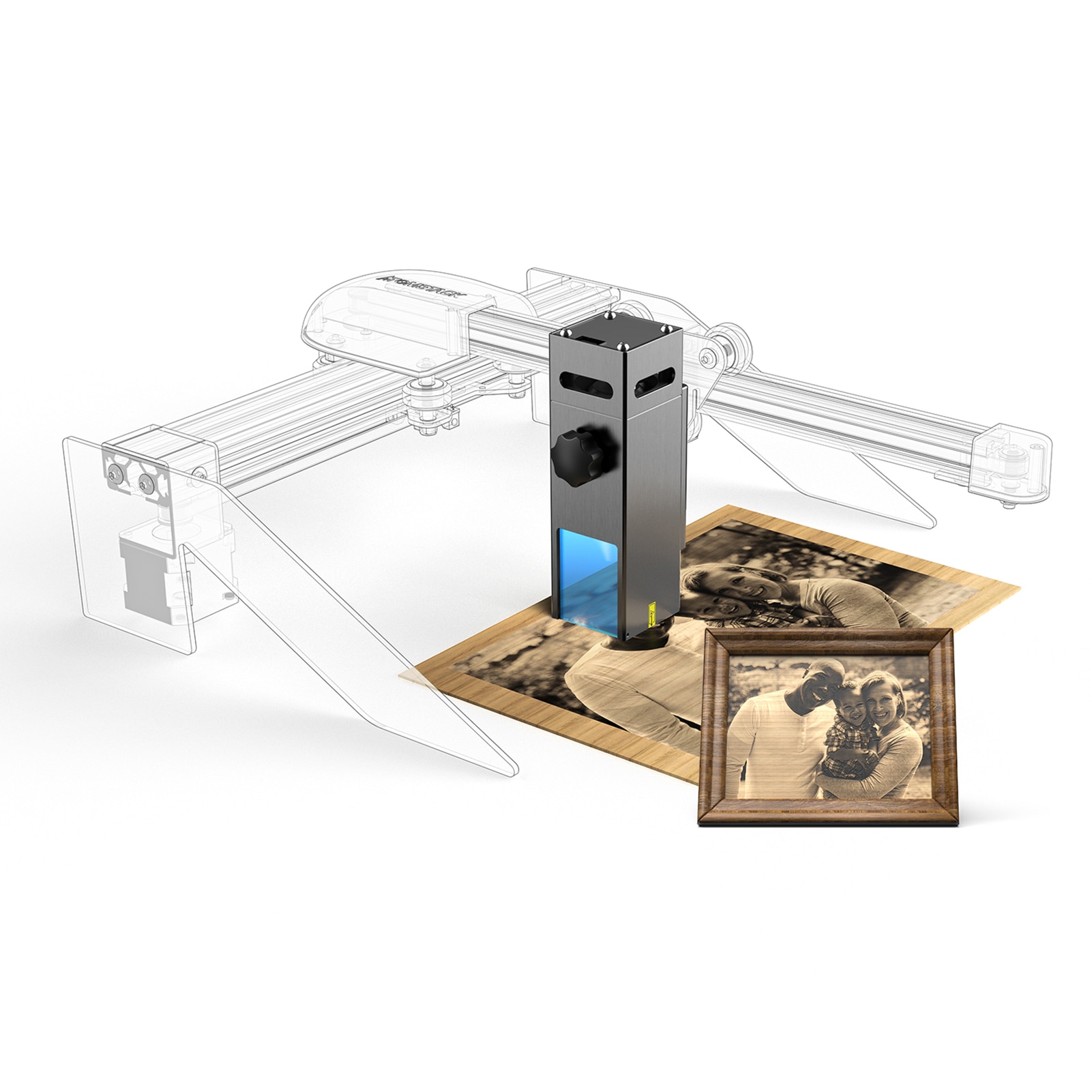

Engravable Materials – Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife. Cutable Material – Cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

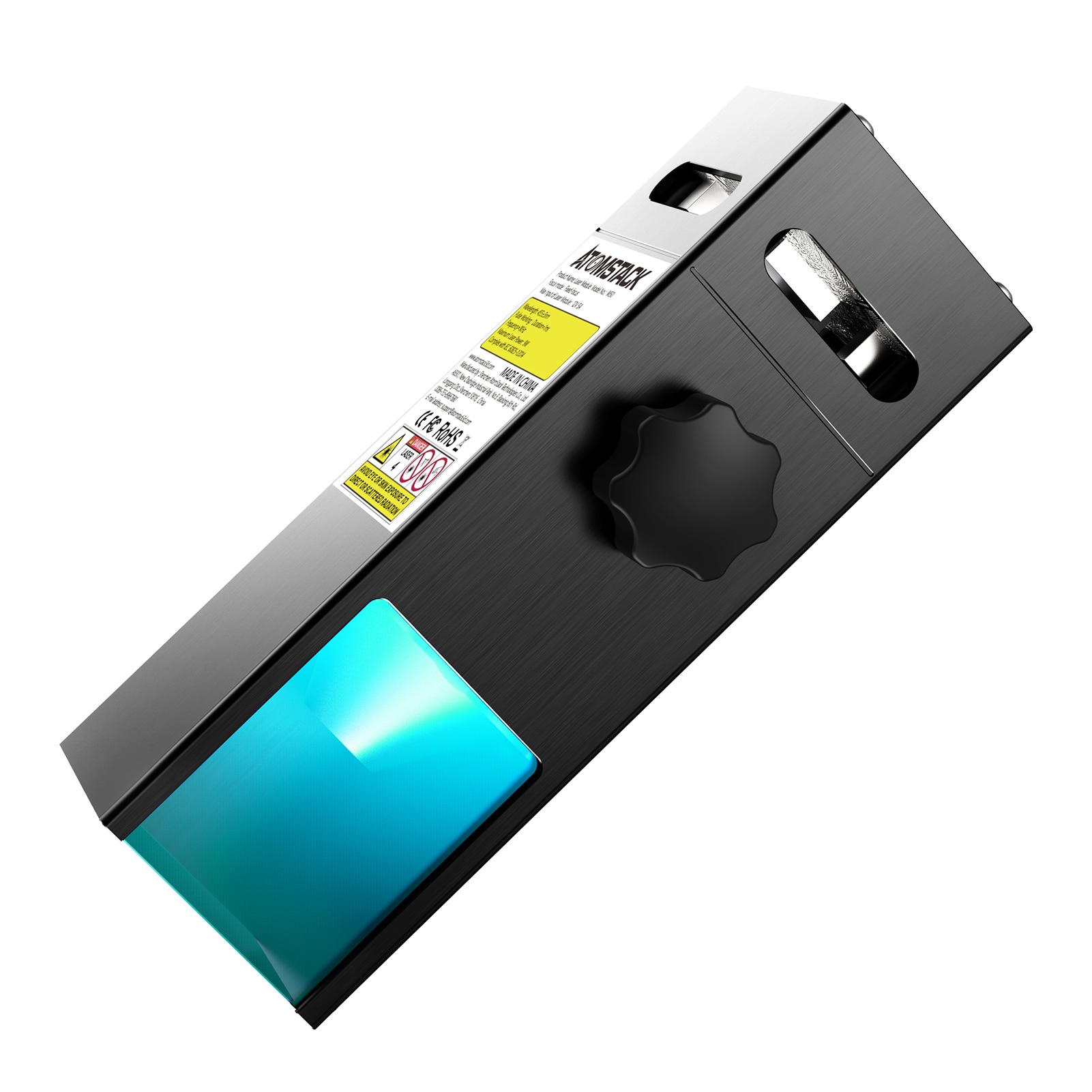

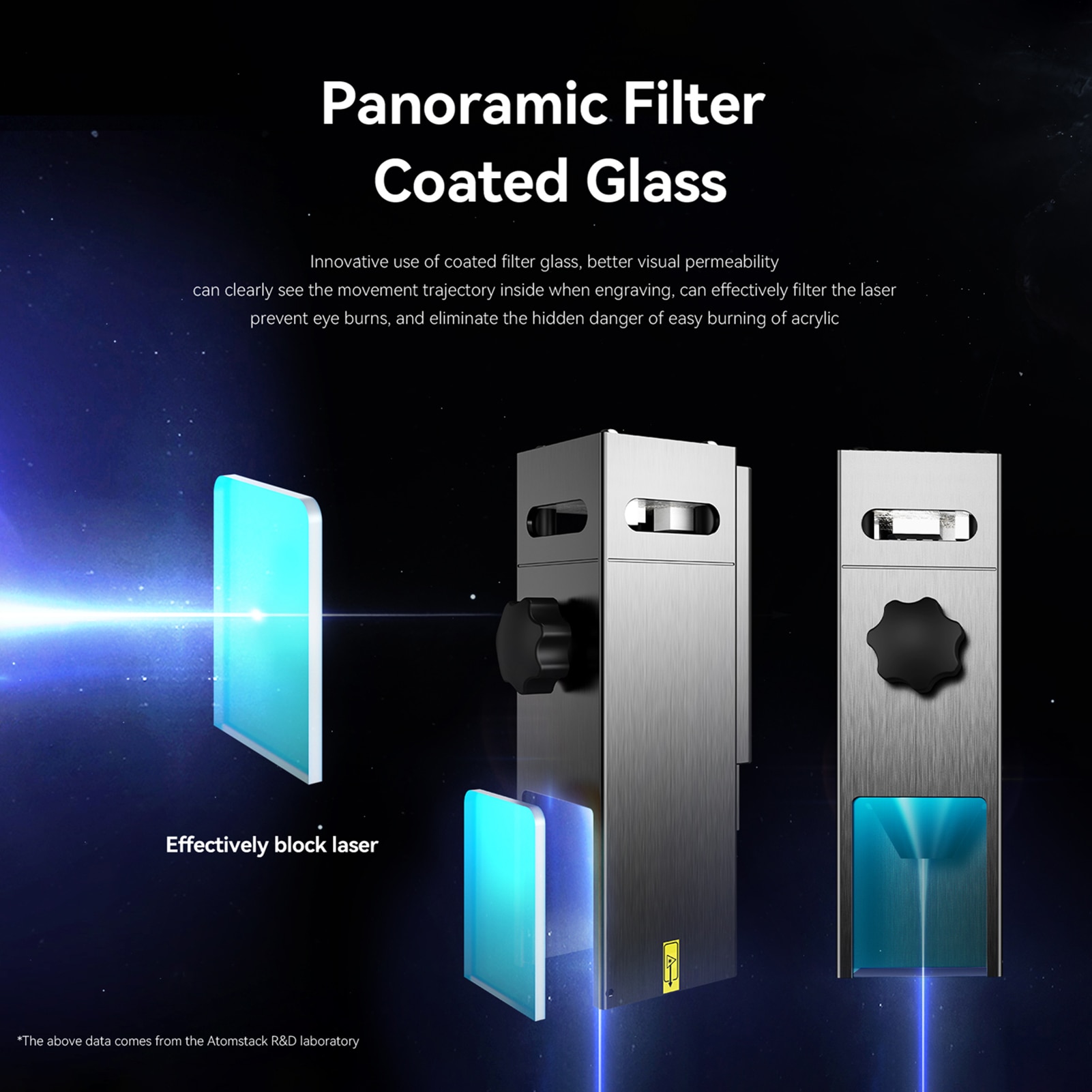

Laser protective cover – The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time, prevent pets from grabbing the laser spot.

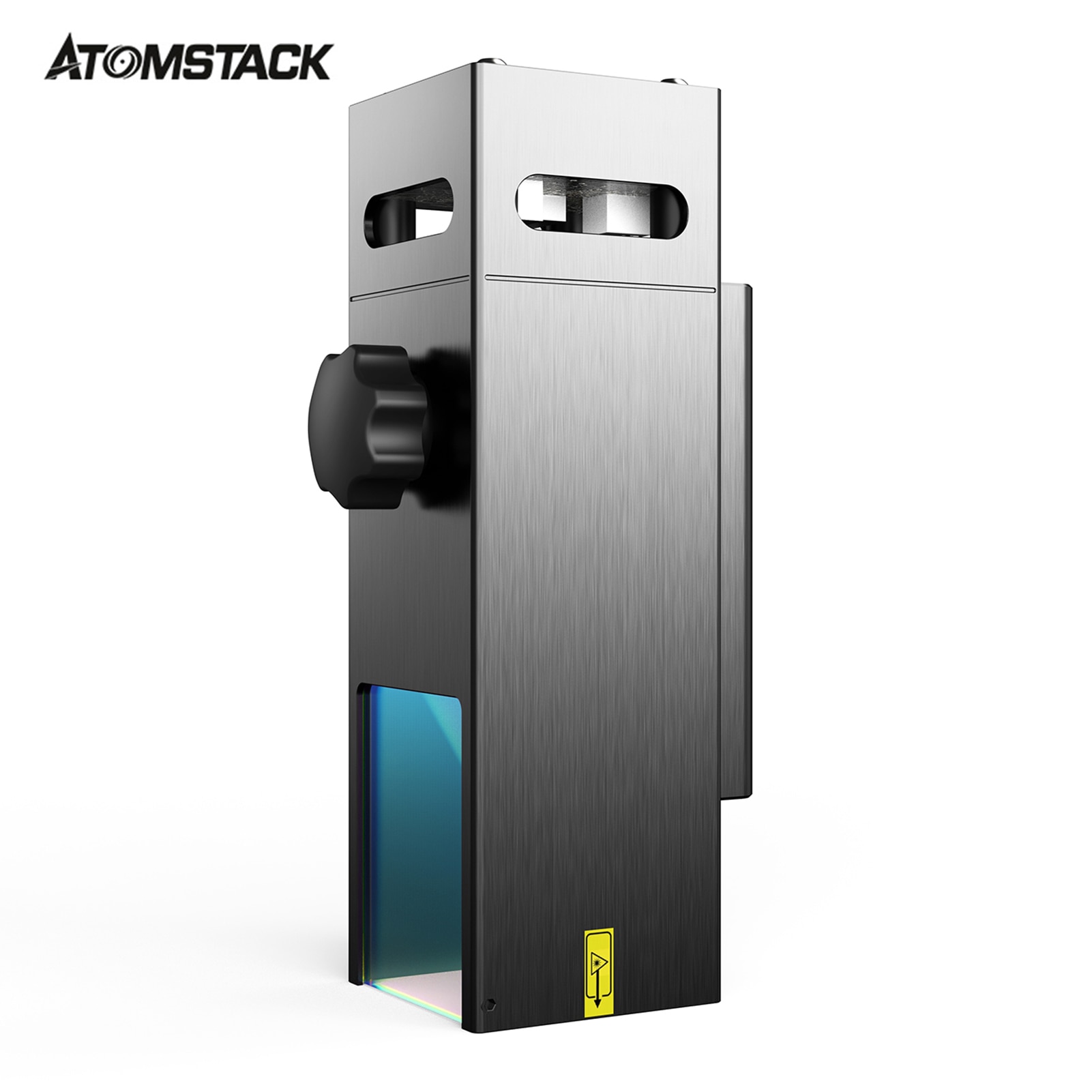

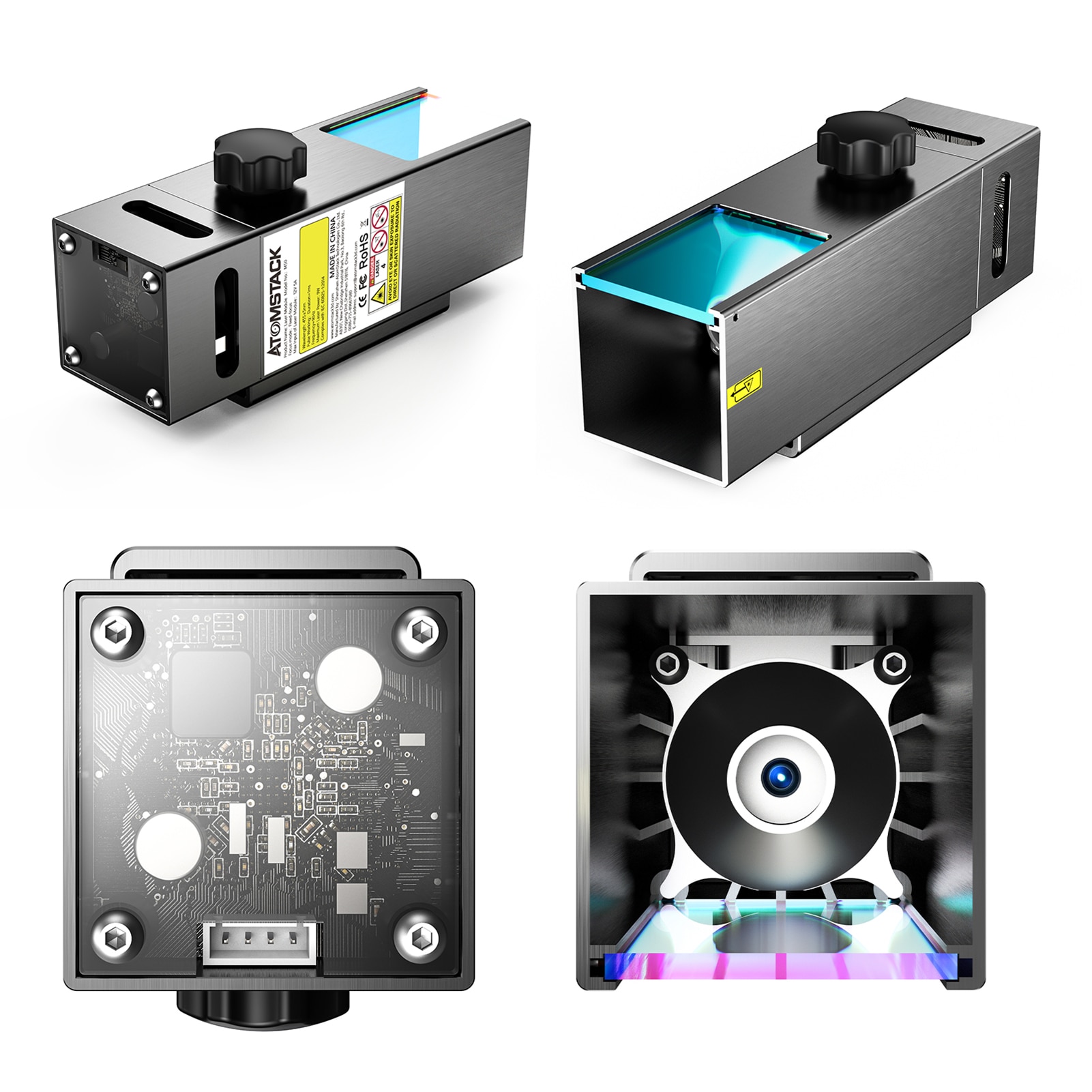

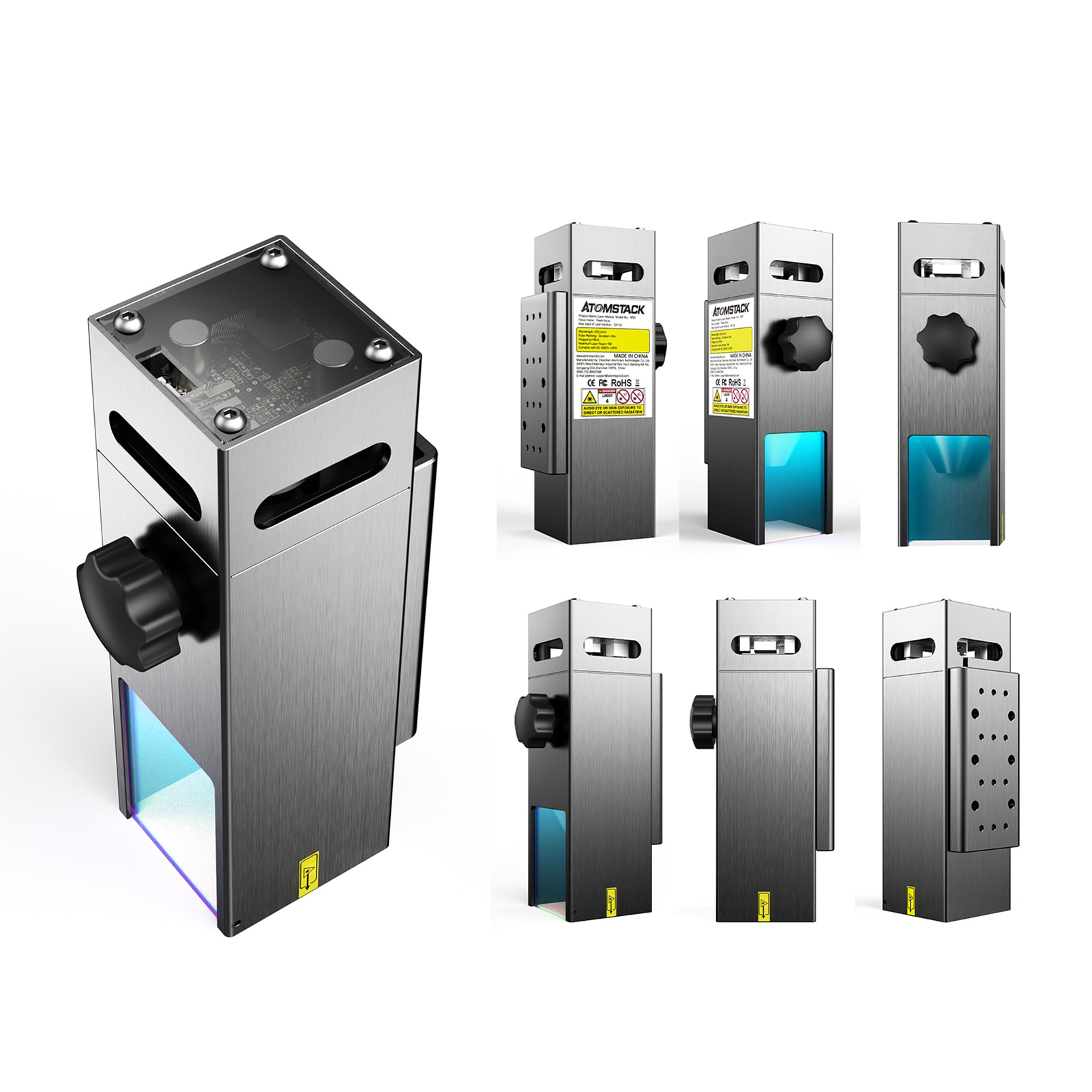

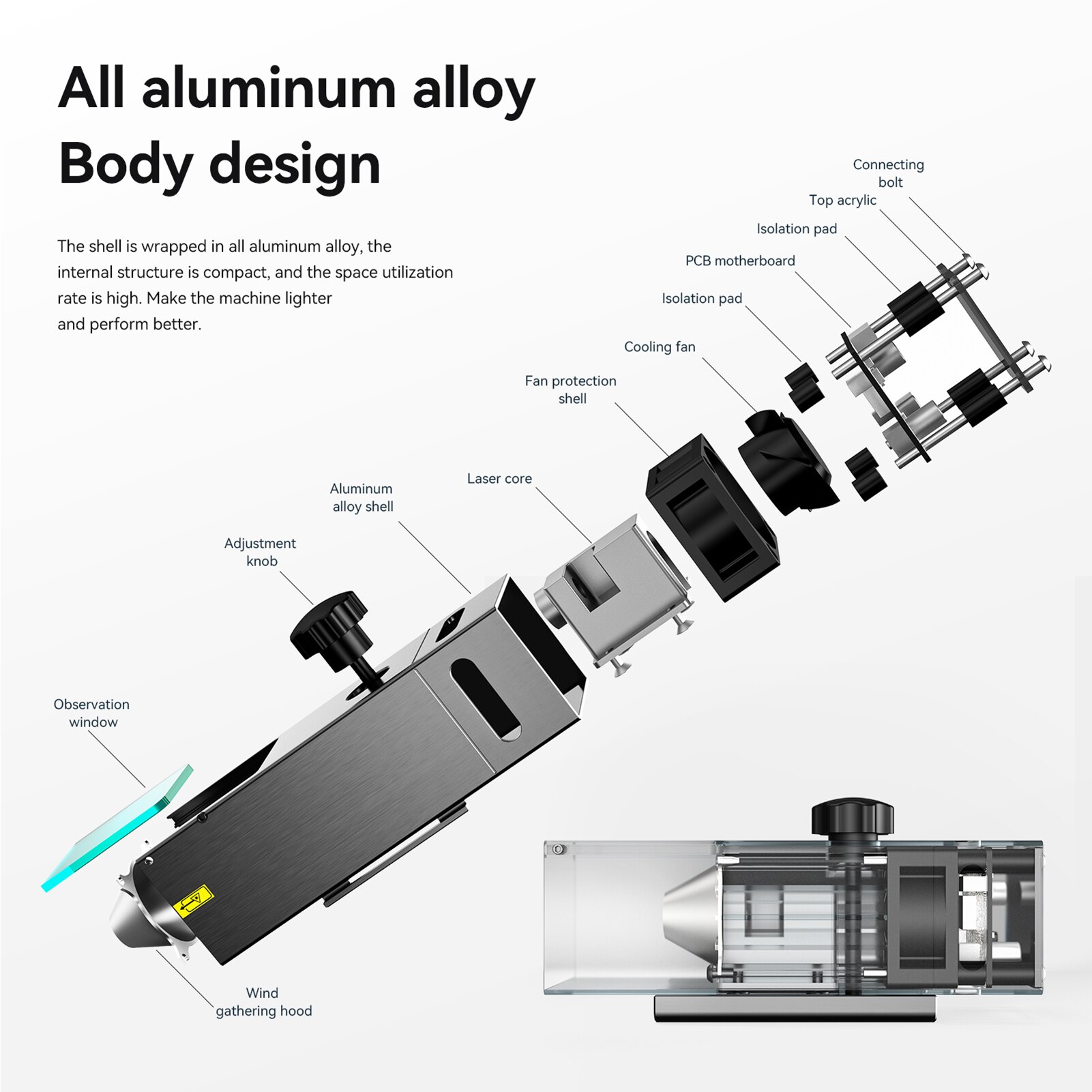

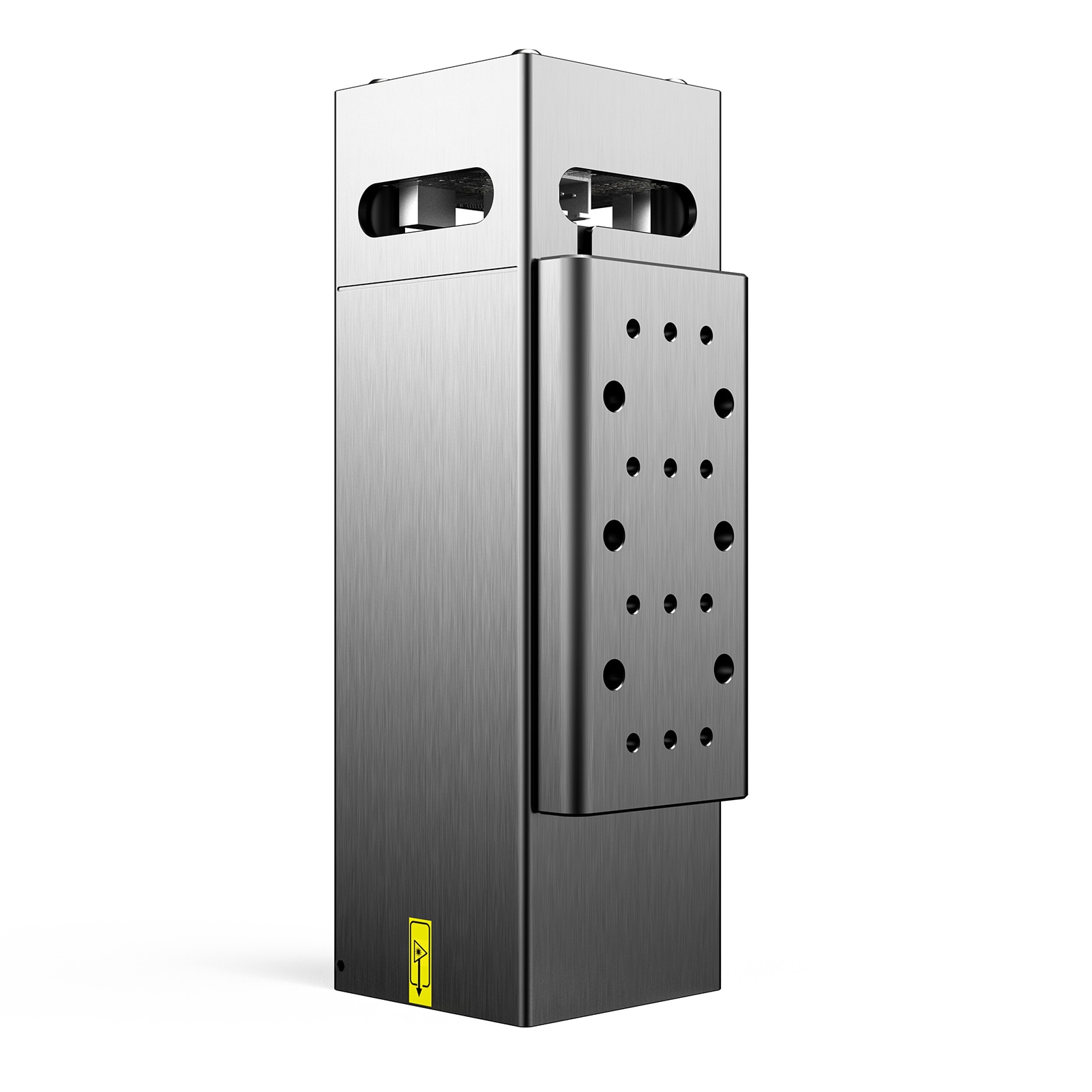

M50 engraving laser module made of aluminum, strong and durable. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

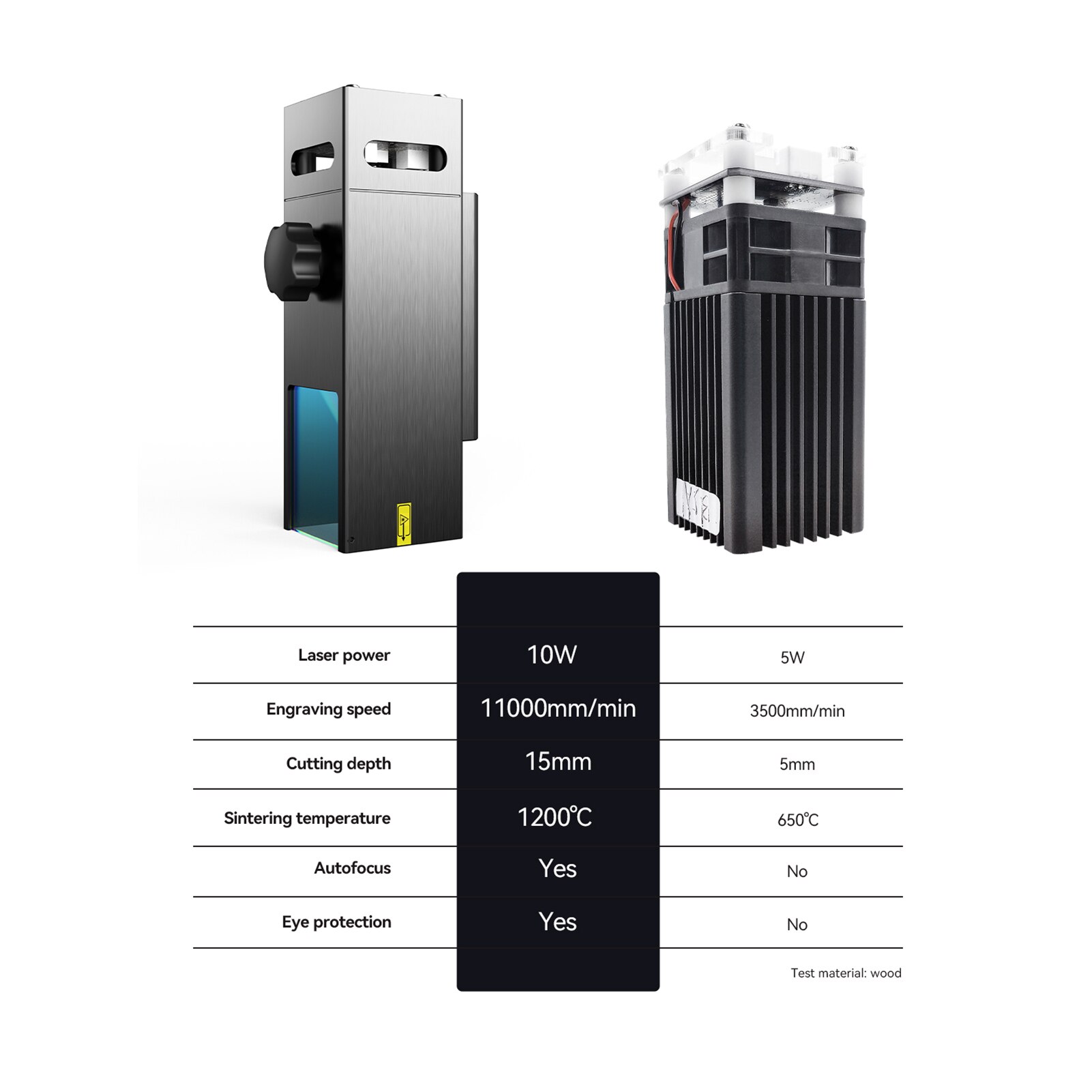

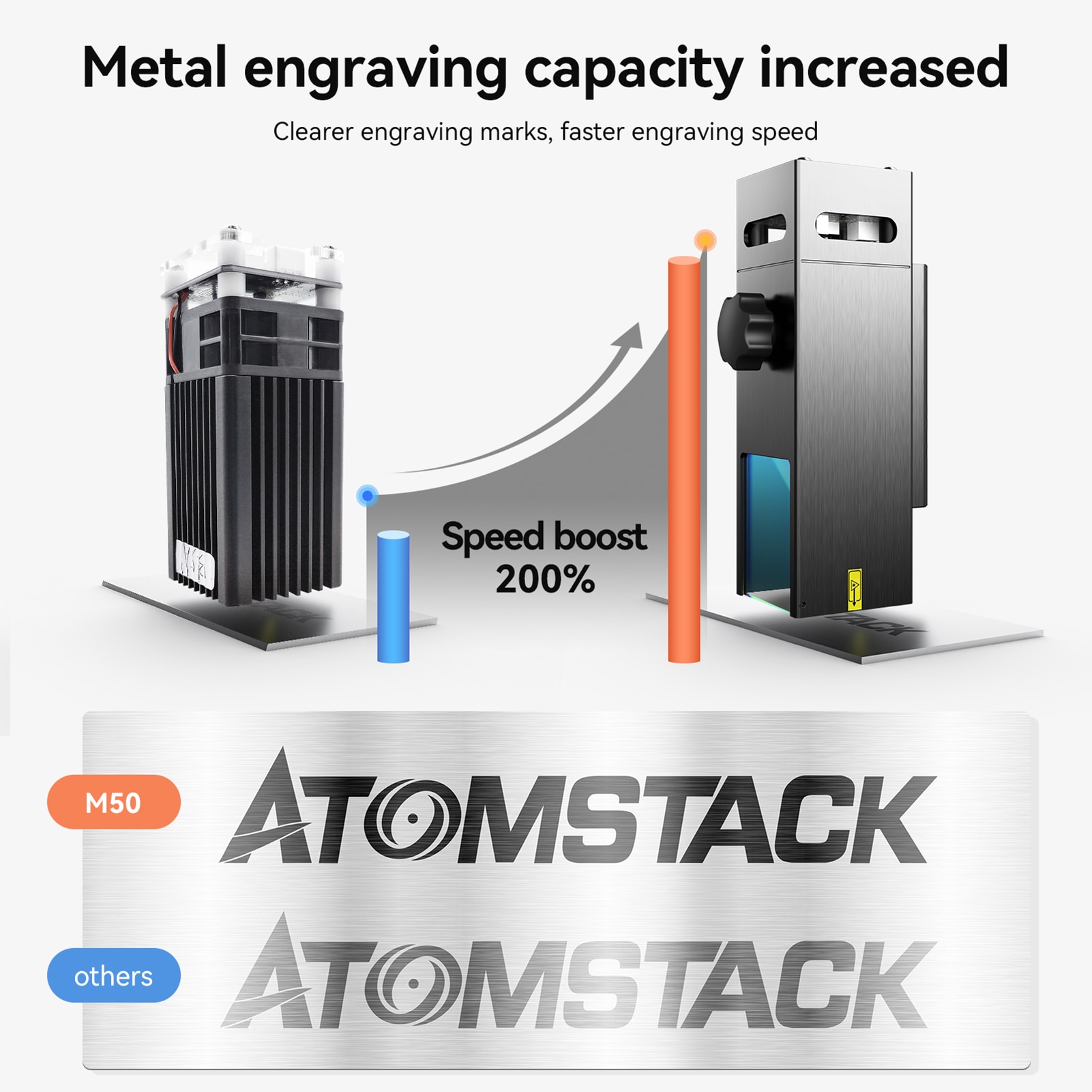

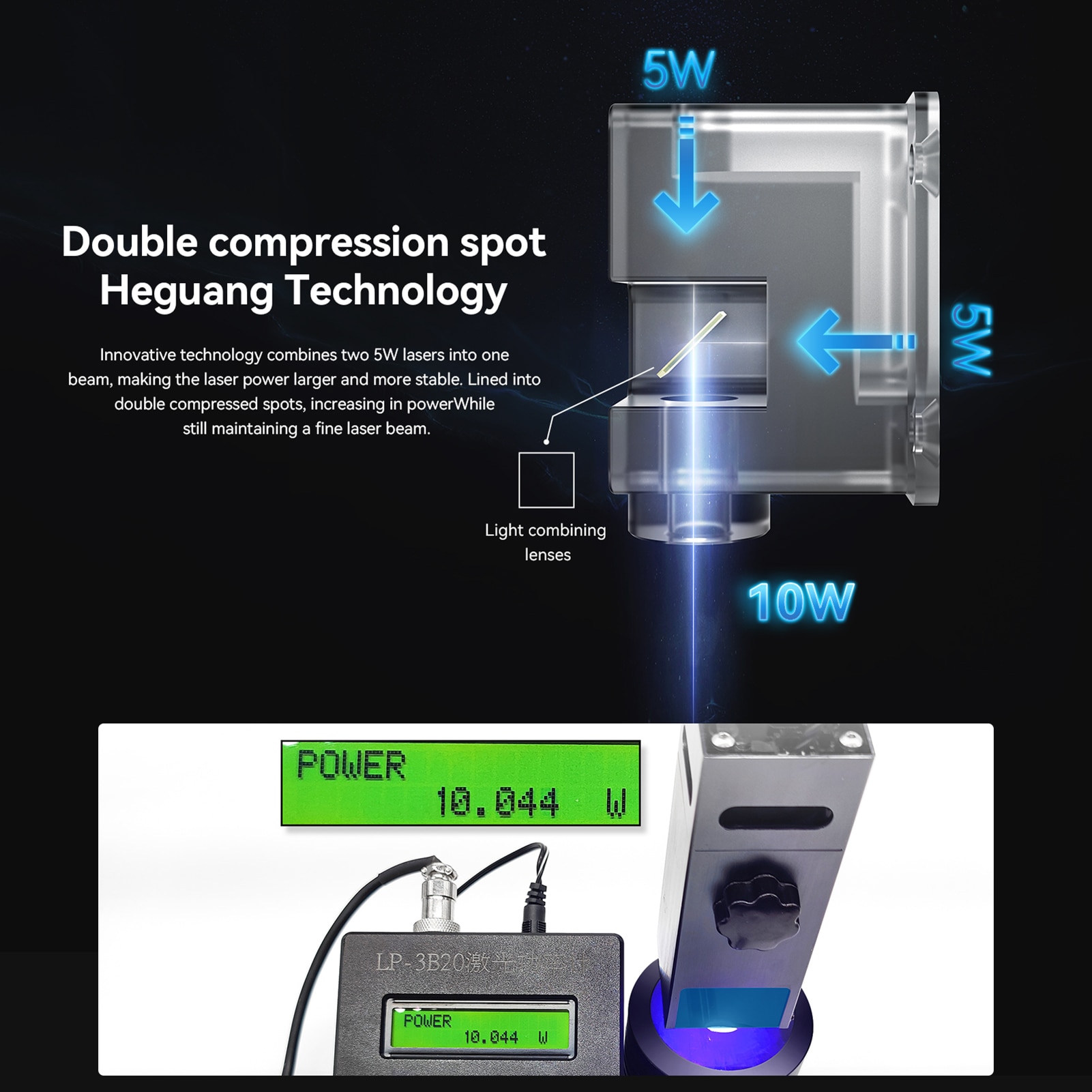

0.08×0.06mm double compre-ssion spot light coupling technology makes engraving more powerful and precise. 11000mm/min engraving speed is 200% higher than other 5W lasers.

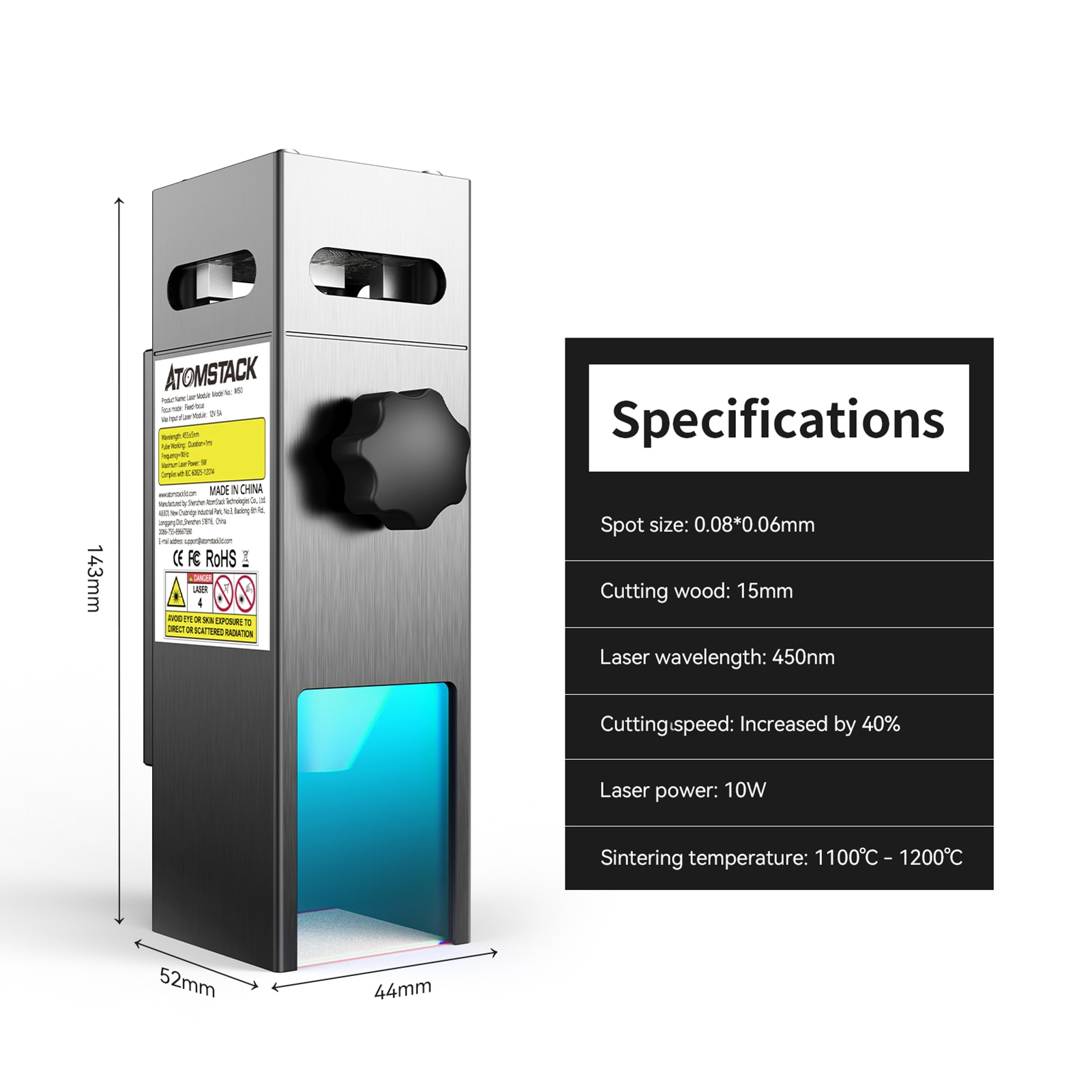

Specification:
Model: M50
Material: Aluminum 6061 Anode
Spot Size: 0.08 x 0.06mm
Cutting Wood: 15mm
Laser Wave Length: 450nm
Cutting Speed: Increased by 40%
Optical Output Power: 9.5-10W
Engraving Speed: 11000mm/min

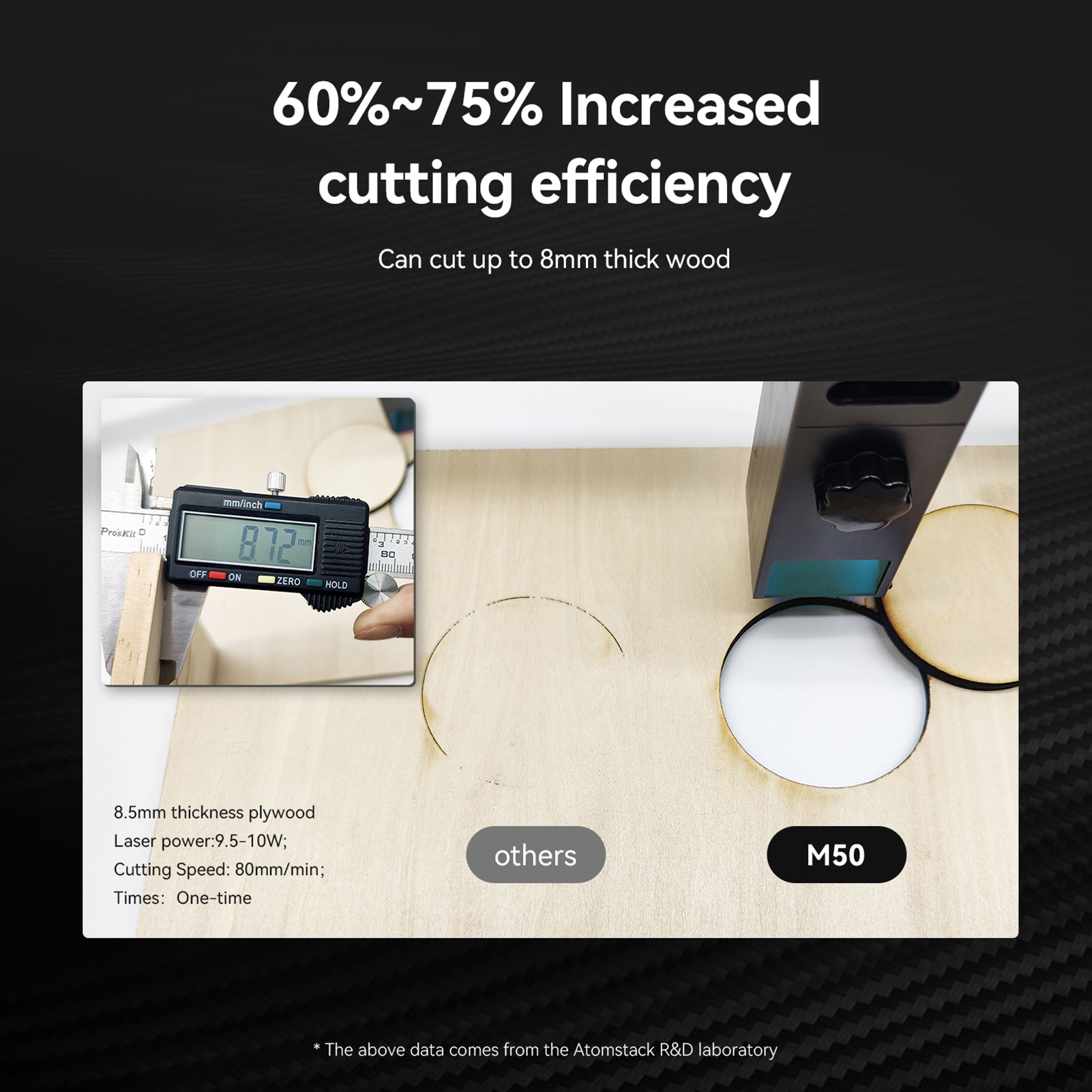

Cutting Speed: 80mm/min
Cutting Depth: 15mm
Optical Lens: φ6/glass
Fan: 12V
Circuit Board: 12V/PWM Modulation Board
Circuit Board Size: 44 x 52mm
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: 一40℃~85℃
Sintering Temperature: 1100~1200℃
Housing Size: 44 x 52 x 50mm
Size: 118 x 52 x 44mm/4.6 x 2 x 1.7in
Weight: 260g/9.1oz
Package Size: 26.5 x 19.5 x 7cm/10.4 x 7.7 x 2.8in
Package Weight: 900g/31.7oz

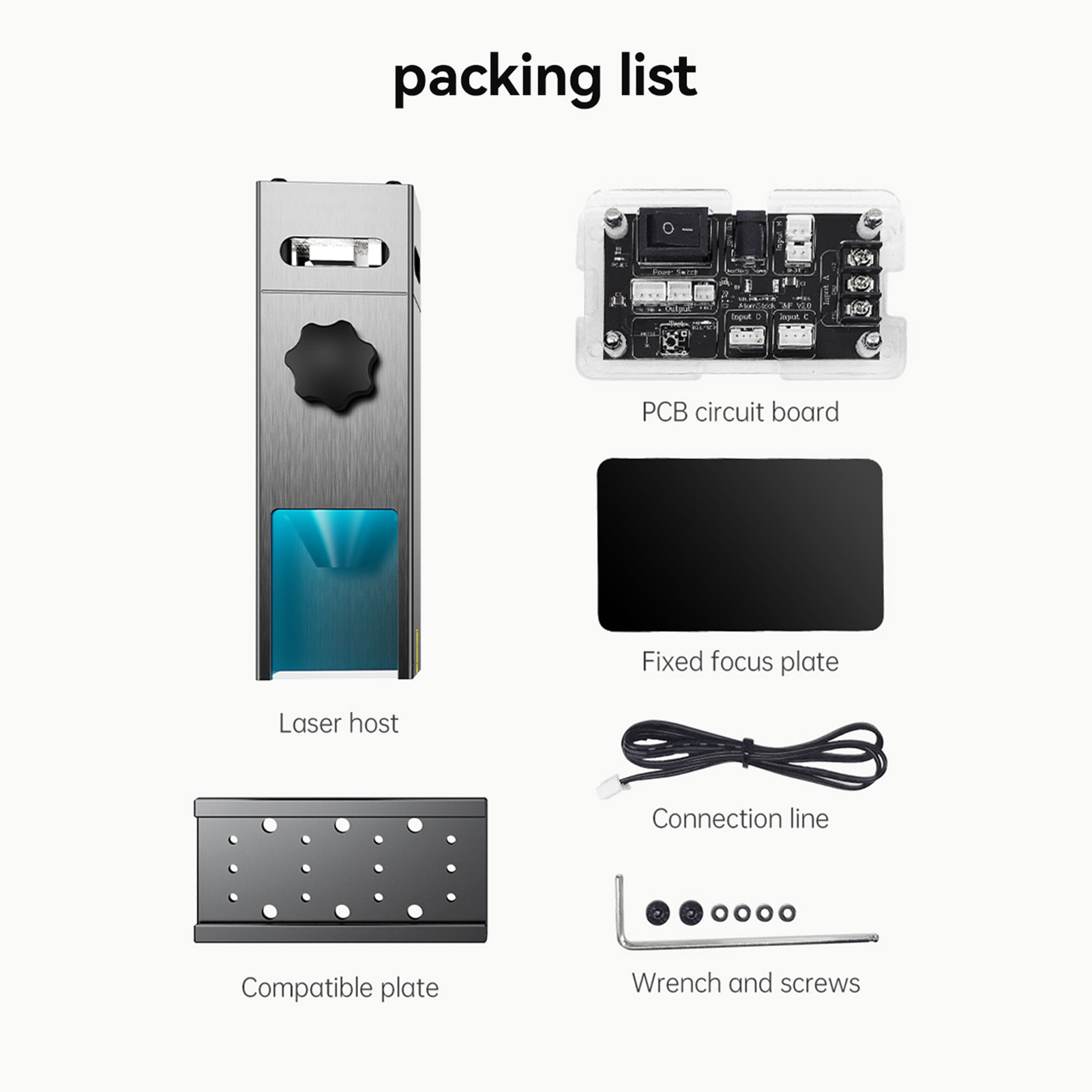

Packing List:
1 x Laser Host
1 x Plate
1 x PCB Circuit Board
1 x Fixed Focus Plate
1 x Connect Line
1 x Wrench and Screws Kit
