Description
Product Features
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

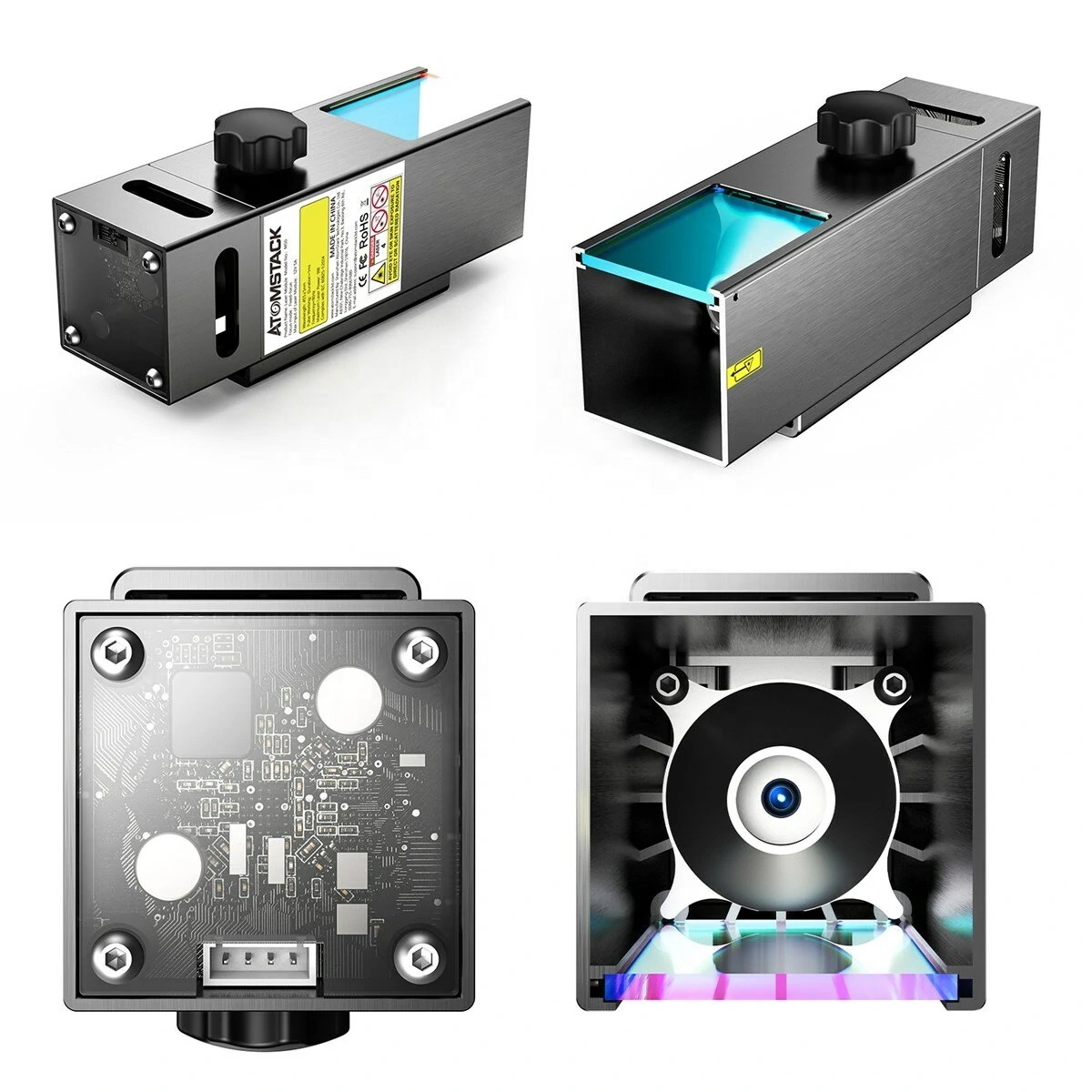

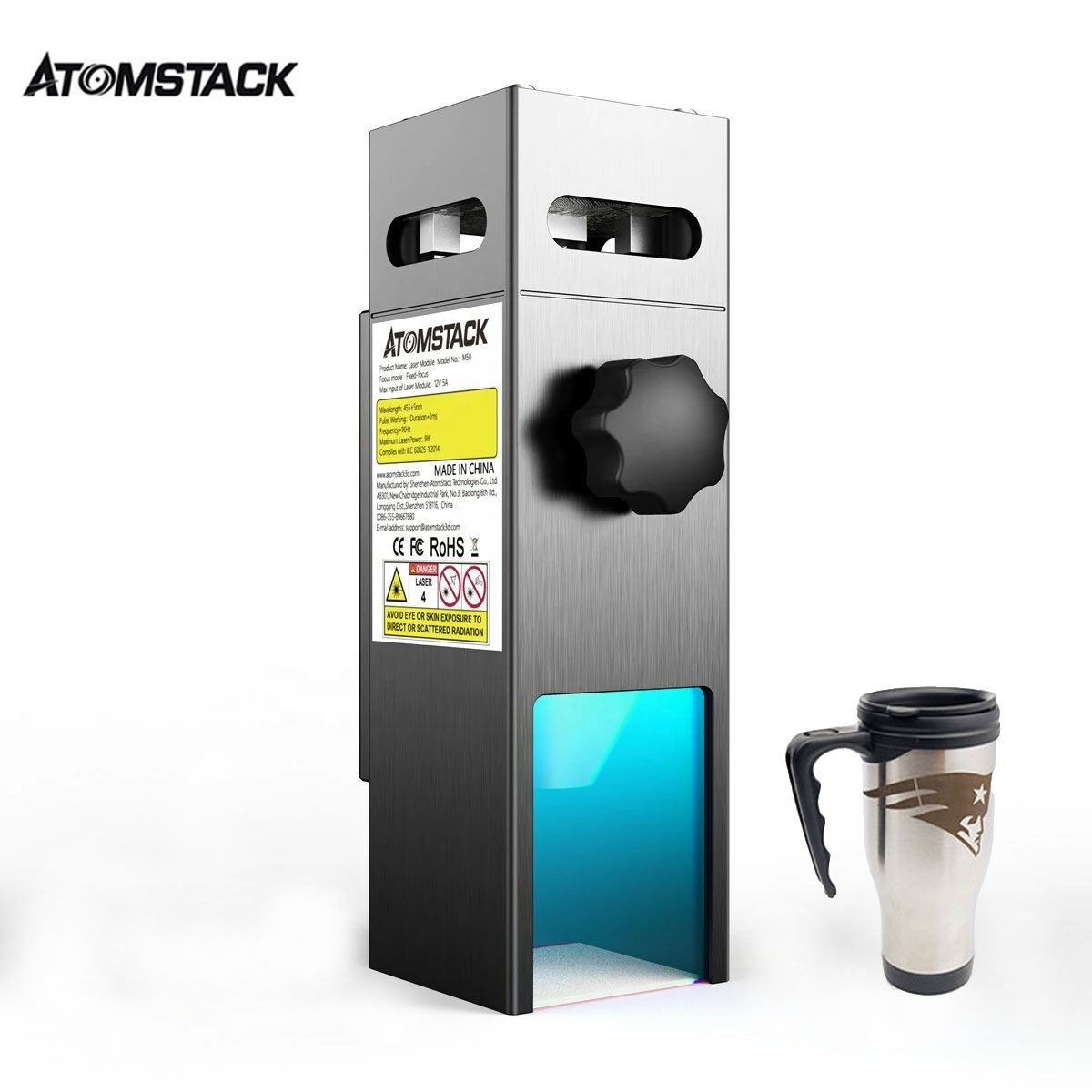

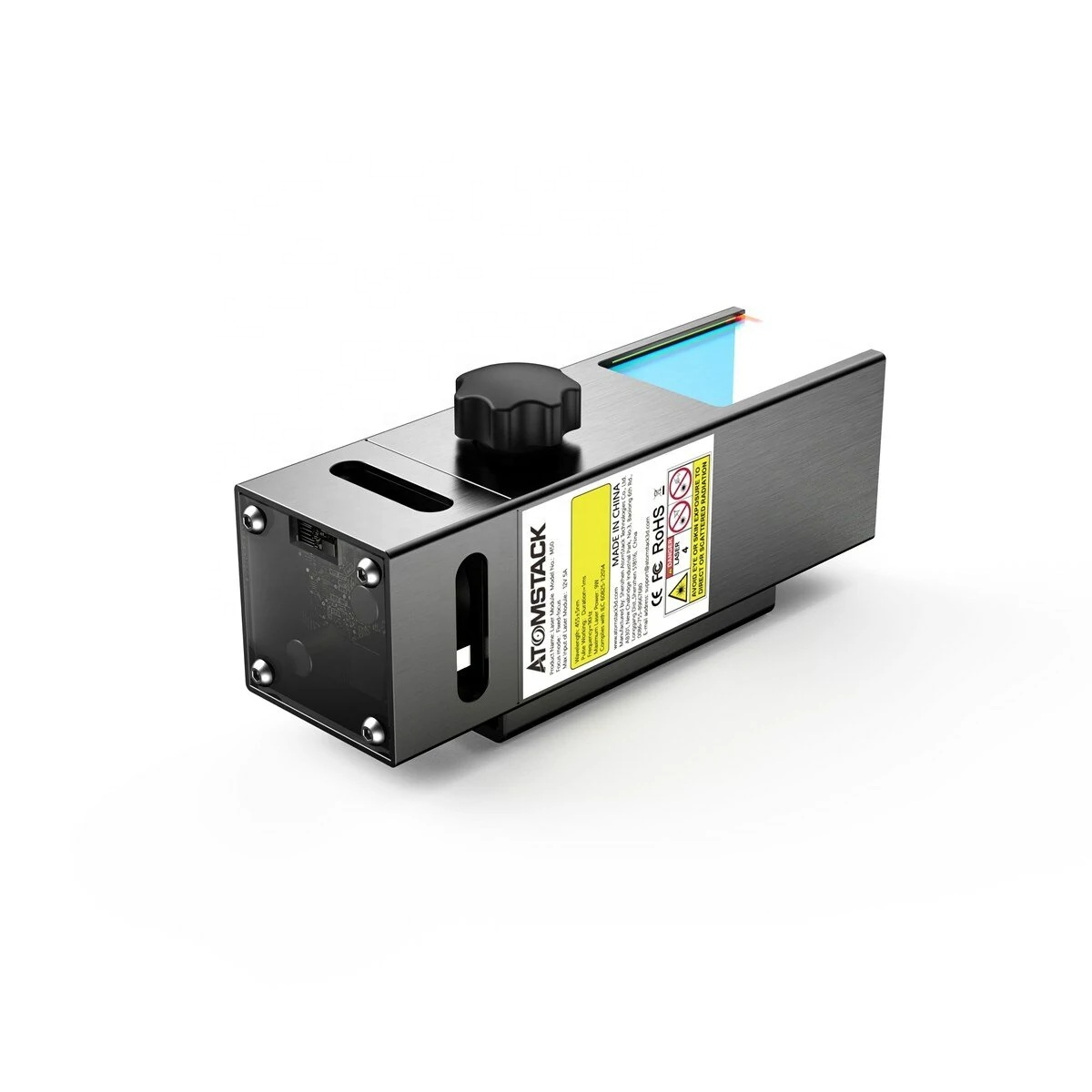

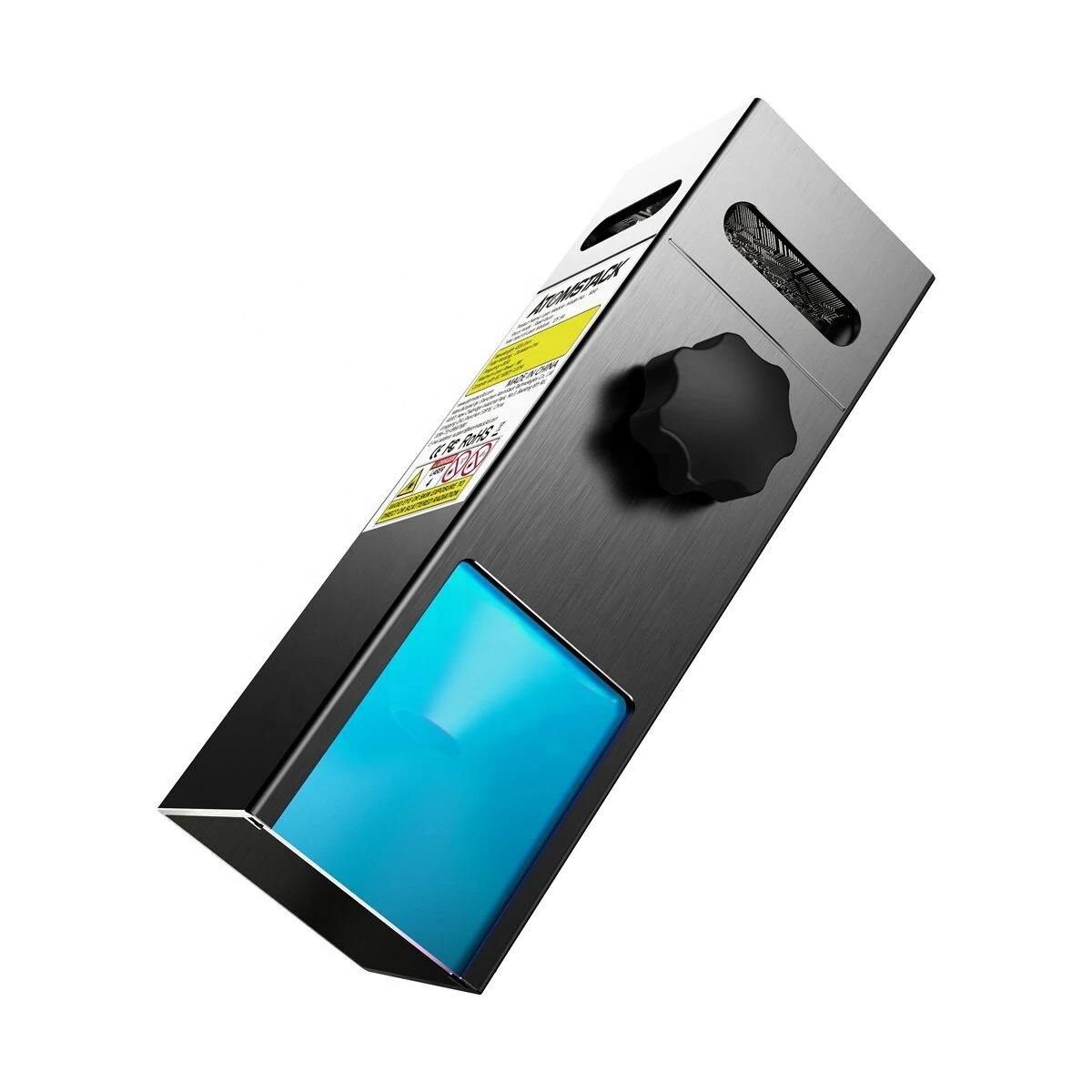

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3.Made of aluminum, strong and durable.4.Upgraded high quality fixed-focus laser, no need to focus.5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
8.0.08*0.15mm double compression spot light coupling technology makes engraving more powerful
and precise .
9.Engraving speed is 200% higher than other 5W lasers.
10.High energy can cut 8.5mm thickness plates at one time.
11.The laser sintering temperature is 1100 degrees, the effect of engraving metal is better.
12.The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.
13.The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
14.The transfer circuit board is compatible with 95% of laser engraving machines on the market,
Including Atomstack, ortur, Neje, twotree, etc.
Brand
|
Atomstack
|
Product Material
|
Aluminum 6061 anode
|
Housing size
|
44*52*50mm
|
Circuit Board Size
|
44*52mm
|
Circuit Board
|
12V/PWM modulation board
|
Wire Rod
|
22# 2P2.54 terminal
reverse wire 80mm |
Optical Lens
|
φ6/glass
|
Fan
|
12V
|
Laser Beam Mode
|
Spot
|
Working Mode
|
Pulse work
|
Lightspot Size
|
0.08*0.15mm
|
Working Time
|
10000H
|
Working Temperature
|
0℃~70℃
|
Storage Temperature
|
一40℃~85℃
|
Sintering
temperature |
1000~1200℃
|
ems
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Condition
|
Optical Output Power
|
Po
|
9.5
|
10
|
W
|
12V Power
|
|
Working current
|
Iop
|
/
|
2.9
|
3.2
|
A
|
|
Operating Voltage
|
Vop
|
/
|
12
|
/
|
V
|
|
Laser Wavelength
|
λp
|
455
|
460
|
nm
|
||
Electric Power
|
Wl
|
/
|
34.8
|
38.4
|
W
|
