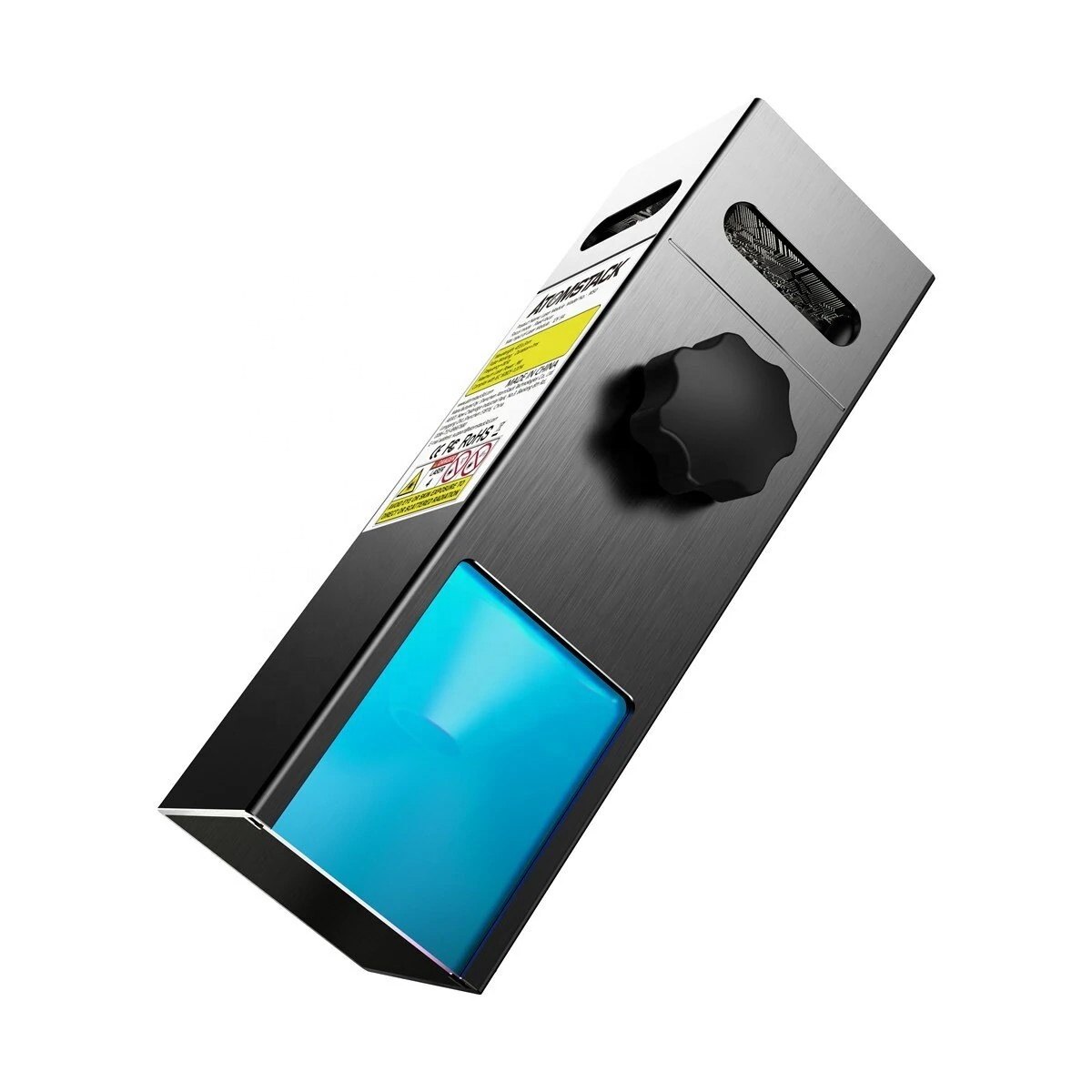

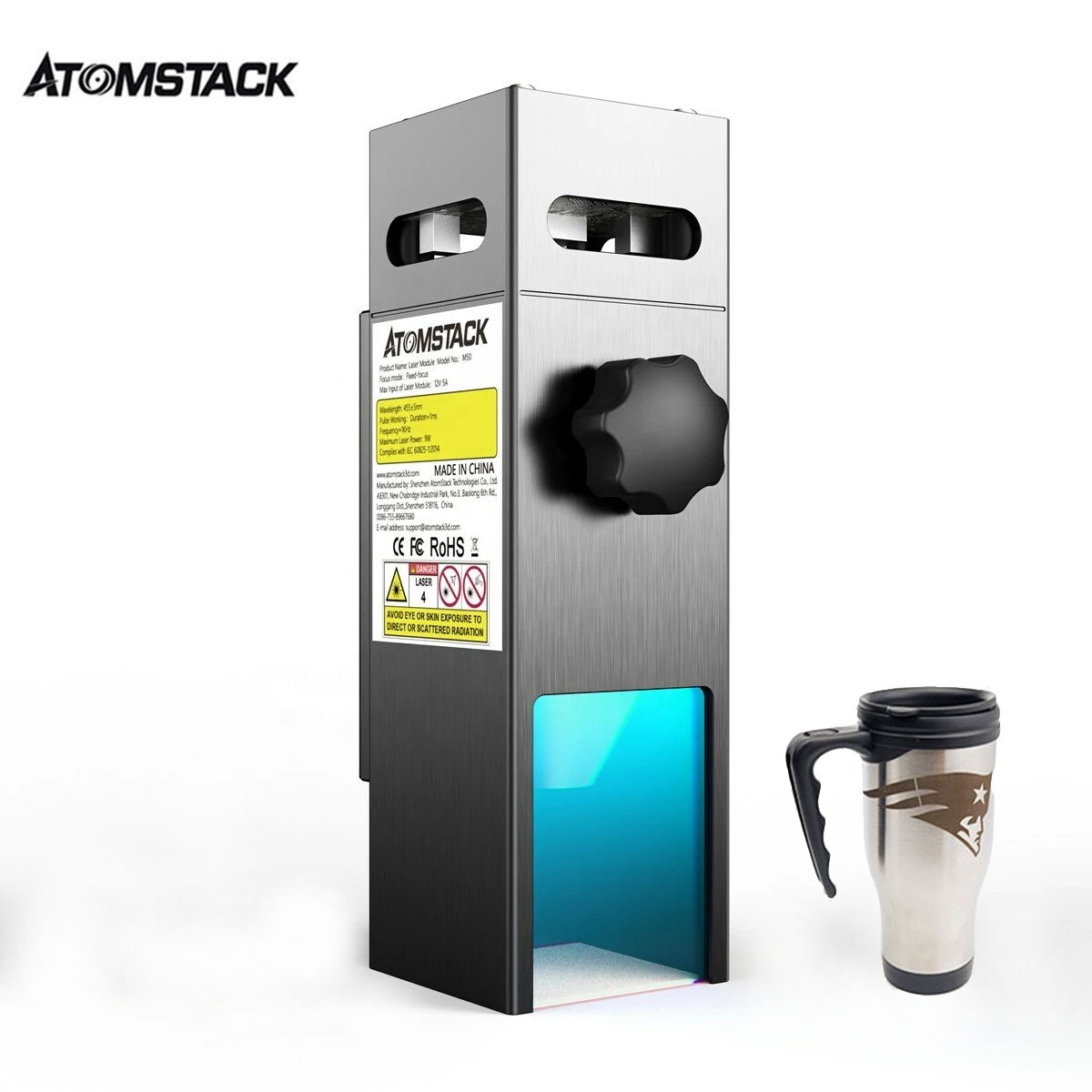

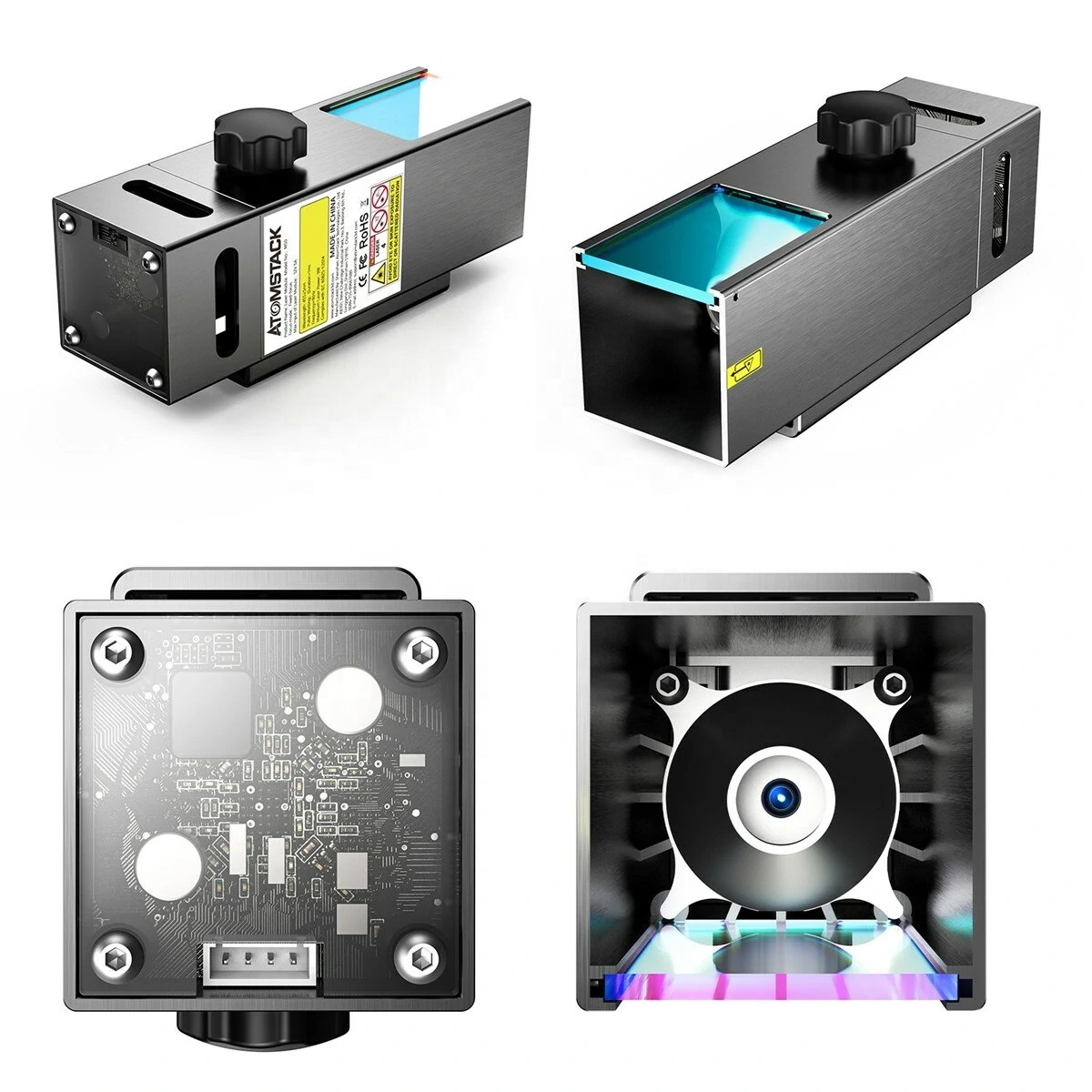

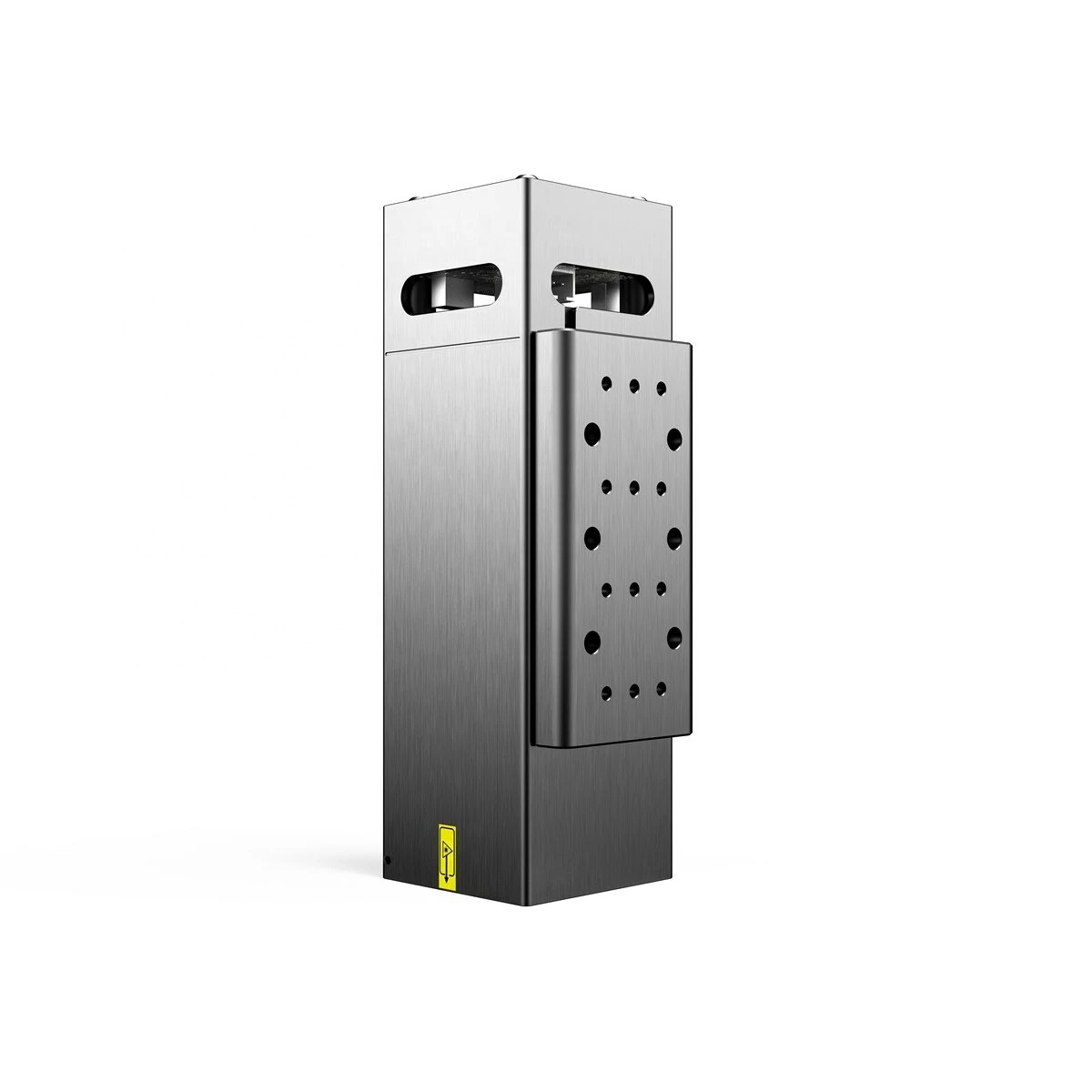

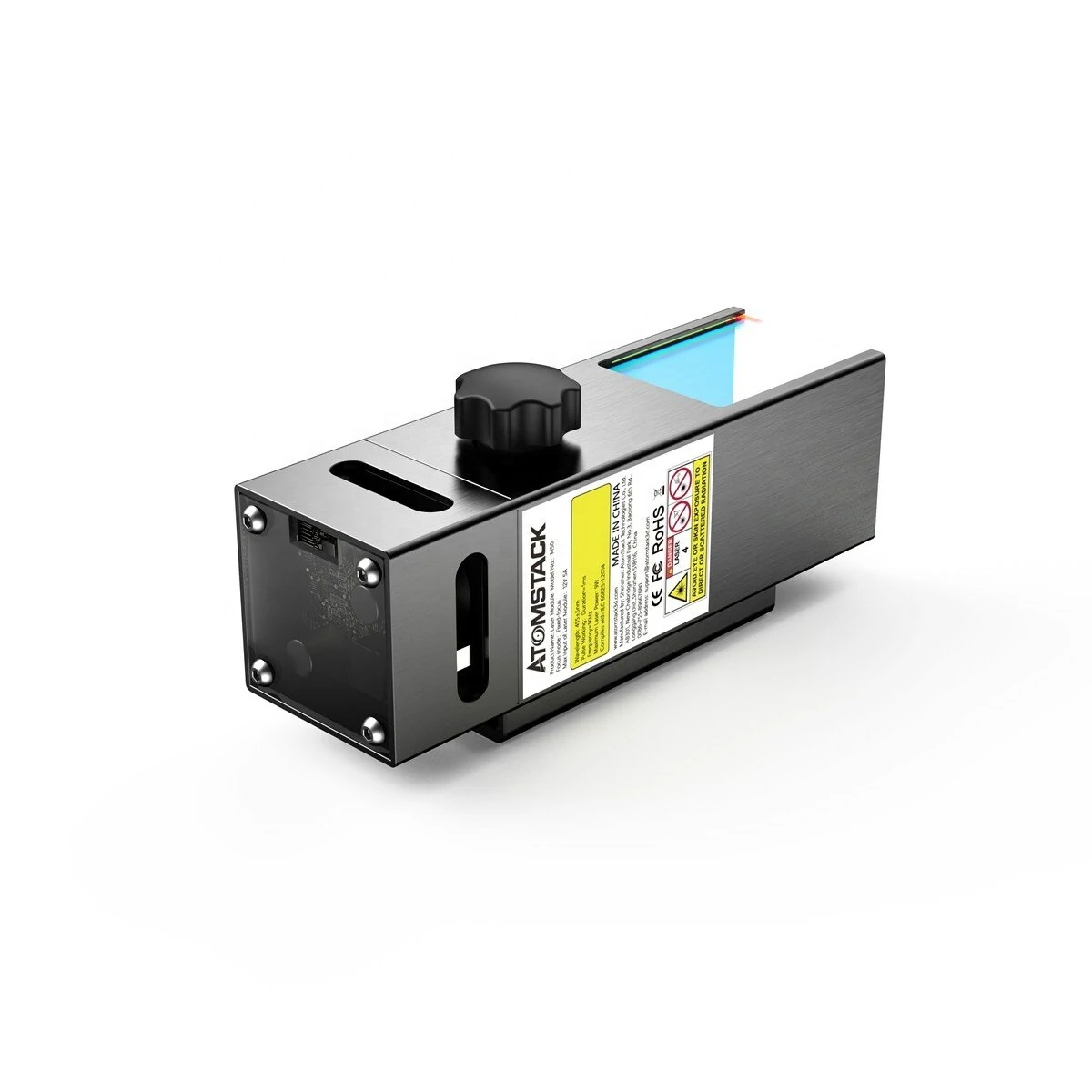

ATOMSTACK M50 50W CNC Laser Module Kit for Wood Acrylic and Leather Cutting Laser Head

$408.13

SKU: 114906544018651 Category:

Description

It is recommended to buy the machine to be used with the laser module, click the picture below to buy.

Product Description

Product Features

1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.


2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.

3.Made of aluminum, strong and durable.

4.Upgraded high quality fixed-focus laser, no need to focus.

5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.

7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.

8.0.08*0.15mm double compression spot light coupling technology makes engraving more powerful
and precise .

9.Engraving speed is 200% higher than other 5W lasers.

10.High energy can cut 8.5mm thickness plates at one time.

11.The laser sintering temperature is 1100 degrees, the effect of engraving metal is better.

12.The laser has a built-in horizontal gyroscope anti-tip protection device, and it stops working when the tilt angle is 20°.

13.The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.

14.The transfer circuit board is compatible with 95% of laser engraving machines on the market，
Including Atomstack, ortur, Neje, twotree, etc.

Brand
Atomstack
Product Material
Aluminum 6061 anode
Housing size
44*52*50mm
Circuit Board Size
44*52mm
Circuit Board
12V/PWM modulation board
Wire Rod
22# 2P2.54 terminal
reverse wire 80mm
Optical Lens
φ6/glass
Fan
12V
Laser Beam Mode
Spot
Working Mode
Pulse work
Lightspot Size
0.08*0.15mm
Working Time
10000H
Working Temperature
0℃~70℃
Storage Temperature
一40℃~85℃
Sintering
temperature
1000~1200℃

ems
Symbol
Min
Typ
Max
Unit
Condition
Optical Output Power
Po
9.5
10
W
12V Power
Working current
Iop
/
2.9
3.2
A
Operating Voltage
Vop
/
12
/
V
Laser Wavelength
λp
455
460
nm
Electric Power
Wl
/
34.8
38.4
W

Applicable materials

Notice

1.The laser light emitted by the laser module is likely to injure persons’eye, so do not directly gaze its end surface and wear appropriate safety glasses to prevent laser light when it is working.
2.Laser module needs an appropriate laser driver(PCB). When the laser module connects with power supply, please set the output voltage to zero. The adjustment of the current should be slowly increased or decrease to avoid damaging the device.
3.Keep the device working or storing in a dry environment. The anti-dust grade is over one million, in order to prevent dust inside the lens to affect the laser dot shape.

4.Working at high temperatures will increase the threshold current, reduce conversion efficiency and speed up the aging of the device.

5.When output power is higher than it’s specific parameter of operation, it will accelerate the aging of the device.

6.When the operation temperature of the laser diode is over 70degree, please do well heat dissipation of it.

7.This laser module is an electrostatic sensitive device. Please make sure ground yourself or wear an antistatic wrist strap before you take it.

Additional information

Model Number

M50 50W EU, M50 50W US, M50 50W UK, M50 50W AU
