Description

Features:

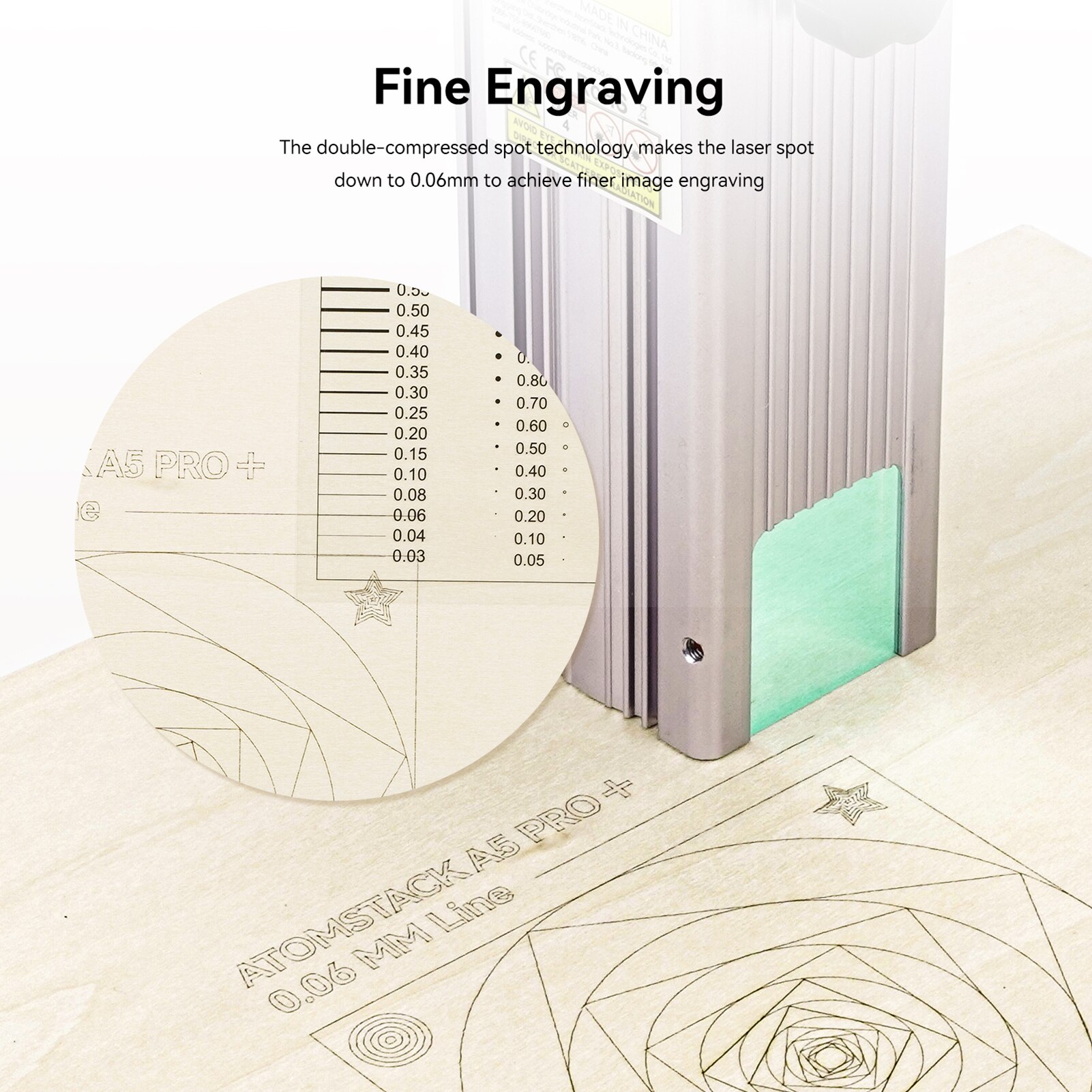

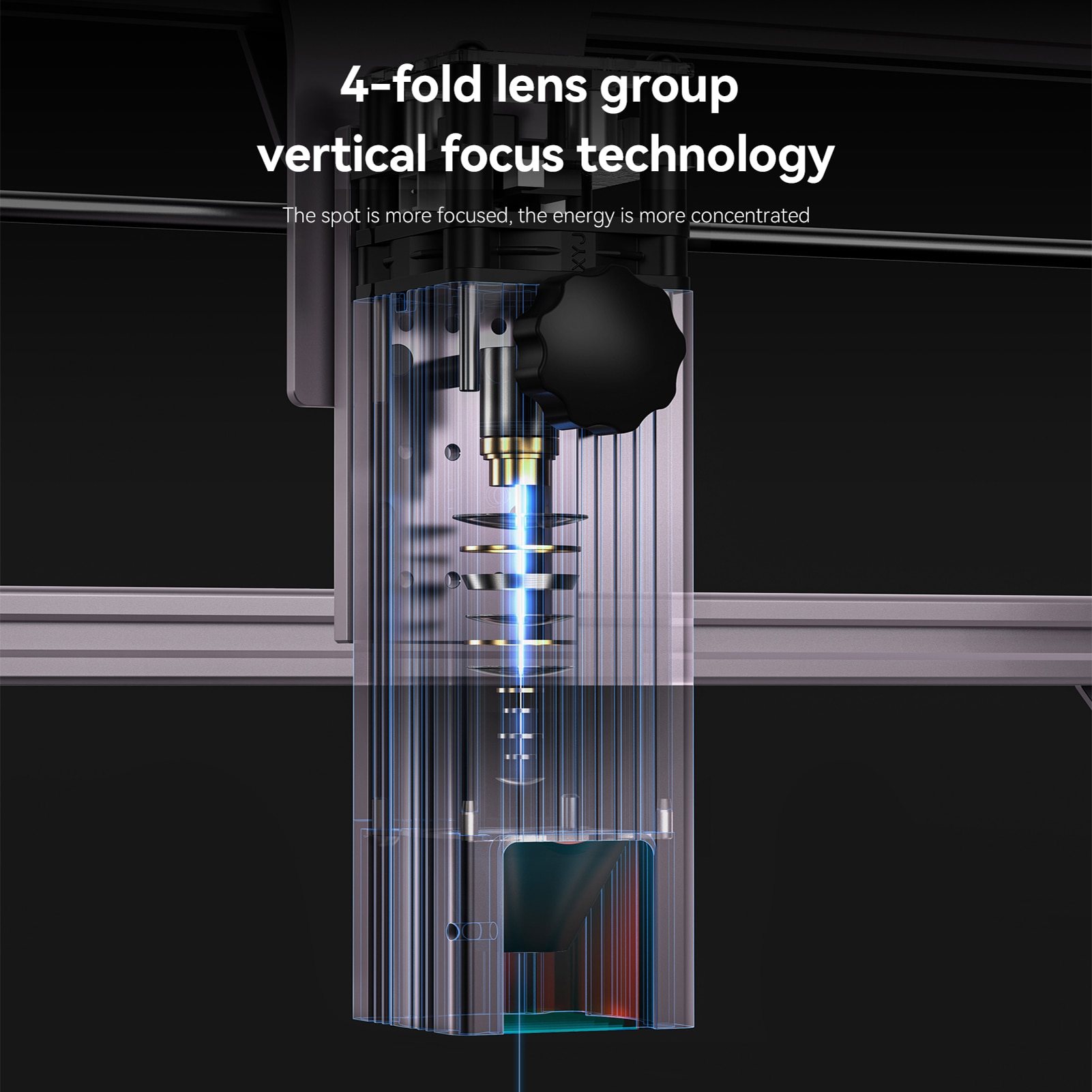

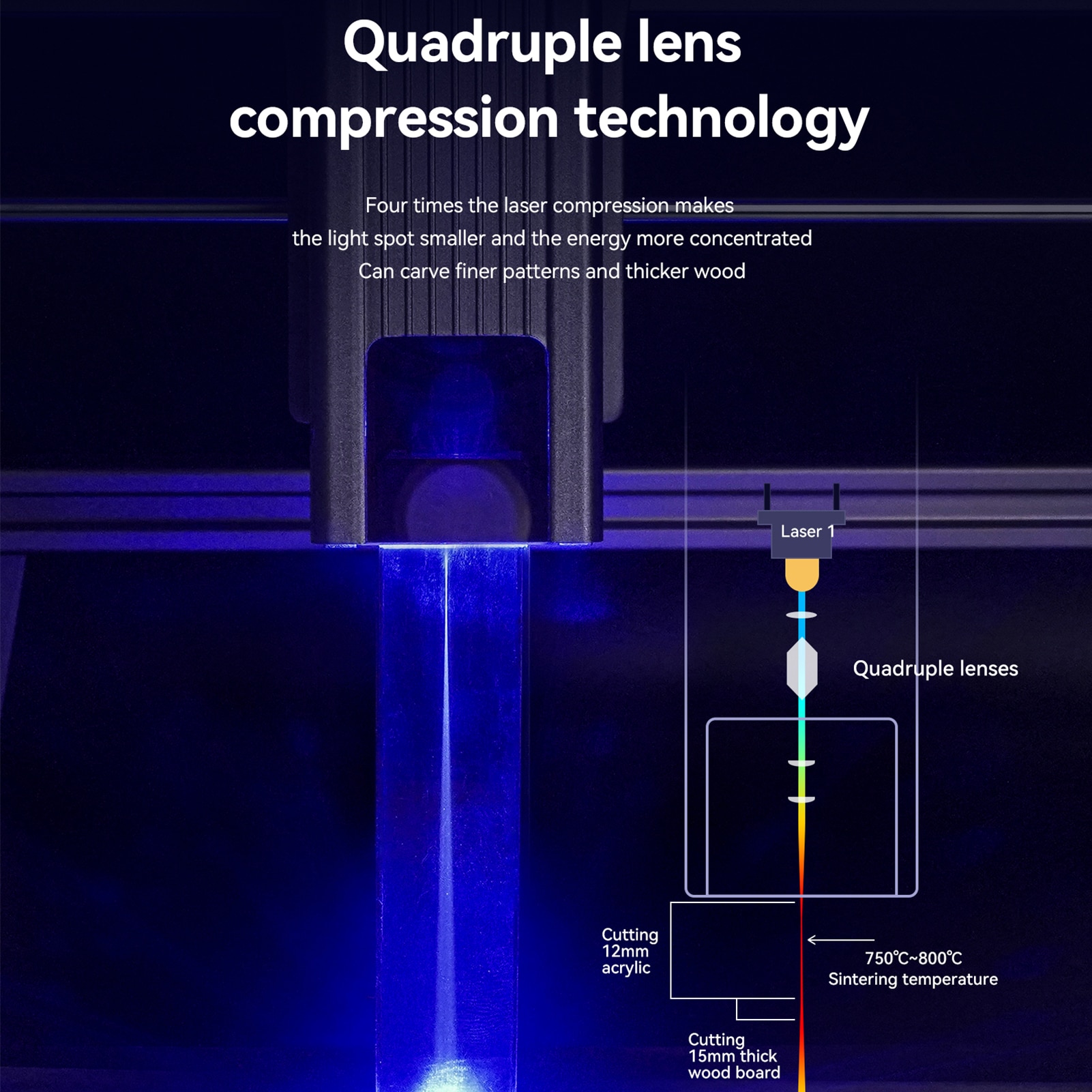

Newly upgraded ultra-fine com-pression laser: The laser adopts 4-fold
lens group collimation and focus technology, the optical power is
4.5~5.5W, and the laser focus area is reduced to 0.02mm². The
high-density laser can easily cut 10mm thick wooden boards, 6-8mm black

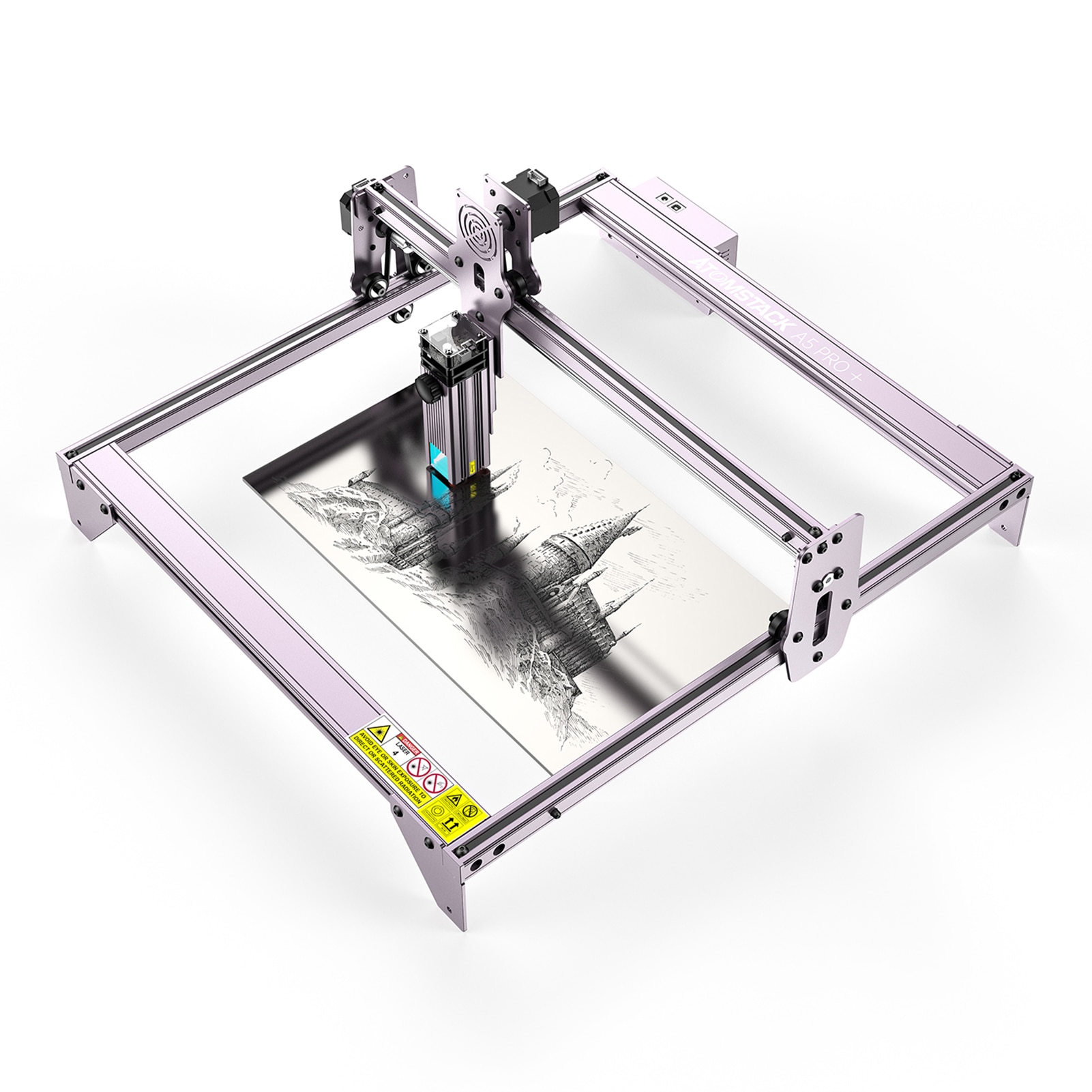

acrylic; can directly engrave mirror stainless steel metal and ceramics.

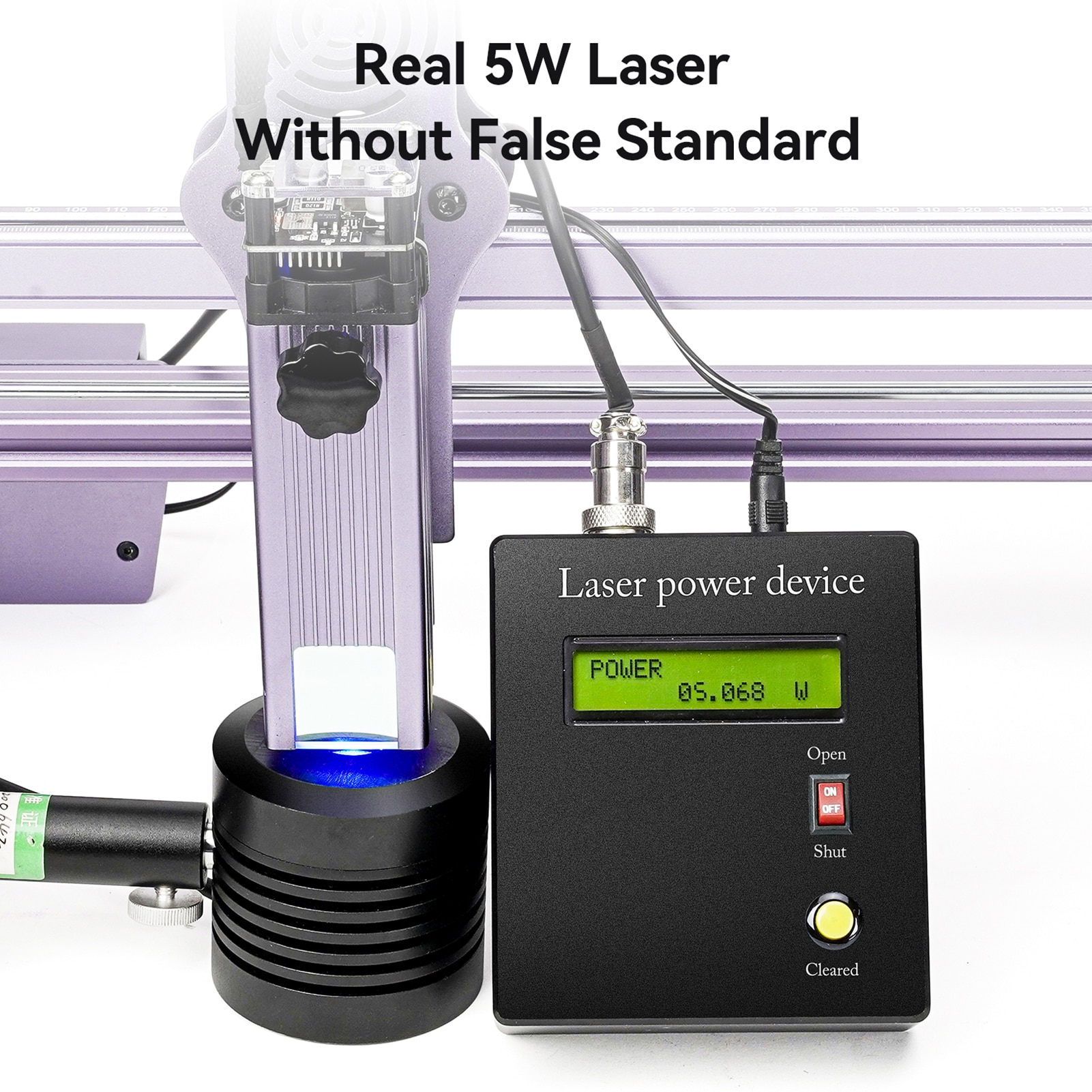

Powerful Engraving Performance: The real 10W laser can easily cut
through 15mm thick wood and 12mm acrylic, and engraver large areas of
metal and wood. The metal engraving speed boost 200% and the engraving
effects obviously improved.

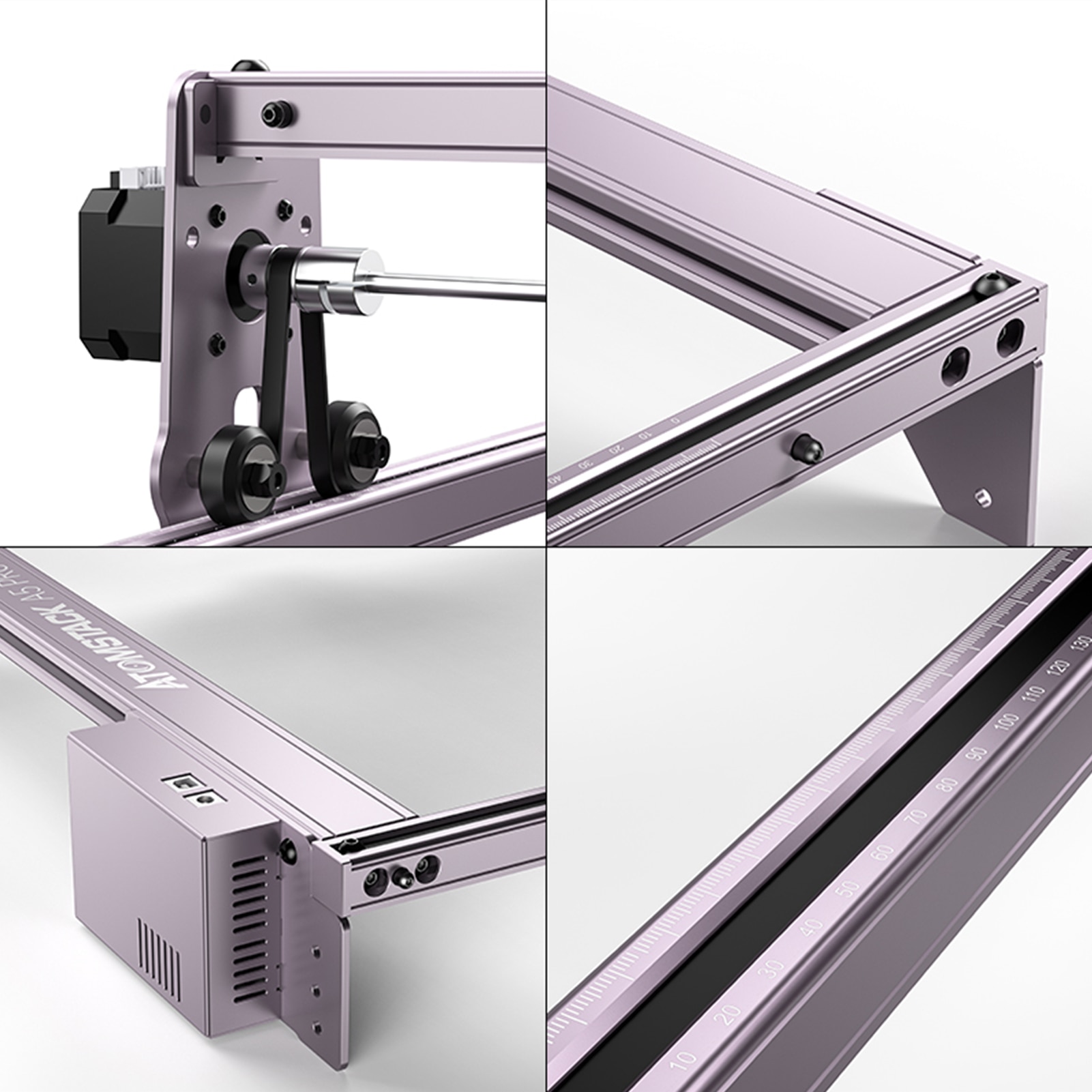

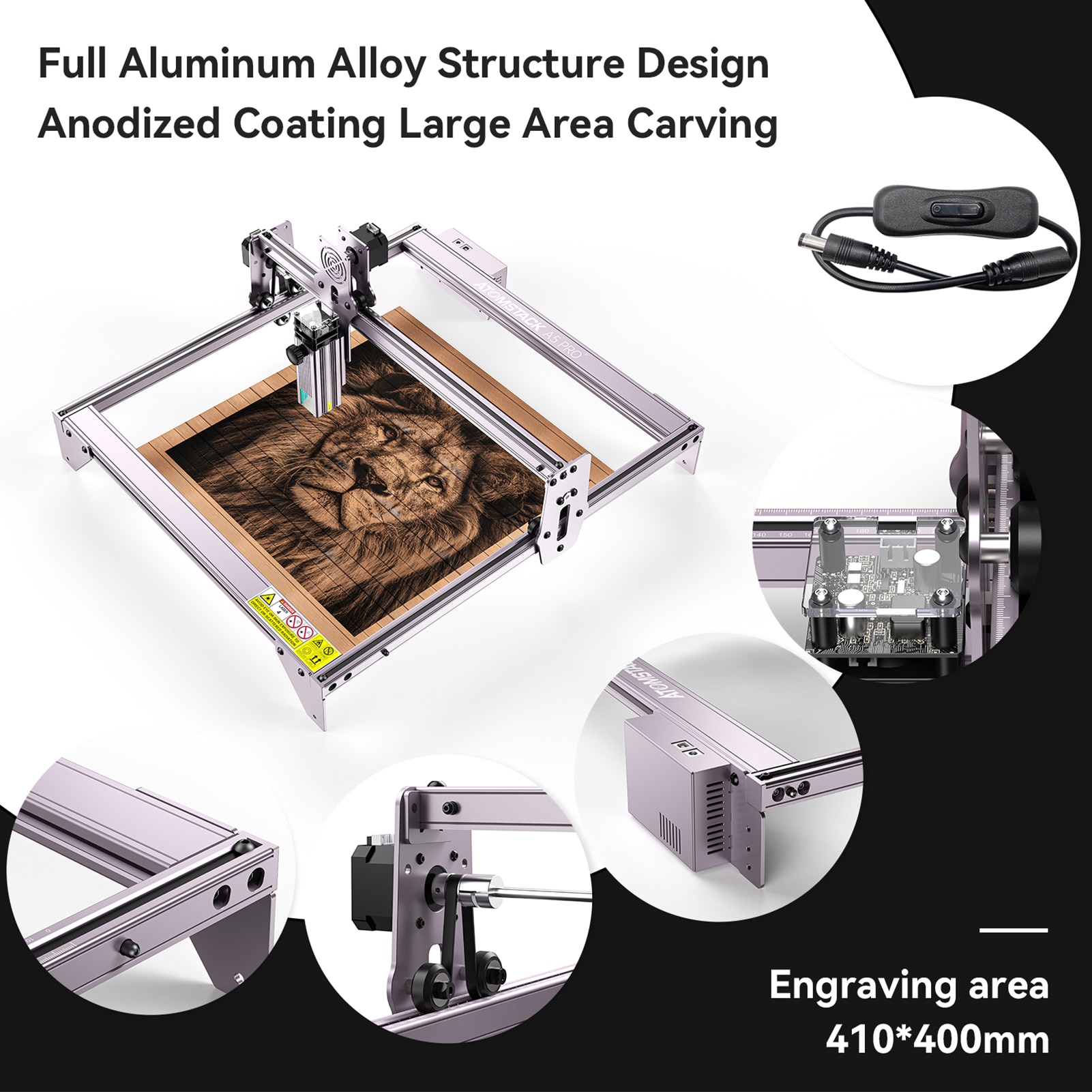

Modular Design: Easy to replace or upgrade the partss and achieve more
functions. Spiral button is more convenient for height adjustmen.

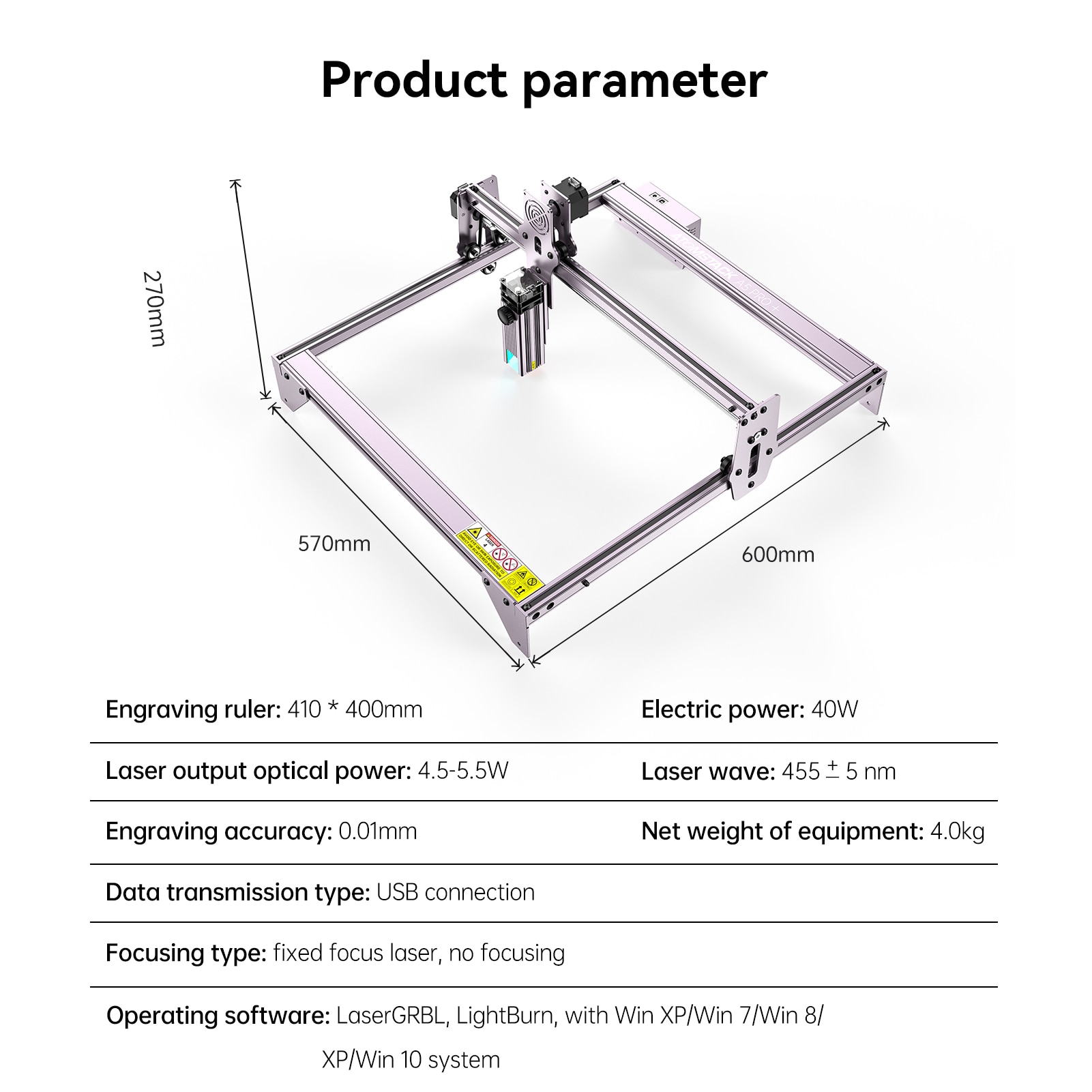

Specifications:
Model: ATOMSTACK A5 PRO Upgrade
Working Area: 410*400mm

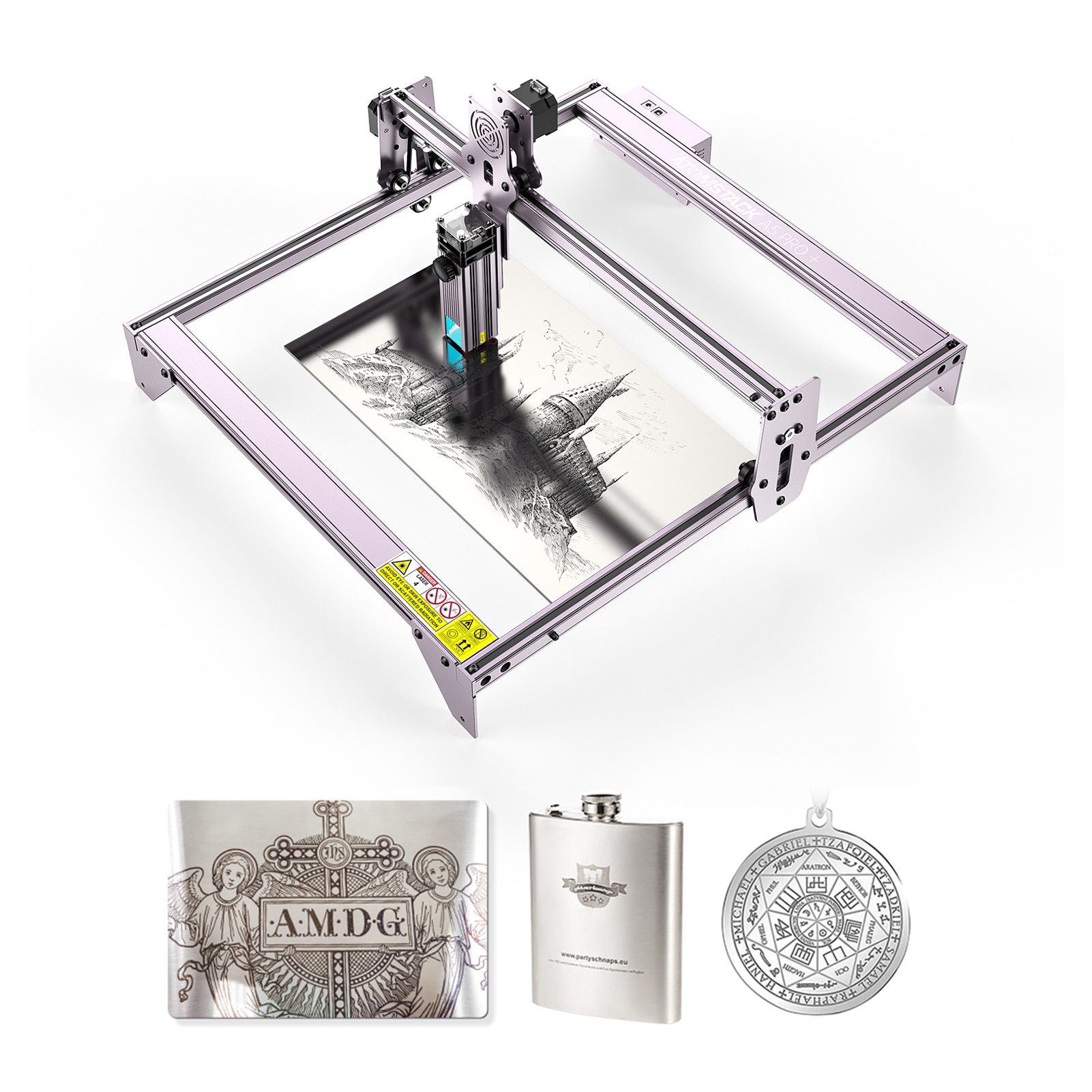

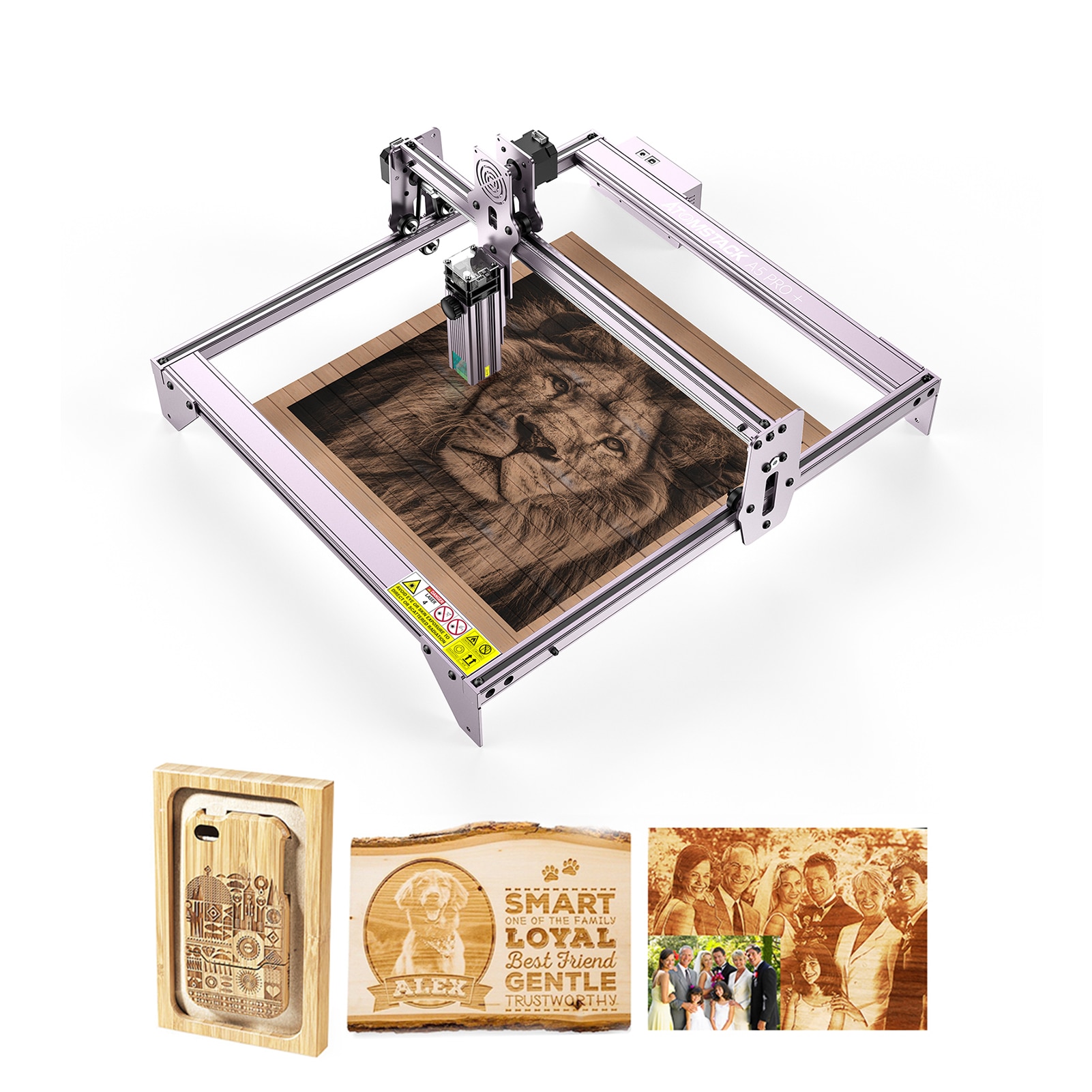

Support Carving Objects: Wood, bamboo, cardboard, plastic, leather, PCB
board, aluminum oxide, non-reflective electroplating layer and paint
surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton
cloth, slate;
Support Cutting Objects: Cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
Machine Working Power: 40W
Laser Output Power: 5-5.5W
Wave Length: 445 ± 5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed focus laser, no need to focus

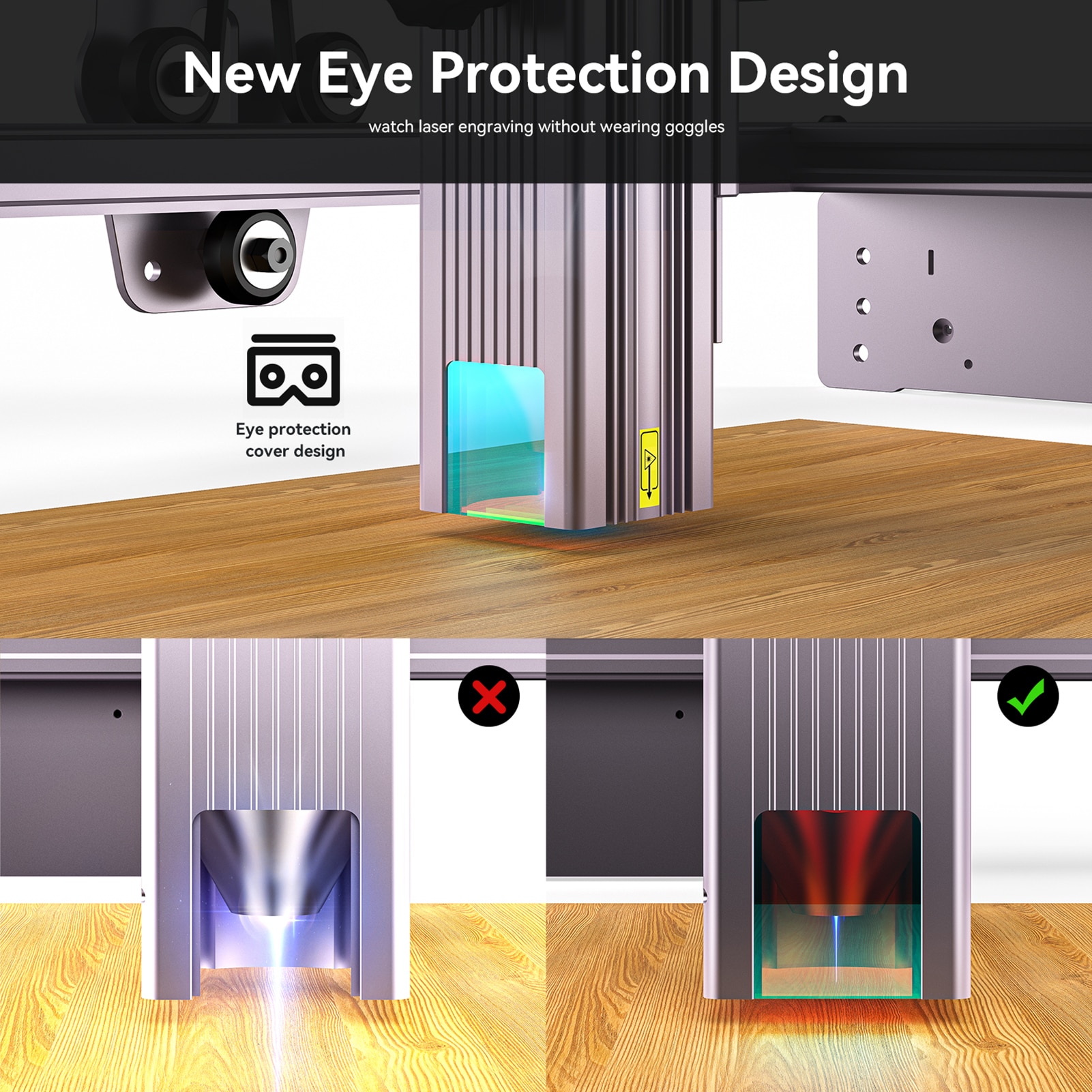

Laser Protective Cover: Panoramic filter glass

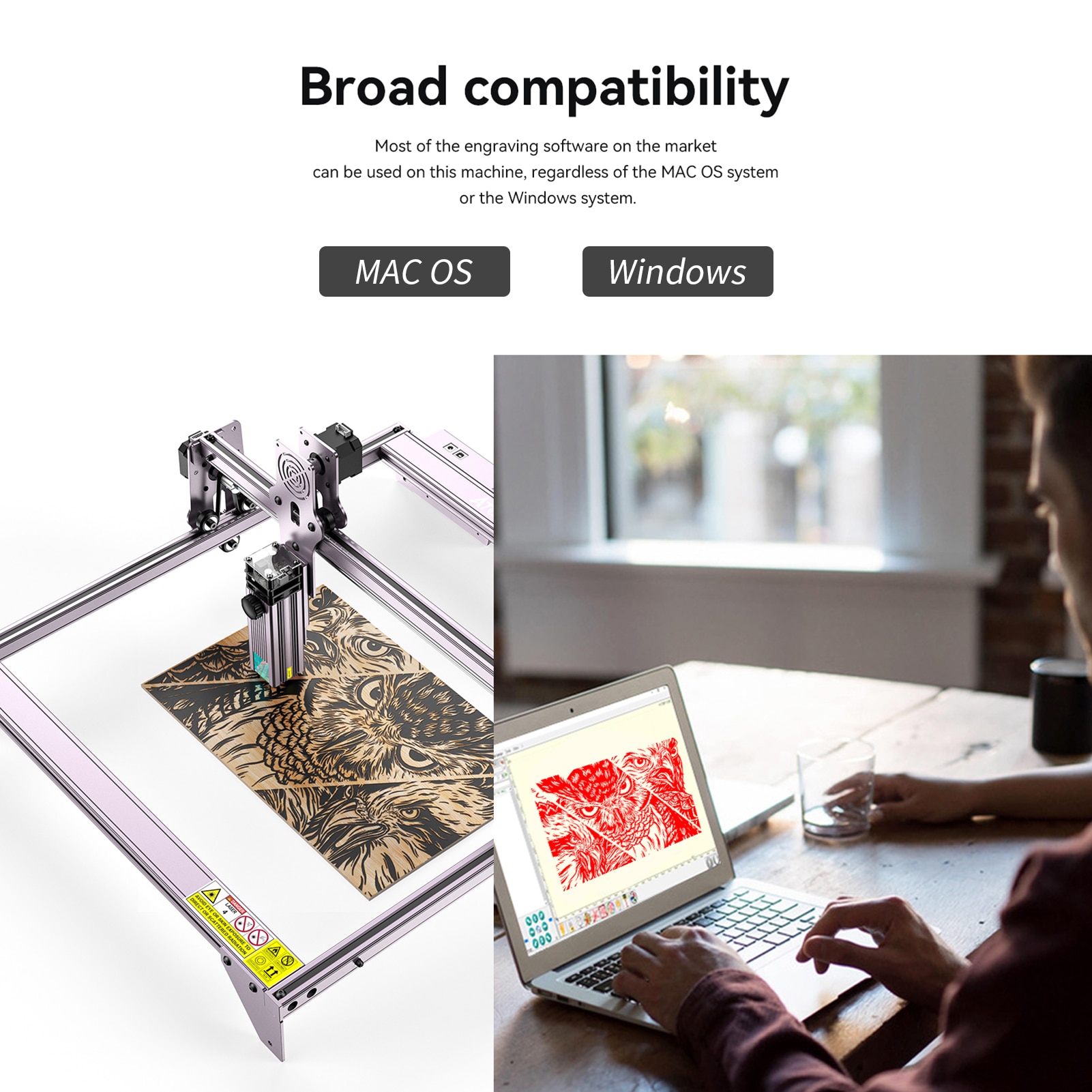

Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Ttransmission Method: USB connection.
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Machine Weight: 3.5kg/ 7.7lbs
Machine Size: 57*60*27cm/ 22*23.6*10.6in
Package Weight: 5kg/ 11lbs
Packge Size: 62*34.5*13cm/ 24.4*13.6*5.1in

Note:
– When operating the laser engraving machine, please install the laser
protective cover. If it is not installed, you need to wear goggles.
– Please do not touch the laser emitter with your hand, or it may burn your hand.
– Please avoid strong impact on the machine.
– Children under 14 are not allowed to use this product and children over 14 need adult supervision.
– The light engraving machine can not be directly applied to any mirror
reflecting object, which may cause injury to the operator or burn the
laser.

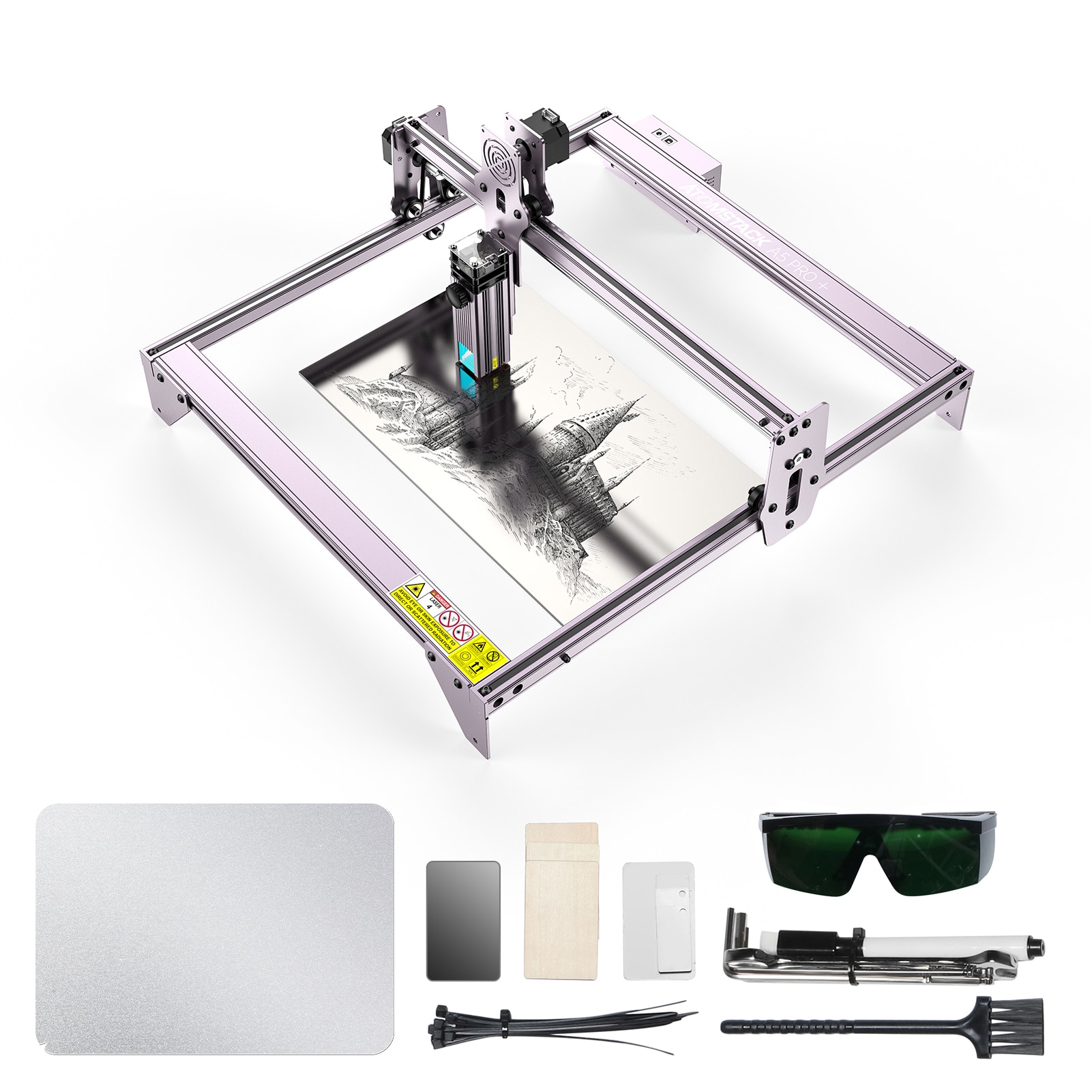

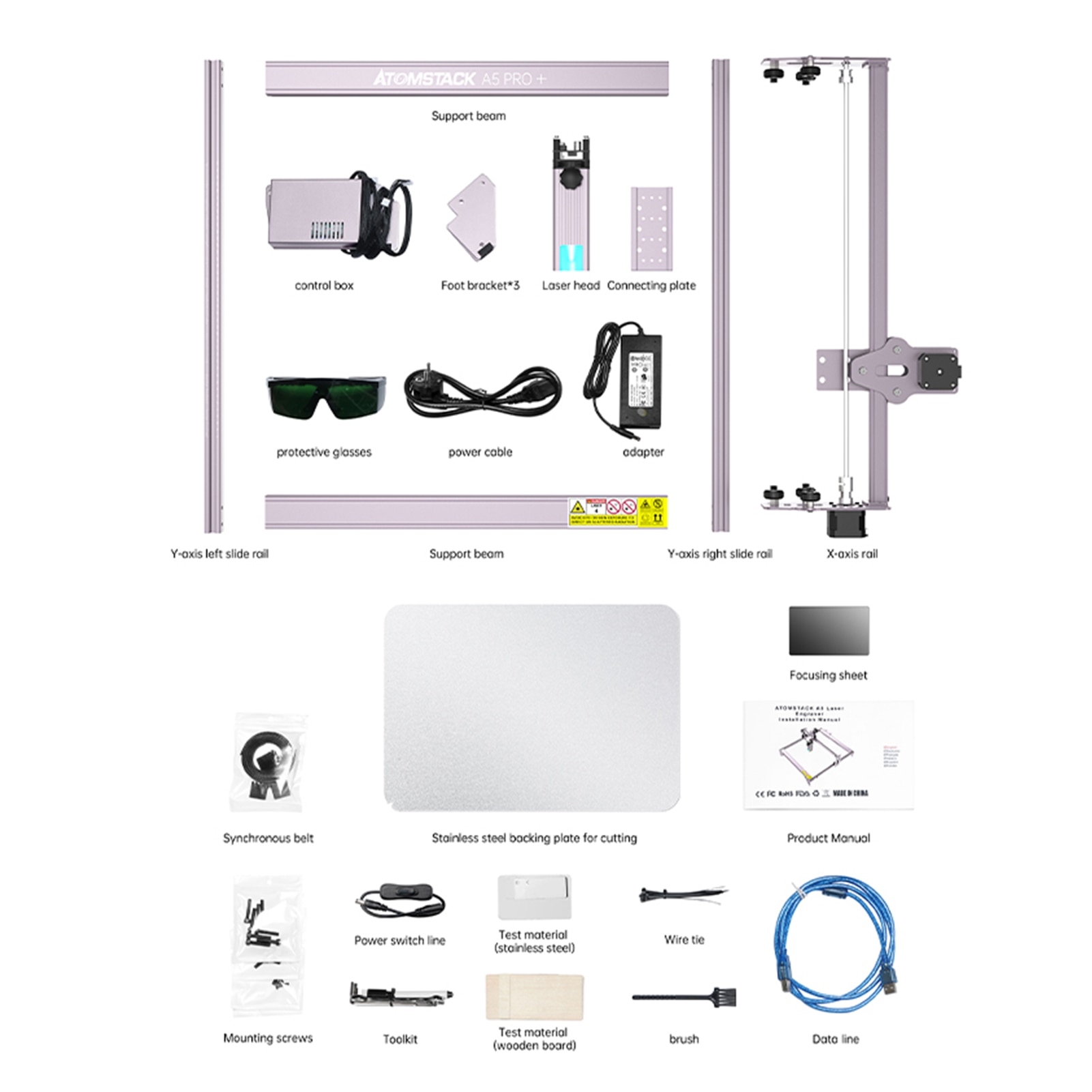

Packge List:
1* Machine Kit
1 * Control Box
1 * Goggles
1 * Power Supply
1 * USB Cable
