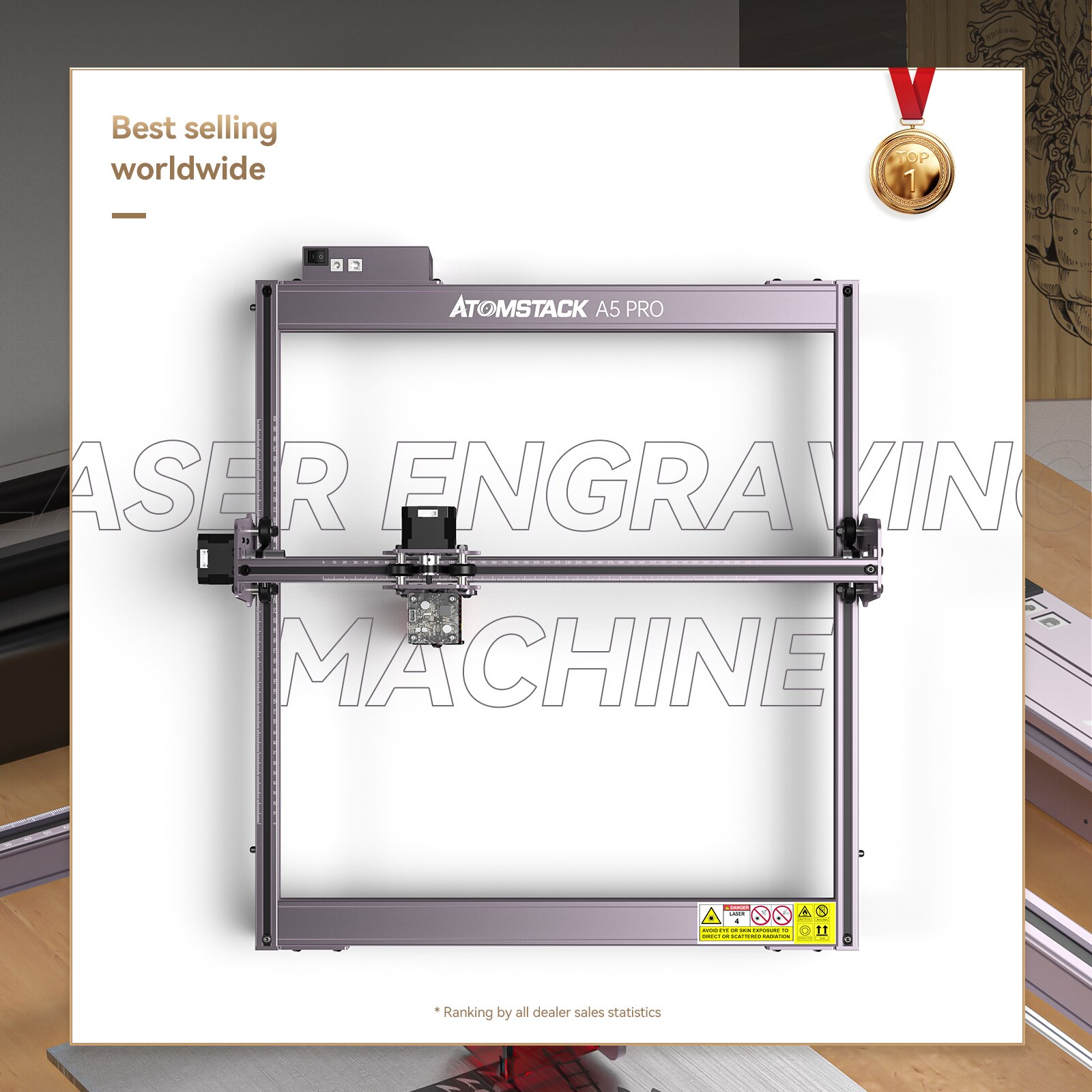

Product Parameters

Model

ATOMSTACK A5 Pro

Material

Aluminium Alloy

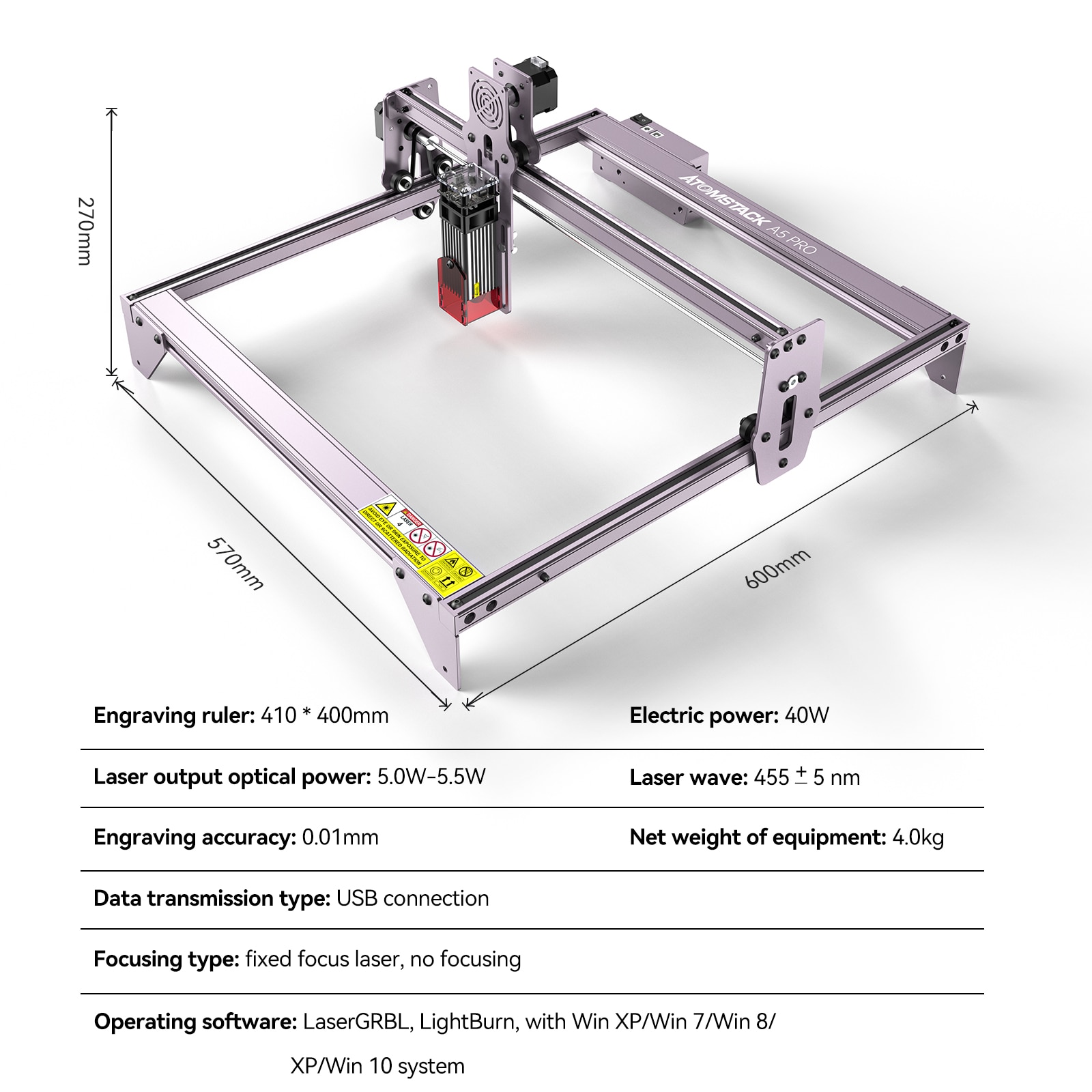

Equipment Size

570*600*270mm

Equipment Weight

3.42 kg

Package Weight

5.07 kg

Engraving Accuracy

0.01mm

Working Size

410*400mm

Carving Materials

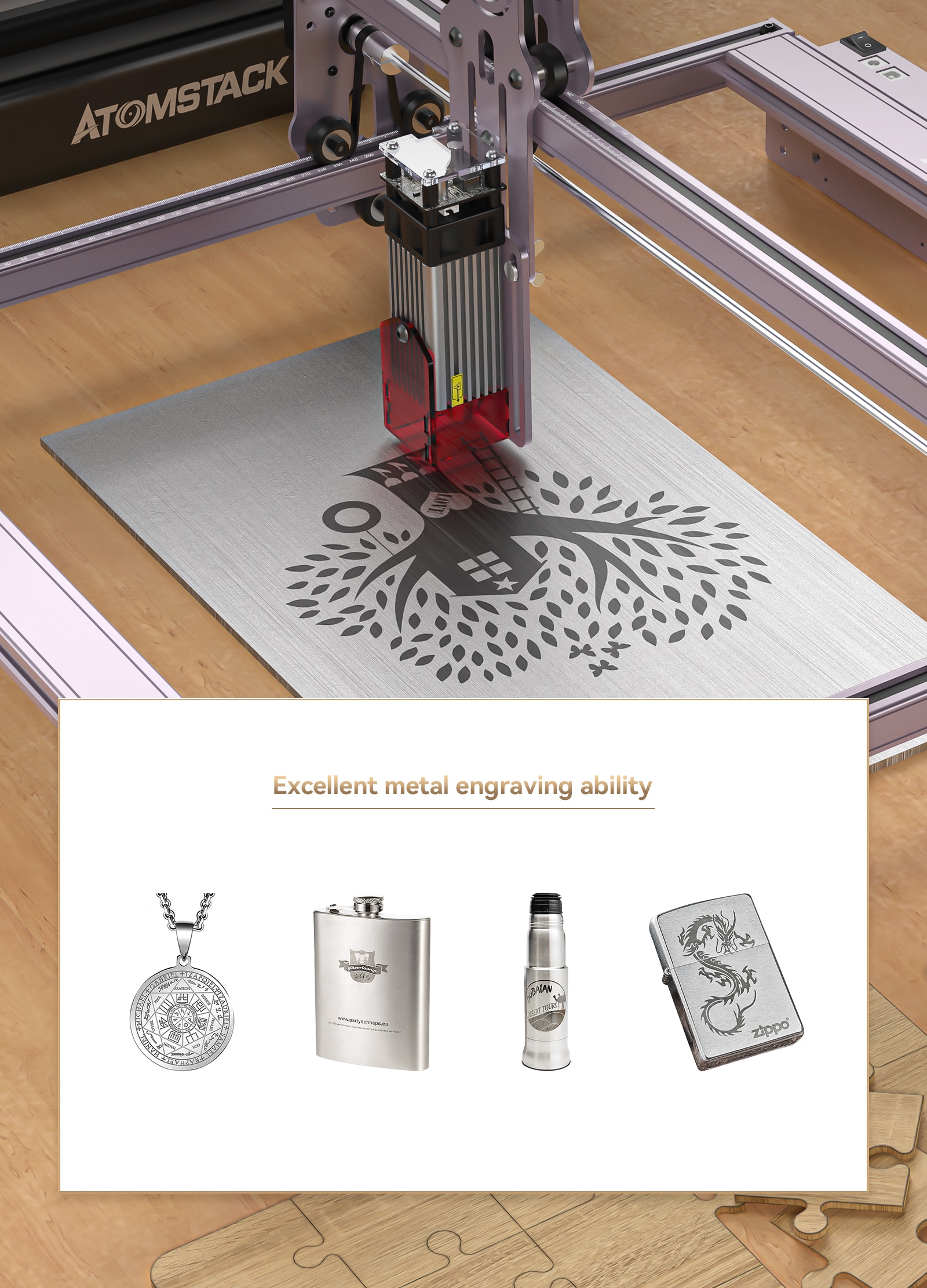

WoodBambooCardboardPlasticLeatherMDFSlateLacquered MetalMirror Stainless Steel.etc

Cutting Material

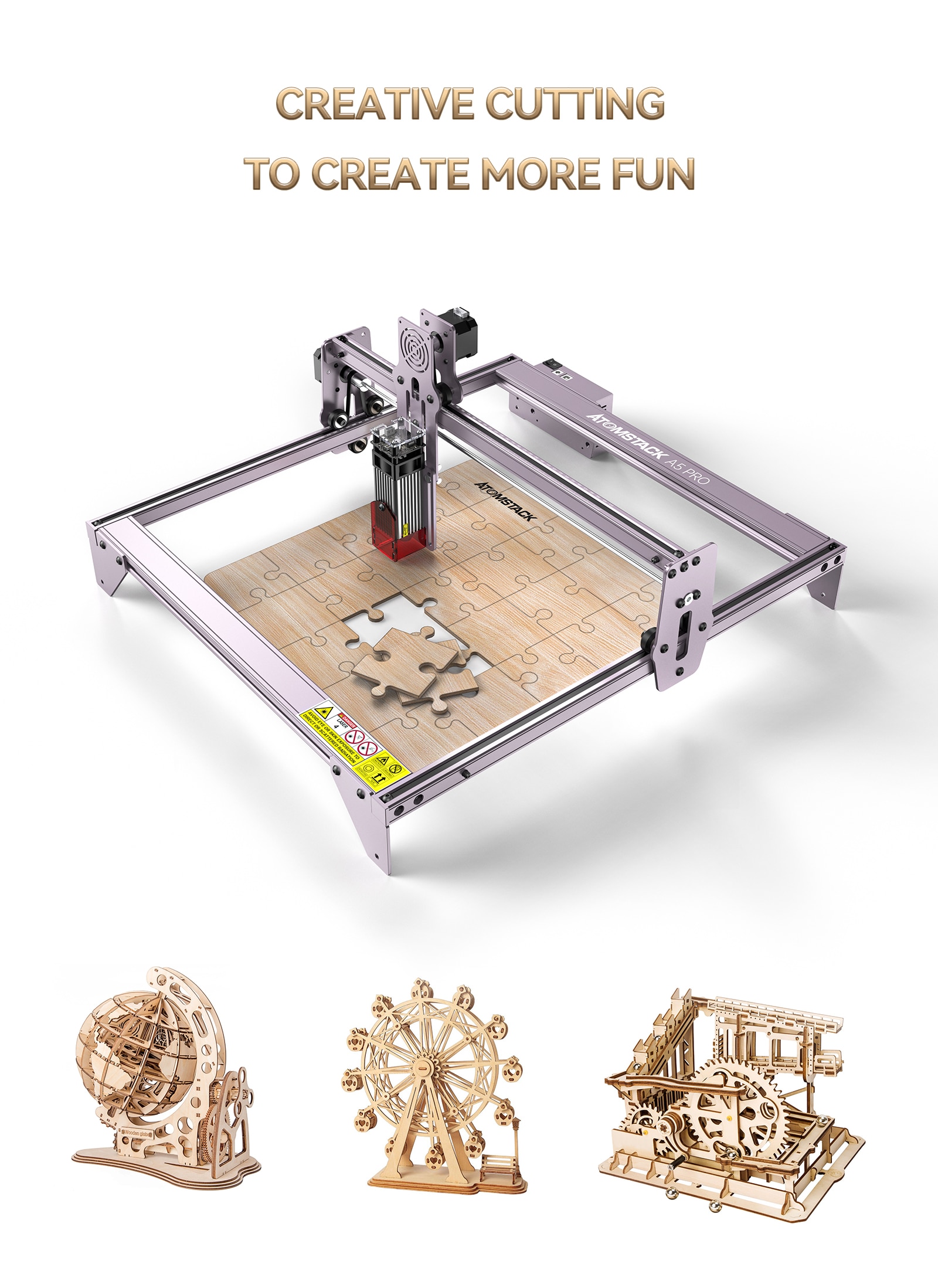

CardboardNon-woven FabricVeneerAcrylicSome Thin Plastic BoardSpongeMDFLeather.etc

Focusing Method

Fixed Focus Laser

Laser Protective Cover

YES

Data Transmission Method

USB Connection

Operating Software

LaserGRBLLightBurn.etc

Support Systerm

Win XP / Win 7 / Win 8 / XP / Win 10 /MacOSX system

Support Input Format

NC BMP JPG PNG DXF,etc

Technical Parameter

Laser Power

40W

Laser Output power

5-5.5W

Wave Length

445 ± 5nm

Laser Spot

0.08mm*0.08mm

Input Voltage

AC100-240V,50/60Hz

Output Voltage

DC12V5A

Certification

CE FCC RoHS FDA

ATOMSTACK A5 Pro Feature Description

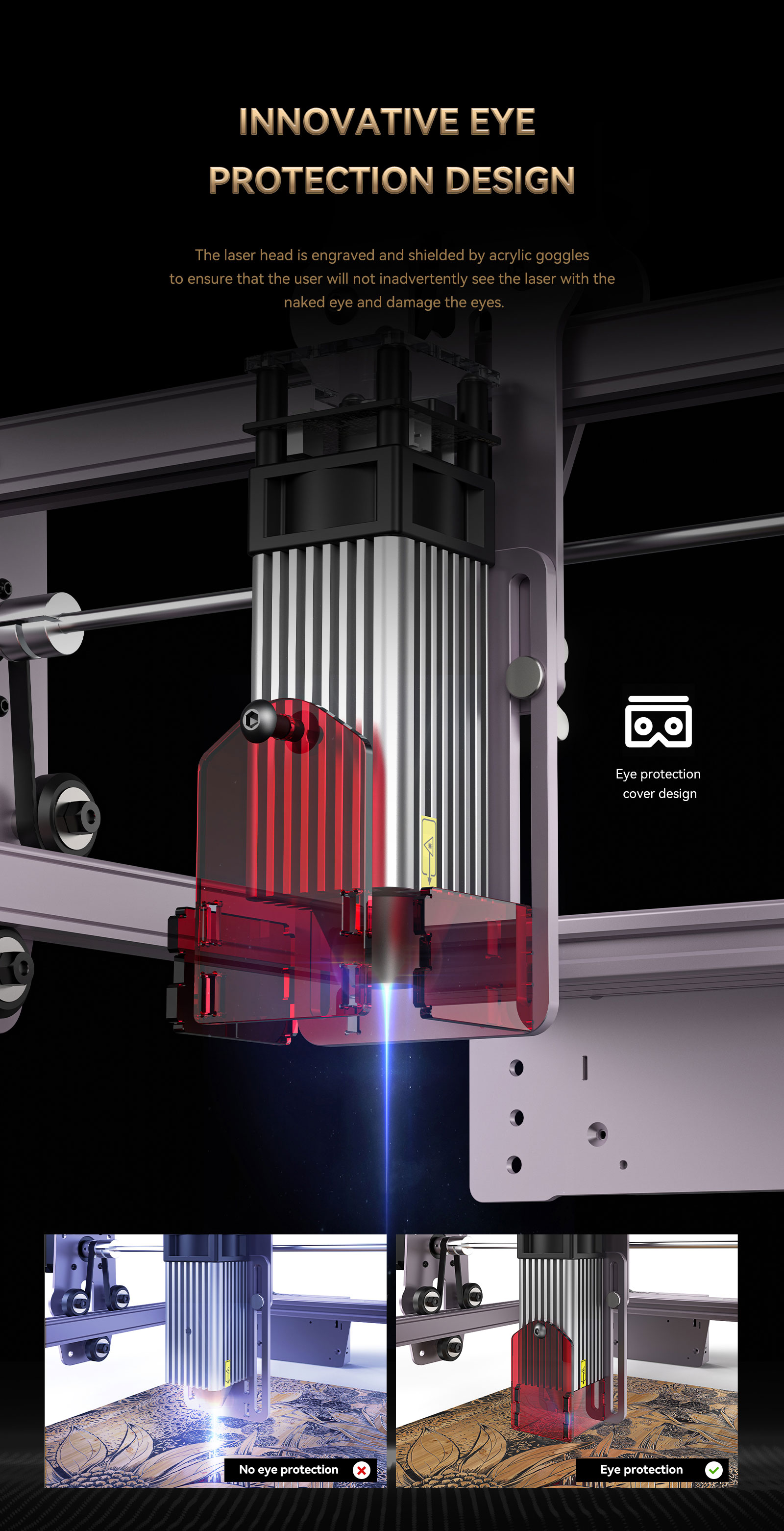

New Eye Protection Design:

The laser protective cover perfectly protect your eyes,filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

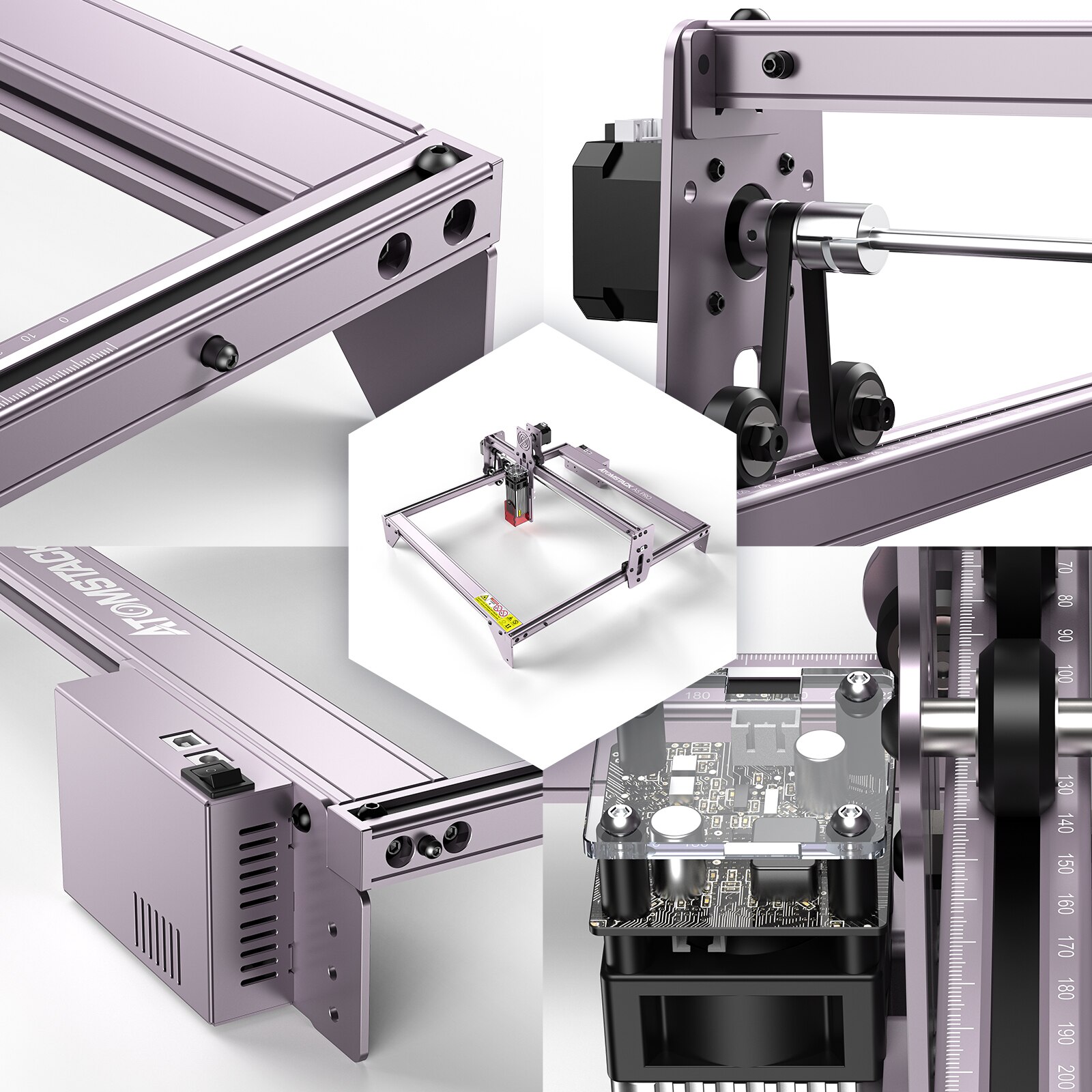

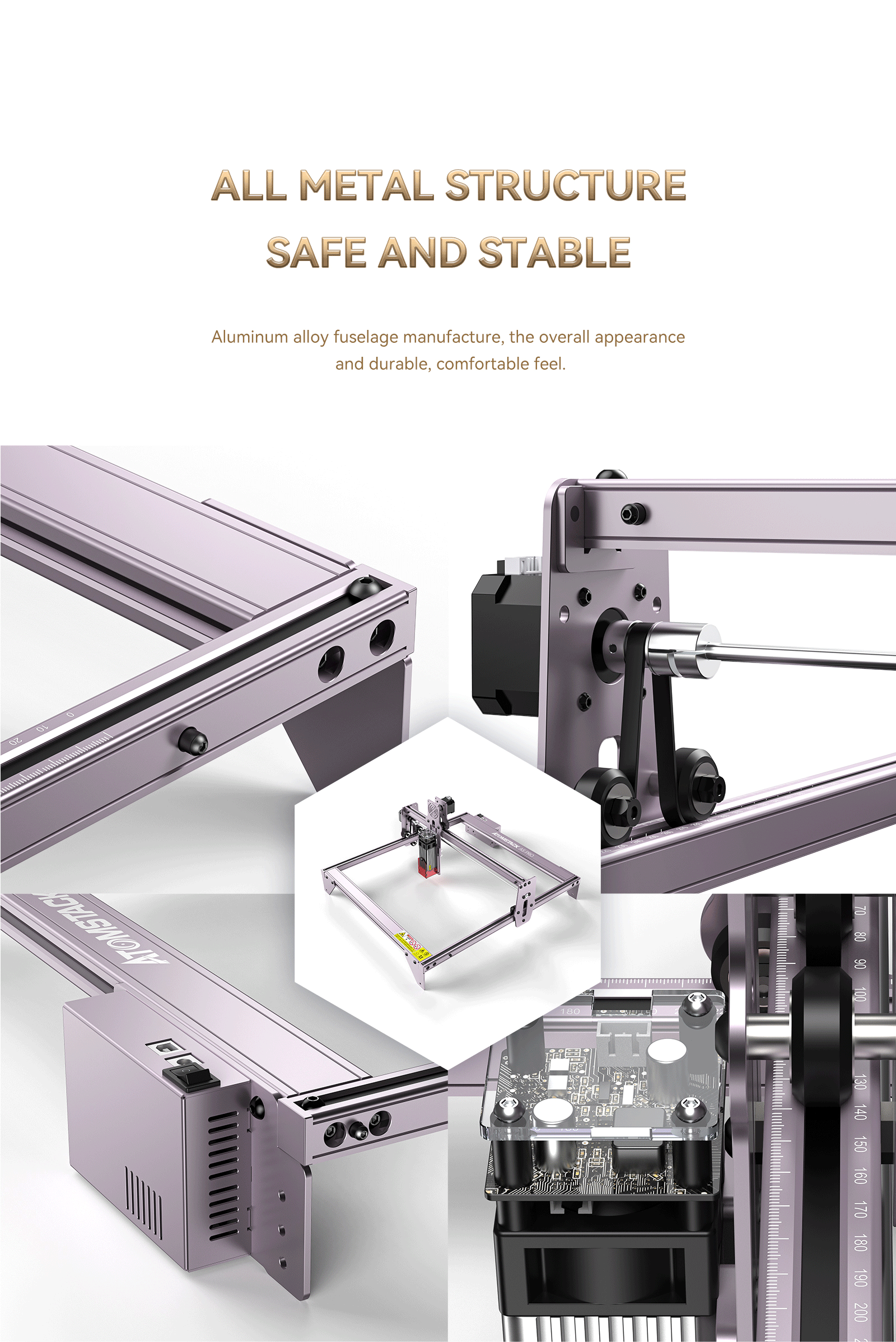

Solid And Easy Installation Structure Design

The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

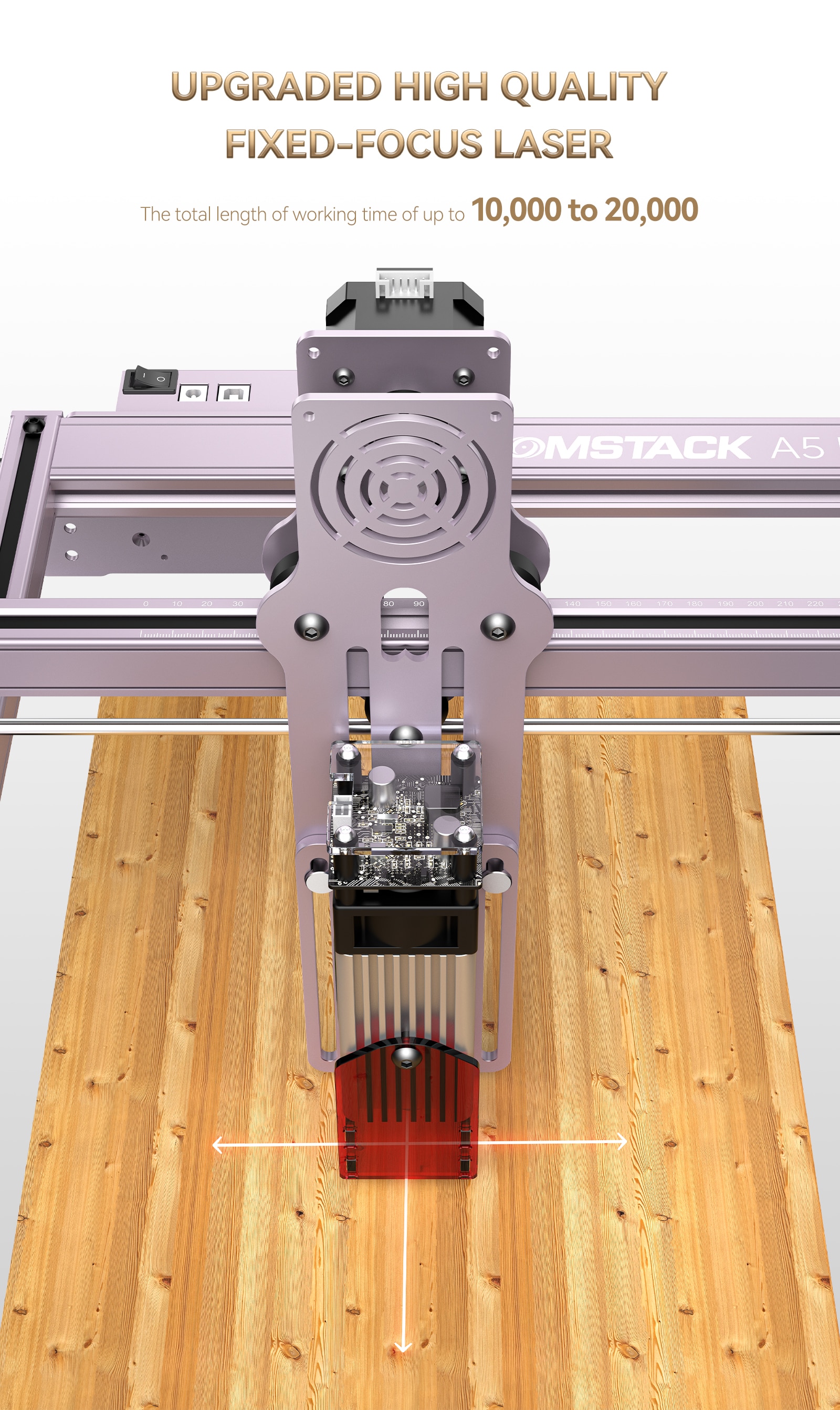

Upgraded High-performance Fixed-focus Laser:

No need to adjust the focus before engraving; the new laser focal spot is 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide Compatibility:

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

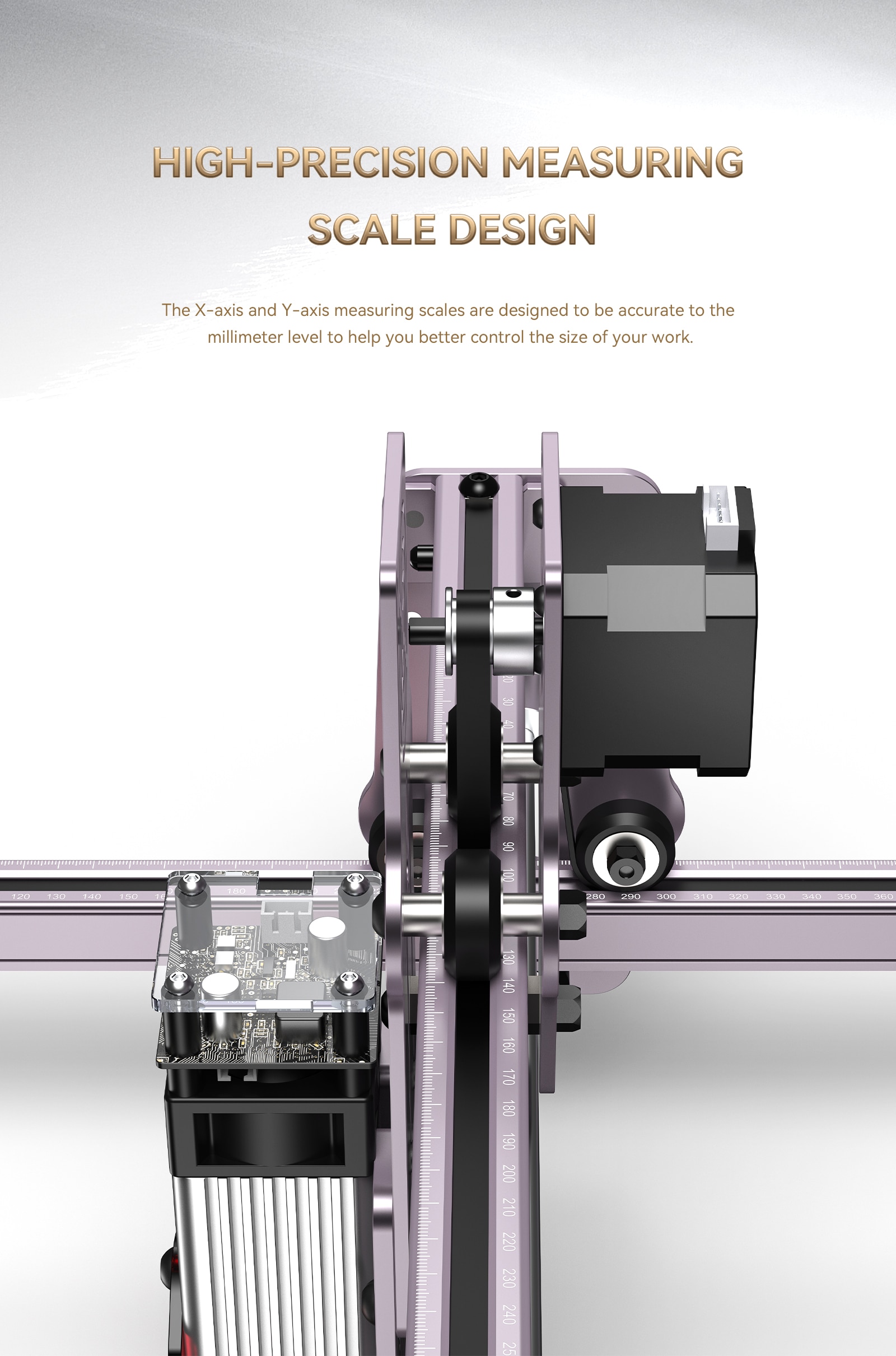

Precise Scale Lines Axis:

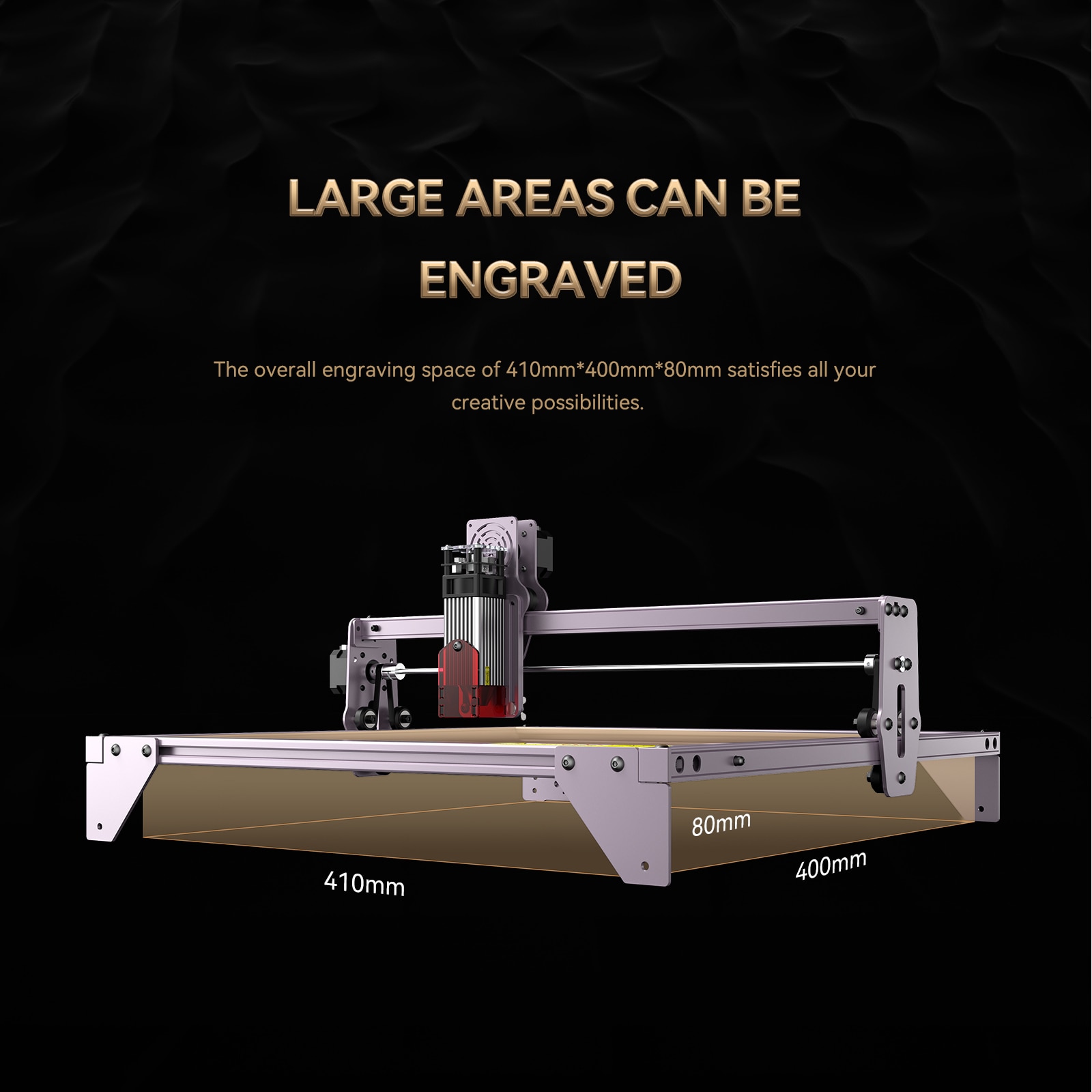

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

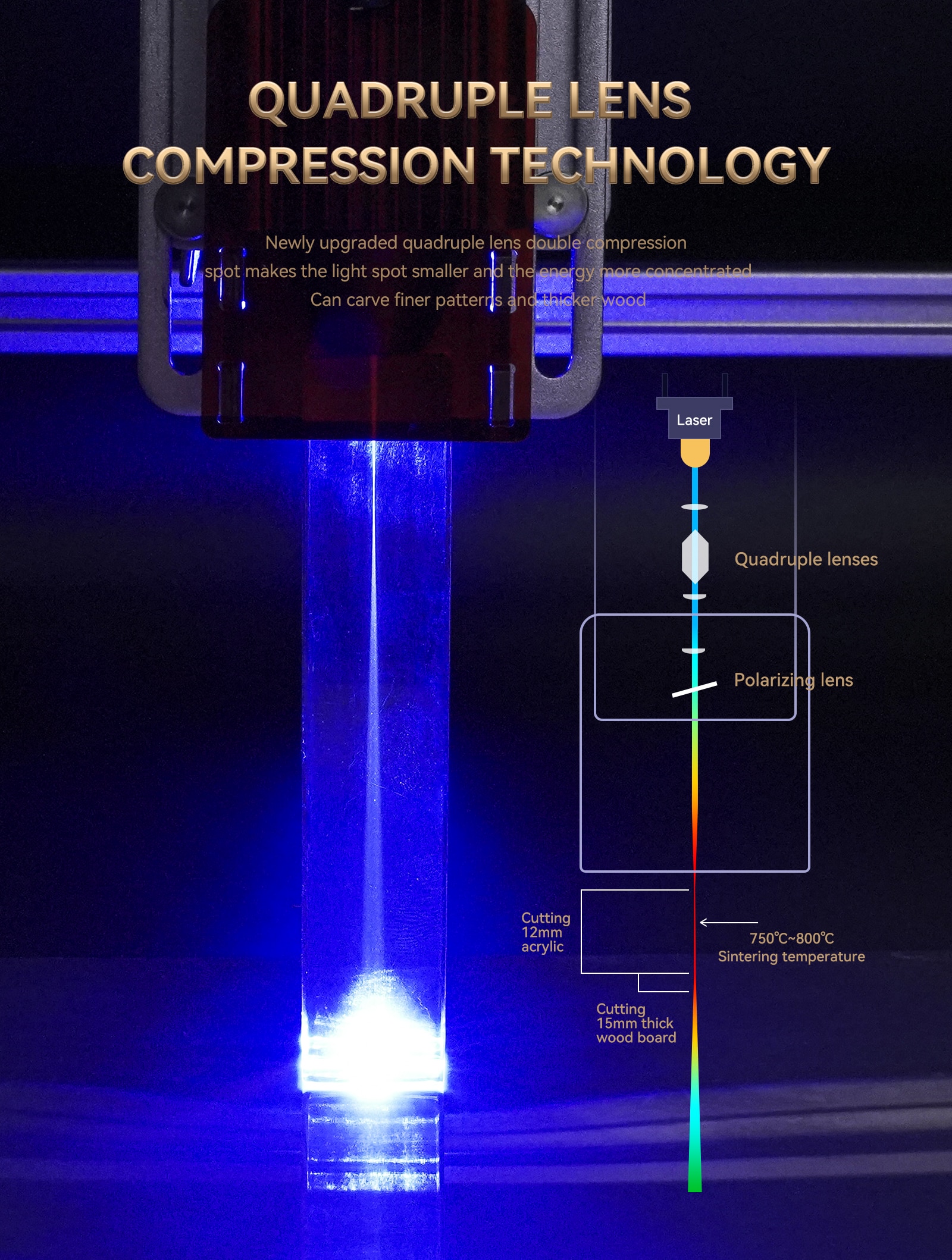

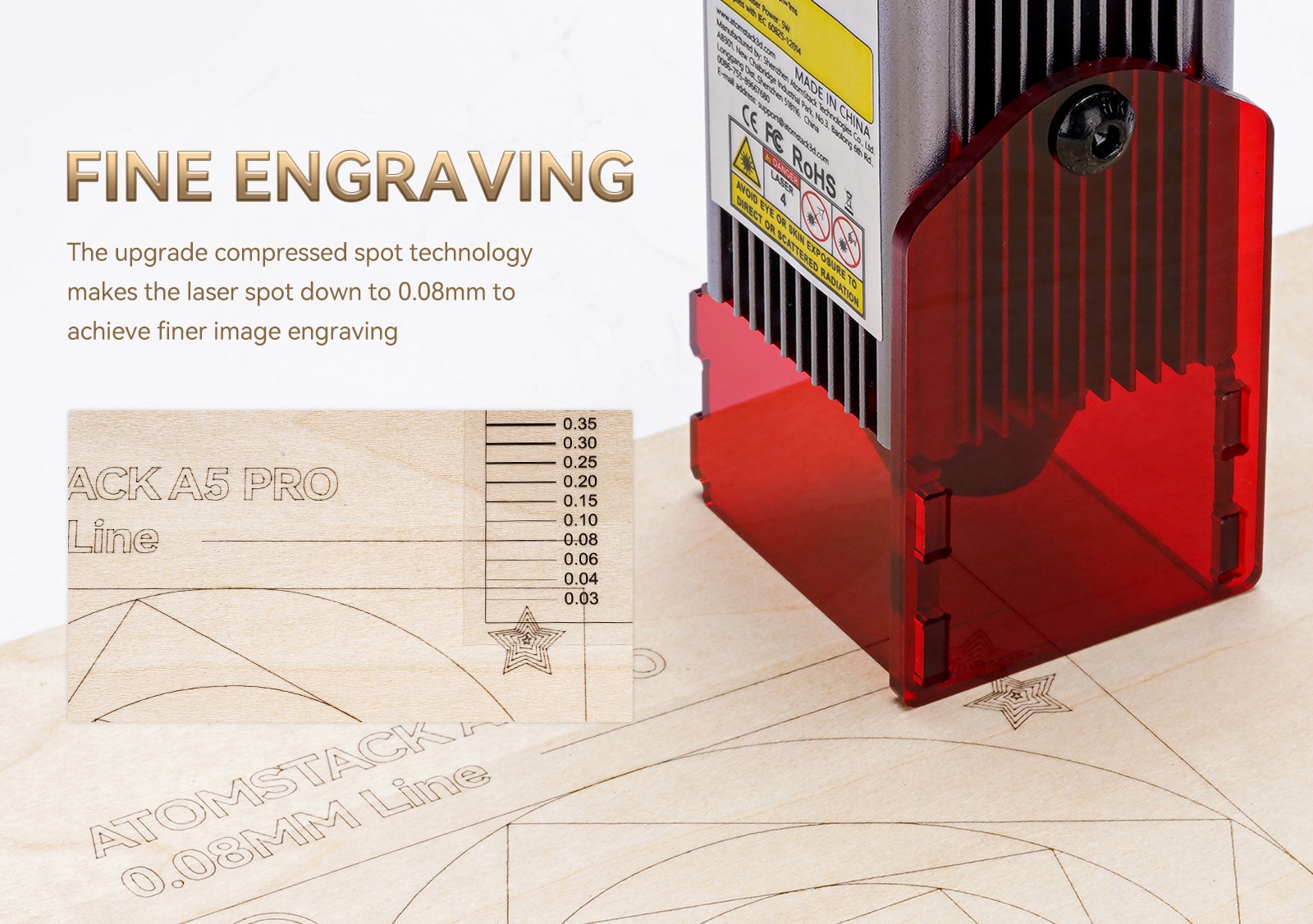

Upgraded Compression Laser:

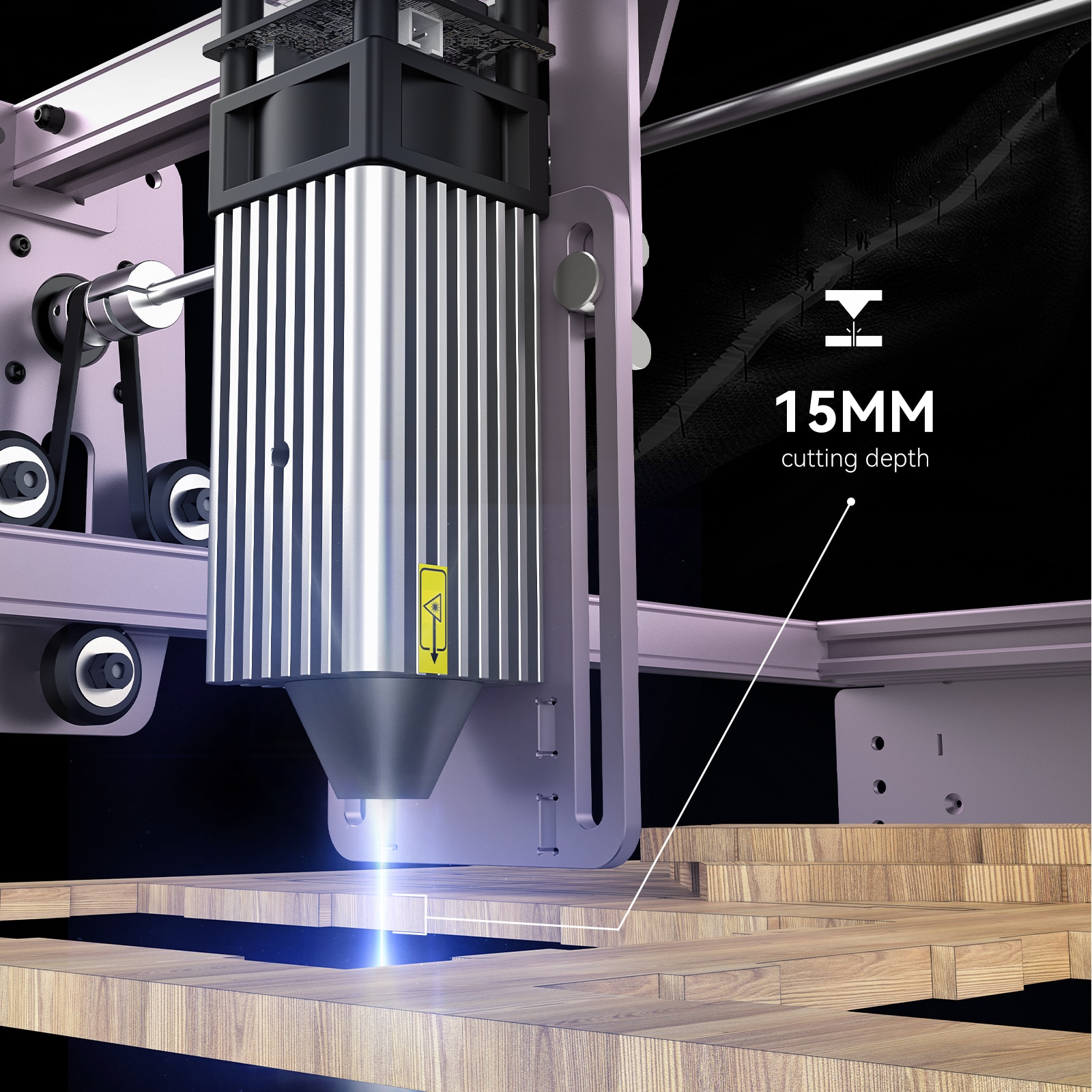

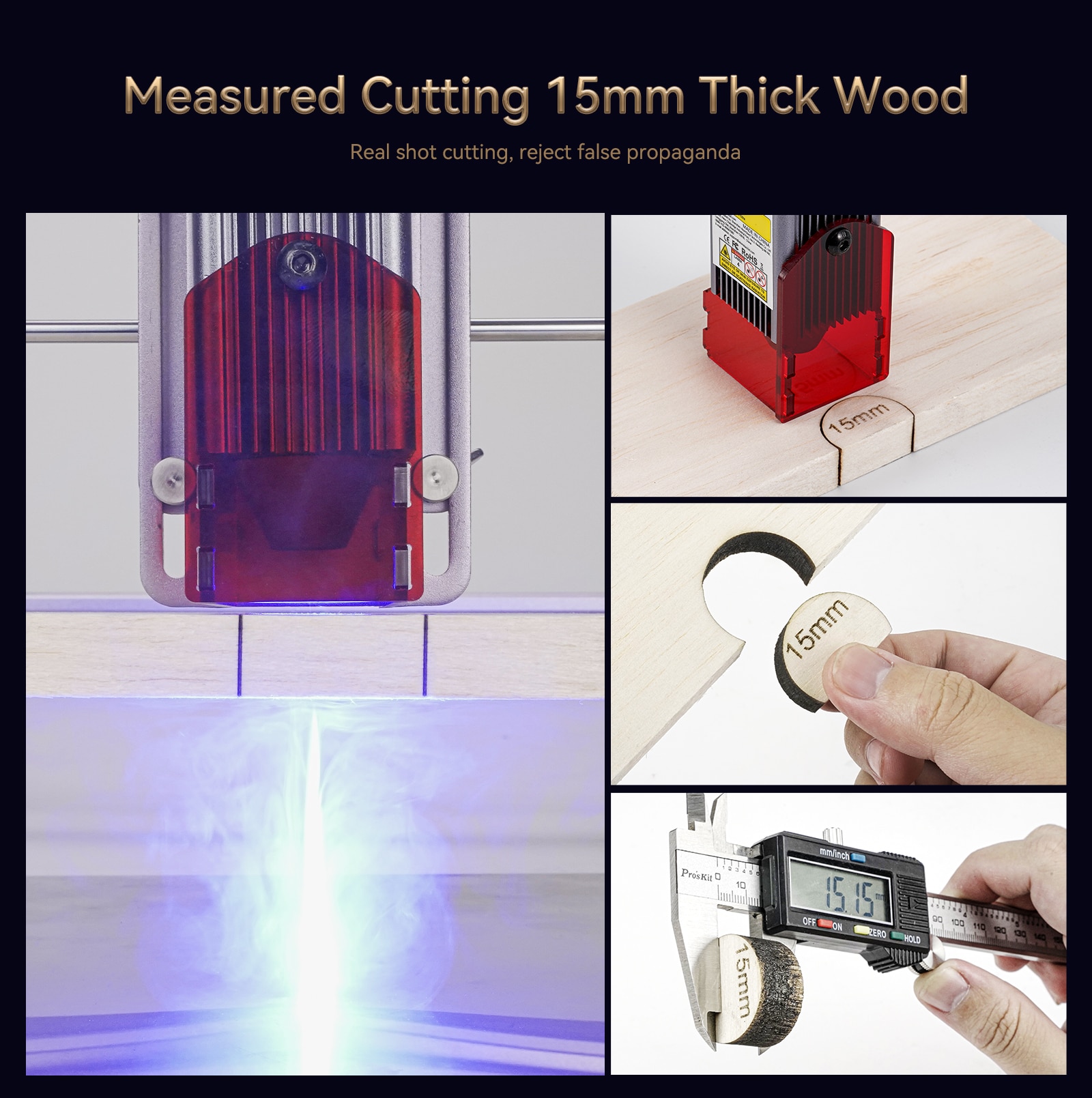

Upgraded ultra-fine compression laser: The laser adopts 4-fold lens group collimation and focus technology, the optical power is 5-5.5W, and the laser focus area is reduced to 0.08*0.08mm. The high-density laser can easily cut 15mm thick wooden boards, 12mm black acrylic; can directly engrave mirror stainless steel metal and ceramics, and can achieve the effect of a 100W CO₂laser engraving machine.

Integral Screw Rod:

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

Certification:

CE FCC RoHS FDA

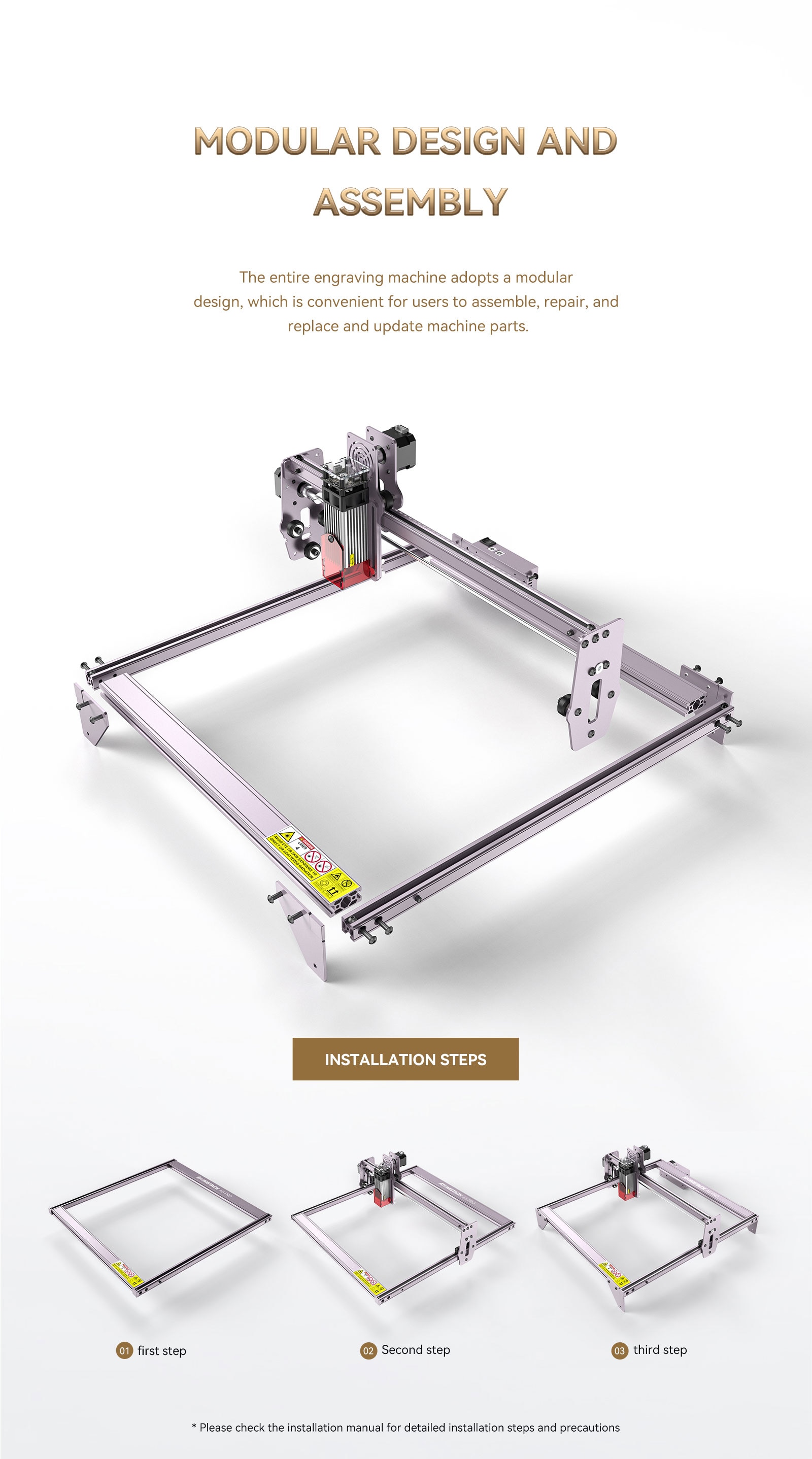

Expandable Engraving Size:

Modular design of the body mechanism, only need to replace the frame components, you can get 410*850mm super large engraving size

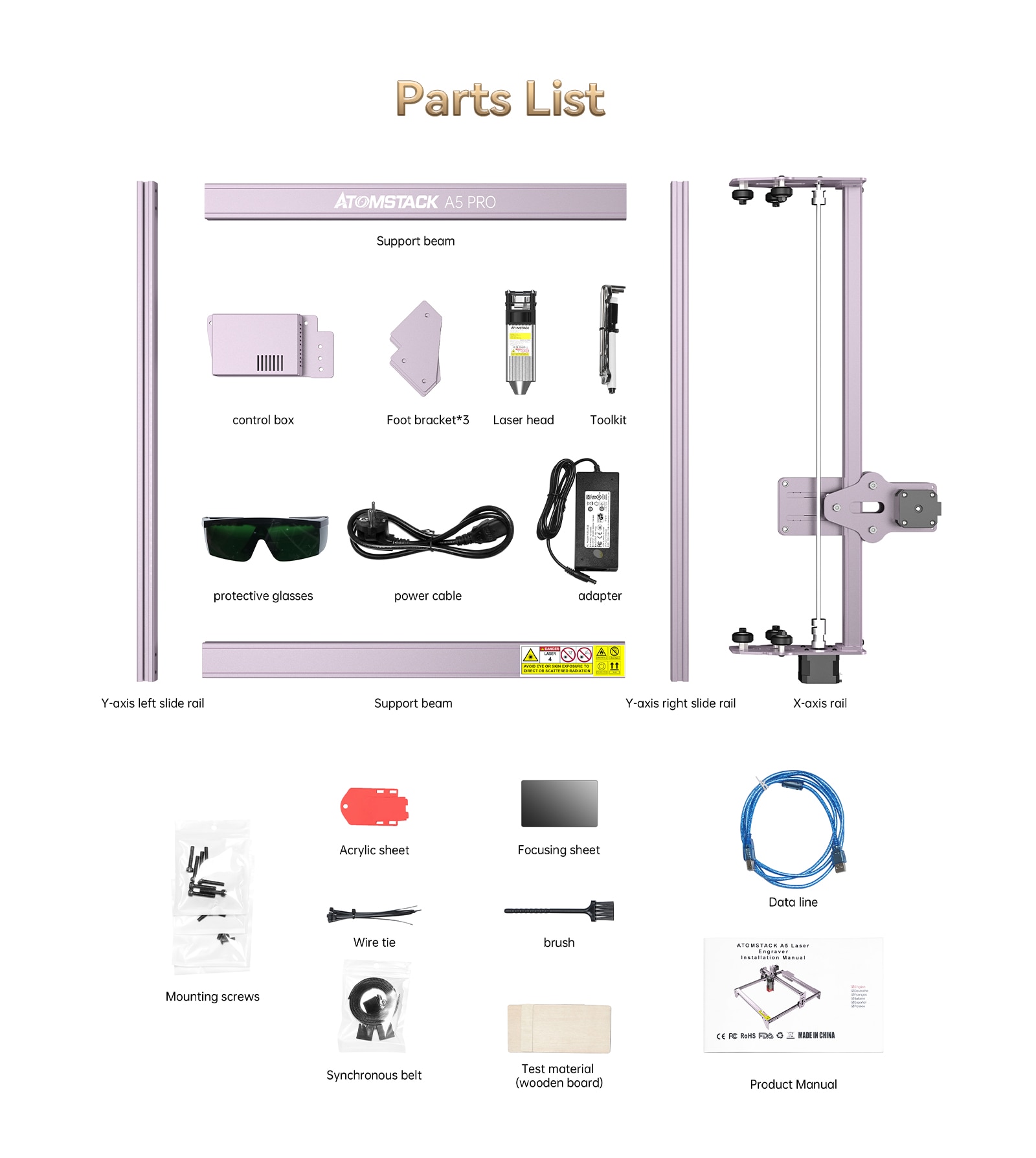

A5 Pro Laser Engraver Package

1 x

X-axis assembly

2 x

Section 57CM

2 x

Section 48CM

1 x

Control box

3 x

support legs

1 x

Goggles

1 x

Laser

1 x

24V2A Power Adapter

1 x

Power switch line

1 x

USB Cable

Step 1~5 installation package

1 x

M5 Wrench

10 x

Rolled Belt

3 x

Small Wood

1 x

Focal Length Film

1 x

M3 Wrench

1 x

Brush

3 x

Small Acrylic

1 x

Stainless Steel Backing Plate
