Features:

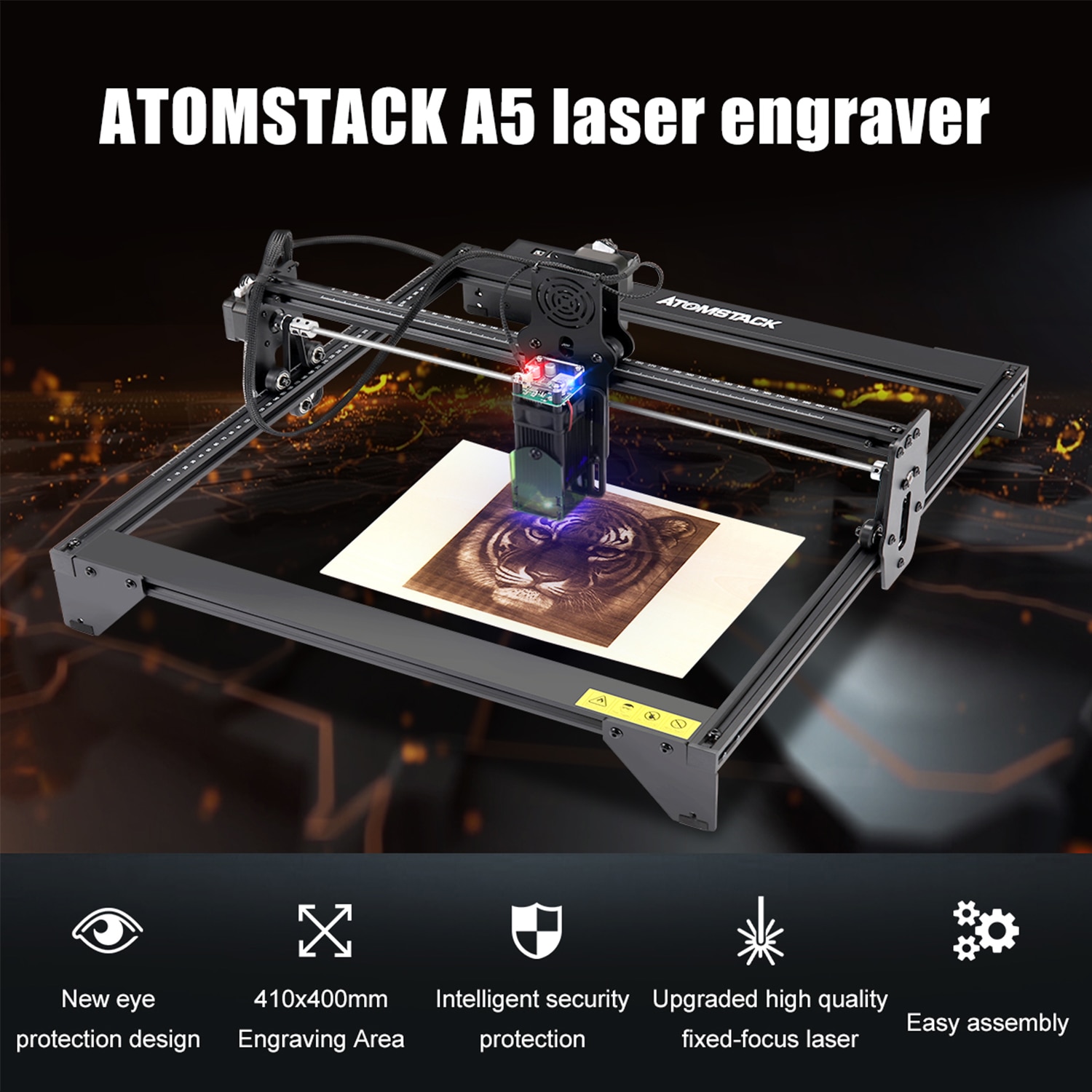

【New Eye Protection Design】:The laser protective cover perfectly protect your eyes, filter UV light for 97%. You and the people around can watch laser engraving without wearing goggles. Reduce the cost of your goggles and the inconvenience of wearing goggles.

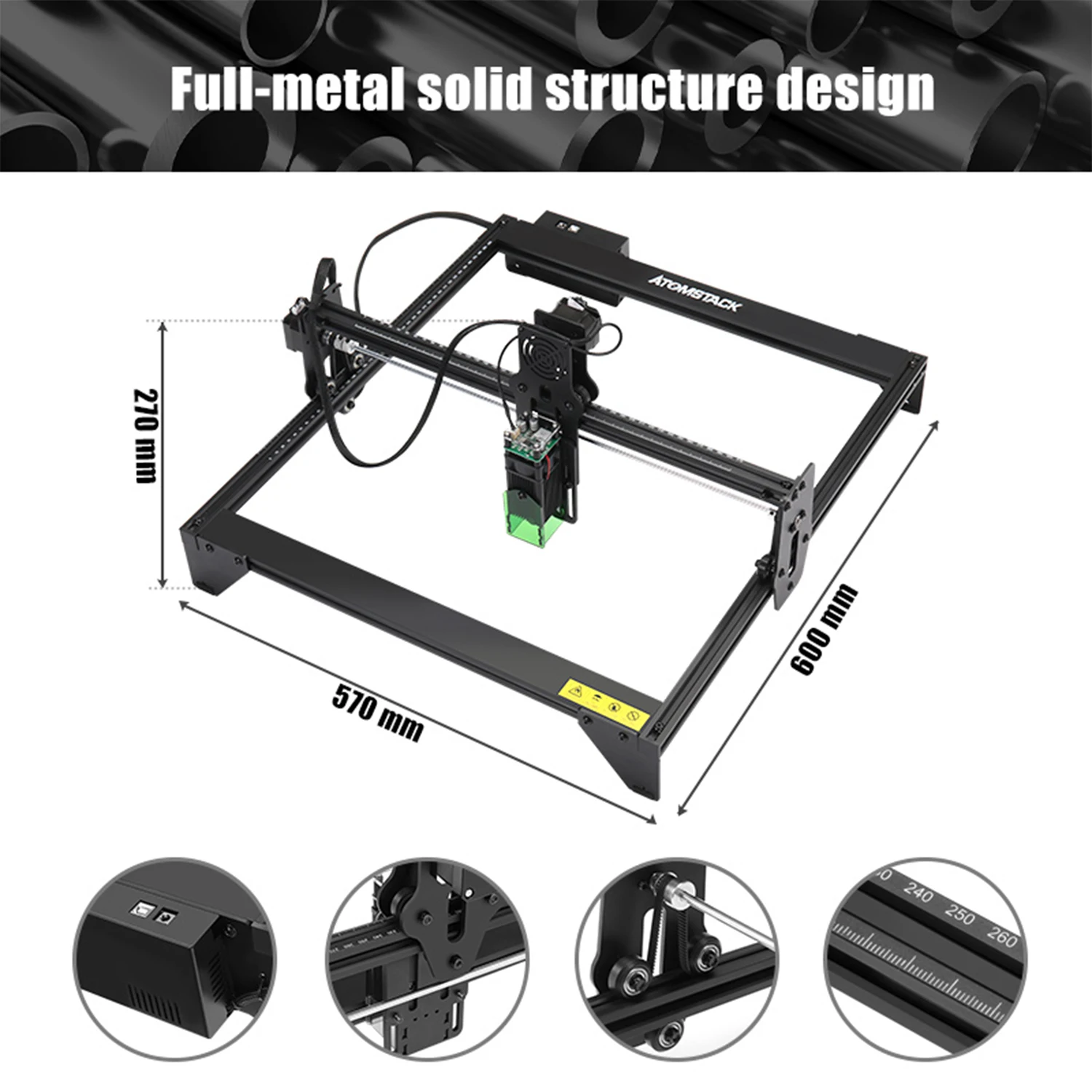

【Solid and Easy Installation Structure Design】:The full-metal structure design makes the machine more solid, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

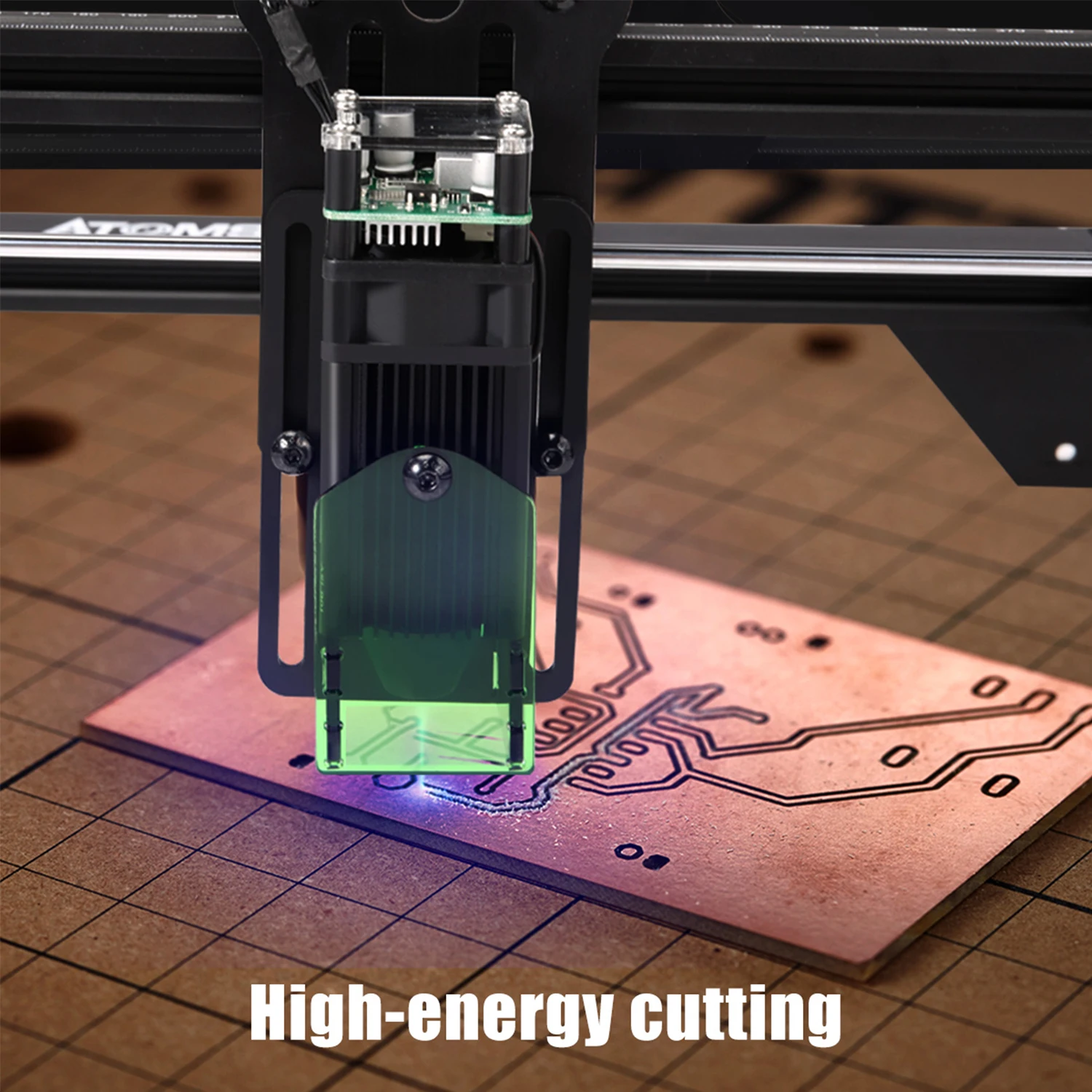

【Upgraded Fixed-focus Laser】:Engraving can be done without adjusting the focus; The new laser can combine both precision engraving and high-energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.
【Intelligent Security Protection】:When the laser is in an abnormal state for continuous static irradiation, the laser will automatically stop to prevent fire; when the engraving machine is impacted by an external force to move the position, the laser will automatically stop to avoid danger(Customers can choose whether to use this function).
【Wide Compatibility】:The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn. Compatible with Win XP/Win 7/Win 8/Win 10(LaserGRBL), and also compatible with MAC system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
【Precise Scale Lines Axis】:There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410*400mm large area engraving interval can meet your various engraving needs.

Specifications:

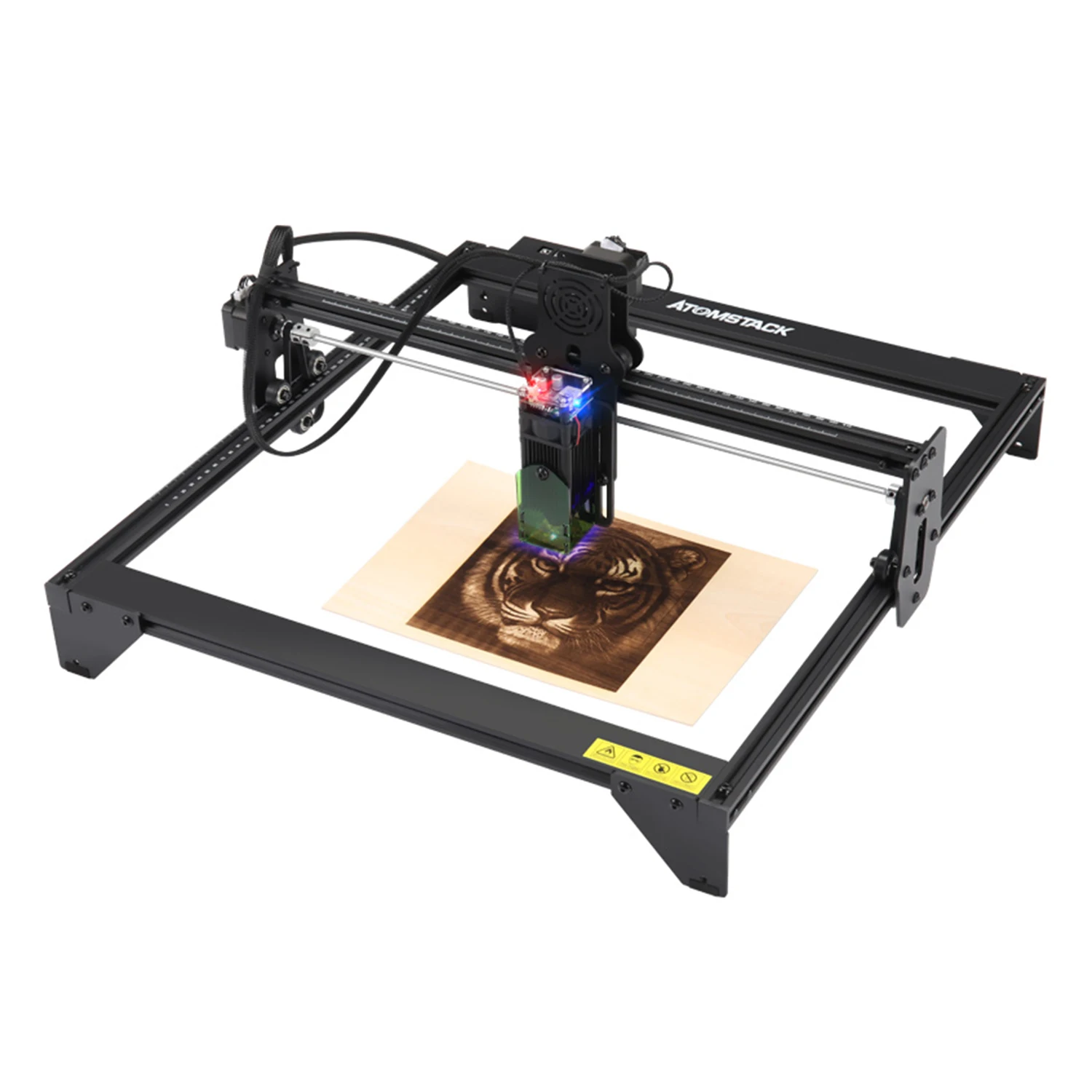

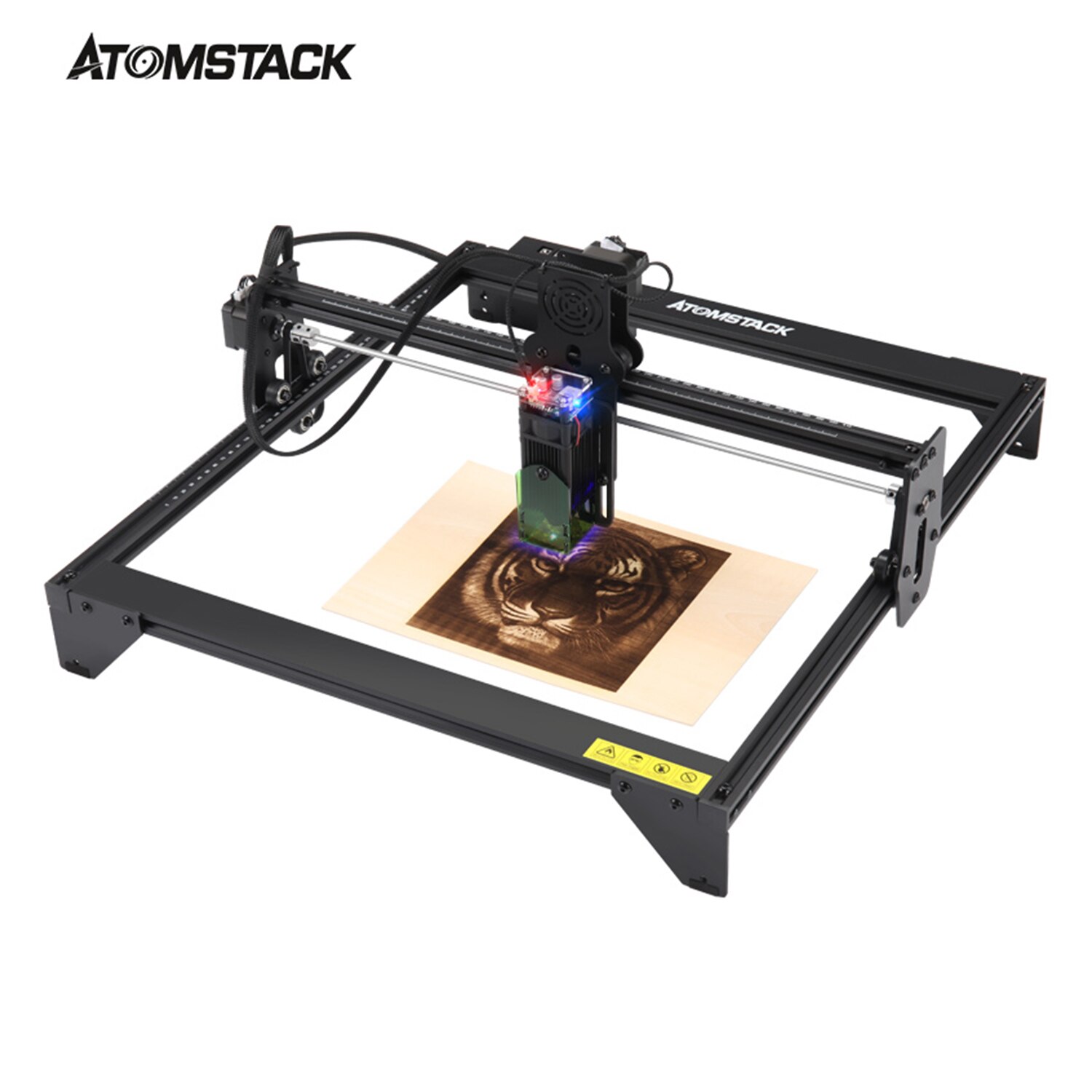

Product Model: ATOMSTACK A5 20W
Frame Material Sheet Metal + Aluminum Profile
Plug: EU
Input Voltage: AC100-240V, 50/60Hz
Output Voltage: DC12V, 5A
Engraving Size: 410*400mm
Carving Objects: All wood, bamboo, paperboard, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal.
Cutting Objects: Cardboard, non-woven fabric, light wood, acrylic material, thin plastic board.
Laser Power: 20W
Laser Output Power: 4.5-5W
Wave Length: 445±5nm
Engraving Accuracy: 0.01mm
Focusing Method: Fixed focus laser, no need to focus
Laser Safety Protection: When the laser is under control, the motor does not move and the laser lights up. If the user forgets to turn off the laser, the laser will automatically turn off after a period of exposure to prevent fire. Impact move will be detected ,and the machine will stop to avoid danger.
Laser Protective Cover: Protect the user's eyes and prevent pets from grabbing the laser spot.
Operating Software: LaserGRBL, LightBurn, support Win XP/Win 7/Win 8/Win 10 system.
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Data Transmission Method: USB Connection
Equipment Size: 57.0 * 60.0 * 27.0cm / 22.4 * 23.6 * 10.6in
Equipment Weight: 4.0kg / 8.8lbs
Package Size: 59.5 * 34.2 * 12.9cm / 23.4 * 13.5 * 5.1in
Package Weight: 5.6kg / 12.3lbs

Notes:
When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
Please do not touch the laser emitter with your hand, or it may burn your hand.
Please avoid strong impact on the machine.
Children under 14 are not allowed to use this product and children over 14 need adult supervision.
The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.

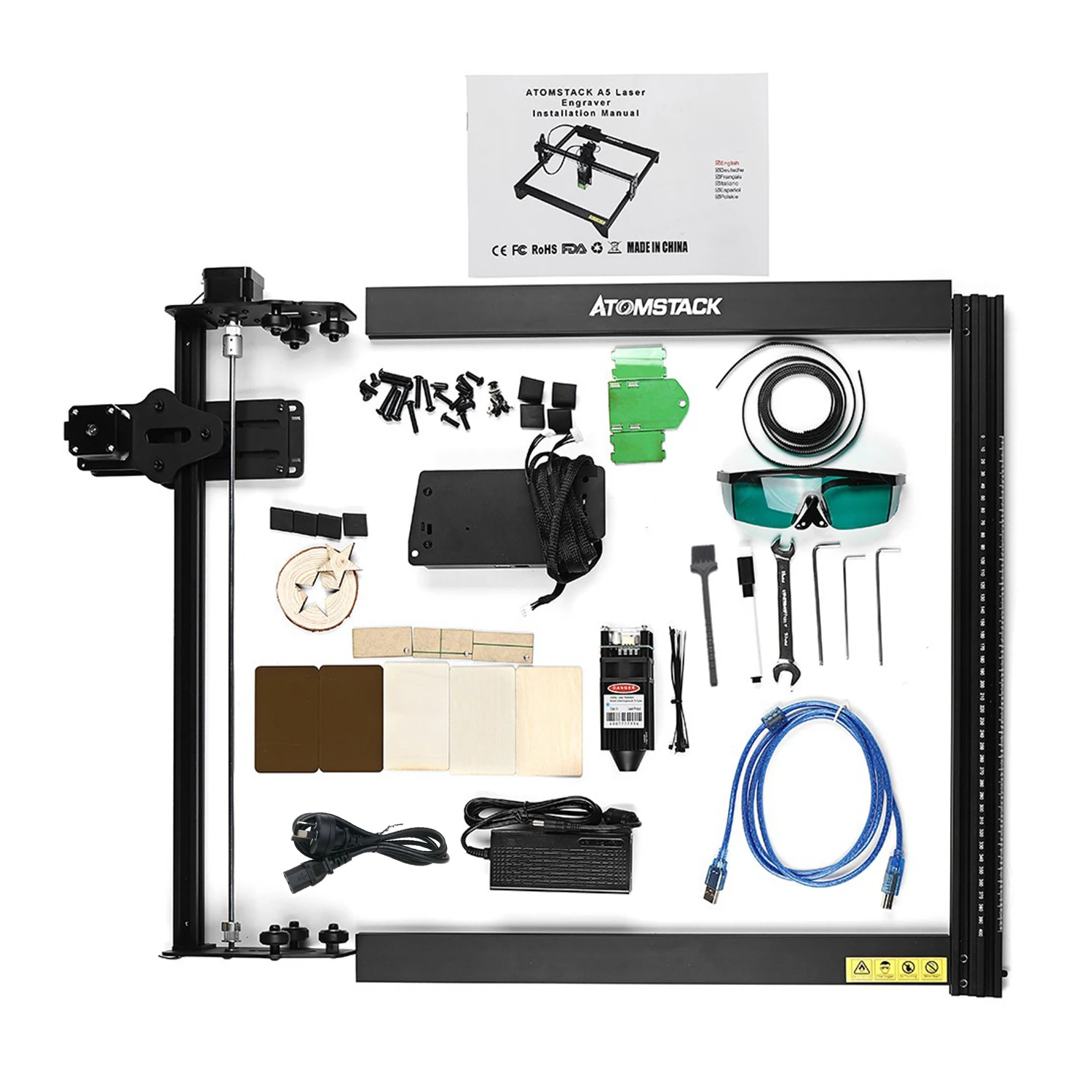

Packing List:
1 * X-axis Assembly
2 * Section 57CM
2 * Section 48CM
1 * Control Box
3 * Support Legs
1 * Goggles
1 * Laser
1 * Power Adapter
1 * Power Cord
1 * USB Cable
1 * Step 1~5 Installation Package
1 * M5 Wrench
10 * Rolled Belt
3 * Small Wood
1 * Focal Length Film
1 * M3 Wrench
1 * Marker
1 * Brush
3 * Small Acrylic
