ATOMSTACK A10 Pro Feature

Upgraded dual compression spot coupling technology：

Ultra-fine laser focus area is reduced to 0.08*0.08mm, high-density laser can easily cut 20mm thick wood, 15mm thick black acrylic; can directly engrave mirror stainless steel metal, ceramics, glass, and engraving &The cutting speed is 40% higher than the ordinary model, which can be comparable to the effect of the 150W CO₂laser engraving machine.The laser sintering temperature is up to 1200℃

Eye-Protection Flame-retardant Filter Panoramic Glass：

The flame-retardant filter panoramic glass can filter 97% of the ultraviolet light, which plays a very good role in protecting your eyes. You and the people around you do not need to wear goggles, you can also clearly Watch laser engraving. Reduce the cost of your goggles and the inconvenience of wearing goggles. The glass is flame retardant and safer to use.

Solid And Easy Installation Structure Design：

The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes.

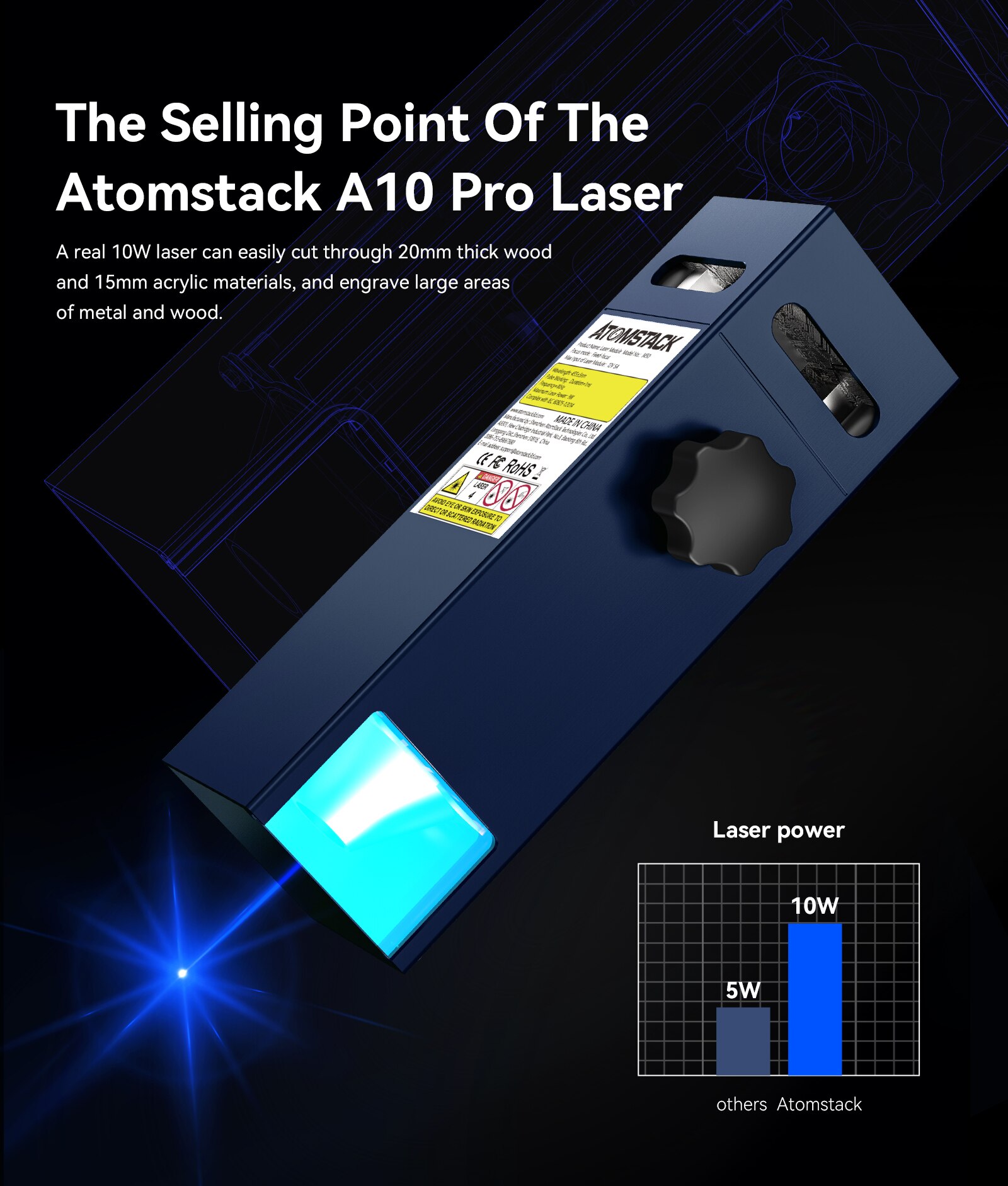

Upgraded High-performance Fixed-focus Laser:

No need to adjust the focus before engraving; the new laser focal spotis 50% smaller than other ordinary lasers, new laser combine precision engraving and high energy cutting at the same time. The laser power of the fixed-focus laser is more stable than the zoom laser.

Wide Compatibility:

The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.

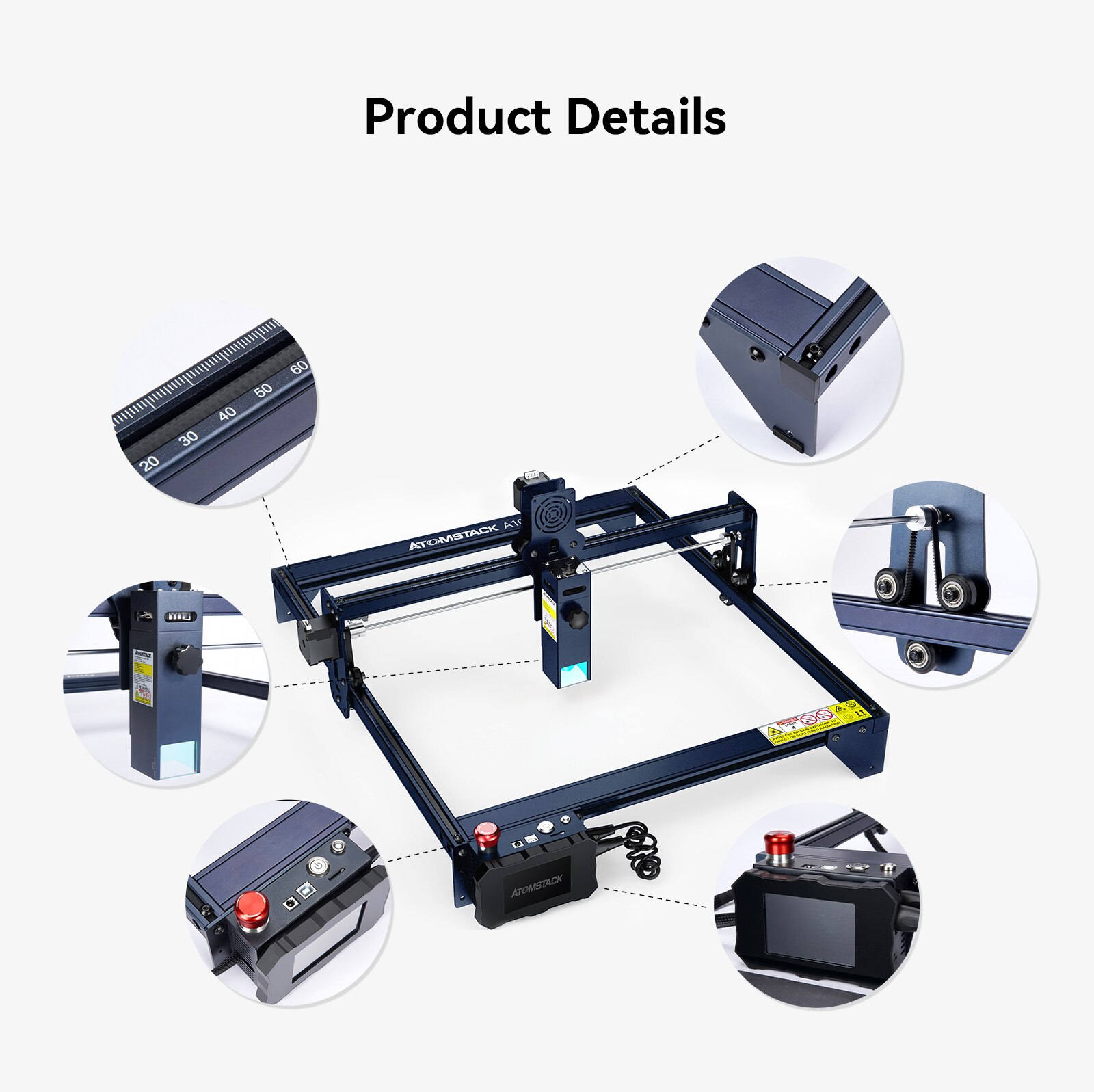

Precise Scale Lines Axis:

There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.

Integral Screw Rod:

The machine uses an integrated screw rod instead of a combined coupling. The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.

New Laser With Knob:

It is more convenient and quick to adjust the height of the laser

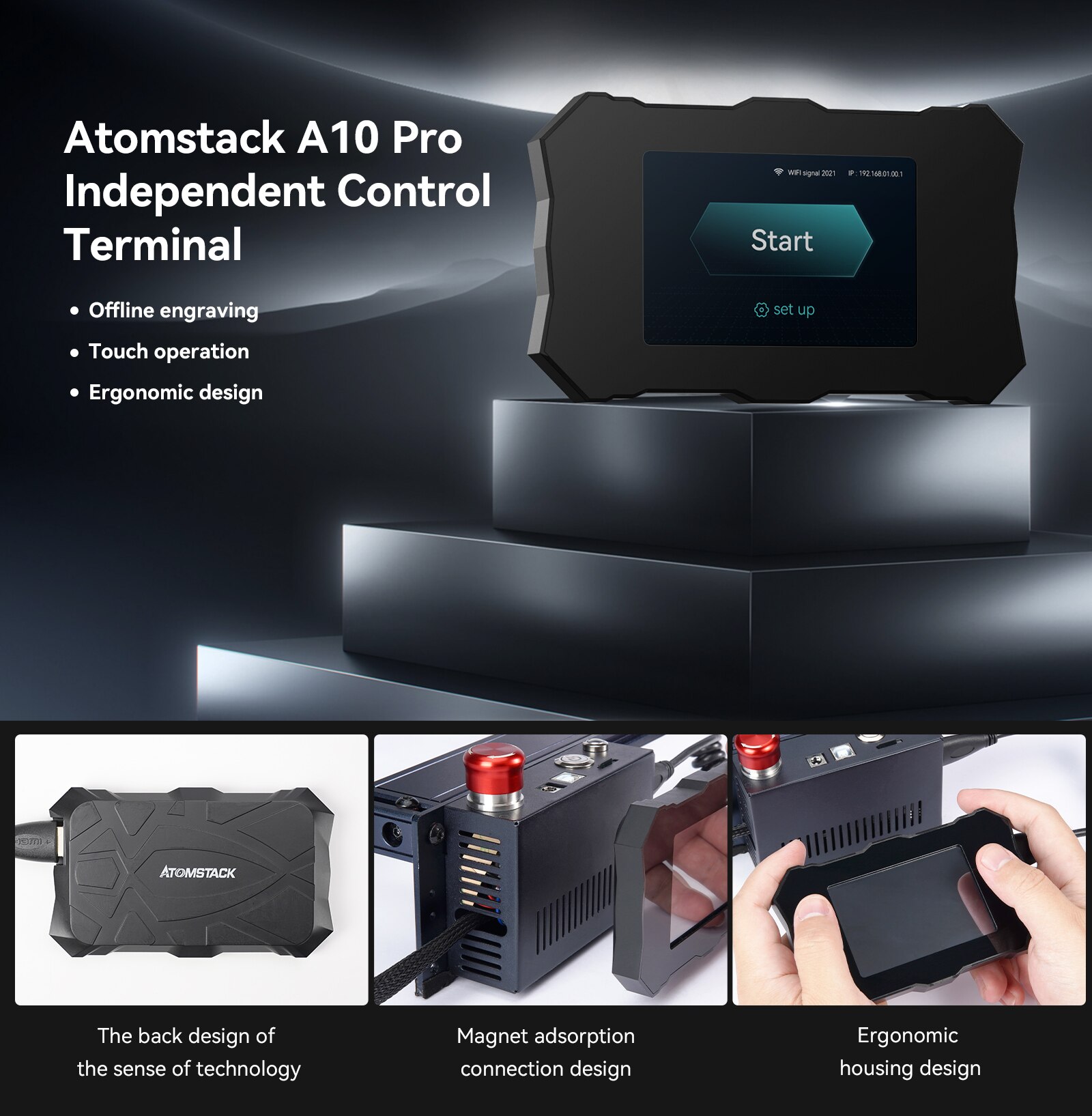

Support Offline Engraving：

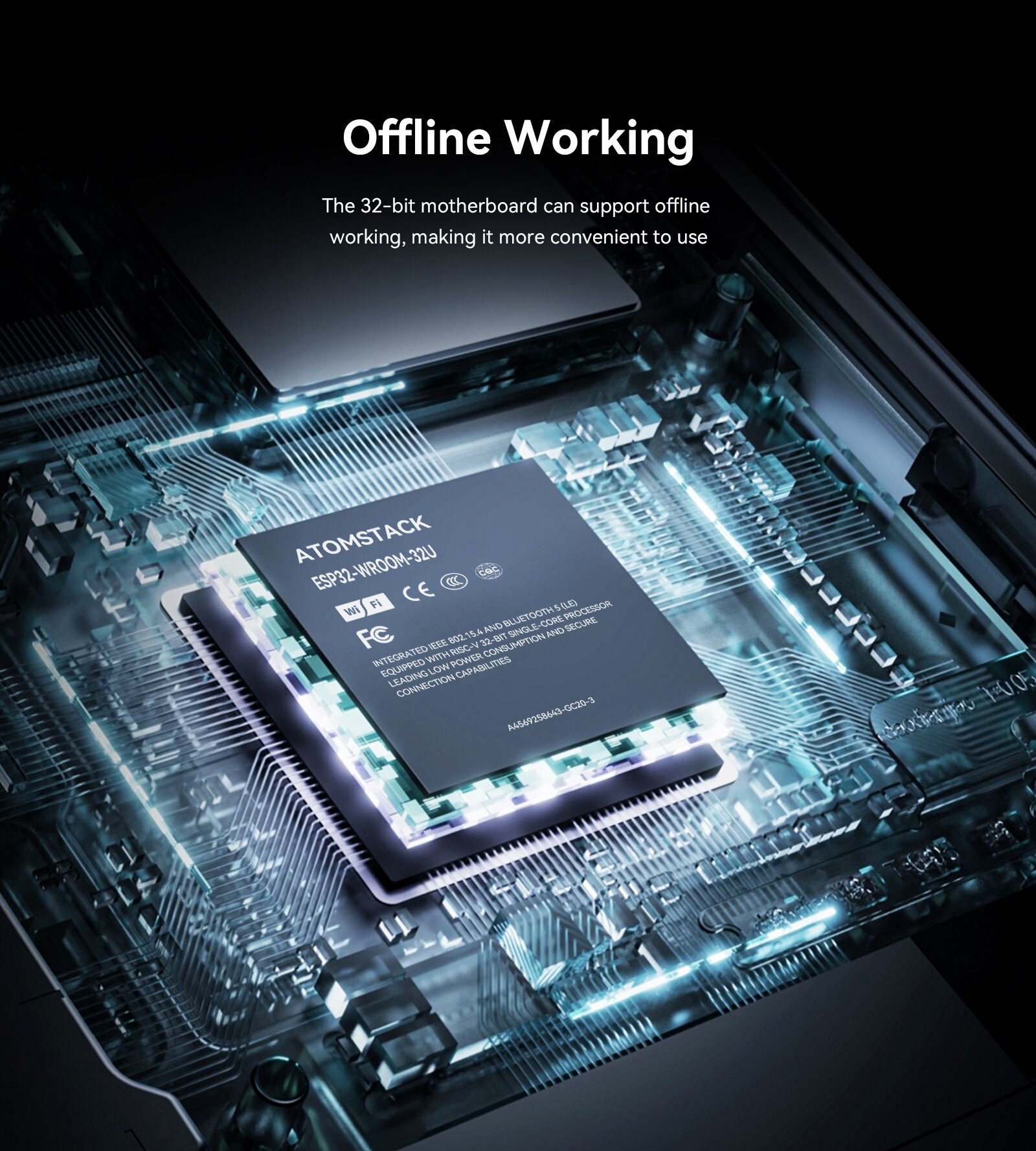

A10 PRO configures the terminal 32bit control panel, supports offline engraving, you can carry out engraving work anytime and anywhere without being restricted by the computer.

Emergency Stop Button：

In the event of an unexpected situation, stop the machine at any time to make the engraving safer

Stopper：YES

Reset switch：YES

Expandable Engraving Size：

Modular design of the body mechanism,only need to buy the frame components,you can get 410*850mm super large engraving size

Product Parameters

Model

ATOMSTACK A10 Pro

Material

Aluminium Alloy

Equipment Size

570*600*270mm

Equipment Weight

3.42 kg

Package Weight

5.07 kg

Engraving Accuracy

0.01mm

Working Size

410*400mm

Carving Objects

WoodBambooCardboardPlasticLeather PCB boardAluminum oxideNon-reflective Electroplating layer and paint surface layer metal304 mirror stainless steelGlassCeramicsCotton ClothSlate.etc

Cutting Objects

CardboardNon-woven fabric20mm Wood board15mm AcrylicSome thin plastic boardSponge.etc（once cut）

Focusing Method

Fixed Focus Laser

Laser Protective Cover

YES

Data Transmission Method

USB ConnectionControl Panel

Operating Software

LaserGRBLLightBurn.etc

Support Systerm

Win XP / Win 7 / Win 8 / XP / Win 10 /MacOSX system

Support Input Format

NC BMP JPG PNG DXF,etc

Technical Parameter

Laser Power

50W

Laser Output power

10-11W

Wave Length

445 ± 5nm

Laser Spot

0.08mm*0.08mm

Input Voltage

AC100-240V,50/60Hz

Output Voltage

DC12V5A

Certification

CE FCC RoHS FDA PSE

A10 Pro Laser Engraver Package

1 x

Mounting screw

1 x

Tool kit

4 x

Foot pad foam

1 x

Film

3 x

Acrylic sheet

3 x

Wood chips

10 x

Wire tie

1 x

Desiccant

1 x

Brush

1 x

Clean cloth

1 x

Card reader

1 x

TF Card

1 x

Power adapter

1 x

Instruction

1 x

Data line

1 x

Touch Screen Components

1 x

HDMI Cable

1 x

Dual-Laser Module

1 x

Cutting pad

1 x

X axis assembly

1 x

Y axis left profile

1 x

Y axis right profile

1 x

Profile on the base

1 x

Under the base profile

3 x

Foot bracket
