Description
Product Description
![](http://sc04.alicdn.com/kf/H2f59394362dc431eb9ef39261e1aec38m/248285135/H2f59394362dc431eb9ef39261e1aec38m.jpg)
Feature:
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.

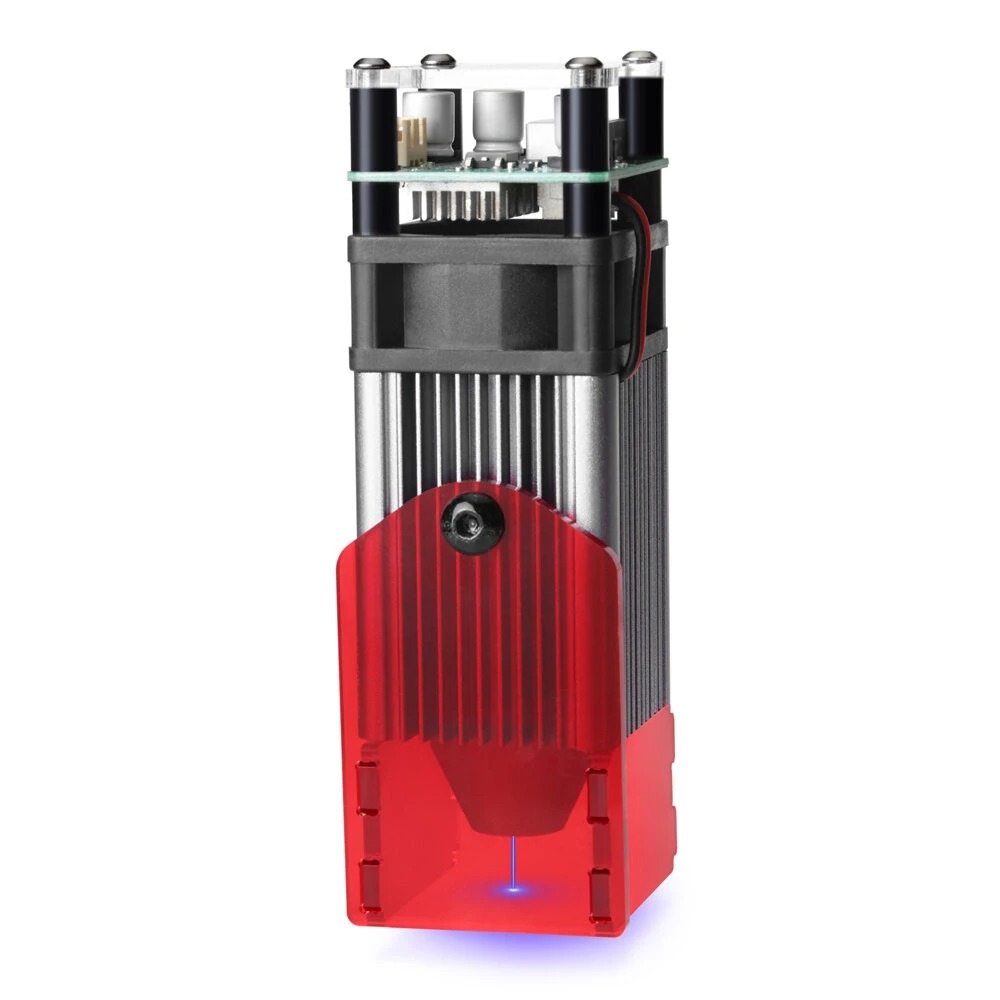

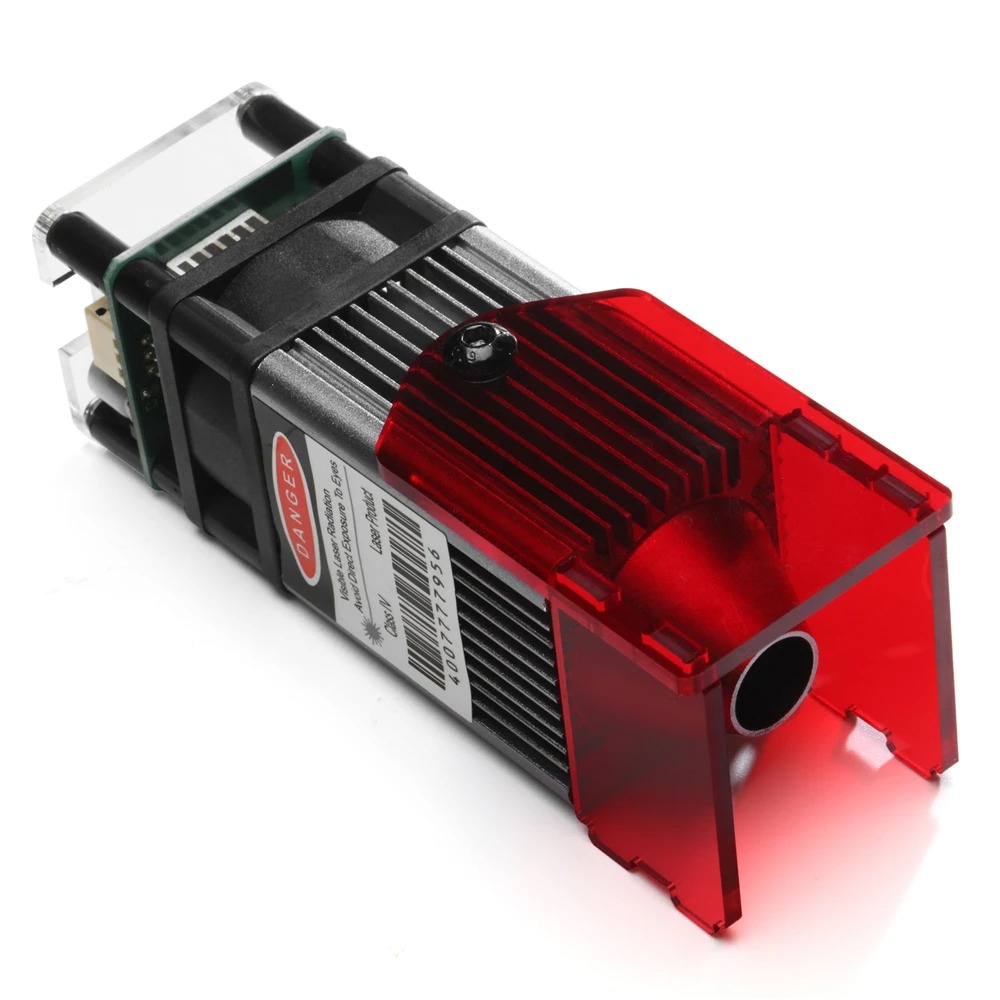

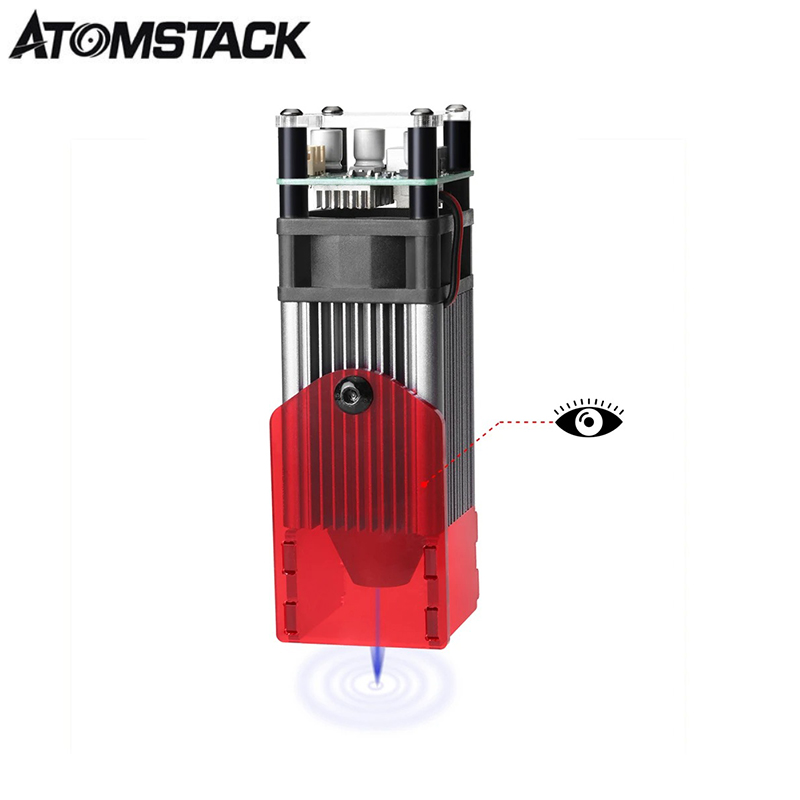

2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.
4.Fixed focus laser, no need to focus.
5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
1.It can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2.Laser protective cover: The laser is equipped with a protective cover to protect the eyes of the user without the need to wear additional protective glasses. At the same time prevent pets from grabbing the laser spot.
3. Made of aluminum, strong and durable.
4.Fixed focus laser, no need to focus.
5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
6.Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer and lacquered metal, after blackening Utility knife.
7.Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
Product Name
|
450 laser
|
Product Number
|
L40
|

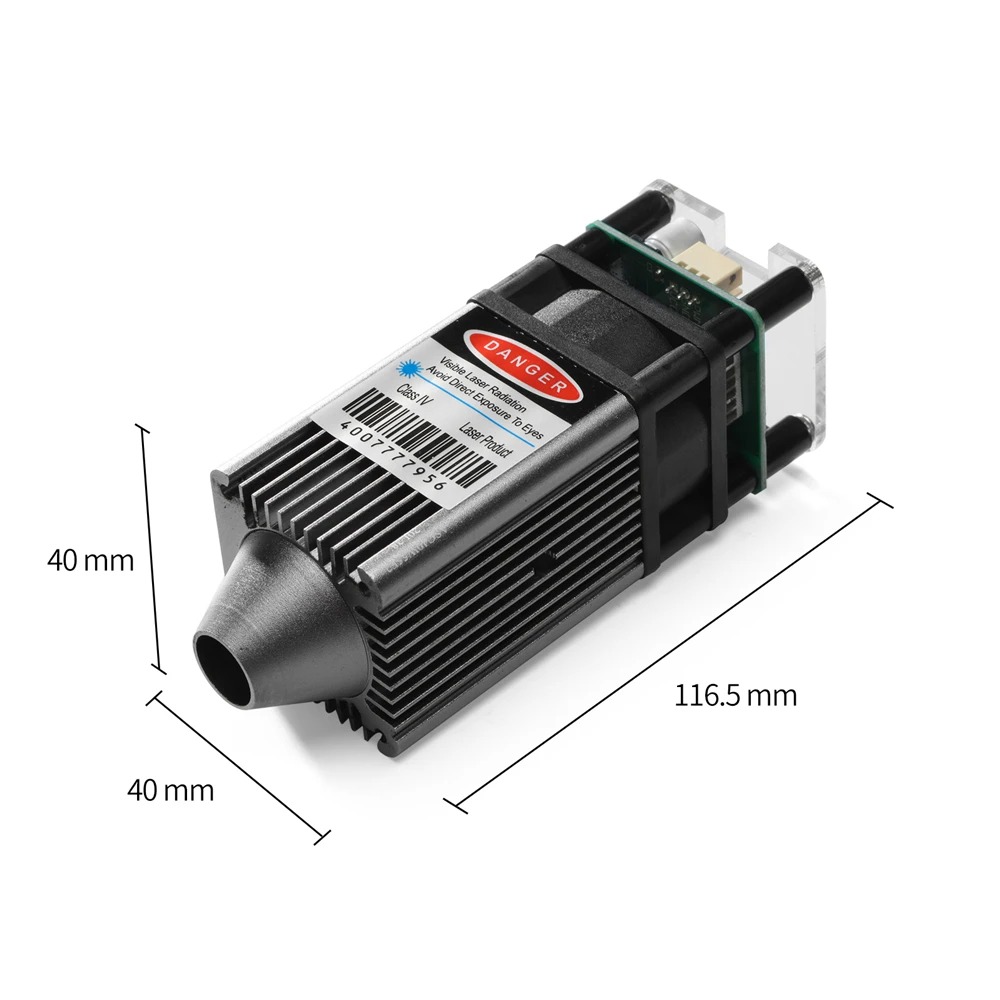

Specification Model
|
40*40*102mm
|
Housing size
|
40*40*55mm
|
Circuit Board Size
|
40*40mm
|
Circuit Board
|
12V/PWM modulation board
|
Wire Rod
|
22# 2P2.54 terminal reverse wire 80mm
|
Optical Lens
|
φ10/glass
|
Fan
|
12V
|
Product Material
|
Aluminum 6061 anode/copper H59
|
Product Net Weight
|
196g
|
Optical Parameters:
TC=25℃
Items
|
Symbol
|
Min
|
Typ
|
Max
|
Unit
|
Condition
|
Optical Output Power
|
Po
|
5
|
/
|
5.5
|
W
|
12V Power
|
Working current
|
Iop
|
/
|
1.6
|
1.8
|
A
|
|
Operating Voltage
|
Vop
|
/
|
12
|
/
|
V
|
/
|
Laser Wavelength
|
λp
|
450
|
455
|
460
|
nm
|
/
|
Electric Power
|
Wl
|
/
|
19.2
|
21.6
|
W
|
/
|
Laser Beam Mode
|
Spot
|
Working Mode
|
Pulse work
|
Lightspot Size
|
30mm<1mm
|
Working Temperature
|
0℃~70℃
|
Divergence Angle
|
/
|
Storage Temperature
|
-40℃~85℃
|
Working Time
|
10000H
|
Enclosure Polarity
|
/
|
![](http://sc04.alicdn.com/kf/H4b6a9d5eba8b4e5e9398d78f948bf51fI/248285135/H4b6a9d5eba8b4e5e9398d78f948bf51fI.jpg)
![](http://sc04.alicdn.com/kf/H7bc6f898eed14a67a279141fe380f038C/248285135/H7bc6f898eed14a67a279141fe380f038C.jpg)
![](http://sc04.alicdn.com/kf/H7759ec52216c41aaa01533a848e9b079Y/248285135/H7759ec52216c41aaa01533a848e9b079Y.jpg)
![](http://sc04.alicdn.com/kf/H6f131f78c1f24211a7eef0989c43d8a9o/248285135/H6f131f78c1f24211a7eef0989c43d8a9o.jpg)
![](http://sc04.alicdn.com/kf/H4182d1f1061144da897bb8254d9fb033K/248285135/H4182d1f1061144da897bb8254d9fb033K.jpg)
![](http://sc04.alicdn.com/kf/H723b416d5cdd440b9dd97ef006c8da37S/248285135/H723b416d5cdd440b9dd97ef006c8da37S.jpg)
![](http://sc04.alicdn.com/kf/H64d77342427e4b7fb8dcc7daeb5f0b907/248285135/H64d77342427e4b7fb8dcc7daeb5f0b907.jpg)
