Description
- Brand Name: EVERGOOD
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Measuring Range: Refer to Spec.
- Dimensions: 415mm *295mm *95mm
- Operating Temperature: 0~50C
- Accuracy Class: High
- Display Type: Digital Only
- Certification: CE
- Model Number: ATF20B
- Display Size: 3.0 – 4.9 Inches
ATF20B+ and Around the World GRATTEN DDS FUNCTION GENERATOR 20MHz
100MSa/s RA232 Updated for ATF20B
Description
ATF20B+ Function generator uses Direct Digital Synthesis (DDS) technology.

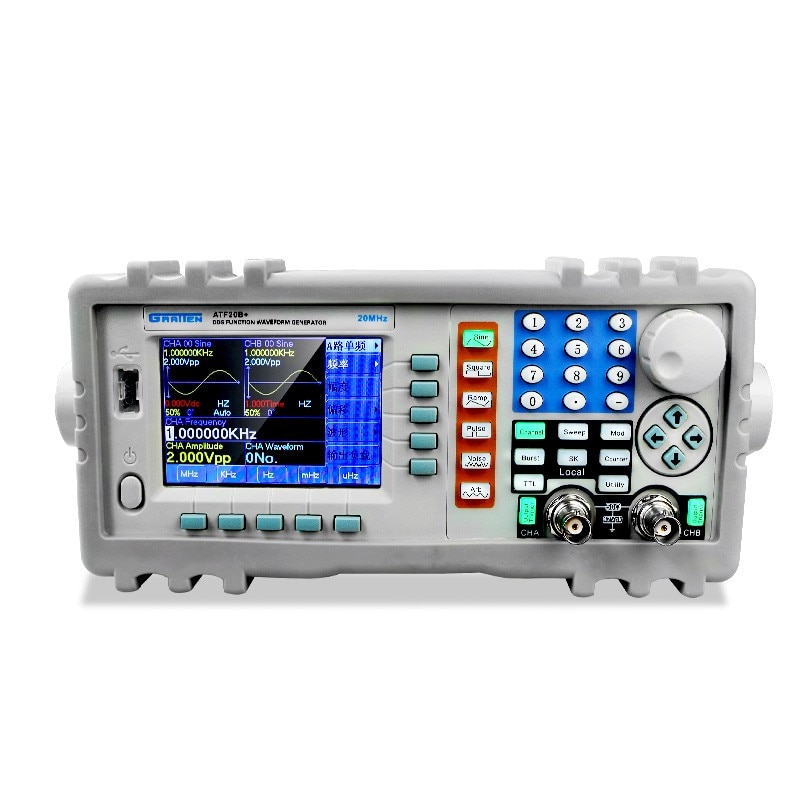

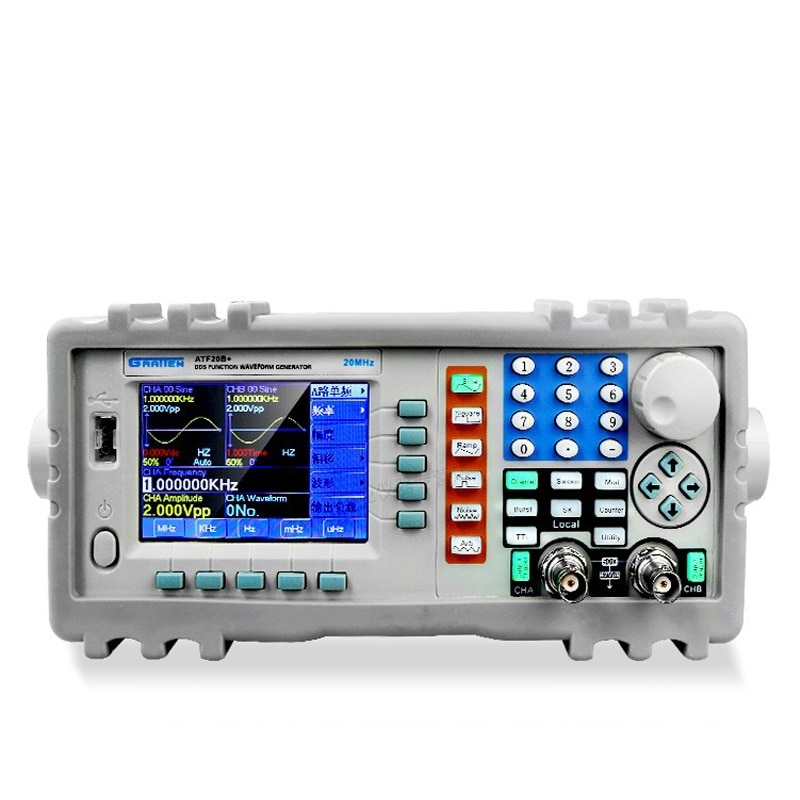

Its outstanding performance and system features make it a perfect solution for your testing requirement. The simplified and optimized design of the front panel and dual-language (English/Chinese)TFT display interface make your testing much easier for operation and observation. Additionally, the extendable optional functions can also improve your system characteristics.
Features:
Direct Digital Synthesis(DDS) technology, 2 independent output channels
3.5-inch TFT LCD display
High Frequency Resolution: full-range resolution is 40 MHz
Store 40 sets of the user parameters and recall
32 kinds of standard or build-in fixed waveforms
Minimum stable output waveform: 1mV(50ohms)
Multiple modulation functions: FM, FSK, ASK, PSK
Frequency sweep, amplitude sweep and burst functions
Count the frequency, period, amplitude RMS value or peak-to-peak value
Over-voltage, over-current, output short-circuit and reverse voltage protections
High reliability: use VLSI components and surface mount technology
Power Amplifier: optional part, maximum output power up to 7W
Optional configurations: RS232 interface, Frequency Counter, Power Amplifier
Specifications:
Brand: Gratten
Gross Weight: 4.5lb
SKU: STINF-O-0004
GENERAL CHARACTERISTICS

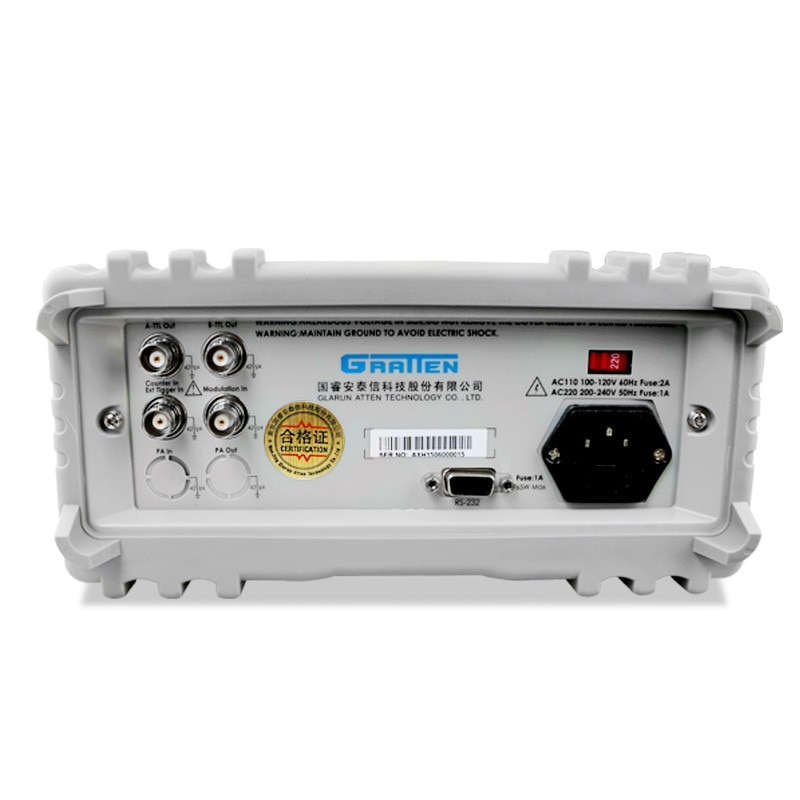

Power Supply: AC220V (1±10%) AC110V (1±10%) (Pay attention to the voltage selection on rear panel)
Frequency: 50Hz (1±5%)
Power Consumption: < 45VA
Operating Temperature: 0°C to +40°C Operating Humidity: 80% R.H
Operation Characteristics: Keypad operation and rotary knob operation
Dimensions: 415mm x 295mm x 195mm

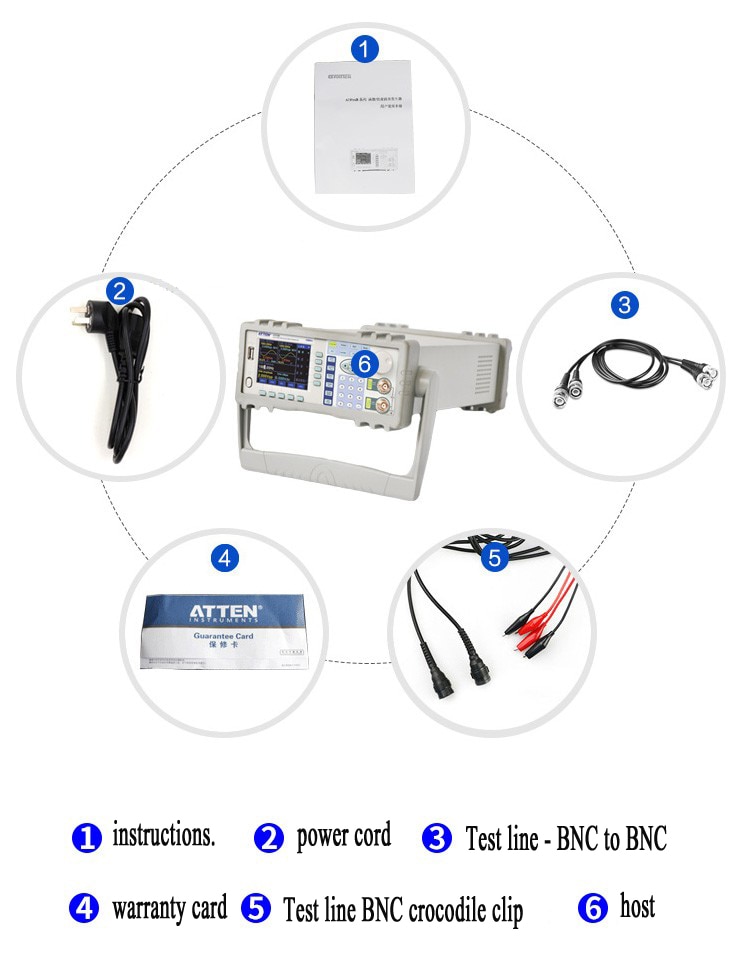

Package Includes:
1 x ATF20B+ Function Generator
2 x Test Cables
1 x Power Cord
