Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: CNC 1310 PRO 2
- CNC or Not: CNC
- Is Smart Device: No
- Status: Assembled
- Machine Dimension: 281mmx281mmx290mm
- Working Range: 135x115x45 mm
- CNC Software: candle control
- Laser Software: LiteFire
- Machine Material: Aluminum Profile
- Spindle: 775 Spindle
- Stepper Motor: 2-Phase 4-Wire Stepper M
- Lead Screw: T8 Lead Screw
- Power Supply: 12V
- Supported OS: Windows XP, Win 7, Win 8
- Package Size: 330x330x330 mm
- Universal voltage: 220V/110V compatible

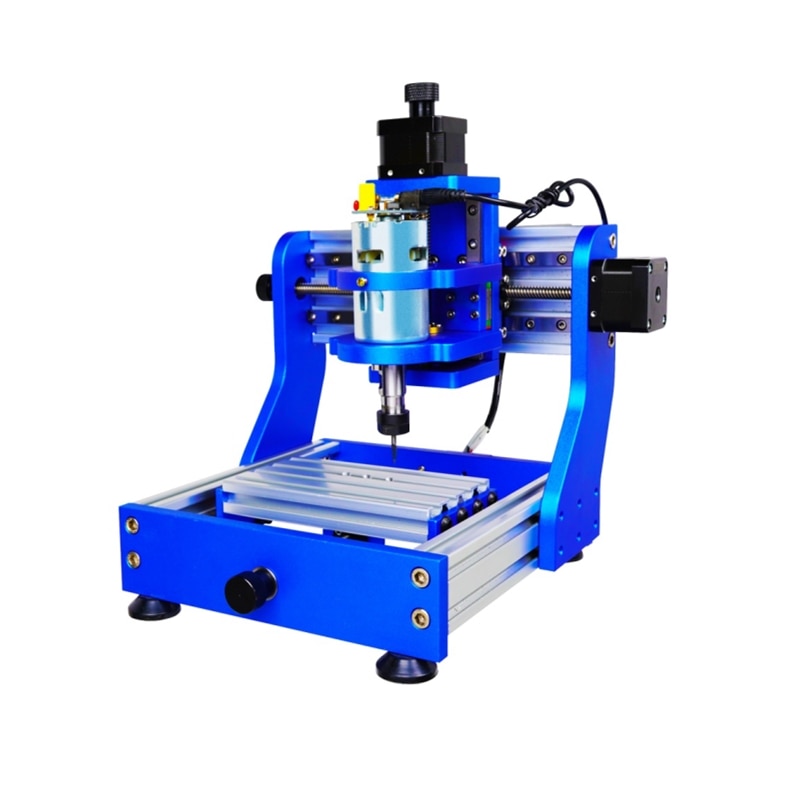

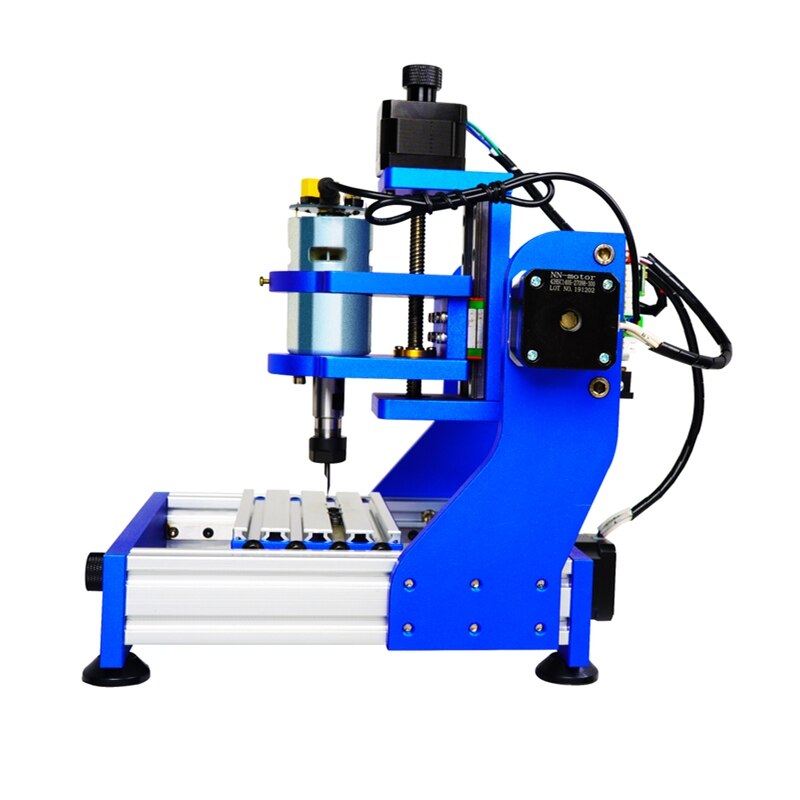

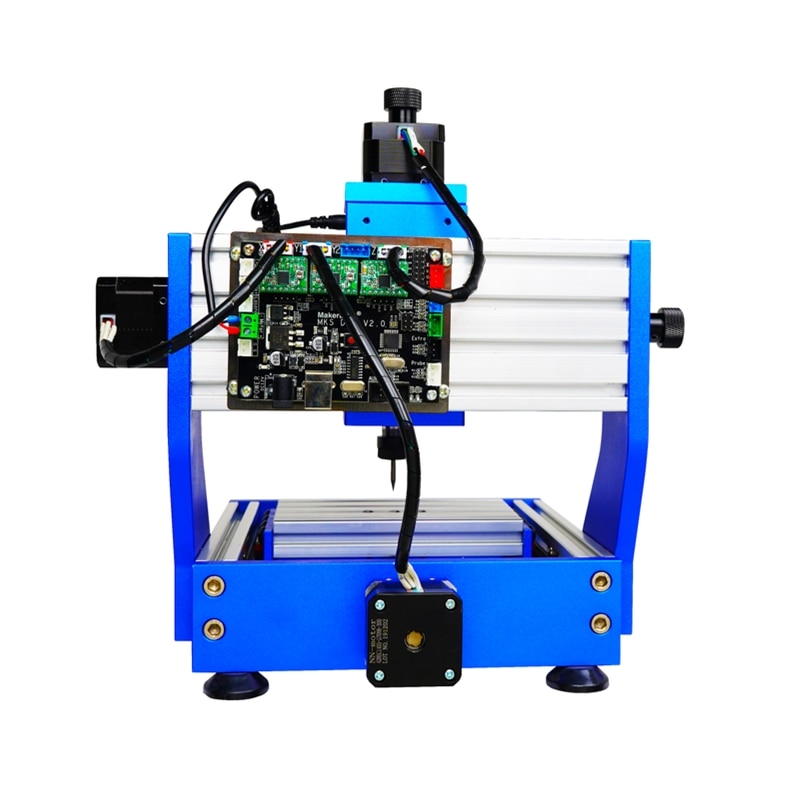

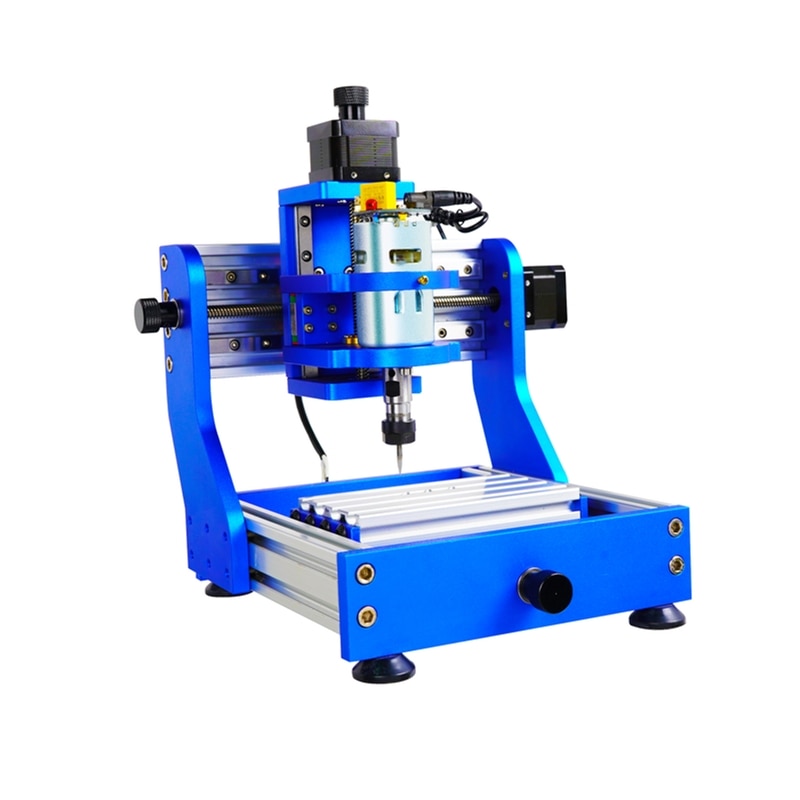

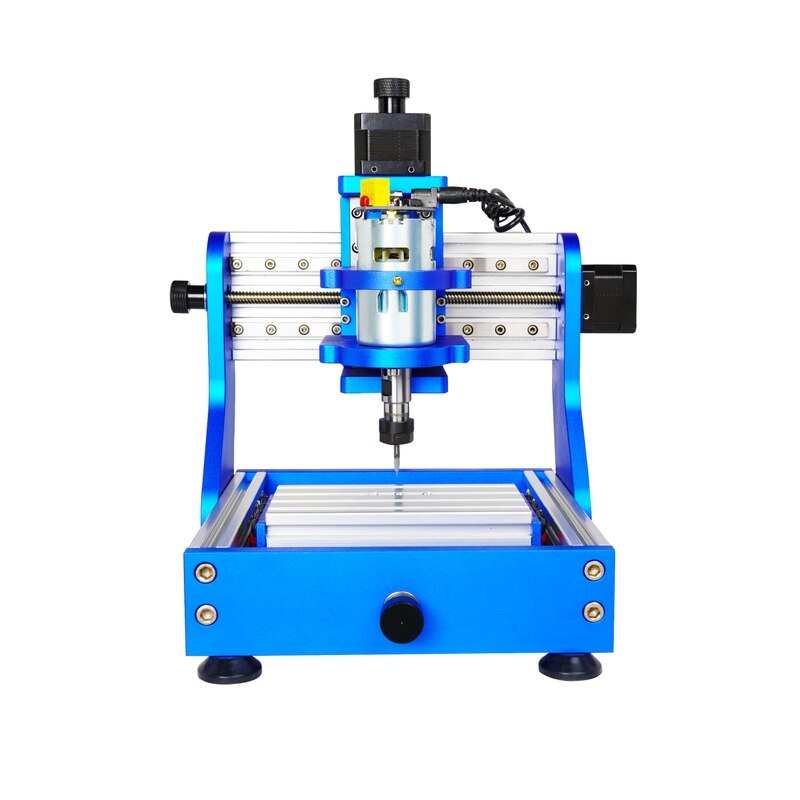

Assembled pack square rail diy mini CNC 1310 PRO 2 in 1 desktop pvc candle cnc router cnc Milling Machine laser cutting machine
Status:Assembled

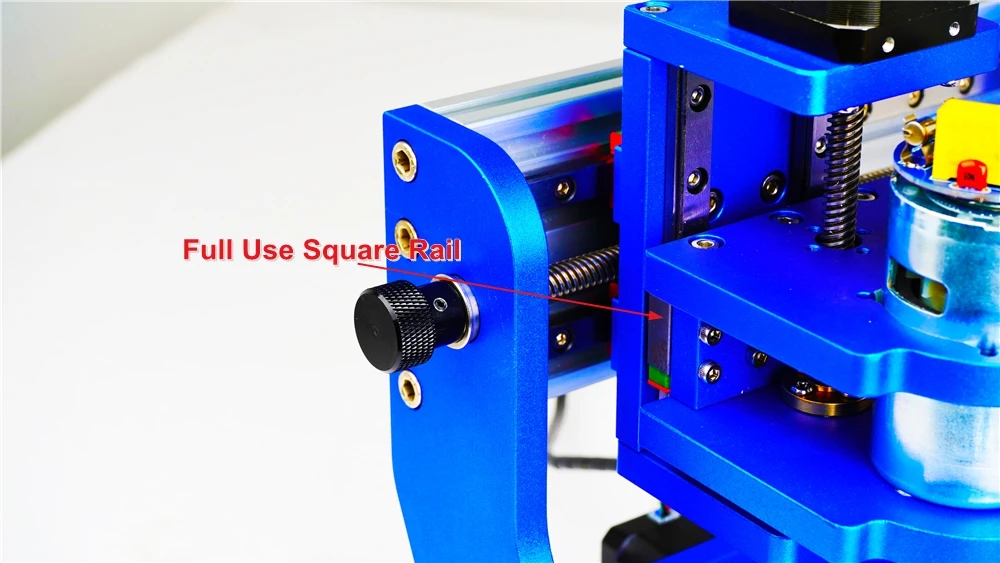

Square rail
High accuracy
Specification:
Machine Dimension: 281mm*281mm*290mm
Working Range: 135*115*45 mm
CNC Software: candle control (More professional than GRBL control)
Laser Software:LiteFire
Machine Material: Aluminum+Profile
Spindle: 775 Spindle(12-36V)
(8000r/min, if 24V)
Stepper Motor: 2-Phase 4-Wire Stepper Motors
(1.3A 0.25N.m)
Lead Screw: T8 Lead Screw
Power Supply: 12V (110V-240V)
Supported OS: Windows XP, Win 7, Win 8, Linux
Laser Head: 500mW/1000MW/2500MW/5500MW/7W/10W/15W Laser Head (Optional)
Applicable Material: Copper, Aluminum and other soft metal
Plastic, Wood, Acrylic, PVC,PCB,etc…
Package Size: 330*330*330 mm
Package Weight:8.0kg
Universal voltage:220V/110V compatible
Standard Package: Complete machine
Packing List:
1310 PRO machine x 1(Pro version: With ER11)
Fix metal clamp x 2 (Pro version: Add extra more 4 clamps, total 6pcs)
Spindle wrench x 1
Engraving bits x 2 (Pro version :Add extra more 10 pcs, total will be 12pcs)
Data line x 1
Power adapter 12V x 1
Optional:
Laser Head x 1 (If choose Laser function)
Goggles x 1 (If choose Laser function)
