ASMC-04B/ASMC-04A Robot Servo High Power Torque 12V~24V 180kg.cm /110kg.cm Large Robotic Manipulator/ PCB Controller /Arm Plate

$12.08 – $64.89

SKU: 32889090668 Category:

Description

  • Brand Name: RCmall
  • Origin: CN(Origin)
  • Certification: NONE
  • Drones Accessories Type: MOTOR
  • Package: Yes
  • Model Number: ASMC-04B/A
  • Item: High Power Torque Robot Servo ASMC-04B ASMC-04A
  • Operating voltage: 12V to 24V (DC)
  • Application:: RC Car Robot Boat Quadcopter
  • Bundle 1: ASMC-04B Servo with Arm Plate
  • Bundle 2: ASMC-04A Servo with Arm Plate
  • Bundle 3: PCB Controller for ASMC-04B Servo
  • Bundle 4: Arm Plate

ASMC-04B/ASMC-04A Robot Servo High Power Torque 12V~24V 180kg.cm /110kg.cm Large Robotic Manipulator/ ASMC-04B PCB Controller /Arm Plate XZ0033/A FZ2861


Description

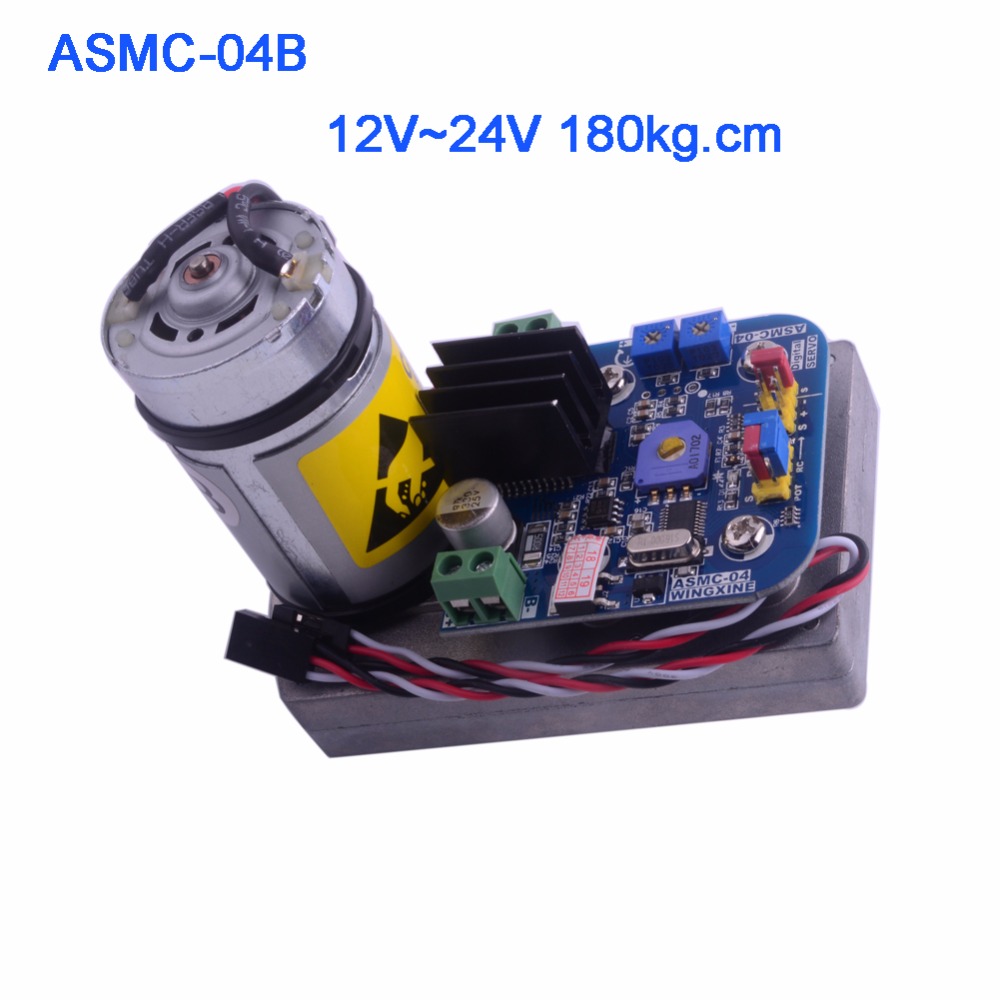

ASMC-04B

ASMC-04B Robot Servo High Power Torque Support 12V~24V 180kg.cm Large Robotic Manipulator For RC Car Quadcopter

Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.
Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.

Technical Parameters:
Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)
No-load rotational current: <500mA
Maximum torque: 180kg.cm (24V) (measured, non-theoretical value)
                               1764N.cm (24V) (measured, non-theoretical value)
                                90kg.cm (12V) (measured, non-theoretical value)
                               882N.cm (12V) (measured, non-theoretical value)

Angular speed: 0.5s / 60 ° (60 degrees of rotation required 0.5s), 24V time;
                           1.0s / 60 ° (60 degrees of rotation required 1.0s), at 12V;
Rotation angle: 300 ° MAX, meaning that the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)
Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms fits all “multi-channel servo controller”, “1ms-2ms model aircraft remote control”, “SCM”,  and so on;
Voltage signal input range: 0V to + 5V
Control accuracy: 0.32 °
Weight: 530g
Gear Material: Steel
Dimensions: 95.5mm X 60.5mm X 102.6mm / 3.76*2.38*4.04″

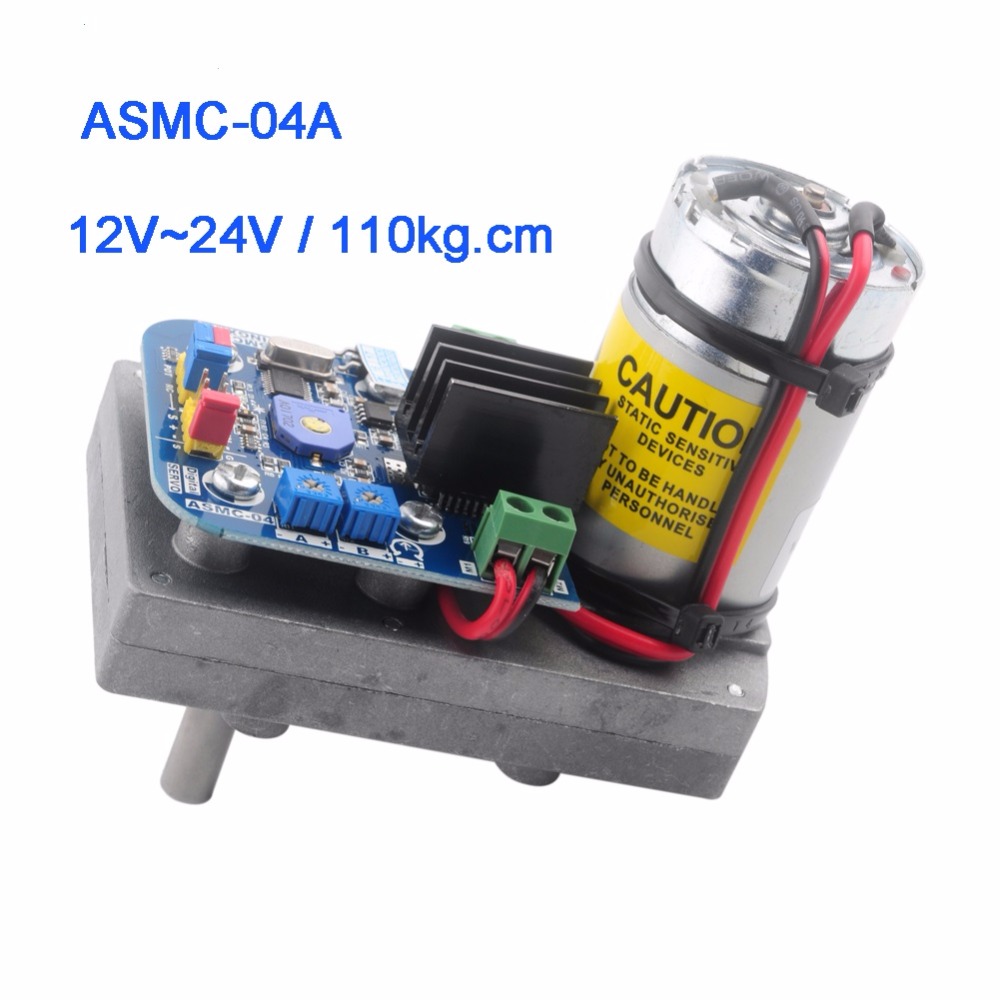

ASMC-04A
ASMC-04A Robot Servo High Power Torque Support 12V~24V 110kg.cm Large Robotic Manipulator For RC Car
Quadcopter XZ0033A

Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.
Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.

Technical Parameters:
Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)
No-load rotational current: <500mA
Maximum torque: 110kg.cm (24V) (measured, non-theoretical value)
                               1078N.cm (24V) (measured, non-theoretical value)
                                55kg.cm (12V) (measured, non-theoretical value)
                               539N.cm (12V) (measured, non-theoretical value)

Angular speed: 0.12s / 60 ° (60 degrees of rotation required 0.5s), 24V time;
                           0.24s / 60 ° (60 degrees of rotation required 1.0s), at 12V time;
Rotation angle: 300 ° MAX, meaning that the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)
Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms fits all “multi-channel servo controller”, “1ms-2ms model aircraft remote control”, “SCM”,  and so on;
Voltage signal input range: 0V to + 5V
Control accuracy: 0.32 °
Weight: 530g
Gear Material: Steel
Dimensions: 95.5mm X 60.5mm X 102.6mm /  3.76*2.38*4.04″

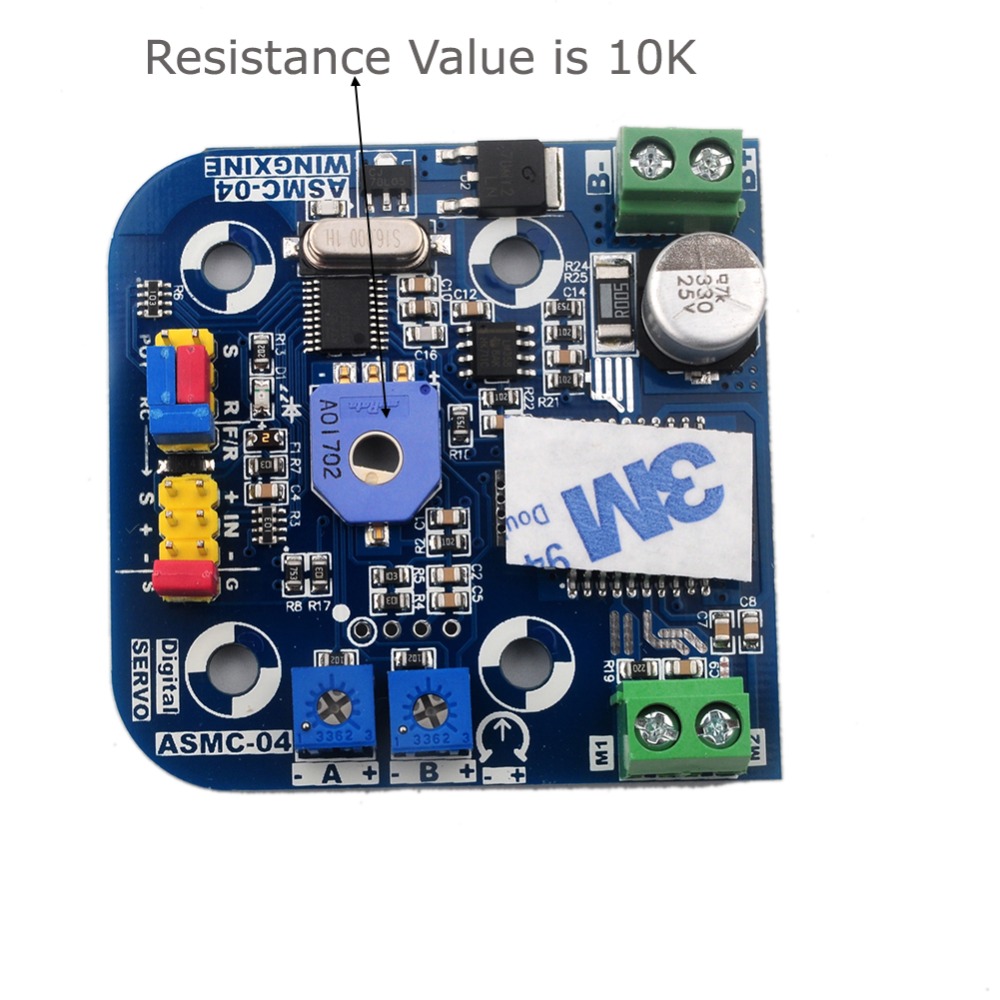

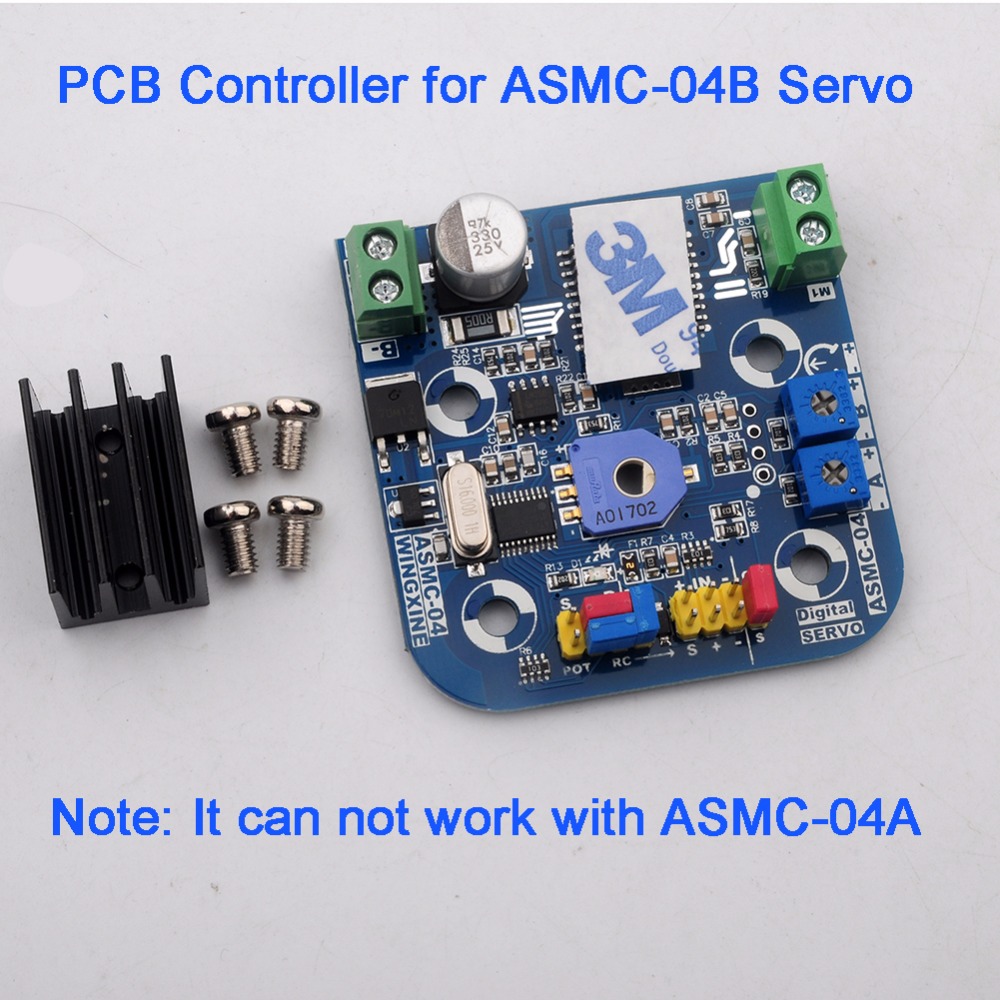

PCB Controller for ASMC-04B

PCB Controller for ASMC-04B Robot Servo High Power Torque Support 12V~24V 180kg.cm Large Robotic Manipulator

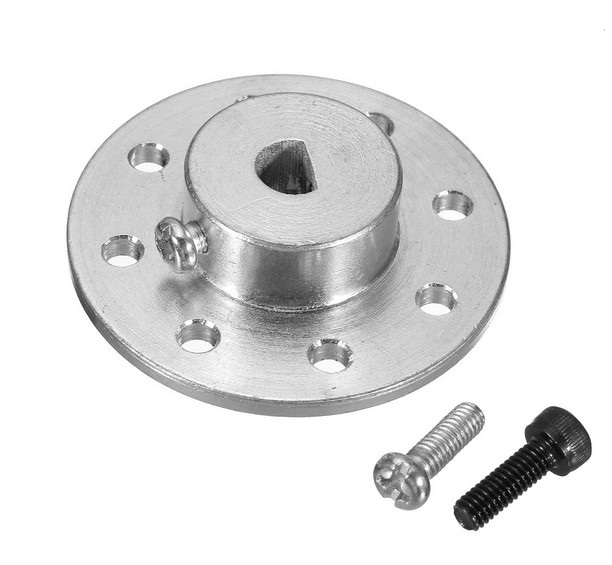

Arm Plate
ASME Series Large Torque Servo Special Arm Plate

Apply to Servo Type: ASMC Series, ASME Series;
Material: Hard Alloy Steel (Oxidation Resistance Disposal on the Surpface);
Installation Method: D Type Hole Antiskid Key Connection (Compatible with ASMC ASME Servo Shaft);


Packet includes:

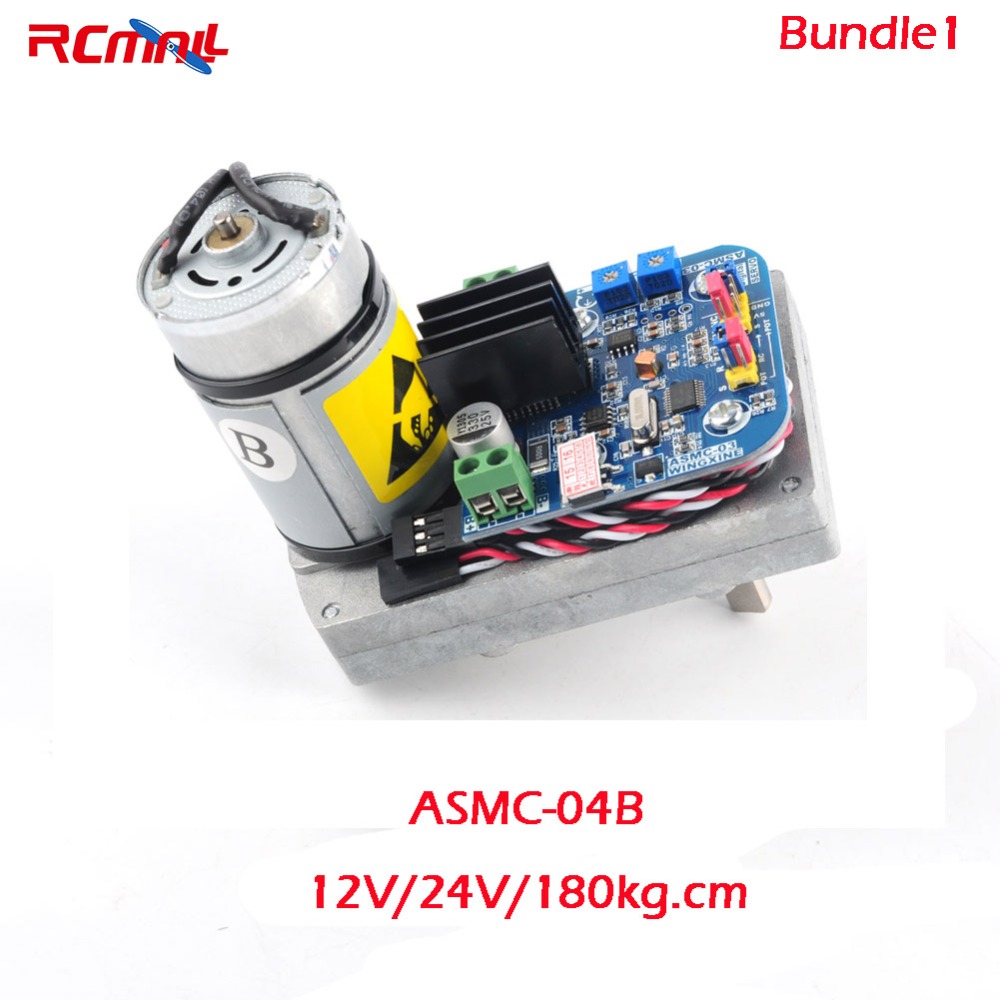

Bundle1
1 X ASMC-04B Servo
1X Arm Plate

OR
Bundle2
1 X ASMC-04A Servo
1X Arm Plate

OR
Bundle 3
1X PCB Controller for ASMC-04B Servo

OR
Bundle4
1 X Arm Plate
