Description
- Brand Name: RCmall
- Certification: NONE
- Origin: CN(Origin)
- Package: Yes
- Model Number: ASMC-04B/A
- Drones Accessories Type: MOTOR
- TYPE: XZ0033
- Operating voltage: 12V to 24V (DC)
- Application:: RC Car Robot Boat Quadcopter
- Weight:: 530g
- Gear Material:: Steel
- Dimensions:: 95.5mm X 60.5mm X 102.6mm
- Bundle 1: ASMC-04B Servo
- Bundle 2: ASMC-04A Servo
- Bundle 3: Arm Plate
- Bundle 4: PCB Controller for ASMC-04B Servo
RCmall ASMC-04B/ASMC-04A Robot Servo High Power Torque Support 12V~24V 180kg.cm /110kg.cm Large Robotic Manipulator/ Arm Plate XZ0033/A FZ2861
Description:

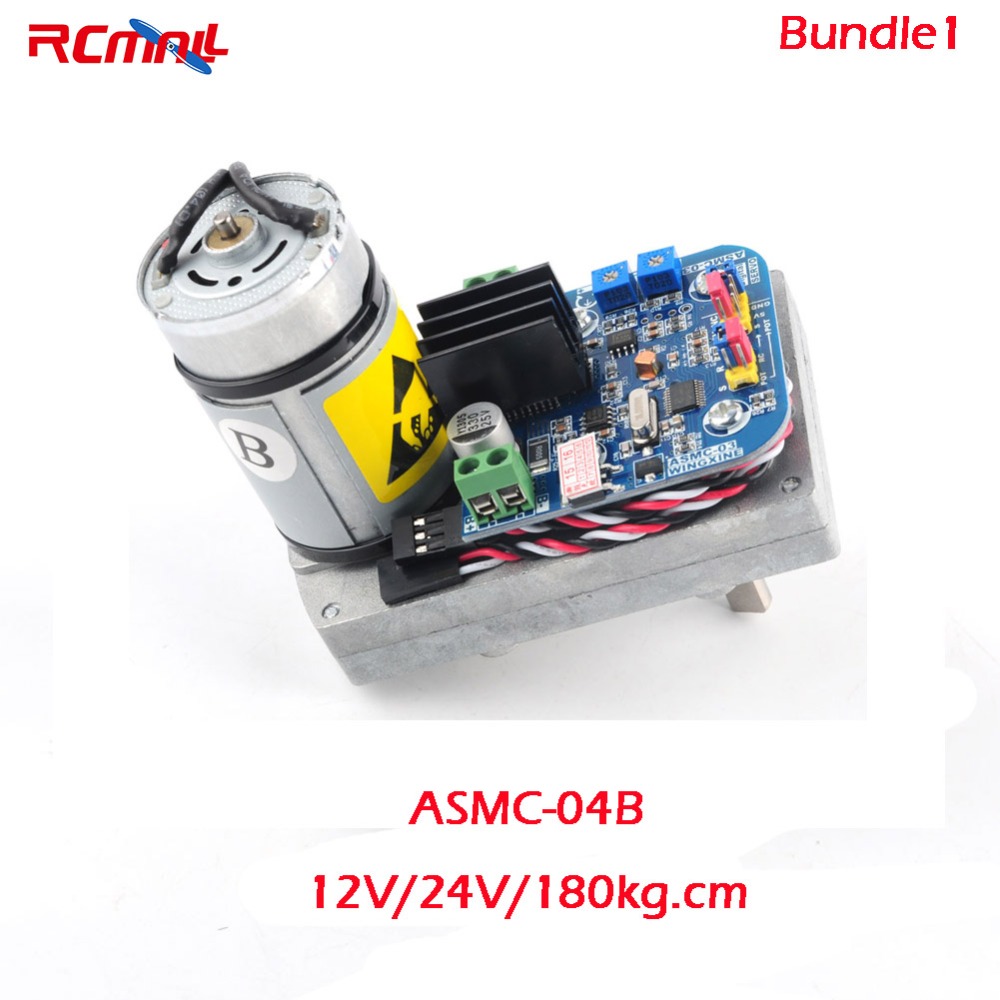

ASMC-04B
Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.
Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.
Technical Parameters:
Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)
No-load rotational current: <500mA
Maximum torque: 180kg.cm (24V) (measured, non-theoretical value)
1764N.cm (24V) (measured, non-theoretical value)
90kg.cm (12V) (measured, non-theoretical value)
882N.cm (12V) (measured, non-theoretical value)
Angular speed: 0.5s / 60 ° (60 degrees of rotation required 0.5s), 24V time;
1.0s / 60 ° (60 degrees of rotation required 1.0s), at 12V;
Rotation angle: 300 ° MAX, meaning that the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)
Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms fits all “multi-channel servo controller”, “1ms-2ms model aircraft remote control”, “SCM”, and so on;
Voltage signal input range: 0V to + 5V
Control accuracy: 0.32 °
Weight: 530g
Gear Material: Steel
Dimensions: 95.5mm X 60.5mm X 102.6mm

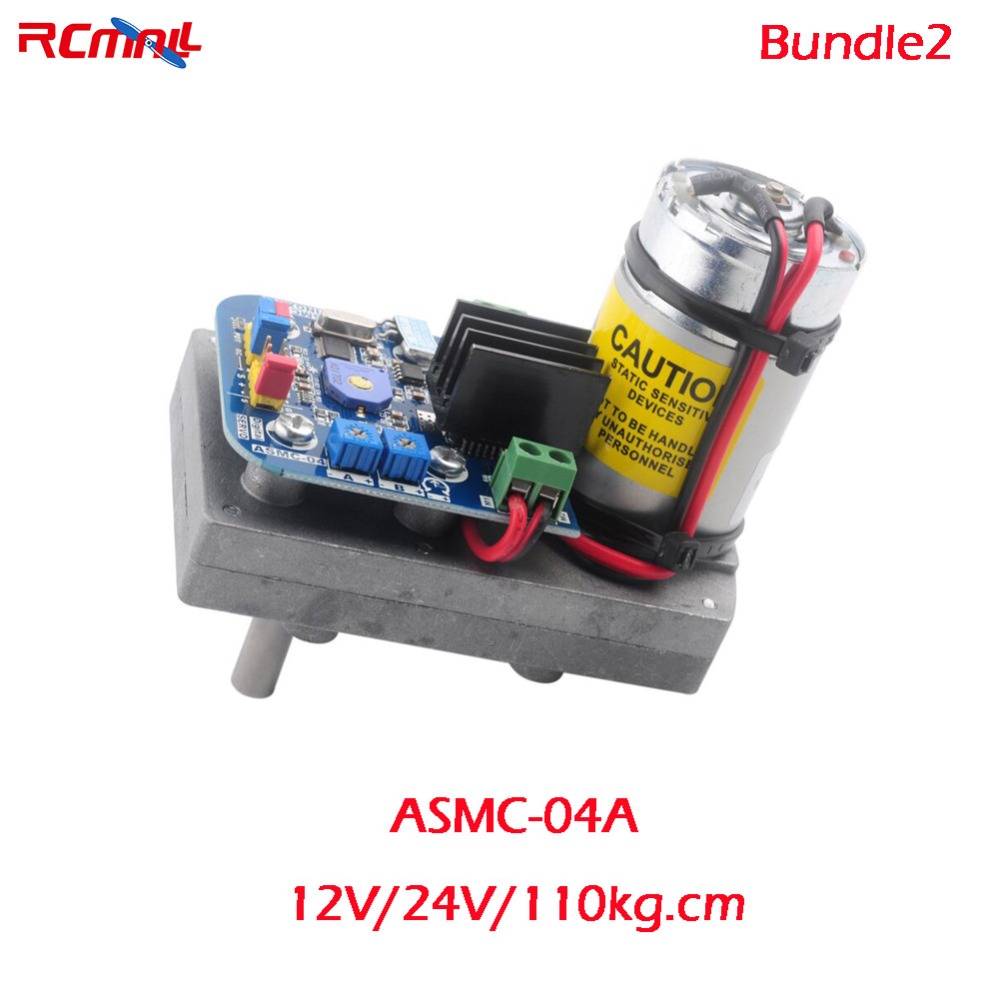

ASMC-04A
Perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems.
Exclusive unique technology to ensure stable power steering gear continued to work with other servo fuse protection is completely different. Once the fuse is blown, the servo can not continue to work. Our stability control servo rudder opportunity to work in a safe torque within. And never dropped.
Technical Parameters:
Operating voltage: 12V to 24V (DC) (this means that either a 12V or any voltage between 24V can be used)
No-load rotational current: <500mA
Maximum torque: 110kg.cm (24V) (measured, non-theoretical value)
1078N.cm (24V) (measured, non-theoretical value)
55kg.cm (12V) (measured, non-theoretical value)
539N.cm (12V) (measured, non-theoretical value)
Angular speed: 0.12s / 60 ° (60 degrees of rotation required 0.5s), 24V time;
0.24s / 60 ° (60 degrees of rotation required 1.0s), at 12V time;
Rotation angle: 300 ° MAX, meaning that the maximum stroke of 300 degrees (0 to 300 ° adjustable electronic limit)
Input modes: pulse signal (remote control, multiple servo controller, microcontroller) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms fits all “multi-channel servo controller”, “1ms-2ms model aircraft remote control”, “SCM”, and so on;
Voltage signal input range: 0V to + 5V
Control accuracy: 0.32 °
Weight: 530g
Gear Material: Steel
Dimensions: 95.5mm X 60.5mm X 102.6mm

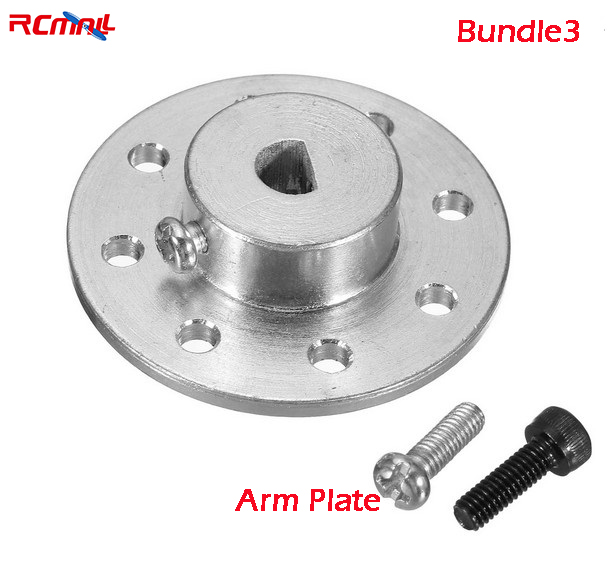

Arm Plate
Apply to Servo Type: ASMC Series, ASME Series;
Material: Hard Alloy Steel (Oxidation Resistance Disposal on the Surpface);
Installation Method: D Type Hole Antiskid Key Connection (Compatible with ASMC ASME Servo Shaft)

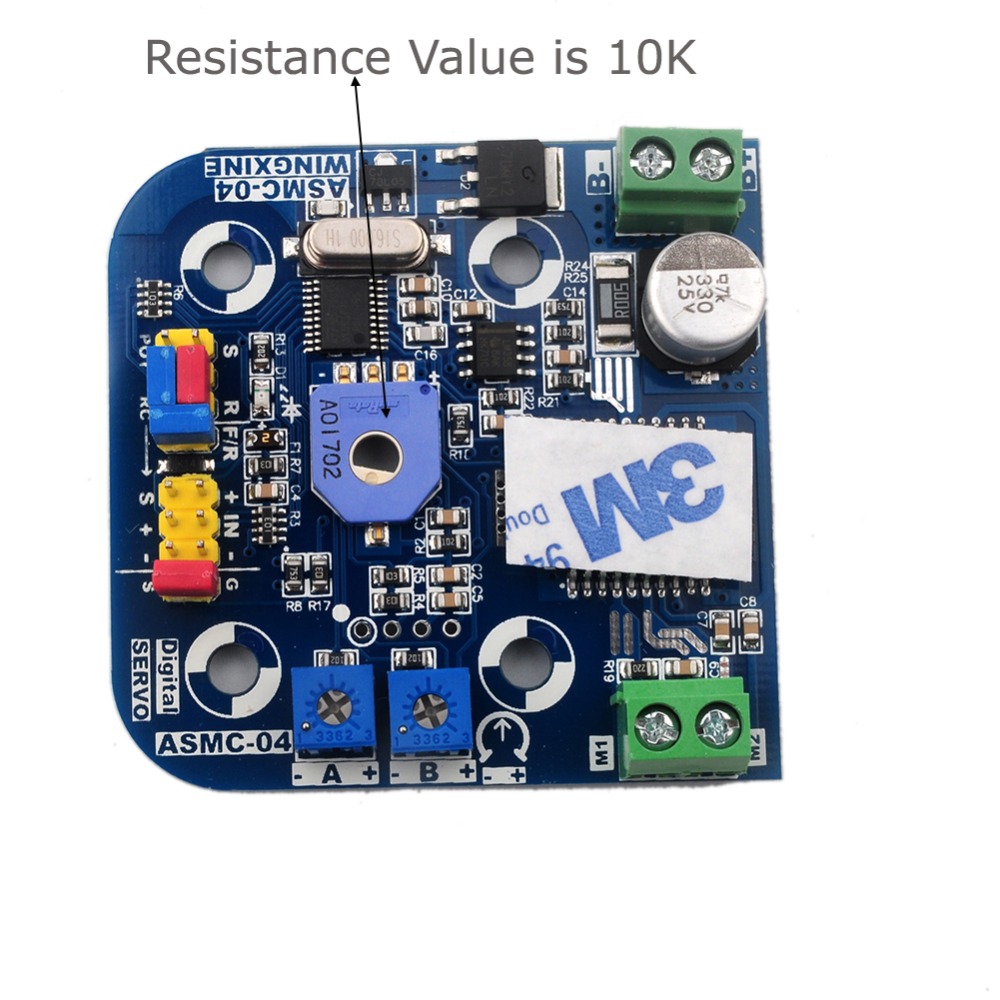

PCB Controller for ASMC-04B Servo
Packet includes:
Bundle1
1 X ASMC-04B Servo
OR
Bundle2
1 X ASMC-04A Servo
OR
Bundle3
1 X Arm Plate
OR

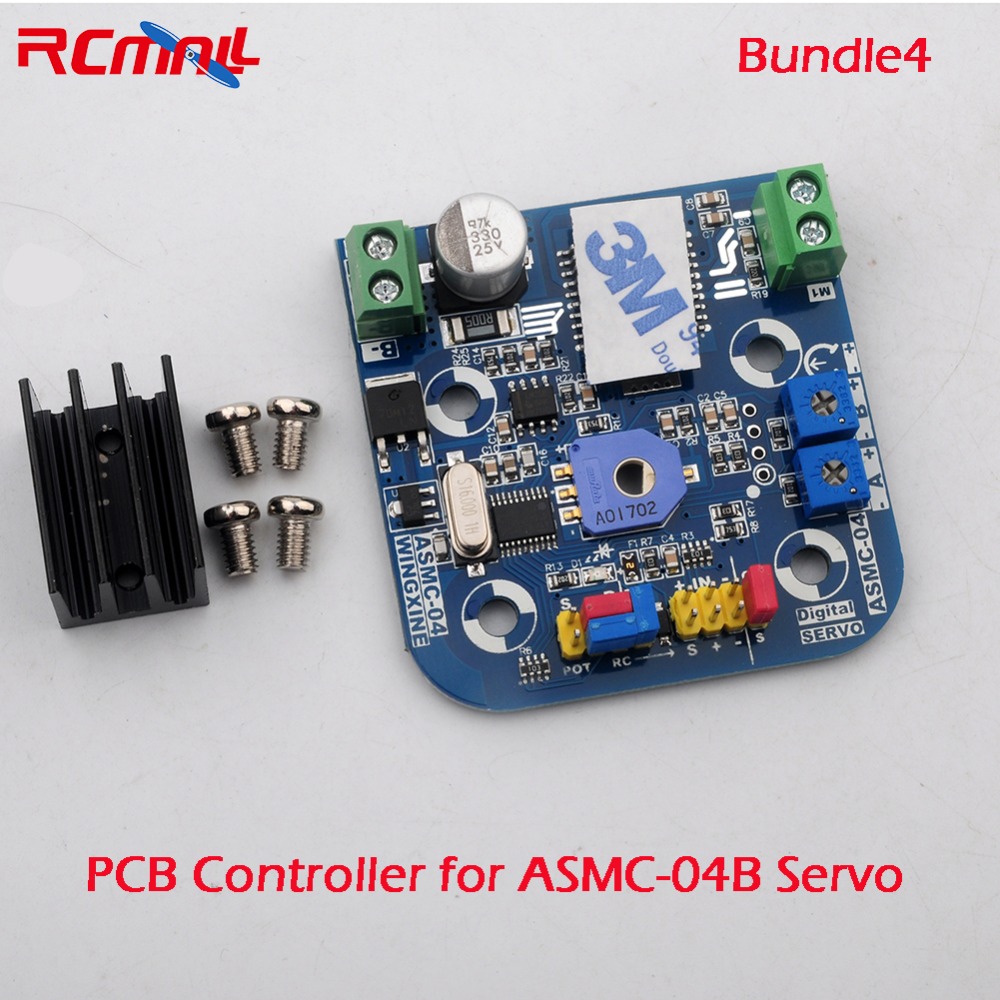

Bundle4
1 X ASMC-04B Servo PCB Controller

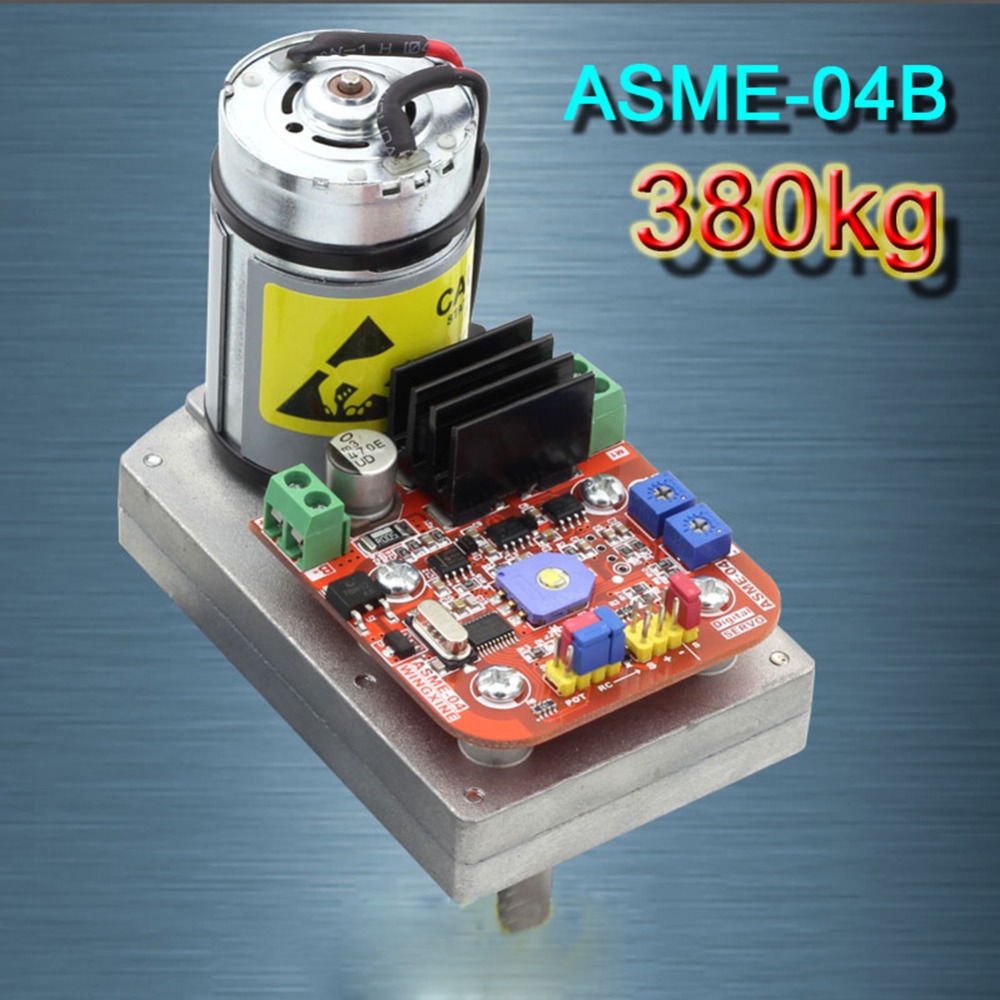

Larger Torque Servo Available. Please check.
