Description
- Brand Name: annoytools
- Origin: CN(Origin)
- Certification: CE
- Certification: RoHS
- Condition: New
- Model Number: 4050S
- CNC or Not: CNC
- Is Smart Device: YES

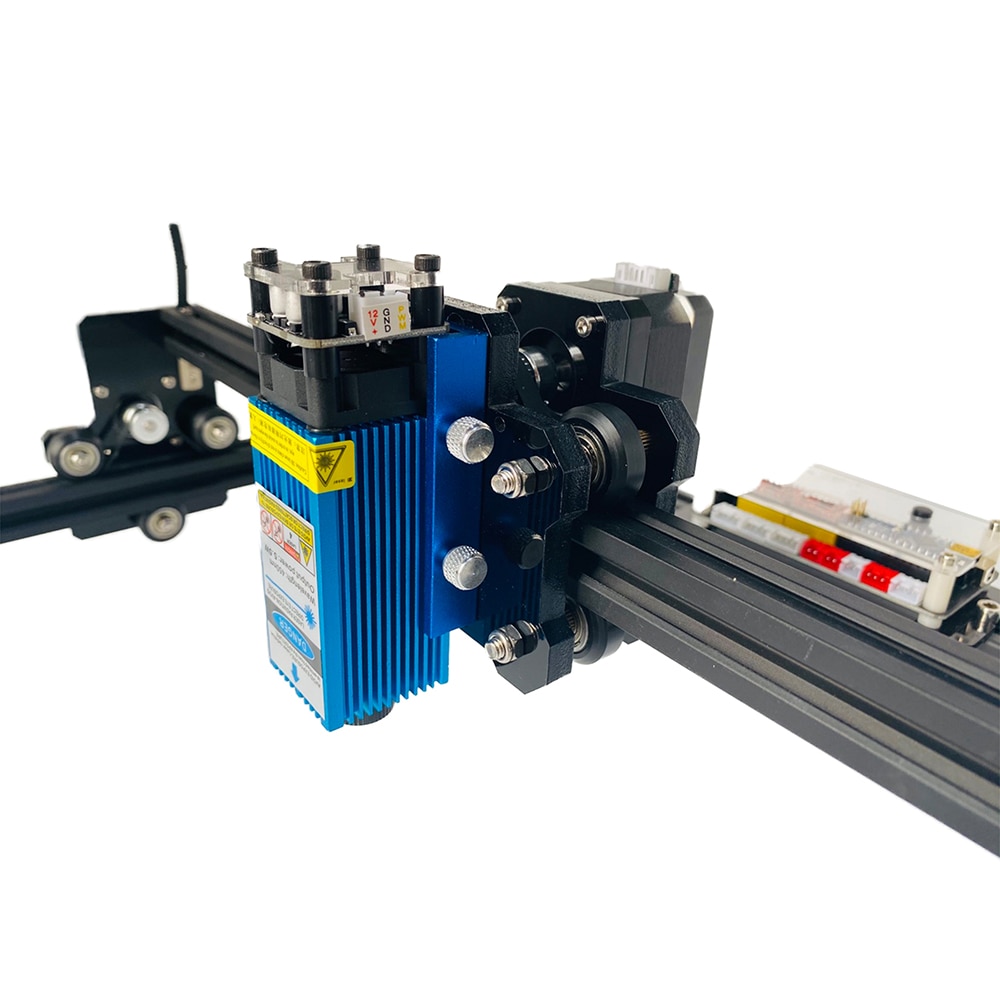

15W/30W/40W Laser Engraving Machine 40*50CM
-
Model: 40*50cm laser engraver
-
Input: 100-240V 50-60Hz
-
Output: 12V 5A
-
Material: Aluminum
-
Number of Axes: X axis double Y axis
-

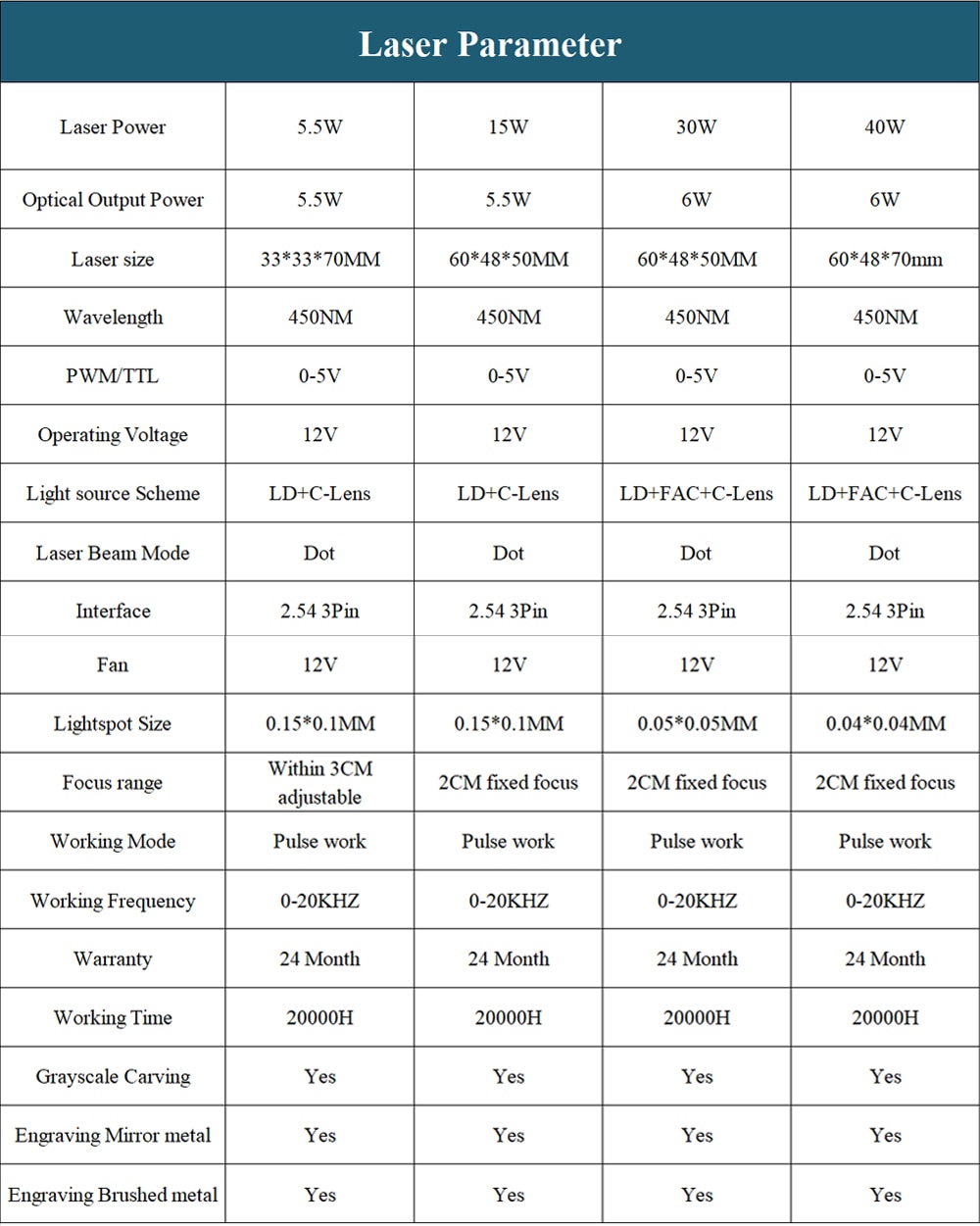

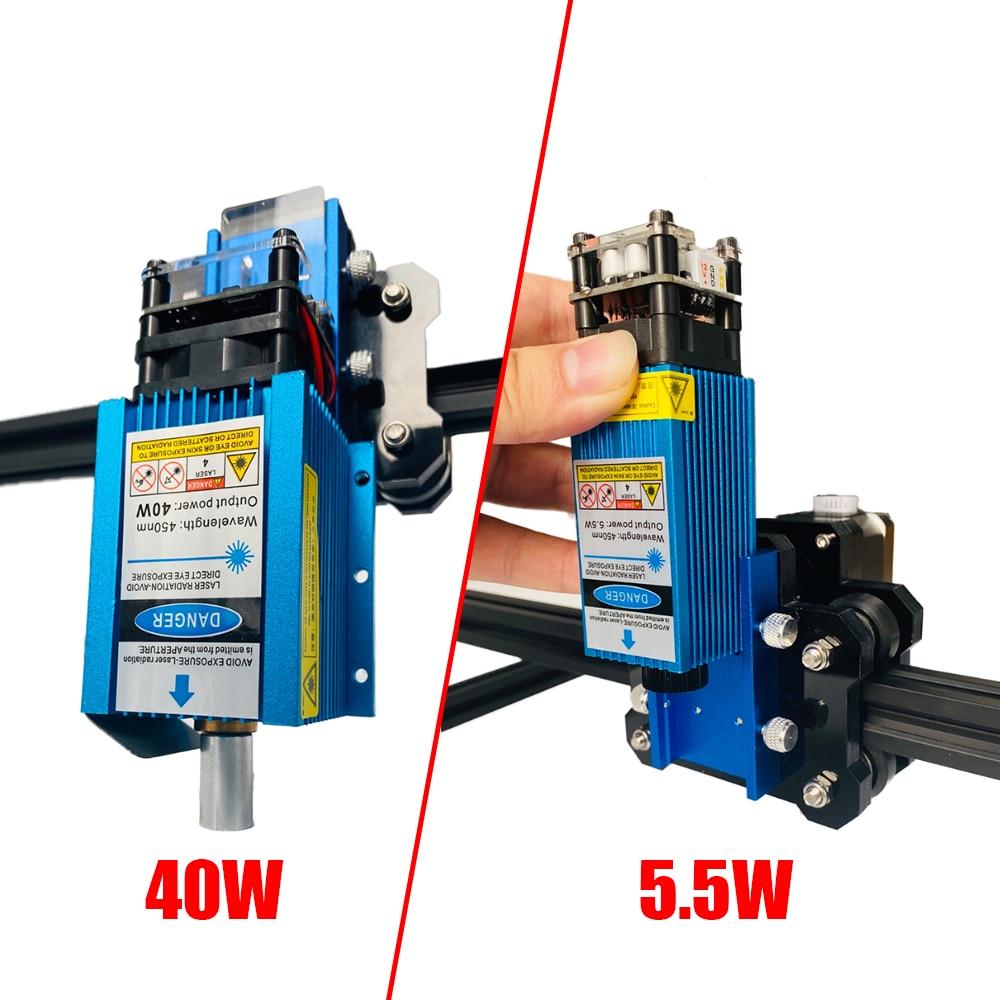

Laser Power: No laser / 5.5W / 15W / 30W/40W
-
Wavelength: 450NM
-
Firmware: GRBL1.1
-

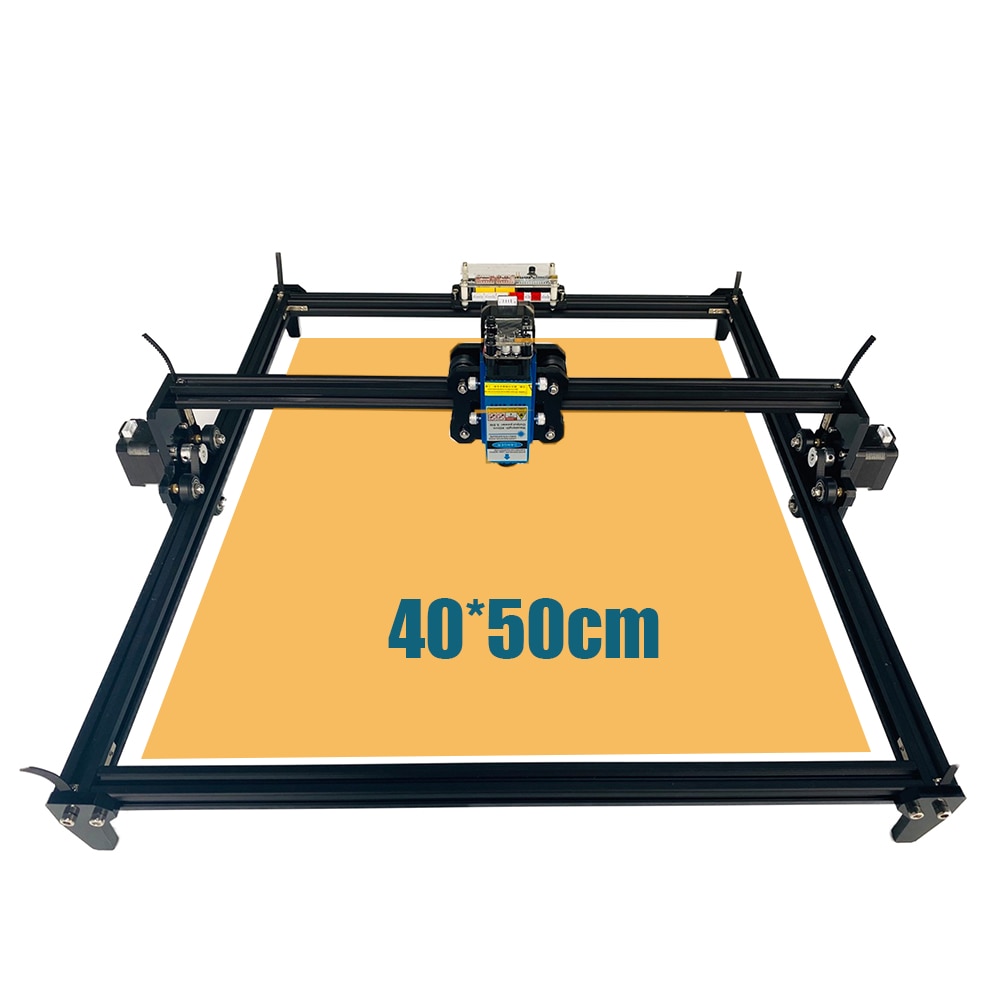

Working Area: 40*50cm
-

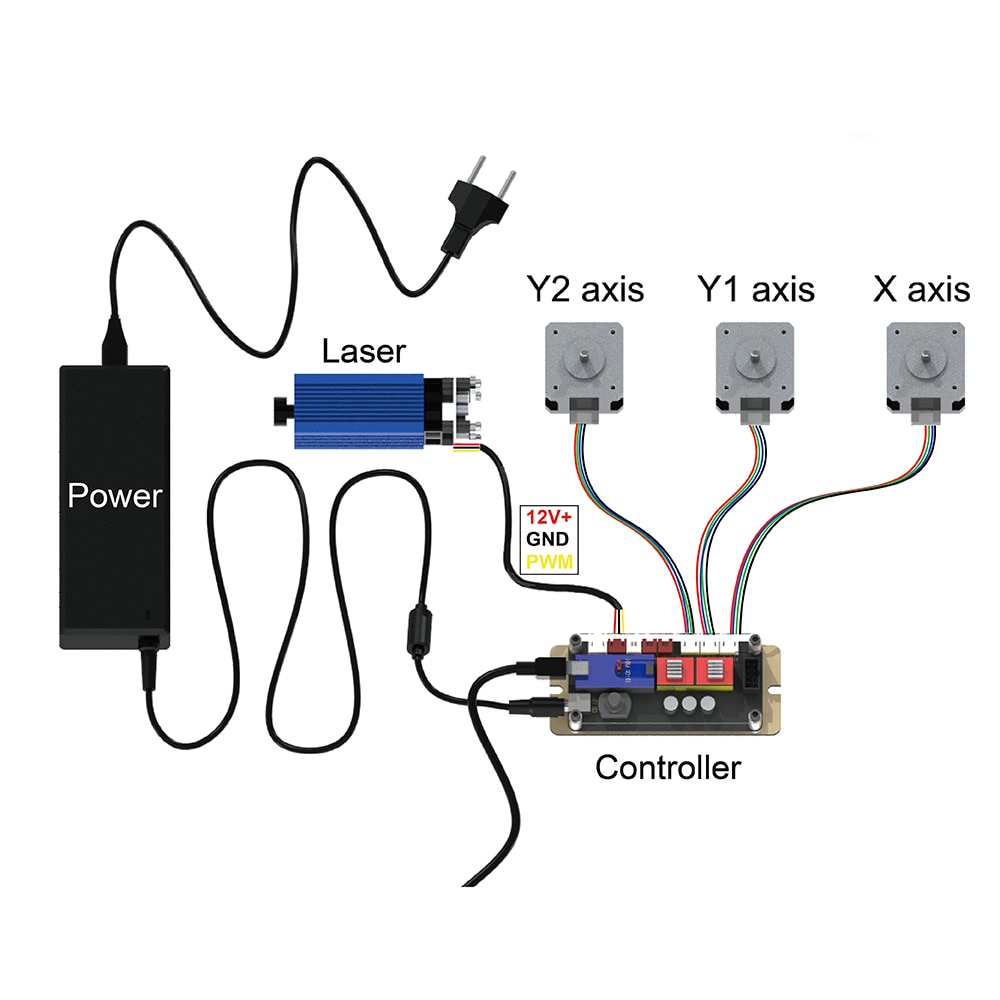

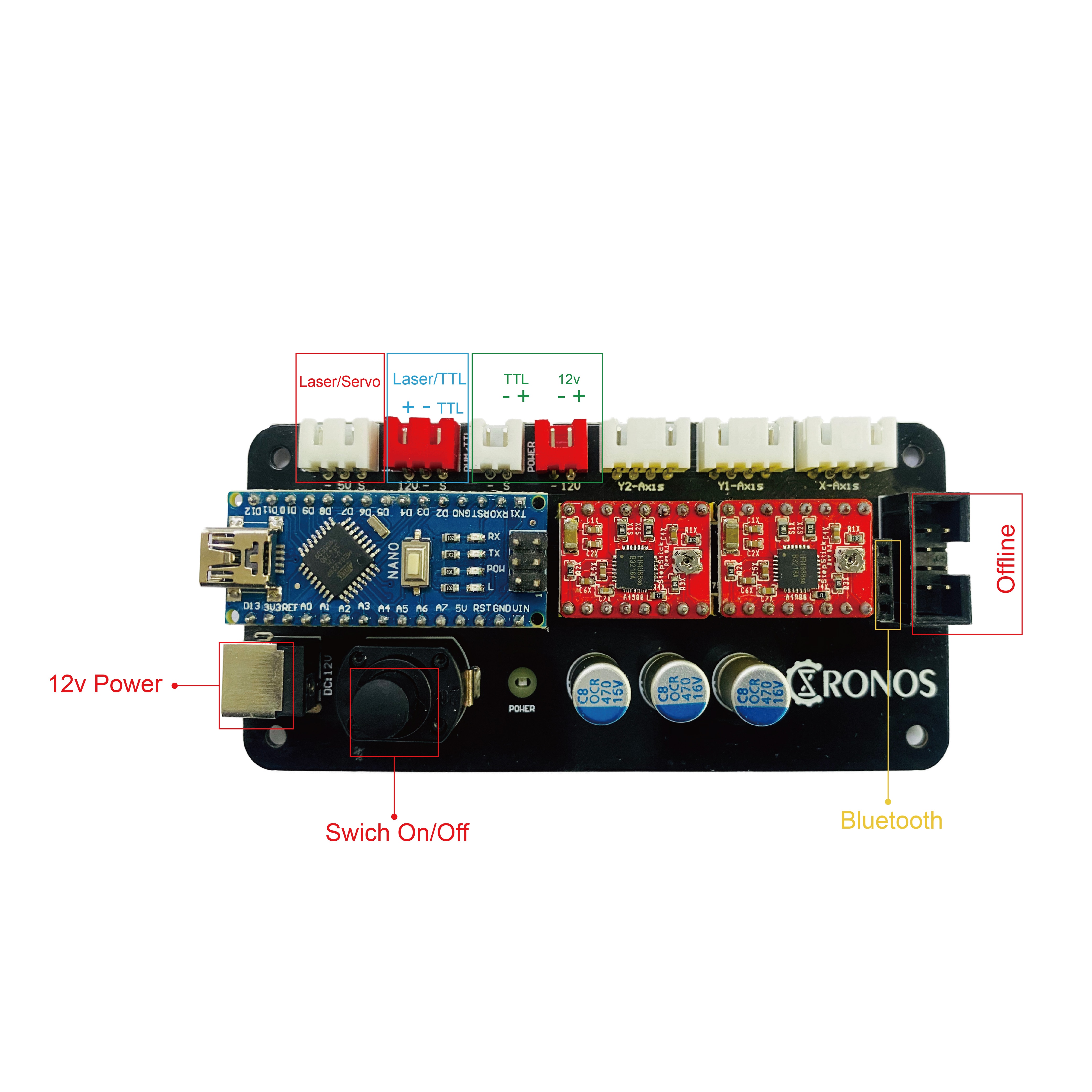

Support PWM/ TTL modulate laser power
-
Support System: Windows XP / Win 7 / Win 8 / Win10
-
Support File: G-CODE, NC file, JPG, BMP, DXF, CDR
-
-
Software: LaserGRBL(Windows), Lightburn(Mac, Linux), Laser Engraver (Windows)
-
–Please notice:
-
when it arrived maybe will has tax, please remember seller will not response for them
-
If your region belongs to remote areas (such as Spain’s Islands) we inform you, you need to pay $ 45 remote fees, or you can change the address.
-
If you have any questions after receiving the package, please contact us first.
Details:

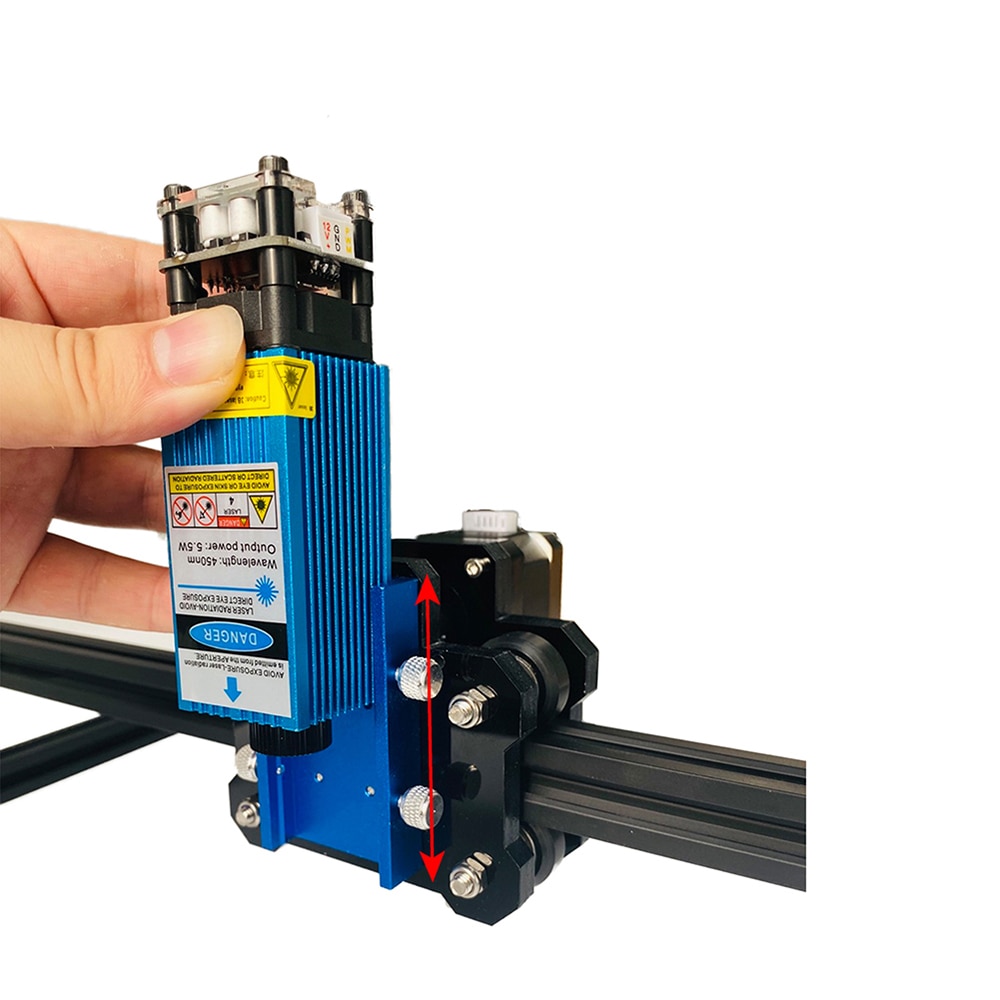

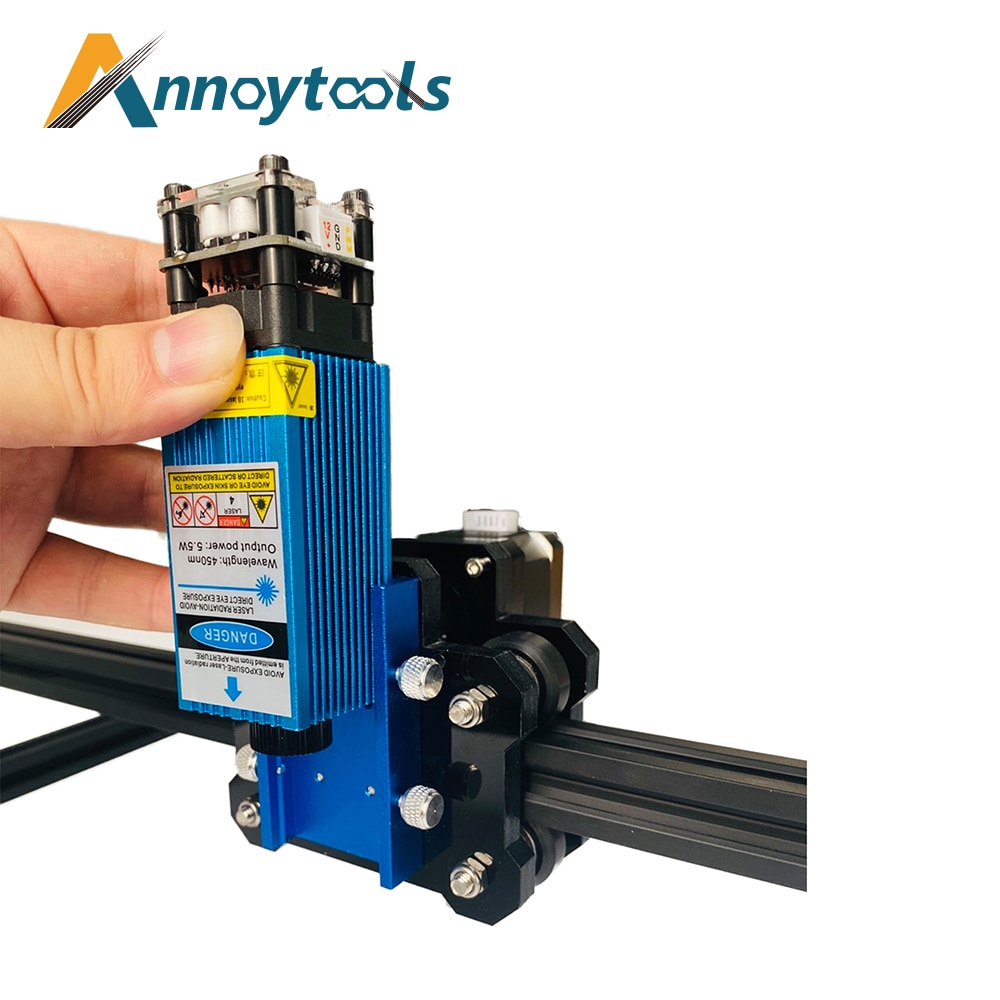

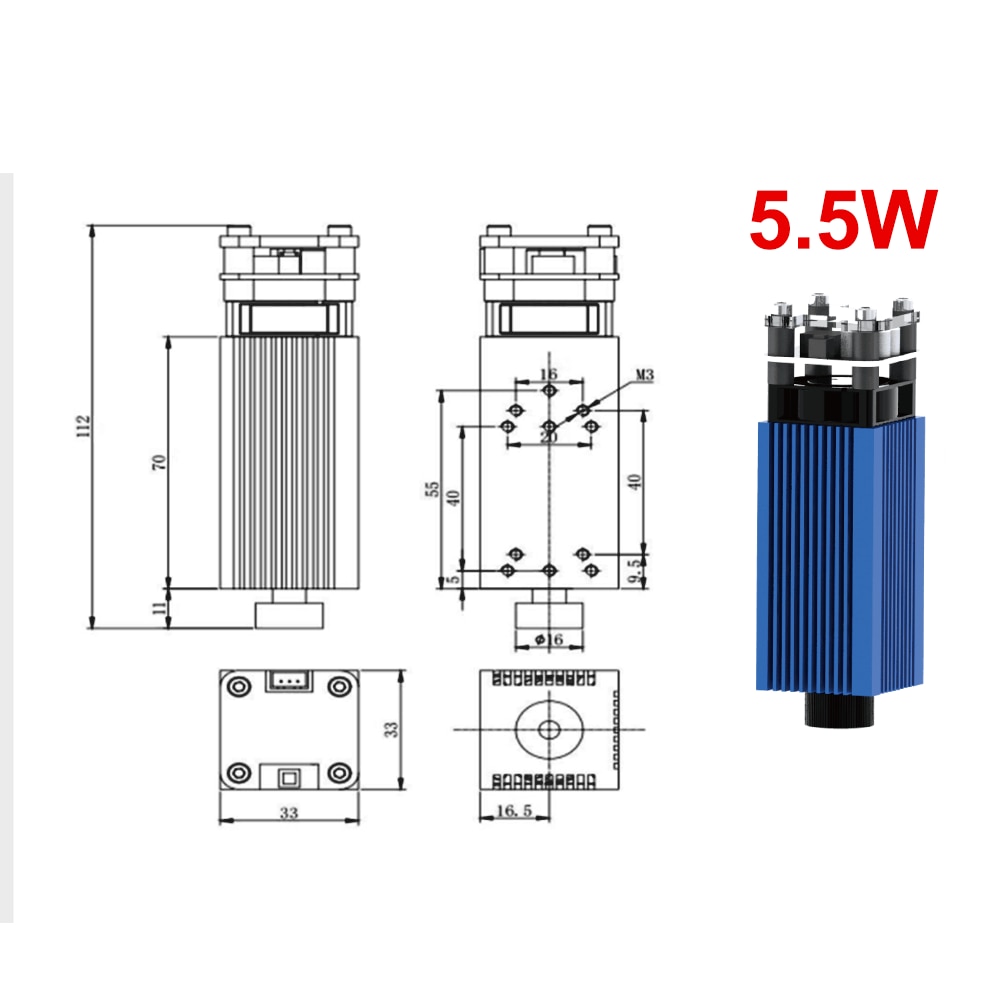

— Laser Power:5.5W
— Actual output power:5W
— Laser wavelength: 450nm
— Spot type: Dotted
— Focus: within 3cm adjustable
— Spot size: 0.15*0.1mm
— Drive mode: external ACC constant current drive
— Cooling method: Forced Air Cooling
— Operating voltage: 12V DC
— Power supply: 12V 3A
— Shell material: Aluminum, Surface Anodized
— Module material: Copper
— Life Time:20000hours
— Working temperature:-40-75Celsius

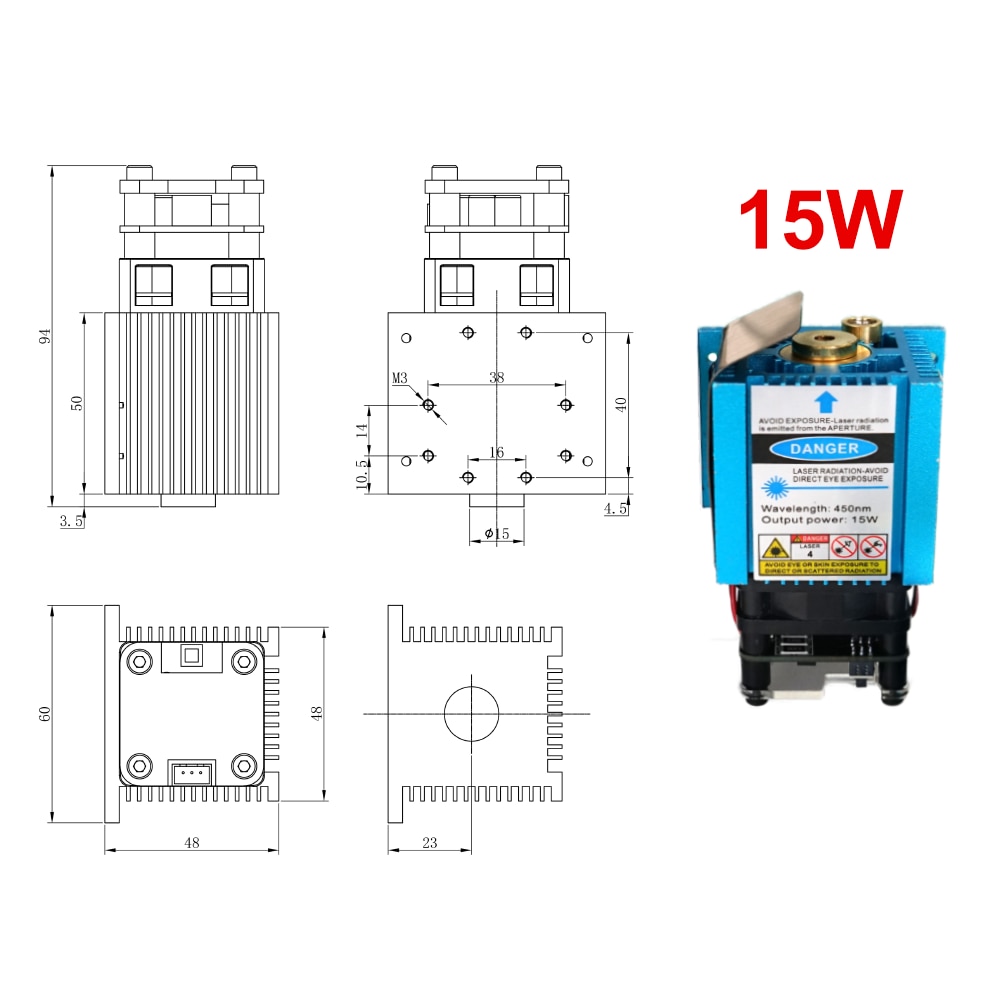

Details:
— Actual output power:5W
— Laser wavelength: 450nm
— Spot type: Dotted
— Spot size: 0.15*0.1mm

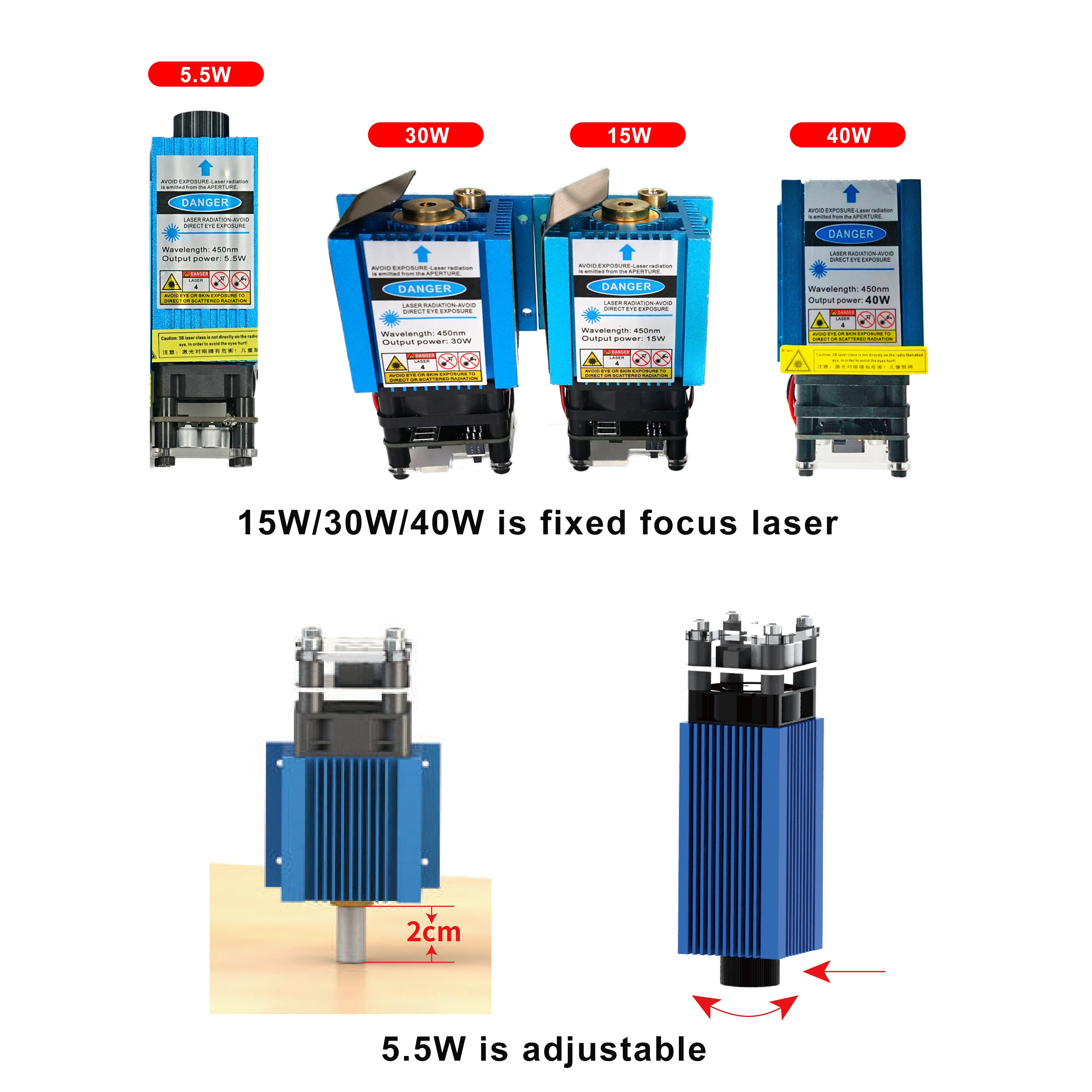

— Focus: 2cm fixed focus can not be adjusted
— Drive mode: external ACC constant current drive
— Cooling method: Forced Air Cooling
— Operating voltage: 12V DC
— Power supply: 12V 5A
— Shell material: Aluminum, Surface Anodized
— Module material: Copper
— Life Time:20000hours
— Working temperature:-40-75Celsius

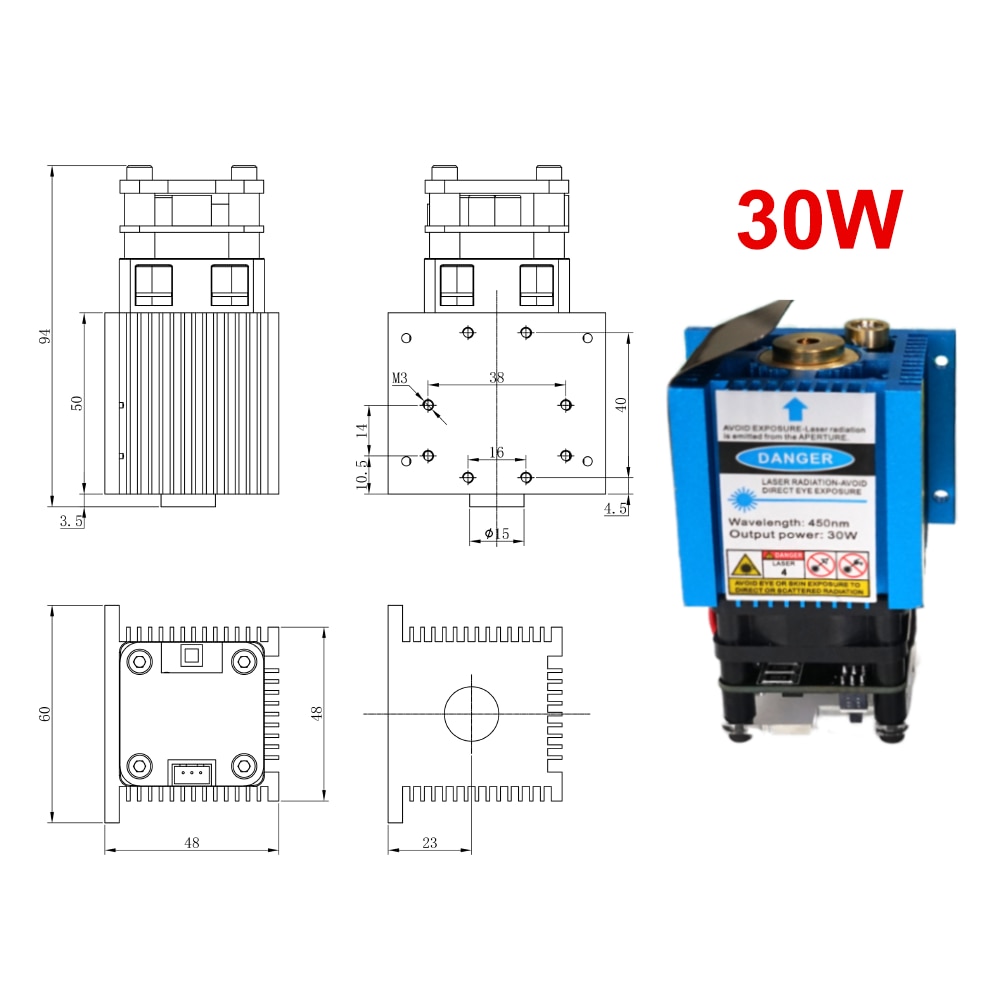

Details:
— Cooling method: Forced Air Cooling
— Operating voltage: 12V DC
— Power supply: 12V 5A
— Shell material: Aluminum, Surface Anodized
— Module material: Copper
— Life Time:20000hours
— Working temperature:-40-75Celsius
— Drive mode: external ACC constant current drive
— Spot type: Dotted
— Spot size: 0.05*0.05mm
— Focus: 2cm fixed focus can not be adjusted
— Laser wavelength: 450nm
— Actual output power:6W

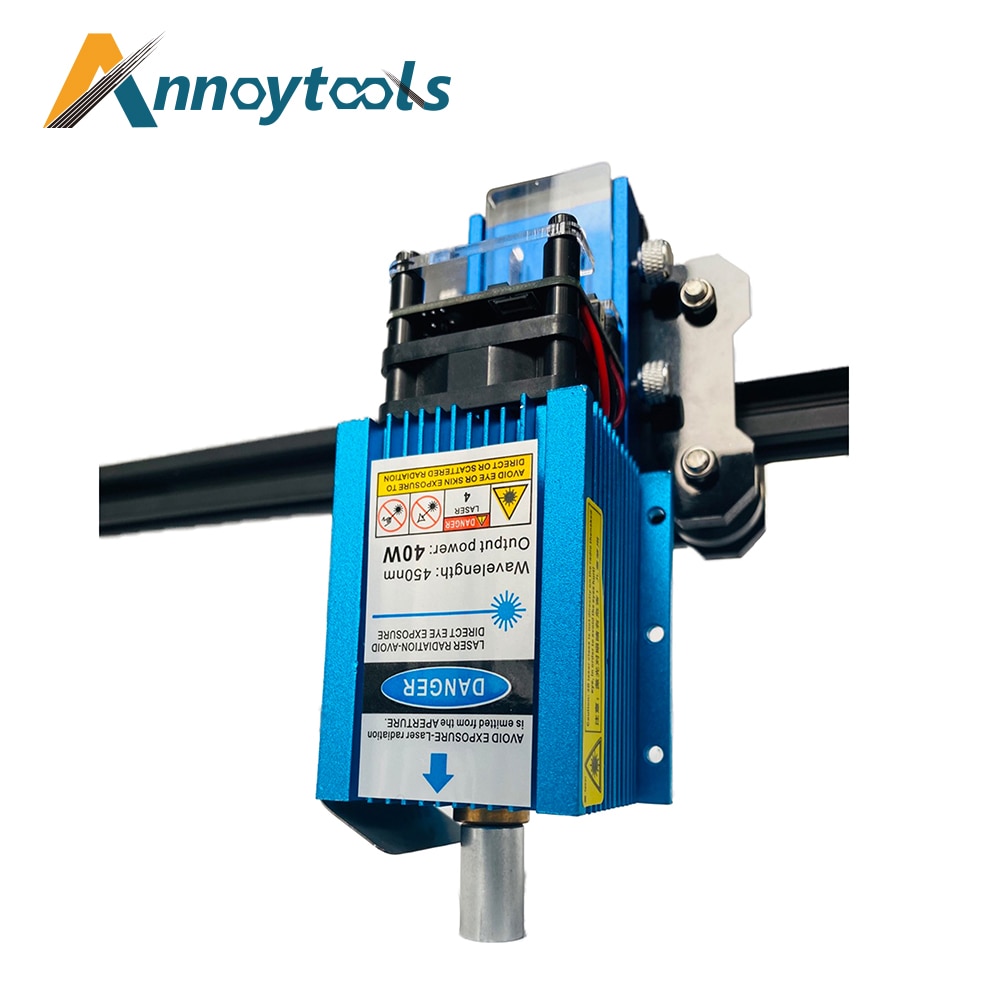

Details:
— Actual output power:6W
— Laser wavelength: 450nm
— Spot type: Dotted
— Spot size: 0.04*0.04mm
— Focus: 2cm fixed focus can not be adjusted
— Drive mode: external ACC constant current drive
— Cooling method: Forced Air Cooling
— Operating voltage: 12V DC
— Power supply: 12V 5A
— Shell material: Aluminum, Surface Anodized
— Module material: Copper
— Life Time:20000hours
— Working temperature:-40-75Celsius
![](https://www.laserse.com/wp-content/uploads/2021/12/He85b2ef1e8554b69a149837803c2154aT.jpg)
