Description

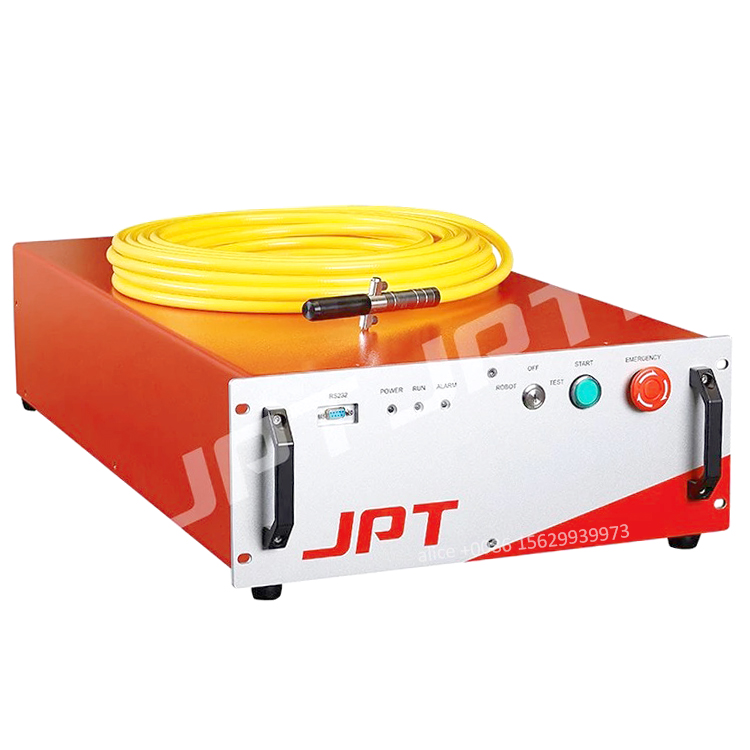

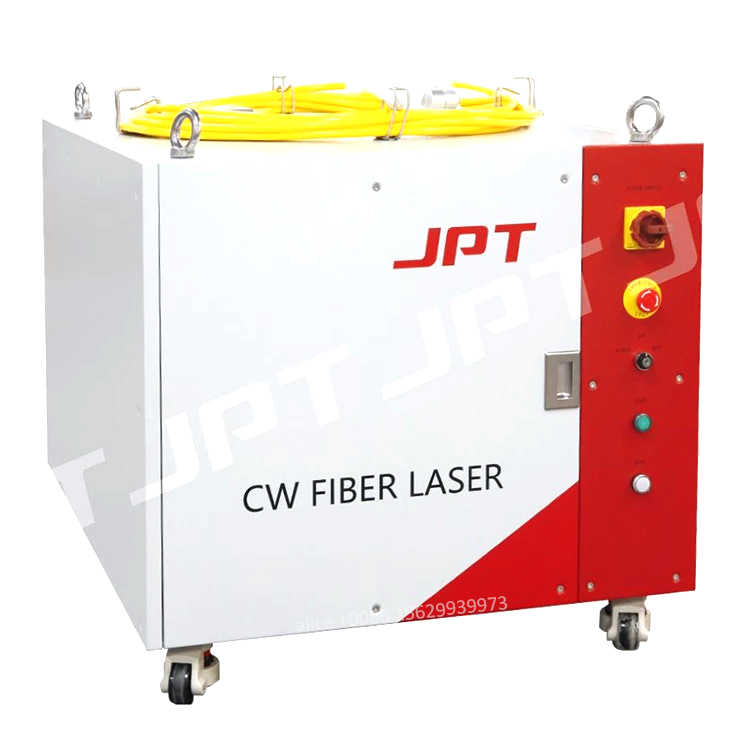

CW JPT 1000W Fiber Laser Source  Cutting Welding Cleaning Machine Fiber Laser Source



Nominal Average Output Power	1000w	1500w	2000w
Beam parameter Product	<0.45mm×mrad	<1.5mm×mrad	<1.5mm×mrad
Central wavelength	1080nm	1080nm	1080nm
Spectral width@3db	<6nm	<6nm	<6nm

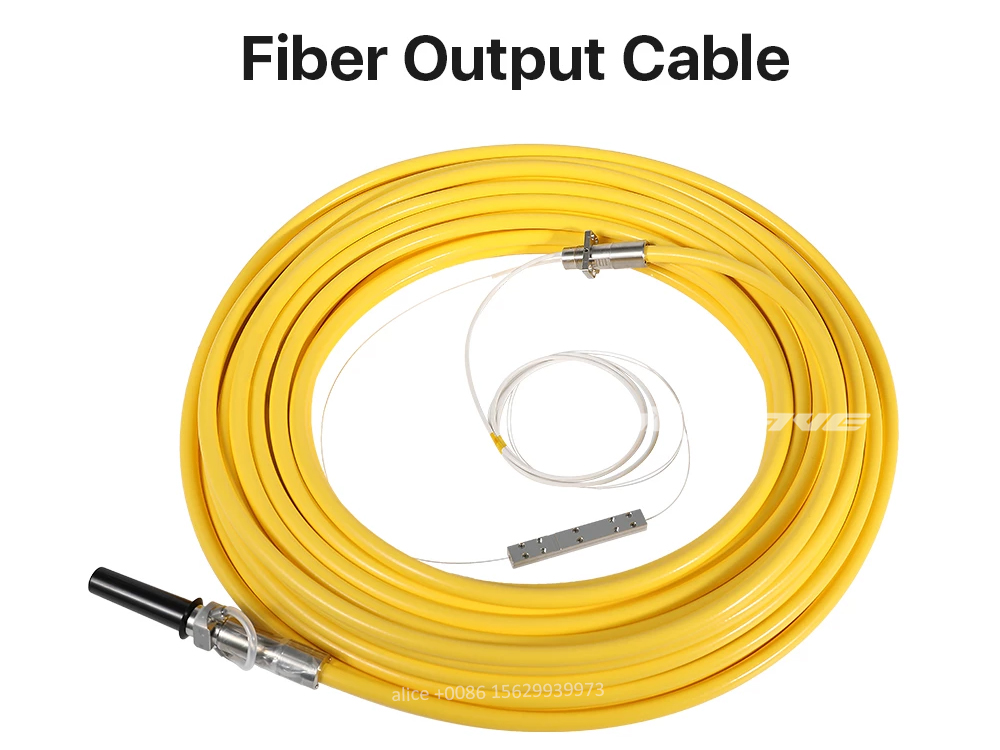

Armored Cable Length	15m	20m	20m
Cooling Method	Water cooled(Purified Water)
Operating Voltage	Single-phase 220(AC)±10%	Single-phase 220(AC)±10%	Three-phase 380(AC)±10%
Maximum Power Consumption	3300w	5000w	7000w
Switch on/off time	20us	20us	20us
Maximum modulation frequency	20KHZ	20KHZ	20KHZ
Operation Temporature	23-26℃	23-26℃	23-26℃
Storage temperature range	-10-60℃	-20-50℃	-20-50℃
N.G.	60KG	90KG	110KG
SIZE	760*483*196mm	864*483*241	864*483*267





–Through the control interface and Jeep standard software, the running status of the laser can be monitored and alarmed in real time, and the running data can be collected and recorded. The laser adopts water-cooled heat dissipation and cabinet design.

Q1: Are you a manufacturer or a trading company?

A: We are a manufacturer, established in 2009 and now located in Wuhan. Committed to providing economic and high-quality laser equipment for the majority of users. Welcome to our factory.

Q2: How can I determine that this machine is suitable for my job?

A: You can describe what you will use this machine to do, such as your working material, maximum working area and cutting and marking thickness dimensions. We will provide you with a machine suitable for your work.



Aluminum Carbon Steel  Rust  Cleaning/Cutting/Welding 1000W Raycus MAX JPT Reci Fiber Laser Source



Q3: What should I do if I don’t know how to use the machine?

A: We will send you manuals and guide videos, which can teach you how to operate the machine. If you still can’t learn how to use it, we can help you by email or other online software. Until you solve all problems.





Aluminum Carbon Steel  Rust  Cleaning/Cutting/Welding 1000W Raycus MAX JPT Reci Fiber Laser Source

Q4: What should I do if there is a problem with this machine?

A: We provide a one year warranty. During the warranty period, if the machine has any problems, we will provide the damaged items free of charge. After the warranty, we still provide lifetime service. Therefore, if you have any questions, please let us know and we will provide you with solutions.





Aluminum Carbon Steel  Rust  Cleaning/Cutting/Welding 1000W Raycus MAX JPT Reci Fiber Laser Source

Q5: About the sample?

We provide you with online marking welding samples for free. You can send a flagged picture or mail the object to be flagged. After the marking is completed, we will send you the renderings or send the marked items back to you. The shipping cost of the marked samples will be borne by the buyer.



Aluminum Carbon Steel  Rust  Cleaning/Cutting/Welding 1000W Raycus MAX JPT Reci Fiber Laser Source



Q6: How long is your delivery time?

A: For standard machines, it takes 5 – 7 days; for non-standard machines and customized machines according to customer specific requirements, it takes 7 – 10 days, depending on the quantity.



Q7: Is the machine safe during transportation?

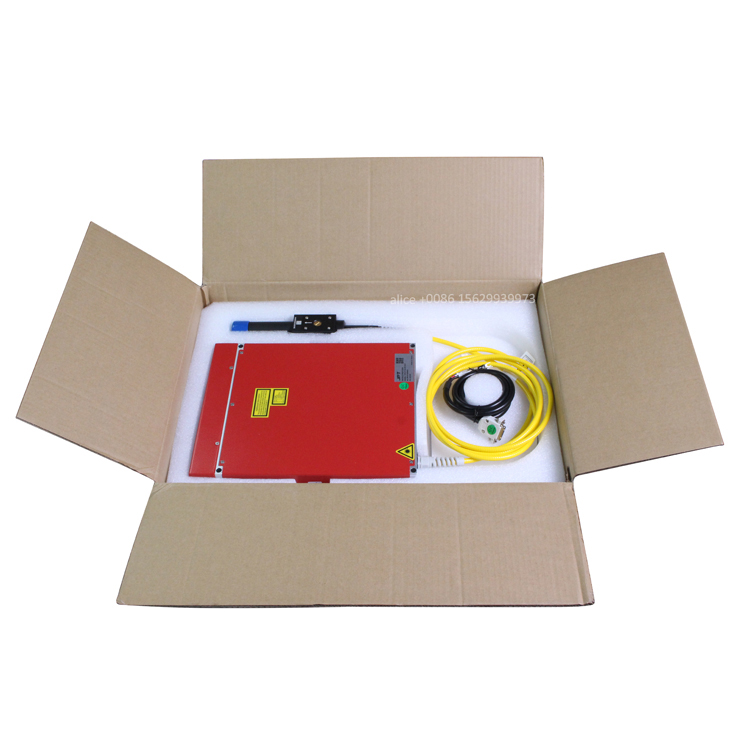

A: White foam and waterproof plastic stretch film are used inside. Standard export wooden boxes are used outside. Therefore, the machine will be sent to you safely. If the machine is damaged, please contact us and we will solve the problem for you as soon as possible.
