Description
- Brand Name: AIKELASER
- Type: Laser Diode
- Origin: CN(Origin)
- Condition: New
- is_customized: Yes
- Wavelength: 808nm
- Output Power: 5W
- Operating Current: 1A
- Operating Voltage: 200-240v
AIKE High Power 5W 5000mW 808nm Laser Dot Module TTL/Analog 0-30KHZ TEC Cooling 85-265V
Features：
808nm wavelength
5W output power
Collimated Straight Beam
Adjustable Focus
Cooling mode: TEC
1 Year Warranty
Applications：
Material Processing
Laser Show
Display
Laser Alignment
Scanning Biochmistry
|
Electrical & Optical Parameters |
|||||
|
Min |
Typ |
Max |
unit |
Customizable |
|
|
Output Power |
0 |
~ |
5 |
W |
1-200mW |
|
Laser Wavelength |
803 |
808 |
813 |
nm |
405-1650nm |
|
Operating Voltage |
200 |
220 |
240 |
v |
5-24V |
|
Operating Current |
~ |
~ |
1 |
A |
/ |
|
Polarization Mode |
10:0.1 |
||||
|
Beam Divergence |
2.5mrad |
||||
|
Beam size |
~ |
~ |
~ |
mm |
Working Distance adjustable according to customers’ requirements |
|
Line fan angle |
~ |
~ |
~ |
° |
5-165° |
|
Storage Temp |
-40 |
~ |
+80 |
℃ |
/ |
|
Working Temp |
-10 |
~ |
+35 |
℃ |
-40~75℃ |
|
Drive Mode |
ACC |
ACC |
|||
|
Work pattern |
TTL/CW |
TTL |
|||
|
Safety Class |
ClassV |
/ |
|||
|
MTTF |
>8000 Hours |
/ |
|||
|
Cooling Method |
TEC |
||||
|

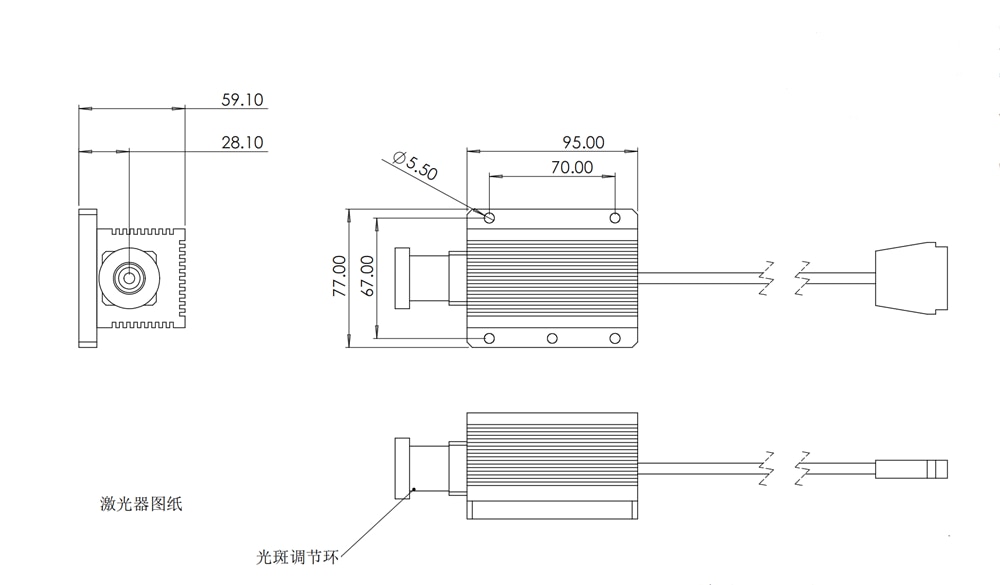

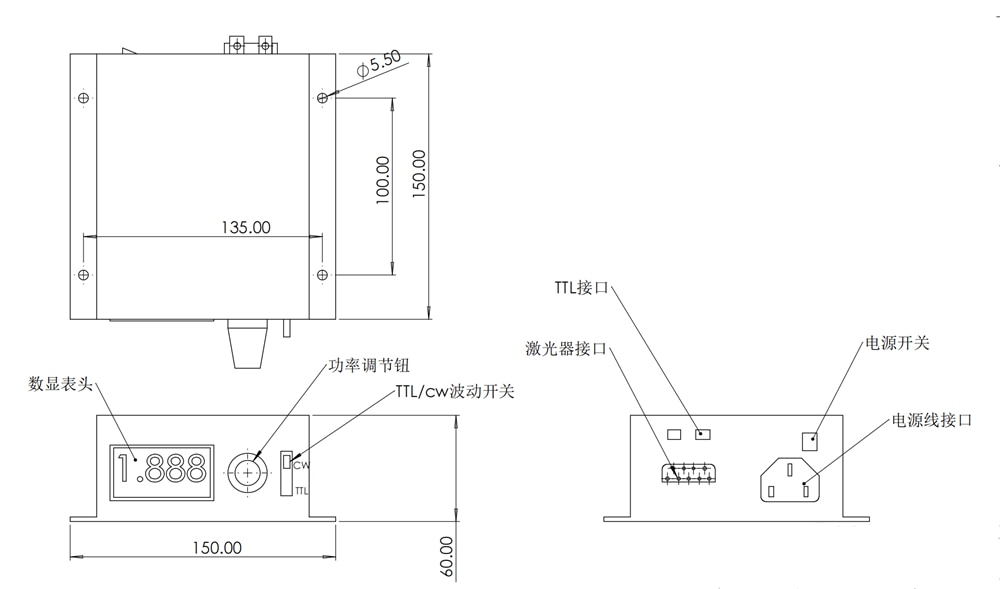

Dimension Parameters |
|||||
|
Size |
Refer to the Picture |
||||
|
Wire |
4core wire 1mm² |
/ |
|||
|
Housing Material |
Aluminum（Black Anodized) |
Copper/Stainless Steel |
|||
|
Collimating Lens Material |
GLASS |
/ |
|||
Zhuhai AIKE Photonics Technology Co., lt has been in the laser products industry over adecade.Our goal is providing our customers affordable, high quality lasers and outstanding customer service.
Located in Chinese Zhuhai Special Economic Zone with advantages of communication and trade, AIKE Photonics has abundant access to latest technologyand market trend.
We owns several patents for invention and independent intellectual property rights, and provides customized production ofhigh quality laser diodes, laser modules,fiber coupled laser modulesand full range of customized solutions of laser products.
AIKE Photonics products are widely used in commercial, industrial and medical usage, receiving great reputation from both domestic and overseas market.
