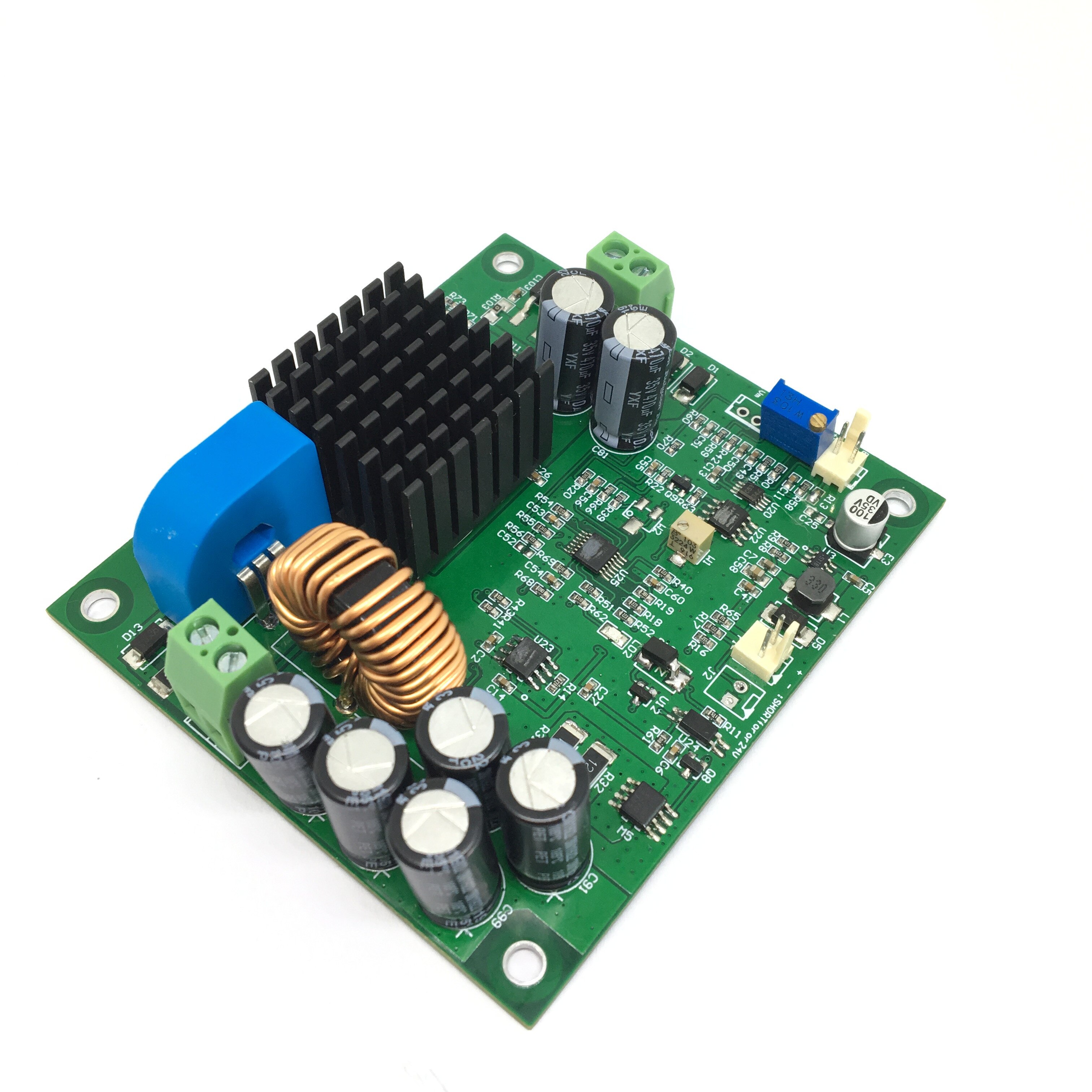

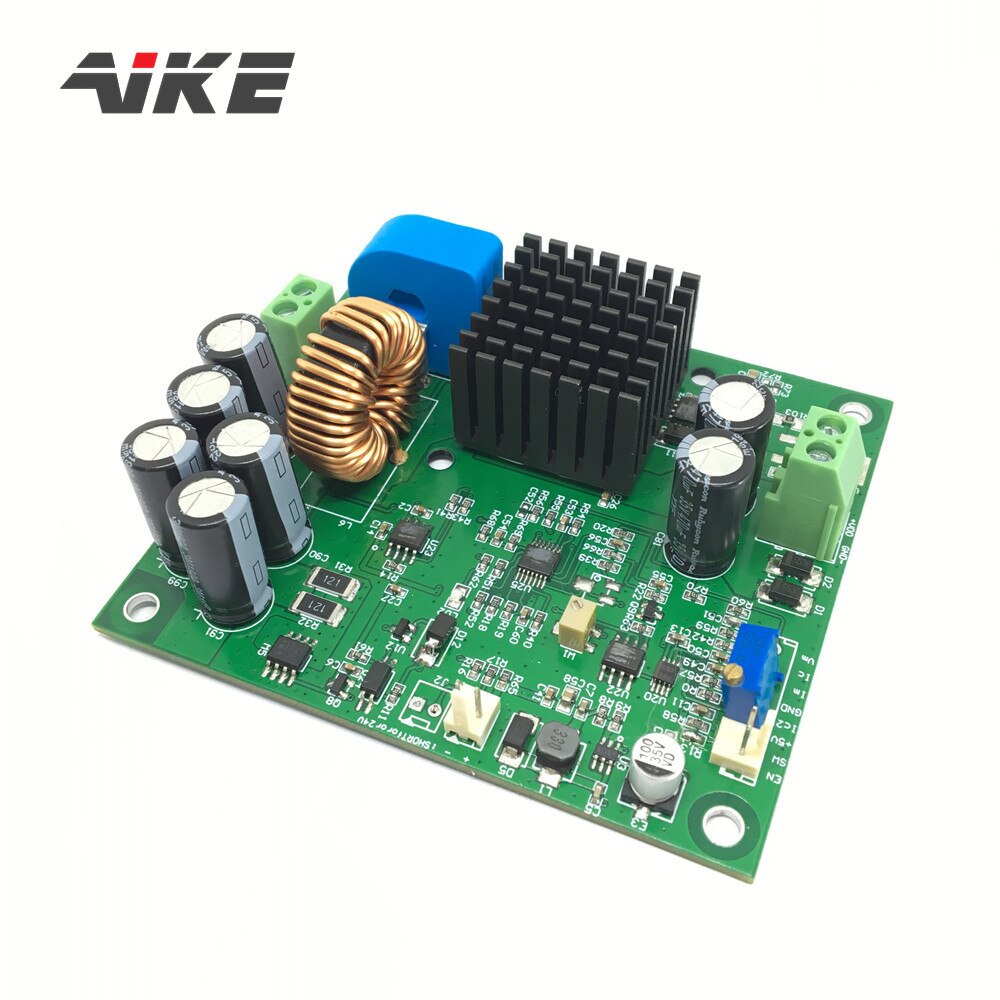

AIKE 24V 15A Laser Diode Driver Board with Temperature Controller with TTL Maximum Output Power 150W

$282.00

SKU: 1005002970627447 Category:

Description

  • Brand Name: AIKELASER
  • Type: Laser Diode
  • Origin: CN(Origin)
  • Condition: New
  • Load Current: 15A
  • Load Voltage: 2-24 V
  • Input Voltage: 12-25V standard power supply
  • Current Analogue Input: 0-5V c
  • Current Feedback Output: 0-2.5V
  • Rising /Falling Time: <1ms
  • Current Temp Excursion: <10ppm
  • Control Mode: TTL
  • Modulation Rate: 5KHz TTL
  • Storage Temperature: -40-60
  • Operating Temperature: -10-45

AIKE 24V 15A Laser Diode Driver Board with Temperature Controller with TTL Maximum Output Power 150W

The single board design is highly reliable, stable and easy to be integrated into laser products. It is very
suitable for driving semiconductor laser diodes. It can be used for welding, marking, engraving, or in
semiconductor, end pump, side pump, fiber laser, etc.
Features：
1)Fully self-adaptive load voltage, supporting the rated LD load current of 2-24 V, and the maximum support is 15A;
2)No ripple current, no overshoot;
3)us level rising and falling edge;
4)Soft start, air cooling, high efficiency;
5)The maximum output power of the board is 150W;
6)Two analog channels can be selected (internal control and external control, one channel of slow
interface, which can be connected with analog quantity or potentiometer; the channel can be switched
to high-speed analog switch to realize modulation function).

Zhuhai AIKE Photonics Technology Co., lt has been in the laser products industry over adecade.Our goal is providing our customers affordable, high quality lasers and outstanding customer service.

Located in Chinese Zhuhai Special Economic Zone with advantages of communication and trade, AIKE Photonics has abundant access to latest technologyand market trend.

We owns several patents for invention and independent intellectual property rights, and provides customized production ofhigh quality laser diodes, laser modules,fiber coupled laser modulesand full range of customized solutions of laser products.

AIKE Photonics products are widely used in commercial, industrial and medical usage, receiving great reputation from both domestic and overseas market.
