Description
- Brand Name: EVERGOOD
- DIY Supplies: ELECTRICAL
- Origin: Taiwan China
- Measuring Inductance Range: See Description
- Weight: See Description
- Dimensions: See Description
- Operating Temperature: 0~50C
- Measuring Current Range: See Description
- Display Type: Digital Only
- Measuring Voltage Range: See Description
- Measuring Resistance Range: See Description
- Certification: CE
- Measuring Capacitance Range: See Description
- Model Number: AFLEX-3005

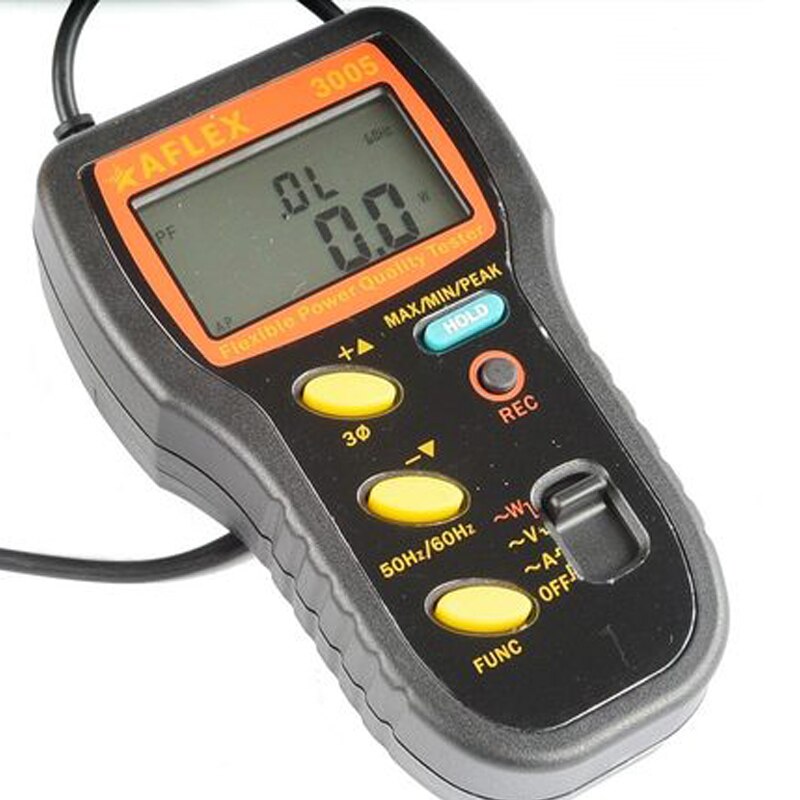

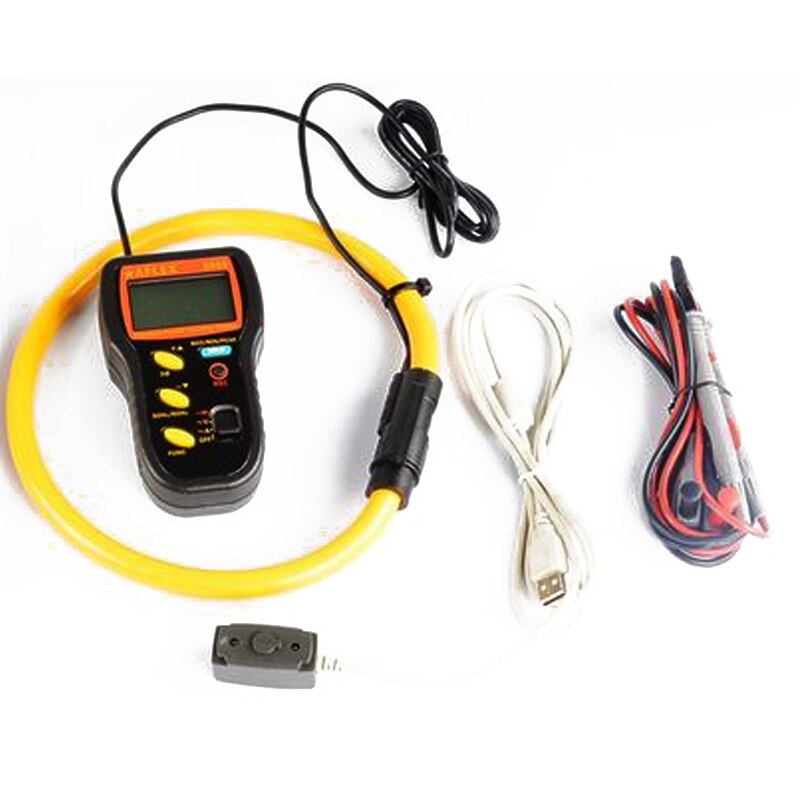

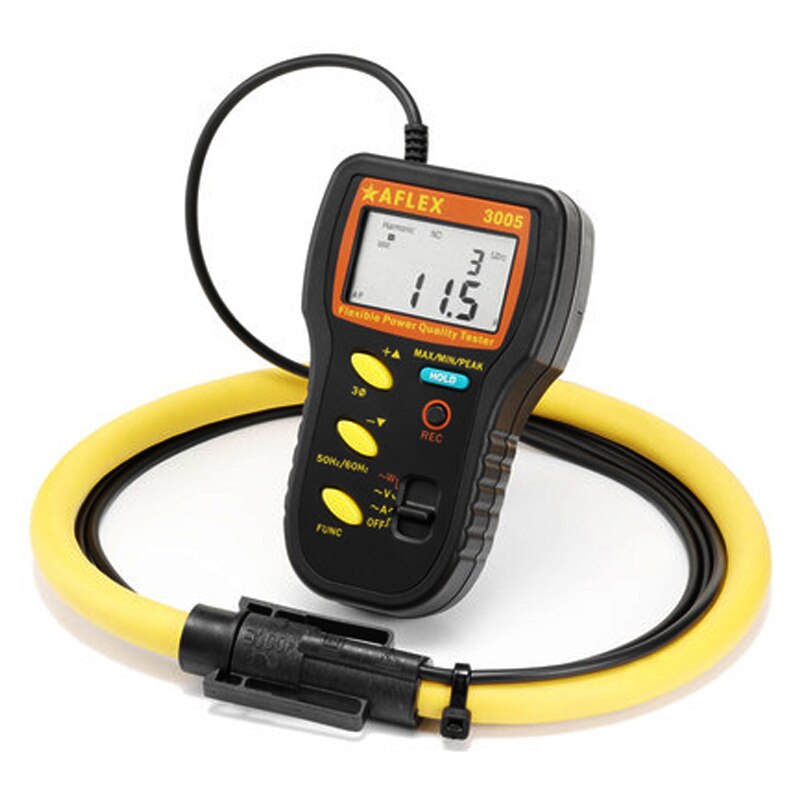

AFLEX-3005 Flexible Power Quality Analysis Tester
Product Features:
– Power Analysis (AFLEX-3005)
– W, KW, H.P.
– VA ,KVA, VAR, KVAR
– PF, Phase Angle( )
– Energy (WH, KWH)
– Dual displays (W+PF, VA+KVAR)
– Balanced 3 Power Quality and Sequence Harmonics Analysis
– True RMS (V and A)
– 3000 A
– Non-interrupted Harmonic Analysis ( V and A ) to the 50th Order in % and Magnitude
– Analysis of % THD-F and C.F.
– Fast Peak Function (33s and 39s)
– Programmable PT (1 to 250 )ratios
– Auto – Power – Off : 30 Minutes

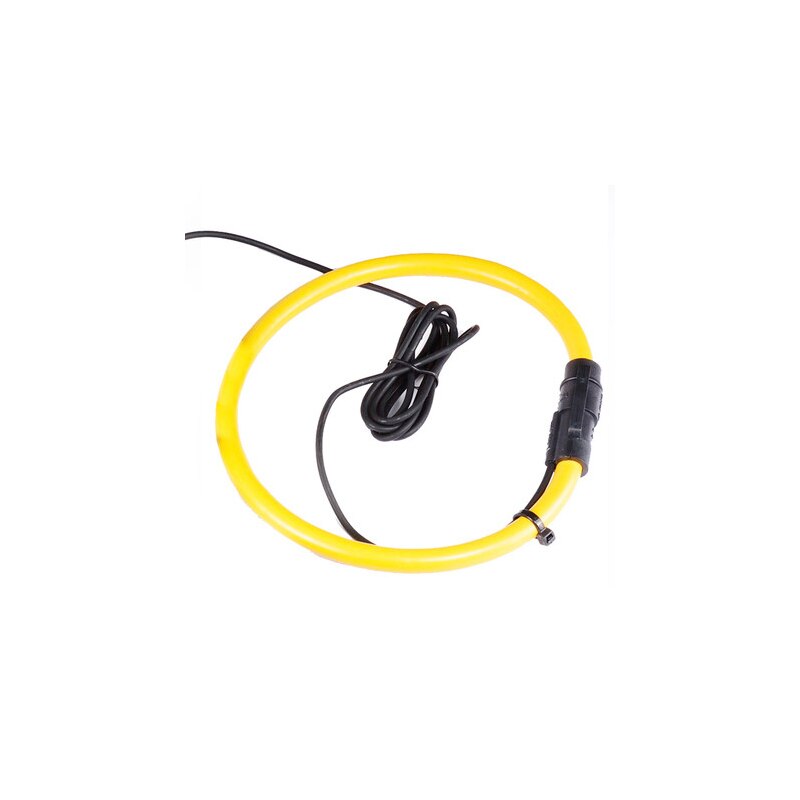

Flexible probe , different from normal clamp meter, can pass through obstacles at will and wind many conducting wires simultaneously, max. diameter 170mm
Specifications:
|
AC Watt (50 or 65 Hz, PF 0.5 to 1, CT=1) AFLEX-3005 only
|
|
Range
|
Resolution
|
Accuray of reading
|
|
100.0 – 999.9 W
|
0.1 W
|
2% of range
|
|
1.000 – 9.999 KW
|
0.001 KW
|
2% of range
|
|
10.00 – 99.99 KW
|
0.01 KW
|
2% of range
|
|
100.0 – 999.9 KW
|
0.1 KW
|
2% of range
|
|
1000 – 9999 KW
|
1 KW
|
2% of range
|
|
|
AC Voltage(50 or 65 Hz, ,Auto Range, True RMS)
|
|
Range
|
Resolution
|
Accuracy of reading
|
|
4.0 V – 600 V
|
0.1 V
|
0.5% 5dgts
|
|
|
Harmonics of AC Current in % and Magnitude(1 to 50th order)
|
|
Range
|
Resolution
|
Accuracy in %
|
Accuracy of Magnitude
|
|
1-20th
|
0.1%
|
2%
|
2% of reading 0.4A
|
|
21st-50th
|
0.1%
|
4% of reading 2.0%
|
4% of reading 0.4V
|
|
|
AC Current(50 or 65 Hz ,Auto Range, True RMS)
|
|
Range
|
Resolution
|
Accuracy of reading
|
|
0 – 300.0 A
|
0.1 A
|
1% of range
|
|
300.0 – 999.9 A
|
0.1 A
|
1% of range
|
|
1000 – 3000 A
|
1 A
|
1% of range
|
|
|
Harmonics of AC Voltage in % and Magnitude(1 to 50th order)
|
|
Range
|
Resolution
|
Accuracy in %
|
Accuracy of Magnitude
|
|
1-20th
|
0.1%
|
2%
|
2% 0.5V
|
|
21st-50th
|
0.1%
|
4% of reading 2.0%
|
4% of reading 0.5V
|
|
|
Total Harmonics Distortion(%THD-F,1 to 50th order)
|
|
Range
|
Resolution
|
Accuracy of reading
|
|
0.0-20%
|
0.1%
|
2%
|
|
20-100%
|
0.1%
|
6% of reading 1%
|
|
100-999.9%
|
0.1%
|
10% of reading 1%
|
|
