Description
- Output Temperature: 150-480
- Output Power: 24VAC
- Dimensions: Refer to SPEC
- Model Number: AT60D
- Temperature Stability: /-1
- Input Voltagle: 220VAC

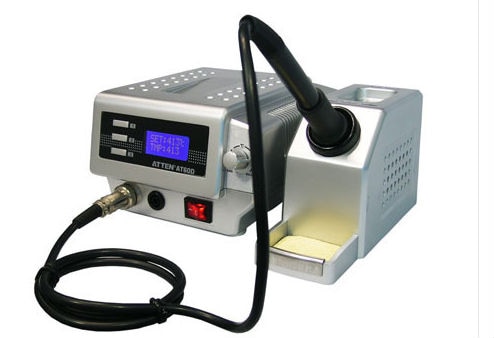

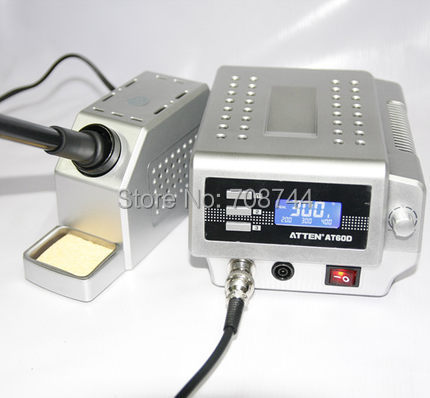

Advanced Soldering Station ATTEN AT60D Welding Station
FEATURES
The digital soldering station is temperature-controlled with an adjustable soldering tip temperature. The adjustable temperature lets you perform all soldering work in the field of electronics with various soft solders (with lead or silver solder). Exchangeable Soldering Tip. The display shows the nominal and the current temperature. Three programmable buttons can be assigned freely selectable temperature values. The enclosed soldering iron was calibrated on this soldering station (temperature accuracy). If the soldering iron has to be exchanged, it must be calibrated again.
A high-impedance potential equalization socket enables application on MOS components or ESD workstations and protects you from static charge during soldering.
The soldering station is designed in protective class 2 (double or reinforced insulation) and may only be operated with common household voltage (110/220V~/60/50Hz).
Applications
1. Industrial production assembly of electronic products
2. Research and product development departments
3. Overhaul maintenance industry for electronic products
4. All enterprises and institutions electrician soldering operations
5. Electronic Technology enthusiasts for electronic assembly
6. All kinds of college students in the skills training of Electricity
Features
New design, lightweight and practical handle, is conducive to long-term use, will not feel tired;
heater temperature using imported materials, made by advanced technology, long service life, replacement cost is low;
computerized temperature correction can be corrected quickly, and display temperature difference between the tip;
Auto sleep, power-saving function;
tip (tip) and international brands the same working conditions according to the customer, matching the different tip;
Soldering Station with conductive material, so true electrostatic discharge.
Specifications
Input voltage: 220VAC +-10% 50Hz
Output Voltage: 24VAC
Power consumption: 60W80W/100W
Temperature range: 150 Degrees Celsius~ 480 Degrees Celsius
Set the mode: the key regulator
Temperature Stability: +-1 Degrees Celsius (static)
Display mode: LED digital display
Maximum temperature: 40 Degrees Celsius
School temperature method: digital calibration
Temperature lock method: Digital
Tip to ground resistance: <2Ω
Tip to ground voltage: <2mV
Tip: AT-01-I lead
Heater: 60W two ceramic heater core
Packing list (check the package when you buy to confirm the correct item listed in the list.)
Device Host: 1 set
Handle Parts: 1 Unit
Iron Block: 1
Power cord: 1
Clean the sponge: 1
Manual: 1
