Description

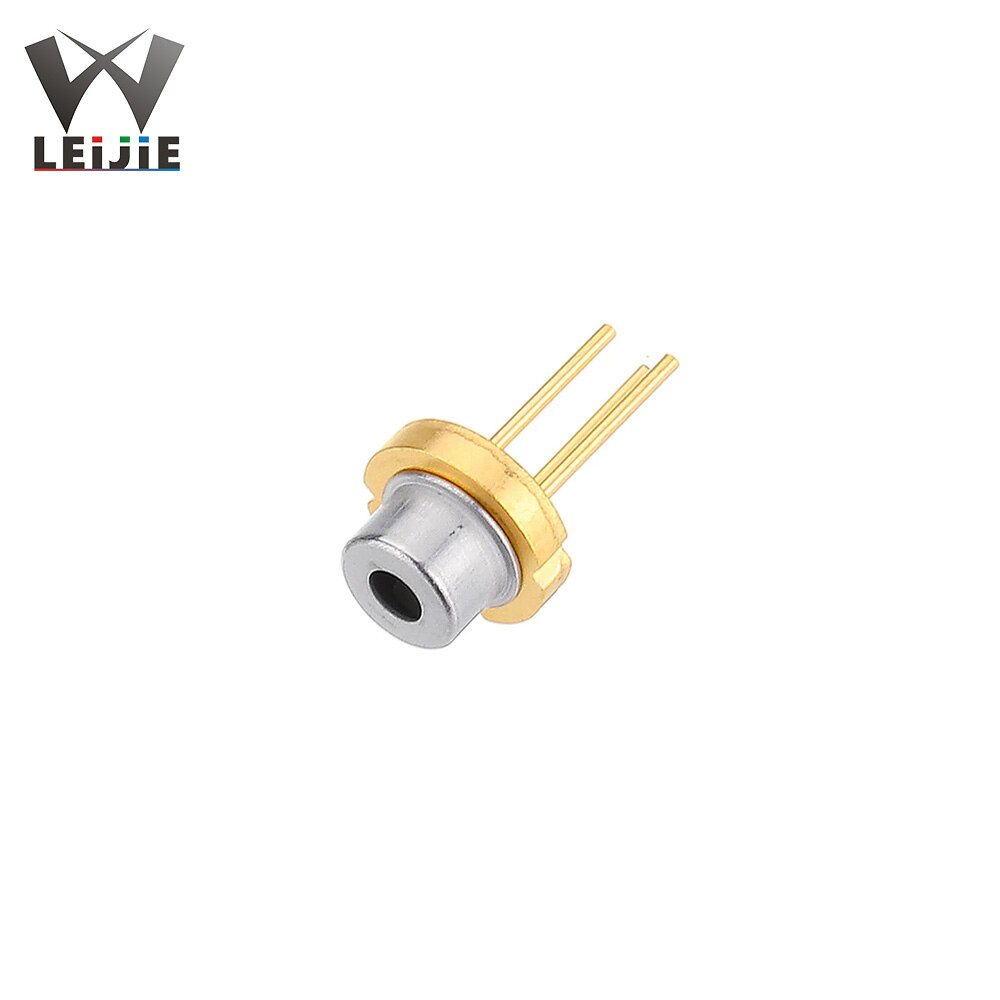

10pcs ADL65052TL 650nm 5mW TO-18 2.2V-2.4V Red Light Laser Diode Tube High Quality N Type with PD with Glass Window

Origin: TW(Origin)
Item Type: Stage Lighting Effect
Power: 5mW
Model Number: TO-18
Voltage: 2.V

Parameters:

● Wavelength: 650nm
● Working voltage: 2.2V-2.4V
● Input current: less than 40mA

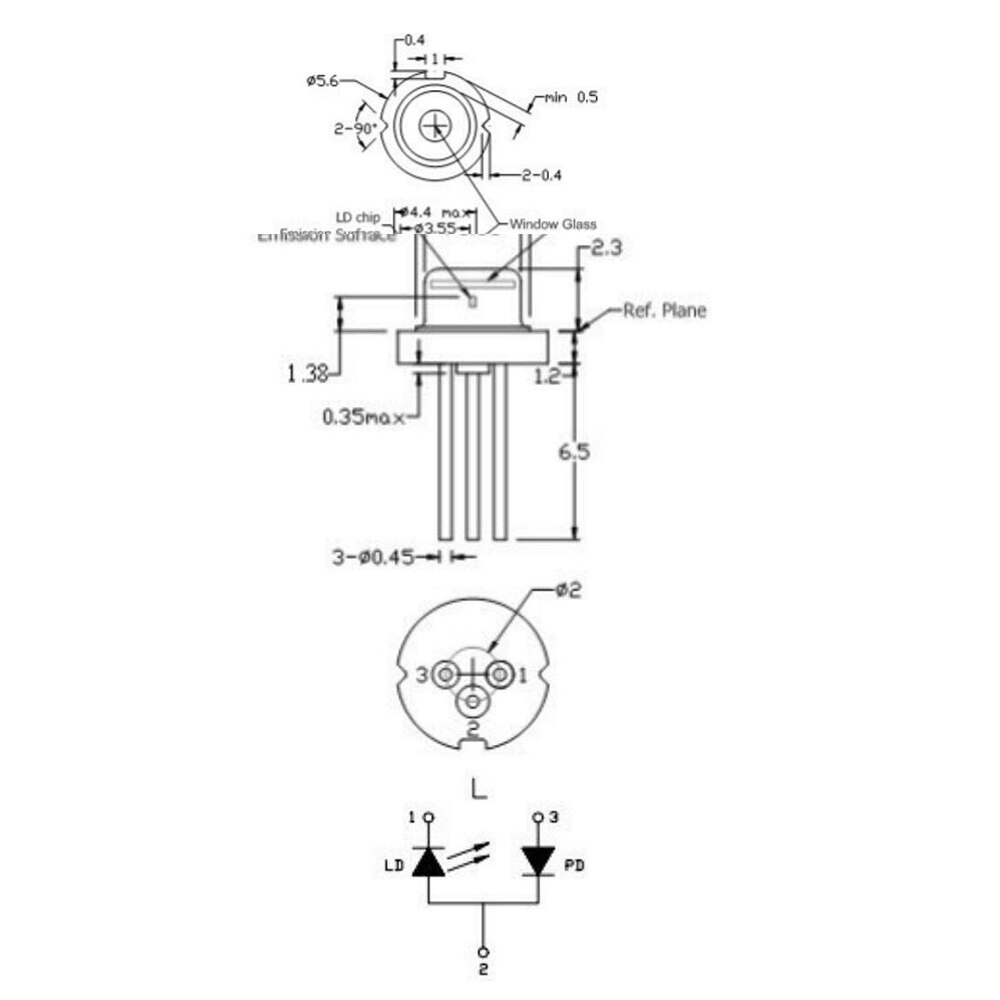

● Package: 5.6mm(TO-18)
● Power: 5mW

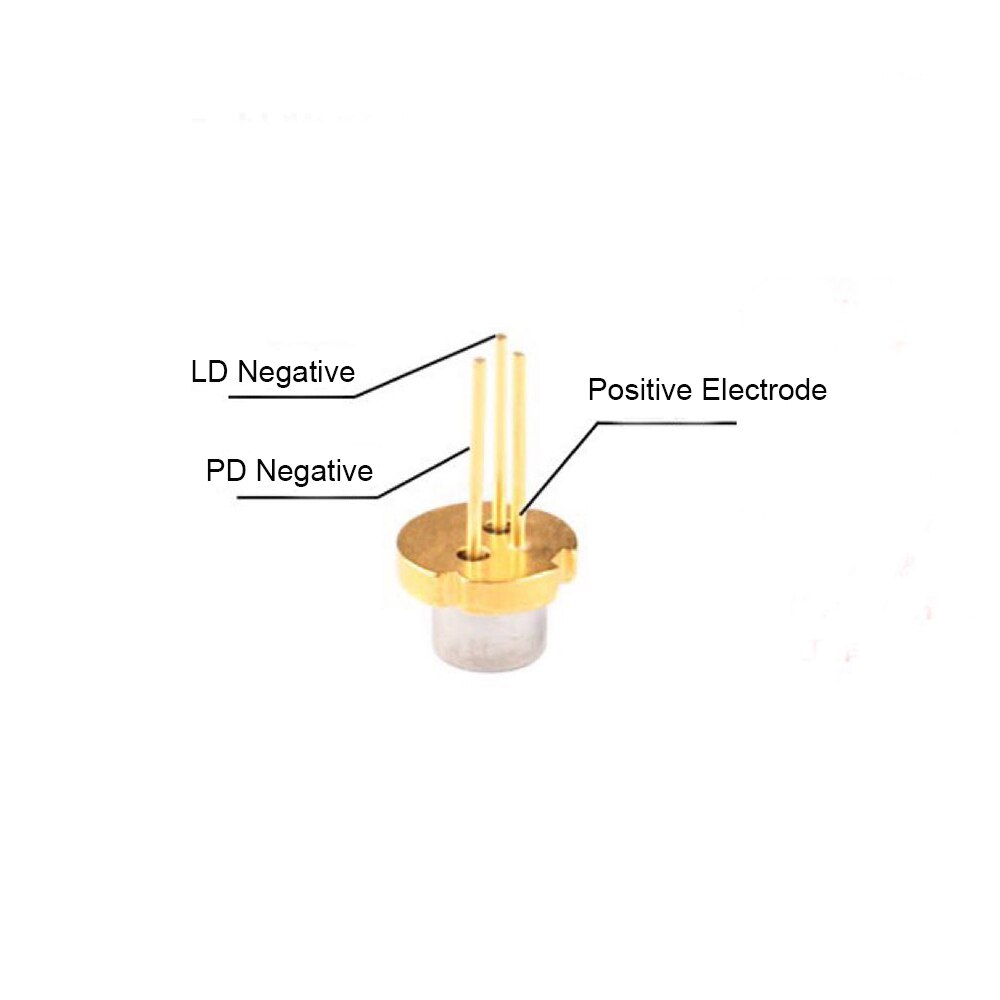

● Features: with PD and Glass Window
● Life: more than 10000 hours

Note：

● The laser Diode needs the controller’s working current to be within a safe range, and cannot be directly powered by voltage, otherwise it will affect the service life or even directly damage.

● The laser Diode must be installed in the module shell to have good heat dissipation before it can work for a long time. It is forbidden for the laser tube to work for a long time at full power.

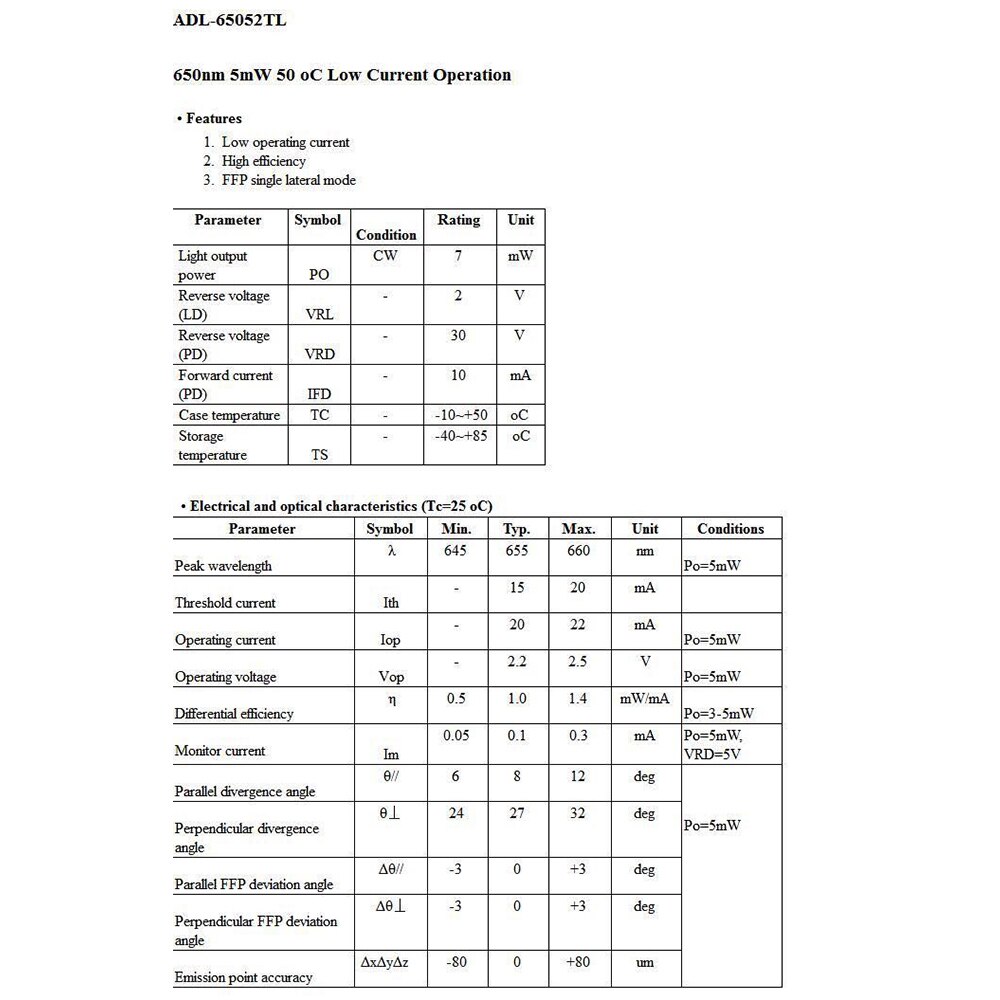

Download the datasheet here:

adl-65052tl ADL65052TL 650nm 5mW TO-18 Red Laser Diode datasheet
