Parameters

Please note that this is 830nm IR lasers which can only be seen a weak red light.It’s normal.Please make sure you know it before ordering.Thanks!~

Wavelength:830nm

Output Power:100mw

Working Voltage:3-5v

Working Current:I<80mA Working Temperature:＋15 ℃~＋35 ℃ Laser Shape:Dot(rectangular to oval)/Line(120 degrees as default) Focusable:Yes Material:Metal Circuit control: APC circuit Dimensions:12x35mm or 12x45mm Features 1.Two-wire input, the red line is positive, black line is negative. 2.This 830nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. 3.Please wear IR laser protection goggles when you work on it.

Package

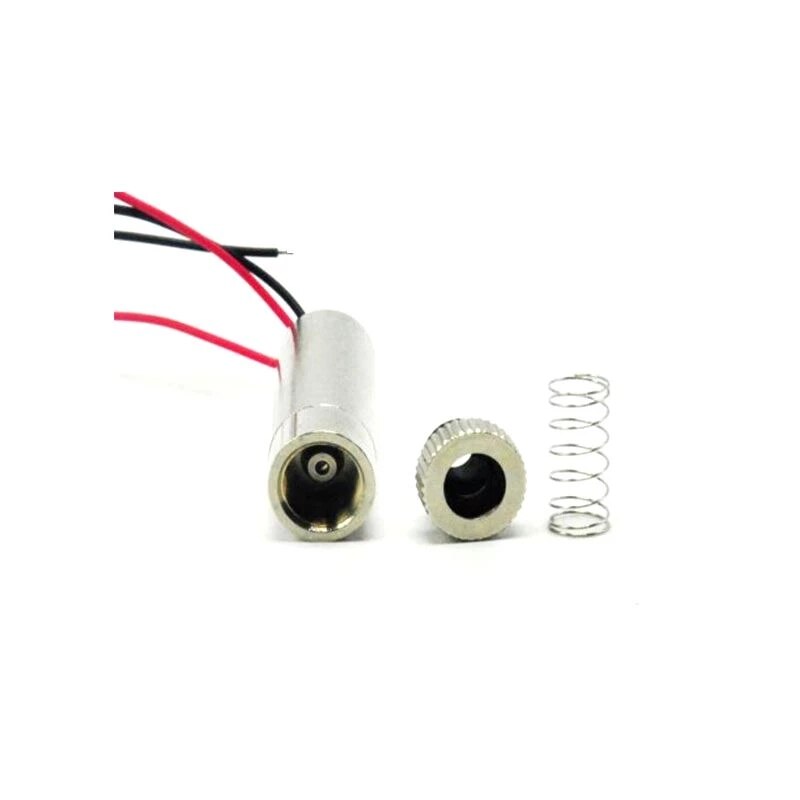

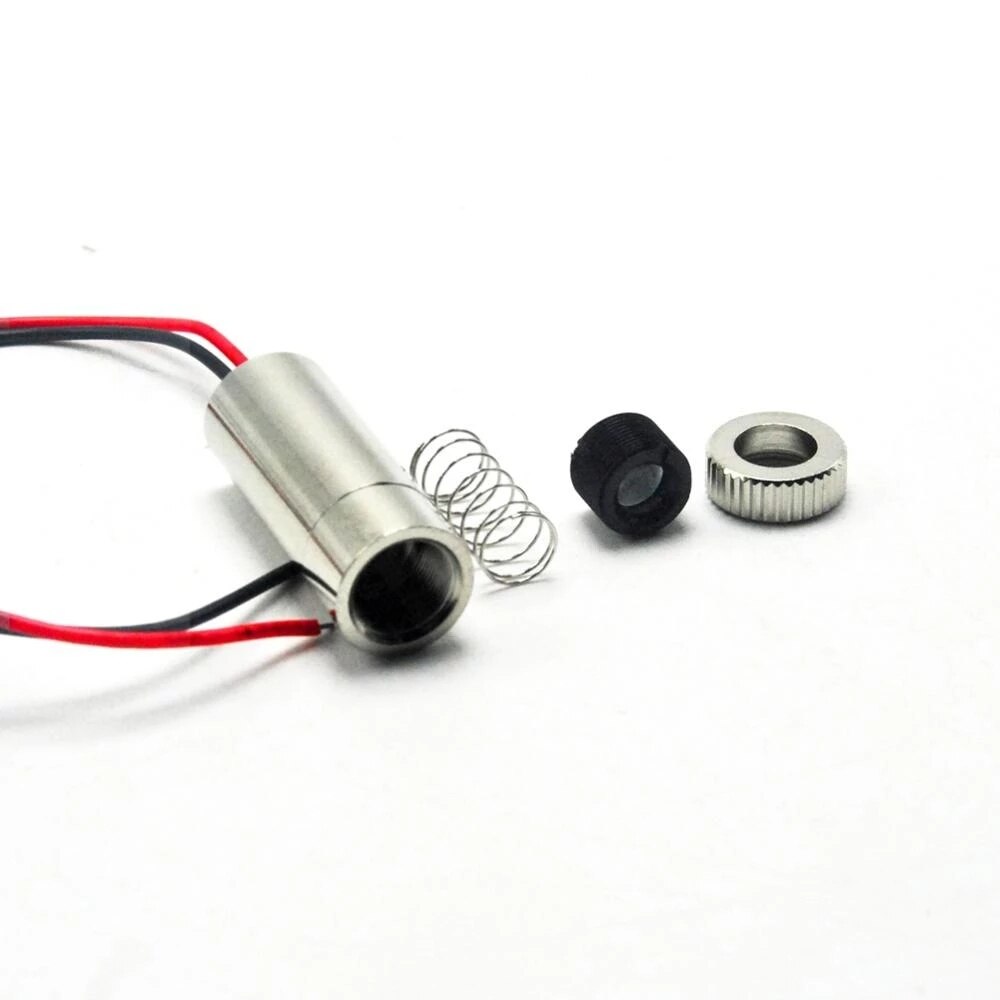

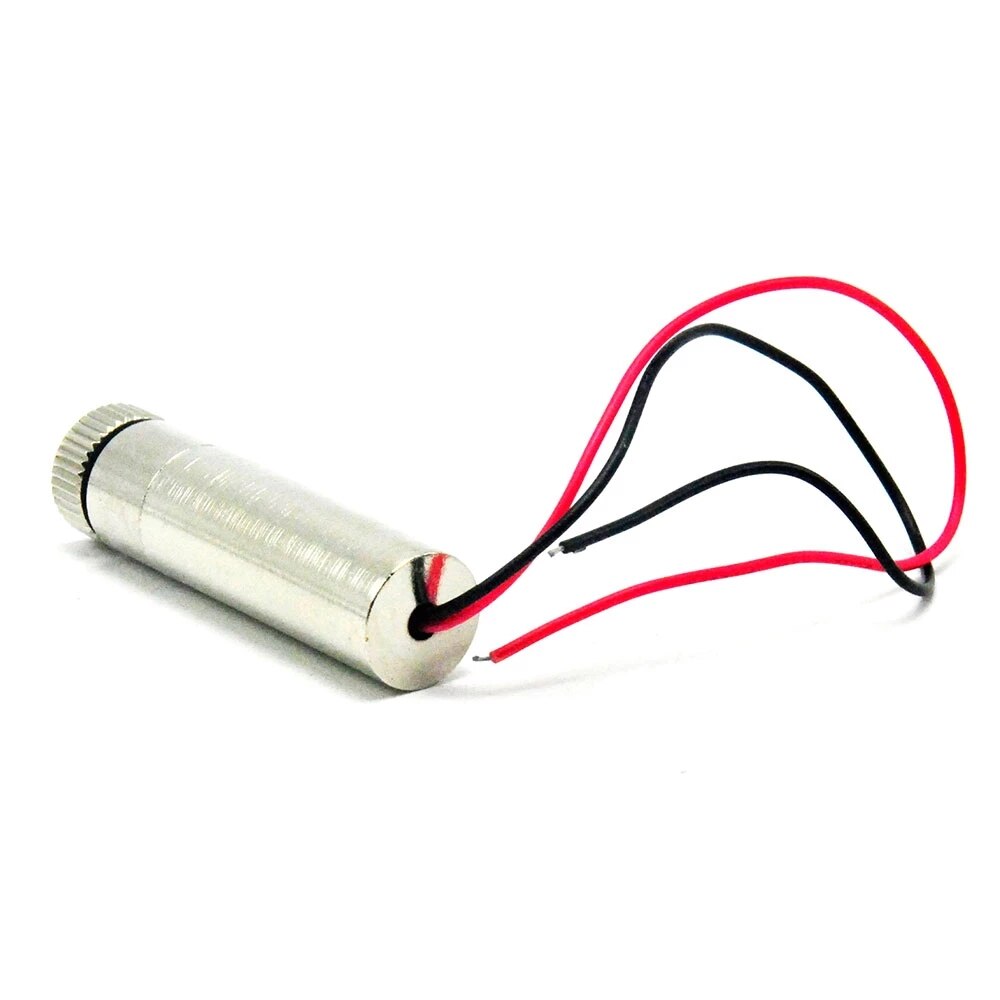

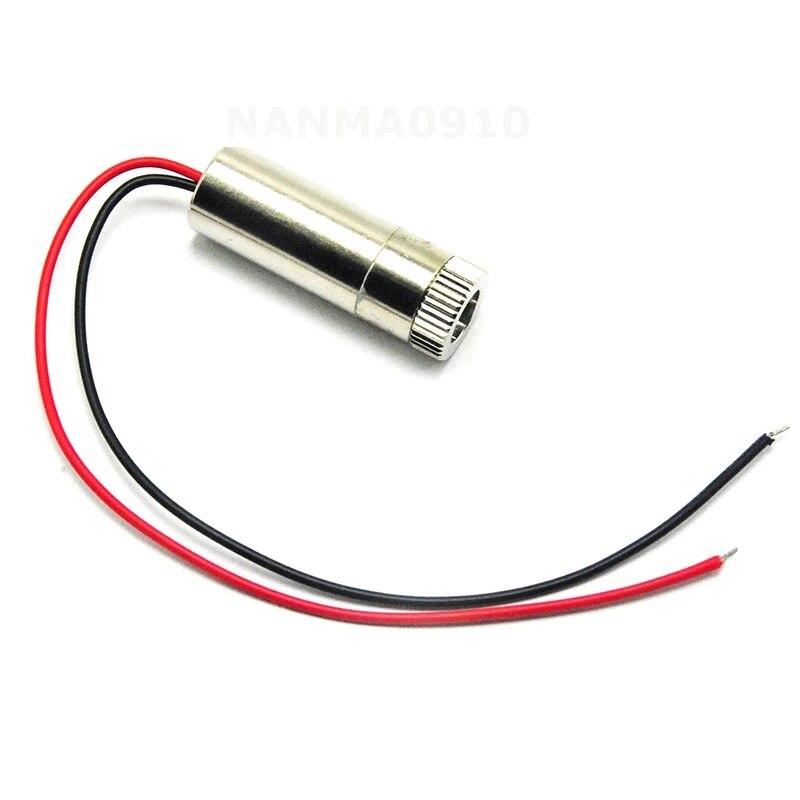

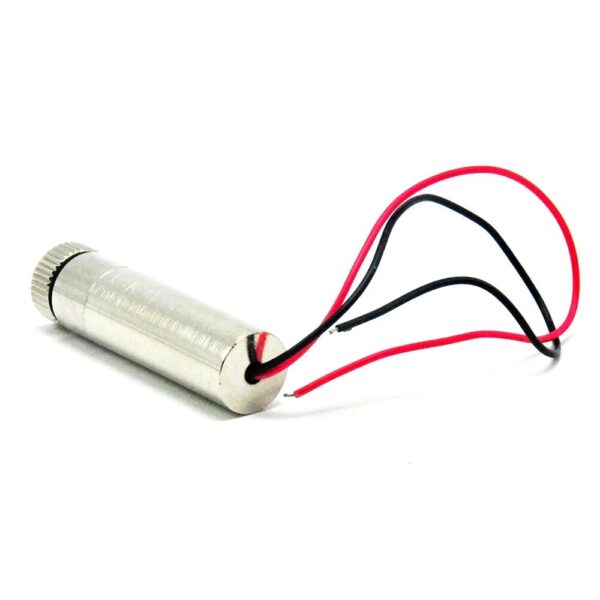

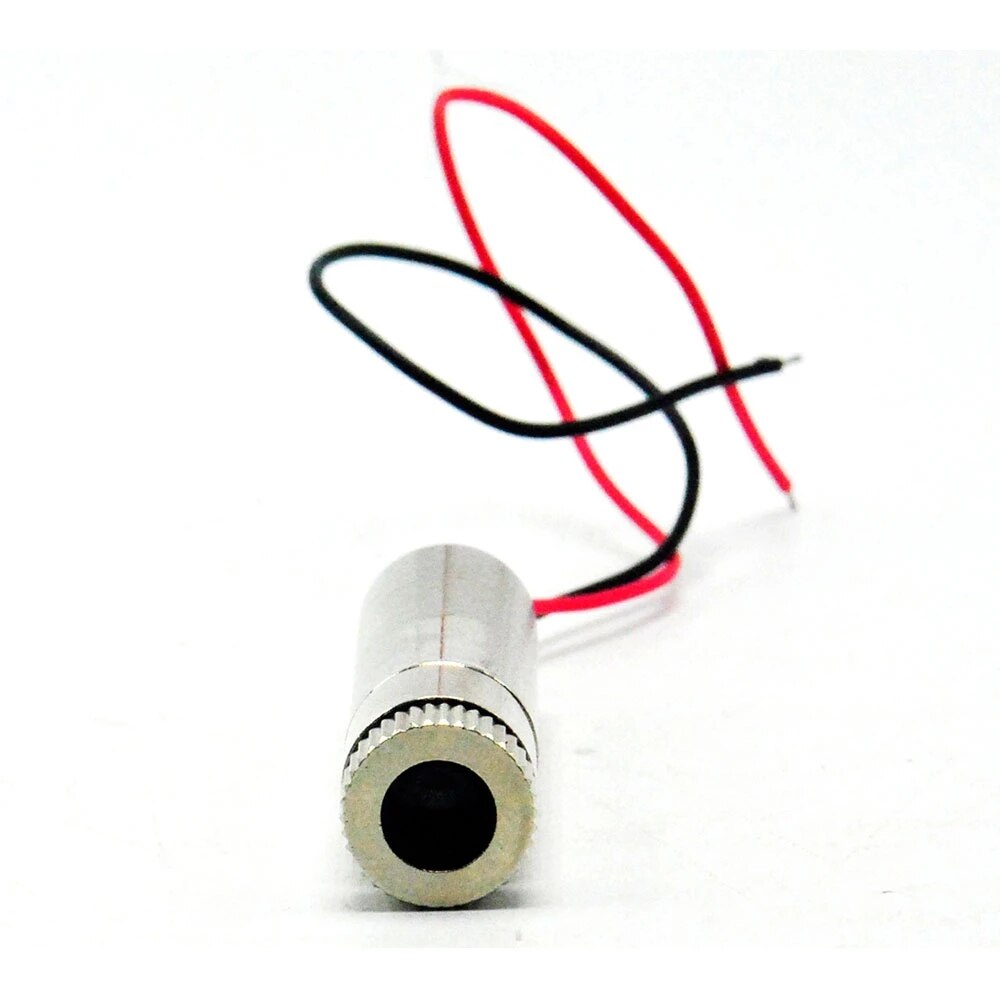

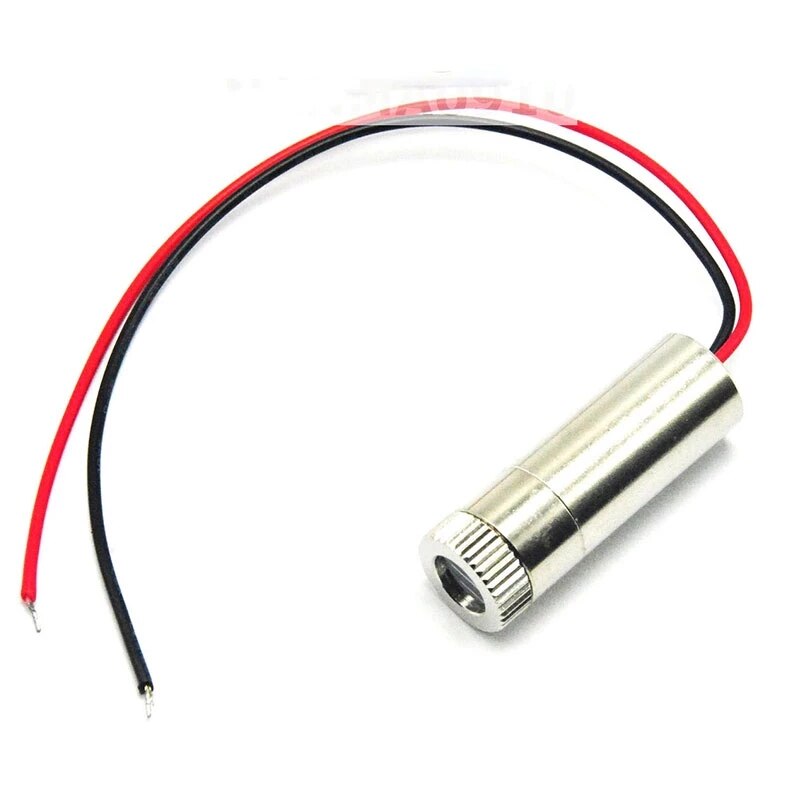

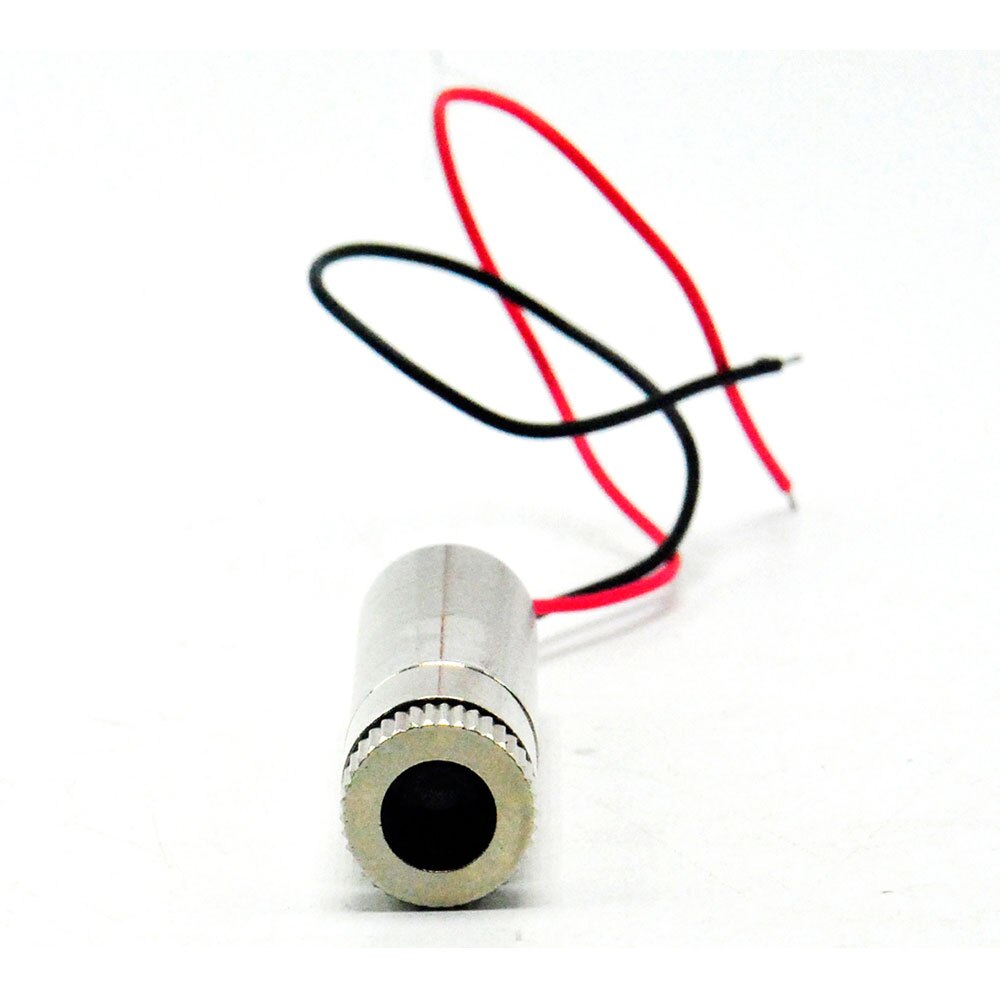

1pc Focusable 100mW 830nm Infrared IR Dot Laser Diode Module 3V-5V
