Description
- Brand Name: Jolooyo
- Item Type: Stage Lighting Effect
- Model Number: 650-200-3350-12V-GD
Features:
Wavelength: 650nm 660nm
Output power: 200mW
Operating voltage: DC = 12V
Operating Current: I<380mA
Laser shape: Dot/ Line/ Cross
Focusable: YES
Modulation frequency: Adujstable TTL modulation
TTL modulation: 0-20KHz
Operating Characteristics: continuous work
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Reverse polarity protection: with automatically identify the positive and negative
Laser head size: 50x33x33mm
Circuit Board size: 45*34mm
Note:
1.The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly,
if you have any technical problems, please contact us in advance!
2.This laser module brings TTL modulation, can work long time, is really industry laser module!!
3. Please wear 600nm-780nm laser protection goggles to protect your eyes when working on this module.

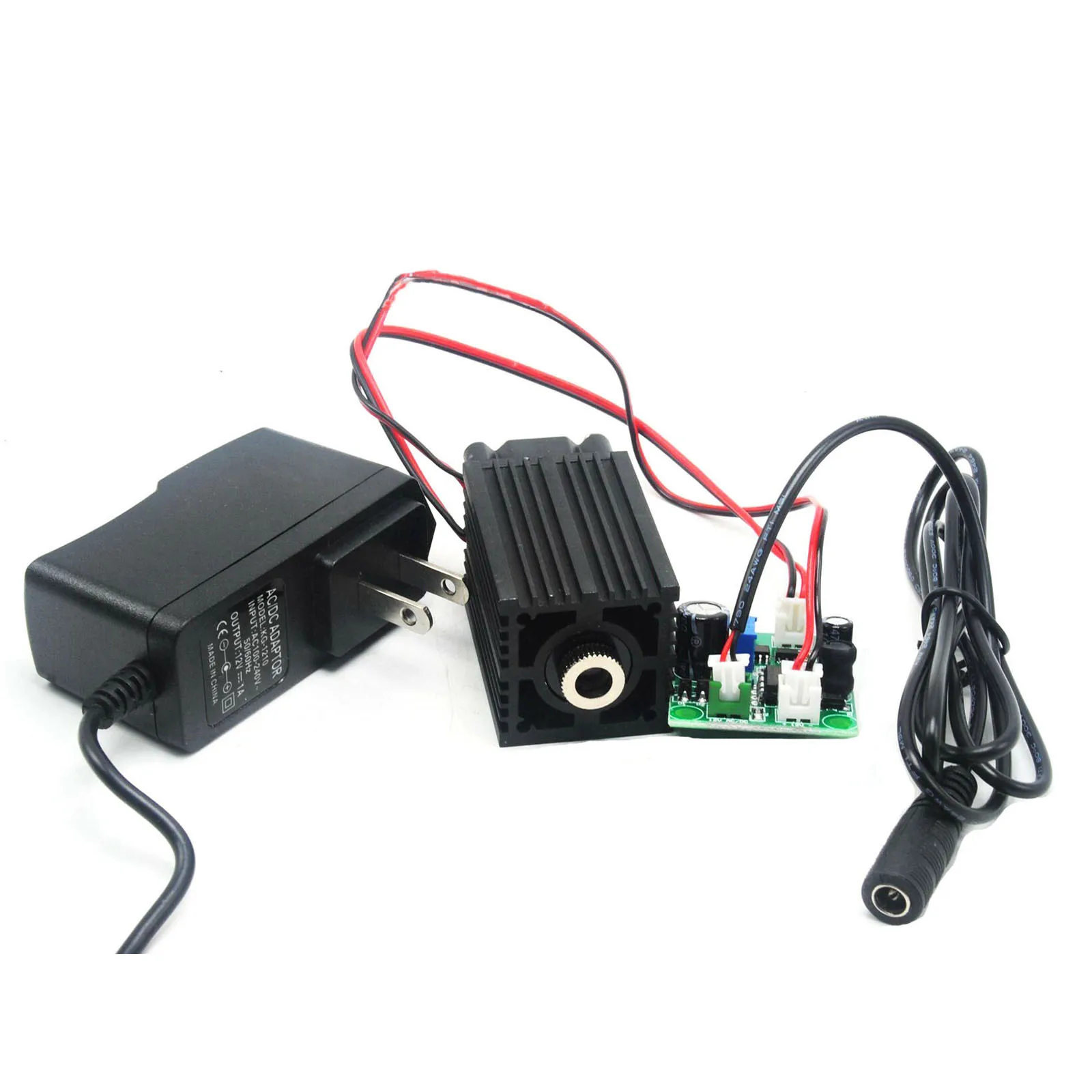

Package:
1pc 650nm 200mW Laser Module
1pc 12V 1A Adapter
