Actively Q-switched UV Laser at 266 nm AO-S-266/ 1~5uJ/ 1~10mW LD PUMPED ALL-SOLID-STATE ACOUSTO-OPTIC Q-SWITHED LASER AT 266 nm

All solid state acousto-optic Q-switched laser at 266 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.  More information about Actively laser.

Wavelength (nm) 266+-1
Operating mode Acousto-optics Q-switched
Single pulse energy (uJ) 1~5 (5uJ@1kHz;1uJ@5kHz)
Rep.rate(kHz) 0.1~5
Pulse duration (ns) Typically~ 4ns，Varies from power and repetition
Average power (mW) Average power (mW)= Single pulse energy (μJ)* Rep. rate(kHz)
Power stability (rms,over 4 hours) <3%，<5%，<10%
Transverse mode Near TEM00
M2 factor <2
Beam diameter at the aperture (mm) Elliptical (4:1), Beam spot ~1.5×0.4mm
Warm-up Time (minutes) <10

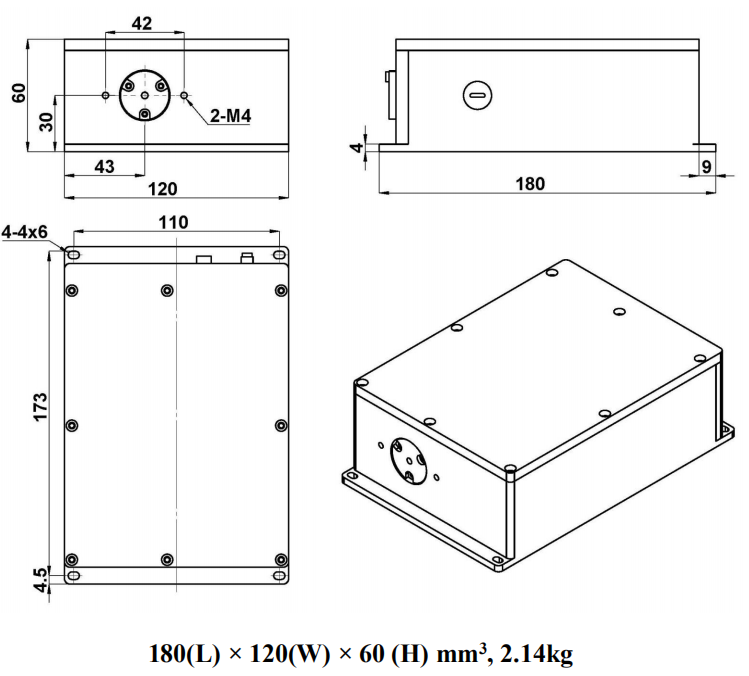

Beam height from base plate (mm) 30
Operating temperature (C) 10~35

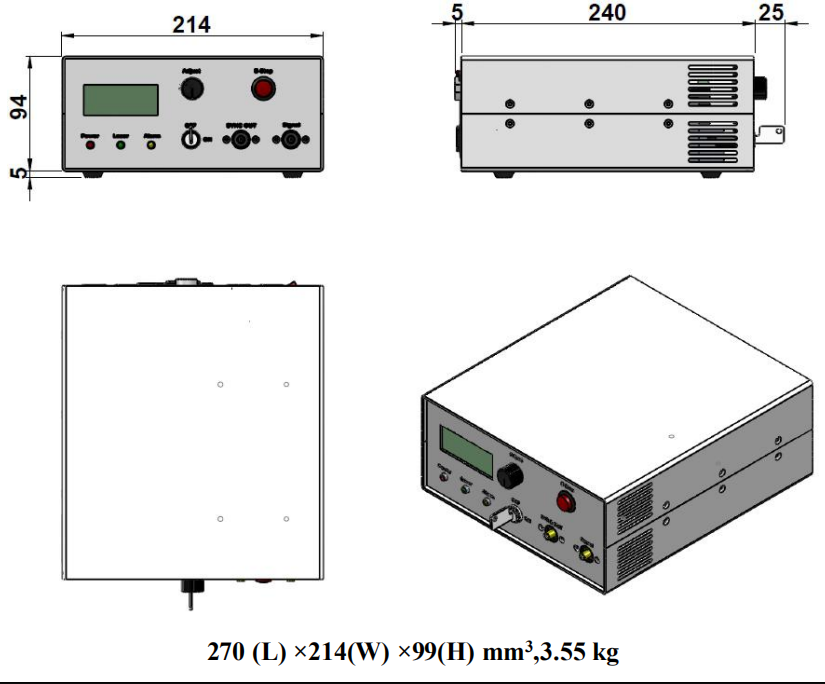

Power supply (90-264VAC) PSU-AOM-DL
Expected lifetime(hours) 5000
Warranty 1year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
