Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: A3 Pro Mini DIY Laser Engraving Machine
- CNC or Not: CNC
- Wavelength: 445nm
- Control panel: Mana SE
- System Support: Win XP/7/8/10
- Material: Stainless Steel and Acrylic
- Engraving Accuracy: 0.01mm

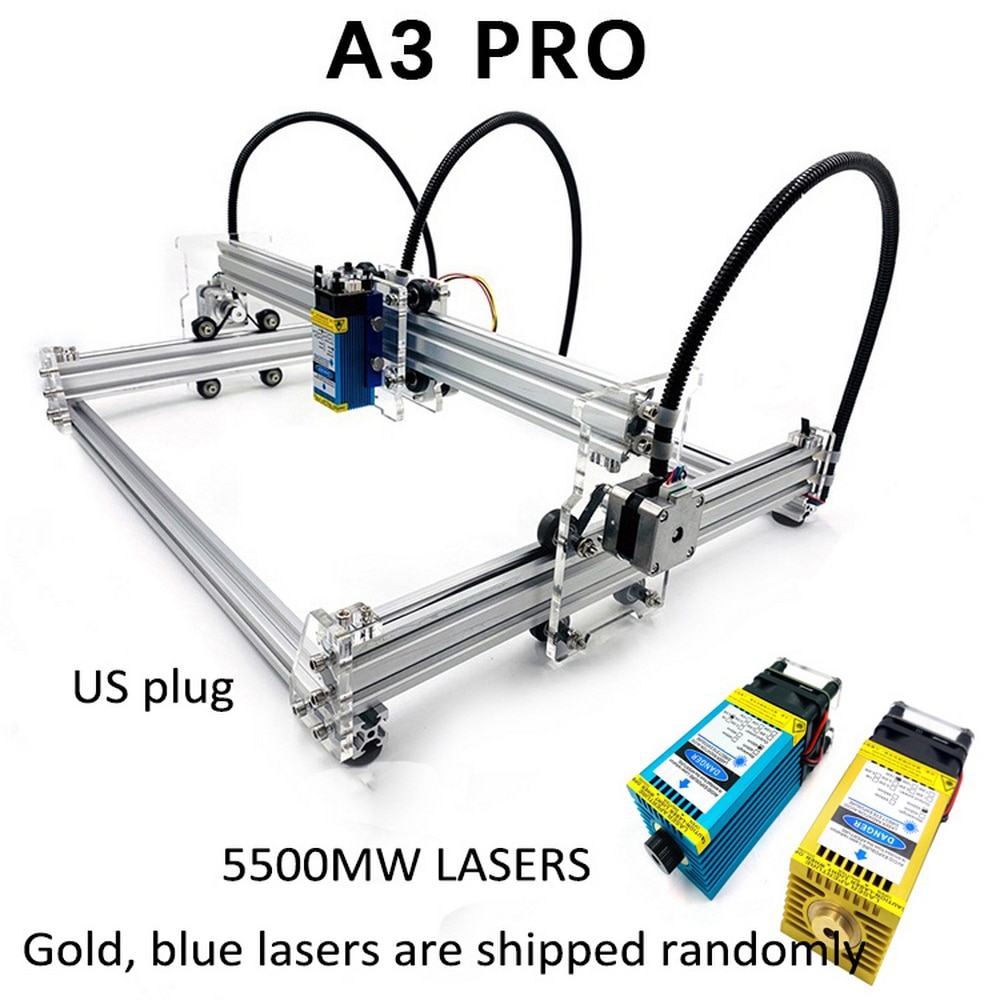

New laser upgrade! One-piece design is more convenient! Good heat dissipation and support PWM TTL hybrid control. (Gold, blue lasers are shipped randomly)
Writing robot

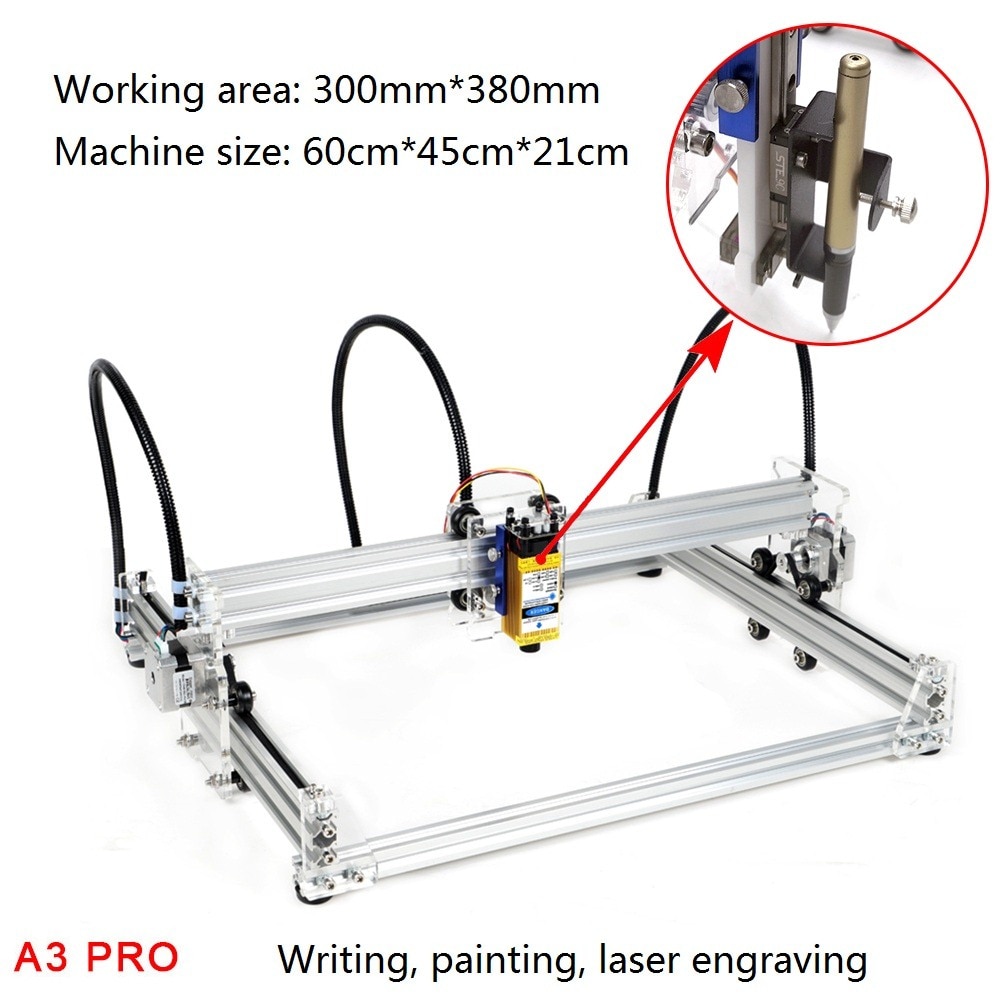

A3 PRO has a dual function of writing, painting and laser engraving.
1. Multi-material composite structure: a new upgrade, just to give you the best experience, carefully designed to ensure more
Stable, more precise, selected materials, machine cost levers.
2. The protection panel of the control panel increases the design of the protective cover of the circuit board, effectively reducing the foreign object made by external materials.
The risk of short circuit and electrostatic damage.
3. Large engraving area, wide application range, support writing and writing, laser engraving, etc.
Specifications:
Model:A3 Pro Mini DIY Laser Engraving Machine
Wavelength:445nm
Control panel: Mana SE
Communication Port:MircoUSB
Laser Quick Replace:Support

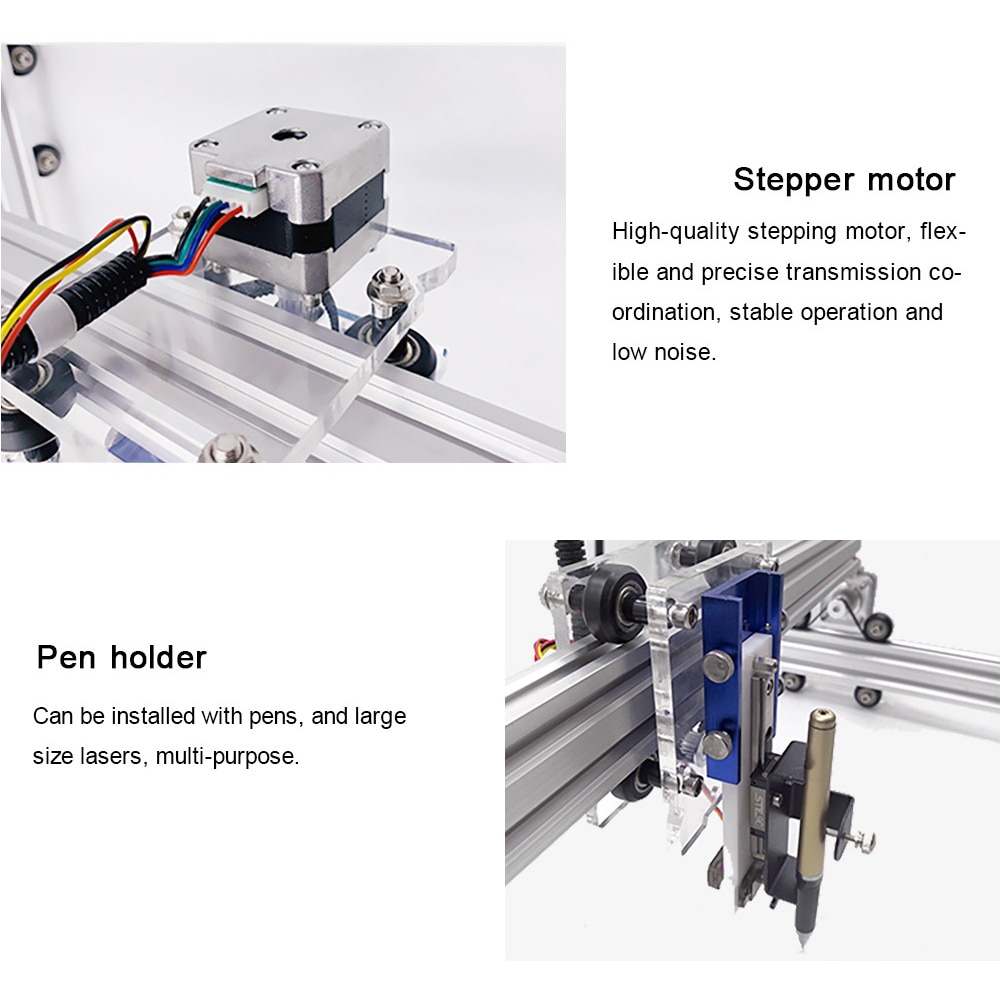

Stepper Motor:1.3A42 stepper motor, – double rail Y axis
Power Input:AC100-240V，50 / 60Hz
System Support:Win XP/7/8/10
Support software include: weidiao master, GRBL. etc.
Support gray engraving, sketch route cutting, line scanning engraving, spot engraving.etc.
Material:Stainless Steel and Acrylic
Working Voltage:DC 12V
Working Current:DC 4-5A

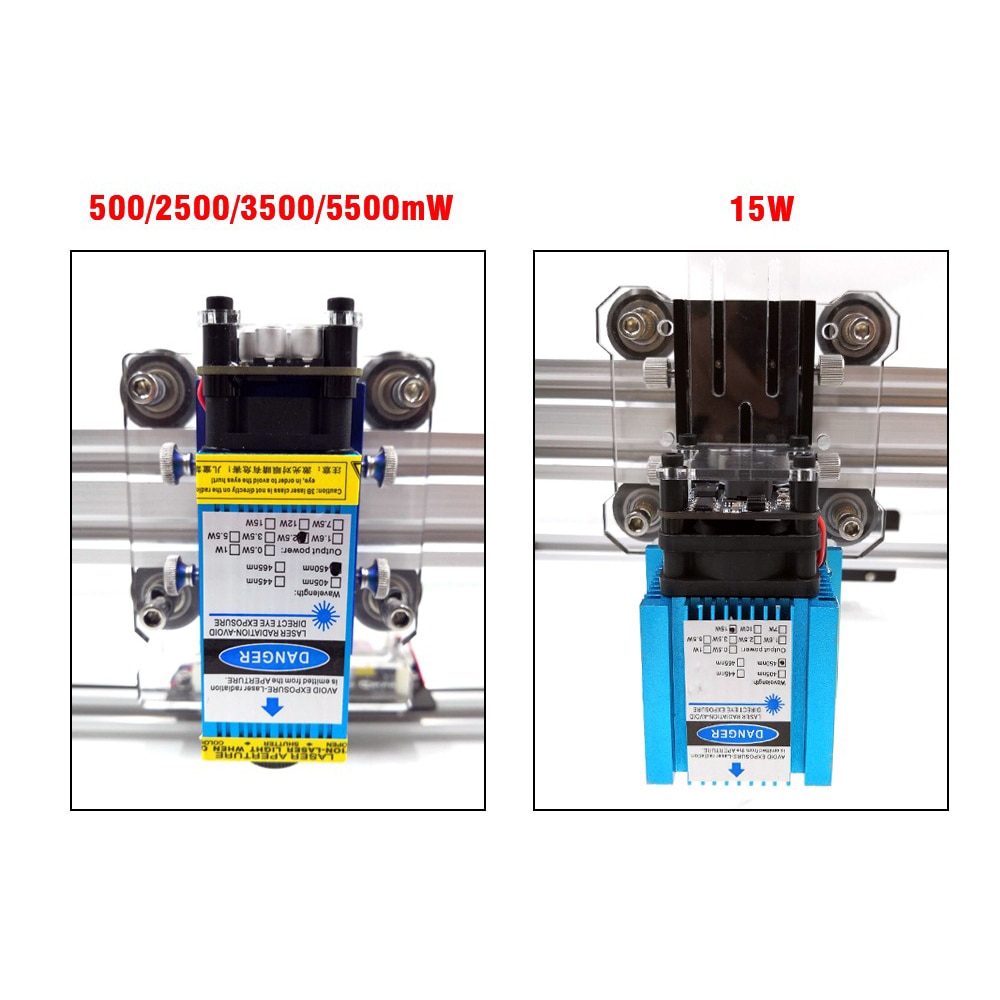

Laser Power:without/500 MW / 2500 MW / 5500 MW /15000MW
Engraving Accuracy:0.01mm
Engraving Area:30x40cm / 11.81 x 15.75inch (maximum)
Engraved object height limitation :No Limitation
Product weight: 3.4kg
Package weight: 4.9kg
Product size: 58 * 40 * 13cm(L*W*H)
Packing size: 60 * 45 * 21cm(L*W*H)
Maximum engraving area: 30cm x 40cm
Carving materials: bamboo, wood, paper, plastic, leather/ acrylic, etc.
Can not engrave metal / aluminum / glass, etc.
Aluminum profile and acrylic acid frame is stable and pretty
500mw/2500mw/5500mw engraved material: Plastic, wood, acrylic, PVC, PCB and other soft materials
Cuttable material: paper, wood board within 3MM (slow speed, need to cut repeatedly), leather, cloth, etc.
The 15W can also be engraved on the stainless steel surface and the anode colored aluminum alloy surface on the basis of 5500mw. (When drawing the surface of the 304 stainless steel, please use a large pen to blacken the surface and then engrave)
Special material description!!!
In the range of engraved materials, transparent, transparent, and some white materials need to be completed with the aid of auxiliary tools.
(for example, black engraving with a black whiteboard pen)
The package includes:
1 X A3 Pro rack
OR
1 X A3 Pro engraving machine +500mw / 2500mw / 5500mw / 15000mw laser
OR
1 X writing module
Notes:
1. Please wear laser goggles when using it.
2. This is a diy laser machine kit, you need to assemble it.
3. We had updated the laser machine, some parts are different from the old version, you can refer to the photos below.
4. Notice that the laser module can’t work more than 30 mins in one time, otherwies it will be too hot, better add cooling fan.
