Description

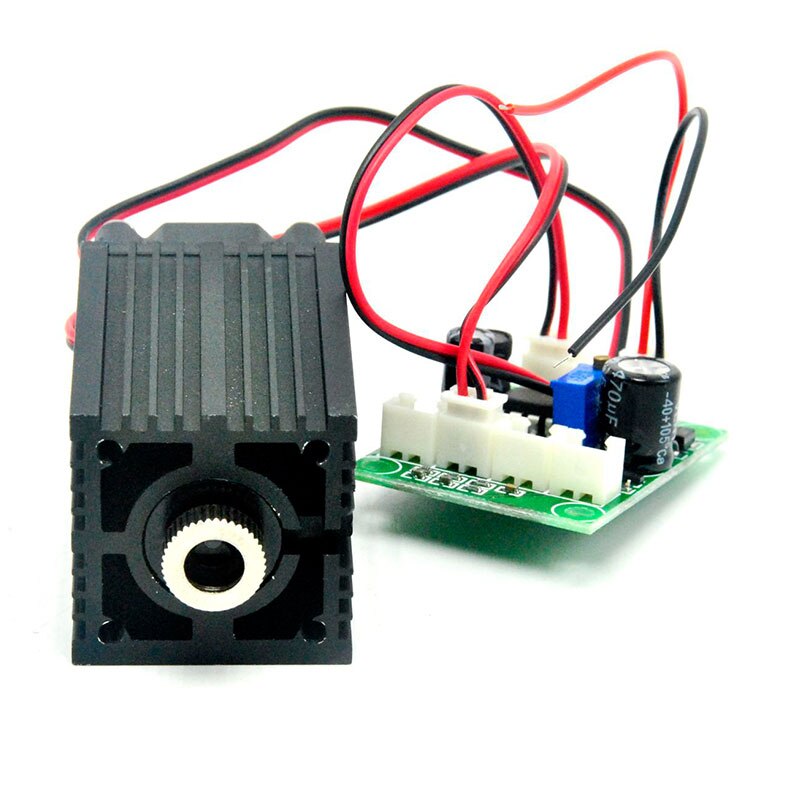

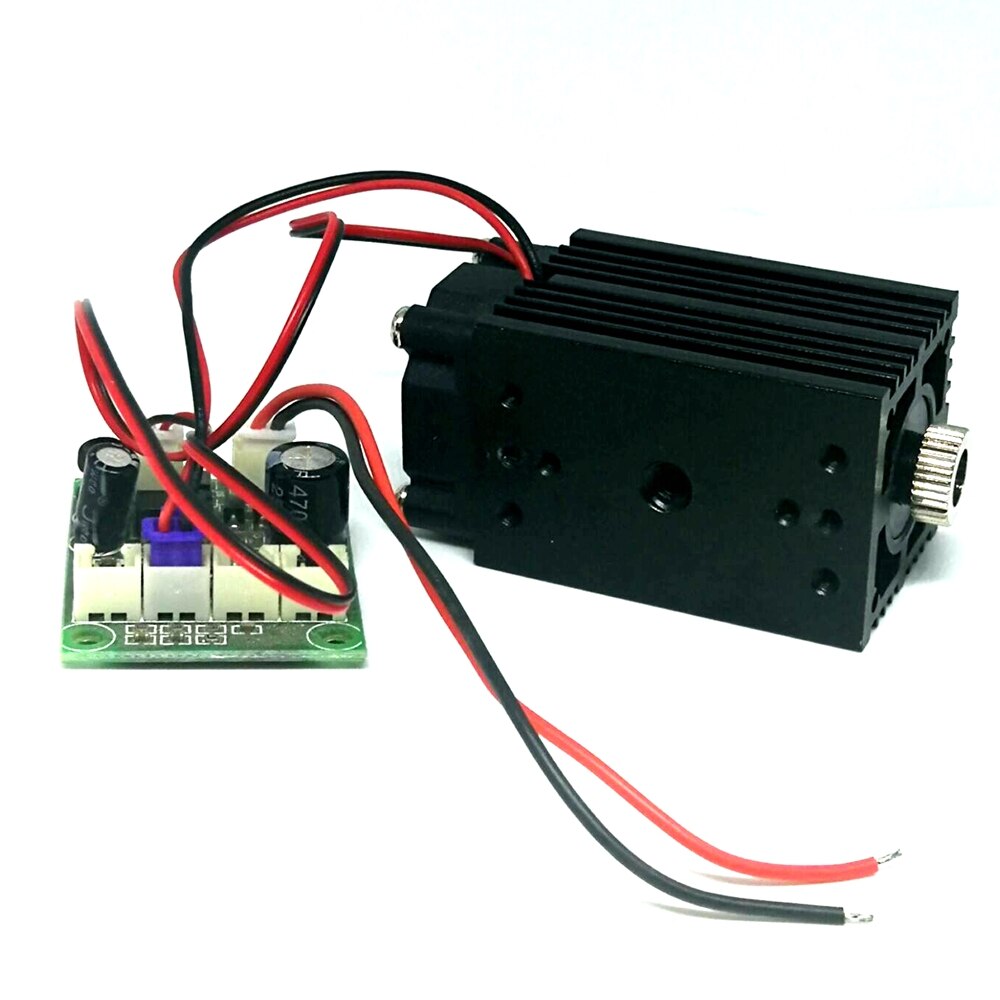

980nm IR Focusable Dot Line Cross Head Laser Module 100mw Diode Focus Point Lights 12V TTL

Parameters
Laser head size: 50mmx33mmx33mm

Circuit Board size: 45mm*34mm

Wavelength: 980nm

Output power: 100mW

Laser shape:Dot(rectangular to oval)

Focusable:YES

Modulation frequency: Adujstable  TTL modulation

Working:Long time working

Finish Color: Black

Case Material: Aluminum

The circuits control: constant current

Reverse polarity protection: with automatically identify the positive and negative

Operating voltage: DC = 12V

Warm-up time: None

Operating Temperature: -10 ℃ ~ +40 ℃

Storage temperature: -10 ℃ ~ +40 ℃

Please note that this is 980nm IR Lasers which can not be seen by naked eyes and the spot is rectangular.It's normal.

Features

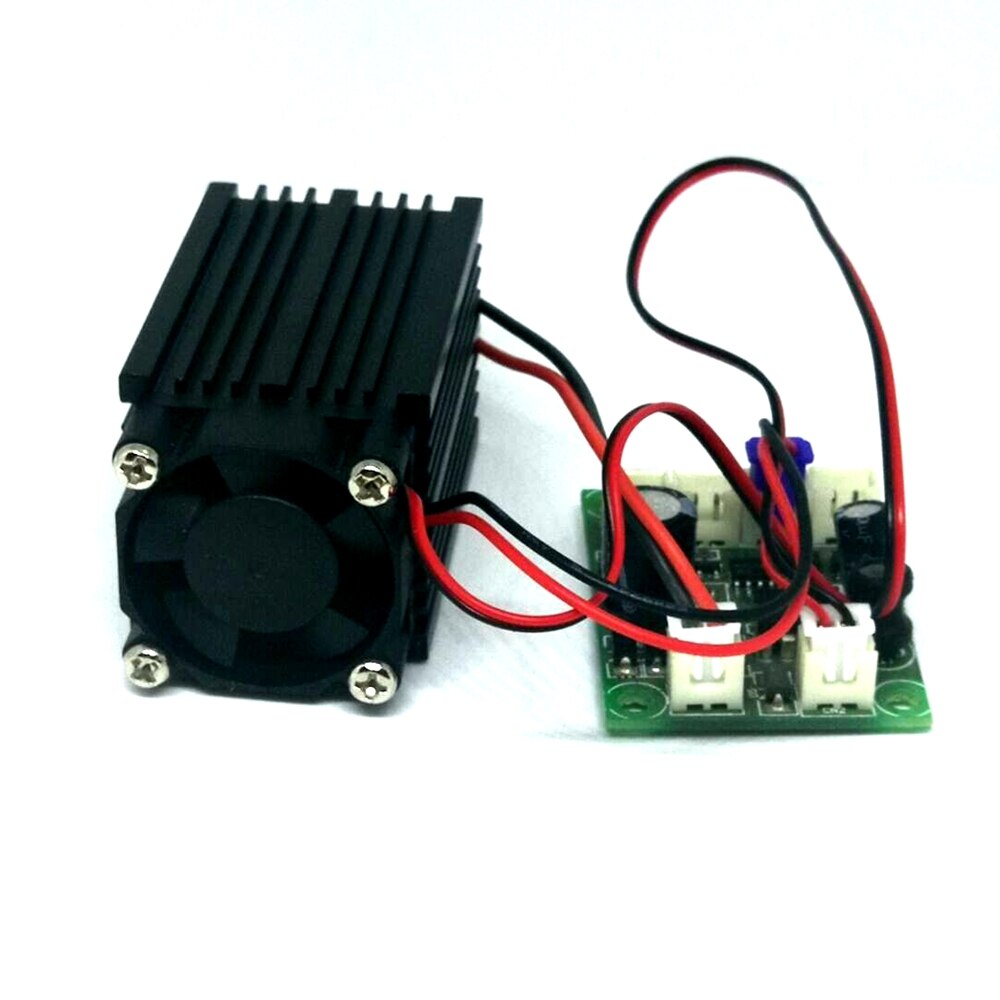

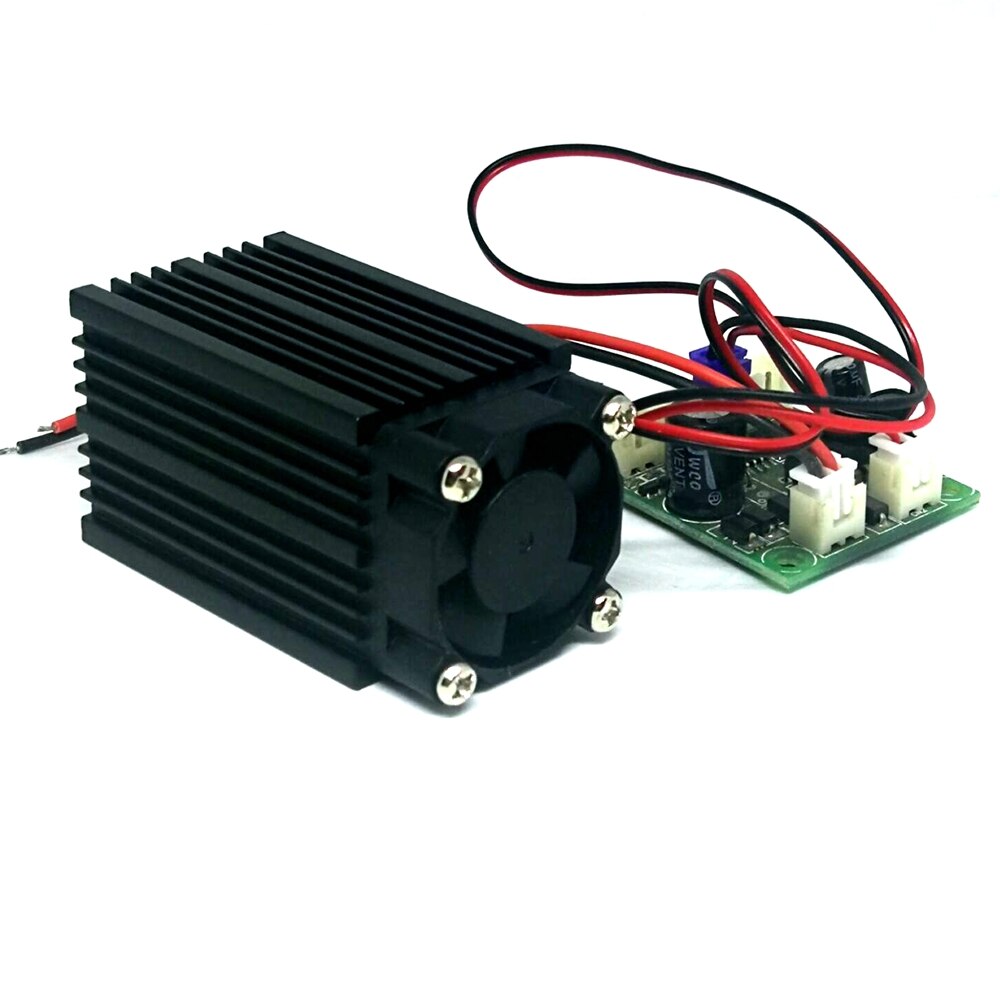

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.

2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don't use TTL, please just leave the blue and white wire.

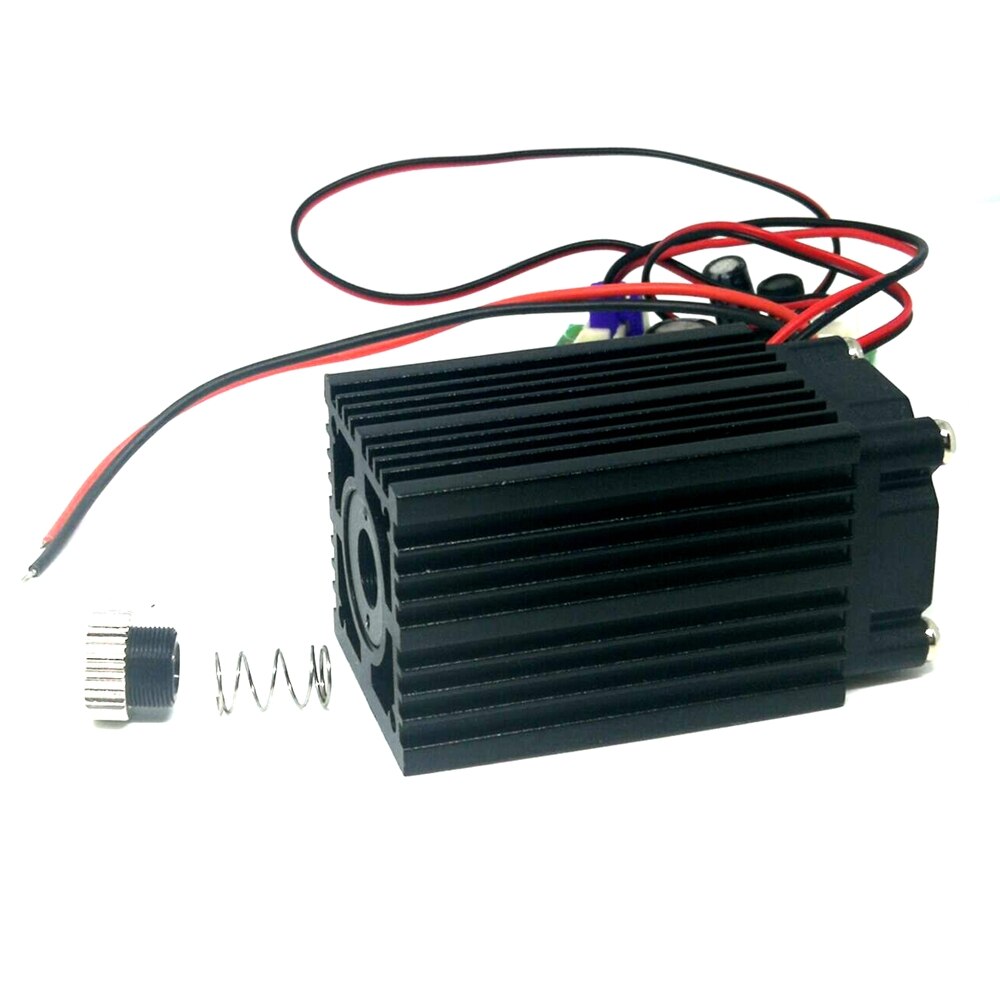

3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.

4. Please wear IR laser protection goggles to protect your eyes when working on this module.
