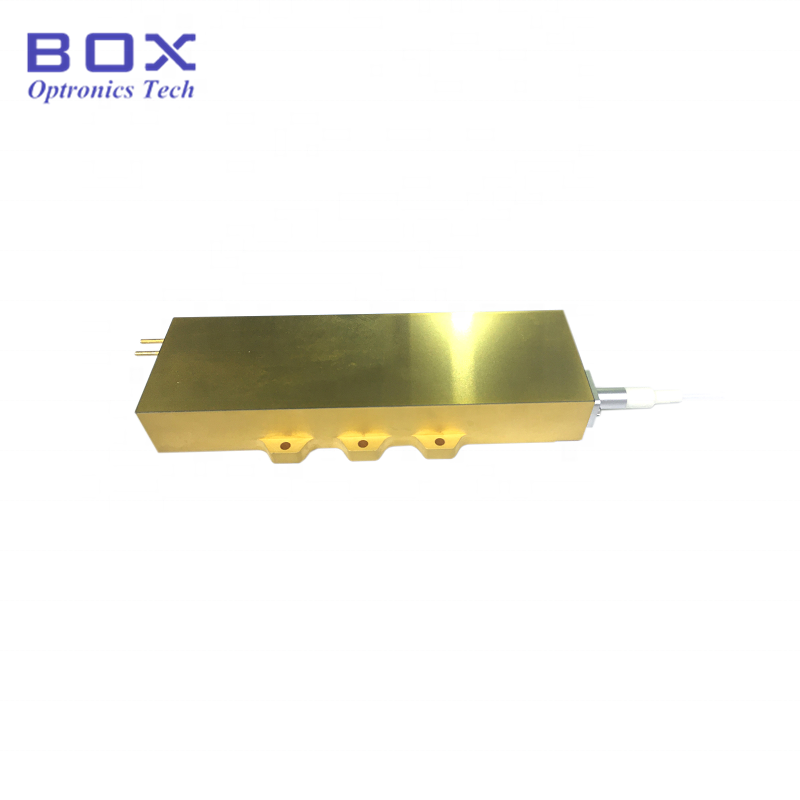

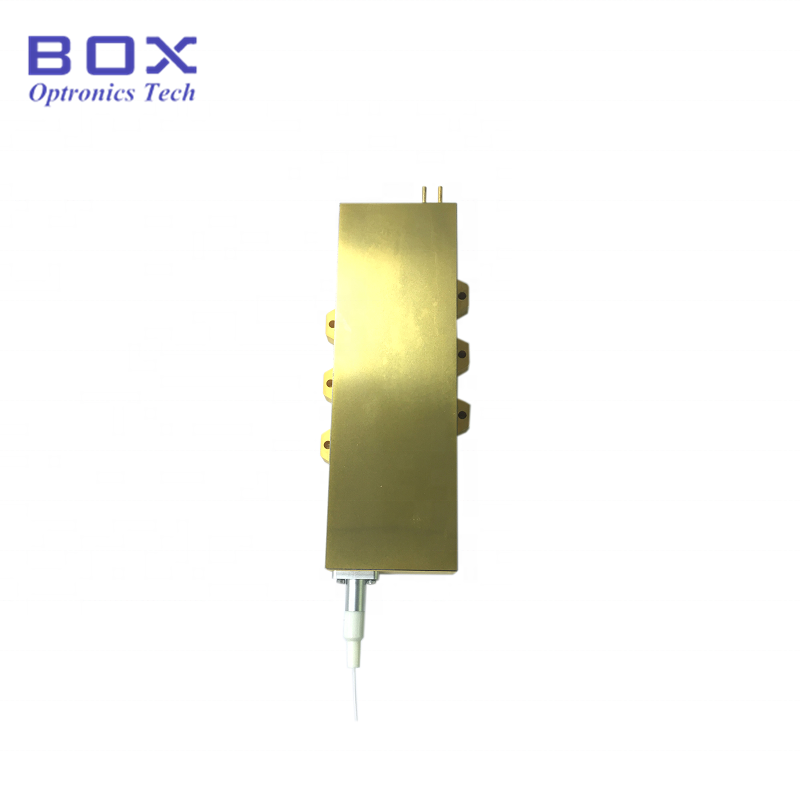

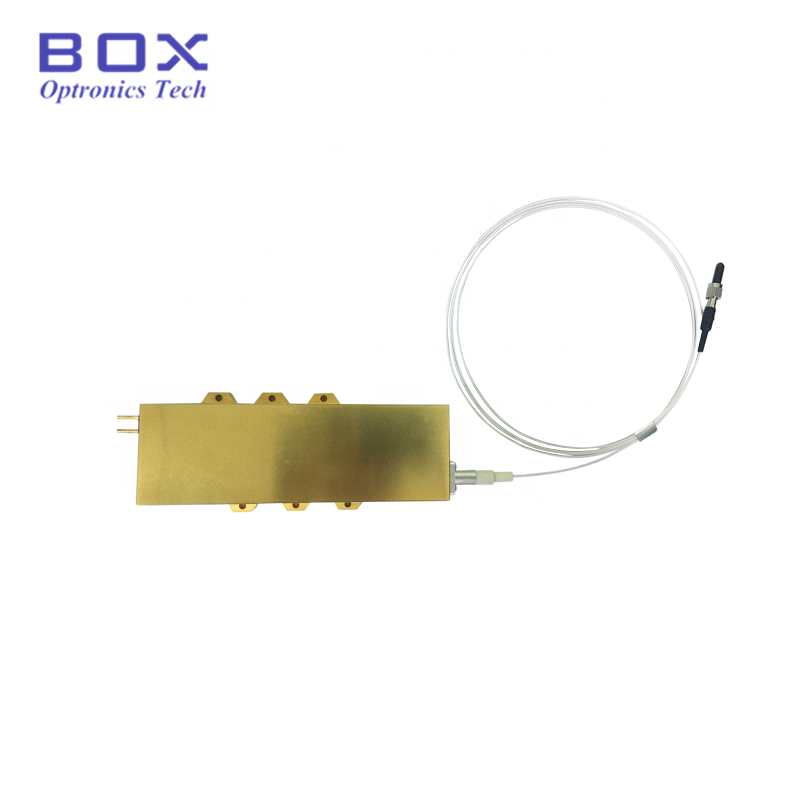

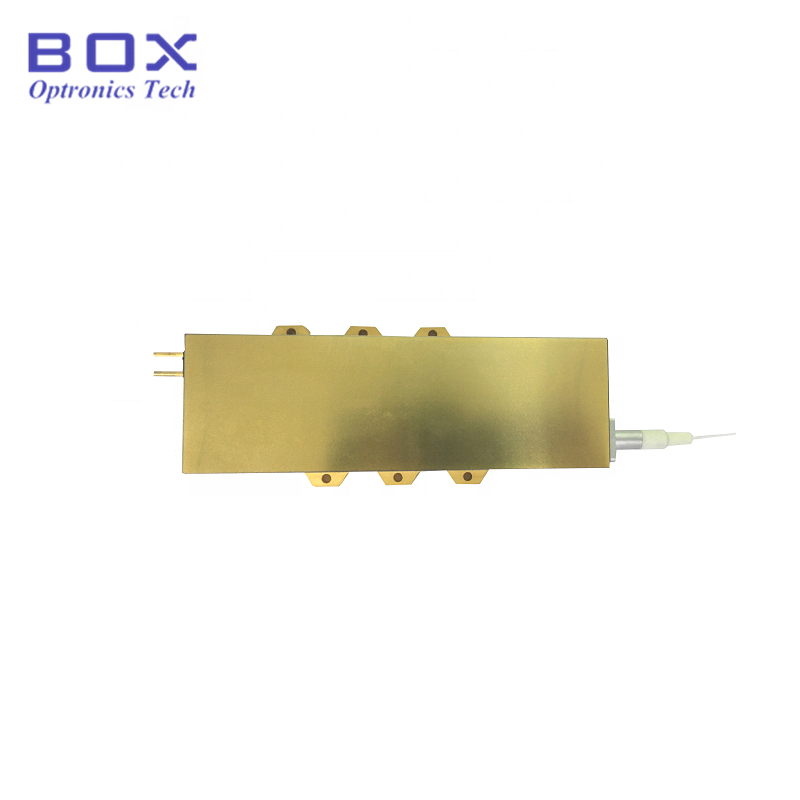

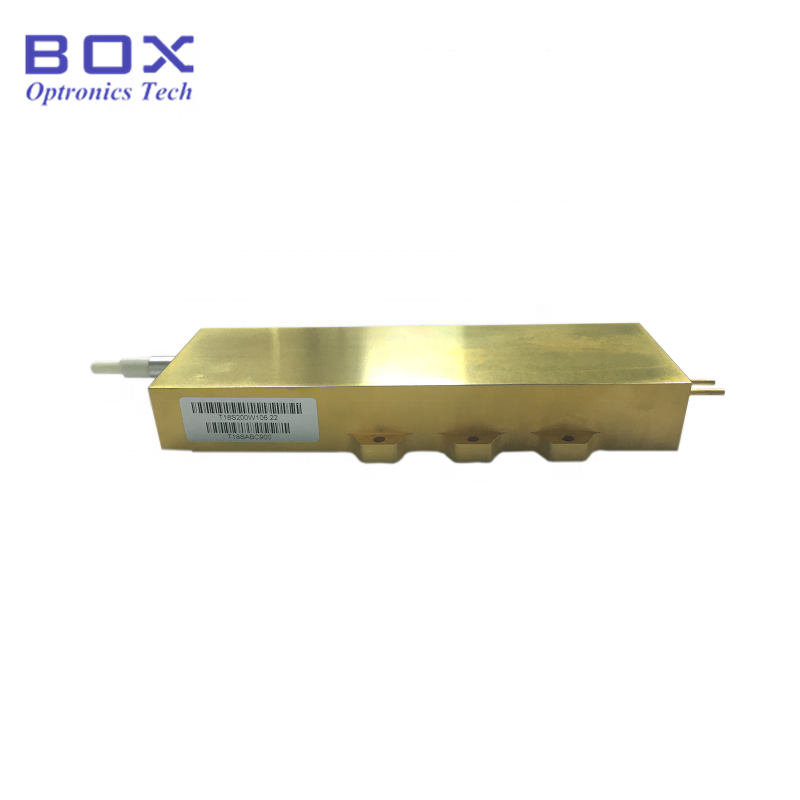

980nm 976nm 975nm 300W Fiber Coupled Diode Laser for solid-state laser pumping



Features:

975nm Single emitting laser;

300W High output power;

200/220μm 0.22NA Fiber;

RoHS Compliance.



Application:

Medical care;
Printing;
Material processing;
Pump source.



Optical  Characteristics(25℃ laser temperature):

Parameter	Symbol	Min.	Typ.	Max.	Unit
Operating output power	Pout	–	300.0	–	W
Range of available wavelength	λ	971	976	981	nm
Spectral width @ FWHM	Δλ	–	4.5	–	nm
Fiber core diameter	DCOR	–	200/220	–	µm/µm
Fiber numerical aperture	NA	–	0.22	–	–
Fiber length	Lf	0.9	1.5	–	m
Operating temperature range	TOP	15	–	55	℃
Storage temperature range	TST	-30	–	70	℃

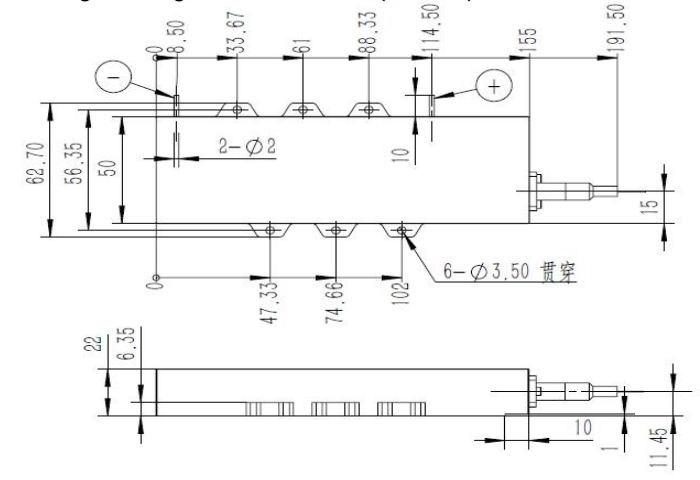

Package drawing&PIN-OUT Definition(Unit:mm):



Ordering Information:

BLD	-XXX	X	X	-XX
Laser type	-Wavelength	-Output power	-Fiber type	Connector type
Diode Laser	808: 808nm 915: 915nm 940: 960nm 976: 976nm	03: 3W 08: 8W 10: 10W …	22: 0.22NA(default) 15: 0.15NA 12: 0.12NA	N0: Null(default) SMA: SMA905 FA: FC/APC Customized



e.g.: BLD-F976-90-22N0 (Order information: 976nm diode laser with 105/125um multi-mode fiber and 90W output power and without connector).

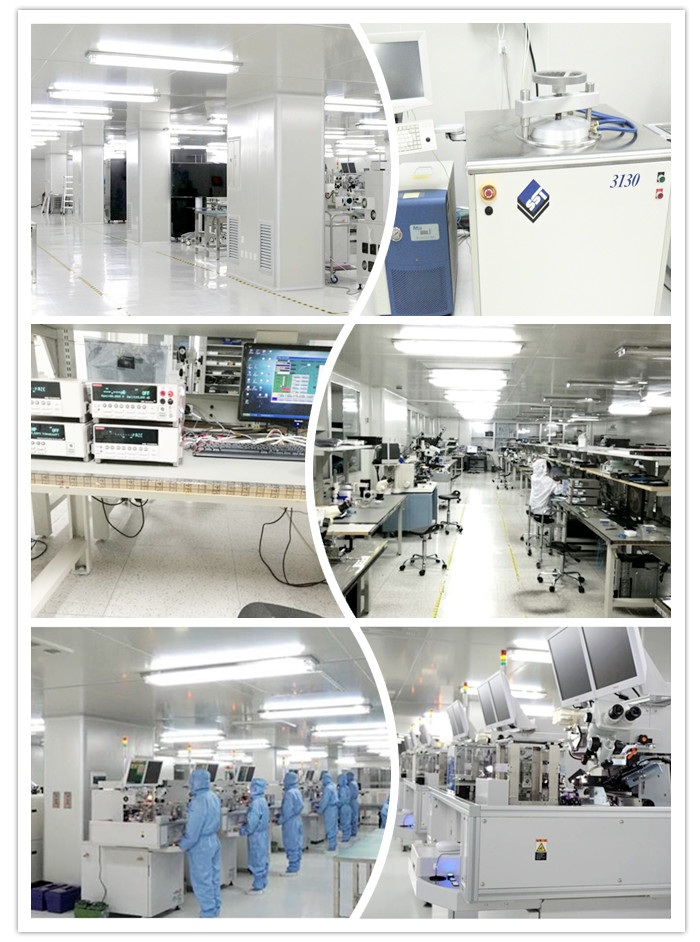

Shenzhen Box Optronics Technology Co., Ltd. is a high-tech enterprises, specialized engaged high power fiber cable, optical communication and optical active device integration technology research and development, production and sales. The company’s idea is quality first, speed first, service first.

Box optronics possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, radar communication, material processing, process control, online detection, investigation equipment, national defense, military and other fields.







Payment

For large orders, T/T ,

For small orders, Paypal are accepted.



Warranty:

All products have been tested before shipping out

All products have 1 years warranty. ( After the quality guarantee period began to charge appropriate maintenance service fee.)



Refund & Replacement:

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).

If the items you purchase from our store are not of perfected quality, that is they don’t work electronically to manufacturers specifications, simply return them to us for replacement or refund.

If the items are defective, please notify us within 3 days of delivery.

Any items must be returned in their original condition to qualify for a refund or replacement.

The buyer is responsible for all the shipping cost incurred
