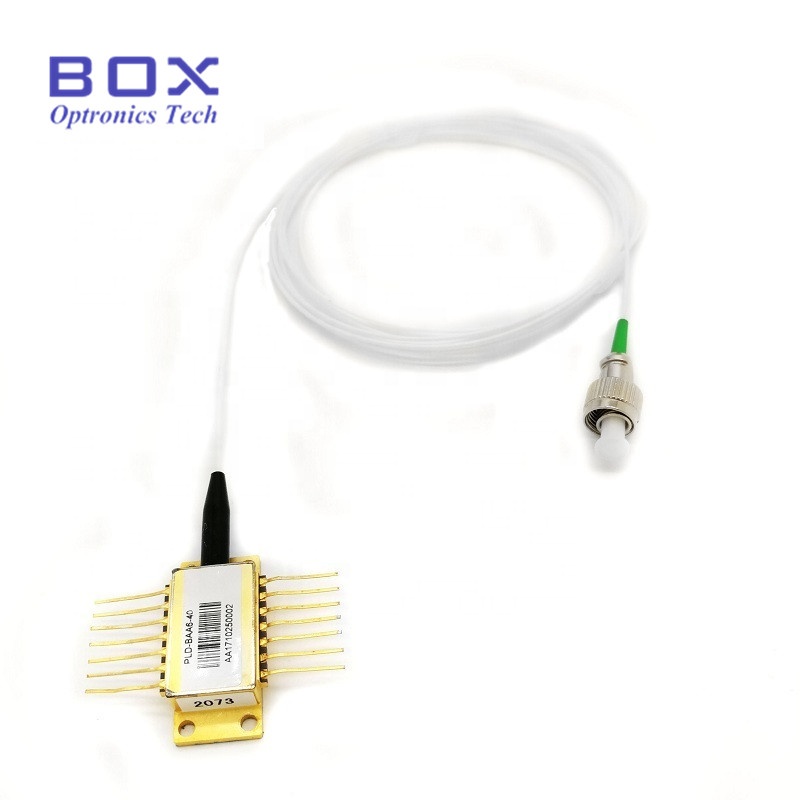

976nm 400mW Butterfly Pump Laser Diode

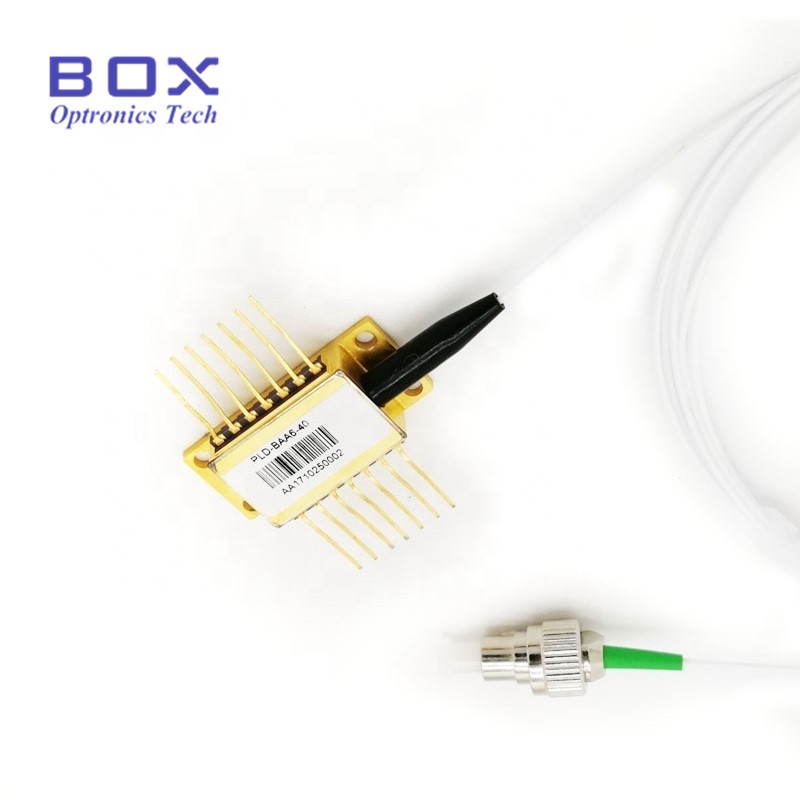

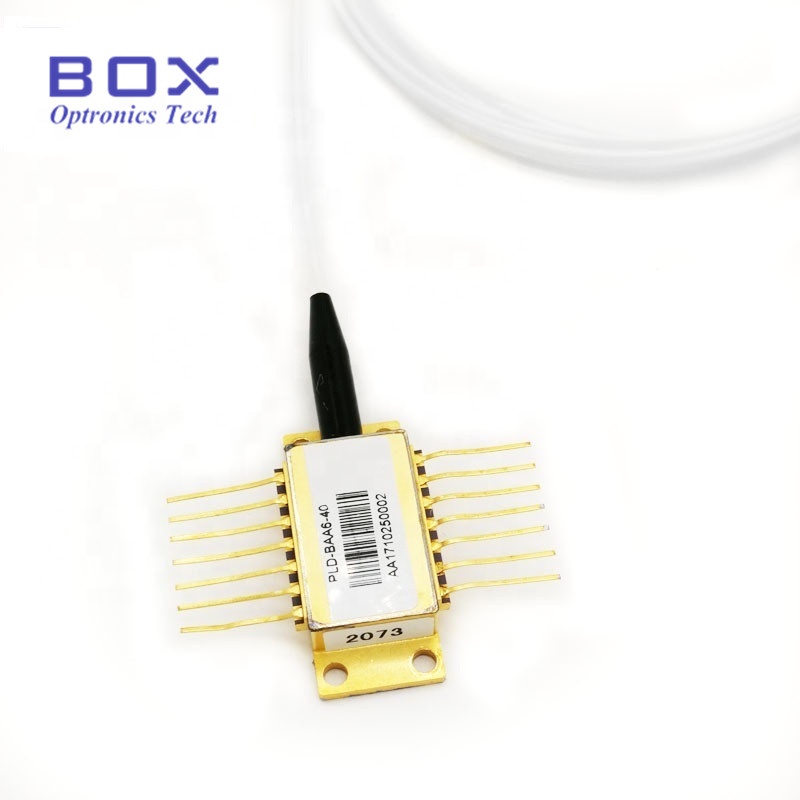

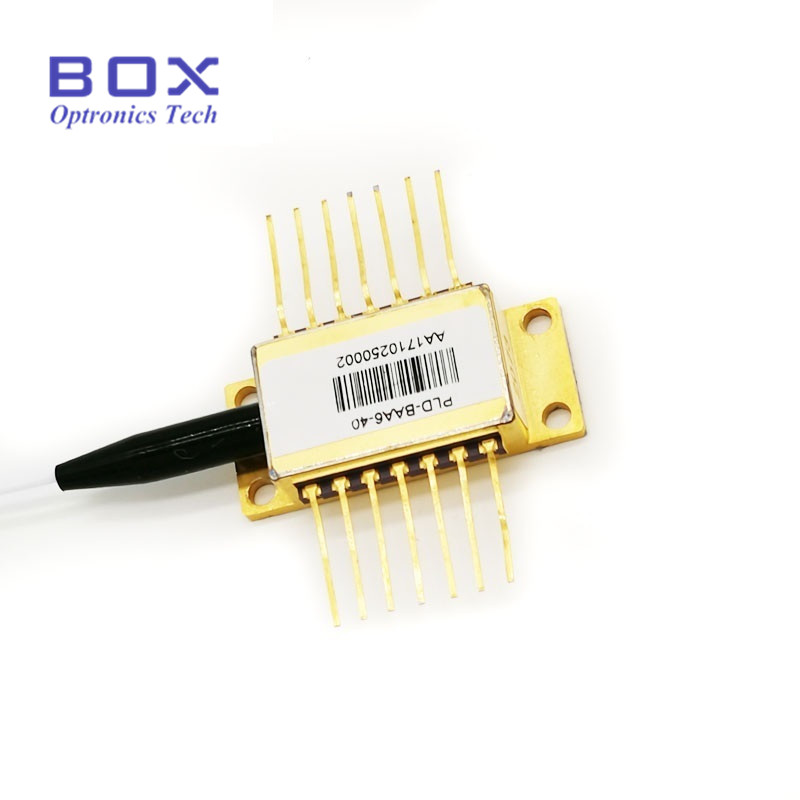

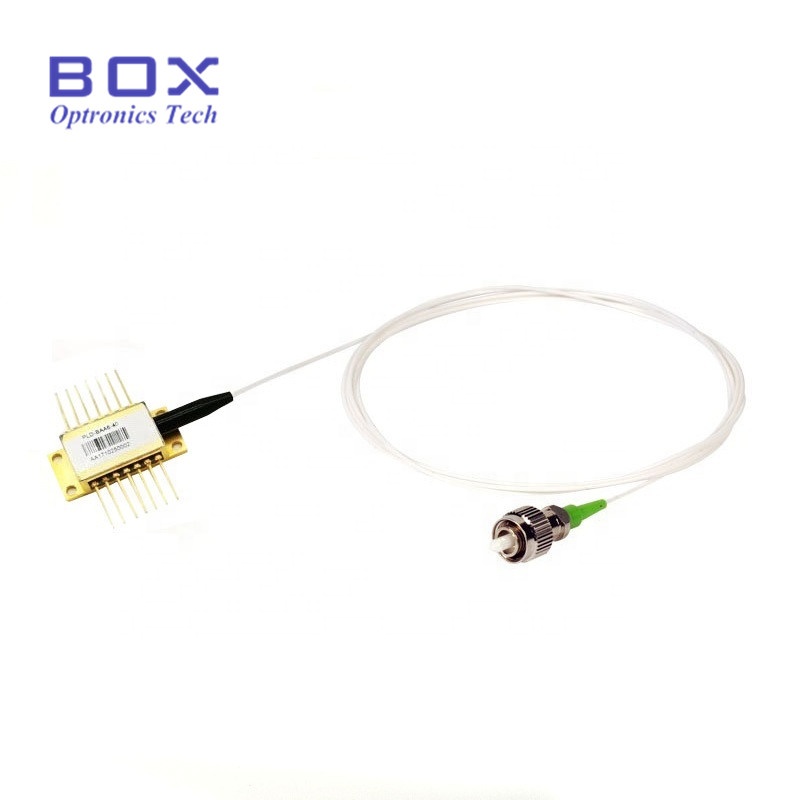

980nm pump module utilizes a planar construction with chip on subcarrier. The high power chip is hermetically sealed in a epoxy-free and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode.

980nm pump module uses FBG stabilization to ”lock” the emission wavelength. It provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers. This module complies described in Telcordia GR-468-CORE requirement.

Features:

Kink-free operating power up to 400mW;

epoxy-free, and flux-free 14-PIN butterfly package with SM Hi1060 or PM fiber;

Fiber Bragg grating stabilization, Wavelength selection available;

Integrated thermoelectric cooler, thermistor, and monitor diode.

Application:

Next generation dense wavelength division multiplexing(DWDM) erbium doped fiber amplifiers(EDFA);

Reduced pump-count EDFA architectures;

Very long distance cable television(CATV) trunks and very high node count distribution.

Optical  Characteristics(25℃ laser temperature)

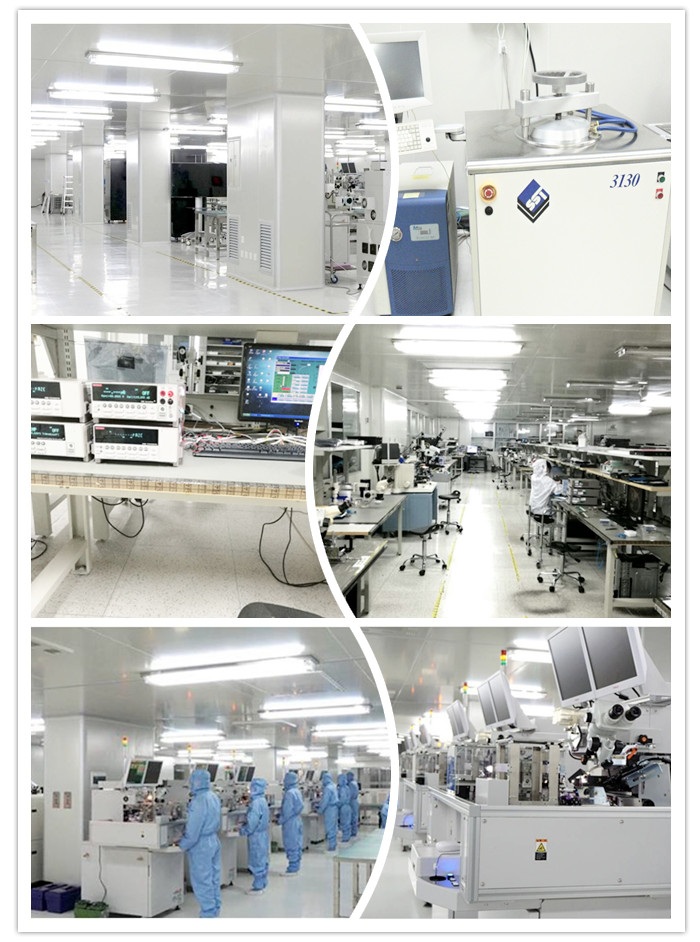

Shenzhen Box Optronics Technology Co., Ltd. is a high-tech enterprises, specialized engaged high power fiber cable, optical communication and optical active device integration technology research and development, production and sales. The company’s idea is quality first, speed first, service first.

Box optronics possesses accountable and dependable service as well as quality products with compact design, high reliability, excellent performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, radar communication, material processing, process control, online detection, investigation equipment, national defense, military and other fields.

 Payment

For large orders, T/T ,

For small orders, Paupal are accepted.

Warranty:

All products have been tested before shipping out

All products have 1 years warranty. ( After the quality guarantee period began to charge appropriate maintenance service fee.)

Refund & Replacement:

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items).

If the items you purchase from our store are not of perfected quality, that is they don’t work electronically to manufacturers specifications, simply return them to us for replacement or refund.

If the items are defective, please notify us within 3 days of delivery.

Any items must be returned in their original condition to qualify for a refund or replacement.

The buyer is responsible for all the shipping cost incurred
