Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Chongqing, China
- Brand Name: KJ
- Model Number: DRM73000
- Size: 100*70*43mm
- Color: Customized
- Warranty: 1 Year
- Certificate: CE,ISO
- Application Field: Golf/Hunting
- Range: 3000m
- Laser type: 905nm
- Weight: 185g

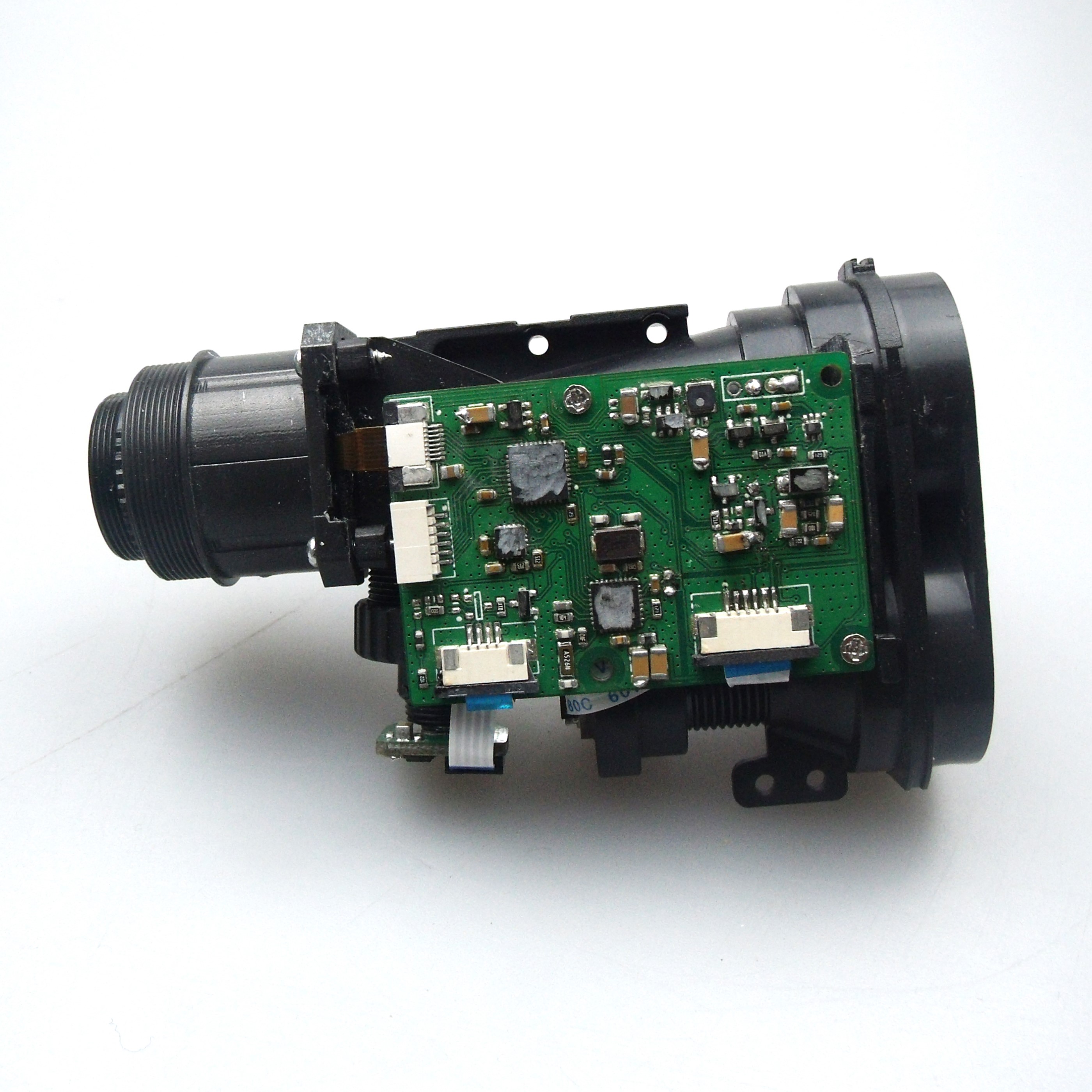

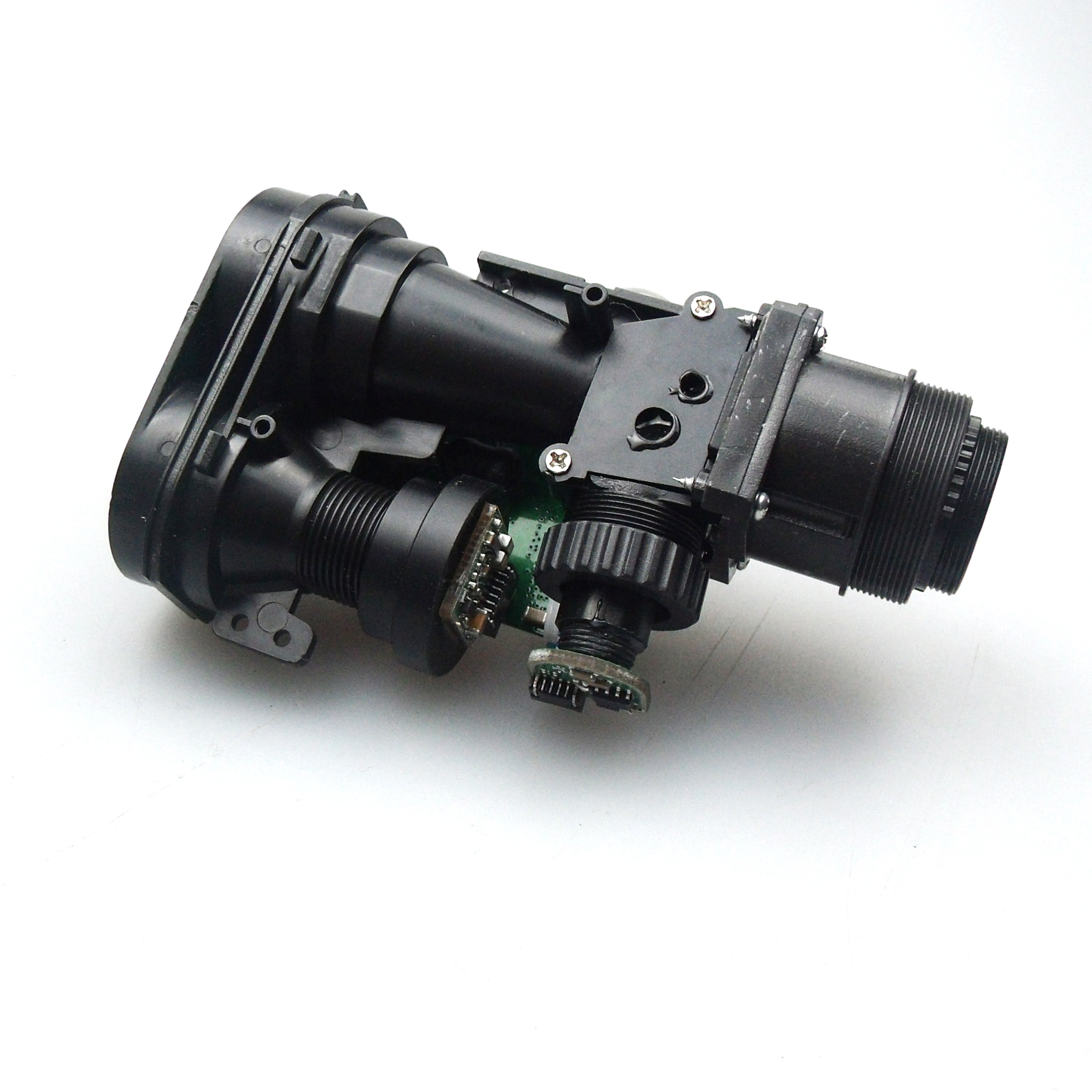

Products Description

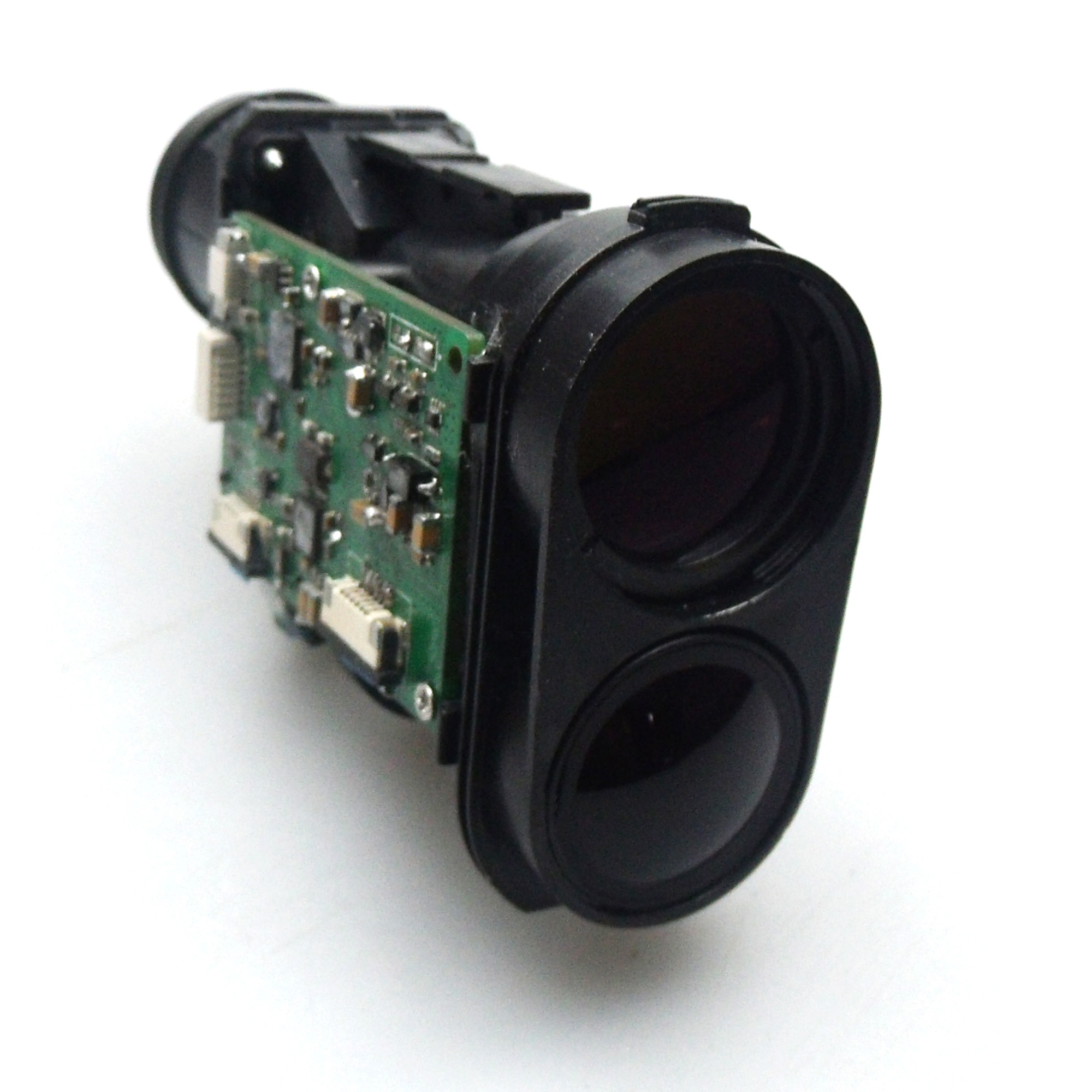

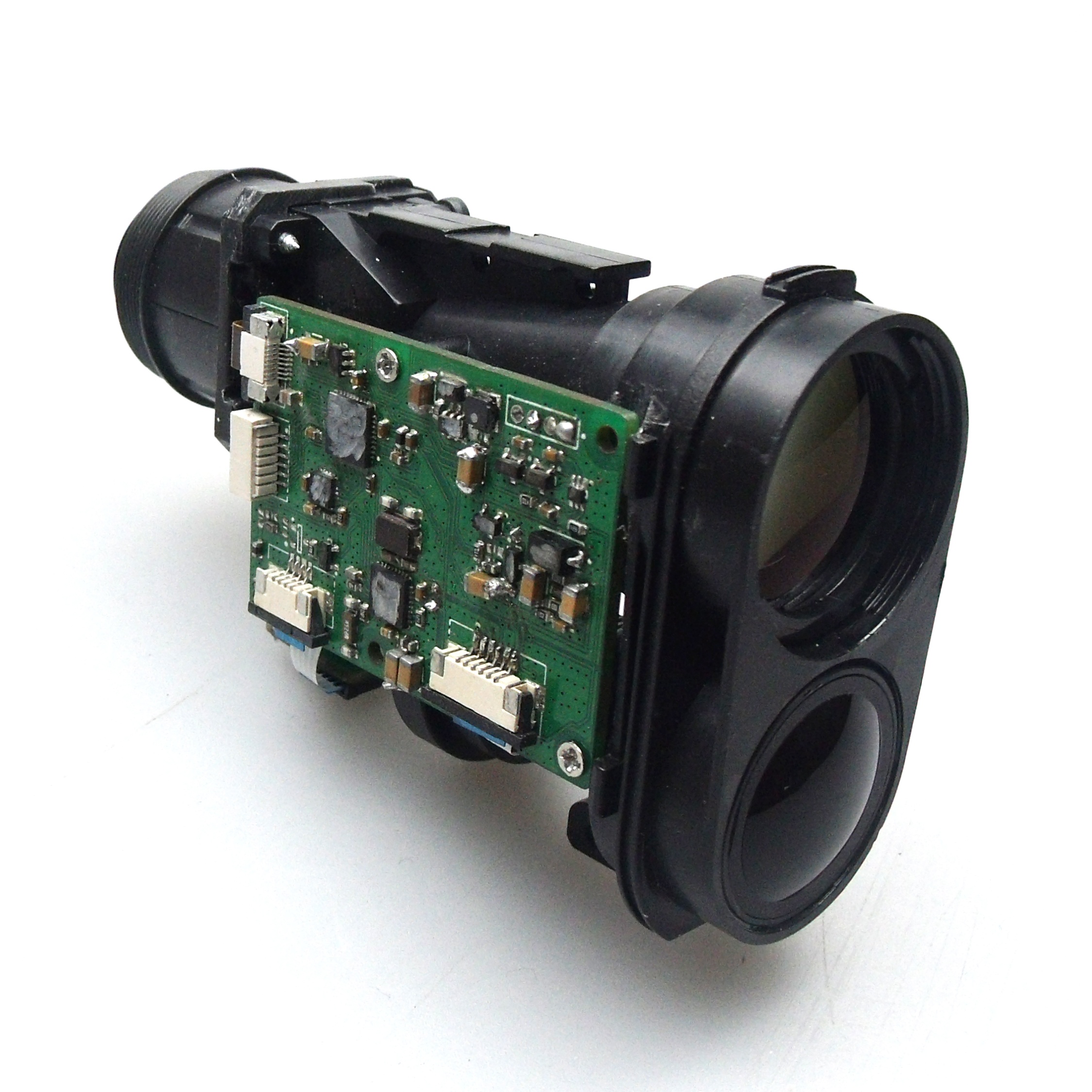

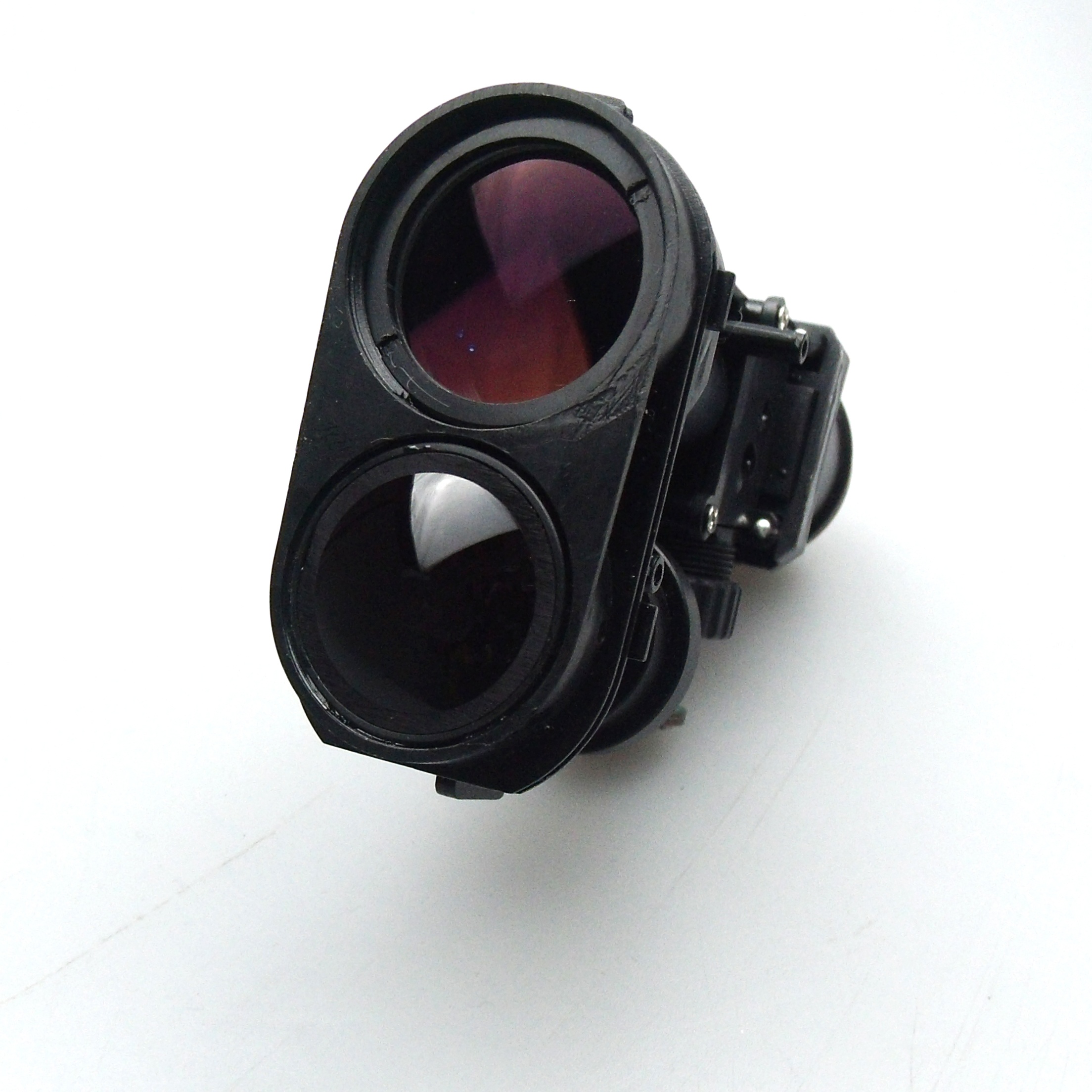

Front Side
___________________________________________________________________________________________________
Objective lens Eyepiece
___________________________________________________________________________________________________
| The main technical index: | Details: |
| Wave length: | 905nm |
| Max Ranging Distance: | 1000/1500/2000/2500/3000m/3500m/4000m(customized) |
| Magnification: | 7X |
| Focus way: | eyepiece focus in manually |
| Measuring height and Angle: | ±90 ° |
| Objective diameter: | 25mm |
| Ranging of vision: | 122m/1000m |
| Lens coating: | multi-layer coating |
| Min Ranging Distance: | 5m |
| Distance-measuring Error: | ± 1m /0.5/0.3m(customized) |
| Weight: | 110g |
| Distance Resolution: | 1m |
| Power supply: | 3V |
| Working Temperature: | -20℃~+50℃ |
| Dimensions: | 100*70*43mm |

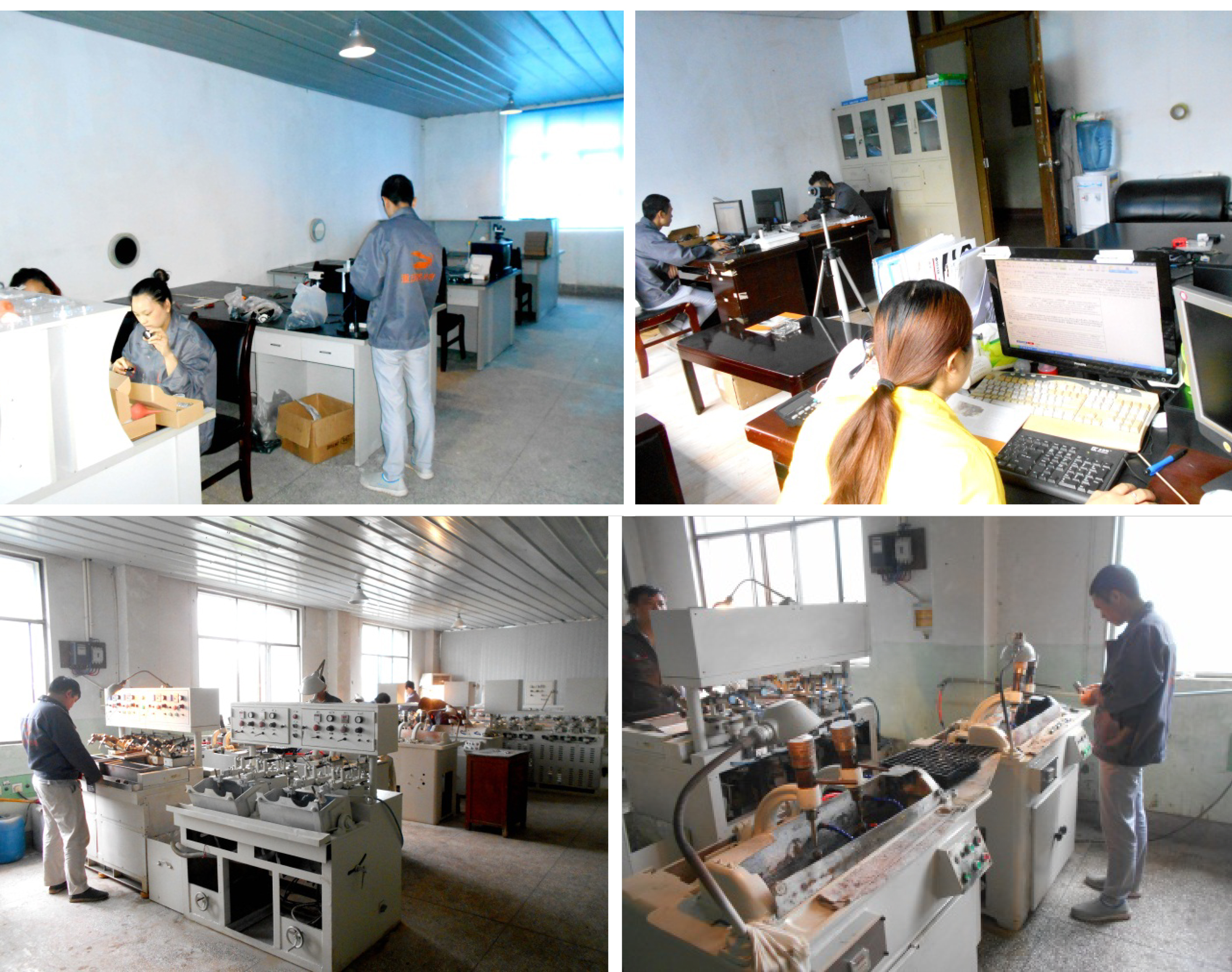

Company Introduce
Established in 2008, Chongqing Diaoran Photoelectric S & T Co., Ltd.is a company specializing in professional optical design and production of various lasers and laser range finder (instrument) development. Located at No.26, Jinyun Avenue, Beibei District, Chongqing, China,
We own the optical&mechanical processing equipment, strong R&D team, and professional engineering and technical personnel, the appropriate certification and better quality management system. Our company and domestic large and medium-sized military enterprise, military research institutes, military colleges and universities, Europe and the US have good cooperation relationship.
Our Company adheres to the “integrity, efficiency excellence and innovation” to win the trust of customers. we are continuing to provide customers with high-quality products and services and to build long-lasting good cooperation at business.
Cooperation Enterprise
Trade Area
Certifications
Alibaba & Bureau Veritas Verified
