Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Place of Origin: Shaanxi, China
- Brand Name: Gatherstar
- Model Number: GS-LLRF9052K
- Size: 115*75*40mm
- Wavelength: 905nm
- Range measurement: 3.5-2000 m
- Accuracy: 1 m
- Transmitter beam divergence: 3.5mrad

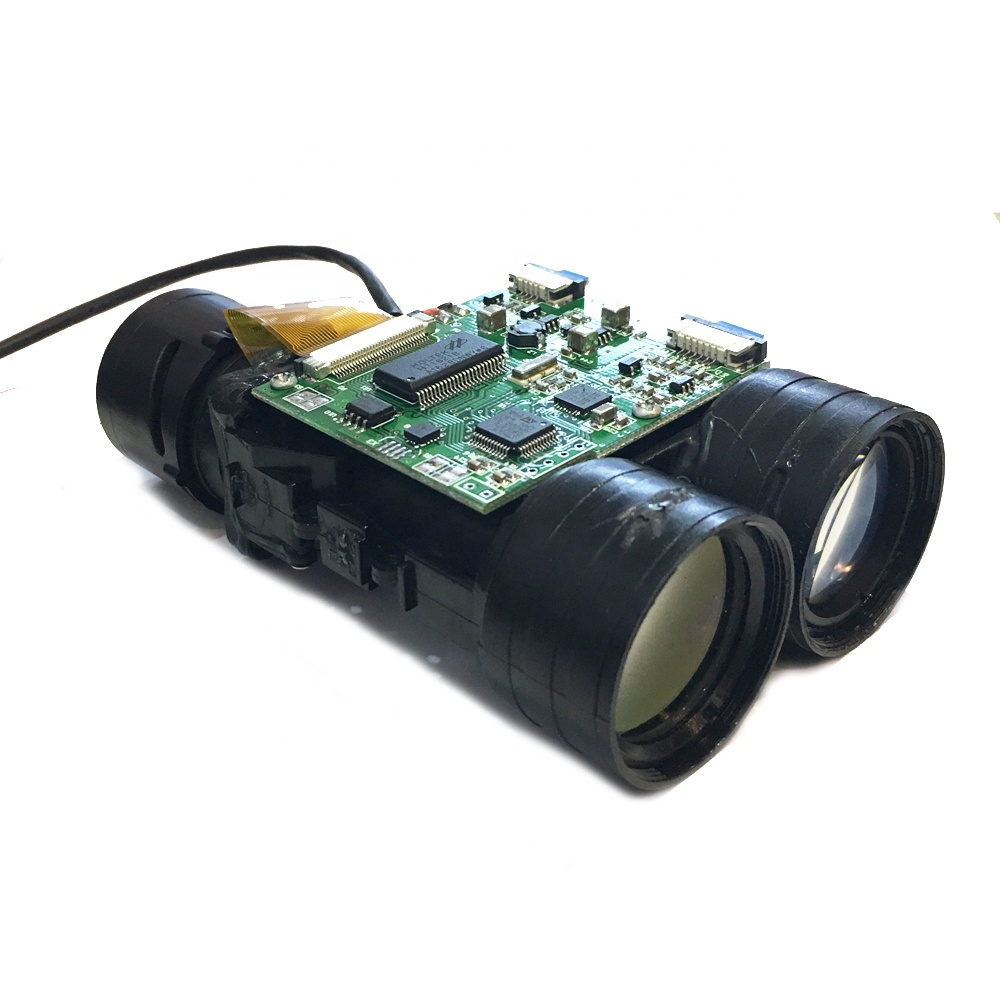

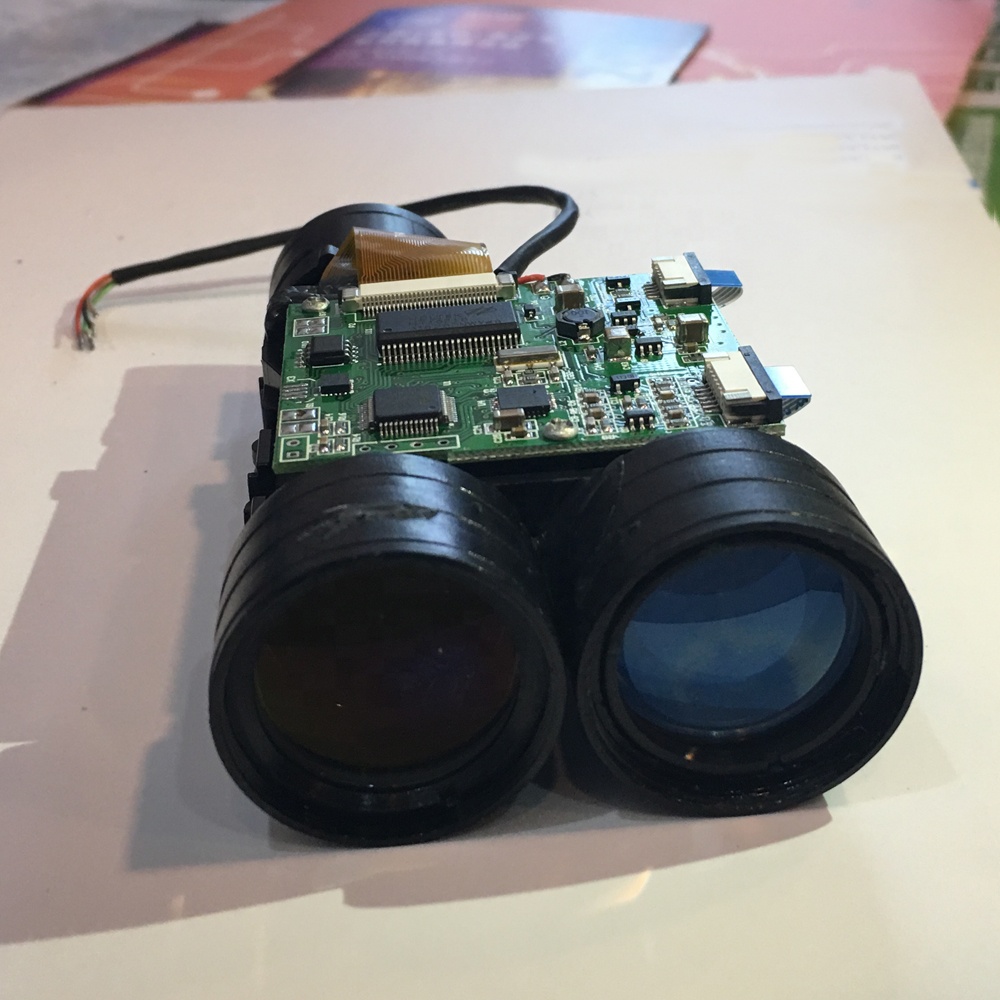

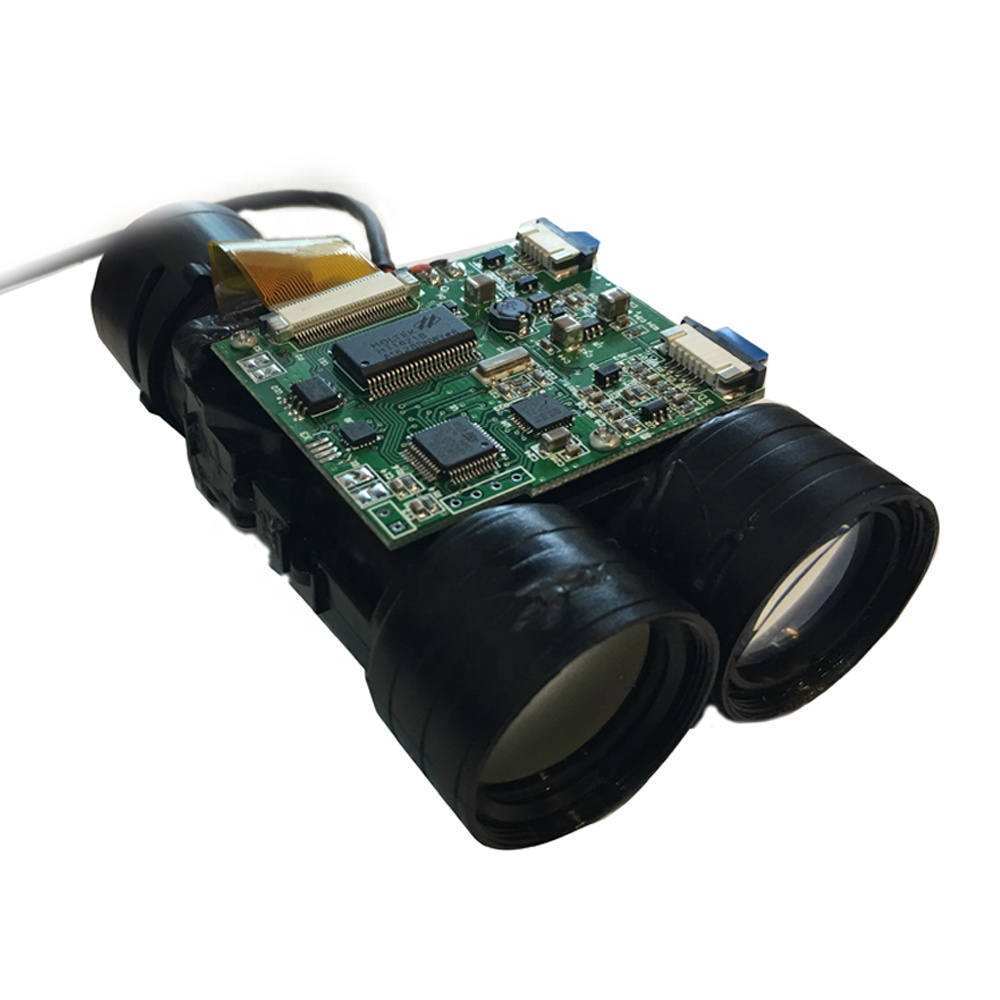

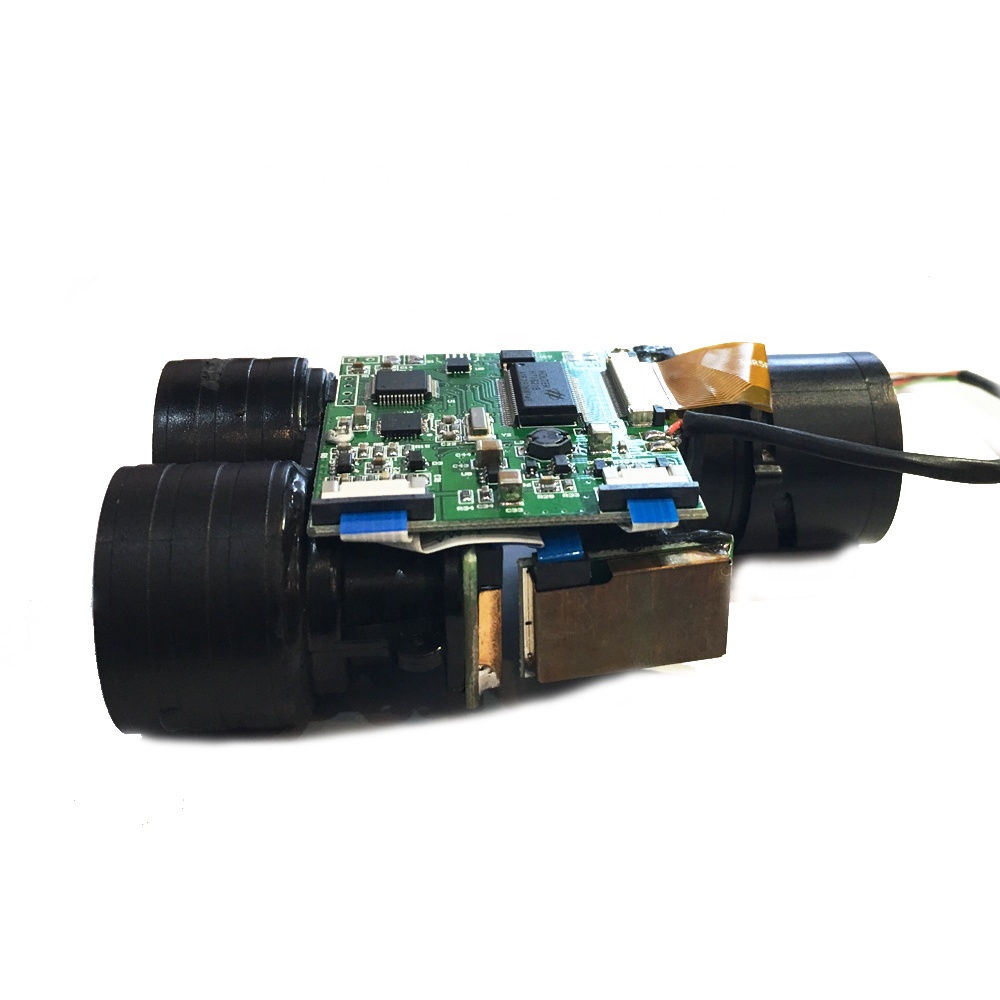

The Laser Rangefinder Modules offer outstanding technical characteristics combined with an excellent price performance-ratio for the integration of length and/or position measurement systems, especially in the fields of industrial and security applications.
At an operational wavelength of 905nm the measurement range is 3.5 to 2000m with a measurement accuracy of +/-1m. The special processing electronics enable the Laser Rangefinder a maximum range capability within eye-safety class 1.
The LRF module test and qualified via GJB1324-1991 and GJB 2241A-2008; designed by under IEC 60825 and ANSI Z136.1 (2007) standard.
|
Specification for GS-BGLRF3
|
|
|
Wavelength
|
905nm
|
|
Range measurement
|
3.5-2000 m
|
|
Range finding accuracy:
|
±1m
|
|
Transmitter beam divergence:
|
3.5mrad
|
|
Aperture diameter
|
25mm
|
|
Communication interface
|
TTL
|
|
Input voltage
|
3.3 V±500 mV（standard）
|
|
Stand-by Power consumption
|
＜160 mW
|
|
Size(mm)
|
115*75*40mm
|
|
Weight
|
≤100g
|
|
Operating temperature
|
-20°C~50°C
|
|
heat-dissipating method
|
Natural
|
Thermal or scope system
UAV-based ranging system
Industry ranging system
Various distance measurement cases(Aviation, police, railway, electric power, water conservancy, communication, environment, geology, construction, fire station, blasting, agriculture, forestry , outdoor sports, etc.)
