Description

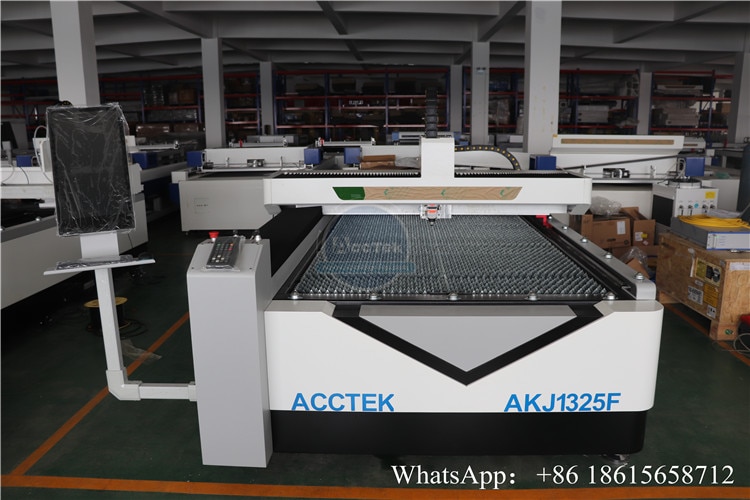

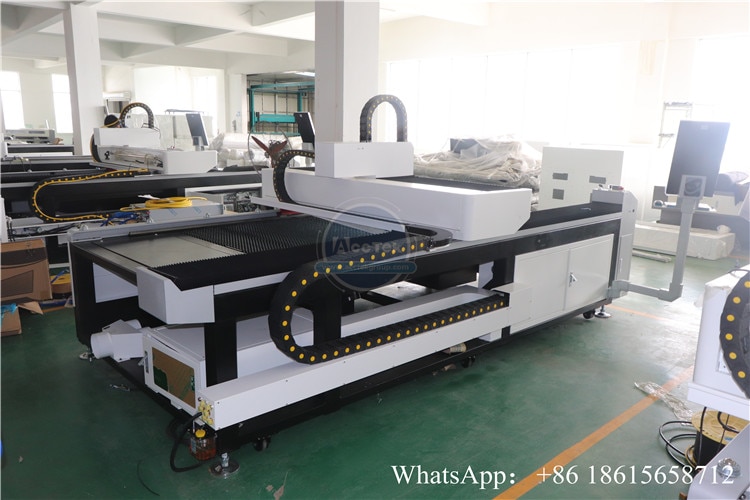

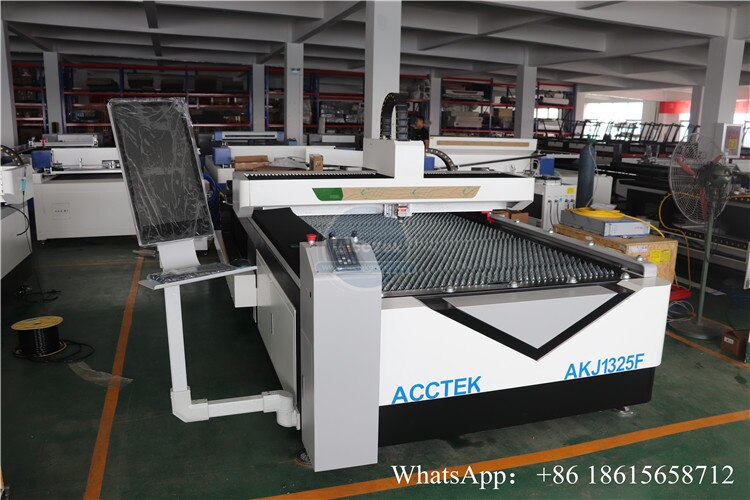

8mm 12mm 14mm Carbon Mild Steel Metal Fiber Laser Cutting Machine With Raycus 1000W 1500W 2000W

Advantages of Carbon Metal Fiber Laser Cutting Machine

1.High Efficiency–The rapid cutting speed is two times higher than normal laser cutting machine.
2.Environment friendly–Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption–The power consumption is 20%-30% lower than ordinary laser cutting machine.
4.Maintenance-free–For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted.

The laser generator with longer lifetime which no need maintained during usage.

Parameters of Carbon Metal Fiber Laser Cutting Machine

Working area	1300*2500mm
Control System	Au3tech controller
Laser head	Au3tech  laser cutting head with auto follong system
Guide rail	Taiwan HIWIN linear guide rail
Transmission	Ball screw transmission
Electronic Components	French Schneider
Motor	Taiwan Delta servo motor
Max Cutting Speed	35m/min
X axis max speed	65m/min
Y axis max speed	100m/min
Z axis max speed	30m/min
X axis max acceleration	1G
Y axis max acceleration	1G
Cooling Way	Water Cooling
Min line width	0.1mm
Power Requirements	380V, 50/60Hz, 16A
Continuous Working Time	24Hours

Cut ability:

1000W: cut stainless steel up to 5mm, 12mm carbon steel .

1500W: cut stainless steel up to 6mm, 14mm carbon steel .

2000W: cut stainless steel up to 8mm, 18mm carbon steel .

AccTek company:

Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty.

Components for our machines are sourced from world class suppliers and innovators in machine control.
These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work,

aluminum fabrication, boat building, shop fitting, mold making, to name a few.
Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.
We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit.
“Our business is to improve your business”
