The 2T laser sensor effectively solves the interference of sunlight and ambient light, enabling the radar to achieve stable ranging and achieve high-precision mapping in indoor and outdoor rivers, thus increasing the application of outdoor scenes.

 Product parameters
Range:0- 8m
Scan frequency: 6Hz
Laser power:1.5mW
Measurement resolution:+2cm
Voltage: 5V
Laser grade:Class1
Starting current:300mA
Baud rate: 115200bps
Working environment temperature: 0 °C – 45 °C
Work environment humidity: <90%
Sampling rate:2 K/s
Laser wavelength: 780nm
Communication interface: Uart(3.3V TTL)
Power consumption: 1 W
Working current: 200 mA

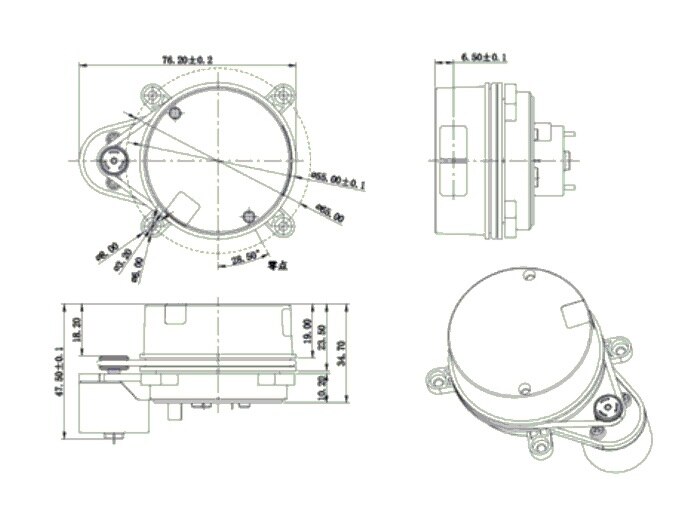

Size:Φ76*54mm*47.5mm
Levelness <1°
Work environment illumination<8000Lux
Humidity:<90%
Working mode: 8 bit data, 1 bit stop bits, Check:None.
Baud rate: 115200
Output low level: <0.4
Output high level: 2.9-3.5

Application environment:

1. Robot SLAM positioning and obstacle avoidance

2. fast and accurate surveying and mapping

3. robot ROS development

4. game interaction.
