80W Laser Modul Head 445nm TTL PWM 40W Engraving Metal Cutting Wood Machine Tool Compressed Spot Technology

$259.00$459.00

SKU: 1005003302000143 Category:

Description

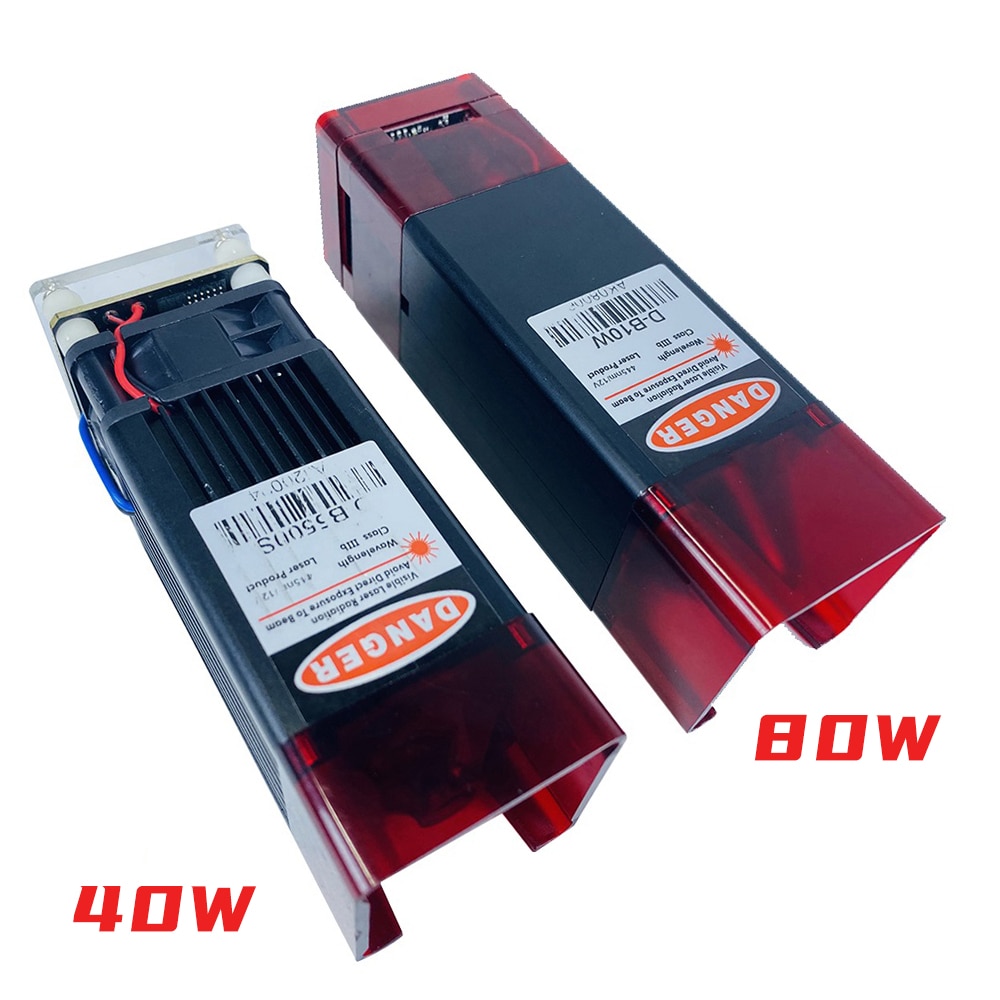

80W Laser Modul Head 445nm TTL PWM 40W Engraving Metal Cutting Wood Machine Tool Compressed Spot Technology

  • Brand Name: annoytools
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 80W













  • Laser Wavelength: 445nm (blue viole)

  • Laser Power: 40W/80W

  • Optical Power Output:5.5W/10W

  • Drive mode: External ACC constant current drive

  • Cooling Method: Forced air cooling

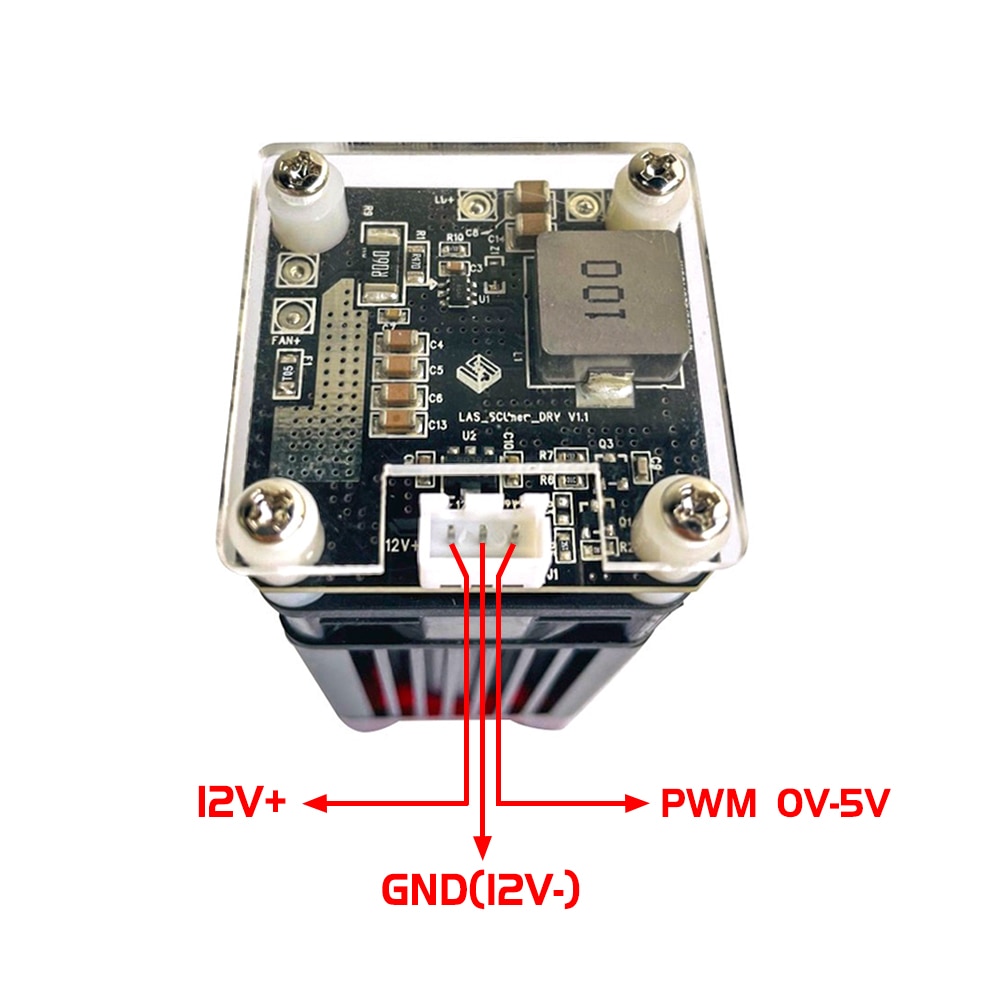

  • Operating Voltage: 12V DC

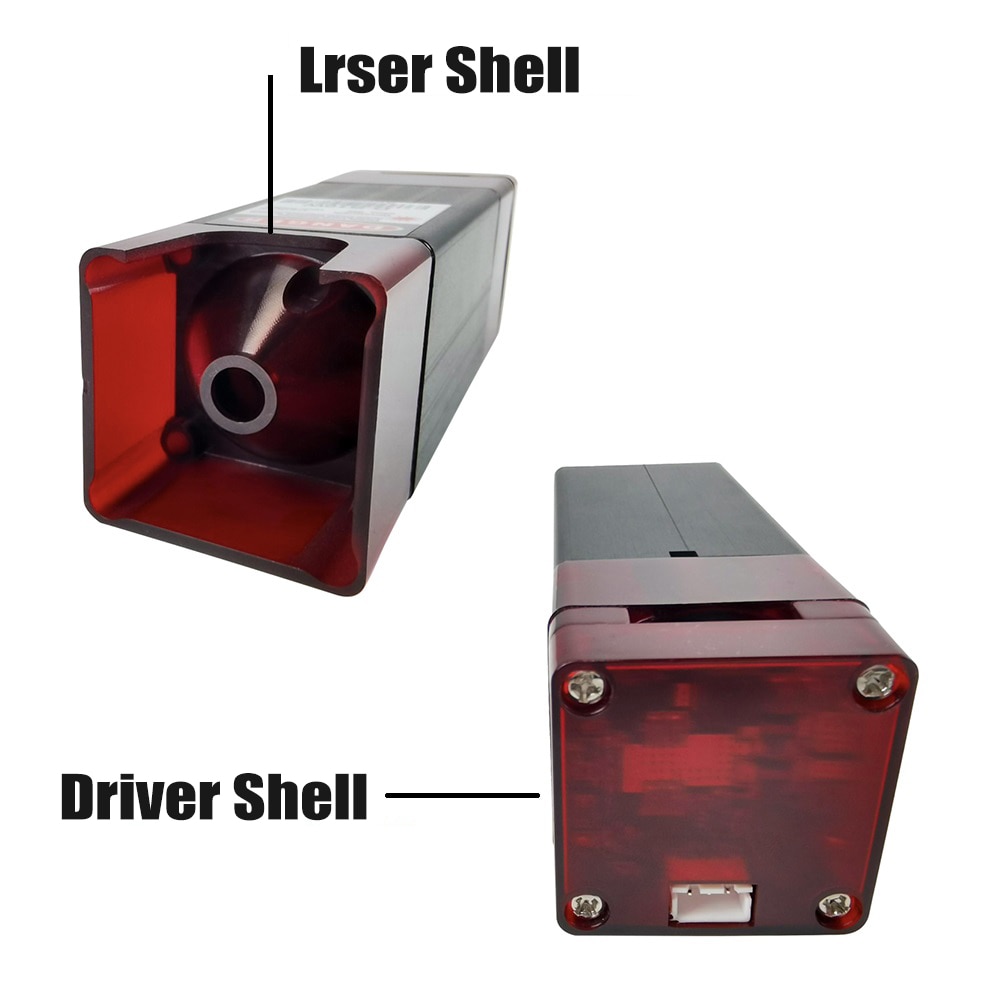

  • Shell Material: Aluminum,Surface Anodized

  • Module Material: Copper

  • Life Time:16000 hours

  • Working Temperature:-40-75Celsius

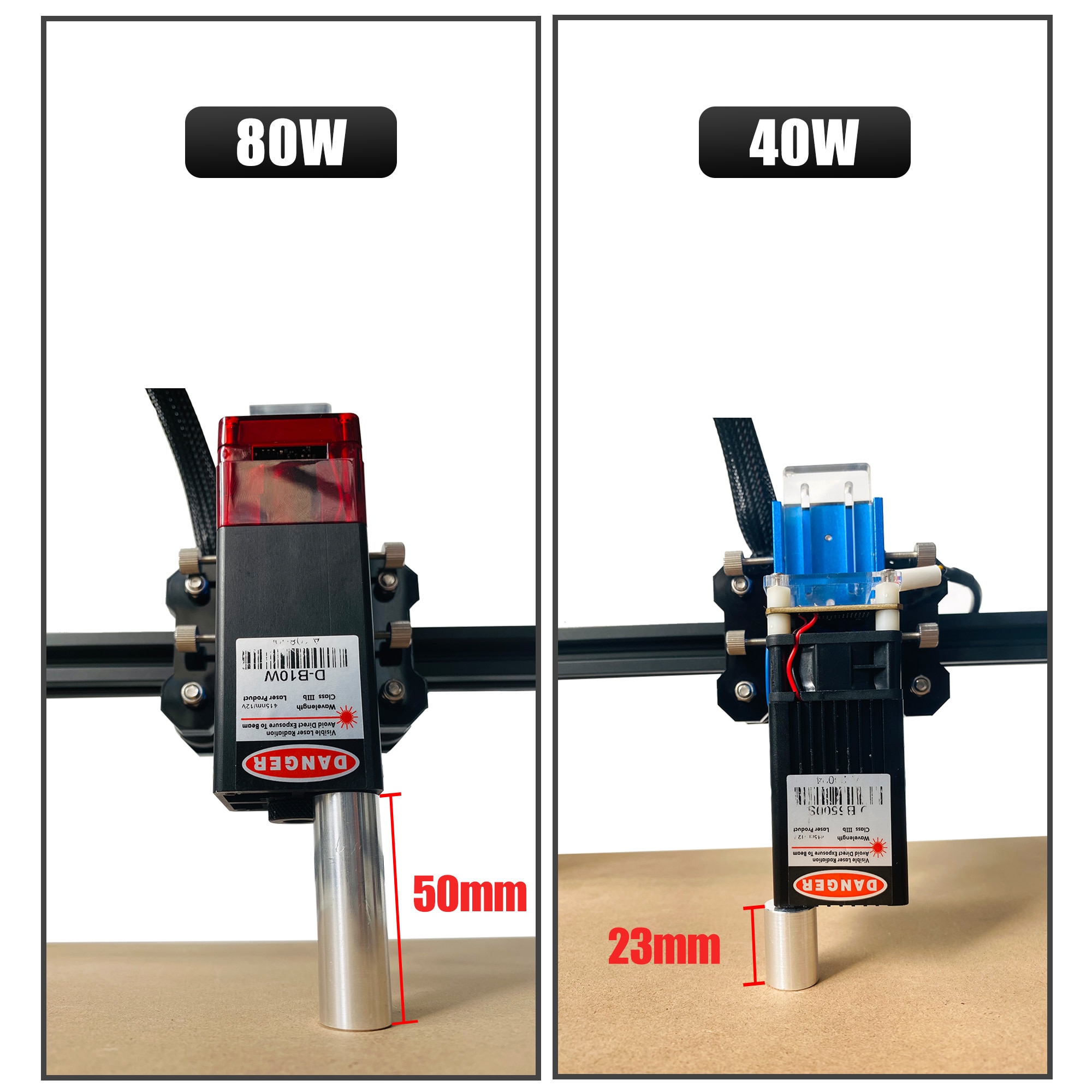

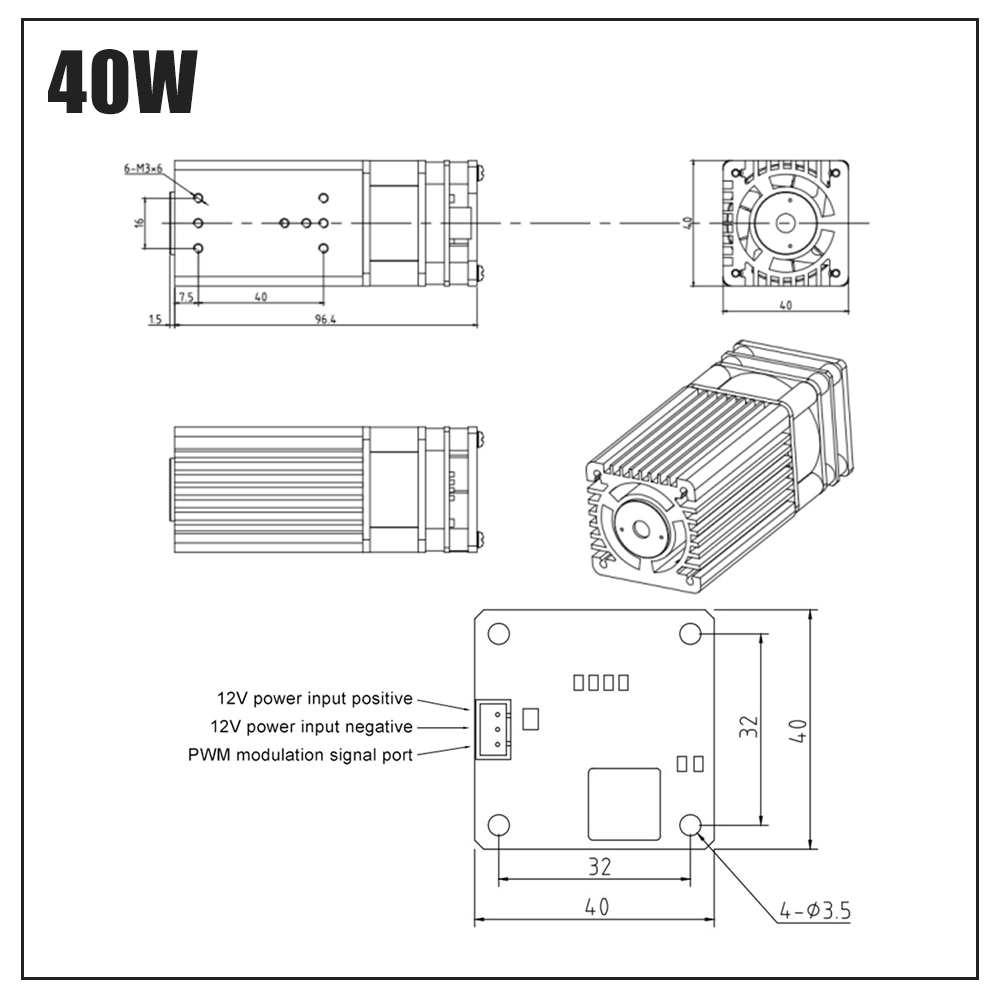

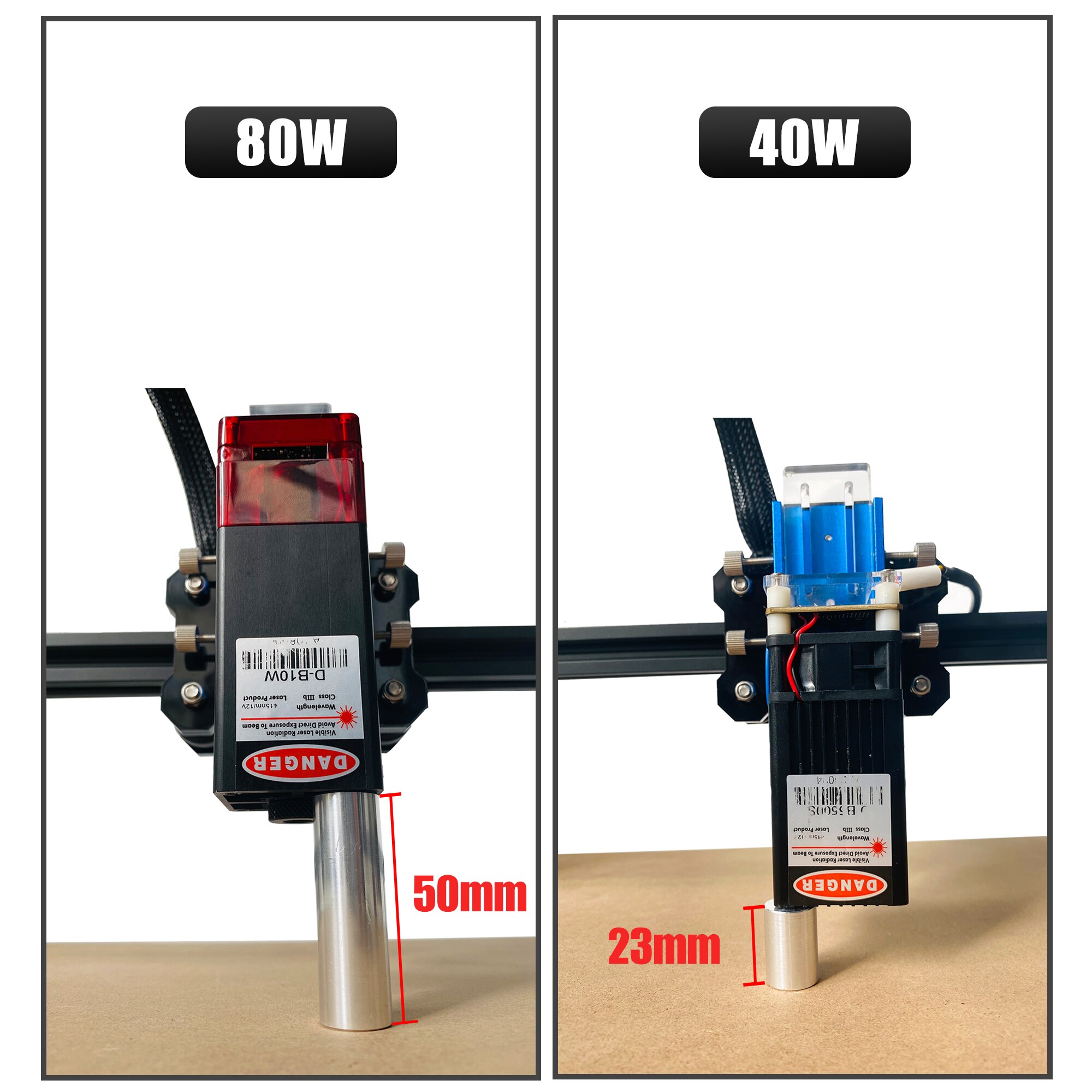

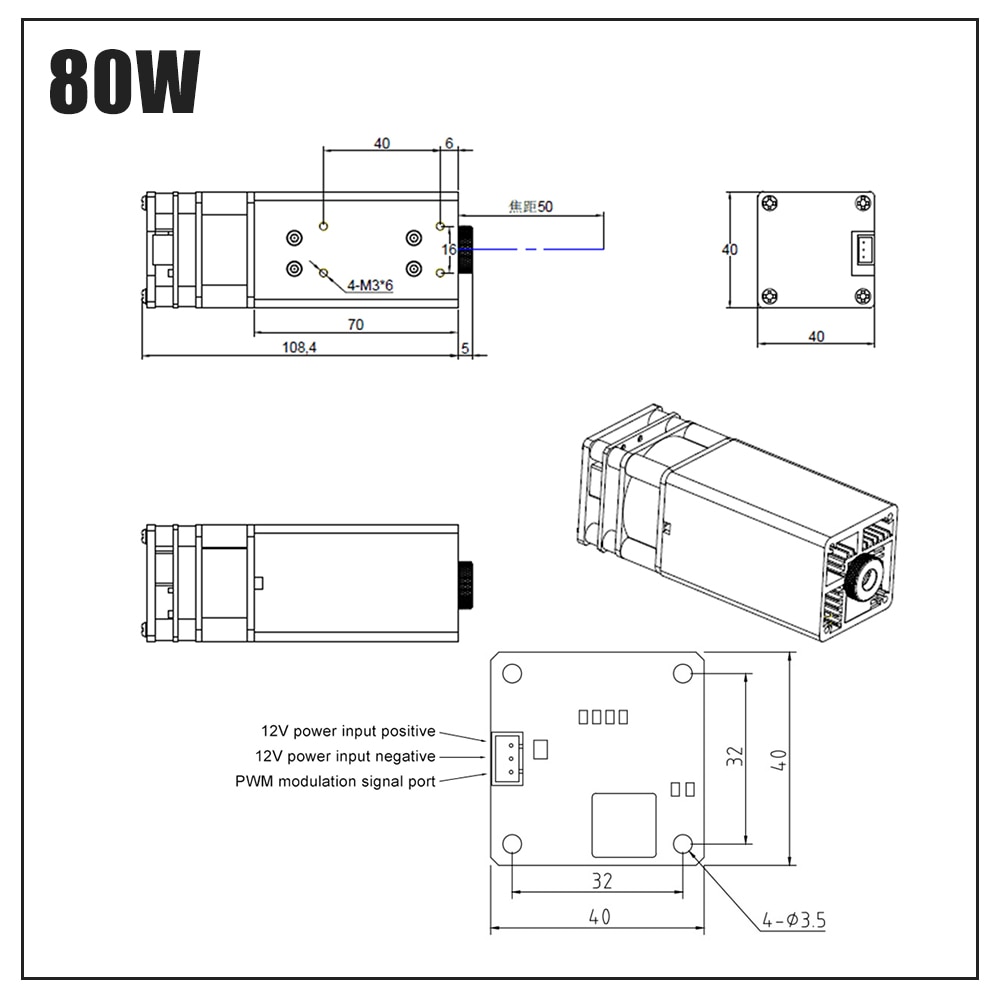

  • Focal Length: 40W-23mm; 80W-50mm

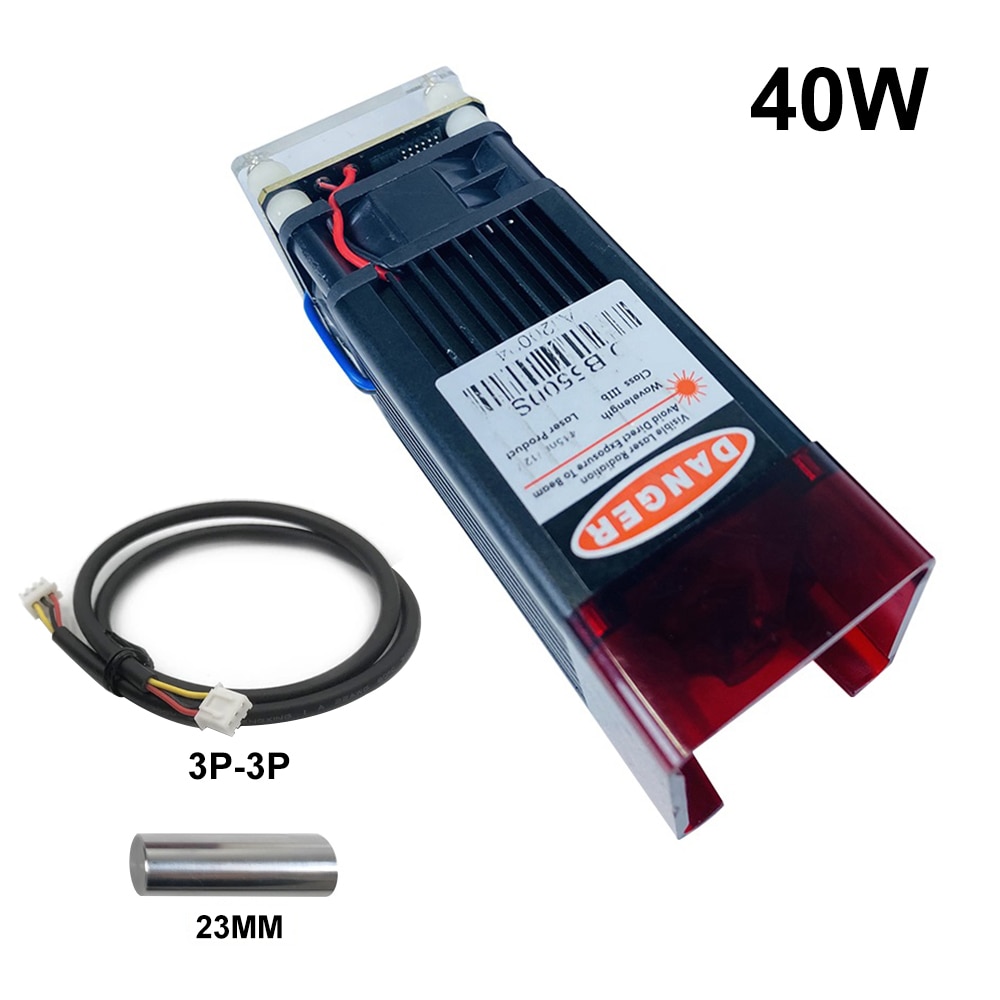

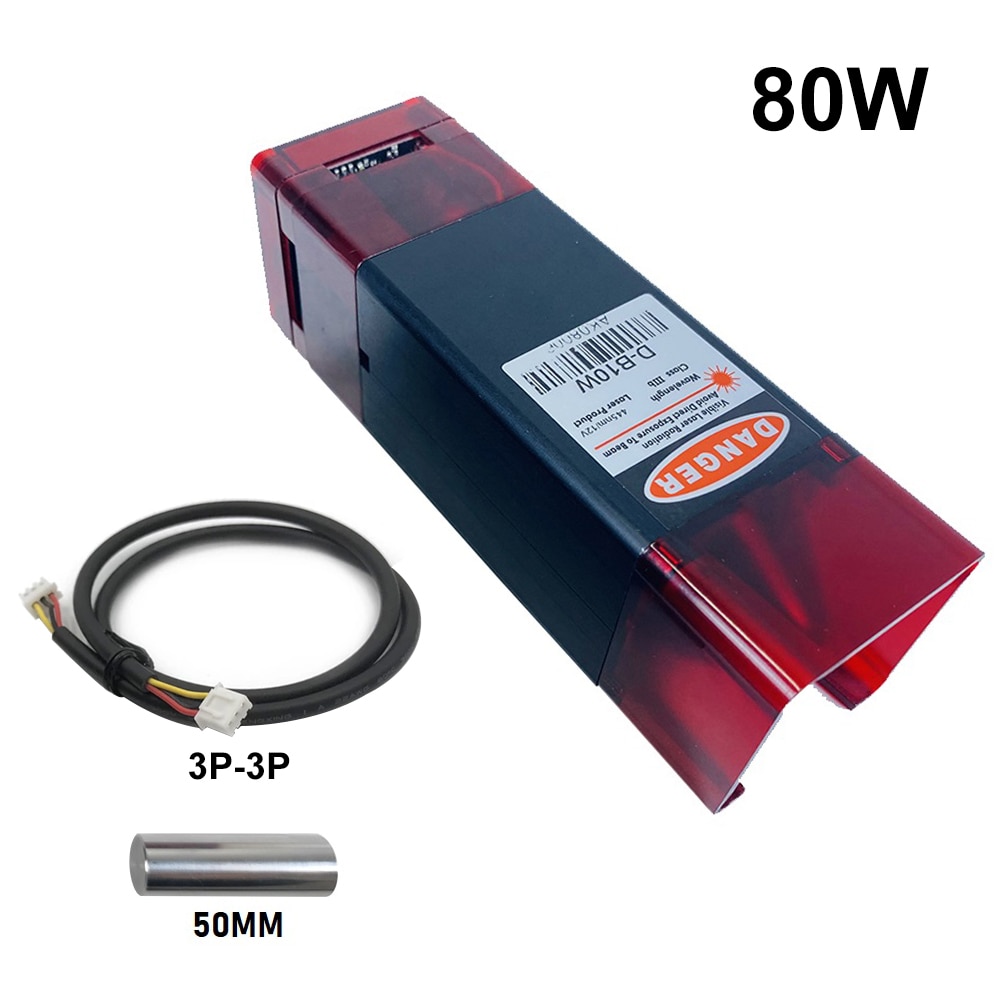

1* Laser

1* Fixed focus column

1* 3P-3P cable

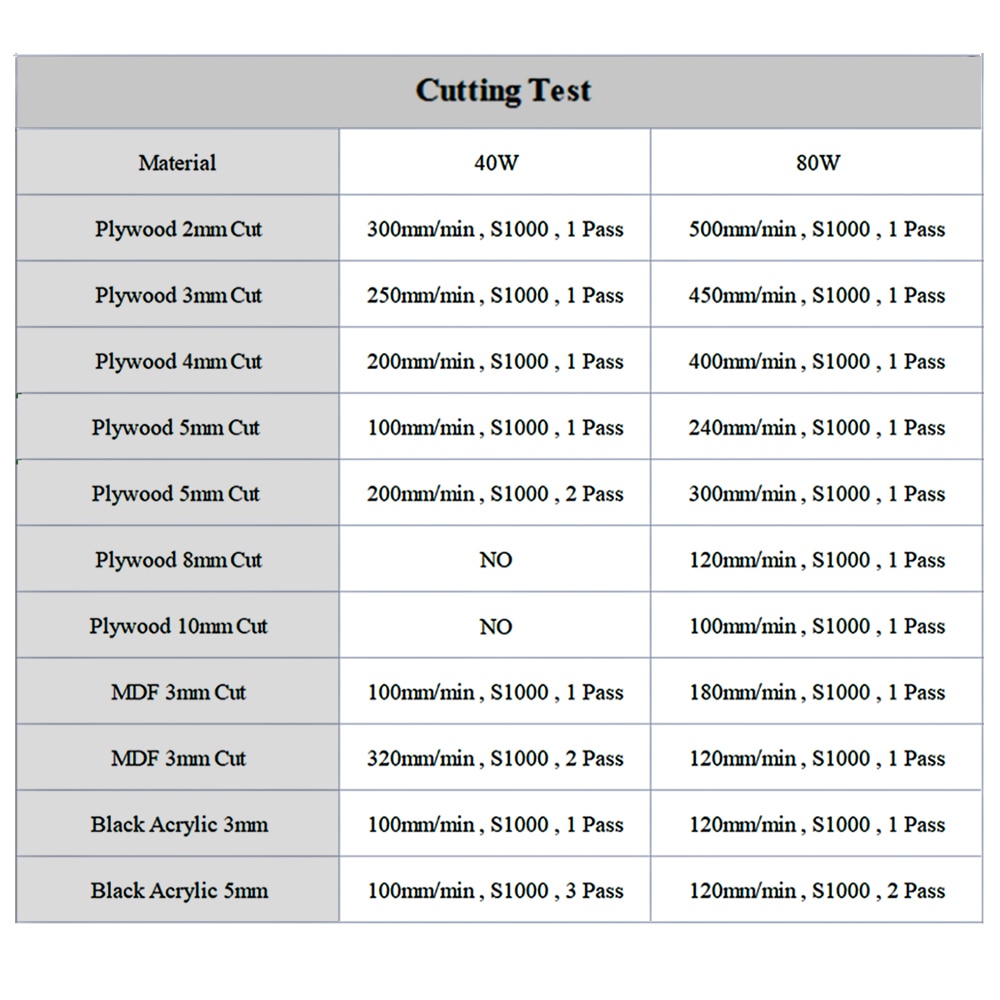

Laser Module: 40W

  • Plywood 2mm cut  : 300mm/min , S1000 , 1 Pass

  • Plywood 3mm cut  : 250mm/min , S1000 , 1 Pass

  • Plywood 4mm cut  : 200mm/min , S1000 , 1 Pass

  • Plywood 5mm cut  : 100mm/min , S1000 , 1 Pass

  • Plywood 5mm cut  : 200mm/min , S1000 , 2 Pass

  • MDF board 3mm cut : 100mm/min , S1000 , 1 Pass

  • MDF board 3mm cut : 320mm/min , S1000 , 2 Pass

  • Black acrylic plate 3mm : 100mm/min , S1000 , 1Pass

  • Black acrylic plate 5mm : 100mm/min , S1000 , 3Pass

Laser Module: 80W

  • Plywood 2mm cut  : 500mm/min , S1000 , 1 Pass

  • Plywood 3mm cut  : 450mm/min , S1000 , 1 Pass

  • Plywood 4mm cut  : 400mm/min , S1000 , 1 Pass

  • Plywood 5mm cut  : 240mm/min , S1000 , 1 Pass

  • Plywood 8mm cut  : 120mm/min , S1000 , 1 Pass

  • Plywood 10mm cut  : 100mm/min , S1000 , 1 Pass

  • MDF board 3mm cut : 180mm/min , S1000 , 1 Pass

  • MDF board 3mm cut : 120mm/min , S1000 , 2 Pass

  • Black acrylic plate 3mm : 120mm/min , S1000 , 1Pass

  • Black acrylic plate 5mm : 120mm/min , S1000 , 2Pass
