Description

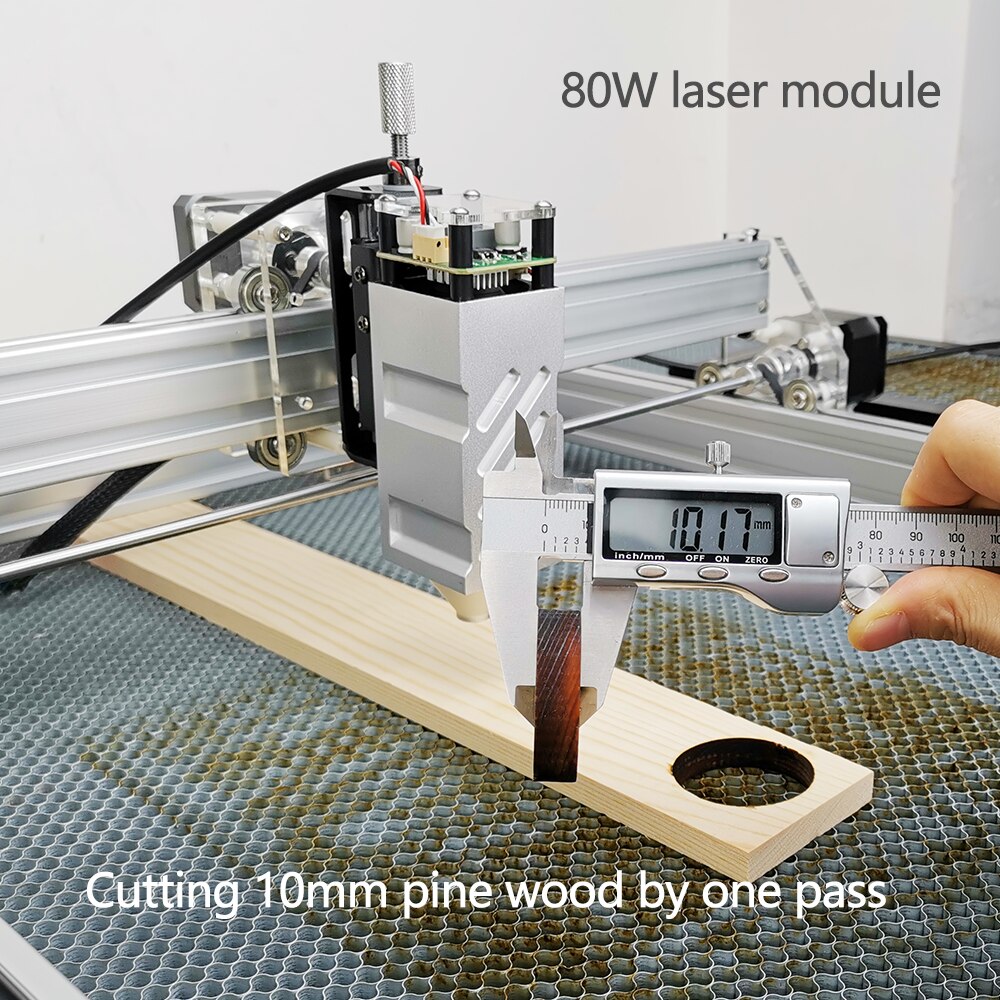

80W Laser Module with Slide CNC Laser Head for Laser Engraving Machine Engraver Cutter Writer Printer Wood Marking Cutting Tool2 in 1

Laser Module Features：

– Designed for Laser Engraver, CNC Mill, DIY Engraving and Cutting.

– Fixed Focus, no need to focus, easy to use.

– Can engrave mirror stainless steel directly.

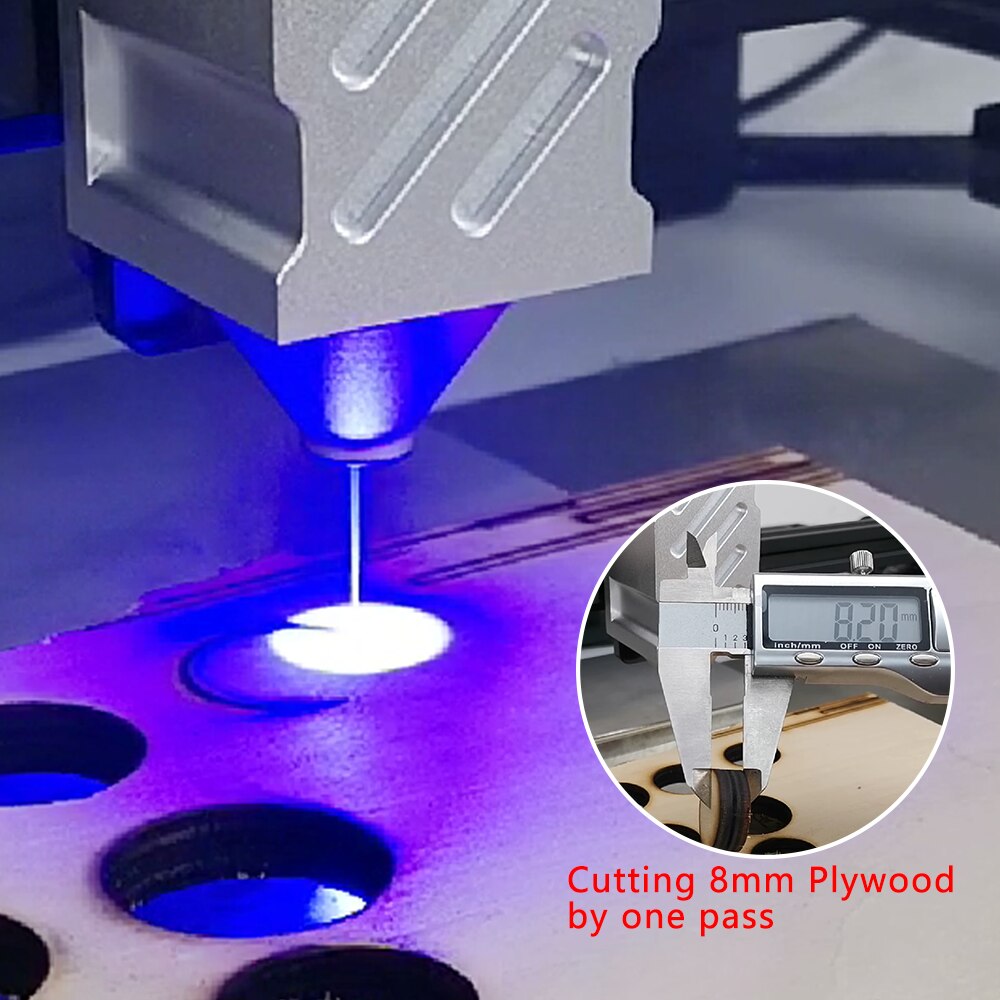

– Can cut 8mm Plywood by one pass.

– Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel

– Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board

General Specifications:

Model：450nm Laser

Heatsink Material：Aluminum

Luminous Color：Blue

Housing Size：42mm x 42mm x 90mm

Cooling Mode：12V 10000 rpm 40mm cooling fan

Optical Lens：φ9 Glass Lens

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm

Product Net Weight: 257g

Technical Parameters：

Electric Power：34.8-38.4W

Optical power output：8-10W

Effect power output: 80W

Laser Wavelength：450-460nm

Beam Shape：Dot ( Not Focusable )

Operating Voltage：DC 12V

Working Current：2.9-3.2A

PWM/TTL Input：DC5-12V

Input Interface：PH2.0-3Pin (+,-, PWM/TTL)

Safe temperature range：<70 ℃

Life Time：over 10000 hours

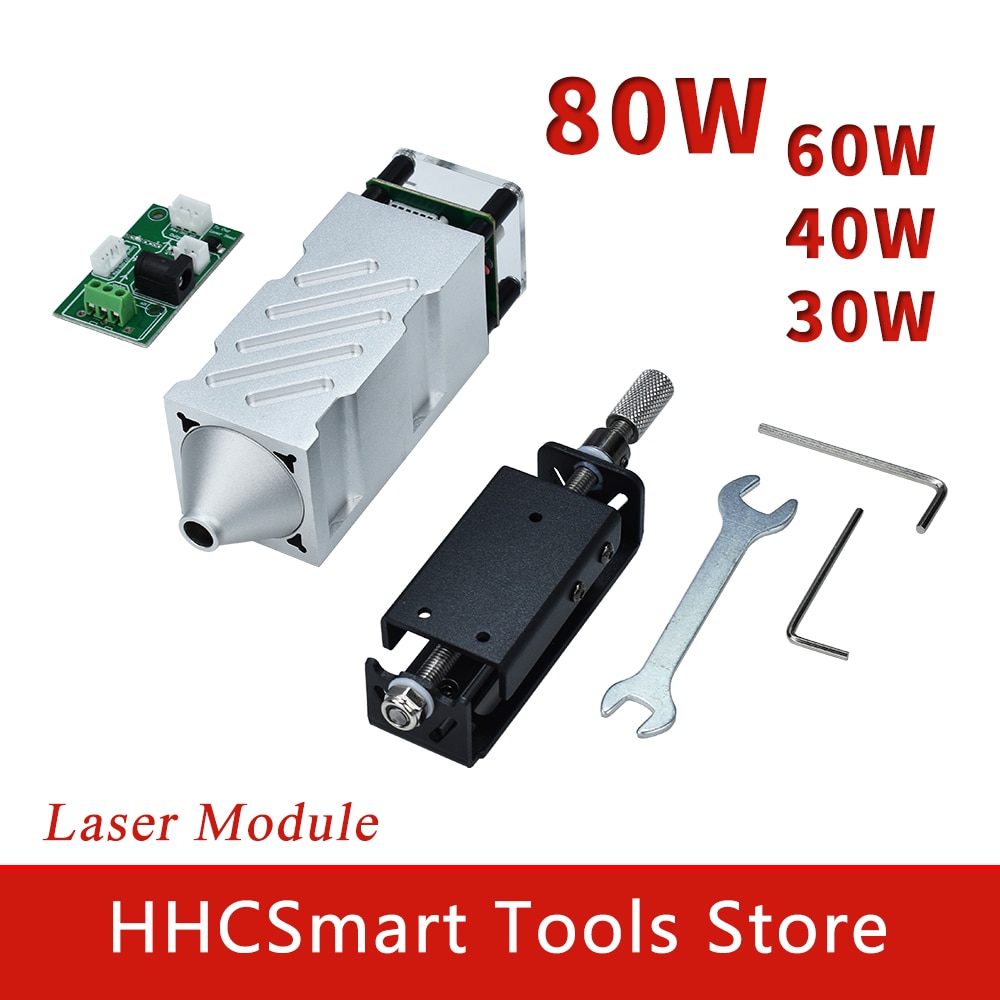

80W Kits 1 includes:

1 x laser head

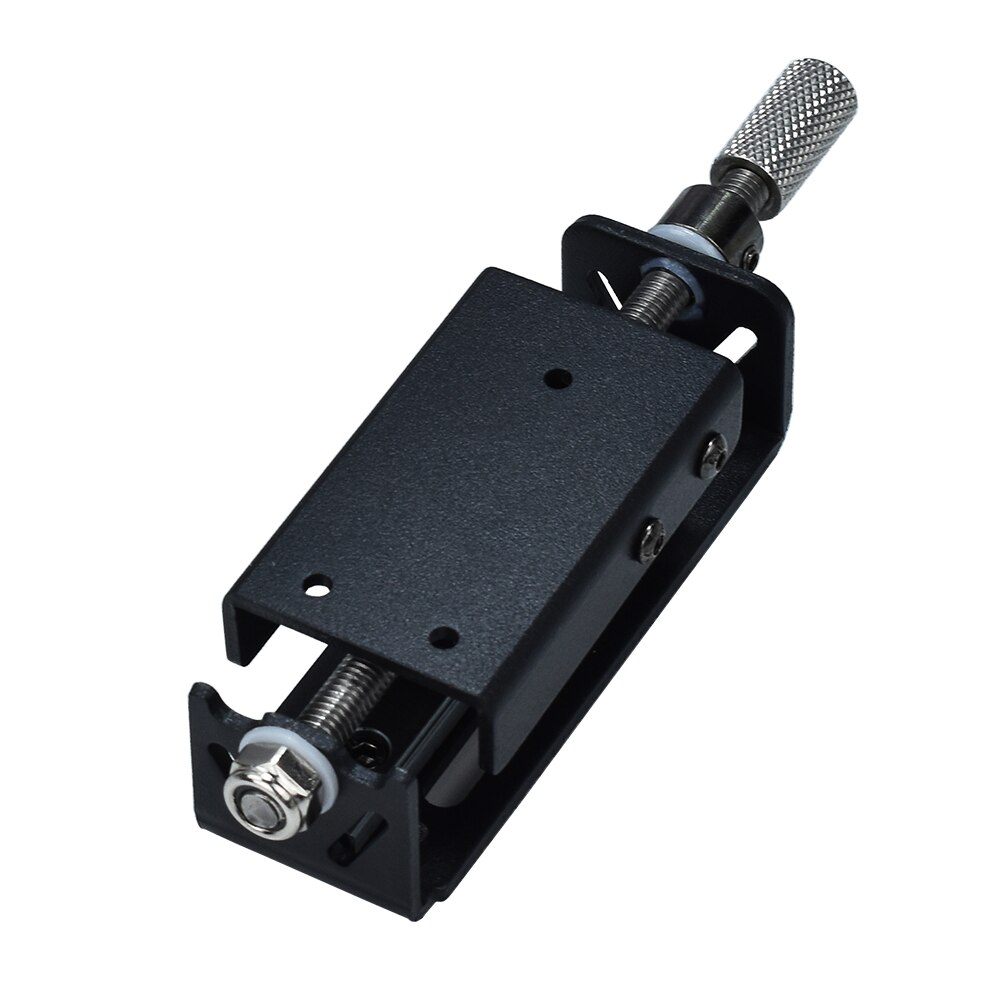

1 x slide plate

1 x interface adapter board

1 x DC12V 4A power supply

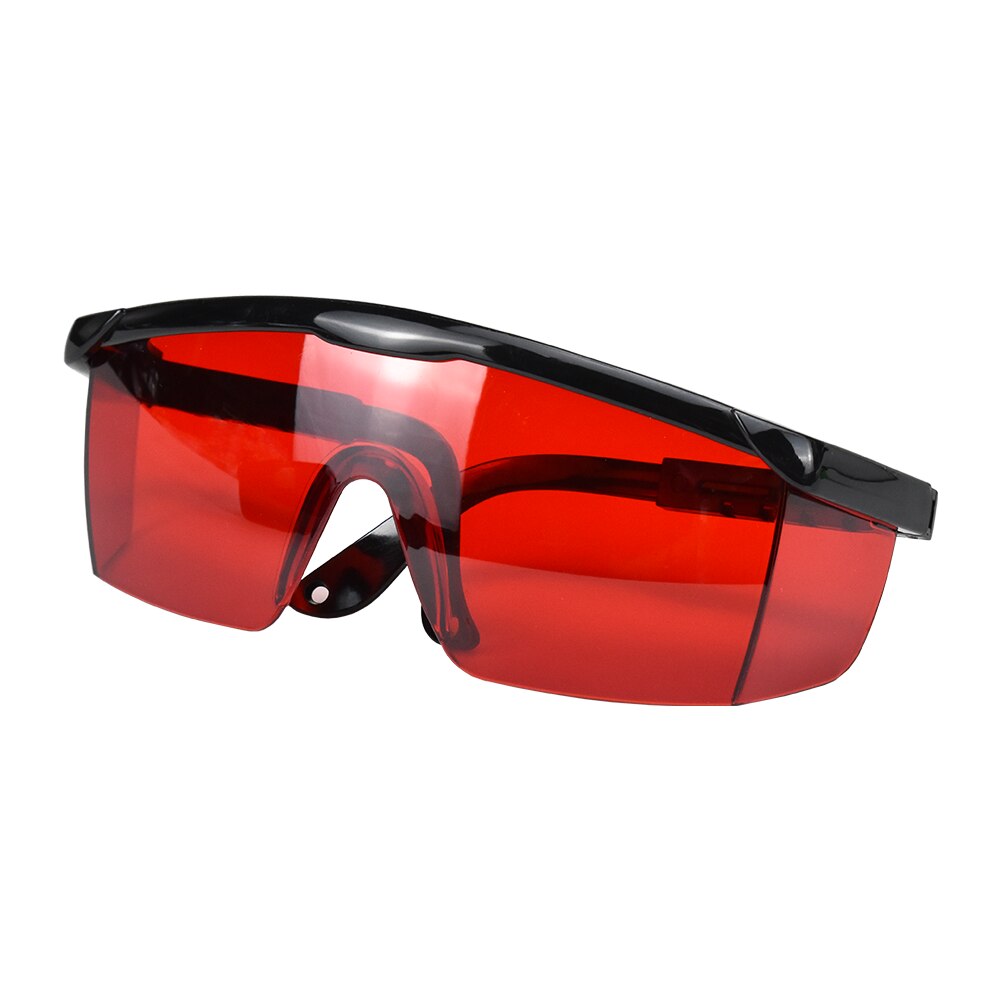

1 x safety goggles

2 x L wrench

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable

80W Kits 2 includes:

1 x laser head

1 x slide plate

1 x interface adapter board

2 x L wrench

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable80W Kits 3 includes:

1 x laser head

1 x interface adapter board

1 x 3 pin laser line

1 x 2 pin TTL/ PWM control line

1 x 4 pin interface input cable
